2017 MAZDA MODEL CX-5 reset

Changing the power liftgate fully open
position
The power liftgate fully-open position can
be changed according to the height of a
garage.
When changing the position
1. Stop the liftgate at the desired position.
2. Press the power liftgate close switch for about three seconds.
A beep sound is activated two times to
indicate that the position change has
been completed.
NOTE
Set the desired fully-open position of the
liftgate at the position where it is open
more than halfway. The position where it
is less than halfway open cannot be set.
To reset
1. Open the liftgate.
2. Press the power liftgate close switchfor about seven seconds.
A beep sound is activated three times
to indicated that the reset has been
completed.
NOTE
After about 3 seconds have elapsed since
the switch was pressed, a beep sound is
activated 2 times to indicate that the
liftgate fully-open position has changed.
Continuously press the switch for about 7
seconds to complete the reset.
Jam-safe equipment
While the power liftgate is opening/
closing electrically and the system detects
a person or an object in the liftgate's path,
the liftgate will move in the reverse
direction automatically and stops.
WA R N I N G
Always check the area around the power
liftgate before opening/closing it:
Not checking for occupants and objects
around the power liftgate before opening/
closing it is dangerous. The jam-safe
equipment is designed to prevent jamming
in the event an obstruction is in the
liftgate's path. The system may not detect
certain objects obstructing the liftgate
depending on the way they are positioned
and their shape. However, if the jam-safe
function detects an obstruction and moves
the liftgate in the reverse direction, an
occupant in the liftgate's path could be
seriously injured.
CAUTION
Sensors are installed on both ends of the
power liftgate. Be careful not to allow the
sensors to be scratched or damaged by
sharp objects, otherwise the liftgate may
no longer open/close automatically. In
addition, if the sensor is damaged while the
liftgate is closing automatically, the system
will stop.
Sensor
Before Driving
Doors and Locks
3-25
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

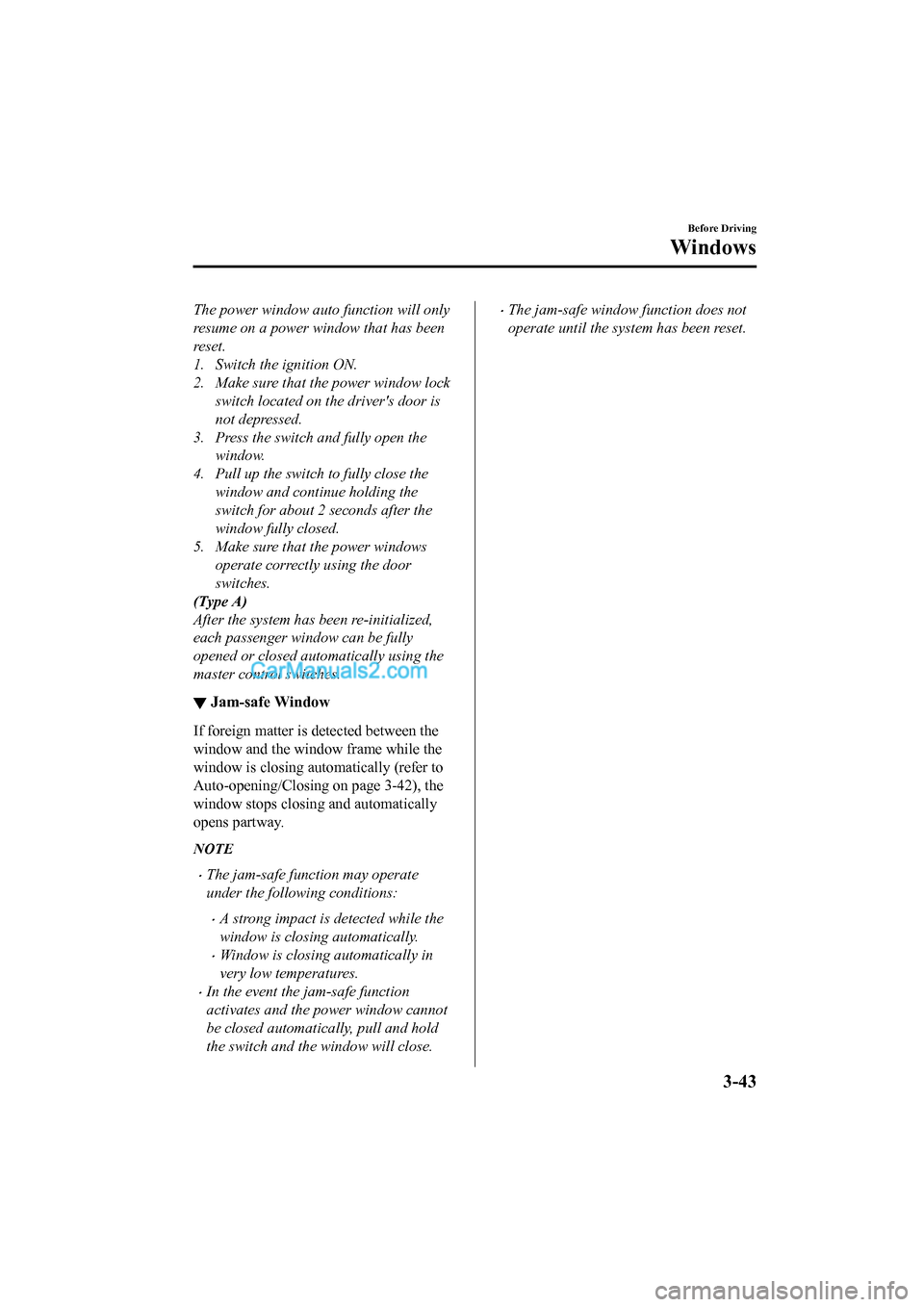

The power window auto function will only
resume on a power window that has been
reset.
1. Switch the ignition ON.
2. Make sure that the power window lock
switch located on the driver's door is
not depressed.
3. Press the switch and fully open the window.
4. Pull up the switch to fully close the window and continue holding the
switch for about 2 seconds after the
window fully closed.
5. Make sure that the power windows
operate correctly using the door
switches.
(Type A)
After the system has been re-initialized,
each passenger window can be fully
opened or closed automatically using the
master control switches.
▼ Jam-safe Window
If foreign matter is
detected between the
window and the window frame while the
window is closing au tomatically (refer to
Auto-opening/Closi ng on page 3-42), the
window stops closing and automatically
opens partway.
NOTE
•The jam-safe function may operate
under the following conditions:
•A strong impact is detected while the
window is closing automatically.
•Window is closing automatically in
very low temperatures.
•In the event the jam-safe function
activates and the power window cannot
be closed automatically, pull and hold
the switch and the window will close.
•The jam-safe window function does not
operate until the system has been reset.
Before Driving
Windows
3-43
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Tilt Operation
The rear of the sunroof can be tilted open
to provide more ventilation.

To fully tilt automatically, momentarily
press the tilt/slide switch.
To fully close automatically, momentarily
press the tilt/slide switch in the forward
direction.
To stop tilting partway, press the tilt/slide
switch.
When the sunroof is already slid open and
you want to tilt it open, first close the
sunroof and then do a tilt operation.
Close (Tilt down)Tilt up
Slide Operation
To fully open automatically, momentarily
press the tilt/slide sw
itch in the backward
direction.
To fully close automatically, momentarily
press the tilt/slide switch in the forward
direction.
To stop sliding partway, press the tilt/slide
switch.
When the sunroof is already tilted open
and you want to slide it open, first close
the sunroof and then do a slide operation.
Close Open
NOTE
If the sunroof does not operate normally,
do the following procedure:
1. Switch the ignition ON.
2. Press the tilt switch, to partially tilt
open the rear of the sunroof.
3. Repeat Step 2. The rear of the sunroof tilts open to the fully open position,
then closes a little.
If the reset procedure is performed while
the sunroof is in the slide position
(partially open) it will close before the
rear tilt opens.
Before Driving
Windows
3-45
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Jam-safe Sunroof
If a person's hands, head or an object
blocks the sunroof while it is closing, the
sunroof will stop and move in the open
direction.
NOTE
•The jam-safe function may operate
under the following conditions:
•A strong impact is detected while the
sunroof is closing automatically.
•The sunroof is closing automatically
during very low temperatures.
•In the event the
jam-safe function
activates and the sunroof cannot be
closed automatically, press the tilt/slide
switch and the sunroof will close.
•The jam-safe sunroof function does not
operate until the system has been reset.
▼ Sunshade
The sunshade can be opened and closed by
hand.

The sunshade opens at the same time as
the sunroof slides open, but it must be
closed by hand.
Sunshade
Before Driving
Windows
3-46
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•Always keep a spare key in case one is
lost. If a key is lost, consult an
Authorised Mazda Repairer as soon as
possible.
•If you lose a key, an Authorised Mazda
Repairer will reset the electronic codes
of your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorised Mazda Repairer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
▼Operation
NOTE
•The engine may not start and security
indicator light may illuminate or flash if
the key is placed in an area where it is
difficult for the system to detect the
signal, such as on the instrument panel
or in the glove comp
artment. Move the
key to a location within the signal
range, switch the ignition off, and then
restart the engine.
•Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indica tor light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.

Disarming
The system is disarmed when the ignition
is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine d oes not start after 3
or more tries, contact an Authorised
Mazda Repairer.
NOTE
•If the security indicator light flashes
continuously while you are driving, do
not shut off the engine. Go to an
Authorised Mazda Repairer and have it
checked. If the engine is shut off while
the indicator light is flashing, you will
not be able to restart it.
•Because the electronic codes are reset
when the immobilizer system is repaired,
the keys are needed. Make sure to bring
all the keys to an Authorised Mazda
Repairer so that they can be
programmed.
Before Driving
Security System
3-48

2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Odometer, Trip Meter and Trip
Meter Selector (Without
Multi-information Display)
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector while one of them is displayed.
The selected mode will be displayed.

Selector
Press the selector Press the selector
Press the selector
Odometer
Trip meter A
Trip meter B

Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total distance
of two trips. One is recorded in trip meter
A, and the other is r
ecorded in trip meter
B.

For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.

When trip meter A is s elected, pressing the
selector again within one second will
change to trip meter B mode.

When trip meter A is selected, TRIP A
will be displayed. Wh en trip meter B is
selected, TRIP B will be displayed.

The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to “0.0” by
depressing and holding the selector for one
second or more. Use this meter to measure
trip distances and to compute fuel
consumption.
NOTE
•(Vehicles with type B audio)
If the fuel economy data is reset using
the fuel economy monitor, or trip A is
reset using the trip meter when the
function which synchronizes the fuel
economy monitor and the trip meter is
on, the fuel economy data and trip A are
reset simultaneously.
Refer to Fuel Economy Monitor on page
4-96.
•Only the trip meters record tenths of
kilometres (miles).
•The trip record will be erased when:
•The power supply is interrupted
(blown fuse or the battery is
disconnected).
•The vehicle is driven over 9999.9 km
(mile).
When Driving
Instrument Cluster and Display
4-24
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

NOTE
When the temperature unit indicated in the
outside temperature display is changed,
the temperature unit indicated in the
engine coolant gauge display changes in
conjunction with it.
Outside Temperature Warning
*
When the outside temperature is low, the
indication flashes and a beep sound is
heard to warn the driver of the possibility
of icy roads.
If the outside temperature is lower than
about 4 °C (39 °F), the outside
temperature display and the
mark
flashes for about ten seconds and a beep
sound is heard once.
NOTE
If the outside temperature is lower
than -20 °C (-4 °F), the beep sound does
not operate. However, the
mark
illuminates.
▼ Adjustable Speed Limiter (ASL)
Display (Without Multi-information
Display)
*
The setting status of the adjustable speed
limiter (ASL) is displayed.

▼ Cruise Control Set Vehicle Speed
Display (Without Multi-information
Display)
*
The vehicle speed preset using the cruise
control is displayed.

(European model)
(Except European model)
▼Trip Computer and INFO Switch
(Without Multi-information
Display)
The following informa
tion can be selected
by pressing the INFO switch with the
ignition switched ON.
•Distance-to-empty mode
•Average fuel economy mode
•Current fuel economy mode
If you have any prob lems with your trip
computer, consult an expert repairer, we
recommend an Authorised Mazda
Repairer.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.

The distance-to-empty will be calculated
and displayed every second.
When Driving
Instrument Cluster and Display
4-28*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

(European model)
(Except European model)
NOTE
•Even though the distance-to-empty
display may indicate a sufficient amount
of remaining driving distance before
refuelling is required, refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.
•The display may not change unless you
add more than approximately 9 L (2.3
US gal, 1.9 Imp gal) of fuel.
•The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
(indicating the remaining fuel supply)
disappear.
•If there is no past fuel economy
information such as after first
purchasing your vehicle or the
information is dele ted when the battery
leads are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.
Average fuel economy mode
This mode displays the average fuel
economy by calculating the total fuel
consumption and the total travelled
distance since purch asing the vehicle,
re-connecting the battery after
disconnection, or resetting the data. The
average fuel economy is calculated and
displayed every minute.
(European model)
(Except European model)
Type A
Type B
To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - -
L/100 km (- - - mpg) or - - - km/L will be
displayed for about 1 minute before the
fuel economy is recalculated and
displayed.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of fuel
consumption and the distance travelled.

Current fuel economy will be calculated
and displayed every 2 seconds.
When Driving
Instrument Cluster and Display
4-29
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
