2015 TOYOTA YARIS HATCHBACK Owners Manual

3777-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_WE_52G04E
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to register the ID code. Have the ID code
registered by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
■ When to replace your vehicle’s tires
Tires should be replaced if:
● The treadwear indicators are showing on a tire.
● You have tire damage such as cuts, splits, cracks deep enough to expose
the fabric, and bulges indicating internal damage
● A tire goes flat repeatedly or cannot be properly repaired due to the size or
location of a cut or other damage
If you are not sure, consult with any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
■ Replacing tire and wheels (vehicles with a tire pressure warning system)
If the ID code of the tire pressure warning valve and transmitter is not regis-
tered, the tire pressure warning system will not work properly. After driving for
about 10 minutes, the tire pressure warning light blinks for 1 minute and stays
on to indicate a system malfunction.
■ Tire life
Any tire over 6 years old must be checked by a qualified technician even if it
has seldom or never been used or damage is not obvious.
■ Low profile tires (vehicles with 195/50R16 tires)
Generally, low profile tires will wear more rapidly and tire grip performance
will be reduced on snowy and/or icy roads when compared to standard tires.
Be sure to use snow tires or tire chains on snowy and/or icy roads and drive
carefully at a speed appropriate for road and weather conditions.
Registering ID codes (vehicles with a tire pressure warning sys-
tem)

3787-3. Do-it-yourself maintenance
YARIS_F_WE_52G04E

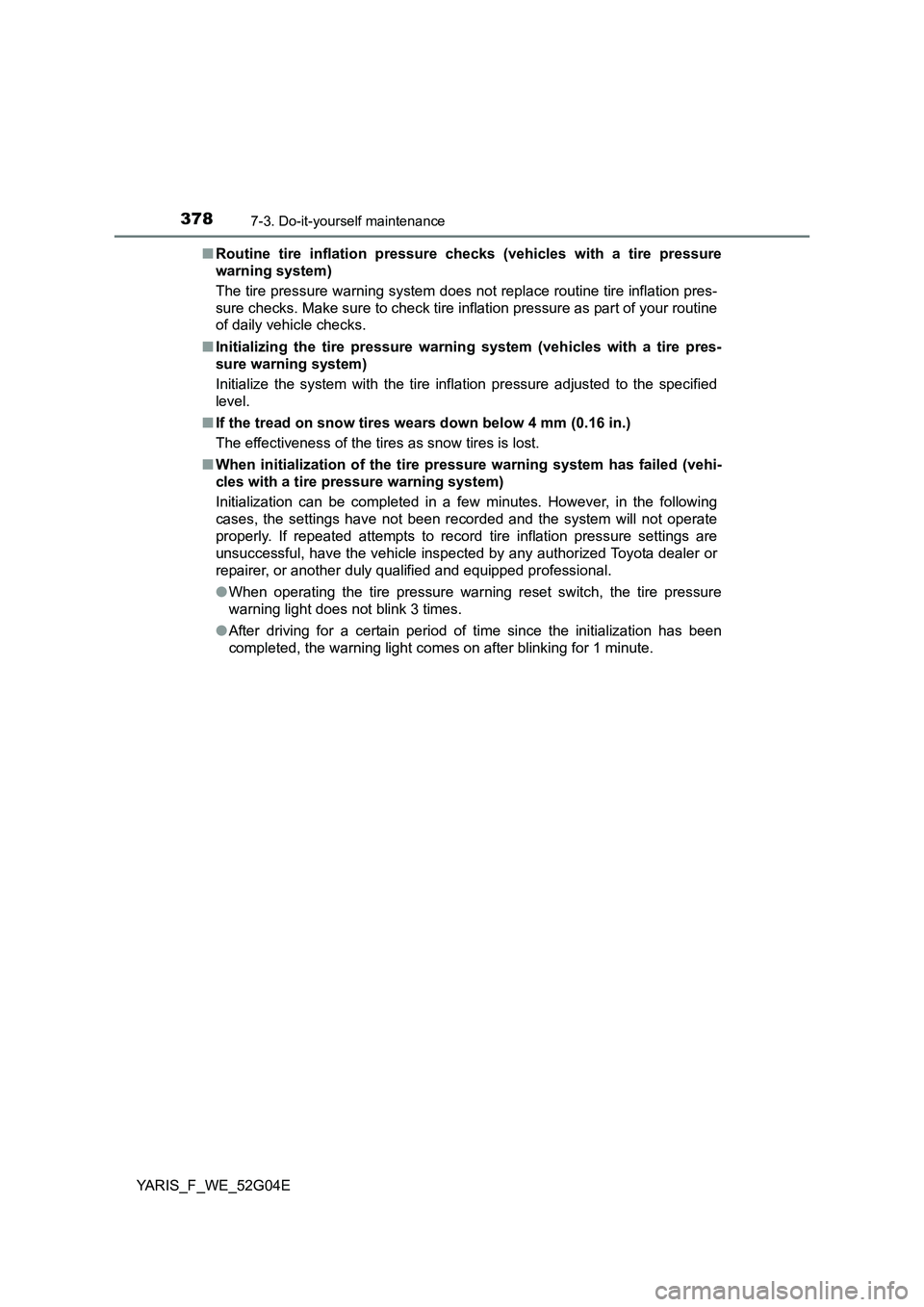

■ Routine tire inflation pressure checks (vehicles with a tire pressure
warning system)
The tire pressure warning system does not replace routine tire inflation pres-
sure checks. Make sure to check tire inflation pressure as part of your routine
of daily vehicle checks.
■ Initializing the tire pressure warning system (vehicles with a tire pres-
sure warning system)
Initialize the system with the tire inflation pressure adjusted to the specified
level.
■ If the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost.
■ When initialization of the tire pressure warning system has failed (vehi-
cles with a tire pressure warning system)
Initialization can be completed in a few minutes. However, in the following
cases, the settings have not been recorded and the system will not operate
properly. If repeated attempts to record tire inflation pressure settings are
unsuccessful, have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
● When operating the tire pressure warning reset switch, the tire pressure
warning light does not blink 3 times.
● After driving for a certain period of time since the initialization has been
completed, the warning light comes on after blinking for 1 minute.

3797-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_WE_52G04E

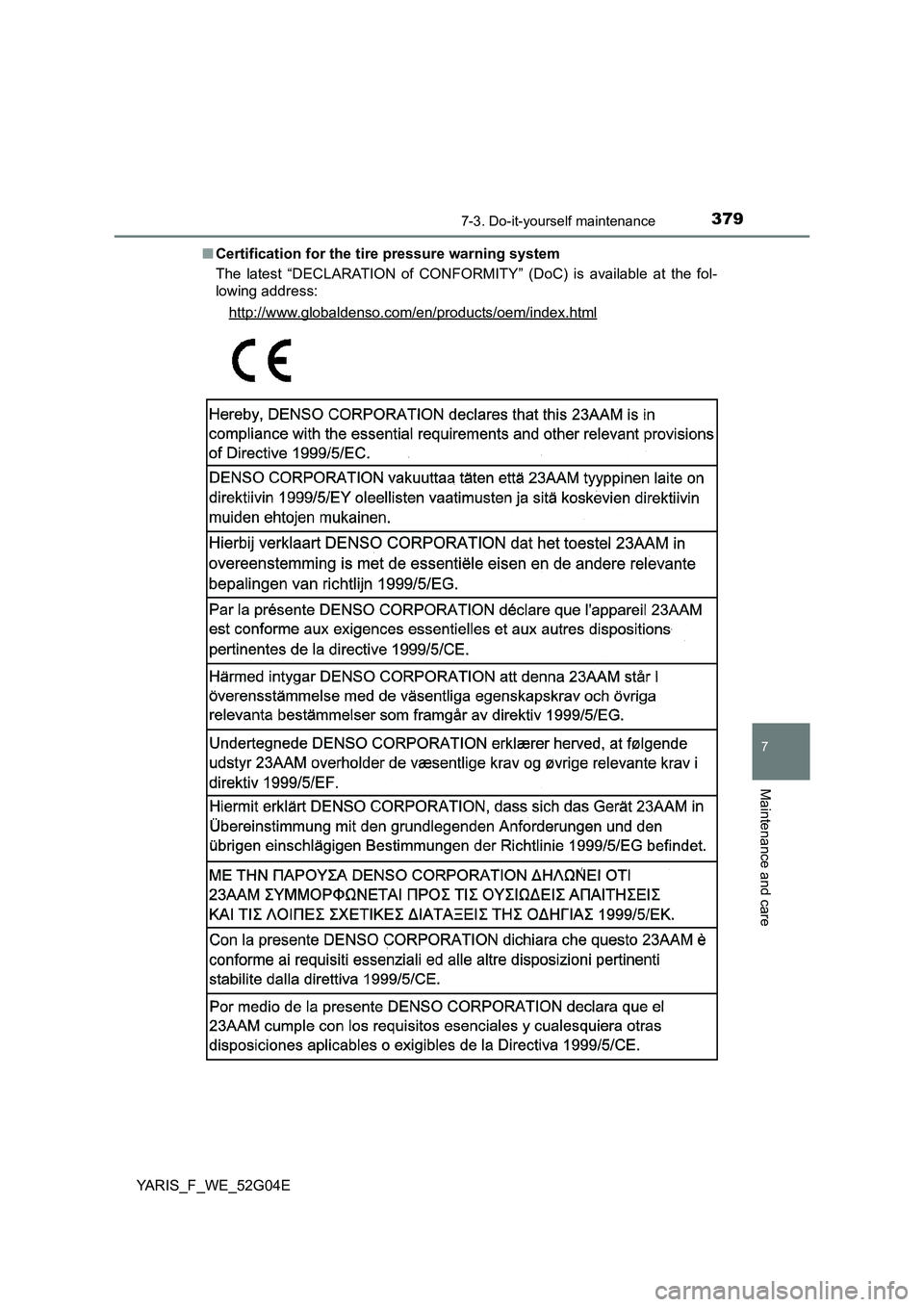

■ Certification for the tire pressure warning system
The latest “DECLARATION of CONFORMITY” (DoC) is available at the fol-
lowing address:
http://www.globaldenso.com/en/products/oem/index.html

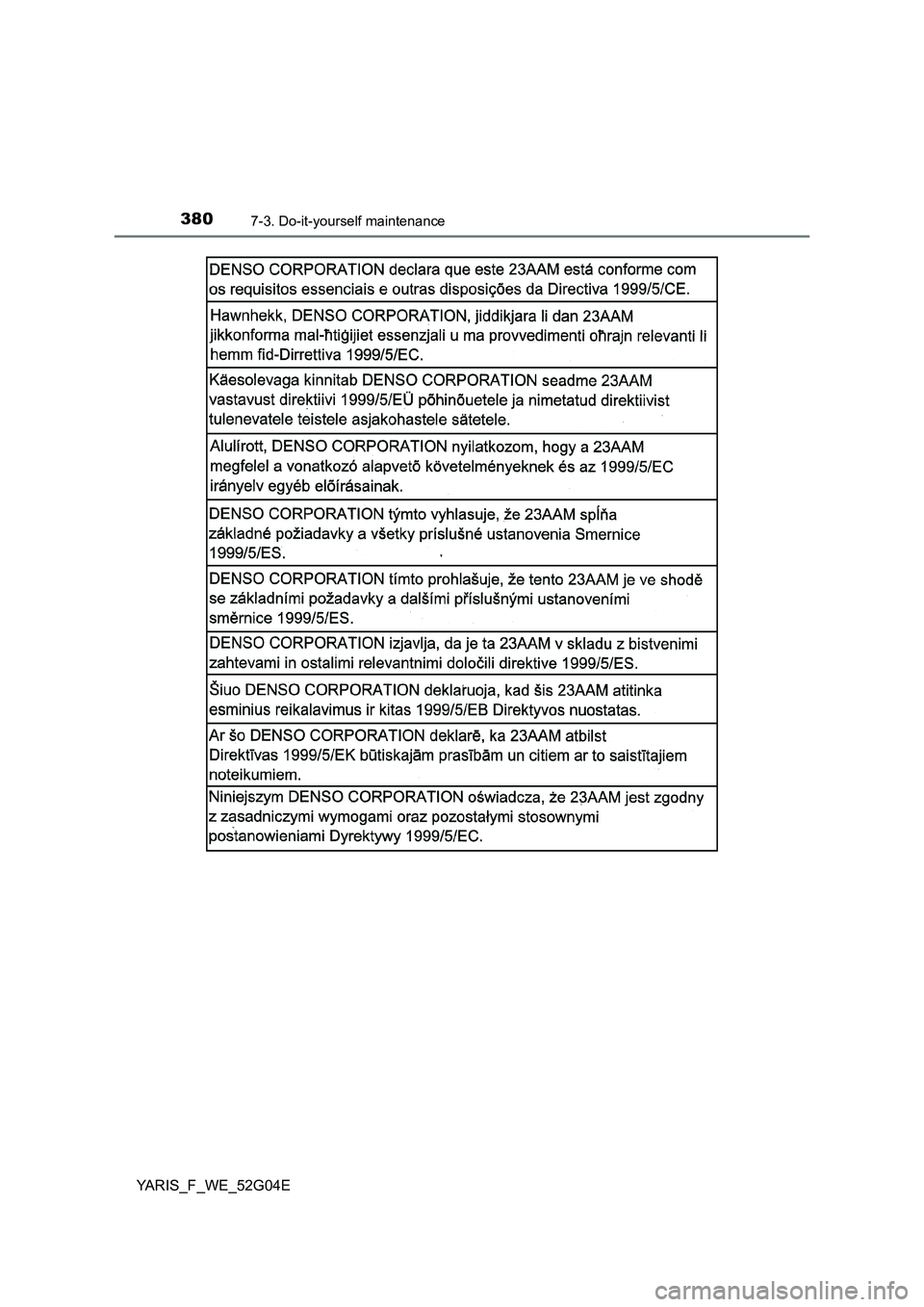

3807-3. Do-it-yourself maintenance
YARIS_F_WE_52G04E

3817-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_WE_52G04E

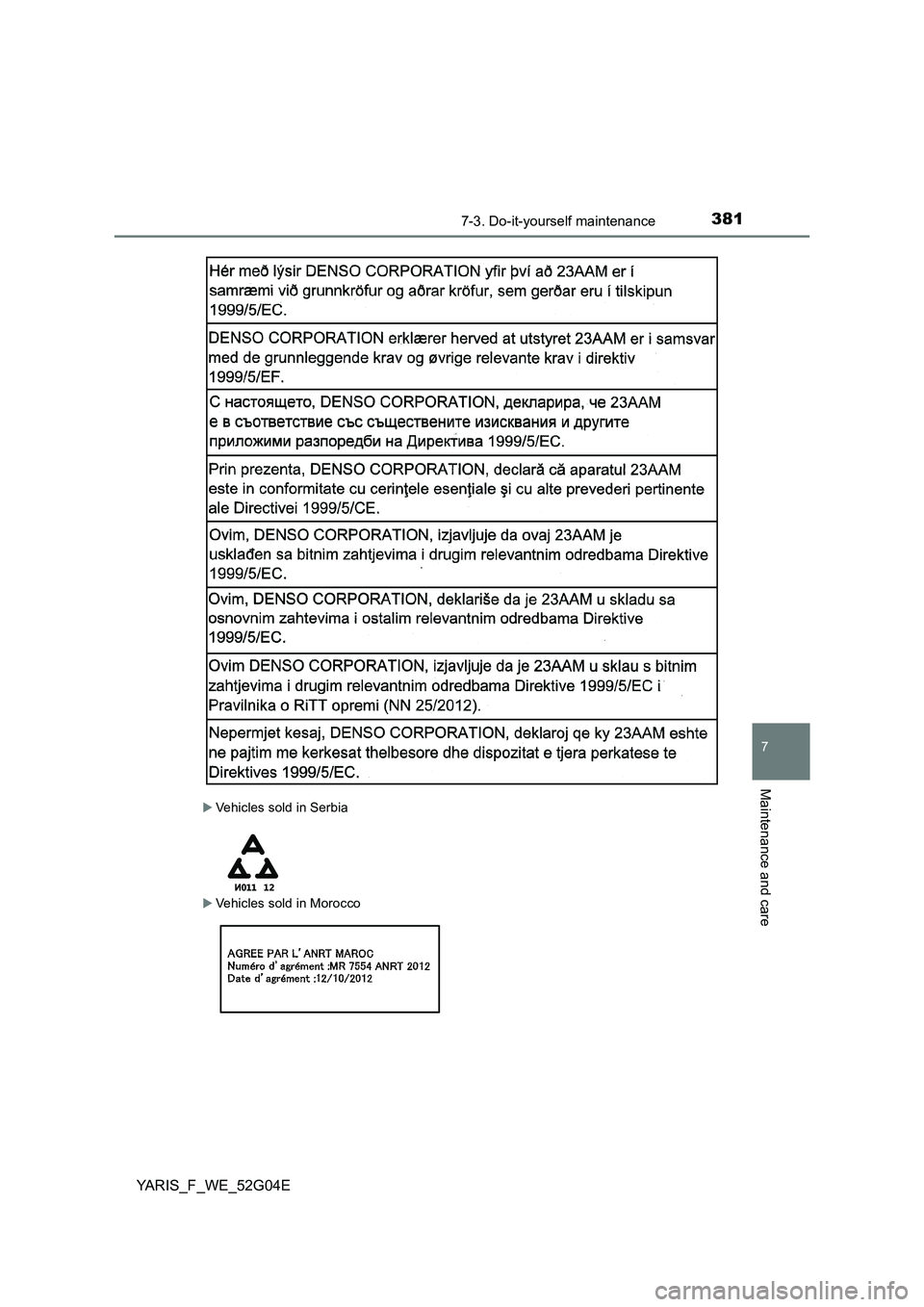

Vehicles sold in Serbia
Vehicles sold in Morocco

3827-3. Do-it-yourself maintenance
YARIS_F_WE_52G04E

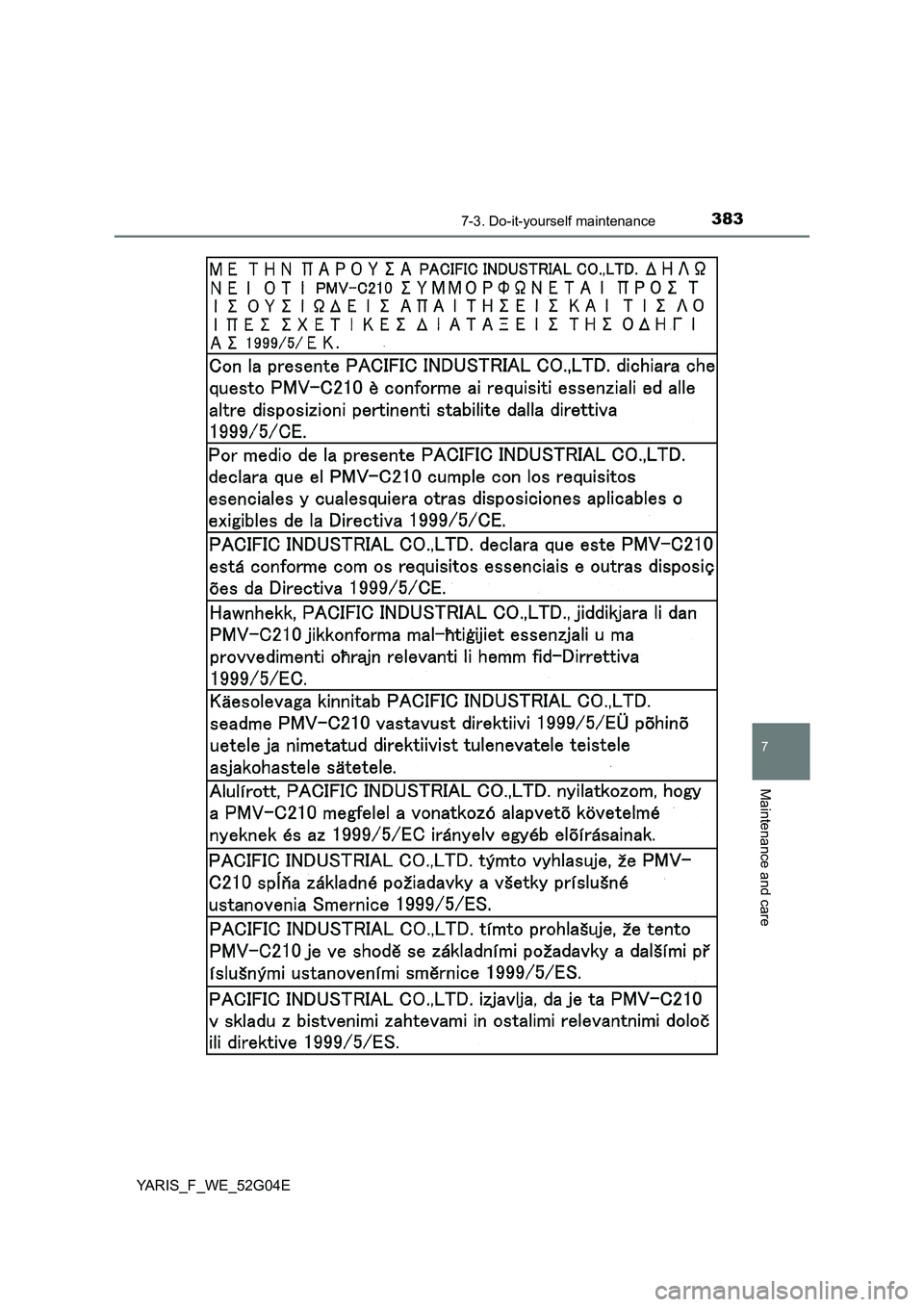

The latest “DECLARATION of CONFORMITY” (DoC) is available at the fol-
lowing:
DoC address: http://www.pacific-ind.co.jp/eng/products/car/tpms/doc/

3837-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_WE_52G04E

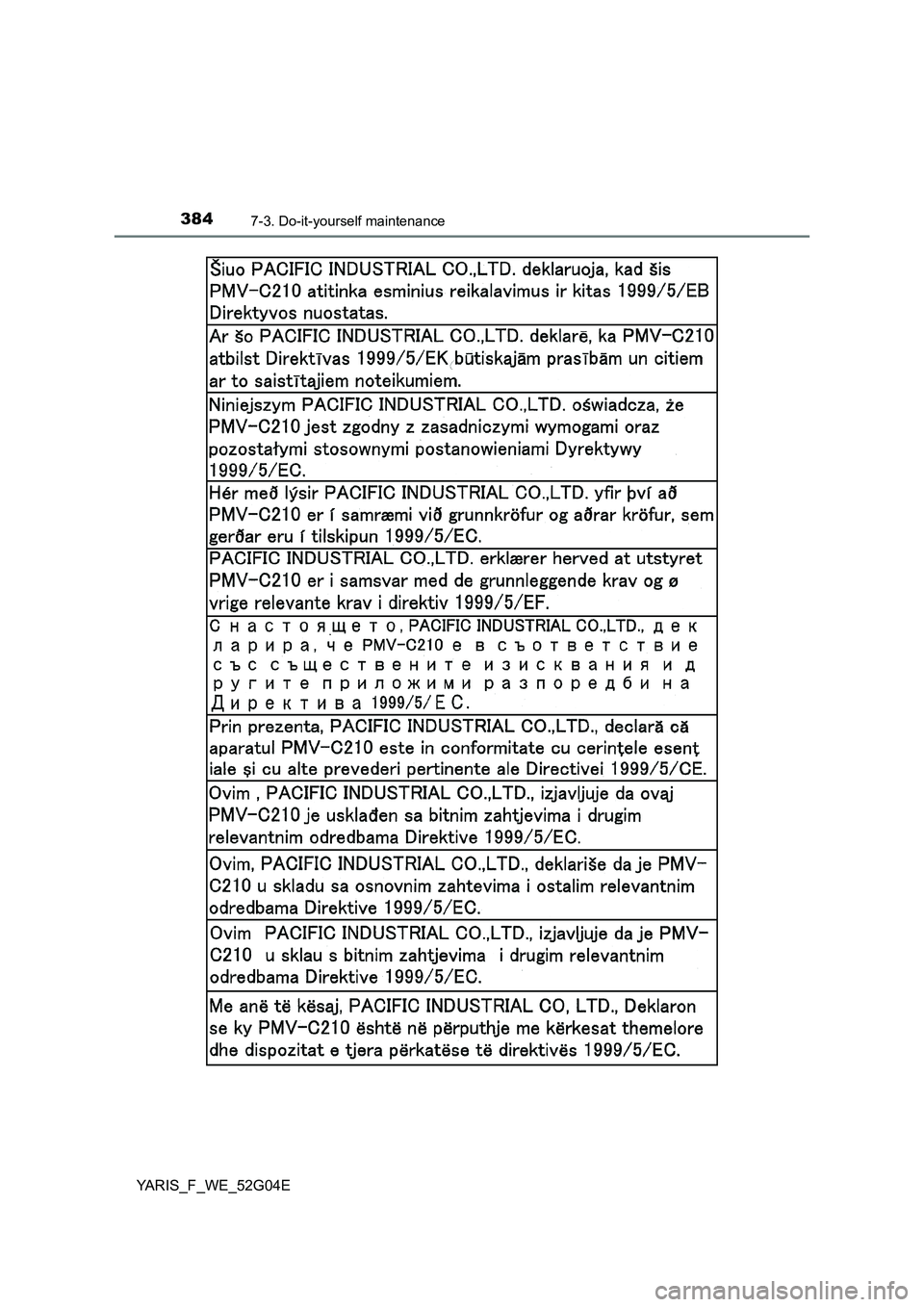

3847-3. Do-it-yourself maintenance
YARIS_F_WE_52G04E
