2015 TOYOTA YARIS HATCHBACK Owners Manual

4979-1. Specifications
9
Vehicle specifications
YARIS_F_WE_52G04E
■Engine number

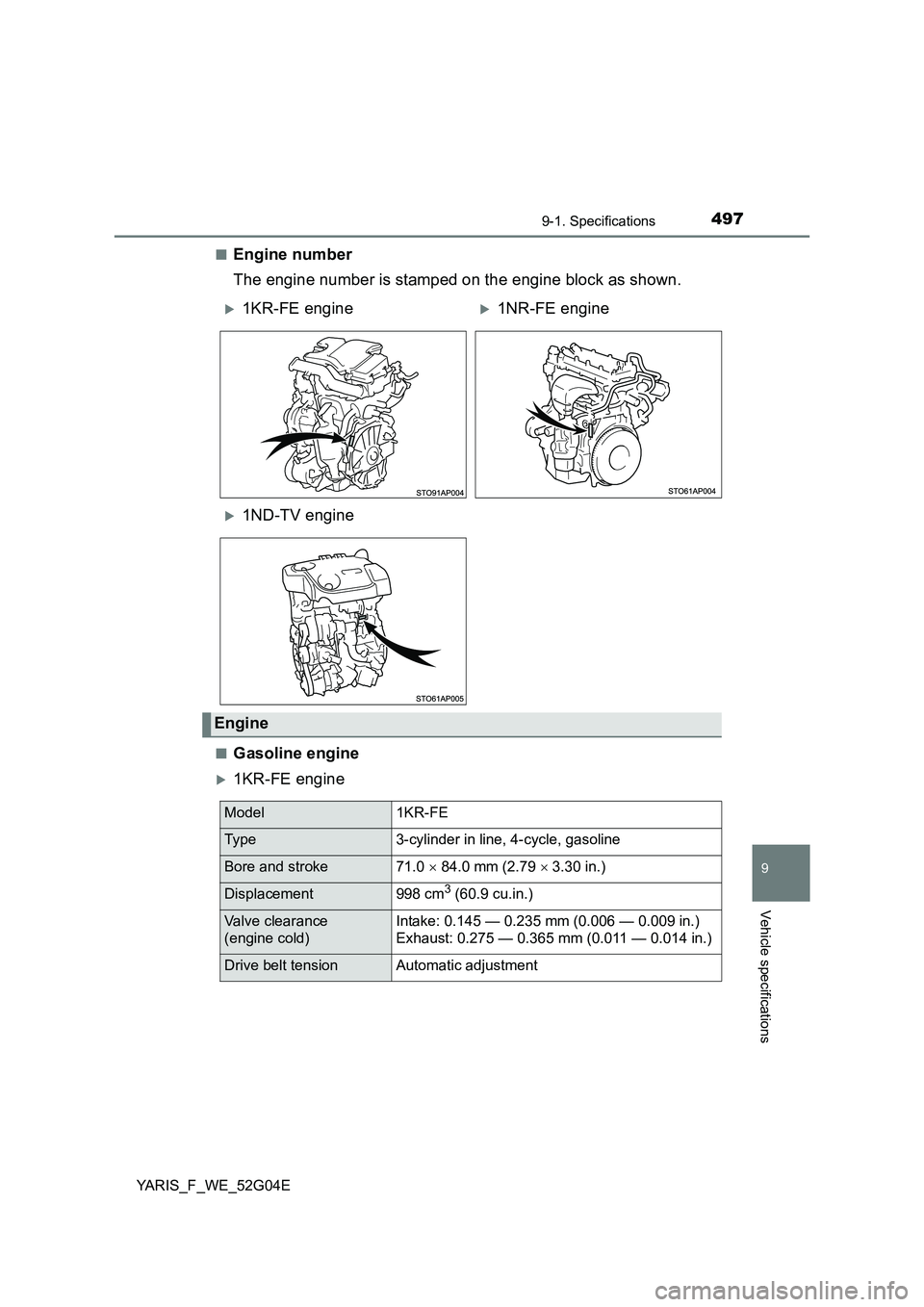

The engine number is stamped on the engine block as shown.
■Gasoline engine
1KR-FE engine
1KR-FE engine1NR-FE engine
1ND-TV engine
Engine
Model1KR-FE
Ty p e3-cylinder in line, 4-cycle, gasoline
Bore and stroke71.0  84.0 mm (2.79  3.30 in.)
Displacement998 cm3 (60.9 cu.in.)
Valve clearance
(engine cold)
Intake: 0.145 — 0.235 mm (0.006 — 0.009 in.)
Exhaust: 0.275 — 0.365 mm (0.011 — 0.014 in.)
Drive belt tensionAutomatic adjustment

4989-1. Specifications
YARIS_F_WE_52G04E
1NR-FE engine
■Diesel engine
1ND-TV engine
Model1NR-FE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke72.5  80.5 mm (2.85  3.17 in.)
Displacement1329 cm3 (81.1 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Model1ND-TV
Ty p e4-cylinder in line, 4-cycle, diesel
Bore and stroke73.0  81.5 mm (2.87  3.21 in.)
Displacement1364 cm3 (83.2 cu.in.)
Valve clearance
(engine cold)
Intake: 0.11 — 0.17 mm (0.004 — 0.007 in.)
Exhaust: 0.14 — 0.20 mm (0.006 — 0.008 in.)
Drive belt tensionAutomatic adjustment
NOTICE
■ Drive belt type (diesel engine)
The high strength drive belt is used fo r the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength dr ive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.

4999-1. Specifications
9
Vehicle specifications
YARIS_F_WE_52G04E
■Gasoline engine
■Diesel engine
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)42 L (11.1 gal., 9.2 Imp.gal.)
Fuel type
EU area:
Diesel fuel conforming to European standard
EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur
Cetane number48 or higher
Fuel tank capacity
(Reference)41 L (10.8 gal., 9.0 Imp.gal.)

5009-1. Specifications
YARIS_F_WE_52G04E
■Oil capacity (Drain and refill — reference*)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Lubrication system (gasoline engine)
With filter1KR-FE engine
2.8 L (3.0 qt., 2.5 Imp.qt.)
1NR-FE engine
3.4 L (3.6 qt., 3.0 Imp.qt.)
Without filter1KR-FE engine
2.6 L (2.7 qt., 2.3 Imp.qt.)
1NR-FE engine
3.2 L (3.4 qt., 2.8 Imp.qt.)

5019-1. Specifications
9
Vehicle specifications
YARIS_F_WE_52G04E

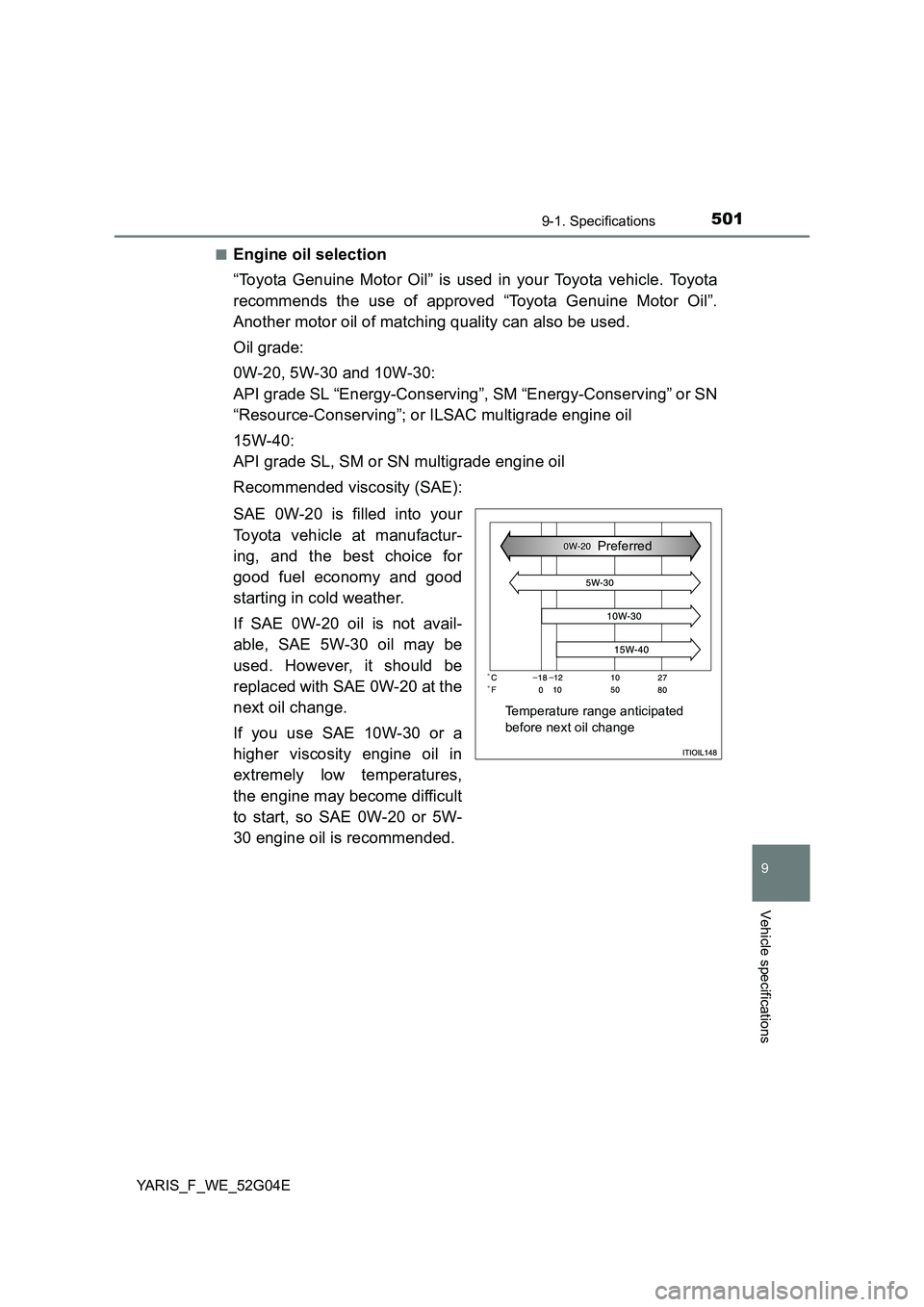

■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Temperature range anticipated
before next oil change
Preferred

5029-1. Specifications
YARIS_F_WE_52G04E
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
■Oil capacity (Drain and refill — reference*)
Vehicles without a DPF system
Vehicles with a DPF system
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
1
2
Lubrication system (diesel engine)
With filter 3.9 L (4.1 qt., 3.4 Imp.qt.)
Without filter 3.5 L (3.7 qt., 3.1 Imp.qt.)
With filter 3.7 L (3.9 qt., 3.3 Imp.qt.)
Without filter 3.3 L (3.5 qt., 2.9 Imp.qt.)

5039-1. Specifications
9
Vehicle specifications
YARIS_F_WE_52G04E
■Engine oil selection

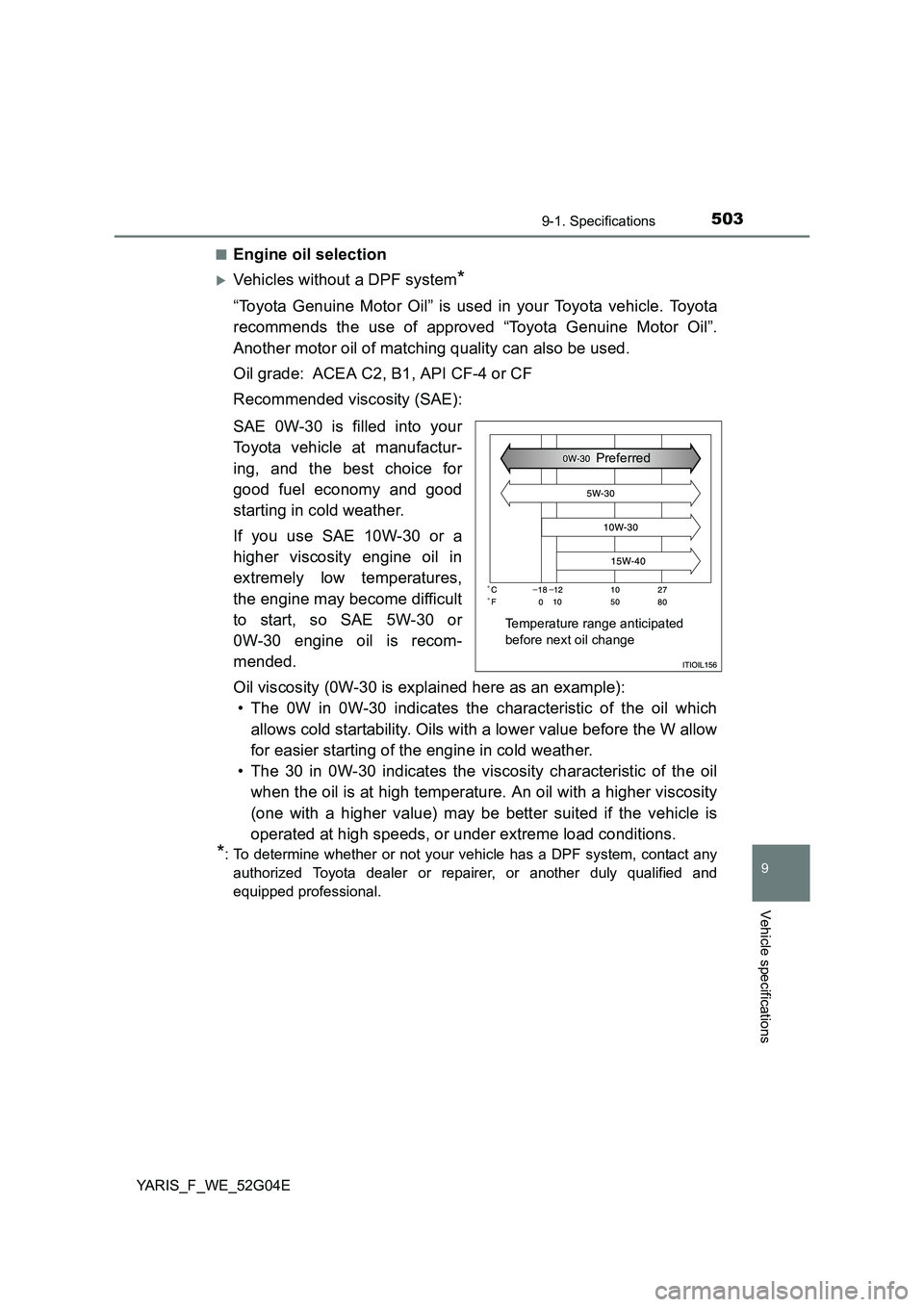

Vehicles without a DPF system*
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA C2, B1, API CF-4 or CF
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 5W-30 or
0W-30 engine oil is recom-
mended.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
*: To determine whether or not your vehicle has a DPF system, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Temperature range anticipated
before next oil change
Preferred

5049-1. Specifications
YARIS_F_WE_52G04E

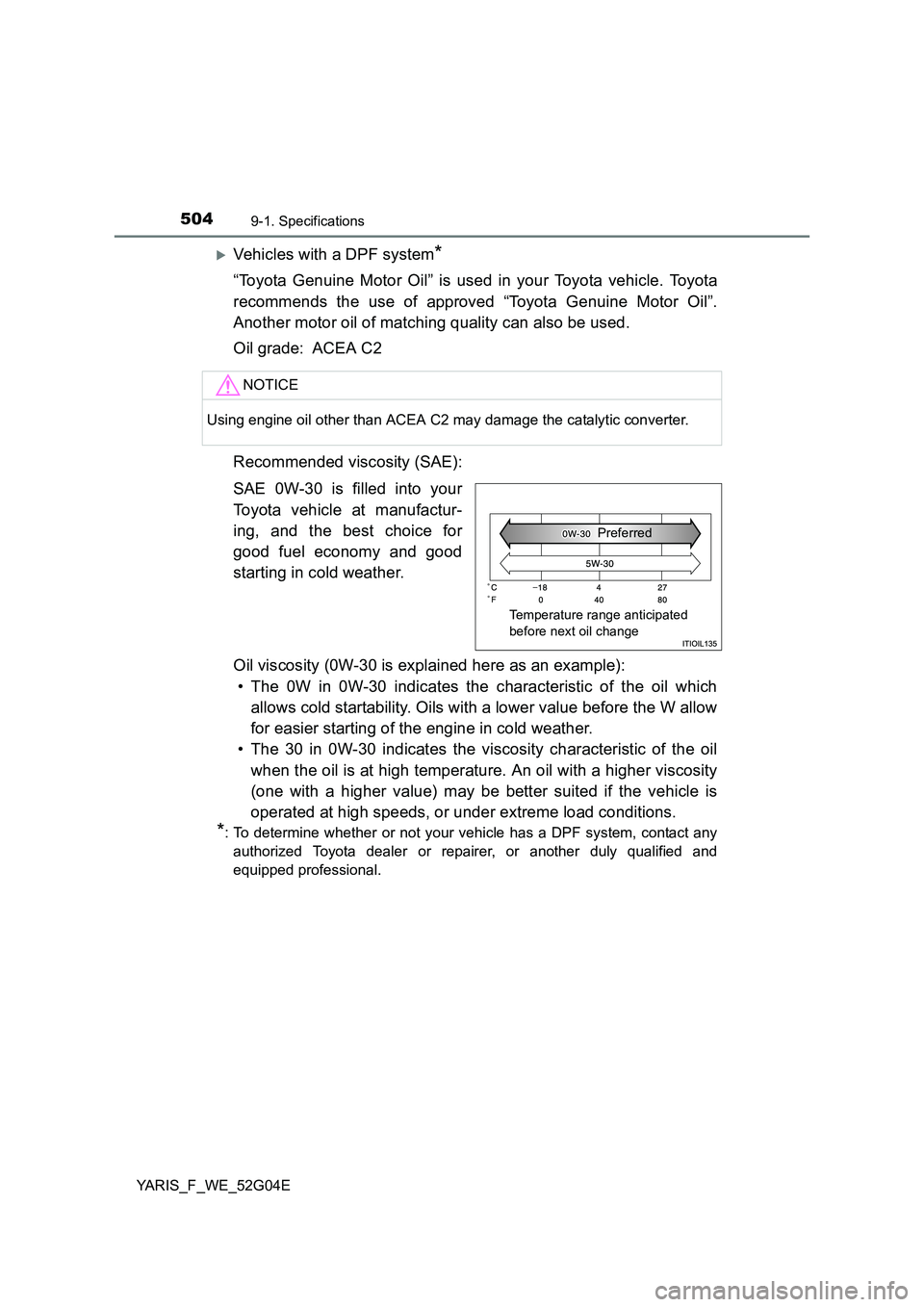

Vehicles with a DPF system*
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
*: To determine whether or not your vehicle has a DPF system, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated
before next oil change
Preferred
