2015 TOYOTA YARIS HATCHBACK Owners Manual

1453-3. Adjusting the seats
3
Operation of each component
YARIS_F_WE_52G04E

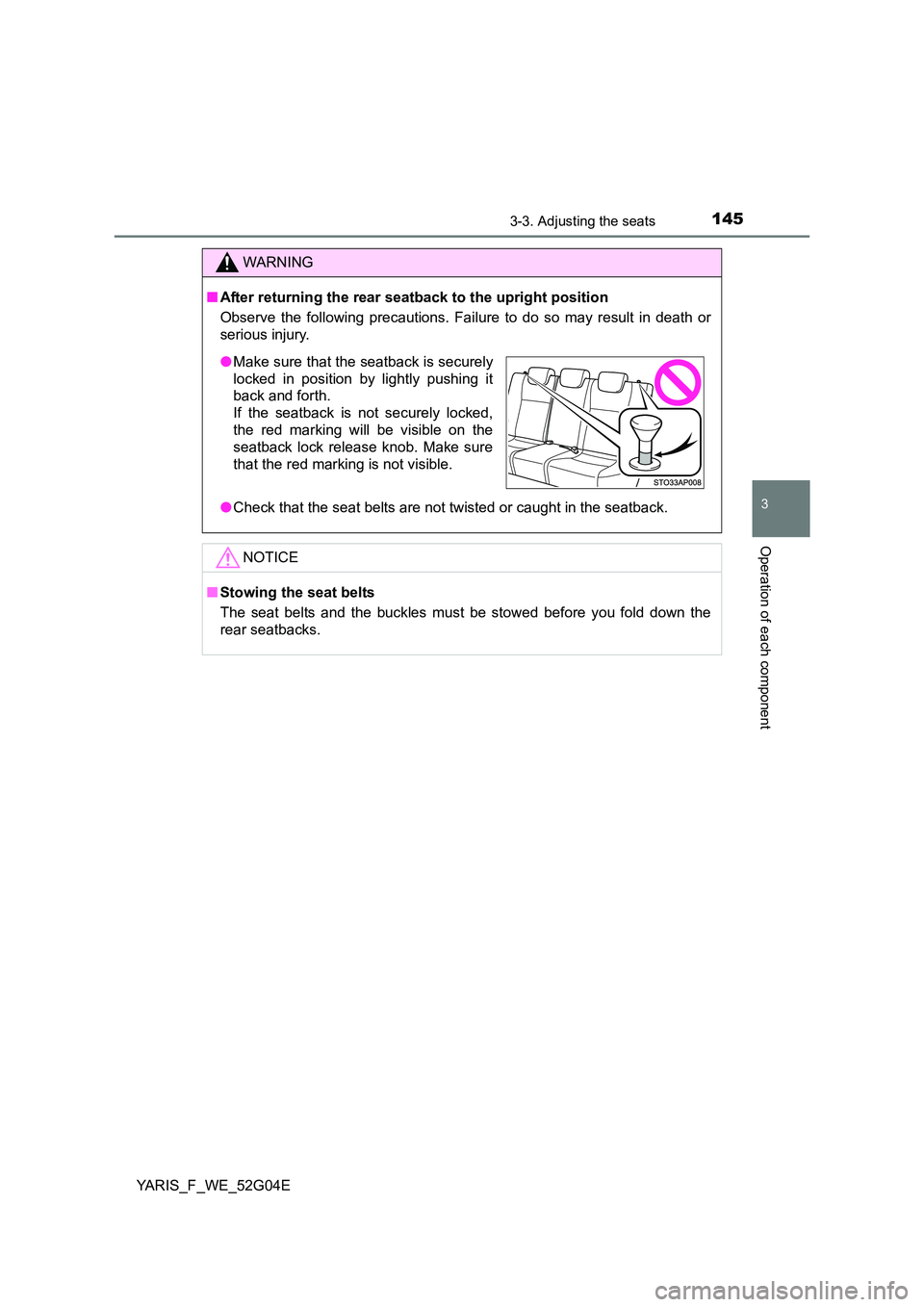

WARNING
■After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■Stowing the seat belts
The seat belts and the buckles must be stowed before you fold down the
rear seatbacks.
● Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release knob. Make sure
that the red marking is not visible.

1463-3. Adjusting the seats
YARIS_F_WE_52G04E
Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■ Removing the front seats and rear center seat head restraints
■ Removing the rear outer seats head restraints
Head restraints are provided for all seats.
Adjusting the head restraints
Lock release button
1
2
Pull the head restraint up while pressing
the lock release button.
Pull the lock release knob and fold
down the seatback until it reaches the
position where the head restraints can
be removed.
Lock release button
1

1473-3. Adjusting the seats
3
Operation of each component
YARIS_F_WE_52G04E
■ Adjusting the height of the head restraints
■ Adjusting the rear seat head restraints
Always raise the head restraint one level from the stowed position when in
use.
Pull the head restraint up while pushing
the lock release button.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
WARNING
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
2
Lock release button

1483-4. Adjusting the steering wheel and mirrors
YARIS_F_WE_52G04E
Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Adjustment procedure
1
2
Horn

1493-4. Adjusting the steering wheel and mirrors
3
Operation of each component
YARIS_F_WE_52G04E

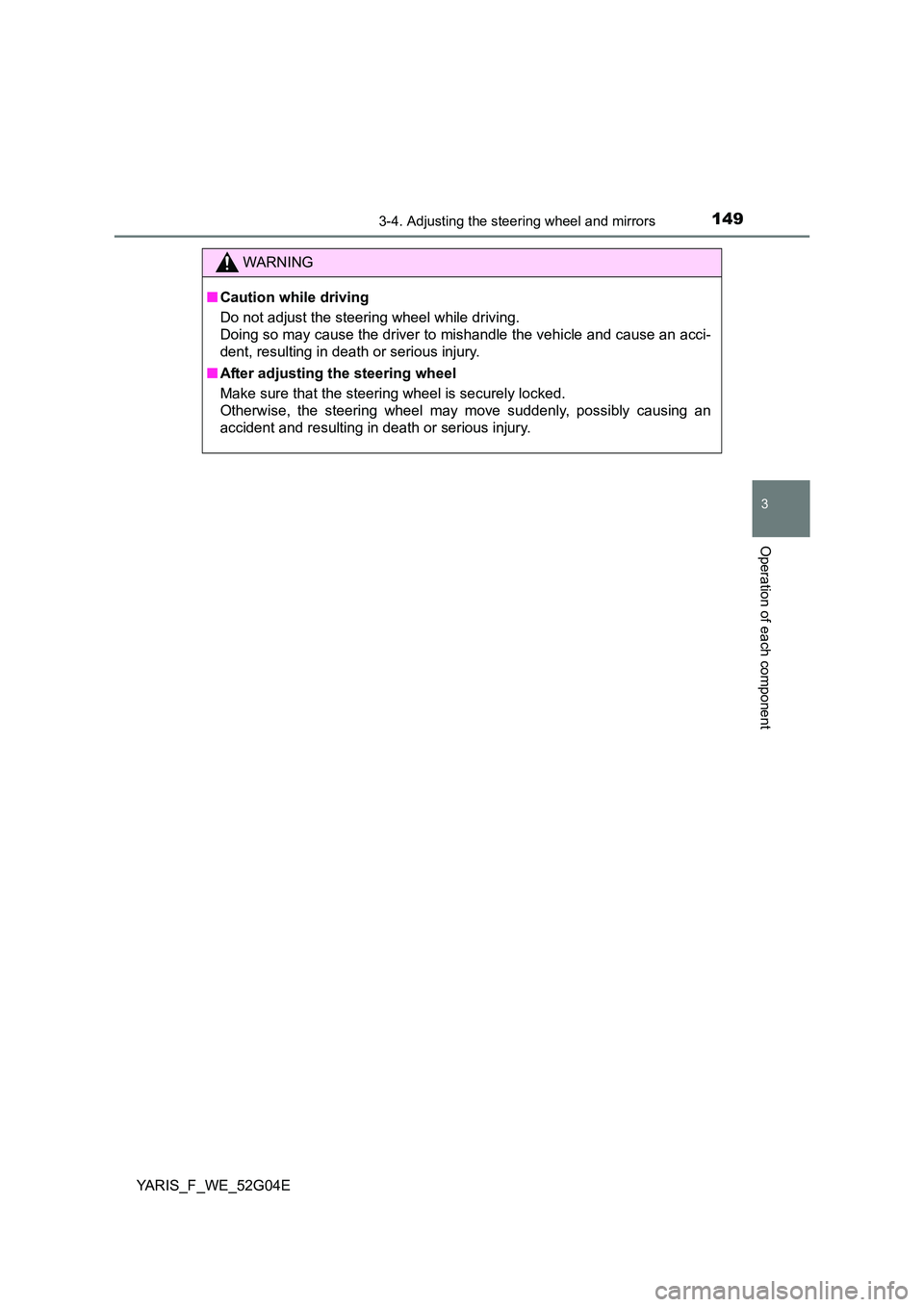

WARNING
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.

1503-4. Adjusting the steering wheel and mirrors
YARIS_F_WE_52G04E
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror (vehicles with an auto
anti-glare inside rear view mirror)

1513-4. Adjusting the steering wheel and mirrors
3
Operation of each component
YARIS_F_WE_52G04E
Vehicles with a manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
Vehicles with an auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
Vehicles without a smart entry &
start system:
The function will set to ON mode
each time the engine switch is
turned to the “ON” position. Press-
ing the button turns the function to
OFF mode. (The indicator also
turns off.)
Vehicles with a smart entry & start system:
The function will set to ON mode each time the engine switch is turned to
IGNITION ON mode. Pressing the button turns the function to OFF mode.
(The indicator also turns off.)
Anti-glare function
1
2
Indicator

1523-4. Adjusting the steering wheel and mirrors
YARIS_F_WE_52G04E
■To prevent sensor error (vehicles with an auto anti-glare inside rear view
mirror)
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
■ Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
