2015 TOYOTA YARIS HATCHBACK Owners Manual

4097-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_WE_52G04E
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light, on once and
visually confirm that no light is
leaking through the mounting.
5
6
7
8

4107-3. Do-it-yourself maintenance
YARIS_F_WE_52G04E

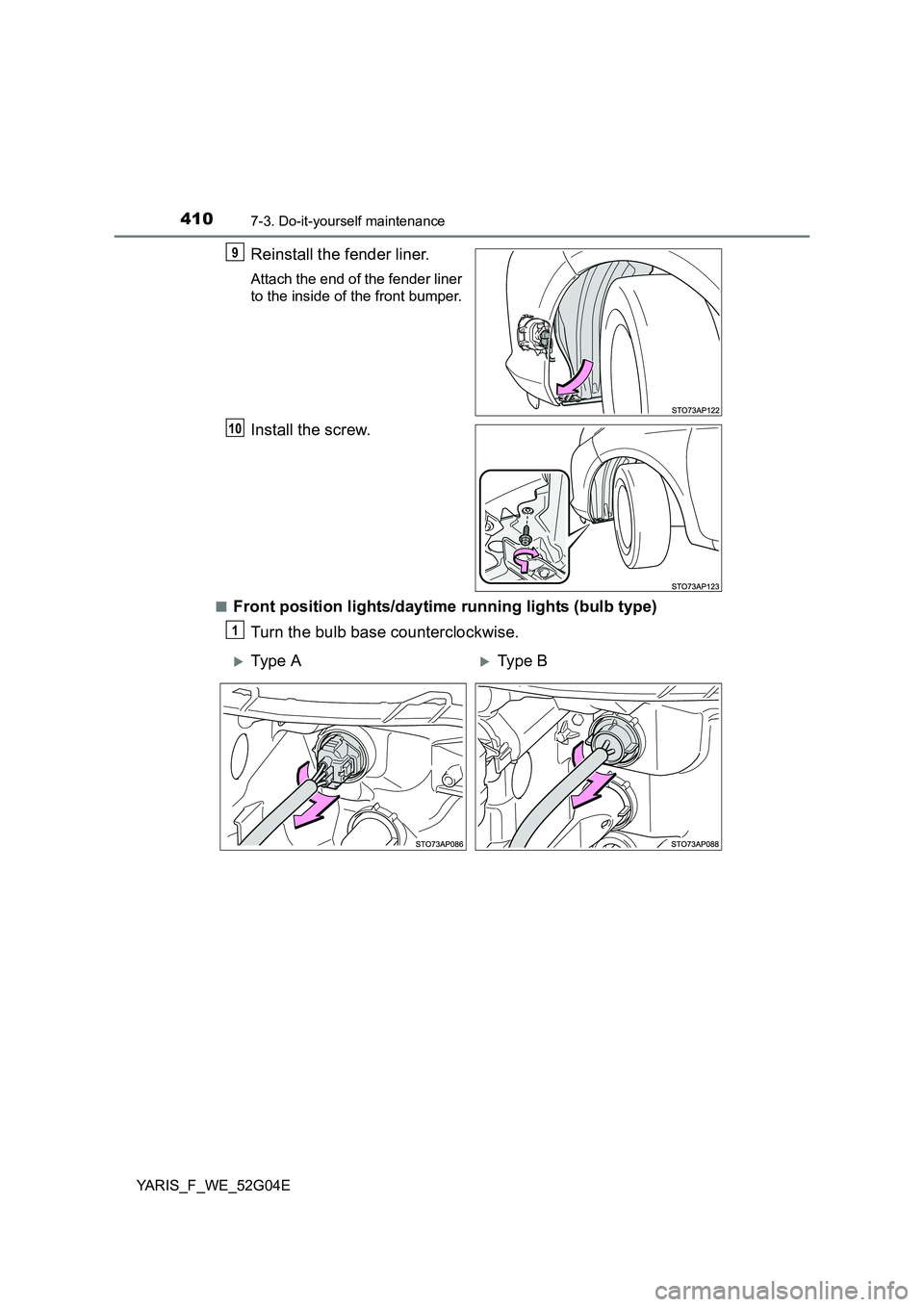

Reinstall the fender liner.
Attach the end of the fender liner
to the inside of the front bumper.
Install the screw.
■Front position lights/daytime running lights (bulb type)
Turn the bulb base counterclockwise.
9
10
1
Type AType B

4117-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_WE_52G04E
Remove the light bulb.
When installing, reverse the steps listed.
■Front turn signal lights
Turn the bulb base counterclockwise.
Remove the light bulb
When installing, reverse the steps listed.
2
Type AType B
3
1
Type AType B
2
Type AType B
3

4127-3. Do-it-yourself maintenance
YARIS_F_WE_52G04E
■Side turn signal lights
Depress the mirror.
Remove the mirror.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Remove the bulb base.
Remove the light bulb.
1
2
3
4

4137-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_WE_52G04E
After installing the new bulb,
secure the bulb base to the
mirror body.
Align the tabs, and secure
the mirror by pushing in each
diagonally-opposite pair of
tabs in order.
Make sure to insert the tabs in
order as shown in the illustra-
tion, and push them in until a
click is heard.
If you do not hear the click, do
not force the tabs in. Instead,
remove the mirror and check
that the tabs are aligned.
■Stop/tail lights (bulb type), and rear turn signal lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Turn the bulb base counter-
clockwise.
Stop/tail light
Rear turn signal light
5
6
1
2
1
2

4147-3. Do-it-yourself maintenance
YARIS_F_WE_52G04E
Remove the light bulb.
Stop/tail light
Rear turn signal light
Install the new bulb.
Stop/tail light
Rear turn signal light
Turn and secure the bulb
base.
Stop/tail light
Rear turn signal light
Install the cover.
Align the cover claws with
the notches.
Press the cover until it is
fixed.
3
1
2
4
1
2
5
1
2
6
1
2

4157-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_WE_52G04E

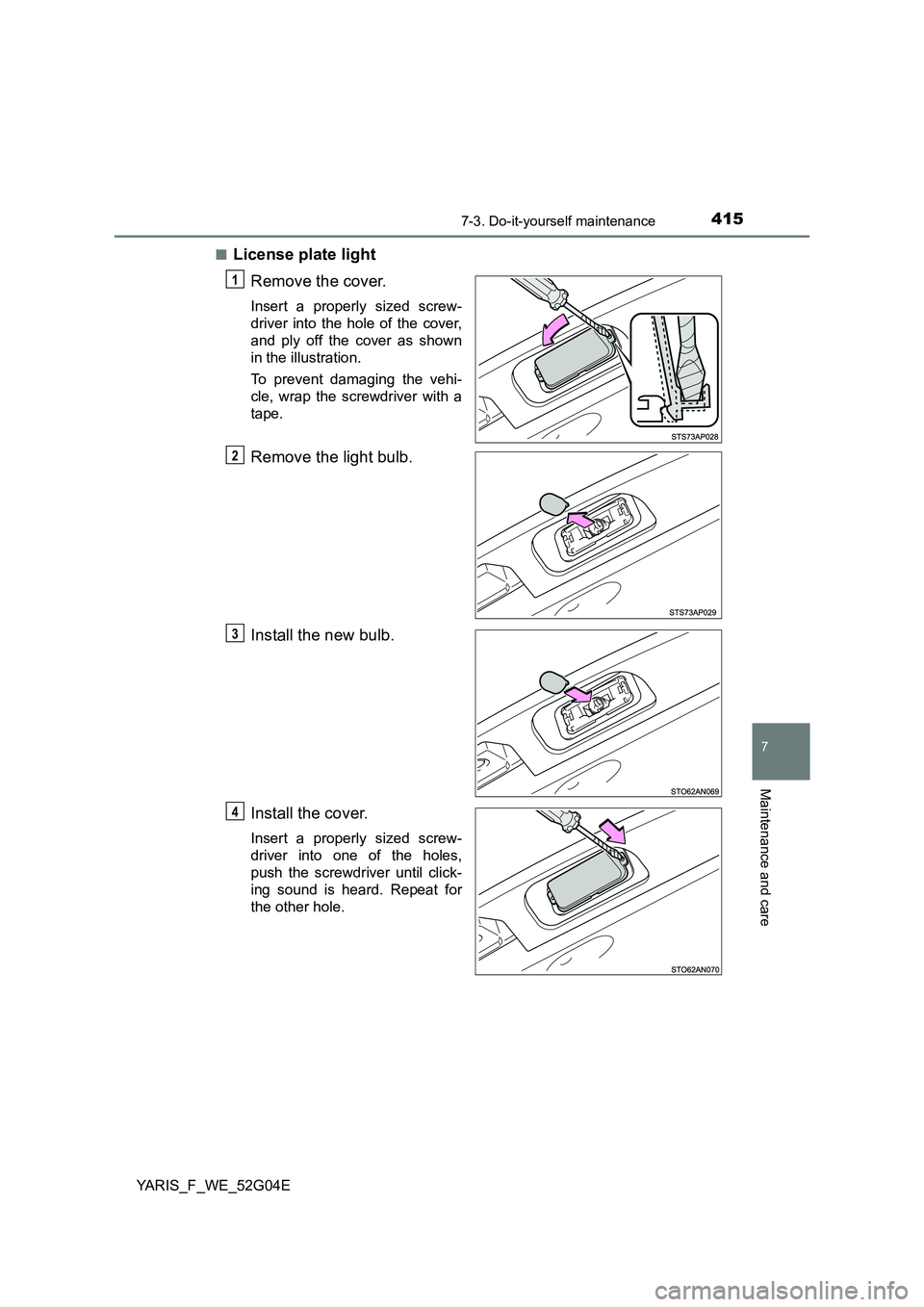

■License plate light
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown
in the illustration.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Remove the light bulb.
Install the new bulb.
Install the cover.
Insert a properly sized screw-
driver into one of the holes,
push the screwdriver until click-
ing sound is heard. Repeat for
the other hole.
1
2
3
4

4167-3. Do-it-yourself maintenance
YARIS_F_WE_52G04E

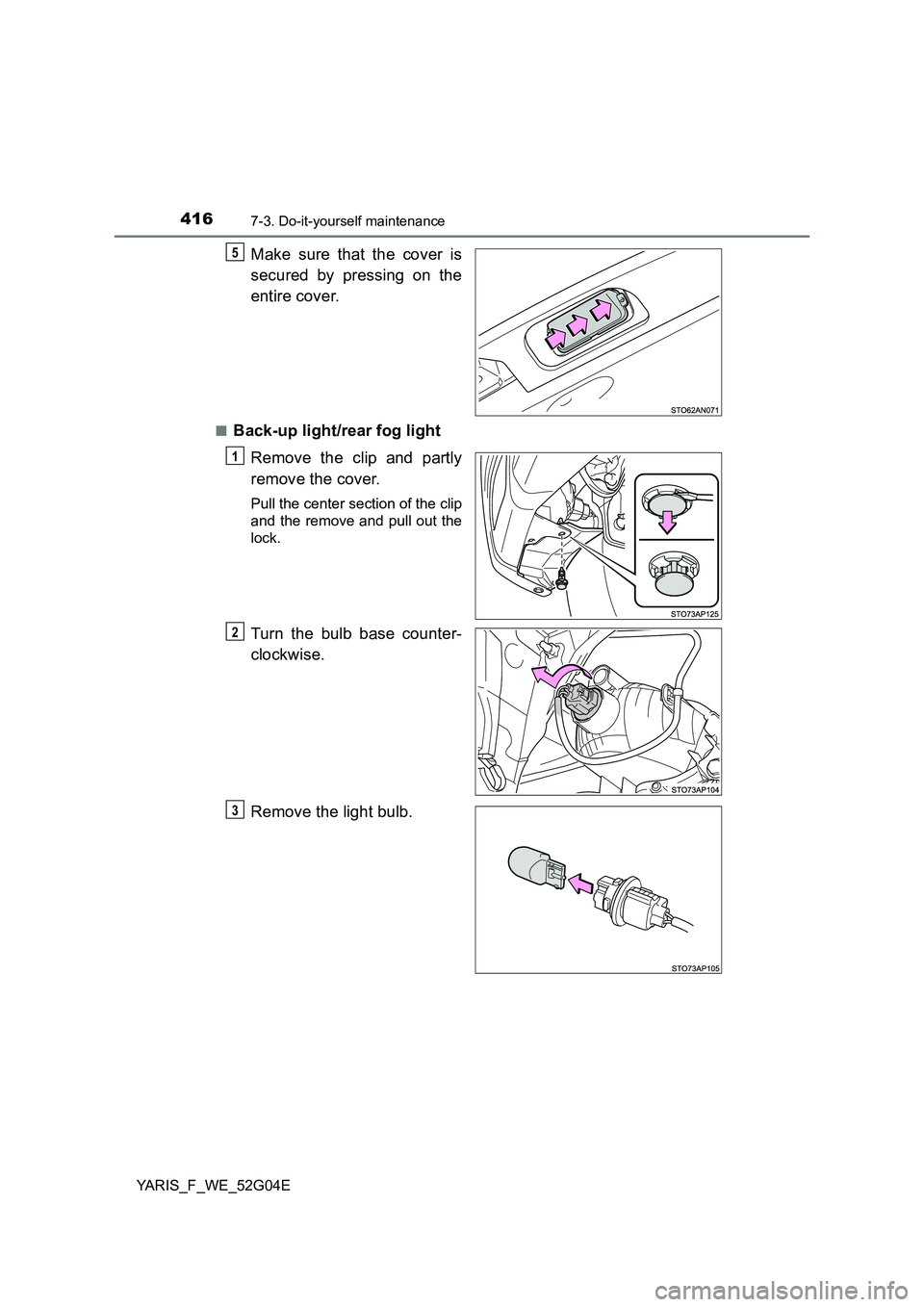

Make sure that the cover is
secured by pressing on the
entire cover.
■Back-up light/rear fog light
Remove the clip and partly
remove the cover.
Pull the center section of the clip
and the remove and pull out the
lock.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
5
1
2
3
