2015 TOYOTA YARIS HATCHBACK Owners Manual

5139-1. Specifications
9
Vehicle specifications
YARIS_F_WE_52G04E
Fuel infor mation
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be avai lable, so please check the availability
with your distributor.
■ If your engine knocks
● Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
Gasoline engine
EU area:
You must only use unleaded gasoline conforming to European stan-
dard EN228.
Select unleaded gasoline with a Research Octane Number of 95 or
higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95 or
higher for optimum engine performance.
Diesel engine
EU area:
You must only use diesel fuel conforming to European standard
EN590.
Except EU area (except Russia) :
You must only use diesel fuel that contains 50 ppm or less of sulfur
with a cetane number of 48 or higher.
Except EU area (Russia) :
You must only use diesel fuel with a cetane number of 48 or higher.
Your vehicle must use only diesel fuel confirming to GOST R52368-
2005 (Sulfur max 50 ppm).

5149-1. Specifications
YARIS_F_WE_52G04E

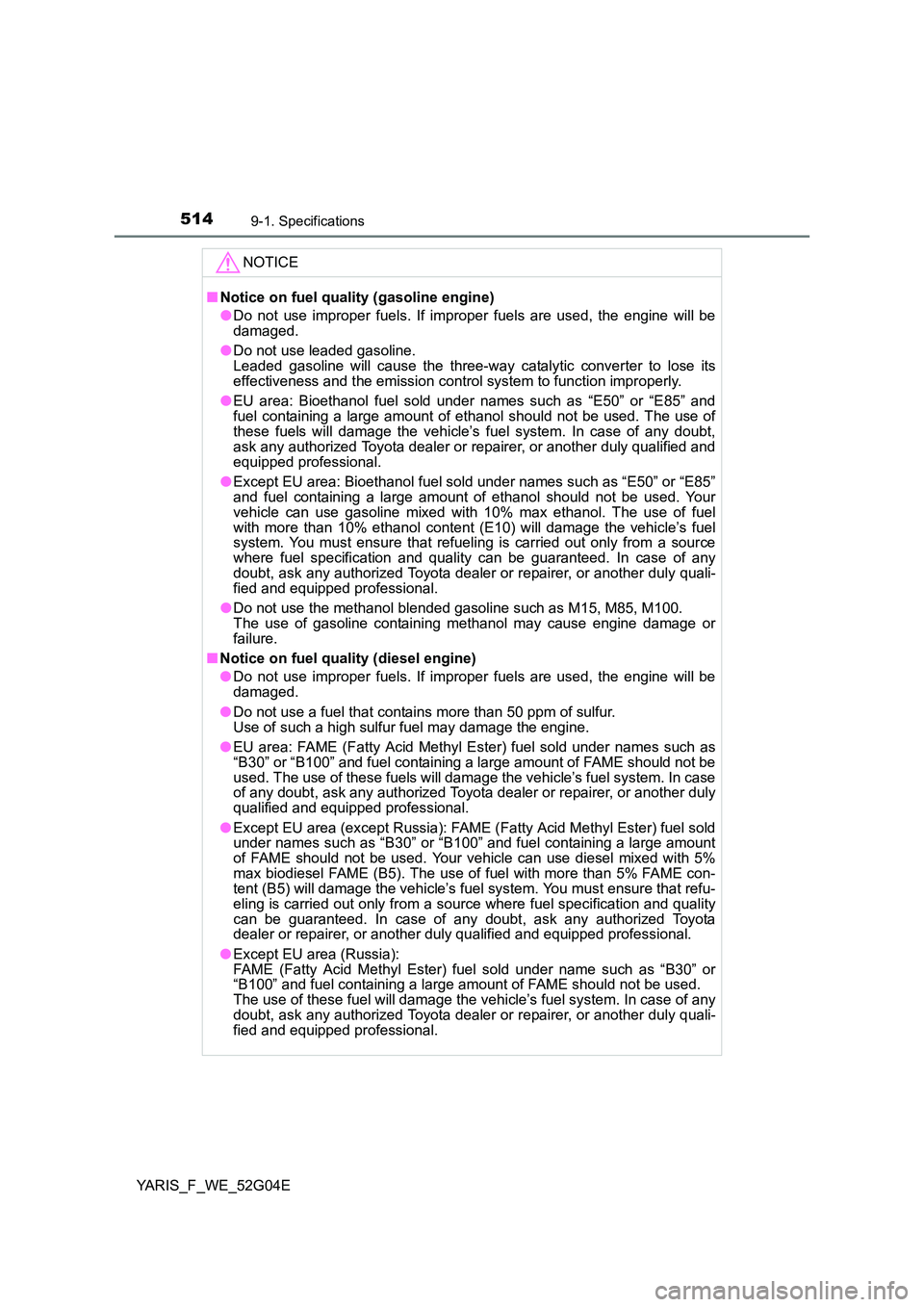

NOTICE
■Notice on fuel quality (gasoline engine)
● Do not use improper fuels. If improper fuels are used, the engine will be damaged.
● Do not use leaded gasoline. Leaded gasoline will cause the three-way catalytic converter to lose itseffectiveness and the emission control system to function improperly.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be used. The use ofthese fuels will damage the vehicle’s fuel system. In case of any doubt, ask any authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be used. Your vehicle can use gasoline mixed with 10% max ethanol. The use of fuelwith more than 10% ethanol content (E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried out only from a source where fuel specification and quality can be guaranteed. In case of anydoubt, ask any authorized Toyota dealer or repairer, or another duly quali- fied and equipped professional.
● Do not use the methanol blended gasoline such as M15, M85, M100. The use of gasoline containing methanol may cause engine damage or failure.
■ Notice on fuel quality (diesel engine)
● Do not use improper fuels. If improper fuels are used, the engine will be damaged.
● Do not use a fuel that contains more than 50 ppm of sulfur. Use of such a high sulfur fuel may damage the engine.
● EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names such as “B30” or “B100” and fuel containing a large amount of FAME should not beused. The use of these fuels will damage the vehicle’s fuel system. In case of any doubt, ask any authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
● Except EU area (except Russia): FAME (Fatty Acid Methyl Ester) fuel sold under names such as “B30” or “B100” and fuel containing a large amount of FAME should not be used. Your vehicle can use diesel mixed with 5%max biodiesel FAME (B5). The use of fuel with more than 5% FAME con- tent (B5) will damage the vehicle’s fuel system. You must ensure that refu- eling is carried out only from a source where fuel specification and qualitycan be guaranteed. In case of any doubt, ask any authorized Toyota dealer or repairer, or another dul y qualified and equipped professional.
● Except EU area (Russia): FAME (Fatty Acid Methyl Ester) fuel sold under name such as “B30” or “B100” and fuel containing a large amount of FAME should not be used. The use of these fuel will damage the vehicle’s fuel system. In case of anydoubt, ask any authorized Toyota dealer or repairer, or another duly quali- fied and equipped professional.

5159-2. Customization
9
Vehicle specifications
YARIS_F_WE_52G04E
Customizable features
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details.
Vehicles with a Navigation/Multimedia system: Settings that can be
changed using the Navigation/Multimedia system
(For further information on customizing settings using the Naviga-
tion/Multimedia system, refer to the “Navigation and multimedia
system Owner’s manual”.)
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details
Definition of symbols: O = Av ailable, — = Not available
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized equipment and may be performed
by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Customizable features
1
2

5169-2. Customization
YARIS_F_WE_52G04E
■Smart entry & start system ( P. 116, 129)
■Wireless remote control (P. 105, 117)
FunctionDefault
setting
Customized
setting
Smart entry & start system ON OFF O O
Operation signal
(Emergency flashers) ON OFF — O
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
30 seconds
60 seconds
—O
120 seconds
Open door warning function
(when locking the vehicle) ON OFF — O
12
FunctionDefault
setting
Customized
setting
Wireless remote control ON OFF — O
Operation signal
(Emergency flashers) ON OFF — O
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
30 seconds
60 seconds
—O
120 seconds
Open door warning buzzer
(When locking the vehicle) ON OFF — O
12

5179-2. Customization
9
Vehicle specifications
YARIS_F_WE_52G04E
■Automatic light control system ( P. 204)
■Lights (P. 204)
■Illumination (P. 325)
*: Vehicles with a smart entry & start system
FunctionDefault
setting
Customized
setting
Light sensor sensitivity Level 3 Level 1 to 5 O O
12
FunctionDefault
setting
Customized
setting
Time that the low beam headlights
are on when the vehicle is parked30 seconds
60 seconds
—O90 seconds
120 seconds
12
FunctionDefault
setting
Customized
setting
Time elapsed before the interior
lights turn off15 seconds7.5 seconds—O30 seconds
Operation when the doors are
unlocked ON OFF — O
Operation after the engine switch is
turned off ON OFF — O
Operation when you approach the
vehicle with the electronic key on
your person*
ON OFF — O
12

5189-2. Customization
YARIS_F_WE_52G04E

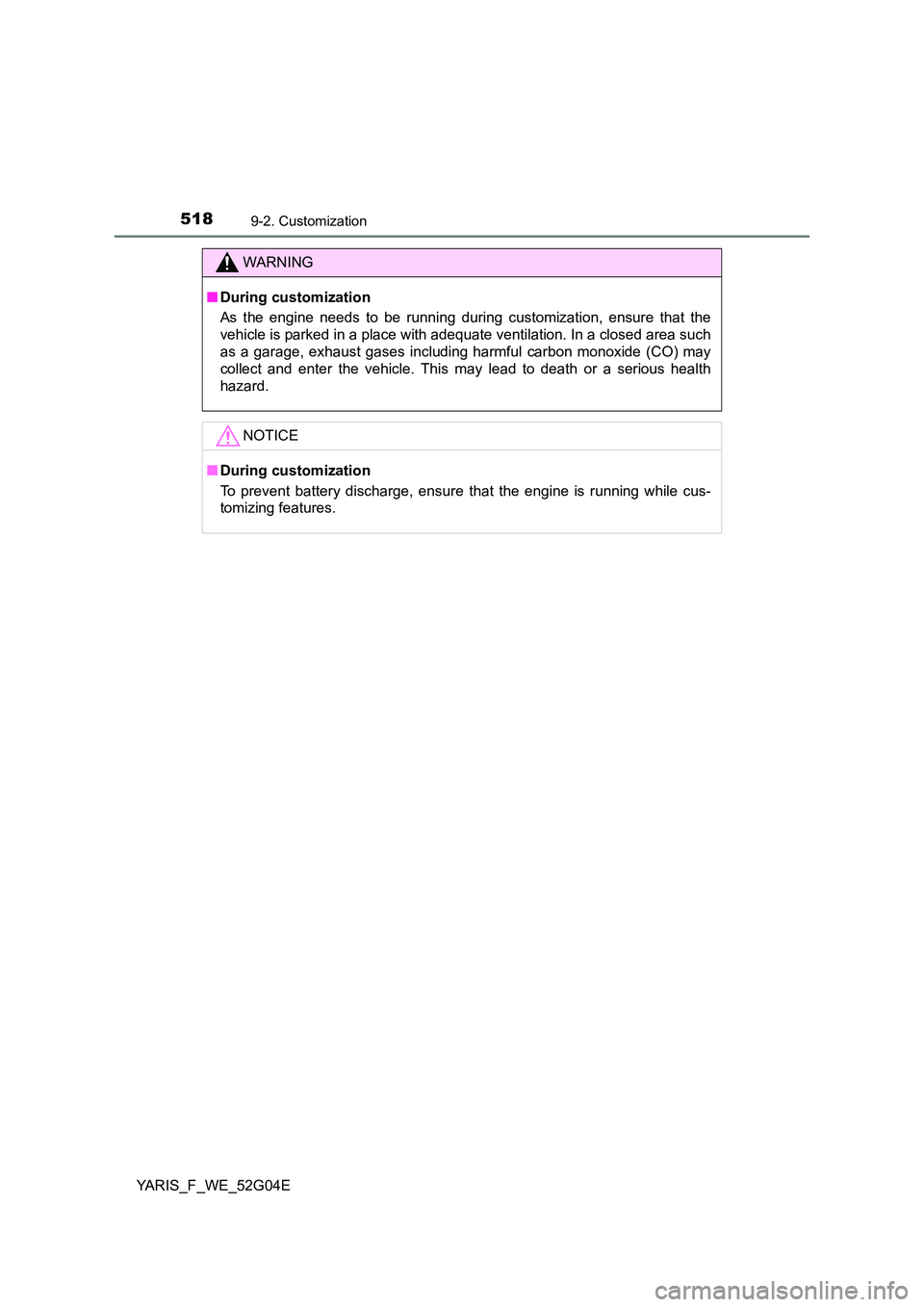

WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■ During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

5199-3. Items to initialize
9
Vehicle specifications
YARIS_F_WE_52G04E

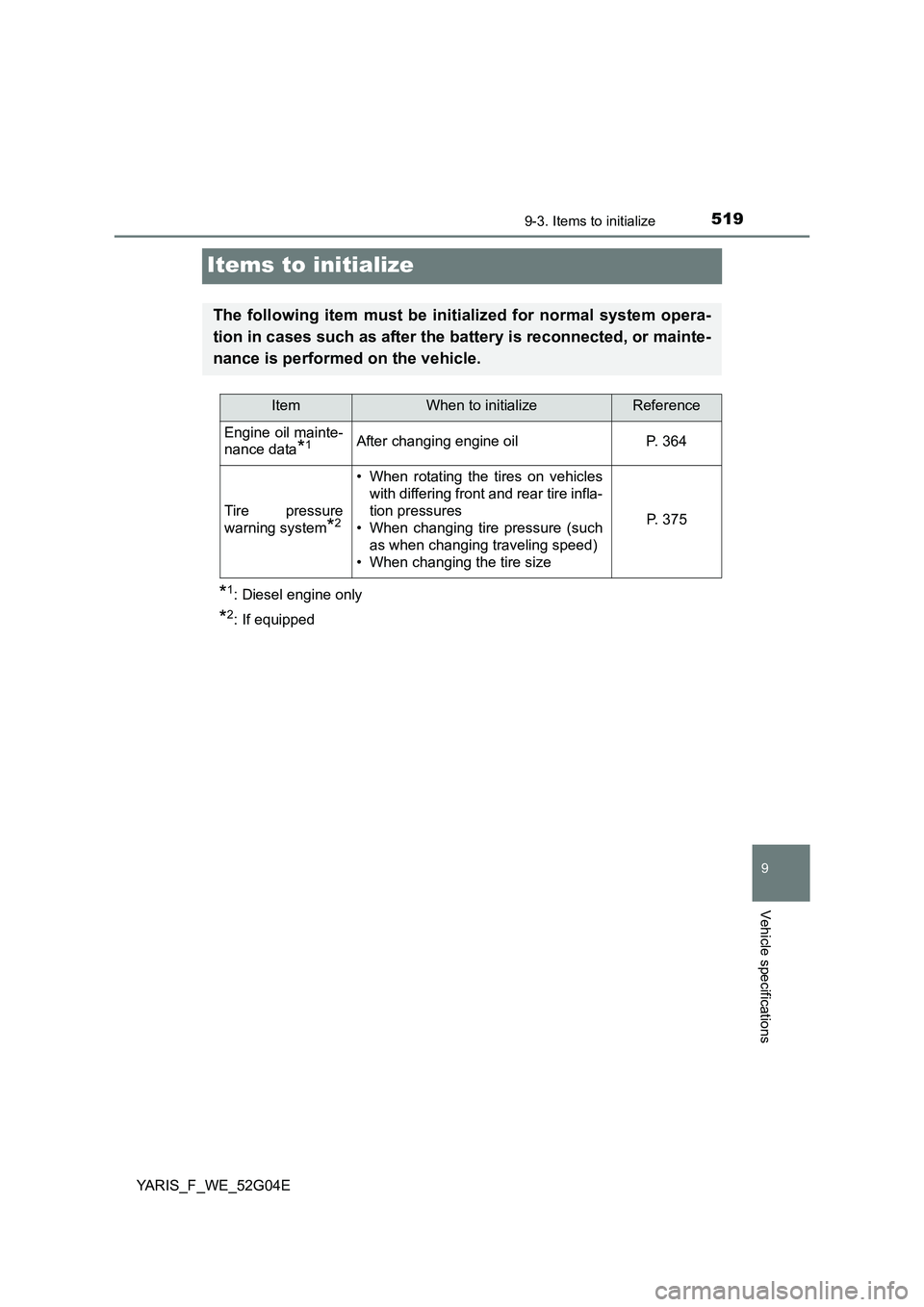

Items to initialize
*1: Diesel engine only
*2: If equipped
The following item must be initialized for normal system opera-
tion in cases such as after the battery is reconnected, or mainte-
nance is performed on the vehicle.
ItemWhen to initializeReference
Engine oil mainte-
nance data*1After changing engine oil P. 364
Tire pressure
warning system*2
• When rotating the tires on vehicles
with differing front and rear tire infla-
tion pressures
• When changing tire pressure (such
as when changing traveling speed)
• When changing the tire size
P. 375

5209-3. Items to initialize
YARIS_F_WE_52G04E
