2015 TOYOTA YARIS HATCHBACK Owners Manual

3537-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_WE_52G04E

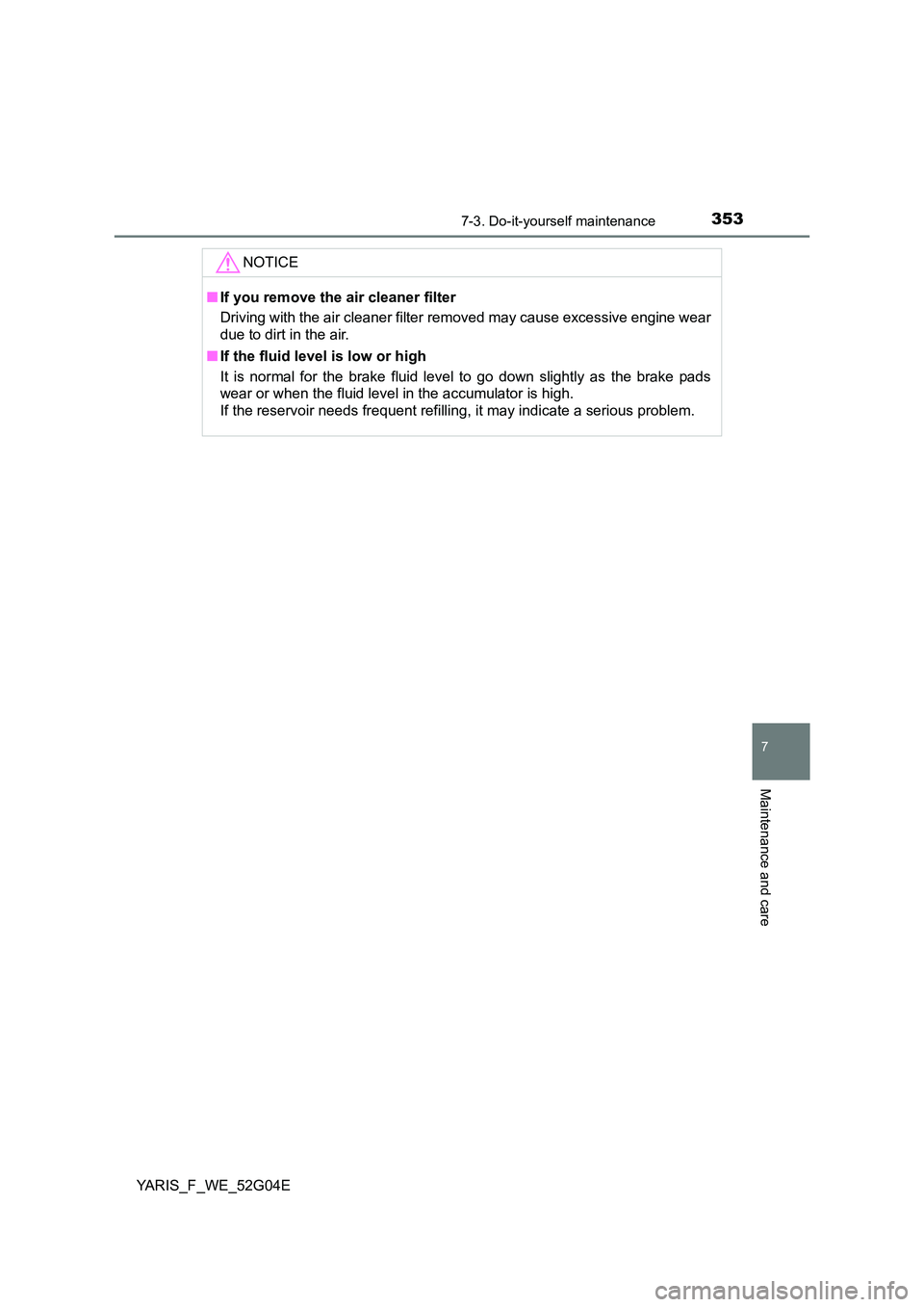

NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
■ If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

3547-3. Do-it-yourself maintenance
YARIS_F_WE_52G04E

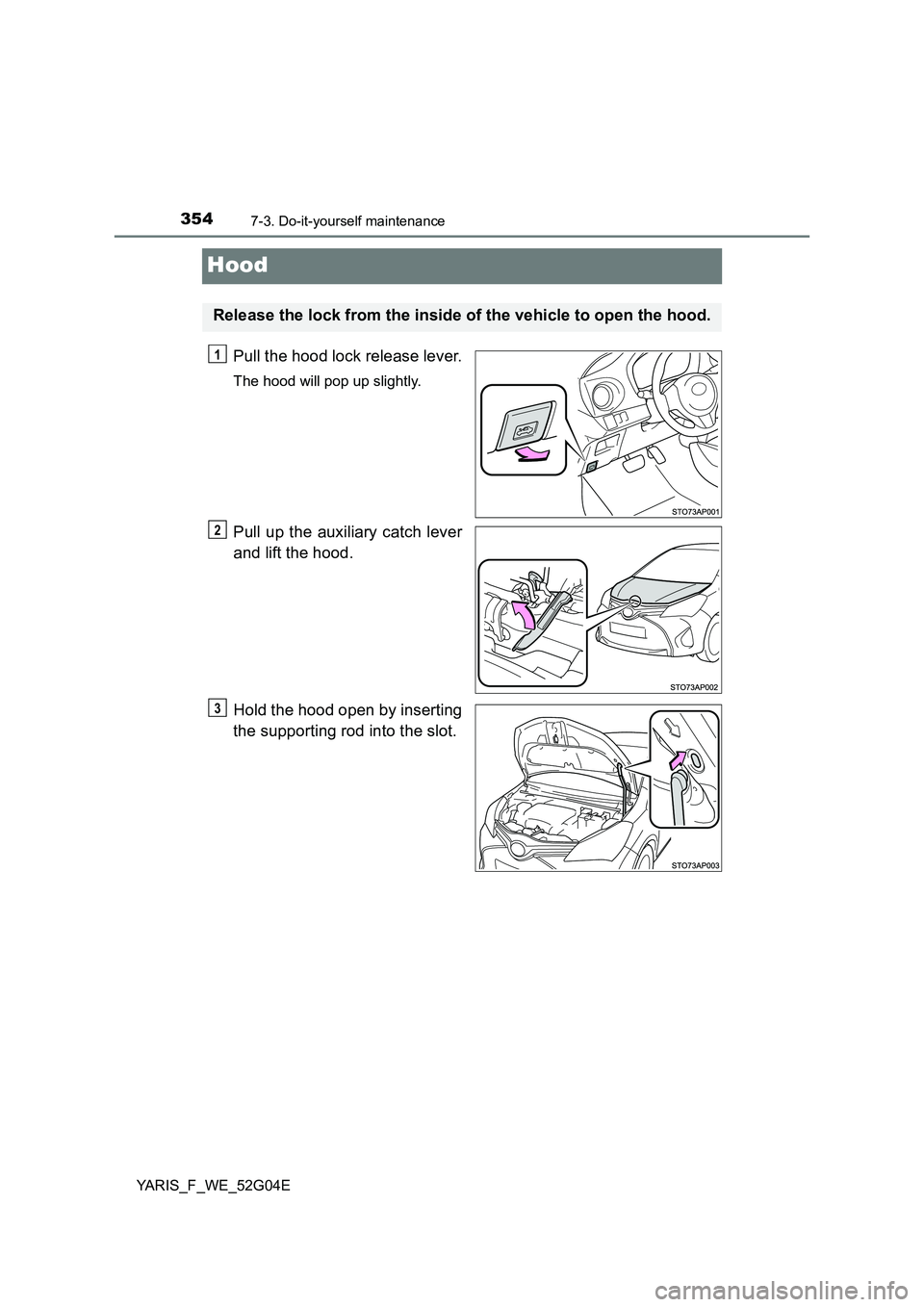

Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Hold the hood open by inserting
the supporting rod into the slot.
Release the lock from the inside of the vehicle to open the hood.
1
2
3

3557-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_WE_52G04E

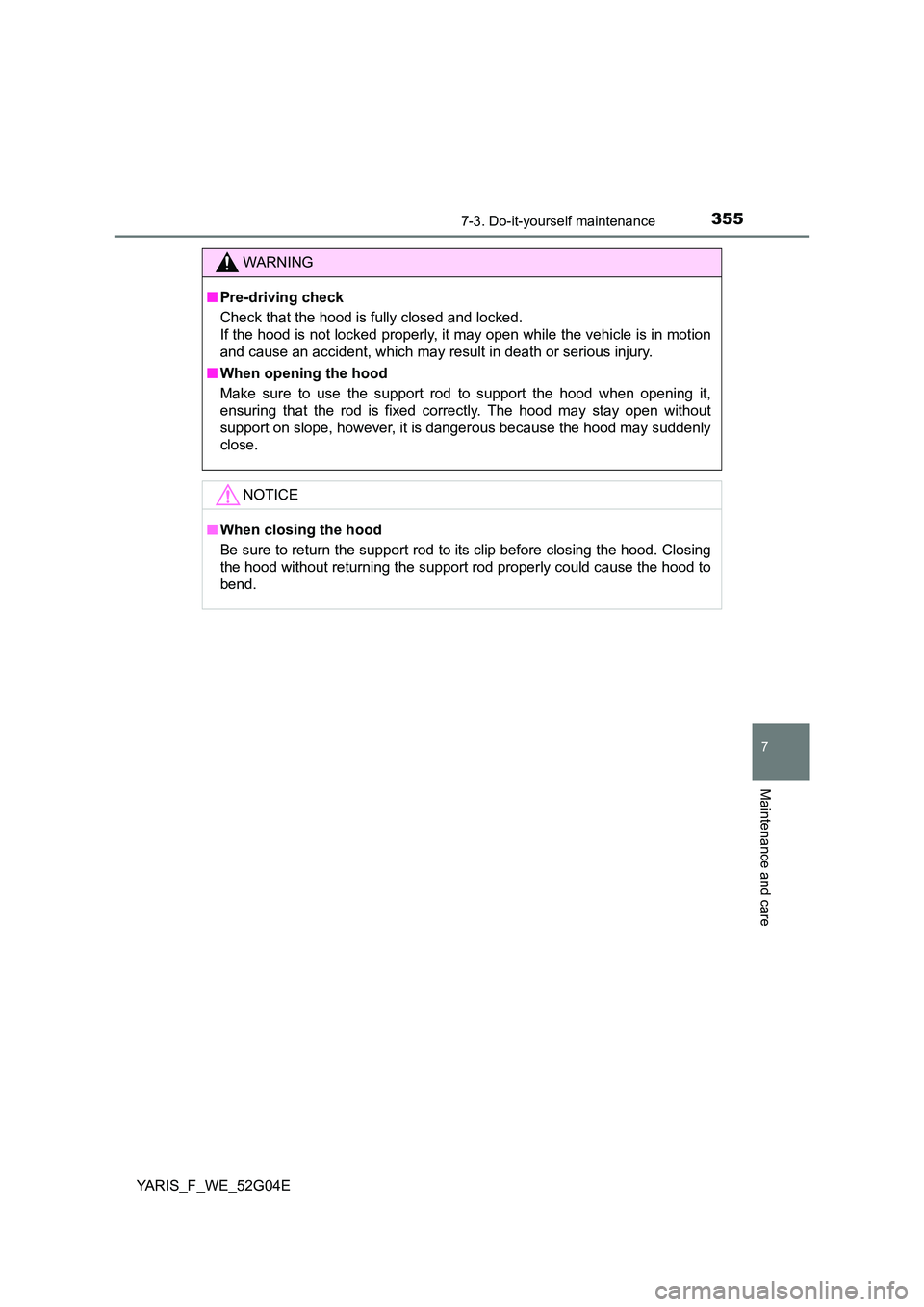

WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ When opening the hood
Make sure to use the support rod to support the hood when opening it,
ensuring that the rod is fixed correctly. The hood may stay open without
support on slope, however, it is dangerous because the hood may suddenly
close.
NOTICE
■ When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood without returning the support rod properly could cause the hood to
bend.

3567-3. Do-it-yourself maintenance
YARIS_F_WE_52G04E

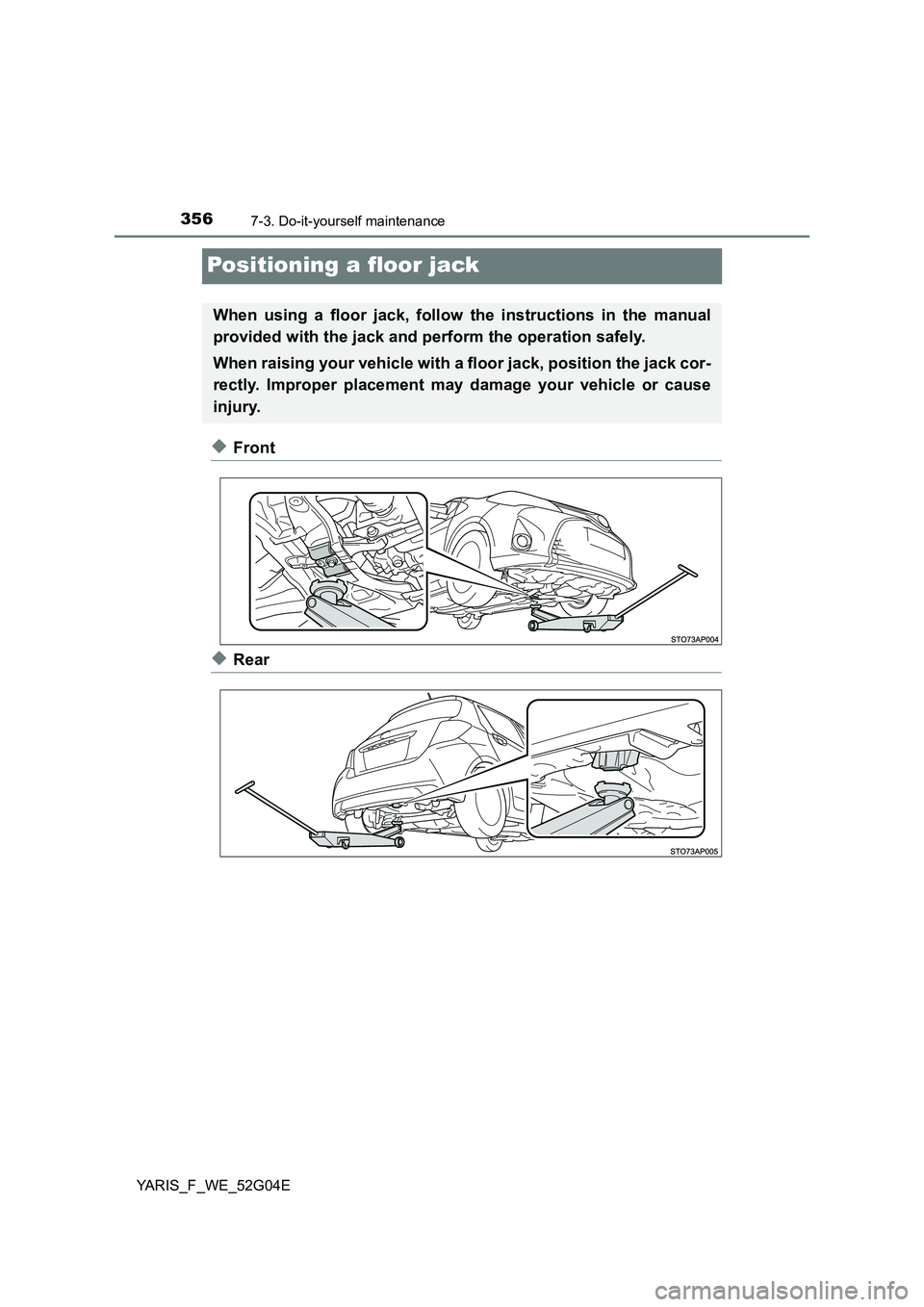

Positioning a floor jack
◆Front
◆Rear
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.

3577-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_WE_52G04E

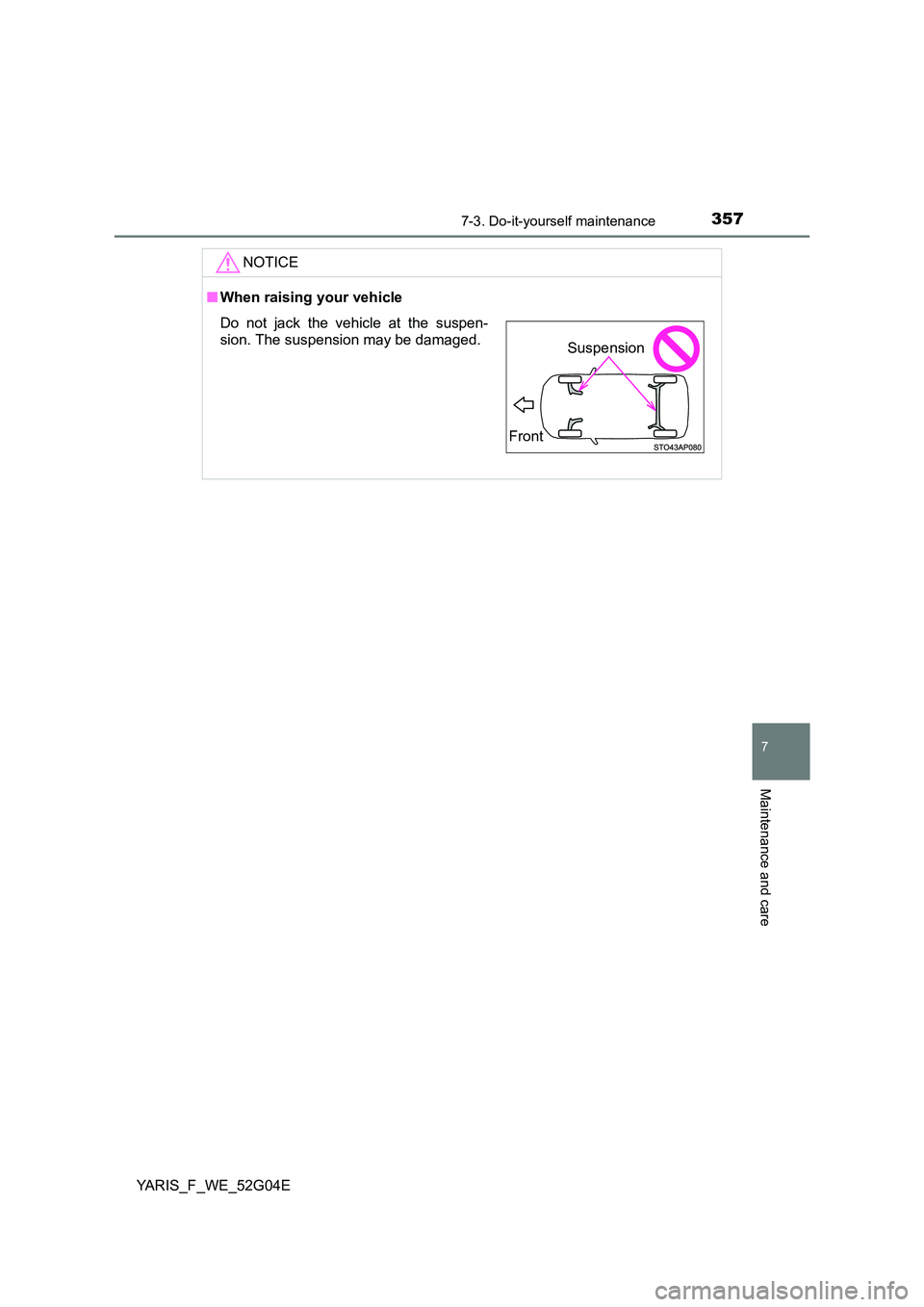

NOTICE
■When raising your vehicle
Do not jack the vehicle at the suspen-
sion. The suspension may be damaged.
Front
Suspension

3587-3. Do-it-yourself maintenance
YARIS_F_WE_52G04E
Engine compar tment
■1KR-FE engine
Fuse boxes (P. 397)
Engine oil level dipstick
( P. 361)
Engine oil filler cap
( P. 363)
Battery ( P. 368)
Engine coolant reservoir
( P. 366)
Electric cooling fan
Condenser ( P. 367)
Radiator ( P. 367)
Washer fluid tank ( P. 371)
1
2
3
4
5
6
7
8
9

3597-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_WE_52G04E
■1NR-FE engine
Fuse boxes ( P. 397)
Engine oil filler cap
( P. 363)
Engine oil level dipstick
( P. 361)
Battery ( P. 368)
Engine coolant reservoir
( P. 366)
Electric cooling fan
Condenser ( P. 367)
Radiator ( P. 367)
Washer fluid tank ( P. 371)
1
2
3
4
5
6
7
8
9

3607-3. Do-it-yourself maintenance
YARIS_F_WE_52G04E
■1ND-TV engine
Fuse boxes ( P. 397)
Engine oil filler cap
( P. 363)
Engine oil level dipstick
( P. 361)
Fuel filter ( P. 372)
Battery ( P. 368)
Intercooler ( P. 367)
Electric cooling fan
Condenser ( P. 367)
Radiator ( P. 367)
Engine coolant reservoir
( P. 366)
Washer fluid tank ( P. 371)
1
2
3
4
5
6
7
8
9
10
11
