2015 TOYOTA YARIS HATCHBACK Owners Manual

305
6Interior features
YARIS_F_WE_52G04E
6-1. Using the air conditioning
system and defogger
Manual air conditioning
system ............................. 306
Automatic air conditioning
system ............................. 313
Power heater ..................... 321
Seat heaters ...................... 323
6-2. Using the interior lights
Interior lights list................. 325
• Interior light.................... 325
• Personal lights ............... 326
6-3. Using the storage features
List of storage features ...... 327
• Glove box ...................... 328
• Cup holders ................... 329
• Bottle holders ................ 330
• Auxiliary box .................. 331
Luggage compartment
features............................ 332
6-4. Using the other interior
features
Other interior features ........ 335
• Sun visors...................... 335
• Vanity mirrors ................ 335
• Portable ashtray ............ 336
• Cigarette lighter ............. 337
• Power outlet .................. 338
• Armrest .......................... 339
• Panoramic roof shade ... 339
• Assist grips .................... 340

3066-1. Using the air conditioning system and defogger
YARIS_F_WE_52G04E

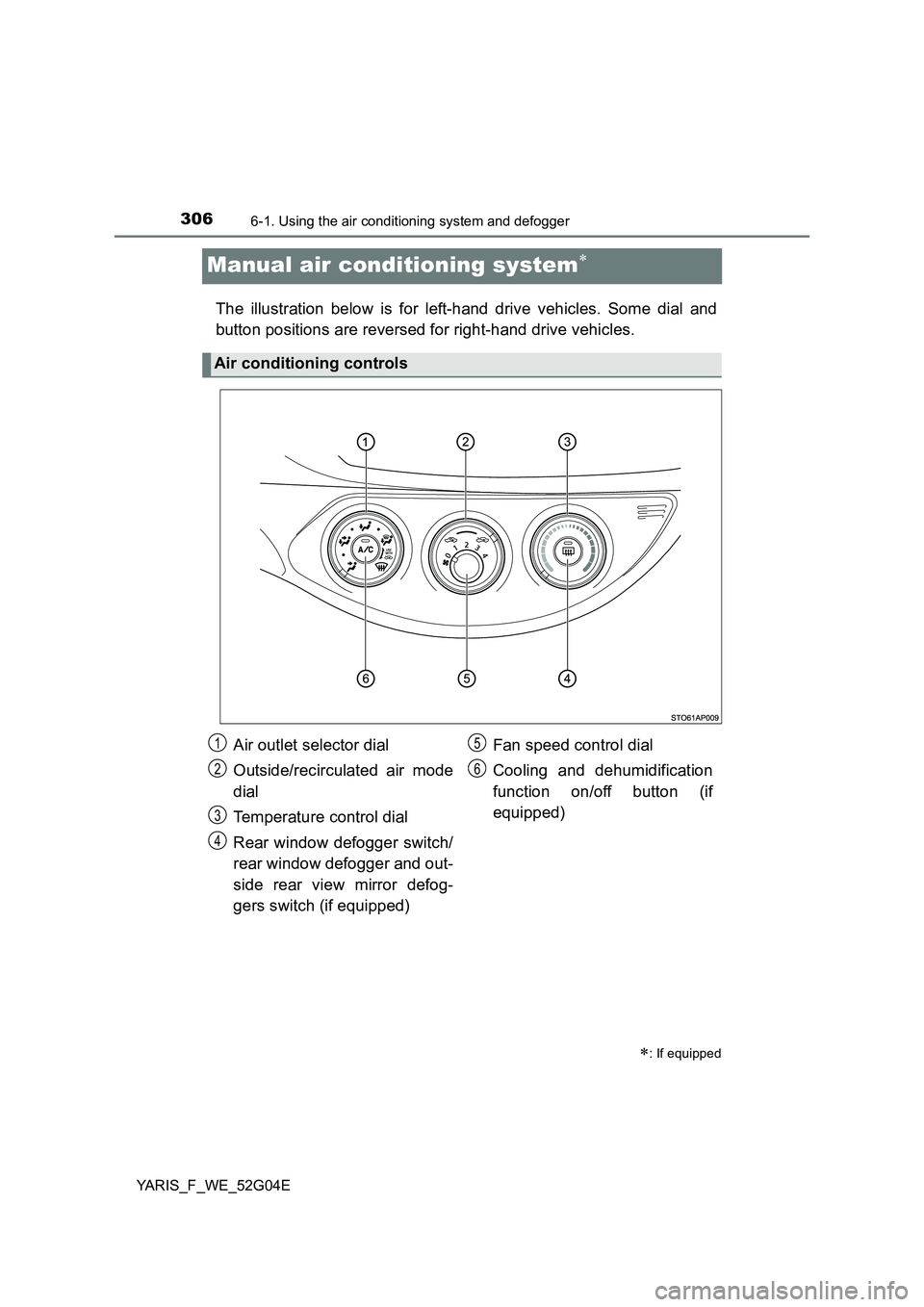

Manual air conditioning system
The illustration below is for left-hand drive vehicles. Some dial and
button positions are reversed for right-hand drive vehicles.
: If equipped
Air conditioning controls
Air outlet selector dial
Outside/recirculated air mode
dial
Temperature control dial
Rear window defogger switch/
rear window defogger and out-
side rear view mirror defog-
gers switch (if equipped)
Fan speed control dial
Cooling and dehumidification
function on/off button (if
equipped)
1
2
3
4
5
6

3076-1. Using the air conditioning system and defogger
6
Interior features
YARIS_F_WE_52G04E
■Adjusting the temperature setting
Vehicles without the button
Turn the temperature control dial clockwise to increase the temper-
ature.
Vehicles with the button
To adjust the temperature setting, turn the temperature control dial
clockwise (warm) or counterclockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
■Fan speed setting
To adjust the fan speed, turn the fan speed control dial clockwise
(increase) or counterclockwise (decrease).
Turning the dial to “0” turns off the fan.
■Change the airflow mode
To select the air outlets, set the
air outlet selector dial to the
desired position.
The positions between the air
outlet selections can also be
selected for more delicate
adjustment.
Air flows to the upper body
Air flows to the upper body
and feet
Air flows to the feet
Air flows to the feet and the windshield defogger operates
The windshield defogger operates
1
2
3
4
5

3086-1. Using the air conditioning system and defogger
YARIS_F_WE_52G04E

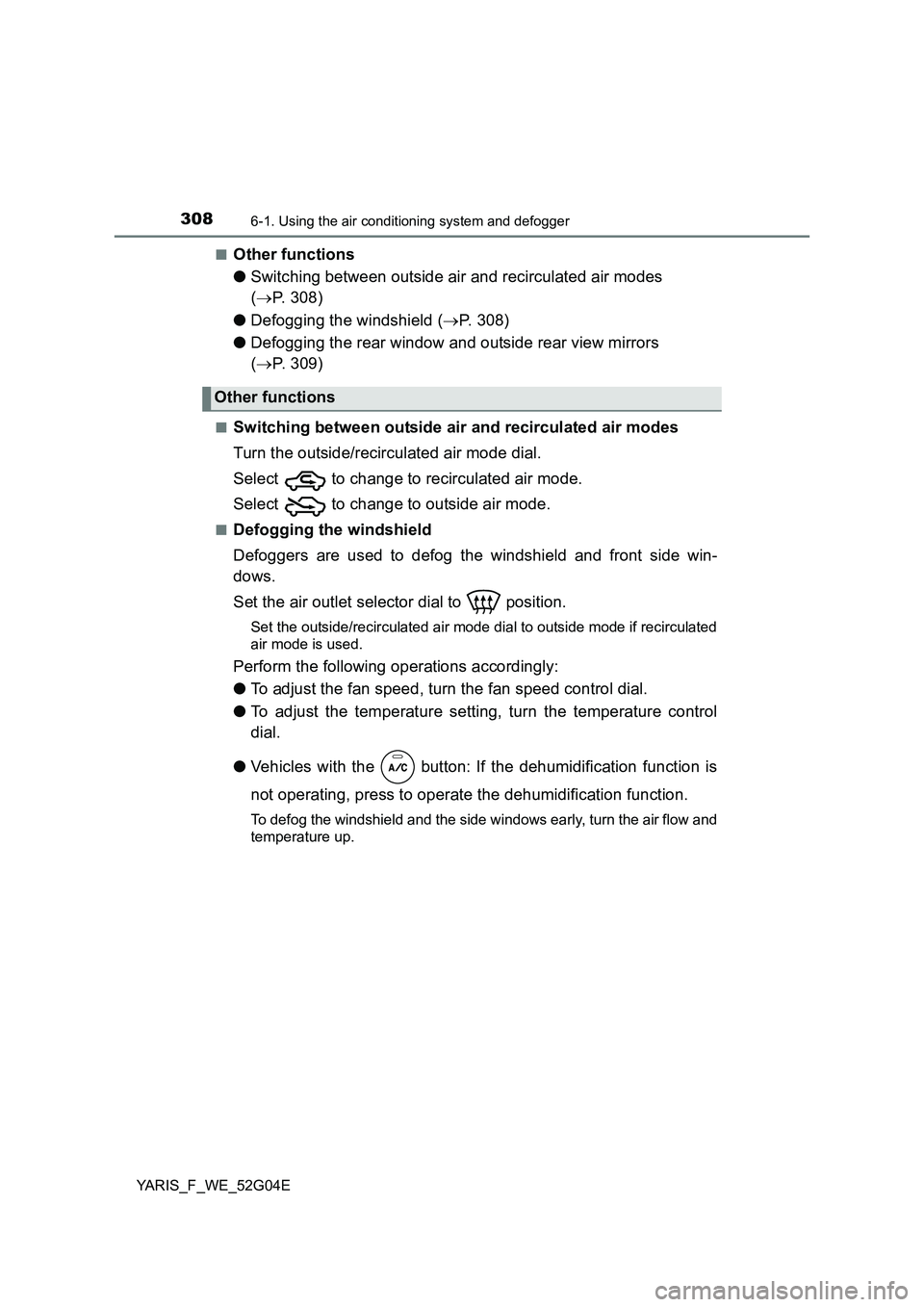

■Other functions
● Switching between outside air and recirculated air modes
( P. 308)
● Defogging the windshield (P. 308)
● Defogging the rear window and outside rear view mirrors
( P. 309)
■Switching between outside air and recirculated air modes
Turn the outside/recirculated air mode dial.
Select to change to recirculated air mode.
Select to change to outside air mode.
■Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Set the air outlet selector dial to position.
Set the outside/recirculated air mode dial to outside mode if recirculated
air mode is used.
Perform the following operations accordingly:
● To adjust the fan speed, turn the fan speed control dial.
● To adjust the temperature setting, turn the temperature control
dial.
● Vehicles with the button: If the dehumidification function is
not operating, press to operate the dehumidification function.
To defog the windshield and the side windows early, turn the air flow and
temperature up.
Other functions

3096-1. Using the air conditioning system and defogger
6
Interior features
YARIS_F_WE_52G04E

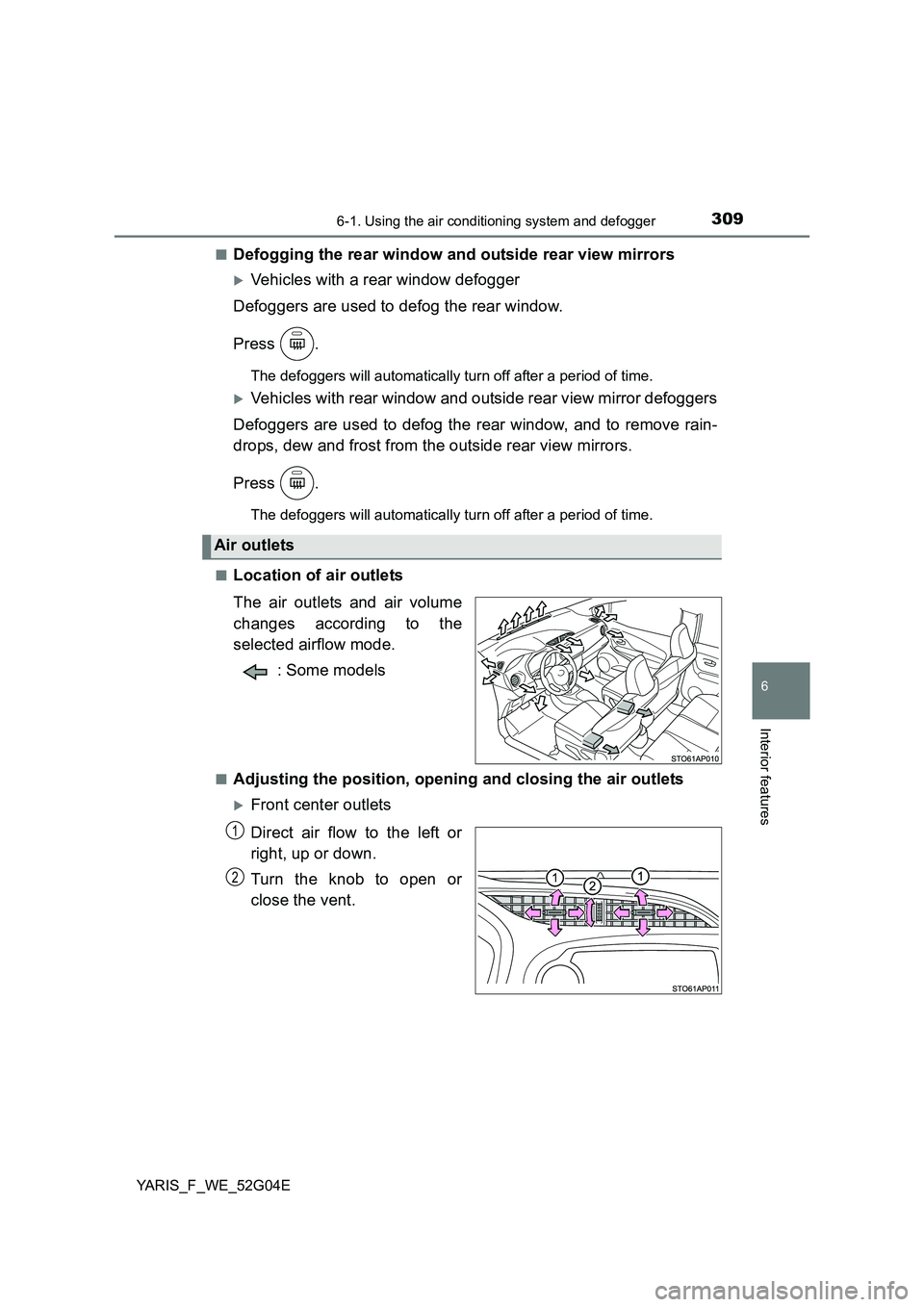

■Defogging the rear window and outside rear view mirrors
Vehicles with a rear window defogger
Defoggers are used to defog the rear window.
Press .
The defoggers will automatically turn off after a period of time.
Vehicles with rear window and outside rear view mirror defoggers
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
■Location of air outlets
The air outlets and air volume
changes according to the
selected airflow mode.
: Some models
■Adjusting the position, opening and closing the air outlets
Front center outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or
close the vent.
Air outlets
1
2

3106-1. Using the air conditioning system and defogger
YARIS_F_WE_52G04E

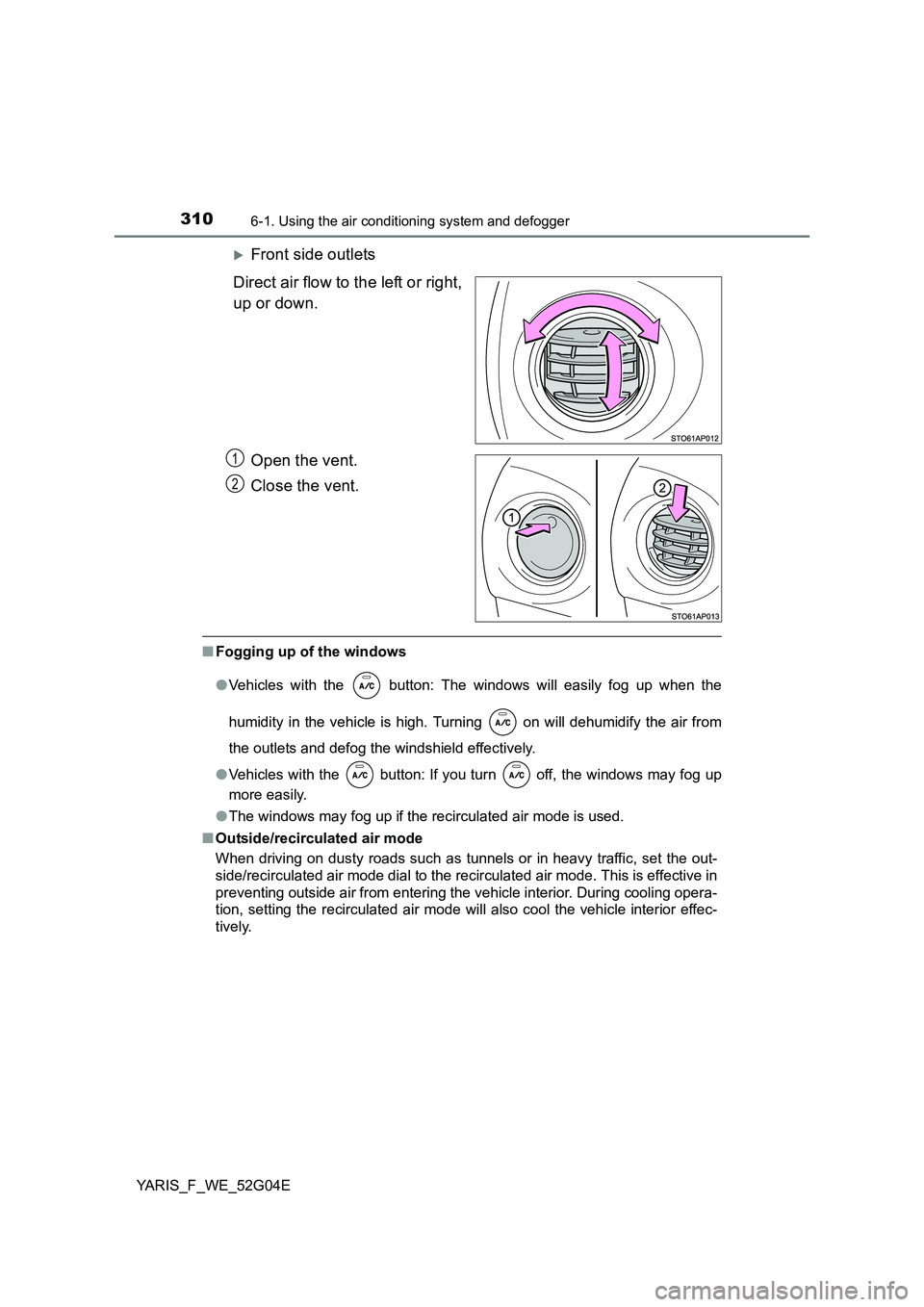

Front side outlets
Direct air flow to the left or right,
up or down.
Open the vent.
Close the vent.
■ Fogging up of the windows
● Vehicles with the button: The windows will easily fog up when the
humidity in the vehicle is high. Turning on will dehumidify the air from
the outlets and defog the windshield effectively.
● Vehicles with the button: If you turn off, the windows may fog up
more easily.
● The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode dial to the recirculated air mode. This is effective in
preventing outside air from entering the vehicle interior. During cooling opera-
tion, setting the recirculated air mode will also cool the vehicle interior effec-
tively.
1
2

3116-1. Using the air conditioning system and defogger
6
Interior features
YARIS_F_WE_52G04E
■ When the indicator light on goes off by itself (vehicles with the
button)
Press to turn off the dehumidification function and turn it on again. There
may be a problem in the air conditioning sy stem if the indicator light goes off
again. Turn the air conditioning system off and have it inspected by any
authorized Toyota dealer or repair er, or another duly qualified and equipped
professional.
■ When the outside temperature falls to nearly 0C (32F) (vehicles with
the button)
The dehumidification function may not operate even when is pressed.
■ Ventilation and air conditioning odors
● To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
■ An odor comes from the air conditioning system due to the Stop & Start
system operation (vehicles with a Stop & Start system)
When the engine is stopped due to the Stop & Start system, an odor caused
by moisture may be detected. This does not indicate a malfunction.
■ Air conditioning filter
 P. 392

3126-1. Using the air conditioning system and defogger
YARIS_F_WE_52G04E

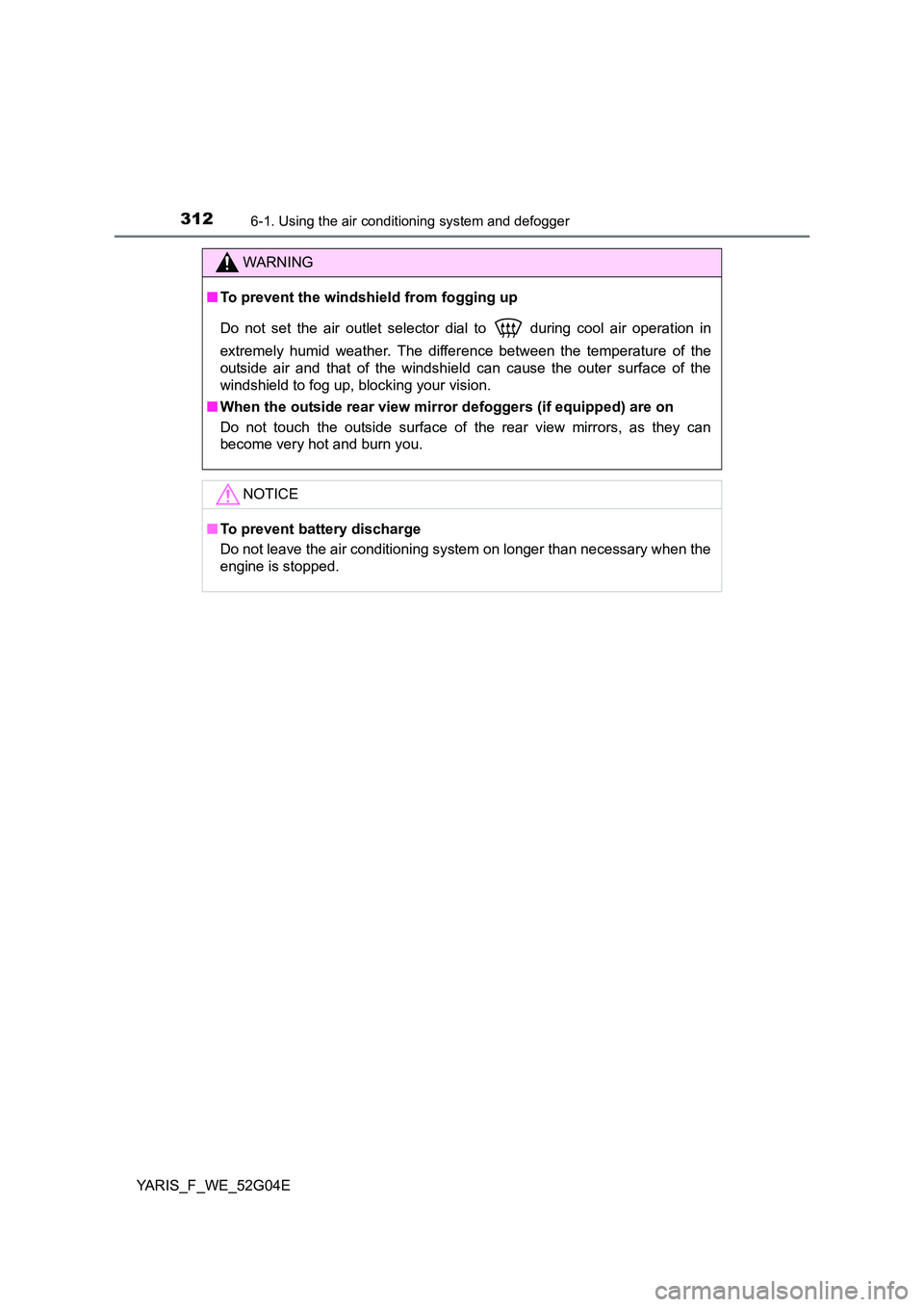

WARNING
■To prevent the windshield from fogging up
Do not set the air outlet selector dial to during cool air operation in
extremely humid weather. The differenc e between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
■ When the outside rear view mirror defoggers (if equipped) are on
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning syst em on longer than necessary when the
engine is stopped.
