2015 TOYOTA YARIS HATCHBACK Owners Manual

5059-1. Specifications
9
Vehicle specifications
YARIS_F_WE_52G04E
■Gasoline engine
■Diesel engine
Cooling system
Capacity
(Reference)
1KR-FE
engine4.5 L (4.8 qt., 4.0 Imp.qt.)
1NR-FE
engine
Multidrive
4.8 L (5.1 qt., 4.2 Imp.qt.)
Manual transmission
4.6 L (4.9 qt., 4.0 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Capacity
(Reference)
Without a power heater
4.5 L (4.8 qt., 4.0 Imp.qt.)
With a power heater
4.9 L (5.2 qt., 4.3 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.

5069-1. Specifications
YARIS_F_WE_52G04E
*: The fluid capacity is the reference quantity. If replacement is necessary,
contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Ignition system (gasoline engine only)
Spark plug
MakeDENSO SC16HR11
Gap1.1 mm (0.043 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
Battery
Specific gravity reading
at 20 C (68F):
1.250 — 1.290 Fully charged
1.160 — 1.200 Half charged
1.060 — 1.100 Discharged
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Multidrive
Fluid capacity*6.4 L (6.8 qt., 5.6 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Multidrive fluid type
Using Multidrive fluid other than “T oyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.

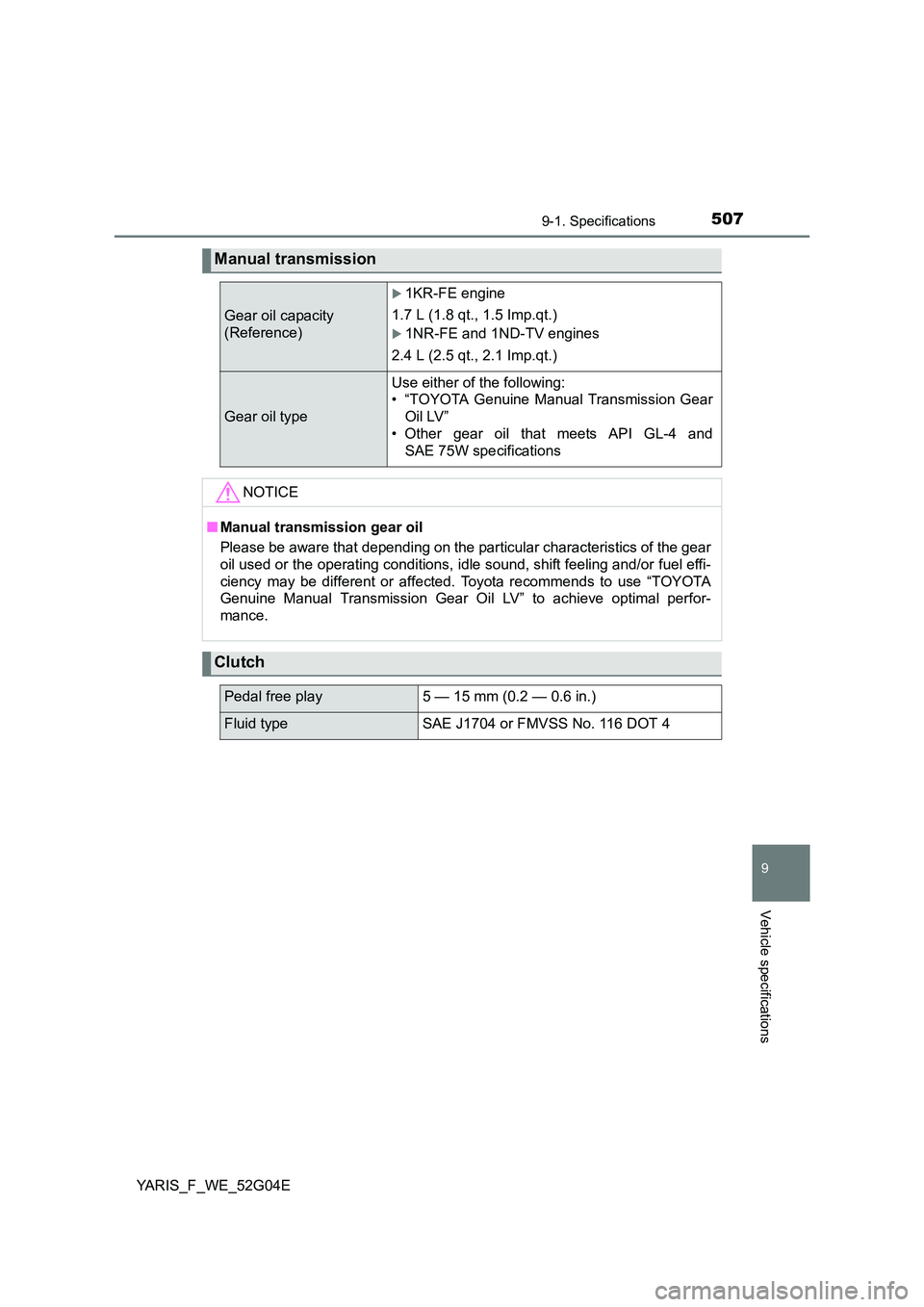

5079-1. Specifications
9
Vehicle specifications
YARIS_F_WE_52G04E
Manual transmission
Gear oil capacity
(Reference)
1KR-FE engine
1.7 L (1.8 qt., 1.5 Imp.qt.)
1NR-FE and 1ND-TV engines
2.4 L (2.5 qt., 2.1 Imp.qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual Transmission Gear
Oil LV”
• Other gear oil that meets API GL-4 and
SAE 75W specifications
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oi l LV” to achieve optimal perfor-
mance.
Clutch
Pedal free play5 — 15 mm (0.2 — 0.6 in.)
Fluid typeSAE J1704 or FMVSS No. 116 DOT 4

5089-1. Specifications
YARIS_F_WE_52G04E
*1: Minimum pedal clearance when depressed with a force of 300 N (31.0 kgf,
67.4 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Brakes
Pedal clearance*164 mm (2.52 in.) Min.
Pedal free play1 — 6 mm (0.04 — 0.24 in.)
Parking brake lever travel*2
Rear drum brake
5 — 7 clicks
Rear disc brake
4 — 6 clicks
Fluid typeSAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

5099-1. Specifications
9
Vehicle specifications
YARIS_F_WE_52G04E
14-inch tires (Type A)
14-inch tires (Type B)
15-inch tires (Type A)
*: For some models, ECO tire pressure is shown on the tire pressure label.
( P. 467)
“For optimizing fuel economy, ECO tire pressure is recommended.
Tire pressure affects traveling comfort, road noise and steering character-
istics.”
Tires and wheels
Tire size175/65R14 82T
Tire inflation pressure
(Recommended cold
tire inflation pressure)
220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Wheel size14  5J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size175/70R14 84S
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front wheel
kPa (kgf/cm2 or bar, psi)
Rear wheel
kPa (kgf/cm2 or bar, psi)
250 (2.5, 36)240 (2.4, 35)
Wheel size14  5J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size175/65R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front wheel
kPa (kgf/cm2 or bar, psi)
Rear wheel
kPa (kgf/cm2 or bar, psi)
Standard tire pressure:
230 (2.3, 33)
ECO tire pressure*:
250 (2.5, 36)
Standard tire pressure:
220 (2.2, 32)
ECO tire pressure*:
240 (2.4, 35)
Wheel size15  5J, 15  5 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

5109-1. Specifications
YARIS_F_WE_52G04E
15-inch tires (Type B)
16-inch tires
Tire size185/60R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
160 km/h
(99 mph) or
less
220 (2.2, 32)220 (2.2, 32)
More than
160 km/h
(99 mph)
240 (2.4, 35)220 (2.2, 32)
Wheel size15  5 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size195/50R16 84V
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
160 km/h
(99 mph) or
less
220 (2.2, 32)200 (2.0, 29)
More than
160 km/h
(99 mph)
240 (2.4, 35)210 (2.1, 30)
Wheel size16  6J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

5119-1. Specifications
9
Vehicle specifications
YARIS_F_WE_52G04E
Compact spare tires
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure, and drive at speeds below 100 km/h (62 mph).
Tire sizeT125/70D15 95M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size15  4B
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire sizeT125/70D16 96M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

5129-1. Specifications
YARIS_F_WE_52G04E
Light bulbs
Light BulbsWTyp e
Exterior
Halogen headlights
Reflector type
Projector type
60/55
55
A
B
Front fog lights*19C
Front position light/daytime running lights
(bulb type)21/5D
Front turn signal lights21E
Side turn signal lights5E
Rear turn signal lights21G
Stop/tail lights (bulb type)21/5D
Back-up light21D
Rear fog light21D
License plate lights5D
Interior
Vanity lights*5F
Personal lights/interior light5D
Luggage compartment light5F
A: H4 halogen bulbs
C: H16 halogen bulbs
E: Wedge base bulbs (amber)
G: Single end bulbs (clear)
B: HIR2 halogen bulbs
D: Wedge base bulbs (clear)
F: Double end bulbs
*: If equipped
