2015 TOYOTA YARIS HATCHBACK Owners Manual

571-1. For safe use
1
For safety and security
YARIS_F_WE_52G04E
Information provided in the table shows your child restraint system
suitability for various seating positions.
Front passenger seat
NOTE:
Vehicles with a vertical height adjustment lever, must have the seat
cushion adjusted to the highest position.
Child restraint system suitability for various seating positions
Front passenger seat
Recommended child
restraint systemsAirbag manual on-off switch
ONOFF
0
Up to 10 kg
(22 lb.)
(0 - 9 months)
X
Never put L
“TOYOTA G 0+,
BABYSAFE”
“TOYOTA G 0+,
BABYSAFE PLUS”
“TOYOTA G 0+,
BABYSAFE PLUS with
SEAT BELT FIXATION,
BASE PLATFORM”
0+
Up to 13 kg
(28 lb.)
(0 - 2 years)
X
Never put L
“TOYOTA G 0+,
BABYSAFE”
“TOYOTA G 0+,
BABYSAFE PLUS”
“TOYOTA G 0+,
BABYSAFE PLUS with
SEAT BELT FIXATION,
BASE PLATFORM”
I
9 to 18 kg
(20 to 39 lb.)
(9 months -
4 years)
Rear-facing —
X
Never put UF*1“TOYOTA DUO+”
Forward-facing —
UF*1
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)
UF*1UF*1“TOYOTA KID”
“TOYOTA KIDFIX”
Mass groups
Seating positions

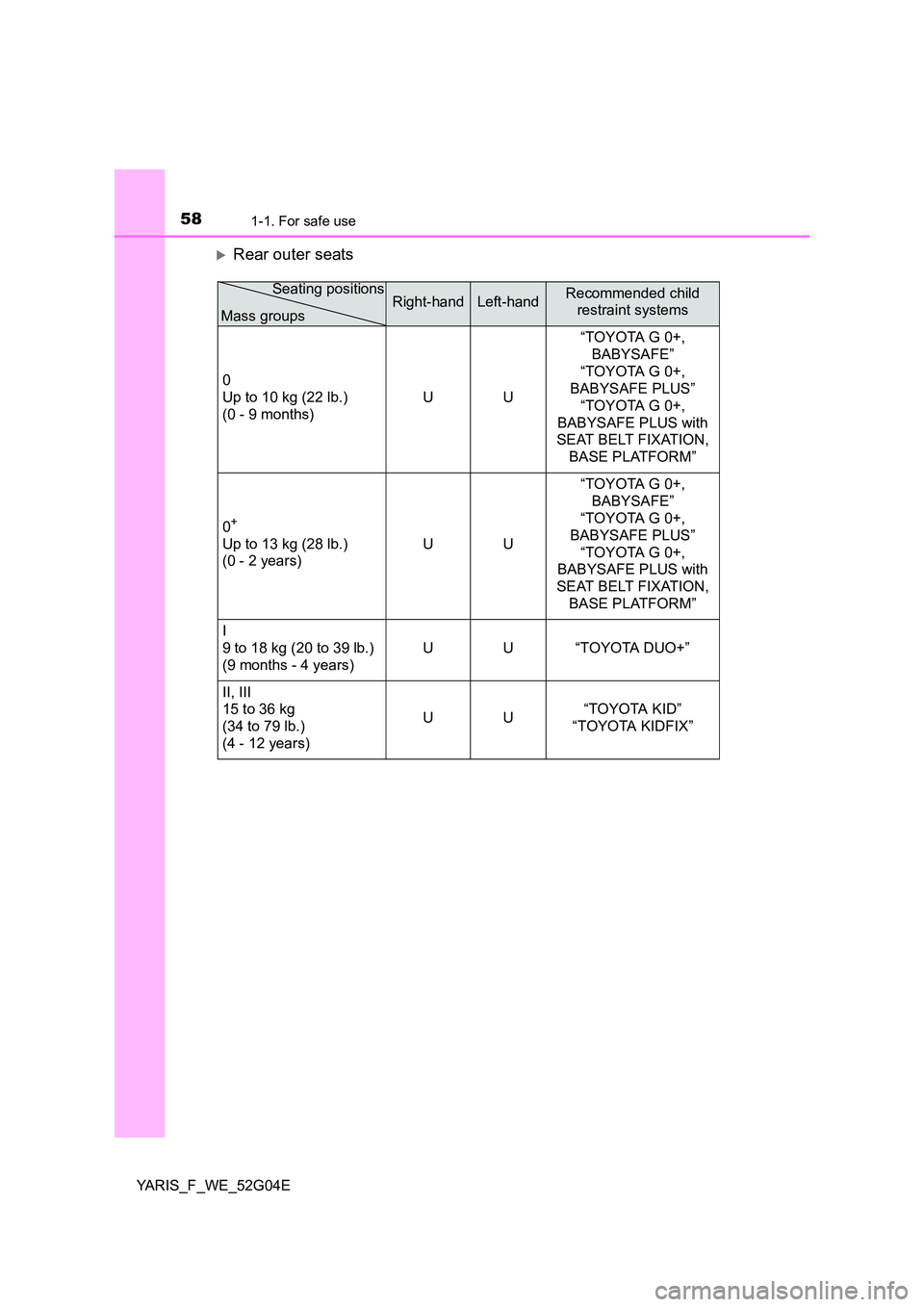

581-1. For safe use
YARIS_F_WE_52G04E
Rear outer seats
Right-handLeft-handRecommended child
restraint systems
0
Up to 10 kg (22 lb.)
(0 - 9 months)
UU
“TOYOTA G 0+,
BABYSAFE”
“TOYOTA G 0+,
BABYSAFE PLUS”
“TOYOTA G 0+,
BABYSAFE PLUS with
SEAT BELT FIXATION,
BASE PLATFORM”
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
UU
“TOYOTA G 0+,
BABYSAFE”
“TOYOTA G 0+,
BABYSAFE PLUS”
“TOYOTA G 0+,
BABYSAFE PLUS with
SEAT BELT FIXATION,
BASE PLATFORM”
I
9 to 18 kg (20 to 39 lb.)
(9 months - 4 years)
U U “TOYOTA DUO+”
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)
UU “TOYOTA KID”
“TOYOTA KIDFIX”
Mass groups
Seating positions

591-1. For safe use
1
For safety and security
YARIS_F_WE_52G04E
Rear center seat
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint
system approved for the use in this mass group.
L: Suitable for specific child seats. These child seats may be
intended for use in a special car model, limited or semi-universal
categories.
X: Not suitable seat position for children in this mass group.
*1: Adjust the front seat back to the most upright position. Move the
front seat cushion to the fully rearward.
*2: When you use a child restraint system in this position, remove
the head restraint.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area. Other child restraint systems which are
different from the systems mentioned in the table can be used, but the
suitability of the systems must be carefully checked with the child
restraint system manufacturer concerned and the seller of those
seats.
CenterRecommended child restraint
systems
0
Up to 10 kg (22 lb.)
(0 - 9 months)
L “TOYOTA G 0+, BABYSAFE”
“TOYOTA G 0+, BABYSAFE PLUS”
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
L “TOYOTA G 0+, BABYSAFE”
“TOYOTA G 0+, BABYSAFE PLUS”
I
9 to 18 kg (20 to 39 lb.)
(9 months - 4 years)
L*2“TOYOTA DUO+”
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)
L*2“TOYOTA KID”
“TOYOTA KIDFIX”
Mass groups
Seating positions

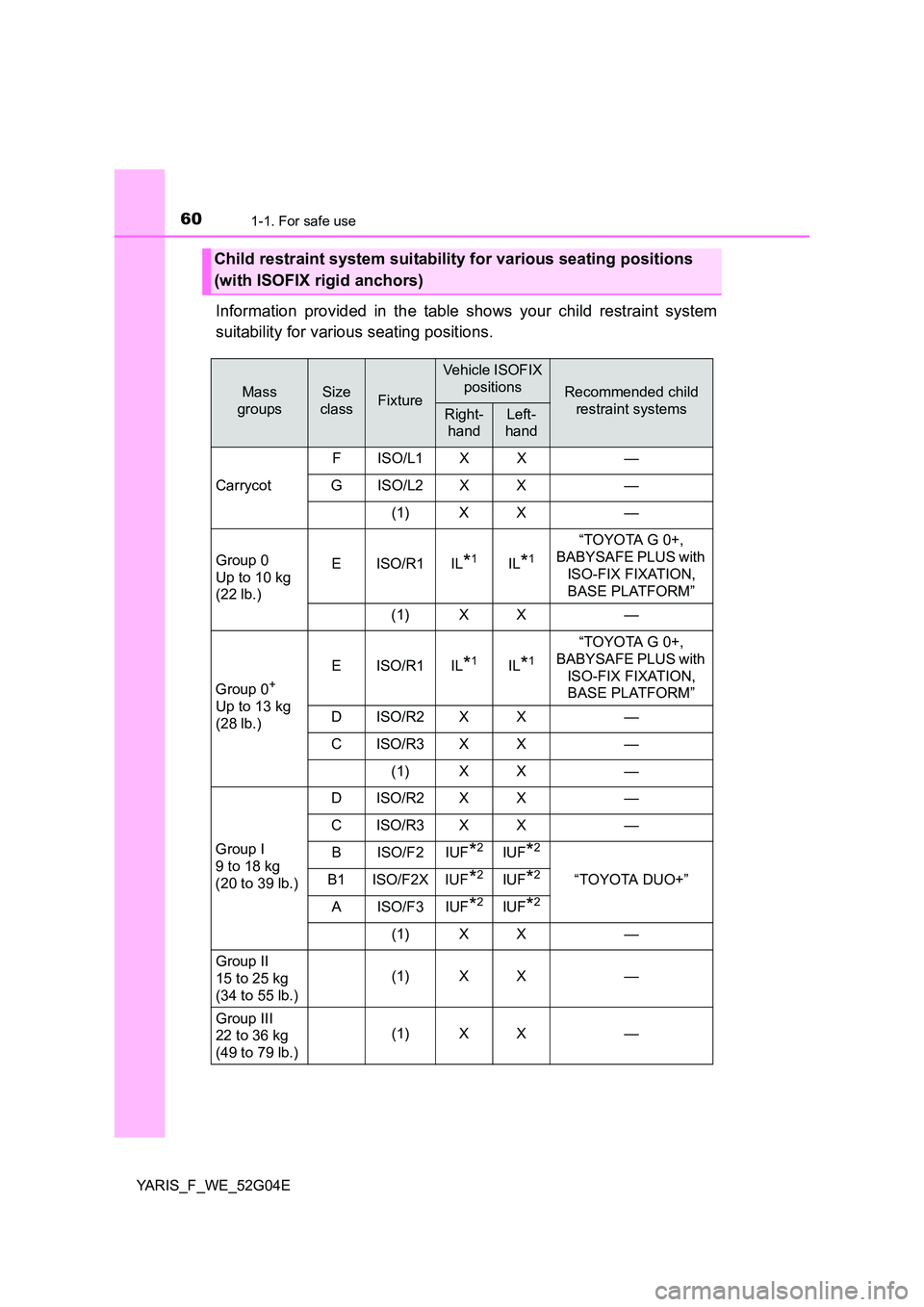

601-1. For safe use
YARIS_F_WE_52G04E
Information provided in the table shows your child restraint system
suitability for various seating positions.
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchors)
Mass
groups
Size
classFixture
Vehicle ISOFIX
positionsRecommended child
restraint systemsRight-
hand
Left-
hand
Carrycot
FISO/L1X X —
GISO/L2 X X —
(1) X X —
Group 0
Up to 10 kg
(22 lb.)
EISO/R1IL*1IL*1
“TOYOTA G 0+,
BABYSAFE PLUS with
ISO-FIX FIXATION,
BASE PLATFORM”
(1) X X —
Group 0+
Up to 13 kg
(28 lb.)
EISO/R1IL*1IL*1
“TOYOTA G 0+,
BABYSAFE PLUS with
ISO-FIX FIXATION,
BASE PLATFORM”
DISO/R2X X —
CISO/R3X X —
(1) X X —
Group I
9 to 18 kg
(20 to 39 lb.)
DISO/R2X X —
CISO/R3X X —
BISO/F2IUF*2IUF*2
“TOYOTA DUO+” B1 ISO/F2X IUF*2IUF*2
AISO/F3IUF*2IUF*2
(1) X X —
Group II
15 to 25 kg
(34 to 55 lb.)
(1) X X —
Group III
22 to 36 kg
(49 to 79 lb.)
(1) X X —

611-1. For safe use
1
For safety and security
YARIS_F_WE_52G04E
(1) For the CRS which do not carry the ISO/XX size class identifica-
tion (A to G), for the applicable mass group, the car manufacturer
shall indicate the vehicle specific ISOFIX child restraint system(s)
recommended for each position.
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of uni-
versal category approved for the use in this mass group.
IL: Suitable for ISOFIX child restraint systems of the categories for
“specific vehicles”, “restricted”, or “semiuniversal”, approved for
this type of vehicle.
X: ISOFIX position not suitable for ISOFIX child restraint systems in
this mass group and/or this size class.
*1: If the child seat is installed behind a front seat equipped with
height adjuster and the front seat is adjusted below middle height
position, then adjust the front seat head restraint to the highest
position.
*2: When you use a child restraint system in this position, remove
the head restraint.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area. Other child restraint systems different
from the systems mentioned in the table can be used, but the suitabil-
ity of the systems must be carefully checked with the child restraint
system manufacturer and retailer.

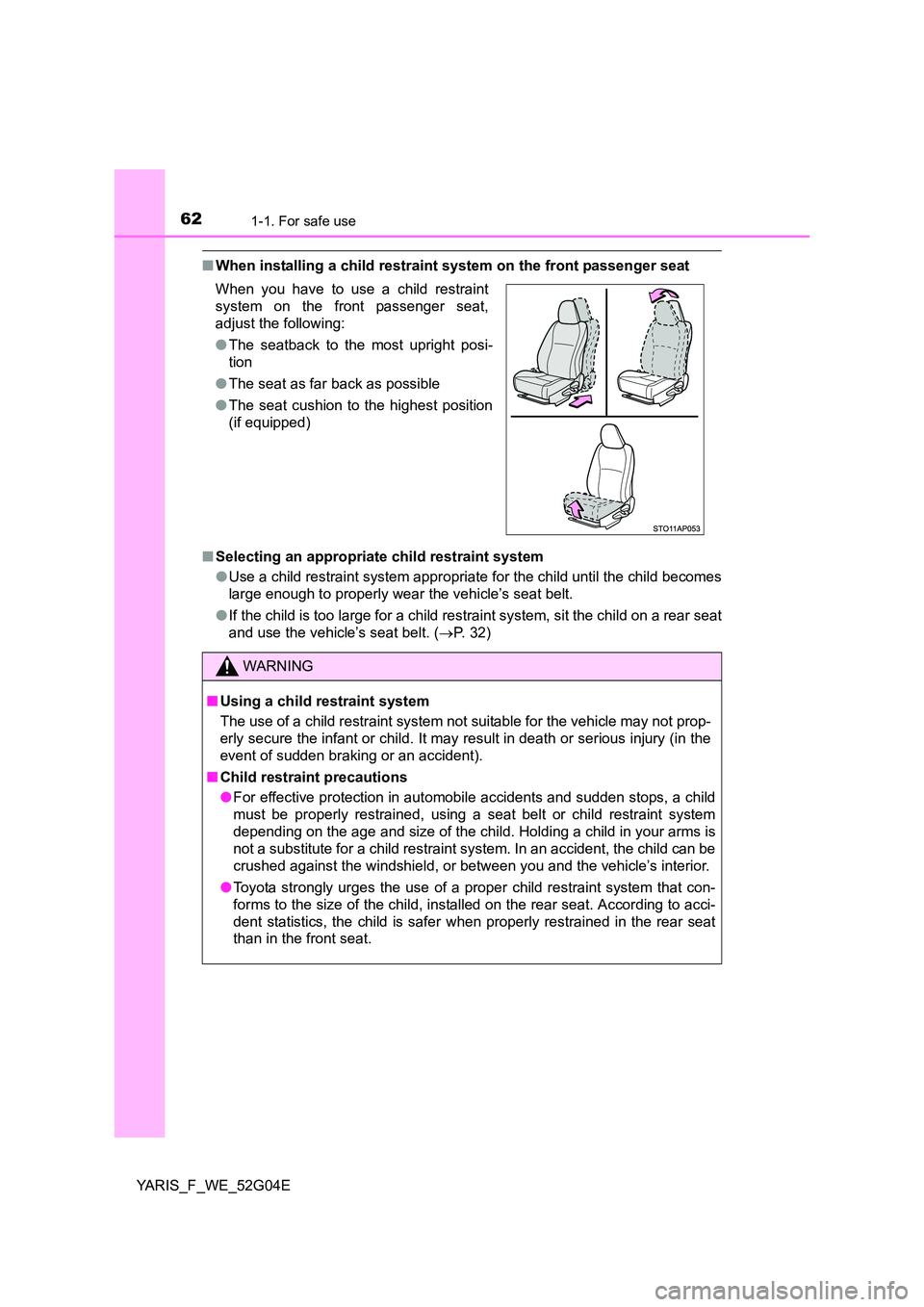

621-1. For safe use
YARIS_F_WE_52G04E
■When installing a child restraint system on the front passenger seat
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. ( P. 32)
When you have to use a child restraint
system on the front passenger seat,
adjust the following:
● The seatback to the most upright posi-
tion
● The seat as far back as possible
● The seat cushion to the highest position
(if equipped)
WARNING
■ Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
event of sudden braking or an accident).
■ Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.

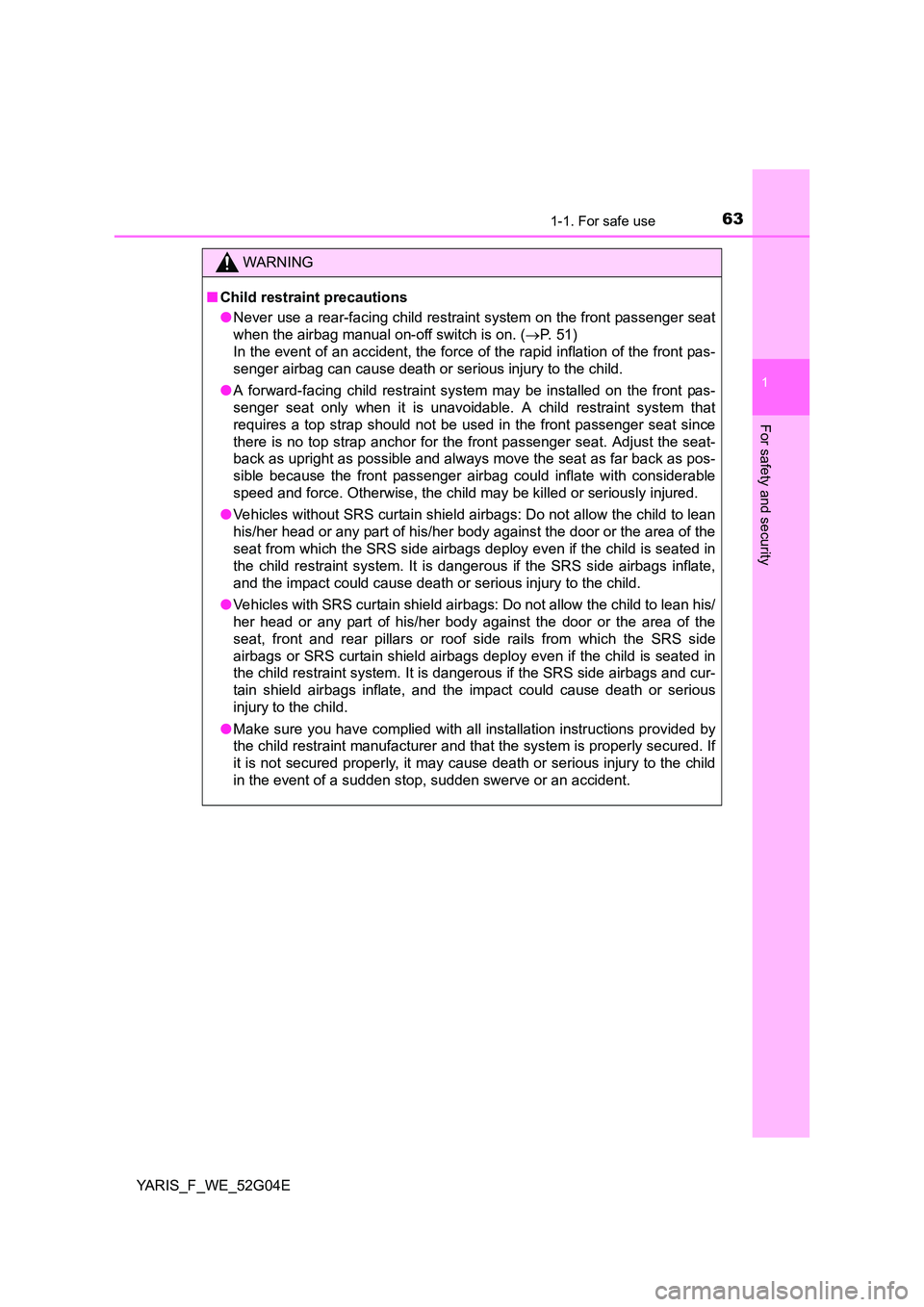

631-1. For safe use
1
For safety and security
YARIS_F_WE_52G04E
WARNING
■Child restraint precautions
● Never use a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. ( P. 51)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top strap should not be used in the front passenger seat since
there is no top strap anchor for the front passenger seat. Adjust the seat-
back as upright as possible and always move the seat as far back as pos-
sible because the front passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.
● Vehicles without SRS curtain shield airbags: Do not allow the child to lean
his/her head or any part of his/her body against the door or the area of the
seat from which the SRS side airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags inflate,
and the impact could cause death or serious injury to the child.
● Vehicles with SRS curtain shield airbags: Do not allow the child to lean his/
her head or any part of his/her body against the door or the area of the
seat, front and rear pill ars or roof side rails from which the SRS side
airbags or SRS curtain shield airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags and cur-
tain shield airbags inflate, and the impact could cause death or serious
injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.

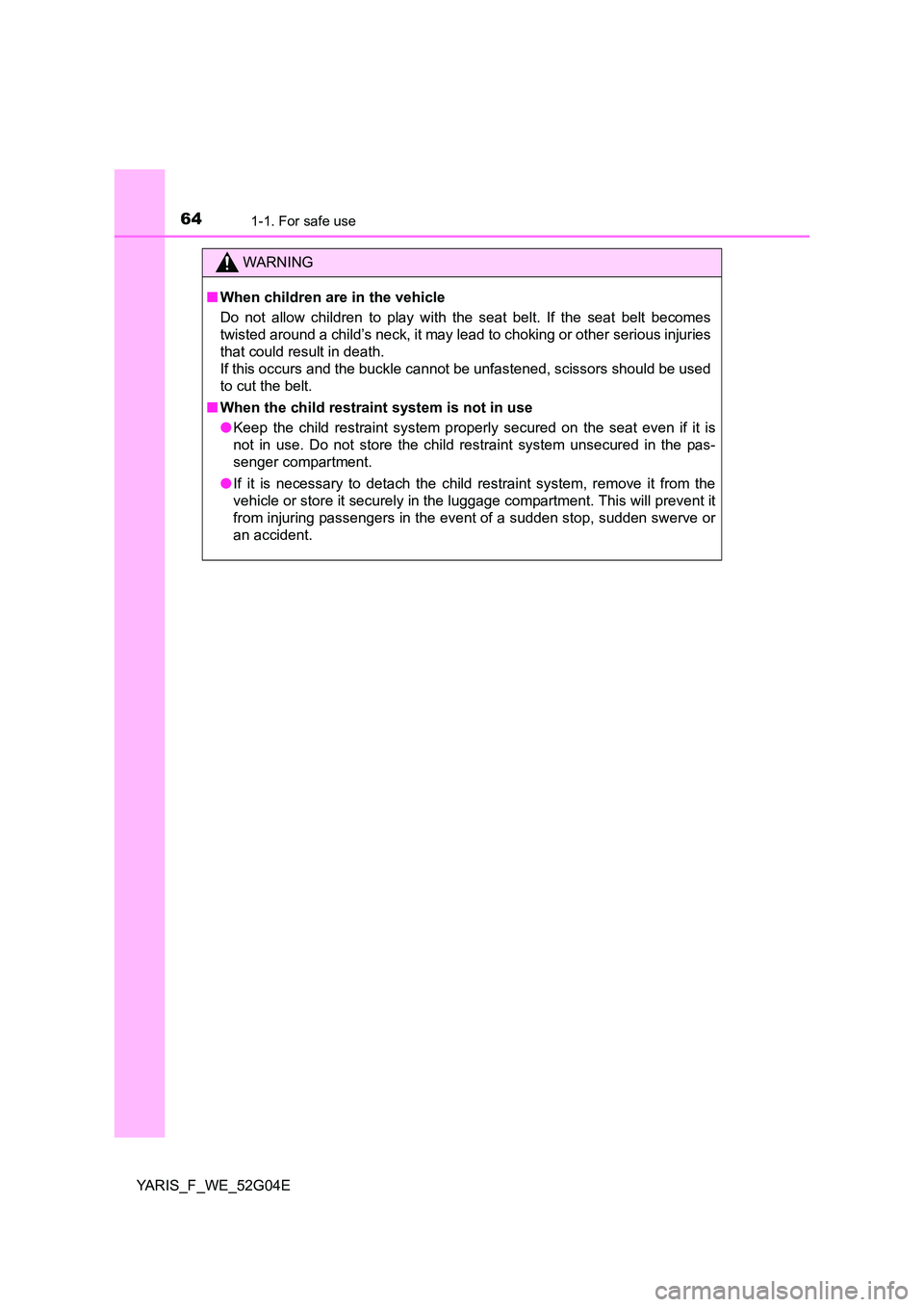

641-1. For safe use
YARIS_F_WE_52G04E
WARNING
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restraint system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
an accident.
