2015 TOYOTA YARIS HATCHBACK Owners Manual

1213-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_F_WE_52G04E
Move the inside door lock button to the lock position.
Close the door while pulling the door handle.
Vehicles without a smart entry & start system
The door cannot be locked if the key is in the engine switch.
Vehicles with a smart entry & start system
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
However, the key may not be detected correctly and the door may be
locked.
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
Locking the front doors from the outside without a key
Rear door child-protector lock (5-door models only)
1
2
1
2

1223-2. Opening, closing and locking the doors
YARIS_F_WE_52G04E
■Using the mechanical key (vehicles with a smart entry & start system)
The doors can also be locked and unlocked with the mechanical key.
( P. 478)
■ Conditions affecting the operation of the wireless remote control or
smart entry & start system
 P. 107, 132
■ If the smart entry & start system has been deactivated in a customized
setting (vehicles with a smart entry & start system)
Use the wireless remote control or mechanical key. ( P. 117, 478)
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Ensure that all the doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened
even if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seats.

123
3
3-2. Opening, closing and locking the doors
Operation of each component
YARIS_F_WE_52G04E
Back door
◆Door lock switch
 P. 1 2 0
◆Entry function (vehicles with a smart entry & start system)
Carry the electronic key to enable this function.
Press the button to unlock
the door.
The door cannot be unlocked for
3 seconds after the door is
locked.
Press the button to lock the
door.
Check that the door is securely
locked.
◆Wireless remote control (if equipped)
 P. 1 1 7
The back door can be locked/unlocked and opened by the fol-
lowing procedures.
Unlocking and locking the back door
1
2

1243-2. Opening, closing and locking the doors
YARIS_F_WE_52G04E
◆Keys
From the back door (vehicles with a back door key cylinder):
Unlocks all the doors
Locks all the doors
From the driver’s door: P. 1 1 8
Raise the back door while pushing
up the back door opener switch.
The back door cannot be closed
immediately after the back door
opener switch is pushed.
Lower the back door using the
back door handle, and make sure
to push the back door down from
the outside to close it.
1
2
Opening the back door from the outside the vehicle (vehicles
with a smart entry & start system)
When closing the back door

1253-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_F_WE_52G04E
■Operation signals (vehicles with an entry function or wireless remote
control)
 P. 11 8
■ Security feature
 P. 11 9
■ Door lock buzzer (vehicles with a smart entry & start system)
 P. 11 9
■ Luggage compartment light
The luggage compartment lights turn on when the back door is opened.
■ If the smart entry & start system has been deactivated in a customized
setting (vehicles with a smart entry & start system)
Use the wireless remote control or mechanical key. ( P. 117, 478)
■ If the entry function (vehicles with a smart entry & start system) or the
wireless remote control (if equipped) does not operate properly
● Vehicles without a smart entry & start system: Use the key to lock and
unlock the back door. ( P. 118)
● Vehicles with a smart entry & start system: Use the mechanical key to
unlock the back door. ( P. 478)
● Replace the key battery with a new one if it is depleted. (P. 394)

1263-2. Opening, closing and locking the doors
YARIS_F_WE_52G04E

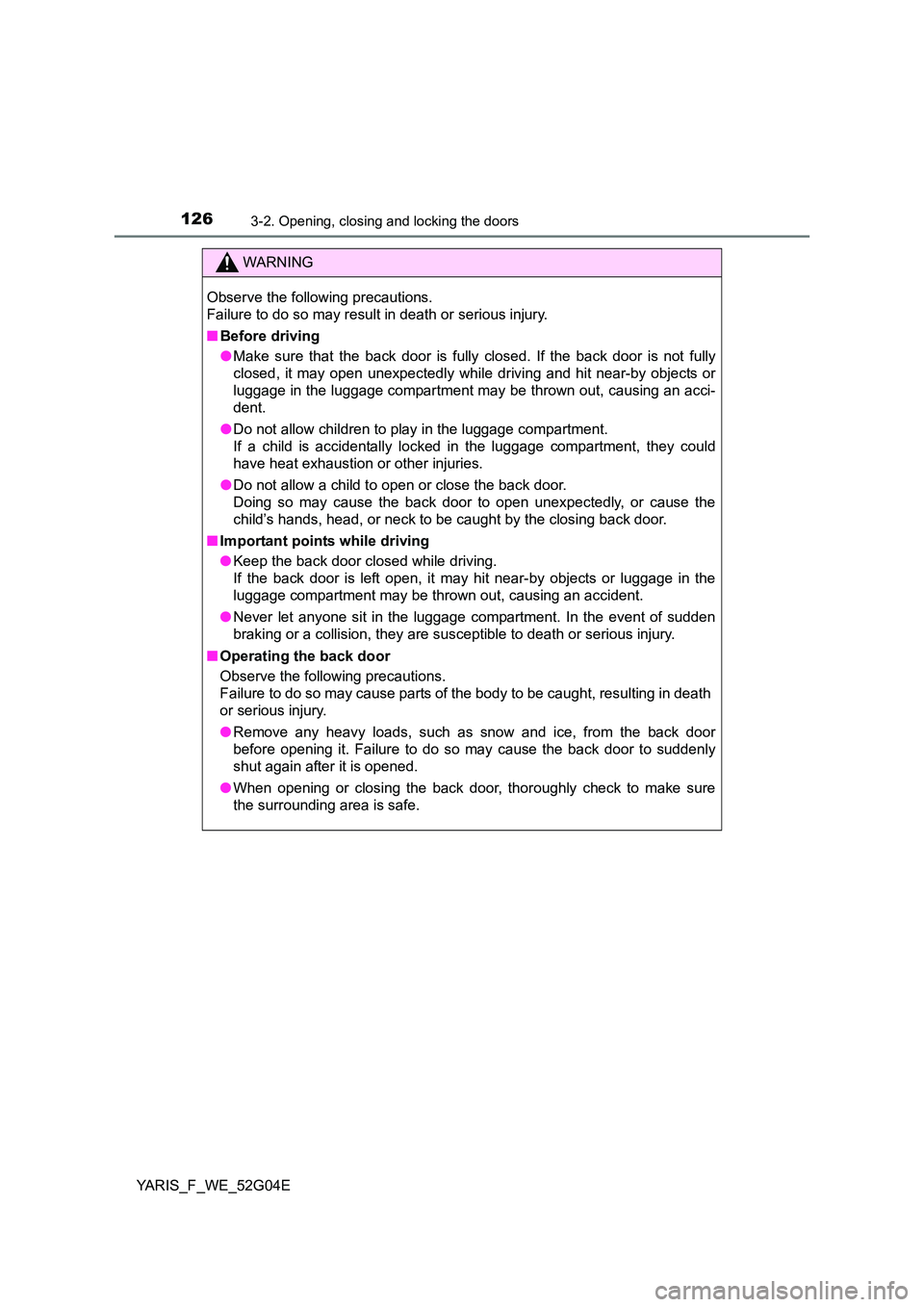

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Before driving
● Make sure that the back door is fully closed. If the back door is not fully
closed, it may open unexpectedly while driving and hit near-by objects or
luggage in the luggage compartment may be thrown out, causing an acci-
dent.
● Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to open unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■ Important points while driving
● Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects or luggage in the
luggage compartment may be thrown out, causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
● Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.

1273-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_F_WE_52G04E

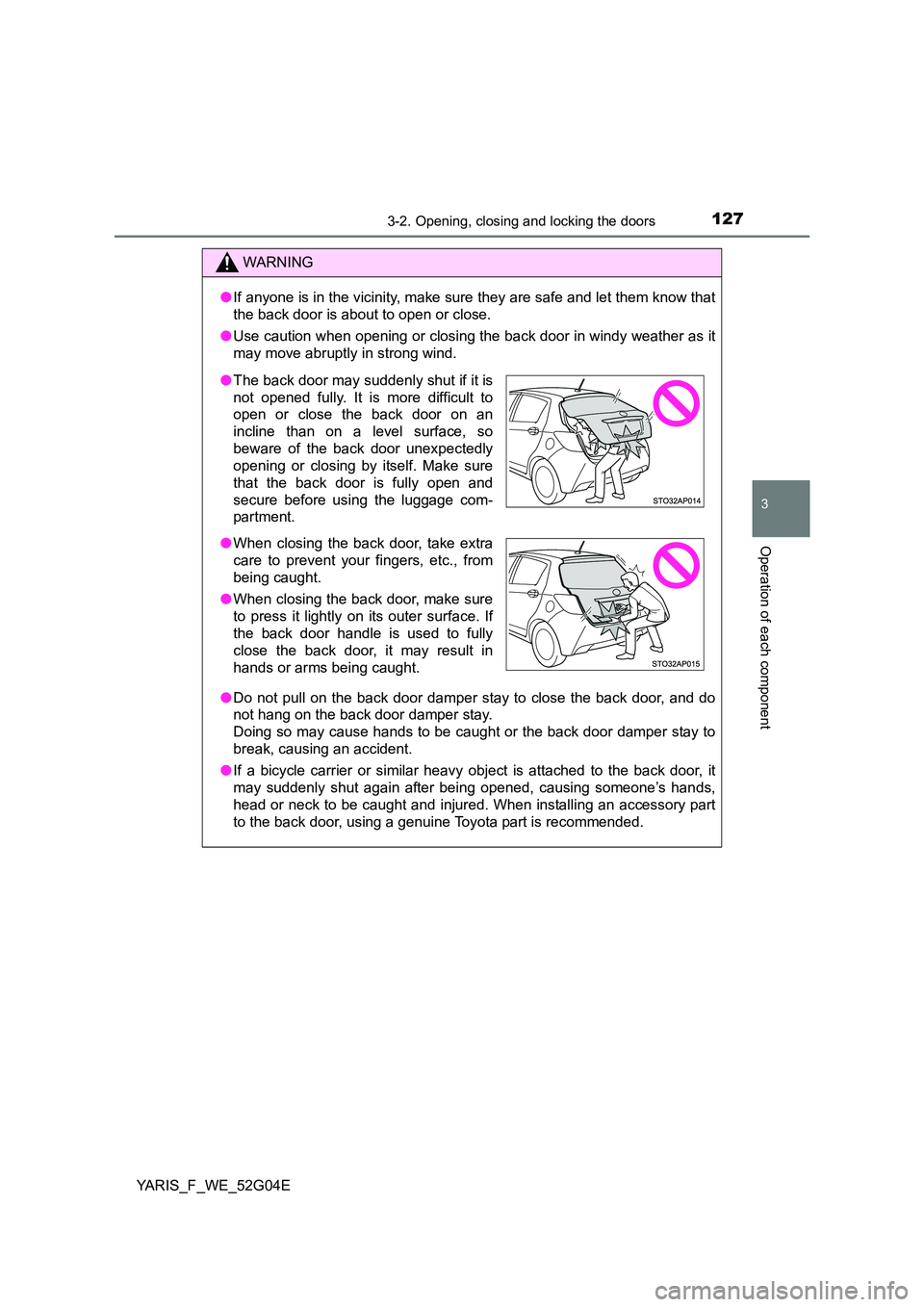

WARNING
●If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
● Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.
● The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
● When closing the back door, take extra
care to prevent your fingers, etc., from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

1283-2. Opening, closing and locking the doors
YARIS_F_WE_52G04E

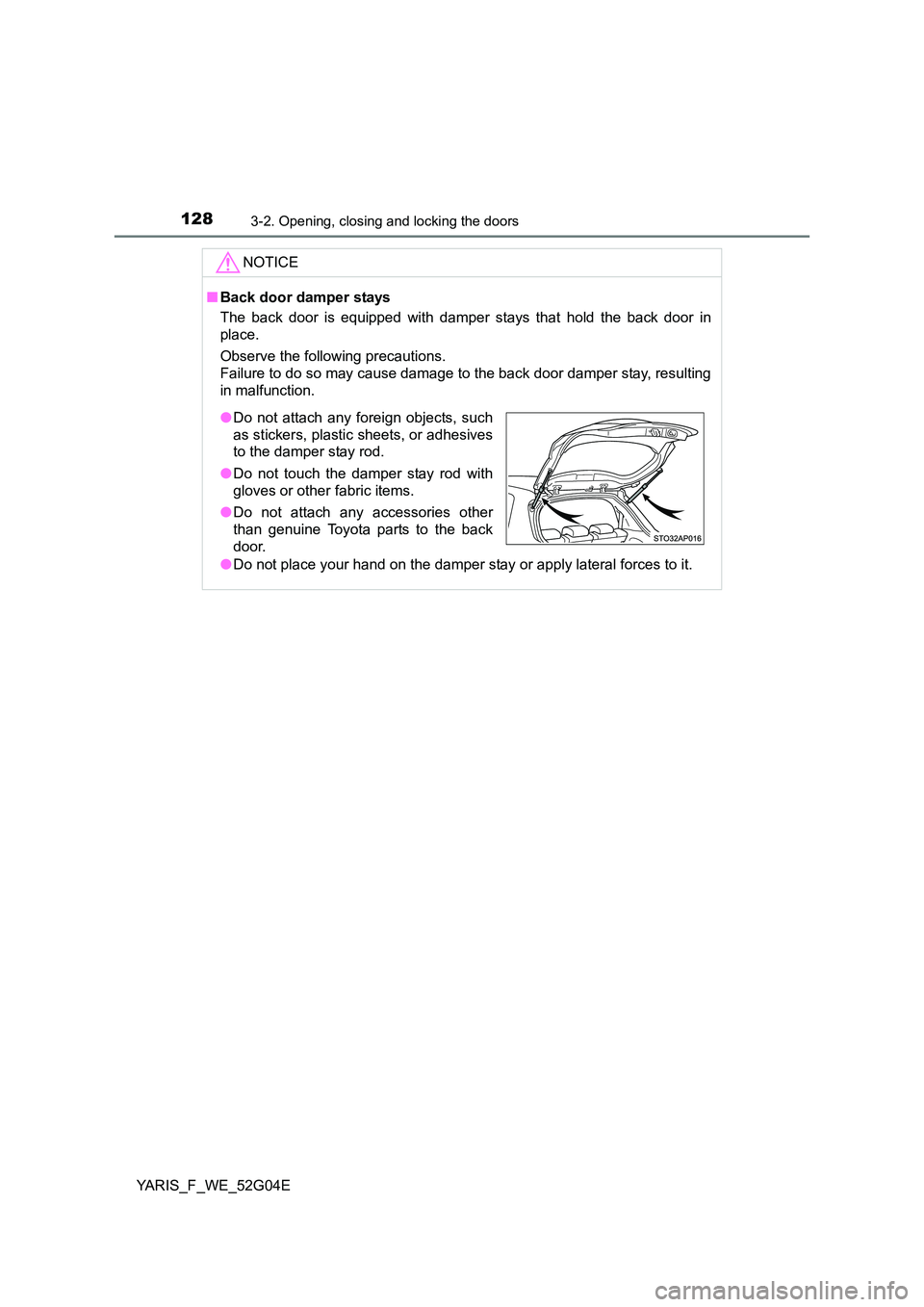

NOTICE
■Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
● Do not place your hand on the damper stay or apply lateral forces to it.
●Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Toyota parts to the back
door.
