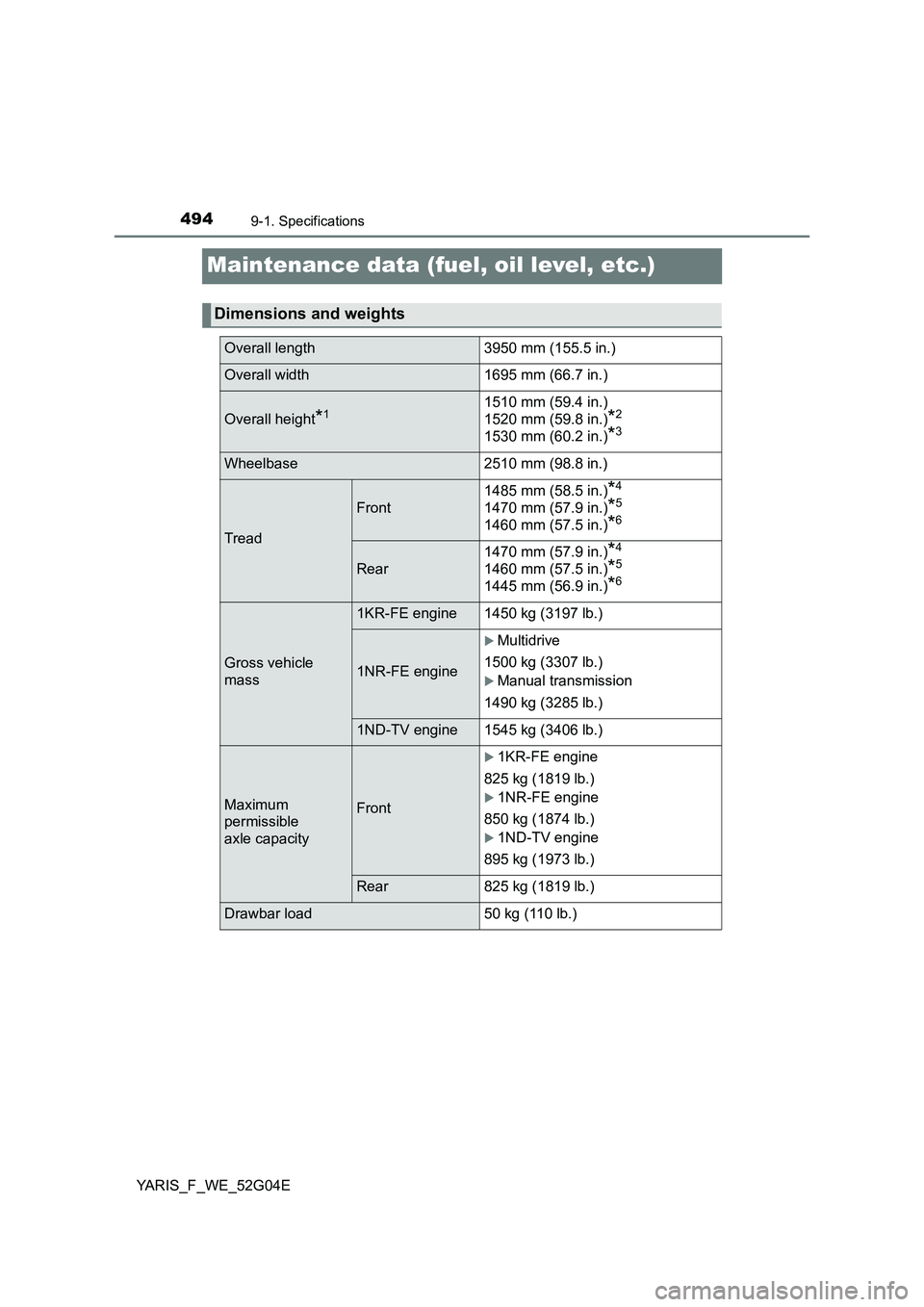

4949-1. Specifications
YARIS_F_WE_52G04E
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 3950 mm (155.5 in.)
Overall width 1695 mm (66.7 in.)
Overall height*11510 mm (59.4 in.)
1520 mm (59.8 in.)*2
1530 mm (60.2 in.)*3
Wheelbase 2510 mm (98.8 in.)
Tread
Front
1485 mm (58.5 in.)*4
1470 mm (57.9 in.)*5
1460 mm (57.5 in.)*6
Rear
1470 mm (57.9 in.)*4
1460 mm (57.5 in.)*5
1445 mm (56.9 in.)*6
Gross vehicle
mass
1KR-FE engine 1450 kg (3197 lb.)
1NR-FE engine
Multidrive
1500 kg (3307 lb.)
Manual transmission
1490 kg (3285 lb.)
1ND-TV engine 1545 kg (3406 lb.)
Maximum
permissible
axle capacity
Front
1KR-FE engine
825 kg (1819 lb.)
1NR-FE engine
850 kg (1874 lb.)
1ND-TV engine
895 kg (1973 lb.)
Rear 825 kg (1819 lb.)
Drawbar load 50 kg (110 lb.)
529Alphabetical index
YARIS_F_WE_52G04E
Daytime running light
system .................................... 207
Replacing light bulbs ............. 417
Defogger
Outside rear view
mirrors ........................ 309, 317
Rear window ................. 309, 317
Windshield .................... 308, 317
Diesel Particular Filter
system .................................... 265
Warning lights ....................... 436
Dimensions .............................. 494
Display
Drive information ..................... 93
Multi-information display ......... 92
Do-it-yourself maintenance .... 351
Door lock
Back door .............................. 123
Side doors ............................. 116
Smart entry & start system.... 129
Wireless remote control ........ 105
Doors
Back door .............................. 123
Door glasses ......................... 156
Door lock ....................... 116, 123
Open door warning buzzer.... 130
Open door warning light ........ 435
Outside rear view mirrors ...... 153
Rear door child-protector ...... 121
Side doors ............................. 116
Side windows ........................ 156
Double locking system.............. 81
Driver’s seat belt reminder
light ......................................... 435
Driving ...................................... 162
Break-in tips .......................... 165
Correct driving posture............ 30
Procedures............................ 162
Winter drive tips .................... 267
Eco Driving Indicator Light..... 166
Electric Power Steering
(EPS)....................................... 260
Function ................................ 260
Warning light ......................... 432
Electronic key .......................... 104
Battery-saving function ......... 131
If the electronic key does not
operate properly ................. 478
Replacing the battery ............ 394
Emergency brake signal ......... 260
Emergency flashers ................ 420
Emergency, in case of
If the electronic key does
not operate properly ........... 478
If the engine will not start ...... 475
If the shift lever cannot be
shifted from P ..................... 477
If the vehicle battery is
discharged .......................... 480
If the warning buzzer
sounds................................ 431
If the warning light
turns on .............................. 431
If you have a flat tire ..... 445, 460
If you lose your keys ............. 106
If you run out of fuel and
the engine stalls ................. 489
If you think something is
wrong.................................. 429
If your vehicle becomes
stuck ................................... 491
If your vehicle has to be
stopped in an emergency ... 421
If your vehicle needs to be
towed .................................. 423
If your vehicle overheats ....... 485
