2015 TOYOTA URBAN CRUISER Owners Manual

345
3-6. Other interior features
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

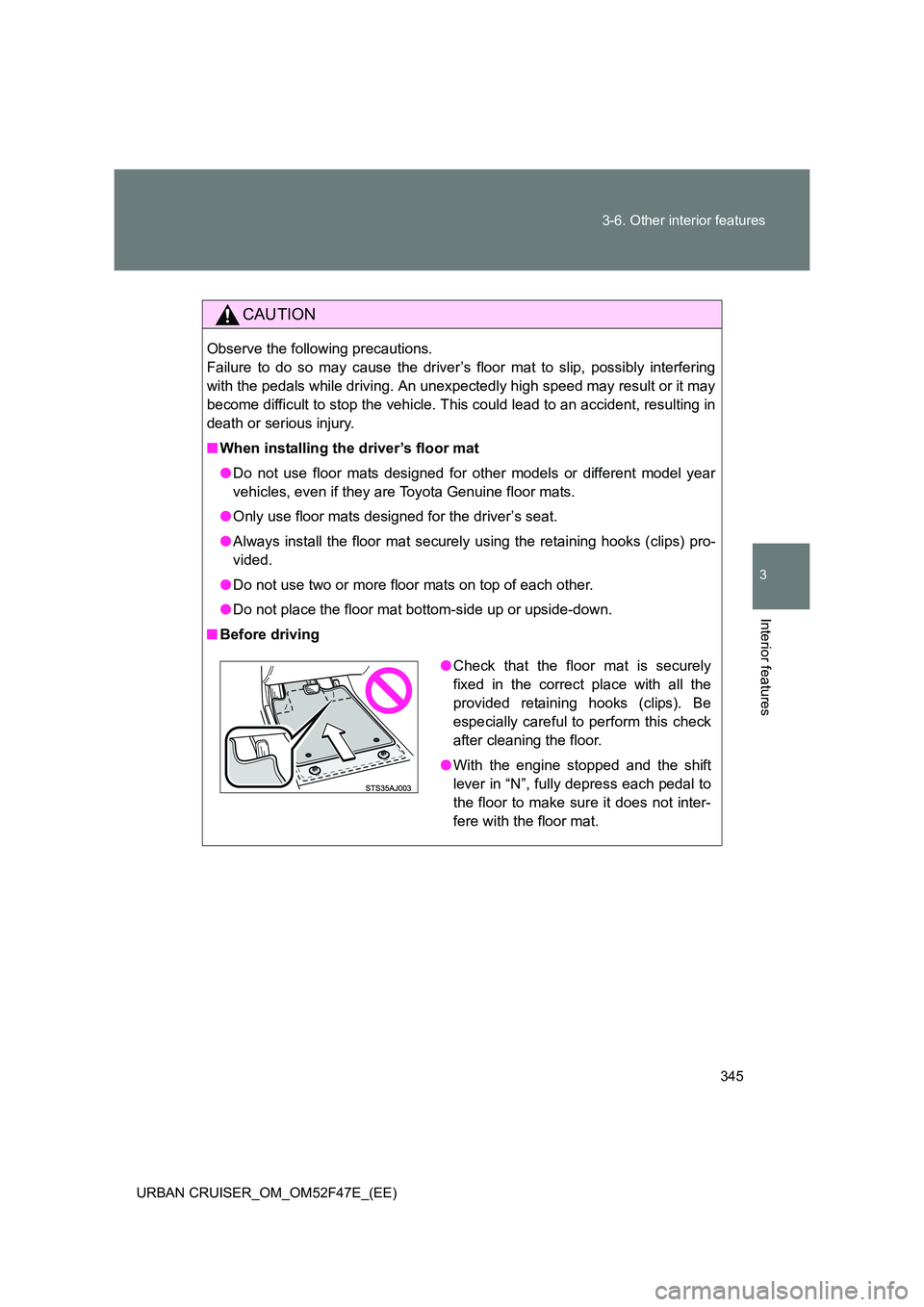

CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■
When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in “N”, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

346
3-6. Other interior features
URBAN CRUISER_OM_OM52F47E_(EE)

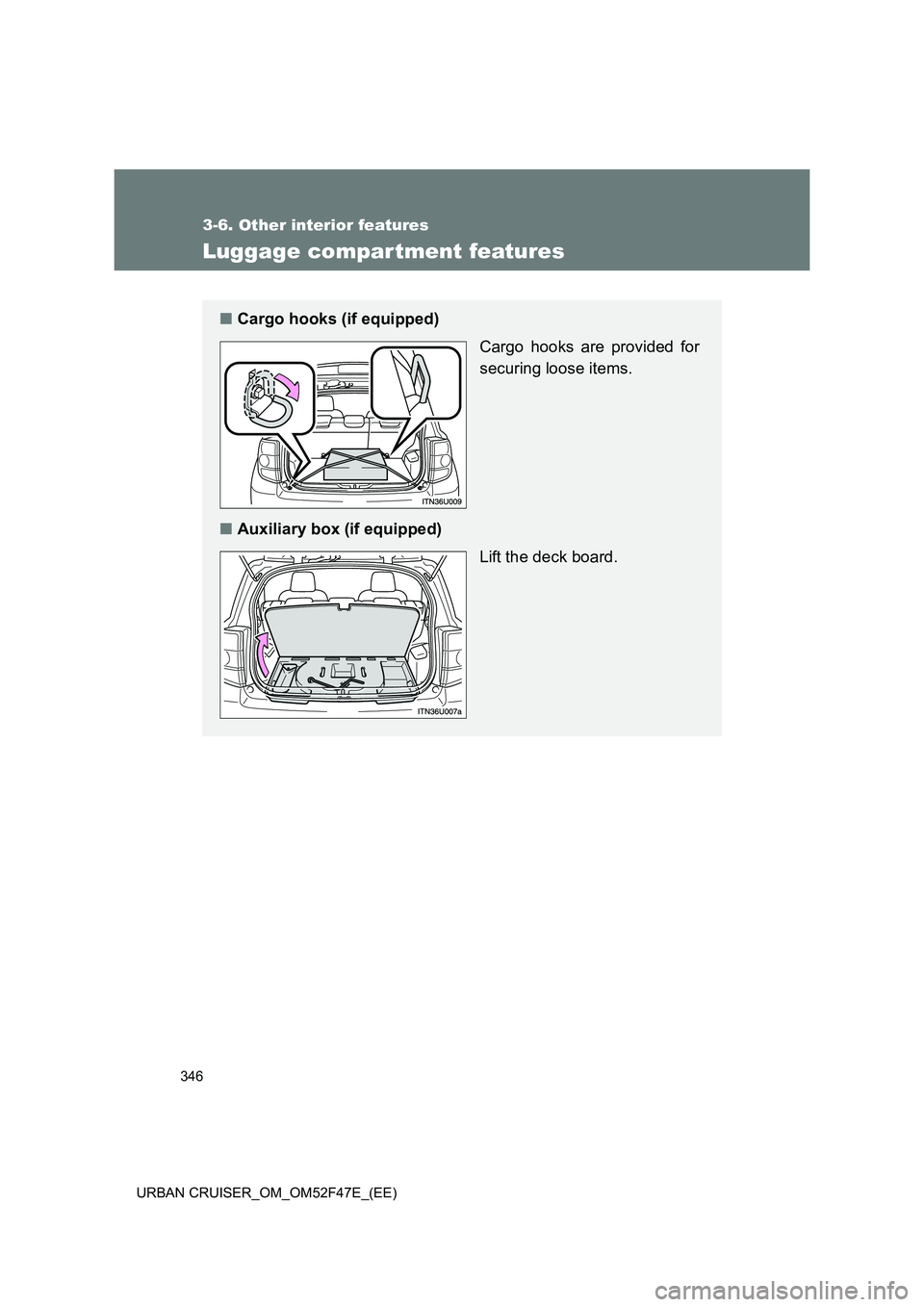

Luggage compartment features
■Cargo hooks (if equipped)
Cargo hooks are provided for
securing loose items.
■ Auxiliary box (if equipped)
Lift the deck board.

347
3-6. Other interior features
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
■

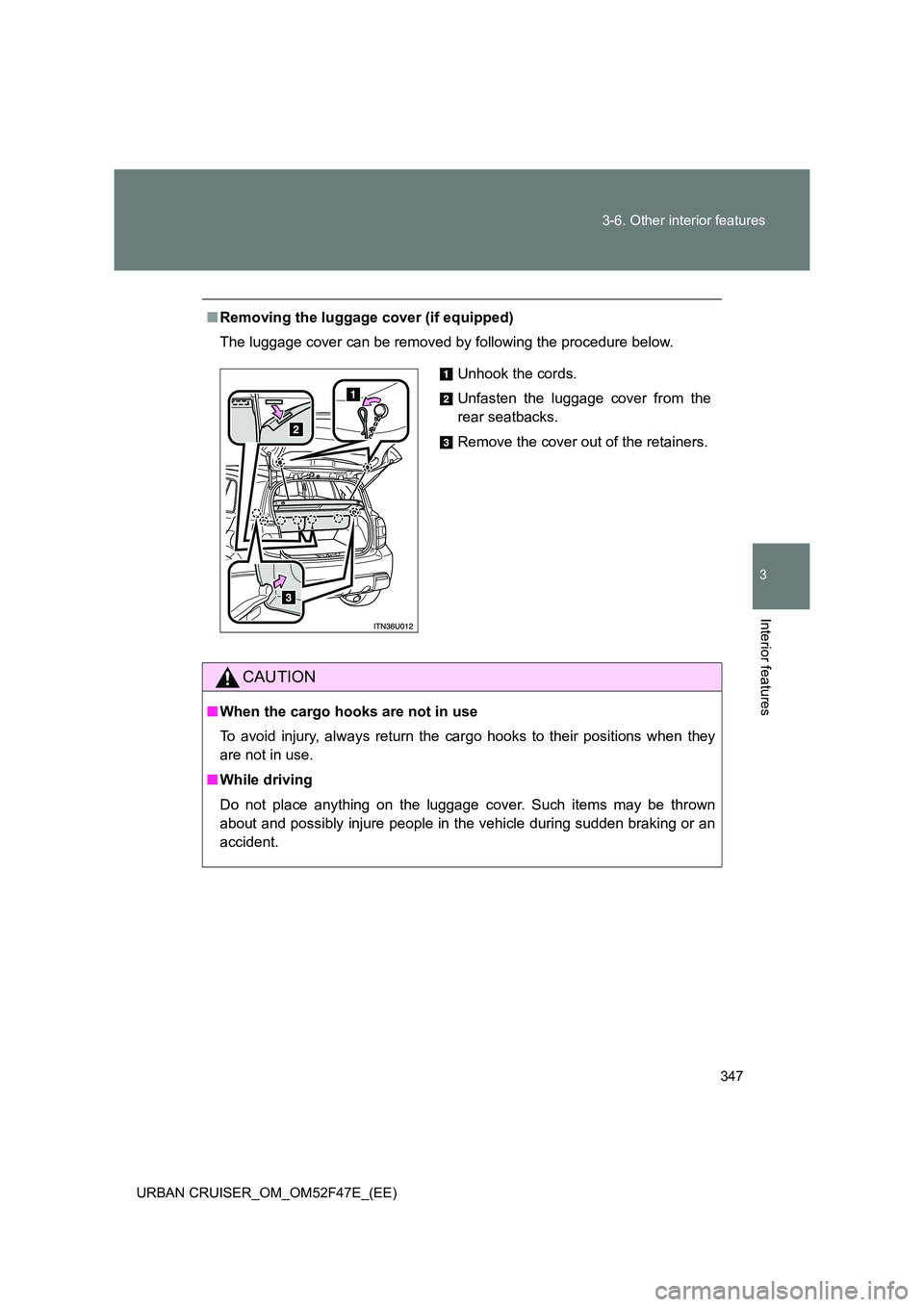

Removing the luggage cover (if equipped)
The luggage cover can be removed by following the procedure below.
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
■ While driving
Do not place anything on the luggage cover. Such items may be thrown
about and possibly injure people in the vehicle during sudden braking or an
accident.
Unhook the cords.
Unfasten the luggage cover from the
rear seatbacks.
Remove the cover out of the retainers.

348
3-6. Other interior features
URBAN CRUISER_OM_OM52F47E_(EE)

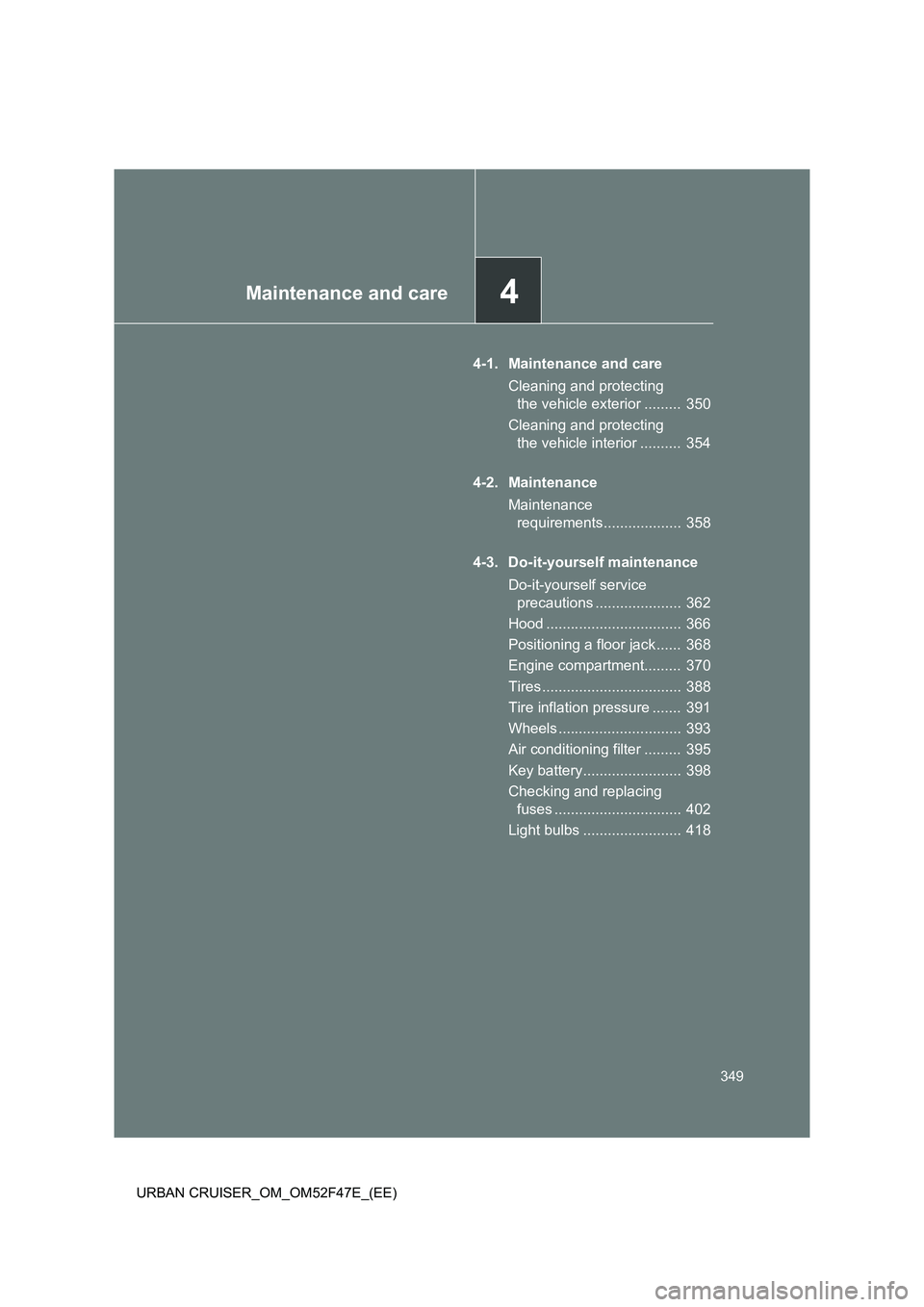

4Maintenance and care
349
URBAN CRUISER_OM_OM52F47E_(EE)
4-1. Maintenance and care Cleaning and protecting the vehicle exterior ......... 350
Cleaning and protecting the vehicle interior .......... 354
4-2. Maintenance Maintenance requirements................... 358
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ..................... 362
Hood ................................. 366
Positioning a floor jack ...... 368
Engine compartment......... 370
Tires .................................. 388
Tire inflation pressure ....... 391
Wheels .............................. 393
Air conditioning filter ......... 395
Key battery........................ 398
Checking and replacing fuses ............................... 402
Light bulbs ........................ 418

350
URBAN CRUISER_OM_OM52F47E_(EE)
4-1. Maintenance and care

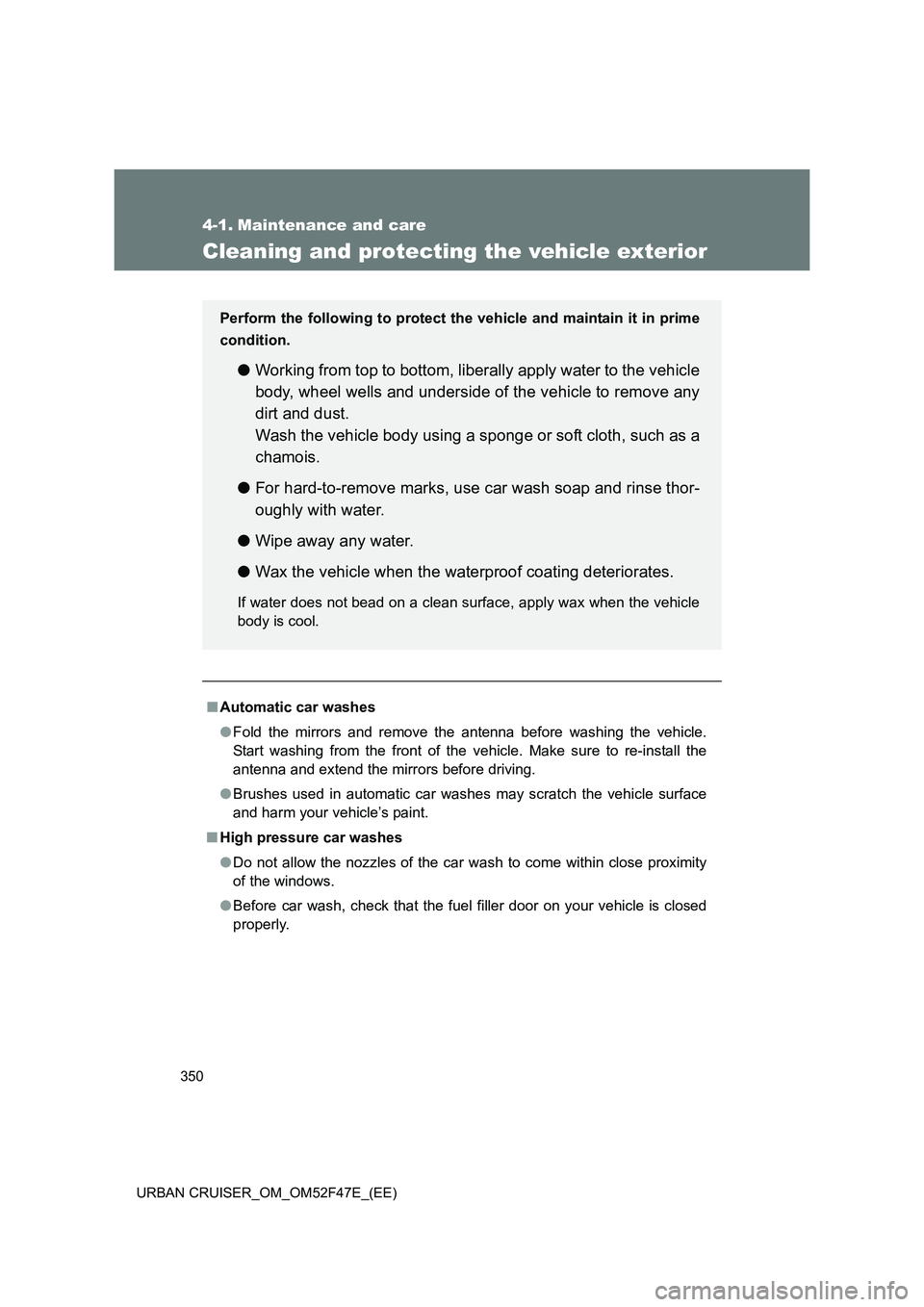

Cleaning and protecting the vehicle exterior
■ Automatic car washes
●Fold the mirrors and remove the antenna before washing the vehicle.
Start washing from the front of the vehicle. Make sure to re-install the
antenna and extend the mirrors before driving.
● Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
■ High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity
of the windows.
● Before car wash, check that the fuel filler door on your vehicle is closed
properly.
Perform the following to protect the
vehicle and maintain it in prime
condition.
● Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.

351
4-1. Maintenance and care
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
■

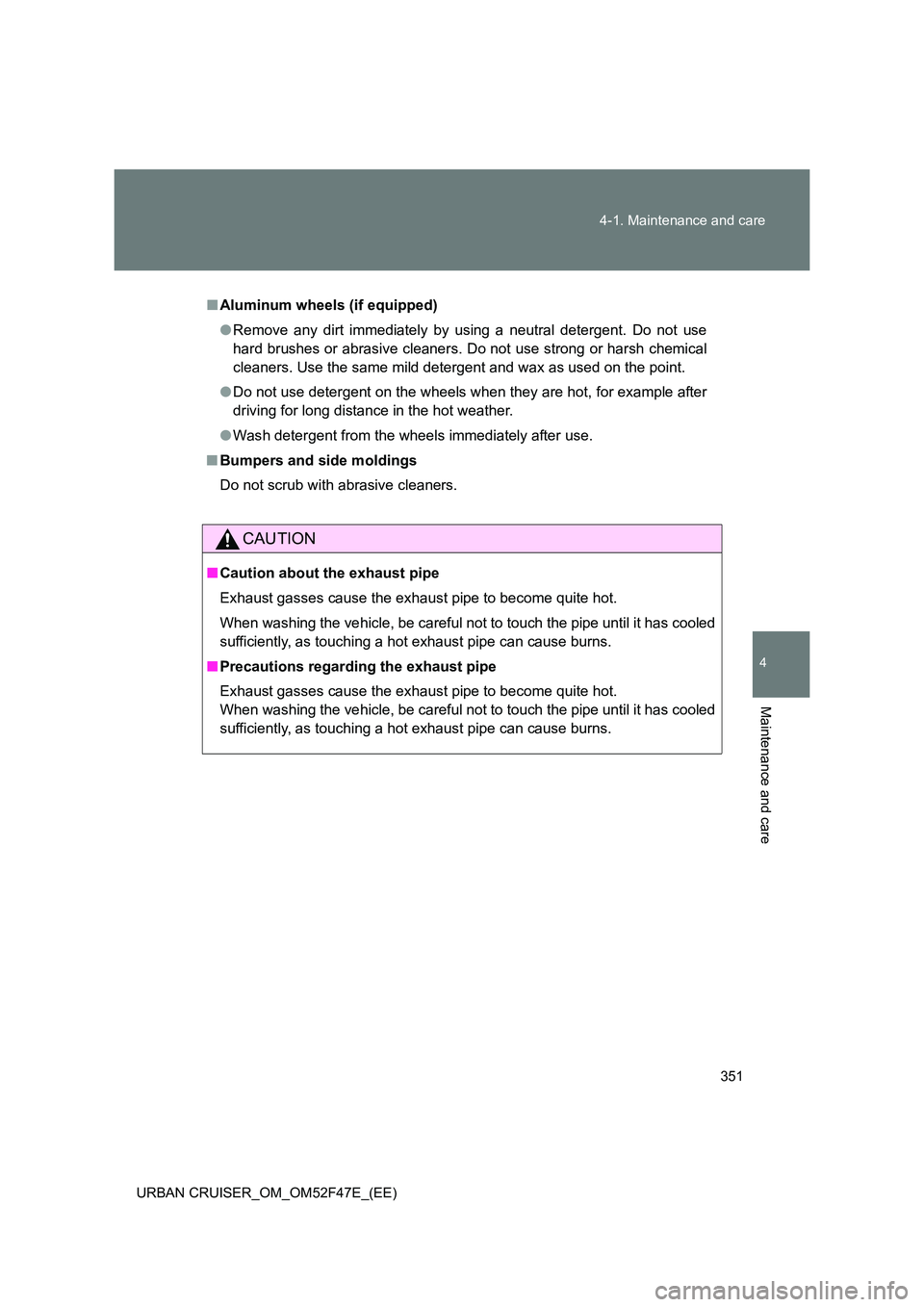

Aluminum wheels (if equipped)
●Remove any dirt immediately by using a neutral detergent. Do not use
hard brushes or abrasive cleaners. Do not use strong or harsh chemical
cleaners. Use the same mild detergent and wax as used on the point.
● Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
● Wash detergent from the wheels immediately after use.
■ Bumpers and side moldings
Do not scrub with abrasive cleaners.
CAUTION
■Caution about the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled
sufficiently, as touching a hot exhaust pipe can cause burns.
■ Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled
sufficiently, as touching a hot exhaust pipe can cause burns.

352
4-1. Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)

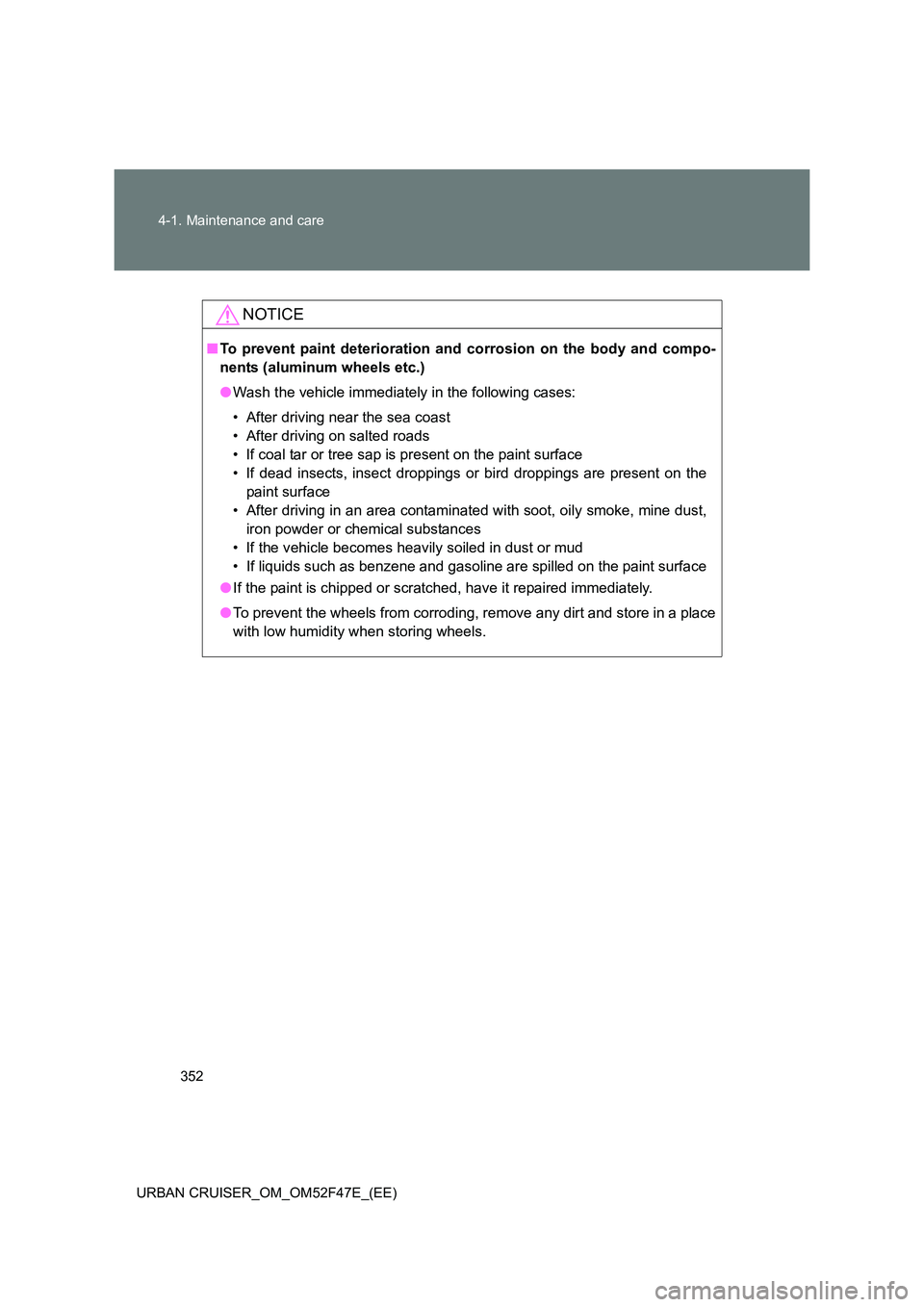

NOTICE
■ To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the
paint surface
• After driving in an area contaminated with soot, oily smoke, mine dust, iron powder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
● If the paint is chipped or scratched, have it repaired immediately.
● To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing wheels.
