2015 TOYOTA URBAN CRUISER Owners Manual

185
2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

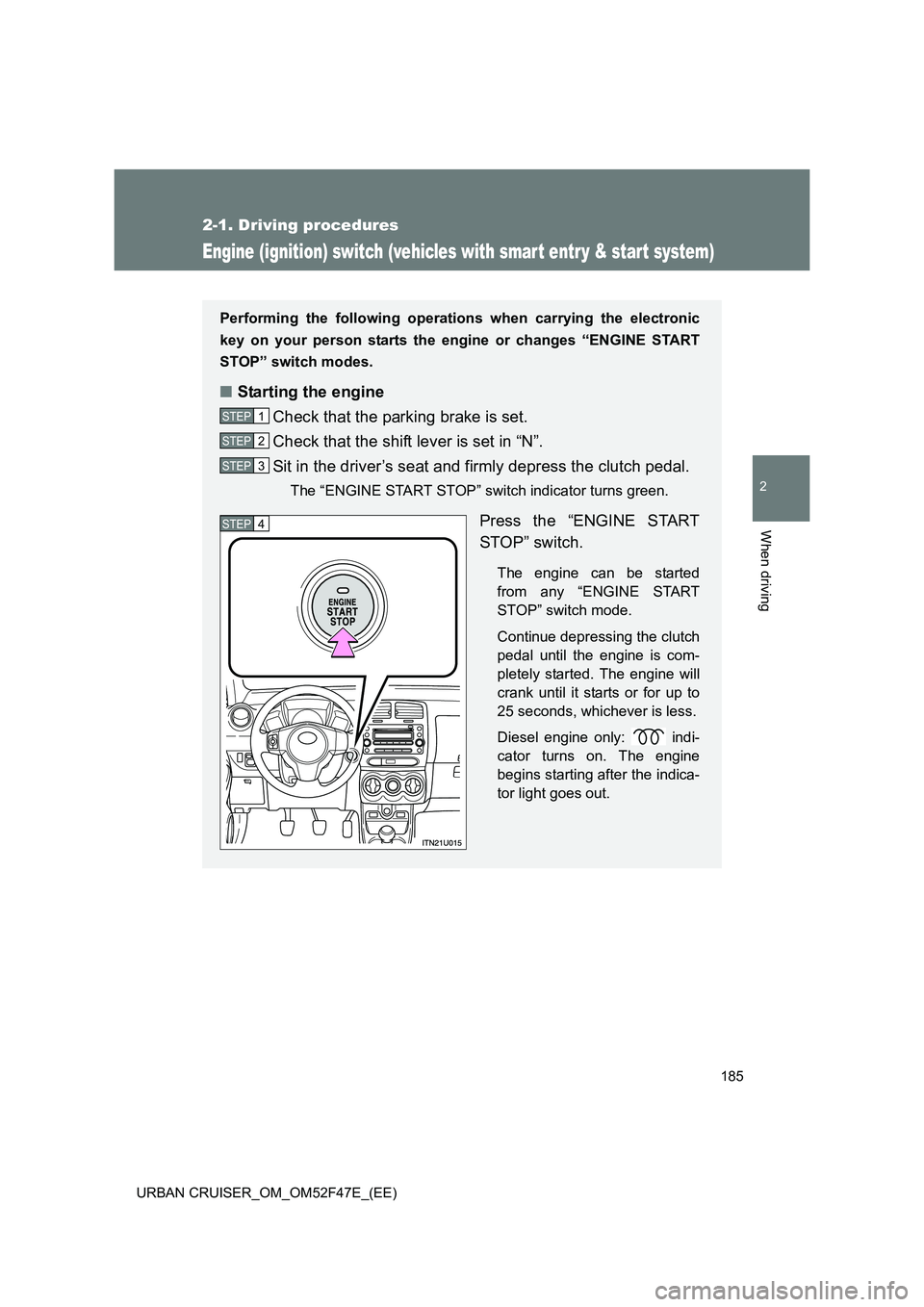

Engine (ignition) switch (vehicles with smart entry & start system)
Performing the following operations when carrying the electronic
key on your person starts the engine or changes “ENGINE START
STOP” switch modes.
■Starting the engine
Check that the parking brake is set.
Check that the shift lever is set in “N”.
Sit in the driver’s seat and firmly depress the clutch pedal.
The “ENGINE START STOP” switch indicator turns green.
Press the “ENGINE START
STOP” switch.
The engine can be started
from any “ENGINE START
STOP” switch mode.
Continue depressing the clutch
pedal until the engine is com-
pletely started. The engine will
crank until it starts or for up to
25 seconds, whichever is less.
Diesel engine only: indi-
cator turns on. The engine
begins starting after the indica-
tor light goes out.
STEP1
STEP2
STEP3
STEP4

186
2-1. Driving procedures
URBAN CRUISER_OM_OM52F47E_(EE)

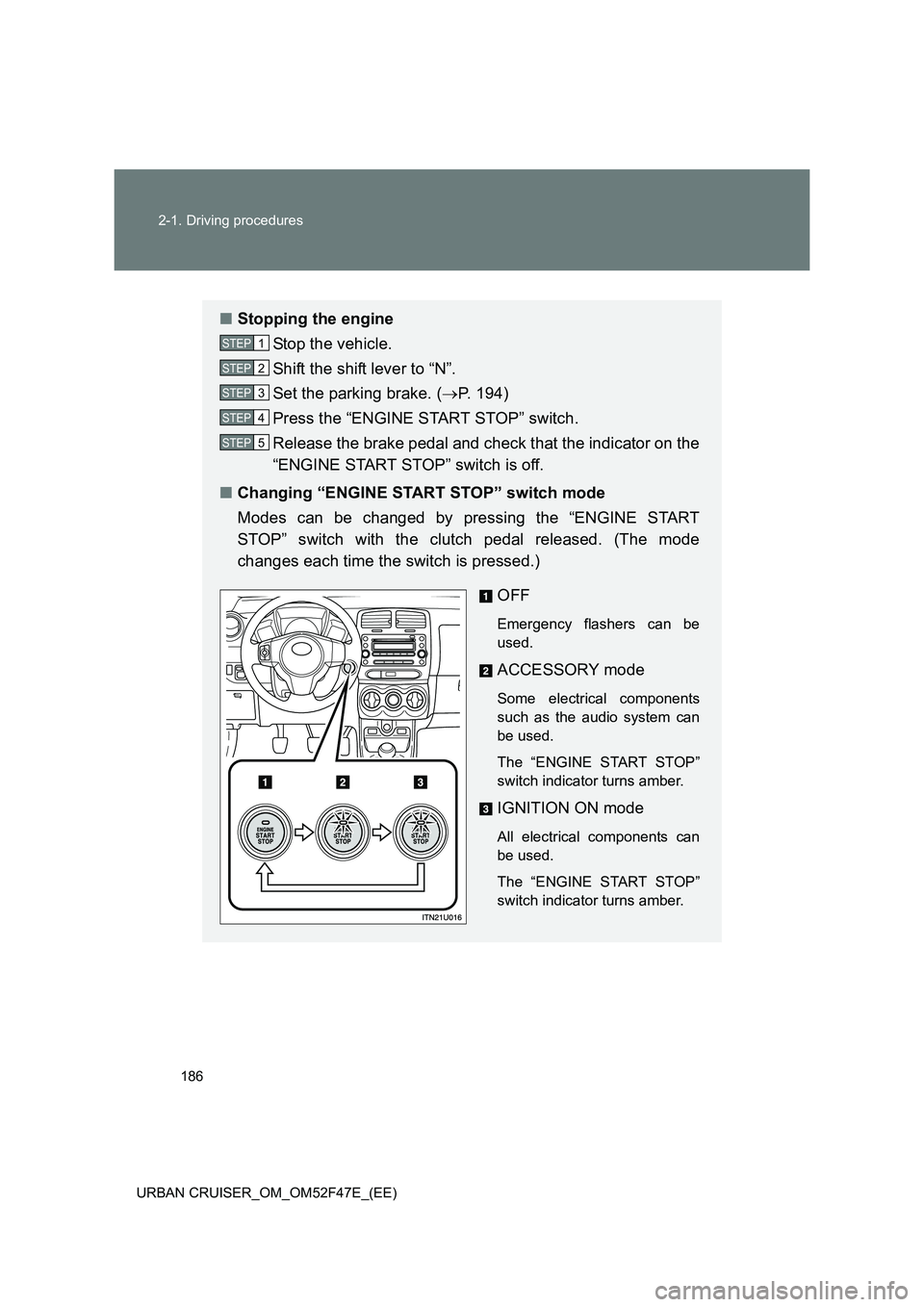

■ Stopping the engine
Stop the vehicle.
Shift the shift lever to “N”.
Set the parking brake. ( →P. 194)
Press the “ENGINE START STOP” switch.
Release the brake pedal and check that the indicator on the
“ENGINE START STOP” switch is off.
■ Changing “ENGINE START STOP” switch mode
Modes can be changed by pressing the “ENGINE START
STOP” switch with the clutch pedal released. (The mode
changes each time the switch is pressed.)
OFF
Emergency flashers can be
used.
ACCESSORY mode
Some electrical components
such as the audio system can
be used.
The “ENGINE START STOP”
switch indicator turns amber.
IGNITION ON mode
All electrical components can
be used.
The “ENGINE START STOP”
switch indicator turns amber.
STEP1
STEP2
STEP3
STEP4
STEP5

187
2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
■

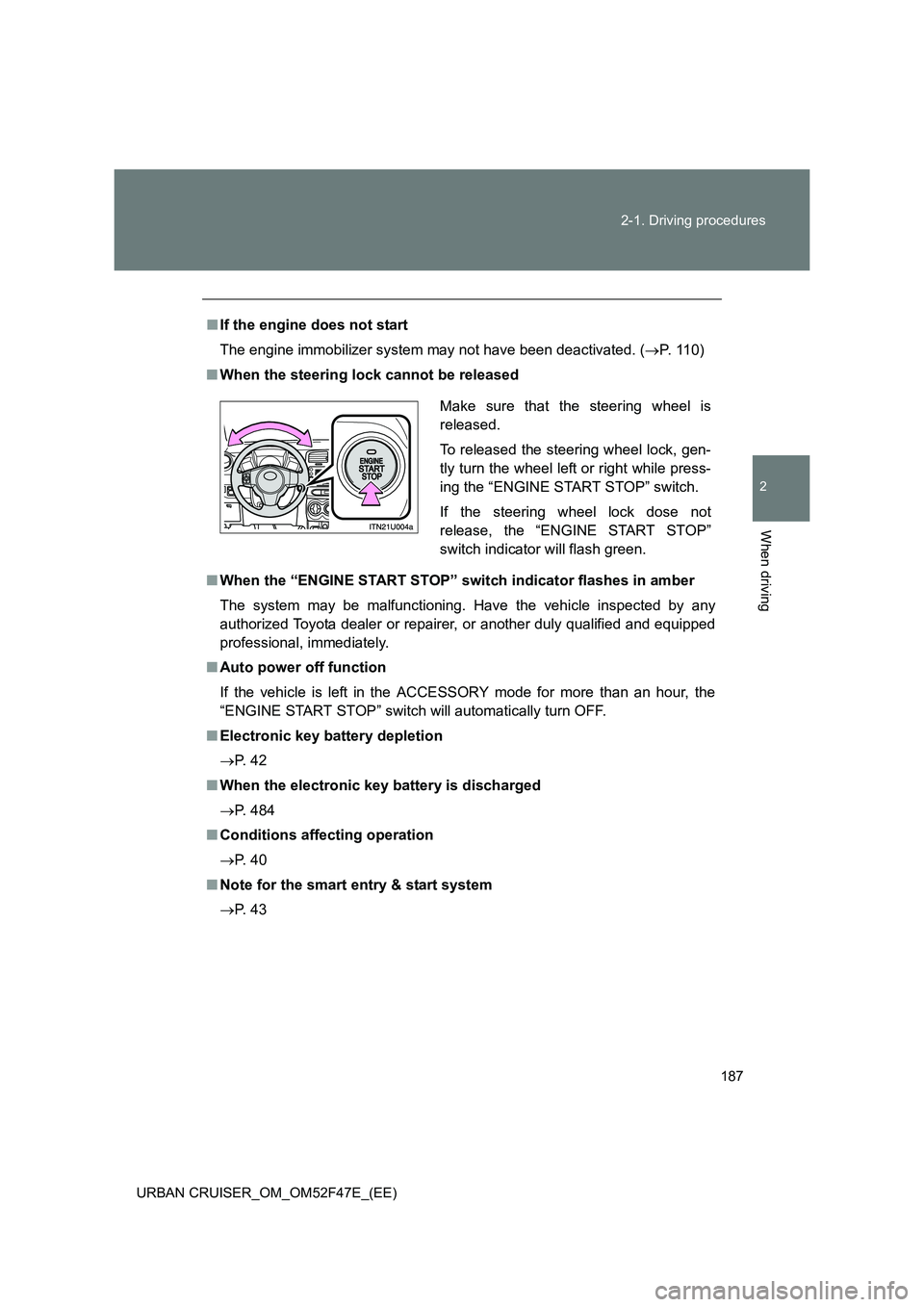

If the engine does not start
The engine immobilizer system may not have been deactivated. ( →P. 110)
■ When the steering lock cannot be released
■ When the “ENGINE START STOP” switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional, immediately.
■ Auto power off function
If the vehicle is left in the ACCESSORY mode for more than an hour, the
“ENGINE START STOP” switch will automatically turn OFF.
■ Electronic key battery depletion
→ P. 4 2
■ When the electronic key battery is discharged
→ P. 484
■ Conditions affecting operation
→ P. 4 0
■ Note for the smart entry & start system
→ P. 4 3 Make sure that the steering wheel is
released.
To released the steering wheel lock, gen-
tly turn the wheel left or right while press-
ing the “ENGINE START STOP” switch.
If the steering wheel lock dose not
release, the “ENGINE START STOP”
switch indicator will flash green.

188
2-1. Driving procedures
URBAN CRUISER_OM_OM52F47E_(EE)

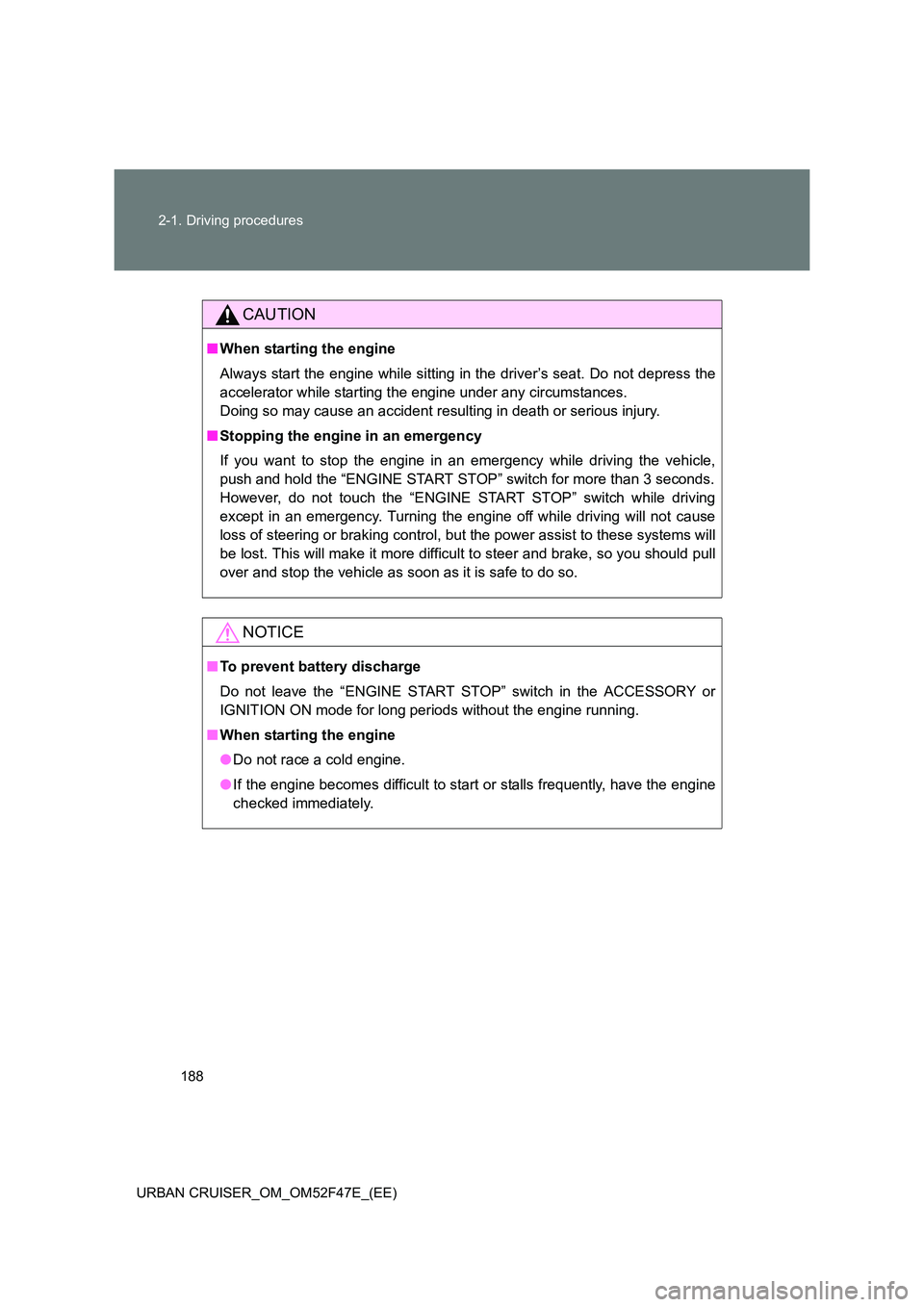

CAUTION
■ When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle,
push and hold the “ENGINE START STOP” switch for more than 3 seconds.
However, do not touch the “ENGINE START STOP” switch while driving
except in an emergency. Turning the engine off while driving will not cause
loss of steering or braking control, but the power assist to these systems will
be lost. This will make it more difficult to steer and brake, so you should pull
over and stop the vehicle as soon as it is safe to do so.
NOTICE
■To prevent battery discharge
Do not leave the “ENGINE START STOP” switch in the ACCESSORY or
IGNITION ON mode for long periods without the engine running.
■ When starting the engine
●Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.

189
2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

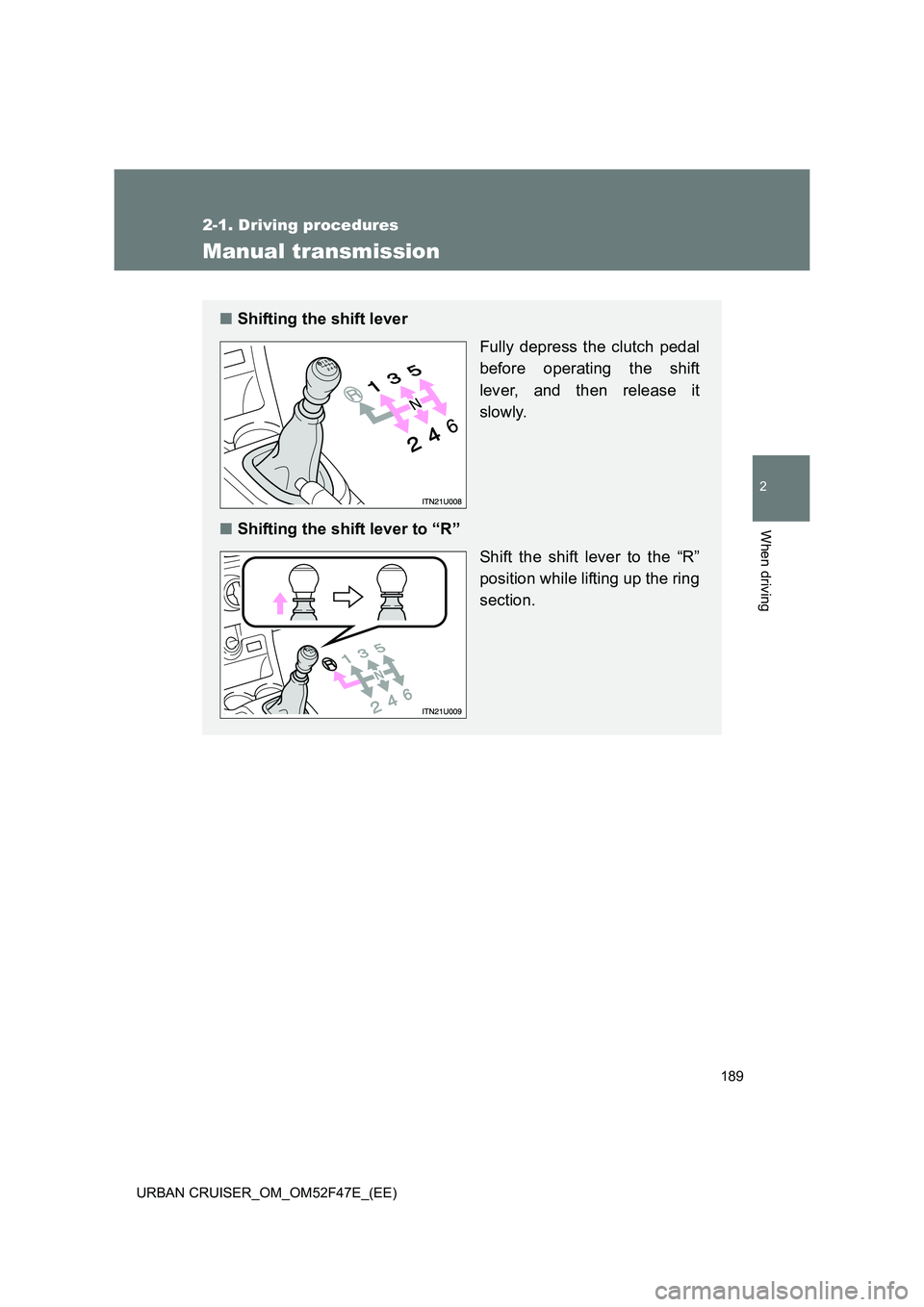

Manual transmission
■Shifting the shift lever
Fully depress the clutch pedal
before operating the shift
lever, and then release it
slowly.
■ Shifting the shift lever to “R”
Shift the shift lever to the “R”
position while lifting up the ring
section.

190
2-1. Driving procedures
URBAN CRUISER_OM_OM52F47E_(EE)

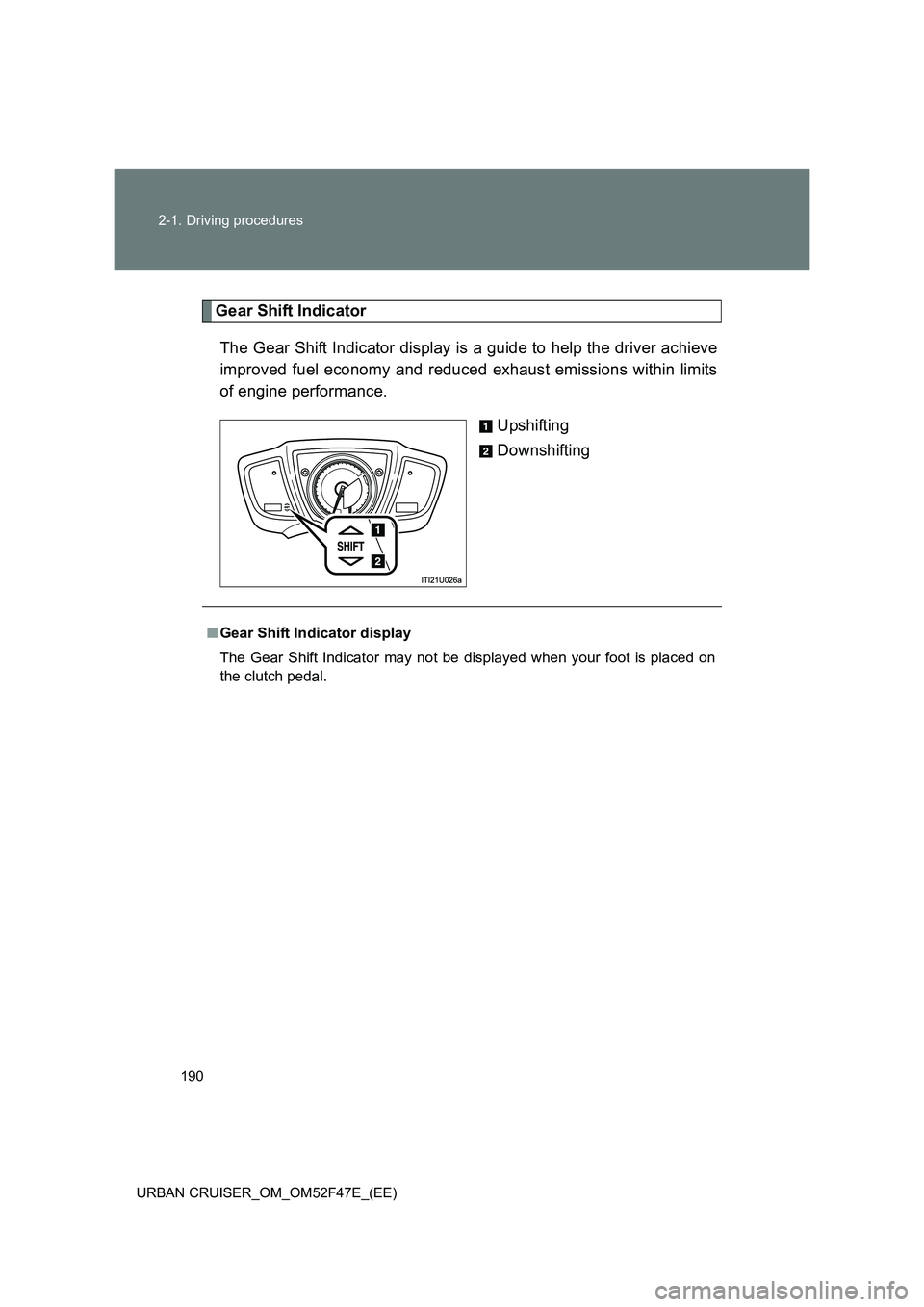

Gear Shift Indicator The Gear Shift Indicator display is a guide to help the driver achieve
improved fuel economy and reduced exhaust emissions within limits
of engine performance. Upshifting
Downshifting
■Gear Shift Indicator display
The Gear Shift Indicator may not be displayed when your foot is placed on
the clutch pedal.

191
2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
■

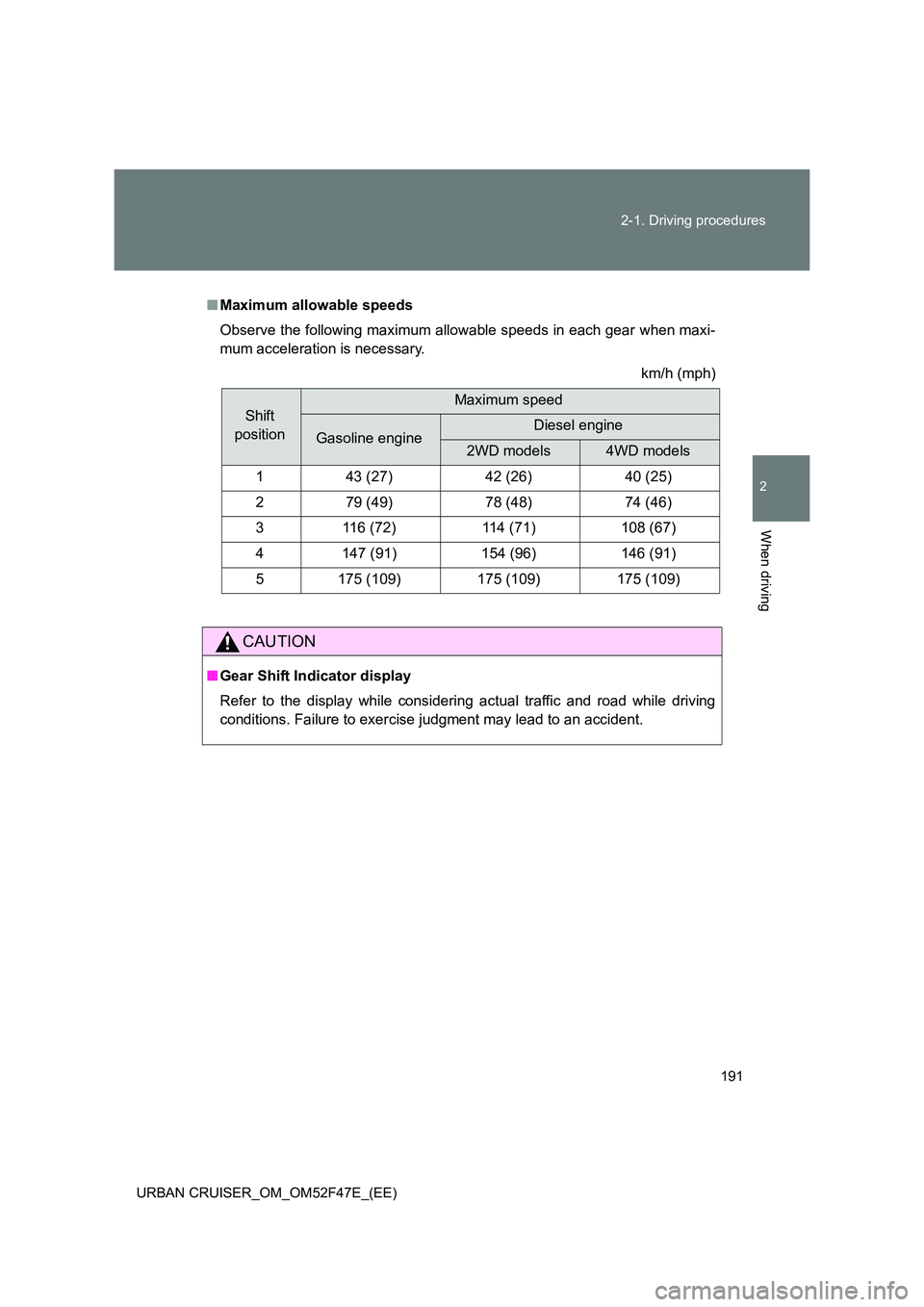

Maximum allowable speeds
Observe the following maximum allowable speeds in each gear when maxi-
mum acceleration is necessary.
km/h (mph)
CAUTION
■Gear Shift Indicator display
Refer to the display while considering actual traffic and road while driving
conditions. Failure to exercise judgment may lead to an accident.
Shift
position
Maximum speed
Gasoline engineDiesel engine
2WD models4WD models
143 (27)42 (26)40 (25)
279 (49)78 (48)74 (46)
3116 (72)114 (71)108 (67)
4147 (91)154 (96)146 (91)
5175 (109)175 (109)175 (109)

192
2-1. Driving procedures
URBAN CRUISER_OM_OM52F47E_(EE)

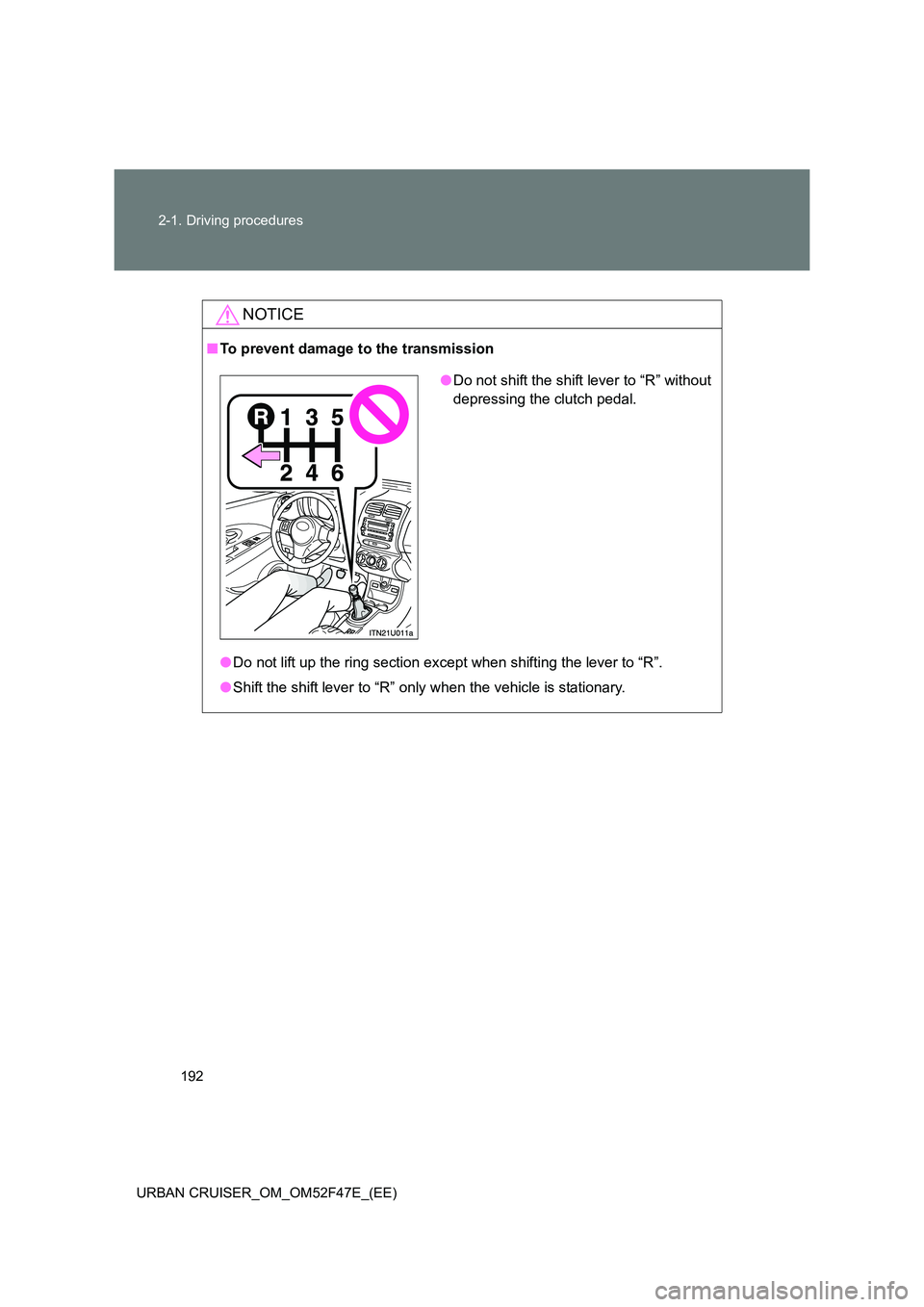

NOTICE
■ To prevent damage to the transmission
●Do not lift up the ring section except when shifting the lever to “R”.
● Shift the shift lever to “R” only when the vehicle is stationary.
●Do not shift the shift lever to “R” without
depressing the clutch pedal.
