2015 TOYOTA URBAN CRUISER Owners Manual

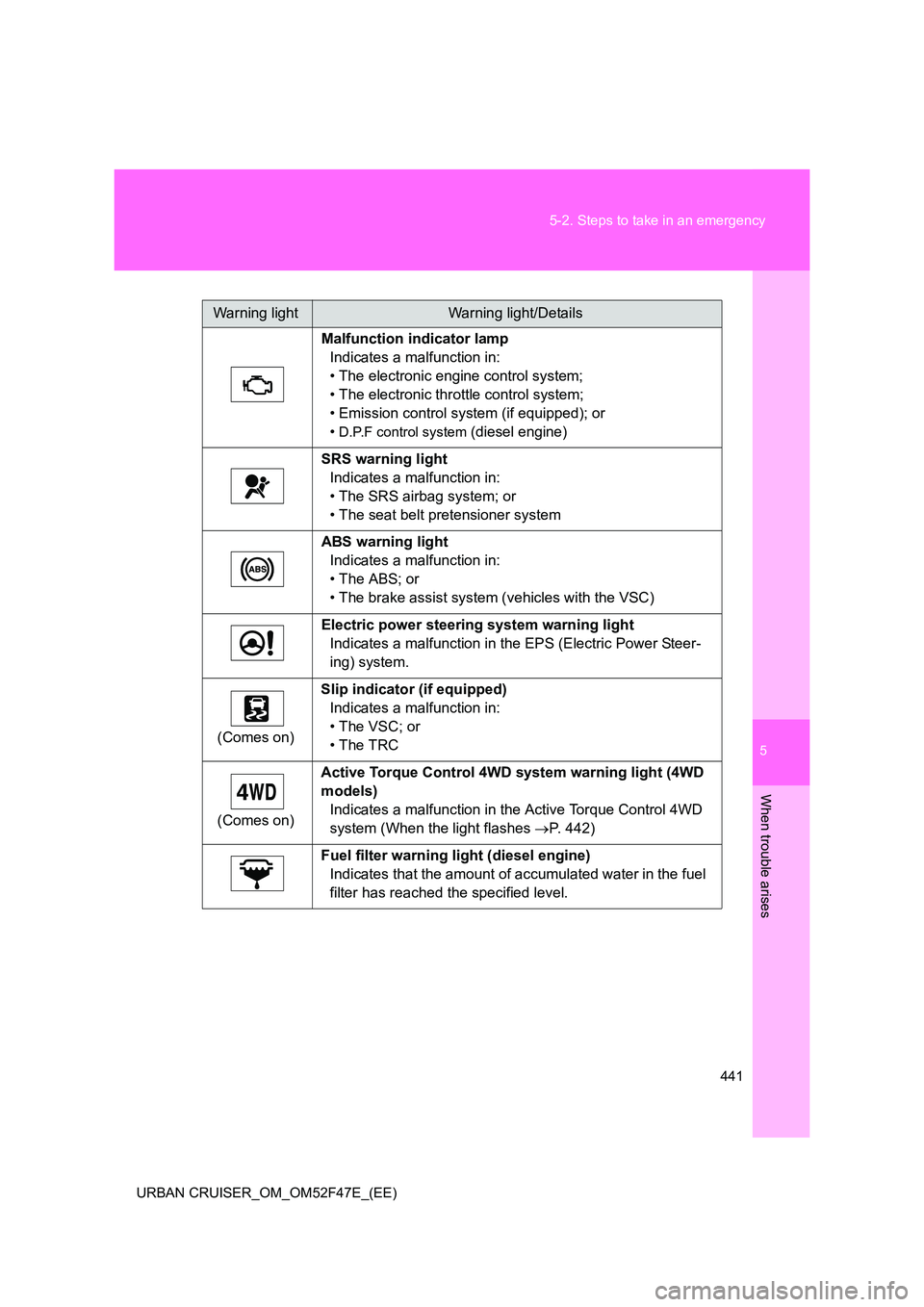

5
441
5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)
Warning lightWarning light/Details
Malfunction indicator lamp Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system;
• Emission control system (if equipped); or
•
D.P.F control system (diesel engine)
SRS warning light Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
ABS warning light Indicates a malfunction in:
• The ABS; or
• The brake assist system (vehicles with the VSC)
Electric power steering system warning light Indicates a malfunction in the EPS (Electric Power Steer-
ing) system.
(Comes on) Slip indicator (if equipped)
Indicates a malfunction in:
• The VSC; or
• The TRC
(Comes on) Active Torque Control 4WD system warning light (4WD
models)
Indicates a malfunction in the Active Torque Control 4WD
system (When the light flashes →P. 442)
Fuel filter warning light (diesel engine) Indicates that the amount of accumulated water in the fuel
filter has reached the specified level.

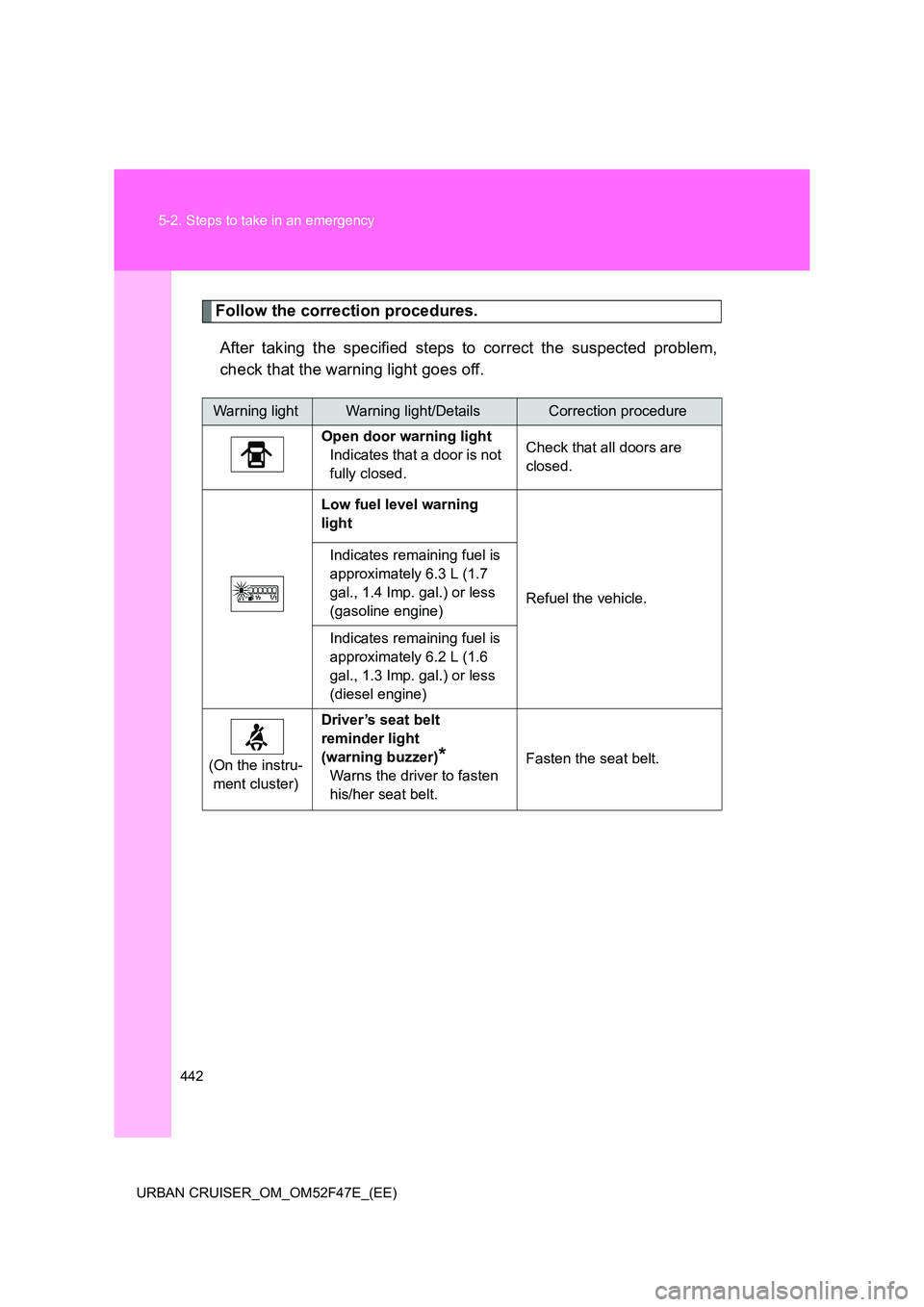

442
5-2. Steps to take in an emergency
URBAN CRUISER_OM_OM52F47E_(EE)
Follow the correction procedures. After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light Indicates that a door is not
fully closed. Check that all doors are
closed.
Low fuel level warning
light
Refuel the vehicle.
Indicates remaining fuel is
approximately 6.3 L (1.7
gal., 1.4 Imp. gal.) or less
(gasoline engine)
Indicates remaining fuel is
approximately 6.2 L (1.6
gal., 1.3 Imp. gal.) or less
(diesel engine)
(On the instru- ment cluster) Driver’s seat belt
reminder light
(warning buzzer)
*
Warns the driver to fasten
his/her seat belt.
Fasten the seat belt.

5
443
5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)
Warning lightWarning light/DetailsCorrection procedure
(On the center panel) Front passenger’s seat
belt reminder light
(warning buzzer)
*
Warns the front passen-
ger to fasten his/her seat
belt.
Fasten the seat belt.
(On the instru- ment cluster) Rear passengers’ seat
belt reminder lights
Warn the rear passengers
to fasten their seat belts Fasten the seat belt.
(Flashes) Active Torque Control
4WD system warning light
(4WD models)
Indicates that the driveline
temperature is too high.
(When the light comes on.
→ P. 440) Reduce vehicle speed (until
the light goes off) or stop
the vehicle at a safe place
and allow the engine to idle
until the light goes off.
Low engine oil level warn-
ing light
(diesel engine) Indicates that engine oil
level is low. Check the level of engine
oil, and add if necessary.

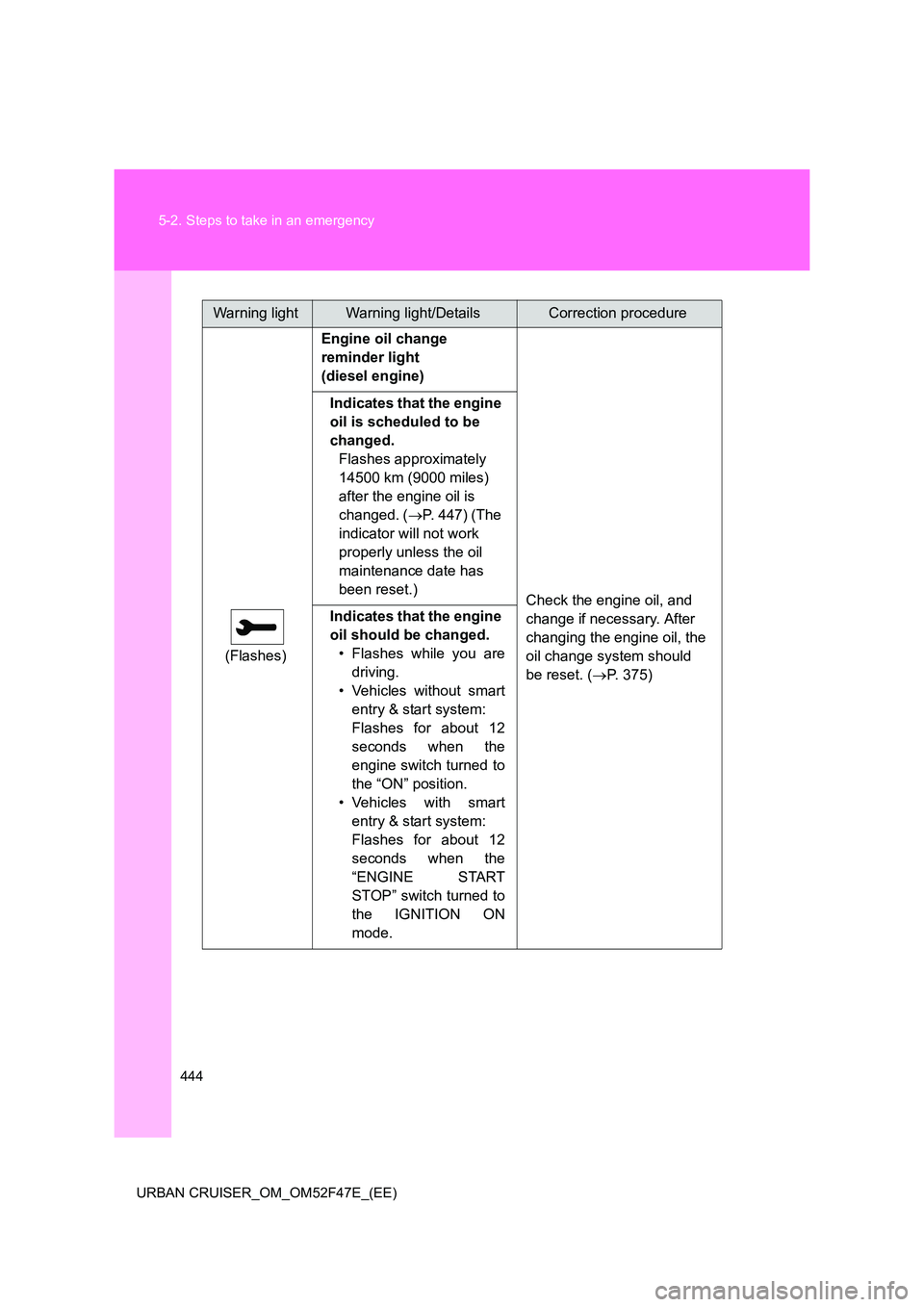

444
5-2. Steps to take in an emergency
URBAN CRUISER_OM_OM52F47E_(EE)
Warning lightWarning light/DetailsCorrection procedure
(Flashes) Engine oil change
reminder light
(diesel engine)
Check the engine oil, and
change if necessary. After
changing the engine oil, the
oil change system should
be reset. (→P. 375)
Indicates that the engine
oil is scheduled to be
changed.
Flashes approximately
14500 km (9000 miles)
after the engine oil is
changed. ( →P. 447) (The
indicator will not work
properly unless the oil
maintenance date has
been reset.)
Indicates that the engine
oil should be changed. • Flashes while you are driving.
• Vehicles without smart entry & start system:
Flashes for about 12
seconds when the
engine switch turned to
the “ON” position.
• Vehicles with smart entry & start system:
Flashes for about 12
seconds when the
“ENGINE START
STOP” switch turned to
the IGNITION ON
mode.

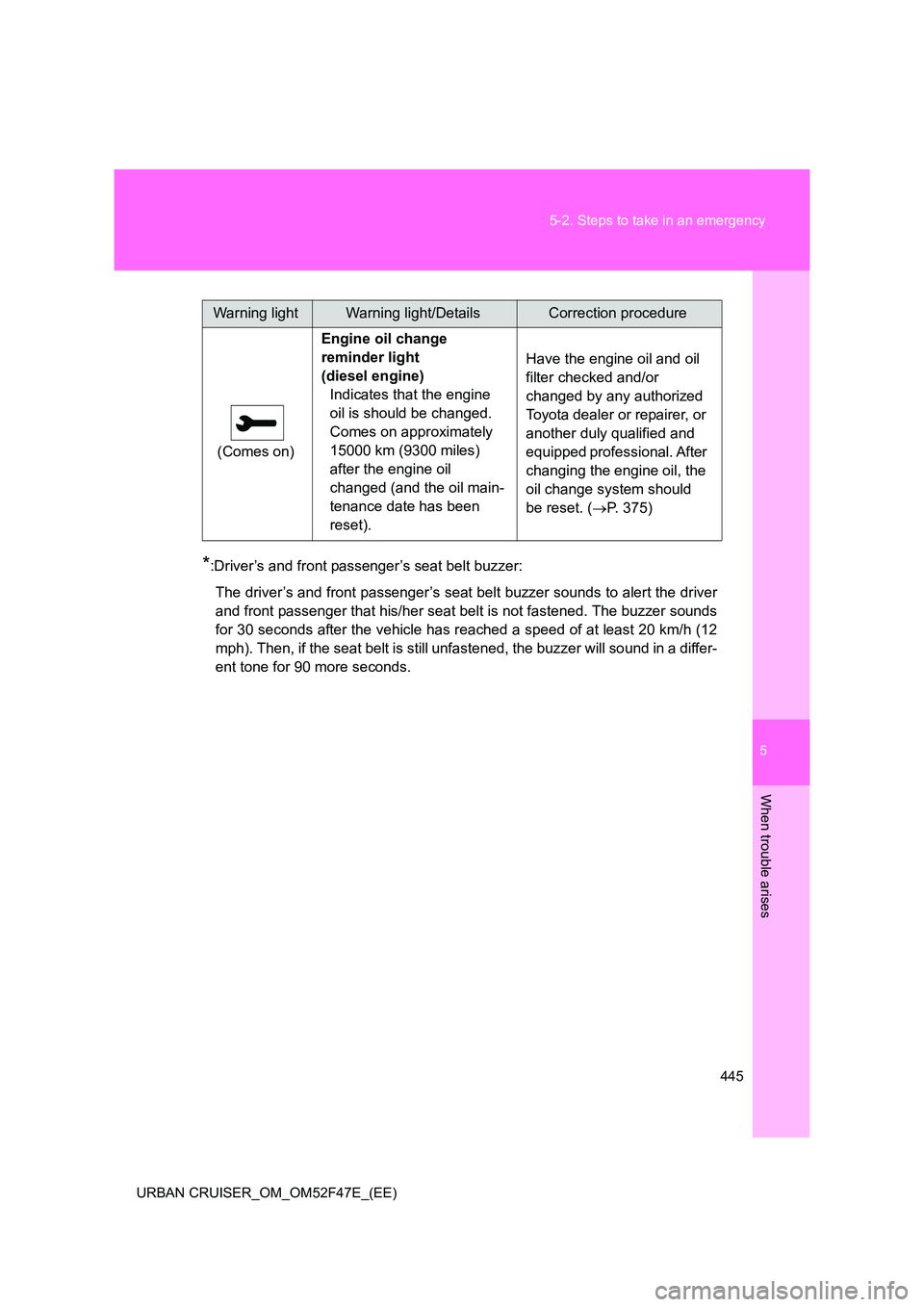

5
445
5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)
*:Driver’s and front passenger’s seat belt buzzer:
The driver’s and front passenger’s seat belt buzzer sounds to alert the driver
and front passenger that his/her seat belt is not fastened. The buzzer sounds
for 30 seconds after the vehicle has reached a speed of at least 20 km/h (12
mph). Then, if the seat belt is still unfastened, the buzzer will sound in a differ-
ent tone for 90 more seconds.
Warning lightWarning light/DetailsCorrection procedure
(Comes on) Engine oil change
reminder light
(diesel engine)
Indicates that the engine
oil is should be changed.
Comes on approximately
15000 km (9300 miles)
after the engine oil
changed (and the oil main-
tenance date has been
reset). Have the engine oil and oil
filter checked and/or
changed by any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional. After
changing the engine oil, the
oil change system should
be reset. (
→P. 375)

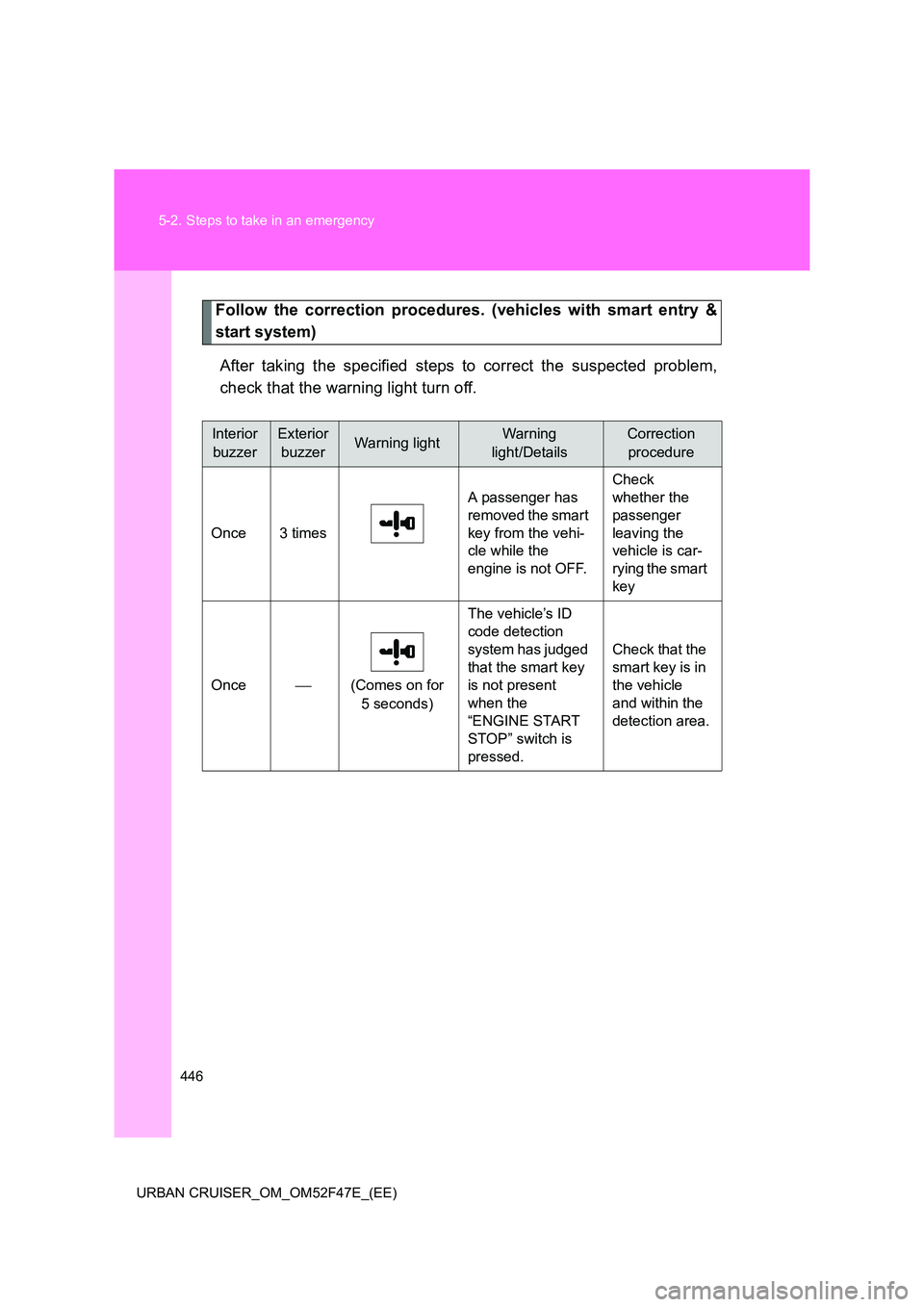

446
5-2. Steps to take in an emergency
URBAN CRUISER_OM_OM52F47E_(EE)
Follow the correction procedures. (vehicles with smart entry &
start system) After taking the specified steps to correct the suspected problem,
check that the warning light turn off.
InteriorbuzzerExterior buzzerWarning lightWarning
light/DetailsCorrection procedure
Once3 times
A passenger has
removed the smart
key from the vehi-
cle while the
engine is not OFF.
Check
whether the
passenger
leaving the
vehicle is car-
rying the smart
key
Once(Comes on for 5 seconds)
The vehicle’s ID
code detection
system has judged
that the smart key
is not present
when the
“ENGINE START
STOP” switch is
pressed.
Check that the
smart key is in
the vehicle
and within the
detection area.

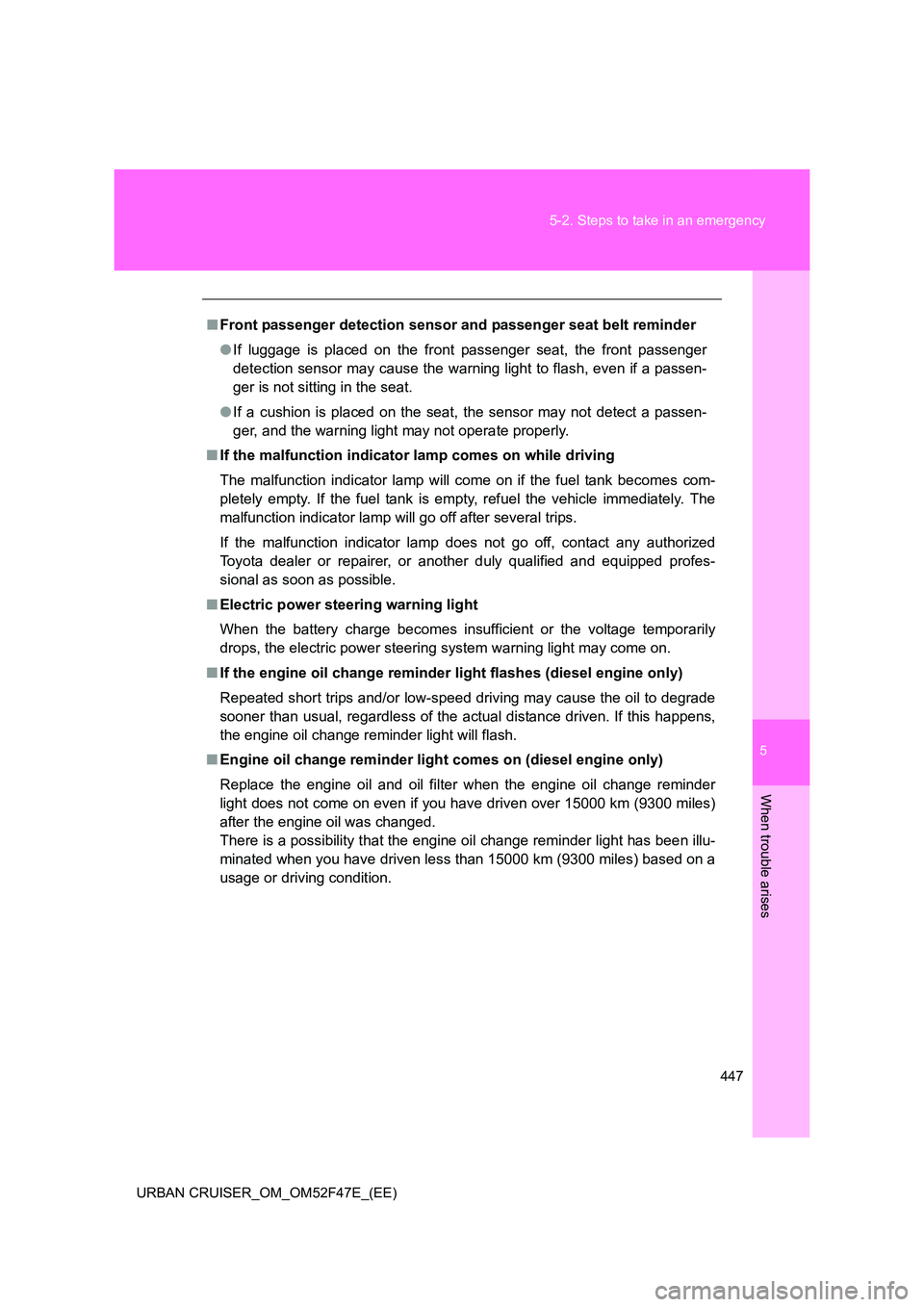

5
447
5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)
■
Front passenger detection sensor and passenger seat belt reminder
● If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash, even if a passen-
ger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.
■ If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or anot her duly qualified and equipped profes-
sional as soon as possible.
■ Electric power steering warning light
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on.
■ If the engine oil change reminder light flashes (diesel engine only)
Repeated short trips and/or low-speed driving may cause the oil to degrade
sooner than usual, regardless of the actual distance driven. If this happens,
the engine oil change reminder light will flash.
■ Engine oil change reminder light comes on (diesel engine only)
Replace the engine oil and oil filter when the engine oil change reminder
light does not come on even if you have driven over 15000 km (9300 miles)
after the engine oil was changed.
There is a possibility that the engine oil change reminder light has been illu-
minated when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.

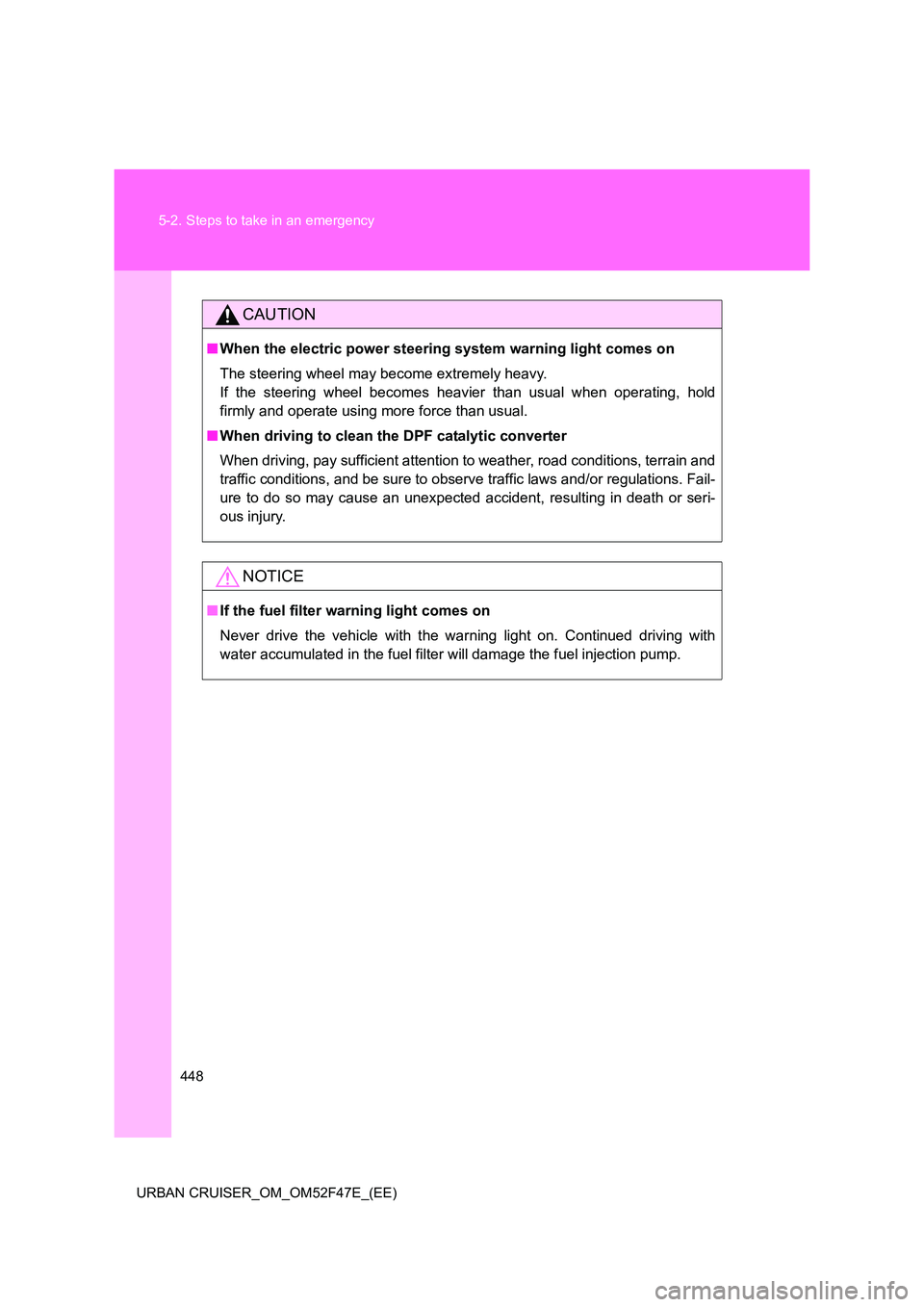

448
5-2. Steps to take in an emergency
URBAN CRUISER_OM_OM52F47E_(EE)
CAUTION
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■ When driving to clean the DPF catalytic converter
When driving, pay sufficient attention to weather, road conditions, terrain and
traffic conditions, and be sure to observe traffic laws and/or regulations. Fail-
ure to do so may cause an unexpected accident, resulting in death or seri-
ous injury.
NOTICE
■If the fuel filter warning light comes on
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.
