2015 TOYOTA URBAN CRUISER Owners Manual

153
1
1-7. Safety information
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)

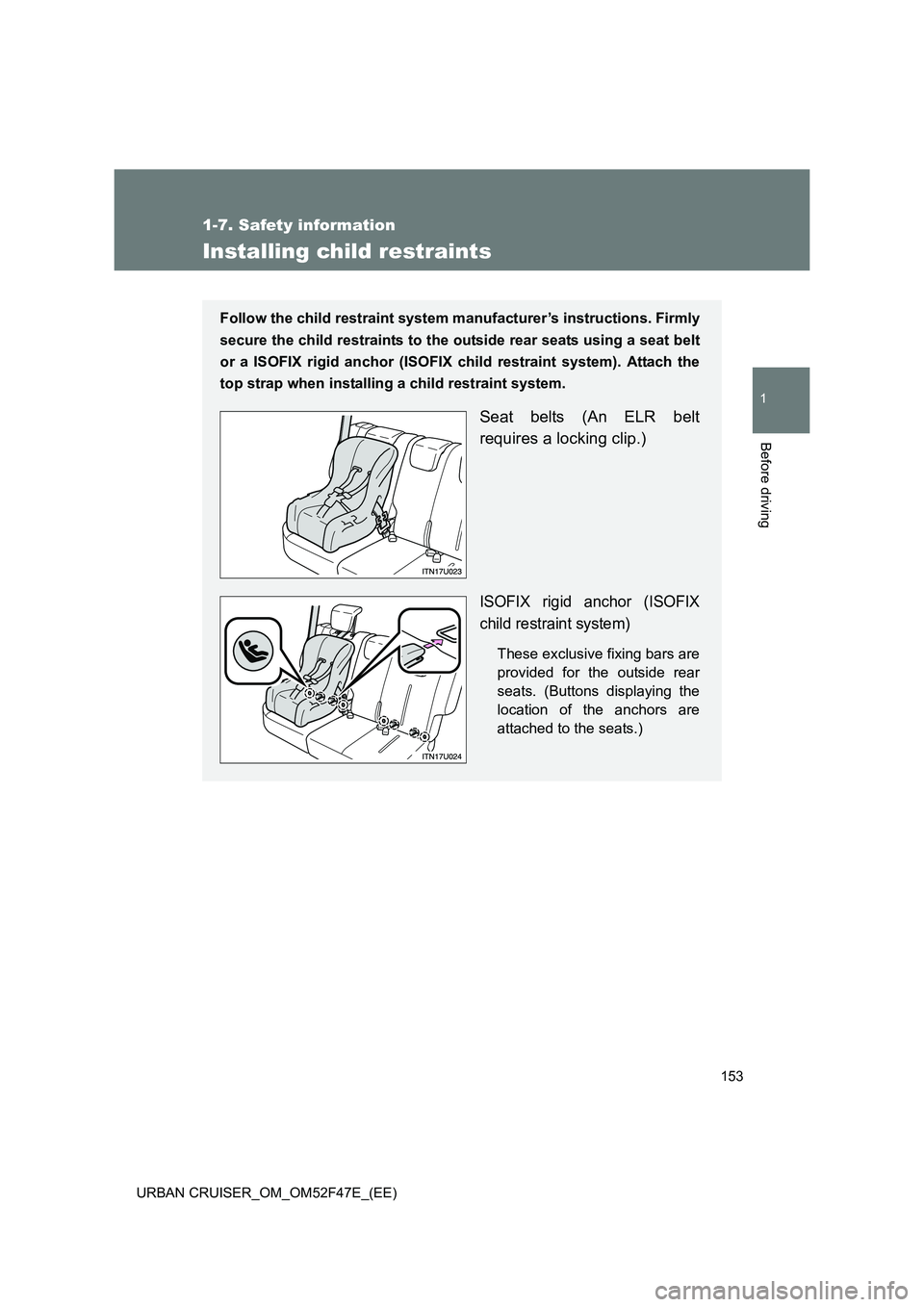

Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure the child restraints to the outside rear seats using a seat belt
or a ISOFIX rigid anchor (ISOFIX child restraint system). Attach the
top strap when installing a child restraint system.
Seat belts (An ELR belt
requires a locking clip.)
ISOFIX rigid anchor (ISOFIX
child restraint system)
These exclusive fixing bars are
provided for the outside rear
seats. (Buttons displaying the
location of the anchors are
attached to the seats.)

154
1-7. Safety information
URBAN CRUISER_OM_OM52F47E_(EE)

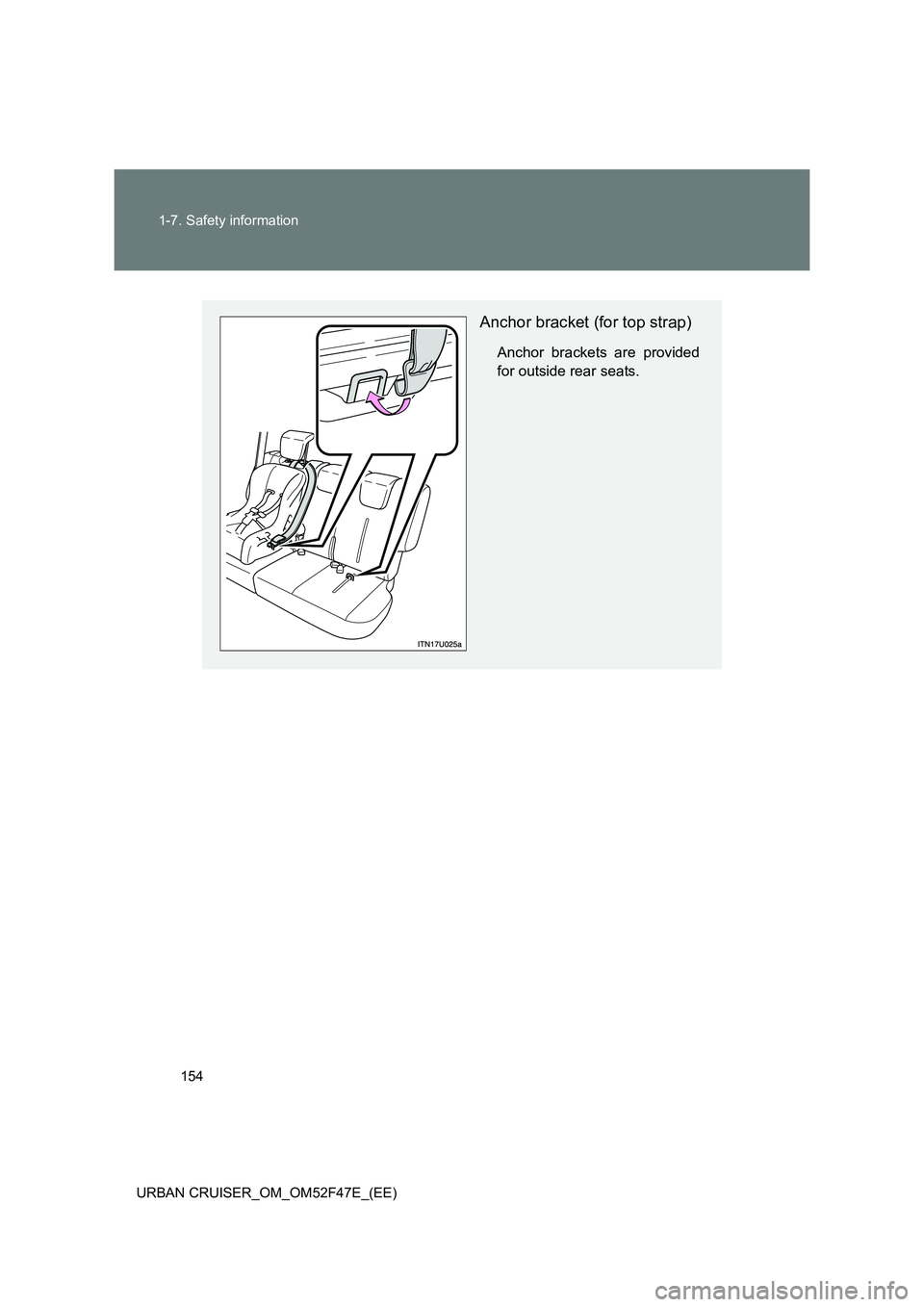

Anchor bracket (for top strap)
Anchor brackets are provided
for outside rear seats.

155
1-7. Safety information
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)

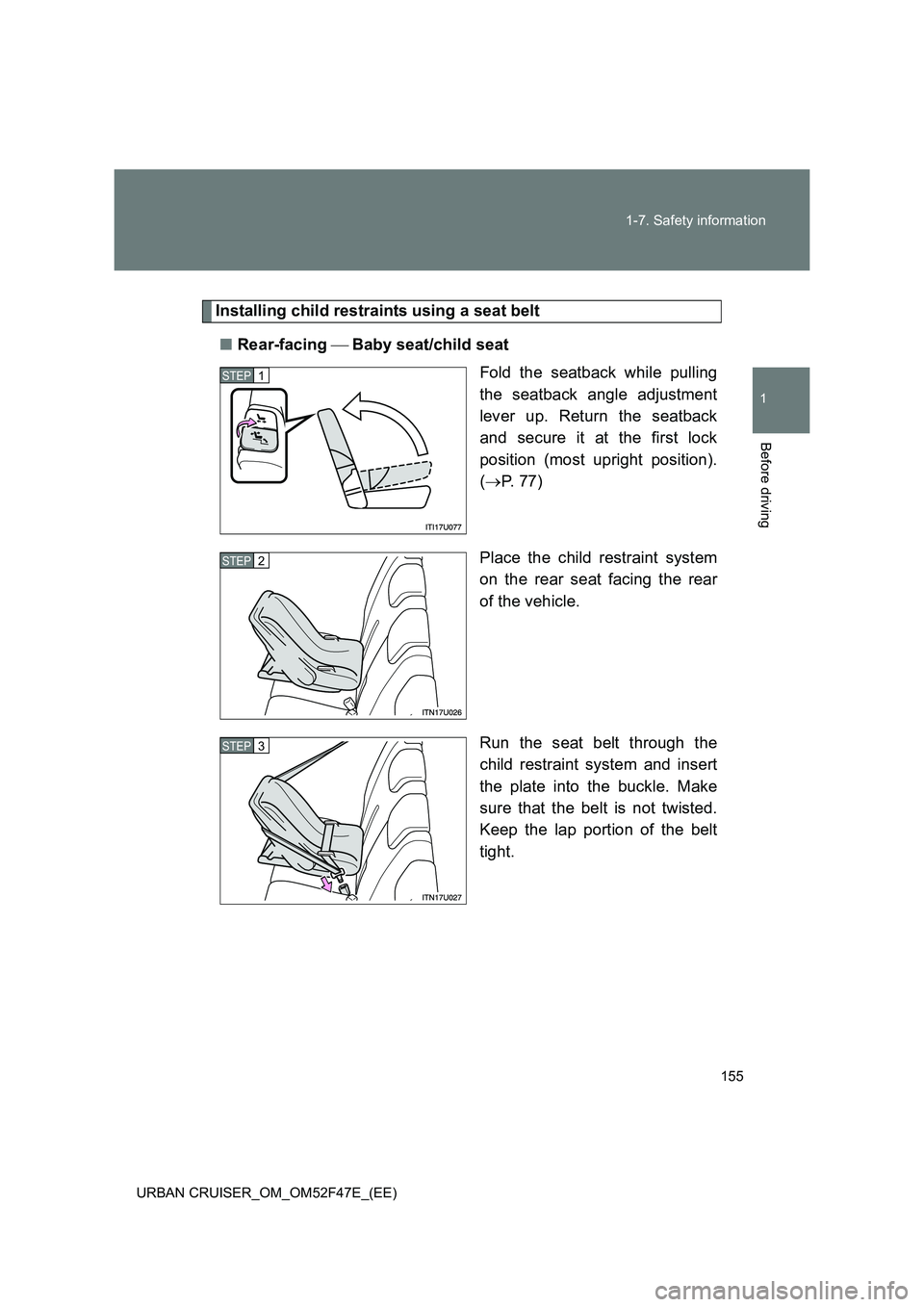

Installing child restraints using a seat belt
■ Rear-facing  Baby seat/child seat
Fold the seatback while pulling
the seatback angle adjustment
lever up. Return the seatback
and secure it at the first lock
position (most upright position).
(→ P. 7 7 )
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Keep the lap portion of the belt
tight.
STEP1
STEP2
STEP3

156
1-7. Safety information
URBAN CRUISER_OM_OM52F47E_(EE)
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip.
■ Forward-facing  Child seat
Fold the seatback while pulling
the seatback angle adjustment
lever up. Return the seatback
and secure it at the first lock
position (most upright position).
(→ P. 7 7 )
Place the child restraint system
on the seat facing the front of the
vehicle.STEP4
STEP1
STEP2

157
1-7. Safety information
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)

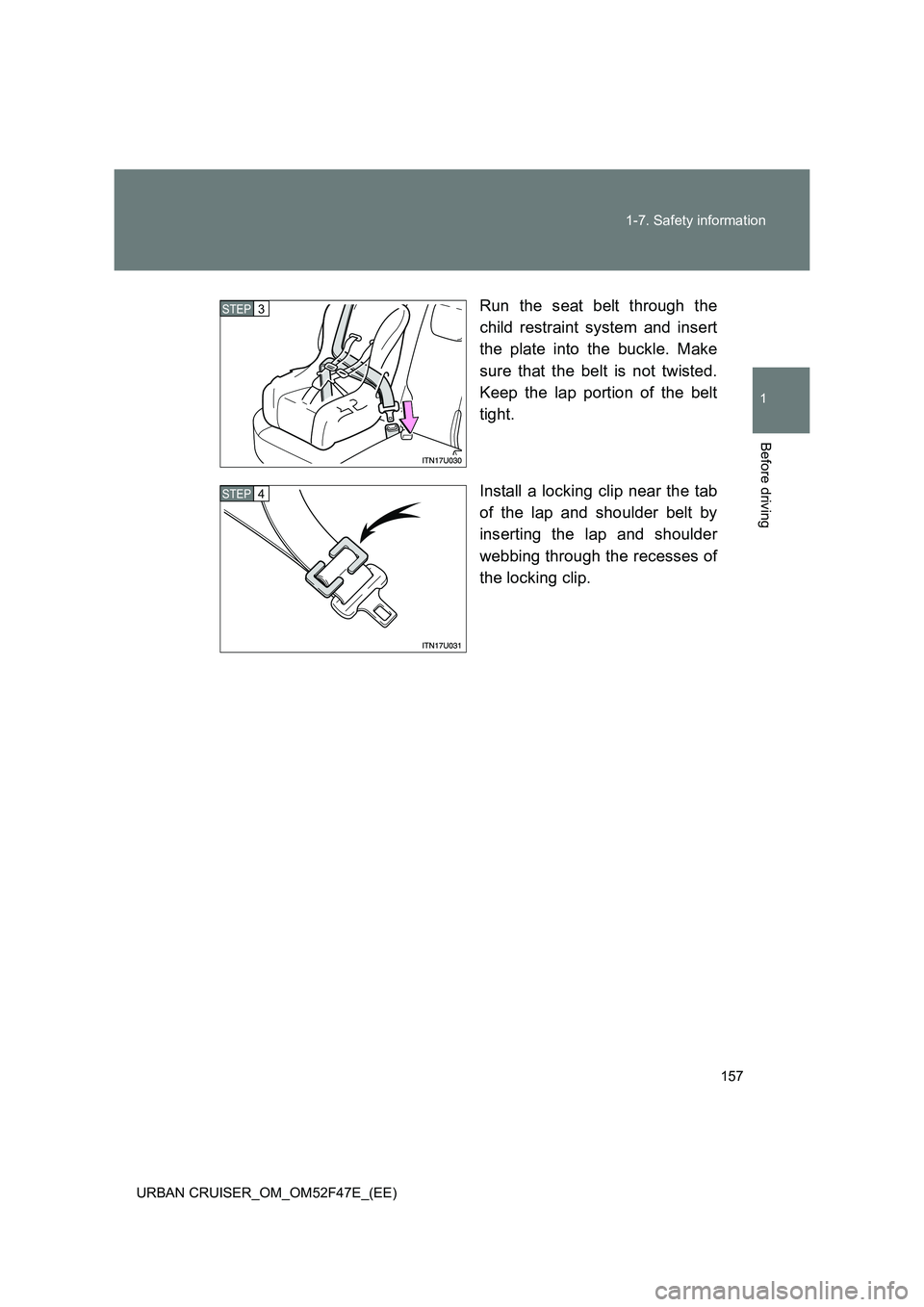

Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Keep the lap portion of the belt
tight.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip.STEP3
STEP4

158
1-7. Safety information
URBAN CRUISER_OM_OM52F47E_(EE)

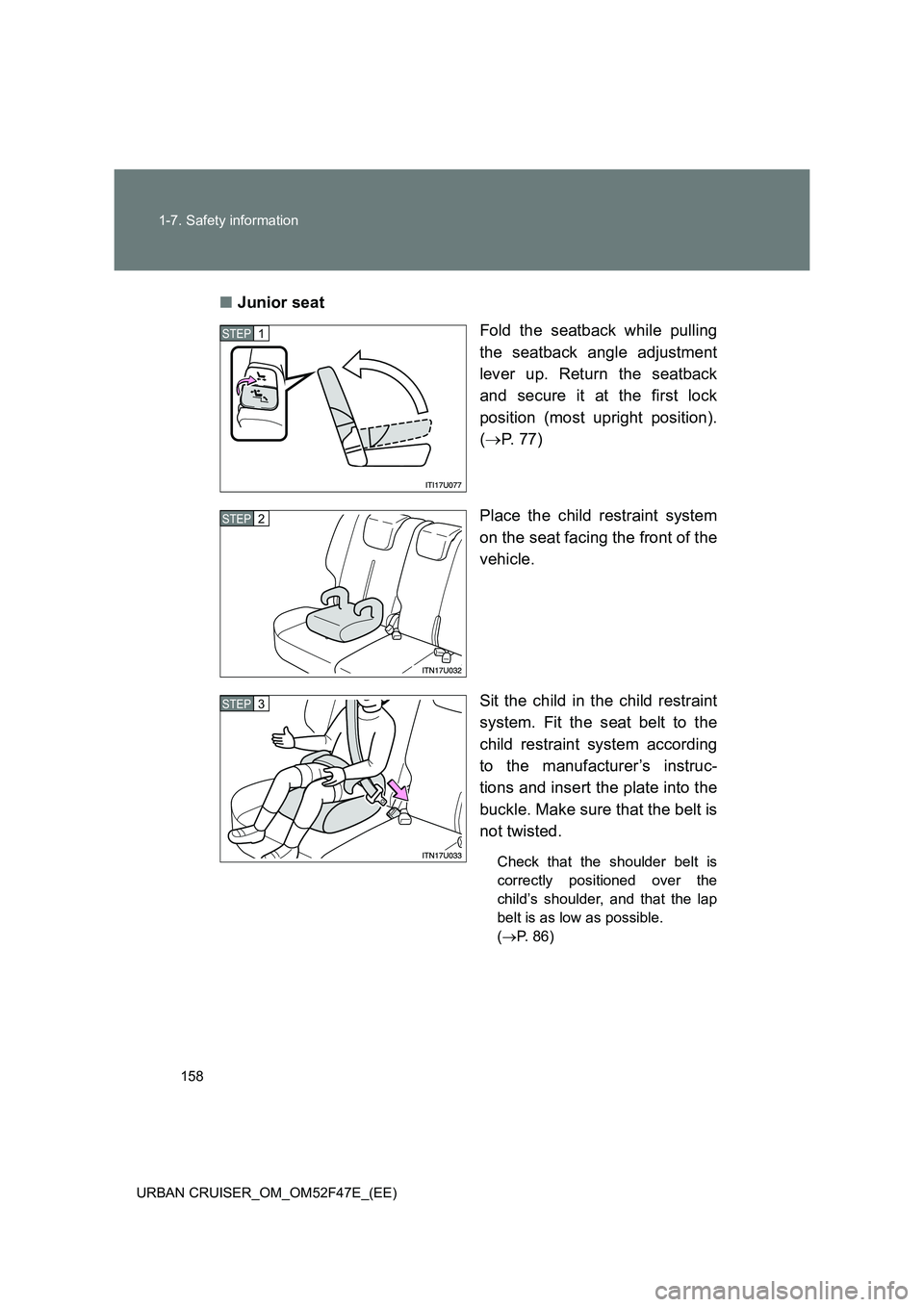

■ Junior seat
Fold the seatback while pulling
the seatback angle adjustment
lever up. Return the seatback
and secure it at the first lock
position (most upright position).
(→ P. 7 7 )
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( → P. 86)
STEP1
STEP2
STEP3

159
1-7. Safety information
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)

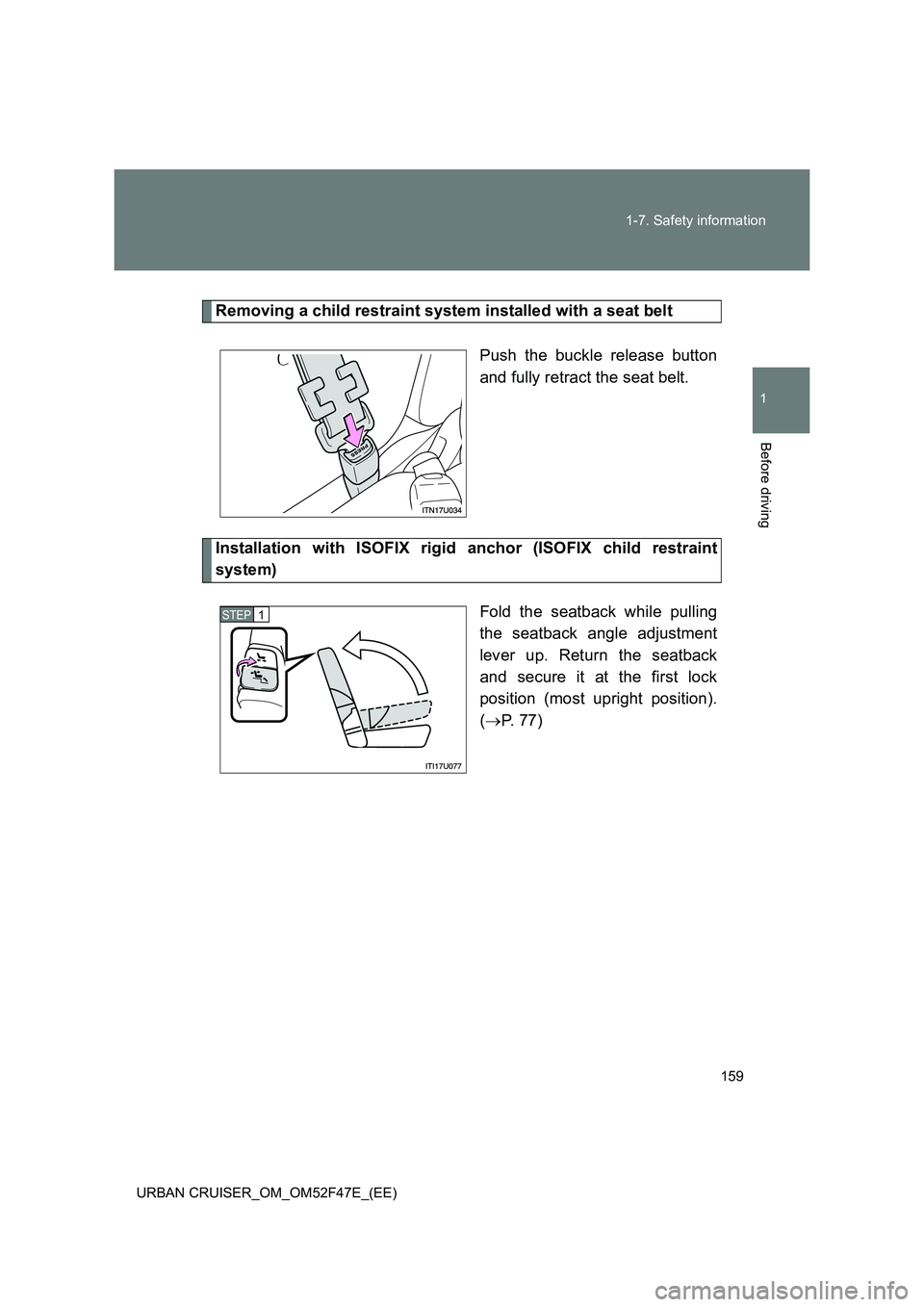

Removing a child restraint system installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
Installation with ISOFIX rigid anchor (ISOFIX child restraint
system)Fold the seatback while pulling
the seatback angle adjustment
lever up. Return the seatback
and secure it at the first lock
position (most upright position).
(→ P. 7 7 )
STEP1

160
1-7. Safety information
URBAN CRUISER_OM_OM52F47E_(EE)

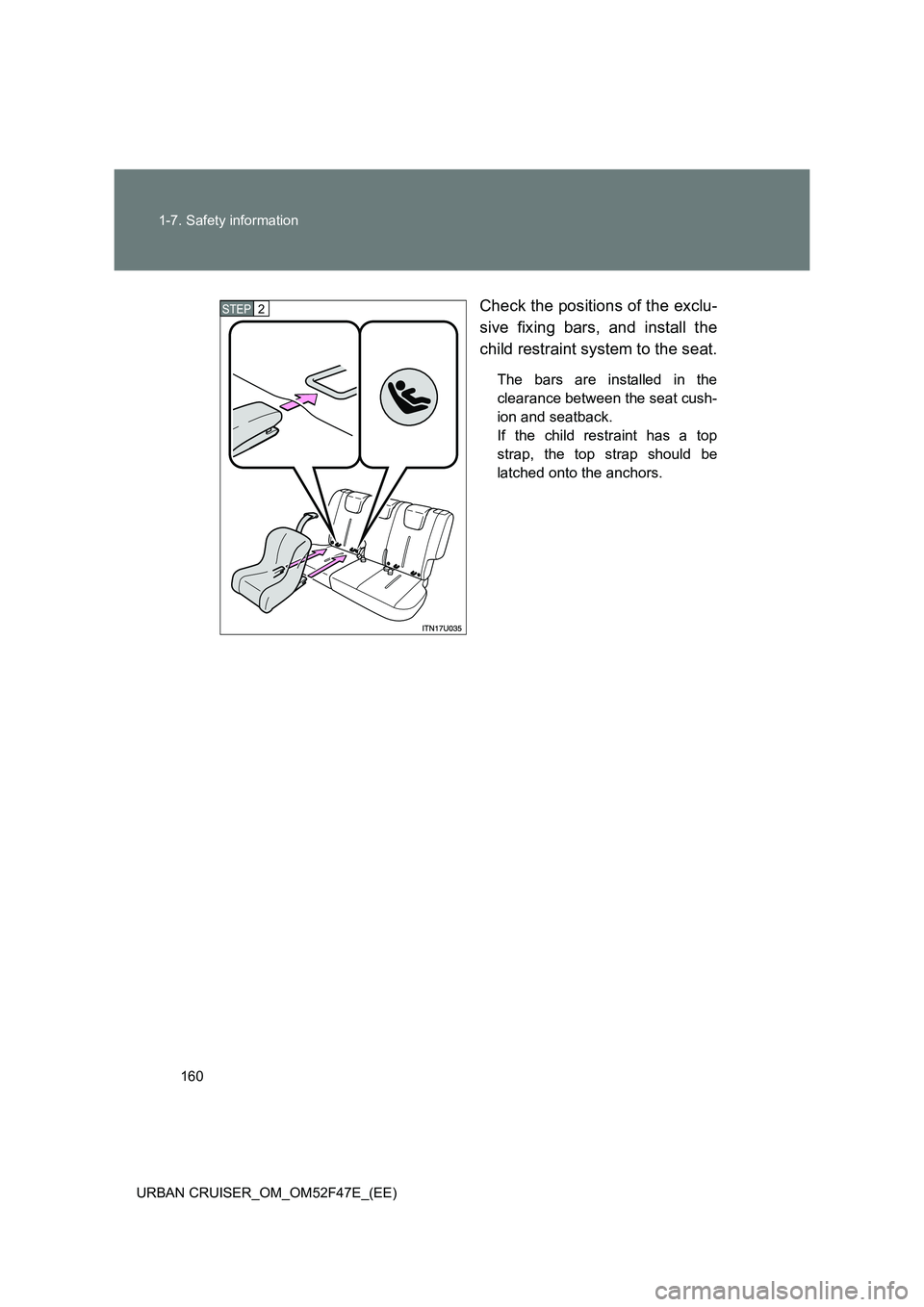

Check the positions of the exclu-
sive fixing bars, and install the
child restraint system to the seat.
The bars are installed in the
clearance between the seat cush-
ion and seatback.
If the child restraint has a top
strap, the top strap should be
latched onto the anchors.
STEP2
