2015 TOYOTA URBAN CRUISER Owners Manual

521
6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_OM_OM52F47E_(EE)

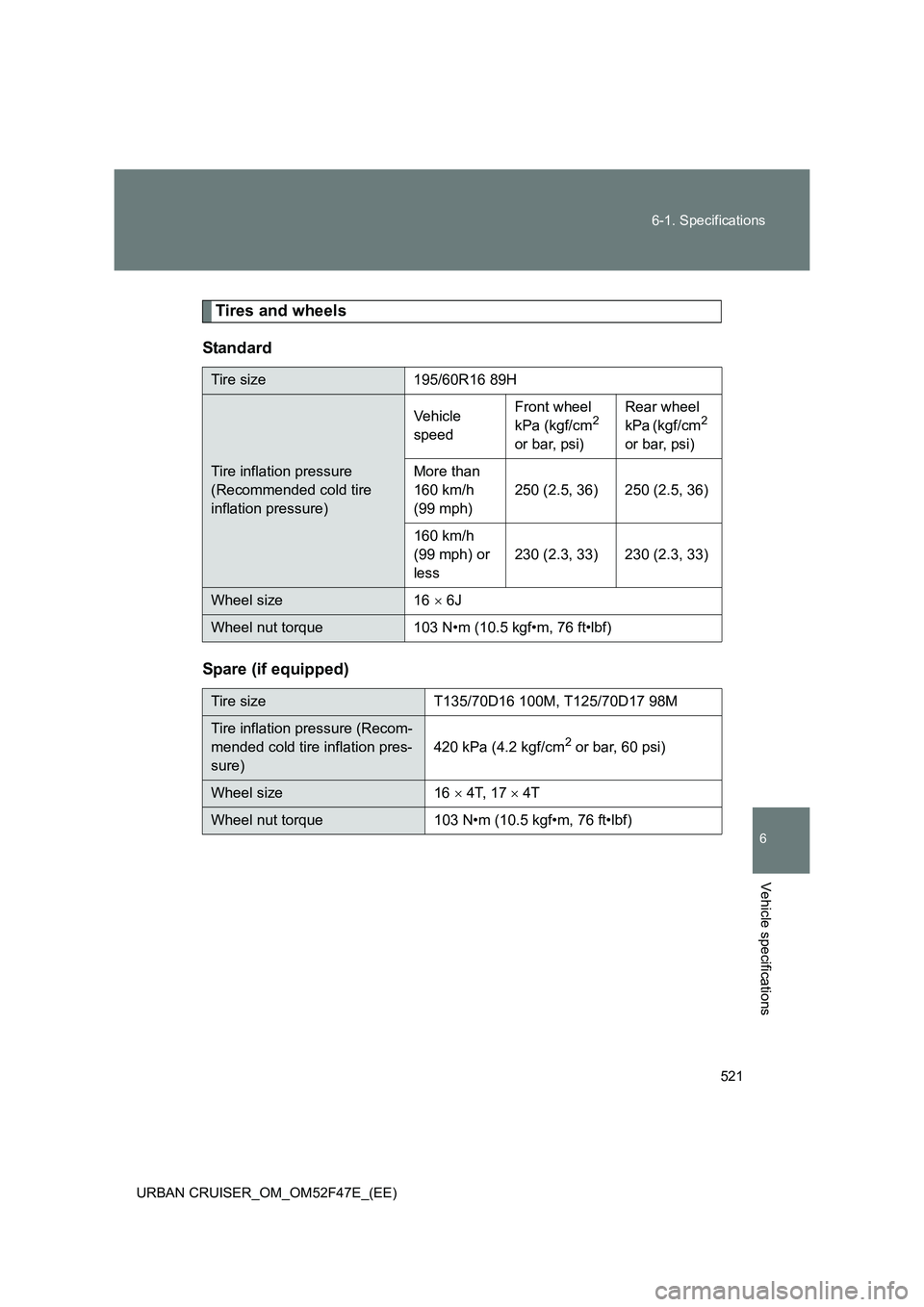

Tires and wheels
Standard
Spare (if equipped)
Tire size 195/60R16 89H
Tire inflation pressure
(Recommended cold tire
inflation pressure) Vehicle
speed
Front wheel
kPa (kgf/cm
2
or bar, psi) Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph) 250 (2.5, 36) 250 (2.5, 36)
160 km/h
(99 mph) or
less 230 (2.3, 33) 230 (2.3, 33)
Wheel size 16
× 6J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT135/70D16 100M, T125/70D17 98M
Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16 × 4T, 17 × 4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

522
6-1. Specifications
URBAN CRUISER_OM_OM52F47E_(EE)

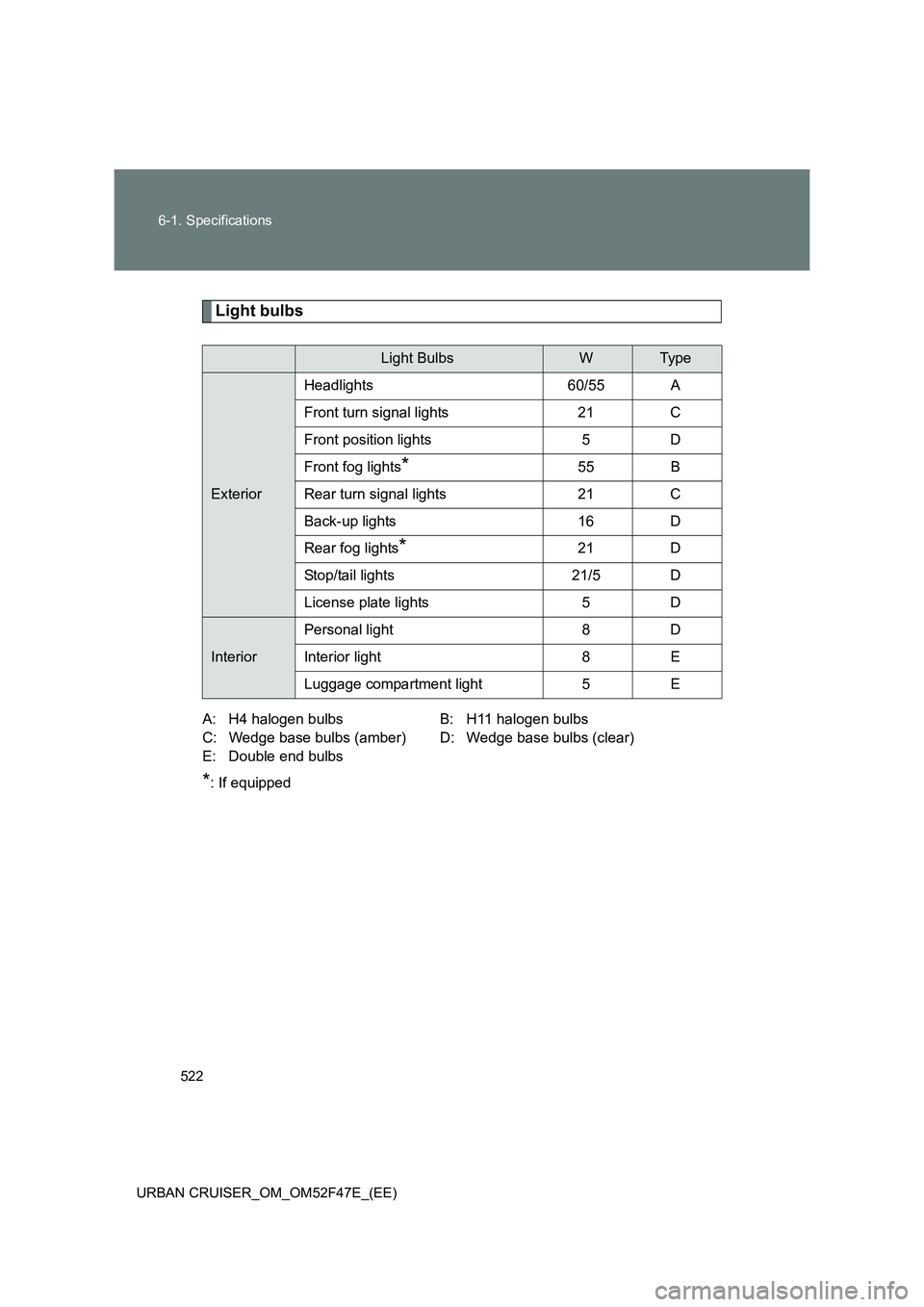

Light bulbs
A: H4 halogen bulbs B: H11 halogen bulbs
C: Wedge base bulbs (amber) D: Wedge base bulbs (clear)
E: Double end bulbs
*: If equipped
Light BulbsWTyp e
Exterior Headlights 60/55 A
Front turn signal lights 21 C
Front position lights 5 D
Front fog lights
*55 B
Rear turn signal lights 21 C
Back-up lights 16 D
Rear fog lights
*21 D
Stop/tail lights 21/5 D
License plate lights 5 D
Interior Personal light 8 D
Interior light 8 E
Luggage compartment light 5 E

523
6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_OM_OM52F47E_(EE)

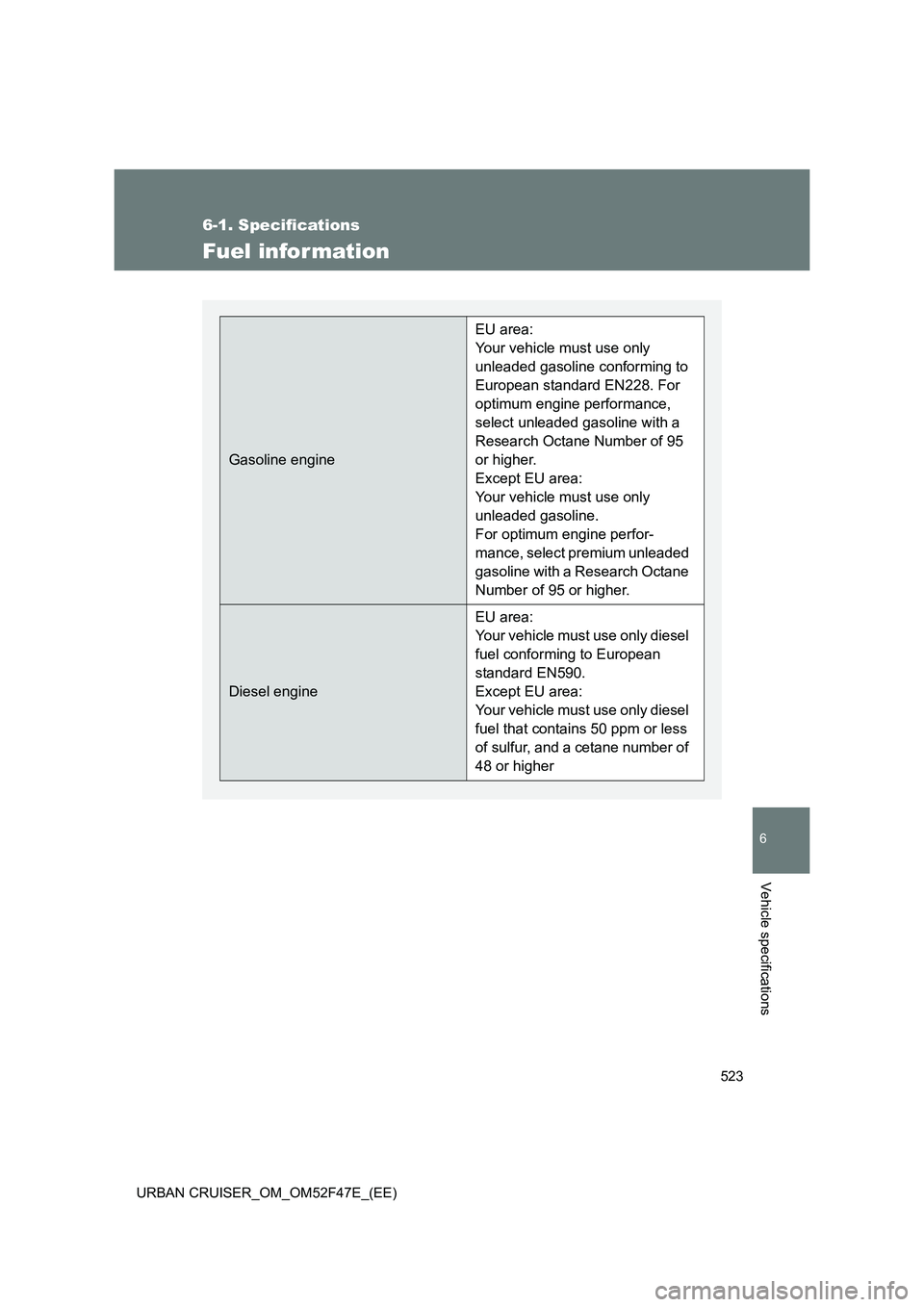

Fuel infor mation
Gasoline engine
EU area:
Your vehicle must use only
unleaded gasoline conforming to
European standard EN228. For
optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95
or higher.
Except EU area:
Your vehicle must use only
unleaded gasoline.
For optimum engine perfor-
mance, select premium unleaded
gasoline with a Research Octane
Number of 95 or higher.
Diesel engine
EU area:
Your vehicle must use only diesel
fuel conforming to European
standard EN590.
Except EU area:
Your vehicle must use only diesel
fuel that contains 50 ppm or less
of sulfur, and a cetane number of
48 or higher

524
6-1. Specifications
URBAN CRUISER_OM_OM52F47E_(EE)

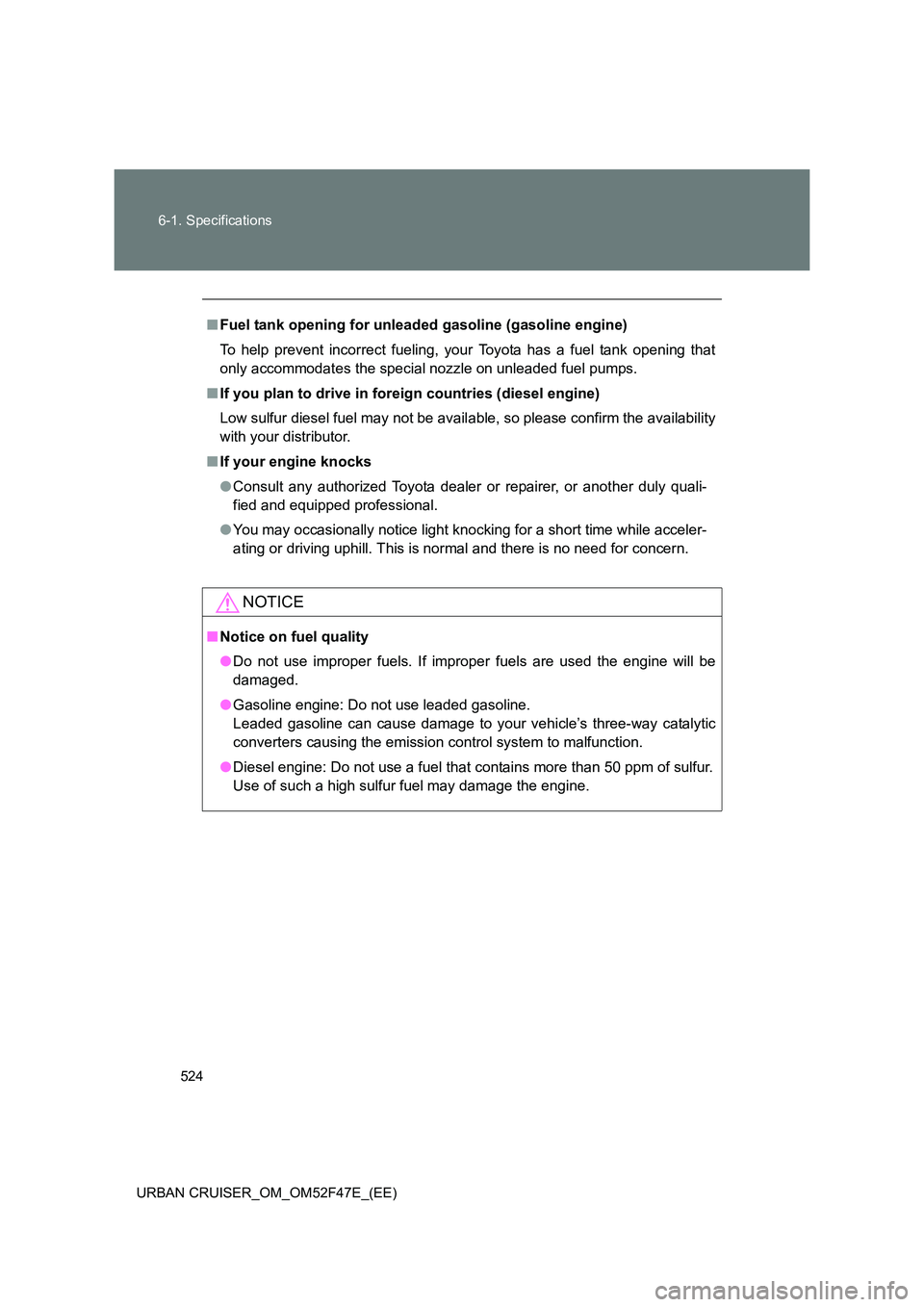

■ Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If you plan to drive in fore ign countries (diesel engine)
Low sulfur diesel fuel may not be avail able, so please confirm the availability
with your distributor.
■ If your engine knocks
●Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be
damaged.
● Gasoline engine: Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Diesel engine: Do not use a fuel that contains more than 50 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.

525
6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_OM_OM52F47E_(EE)

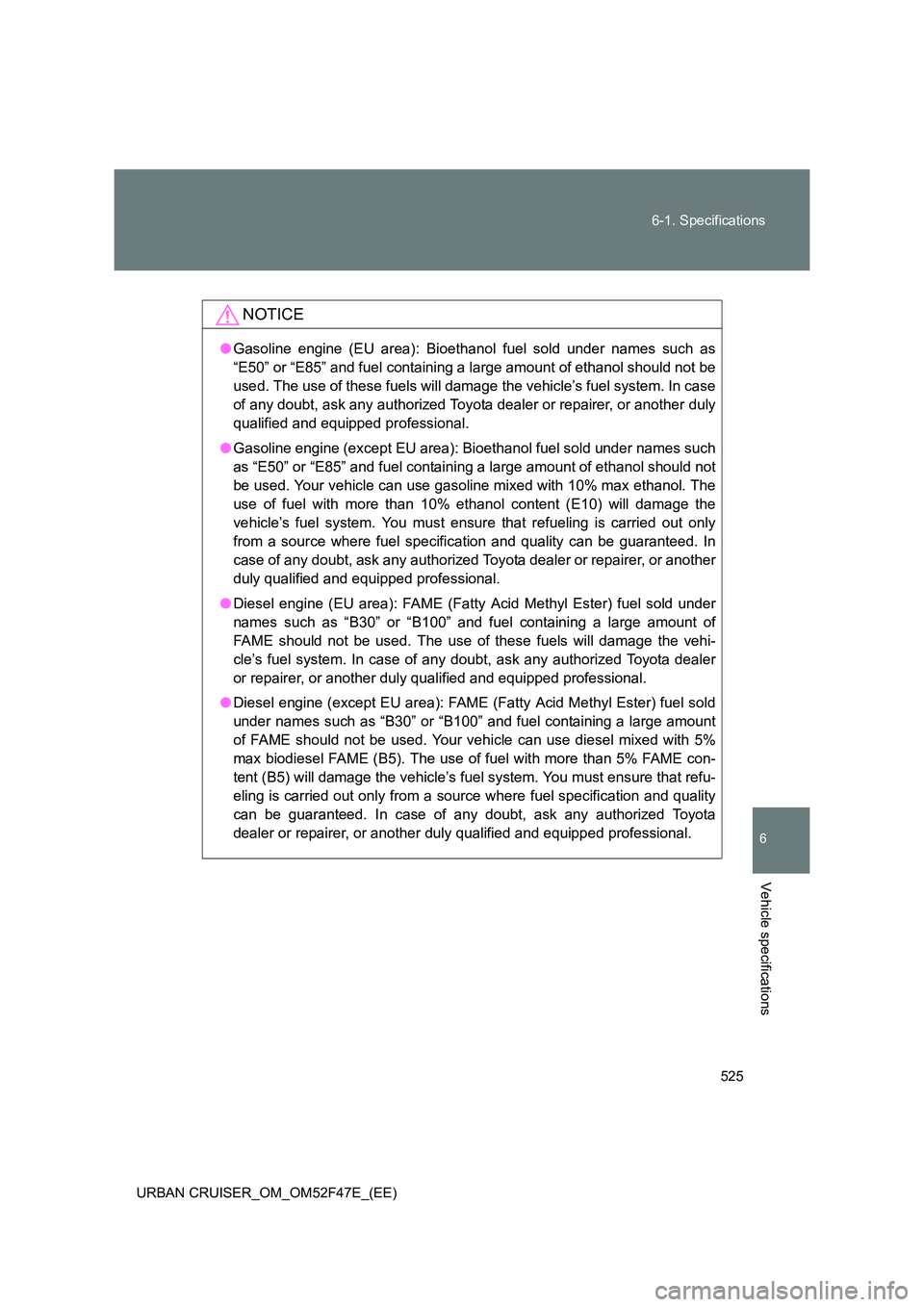

NOTICE
●
Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
● Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
● Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle’s fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
● Diesel engine (except EU area): FAME (Fatty Acid Methyl Ester) fuel sold
under names such as “B30” or “B100” and fuel containing a large amount
of FAME should not be used. Your vehicle can use diesel mixed with 5%
max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-
tent (B5) will damage the vehicle’s fuel system. You must ensure that refu-
eling is carried out only from a source where fuel specification and quality
can be guaranteed. In case of any doubt, ask any authorized Toyota
dealer or repairer, or another dul y qualified and equipped professional.

526
URBAN CRUISER_OM_OM52F47E_(EE)

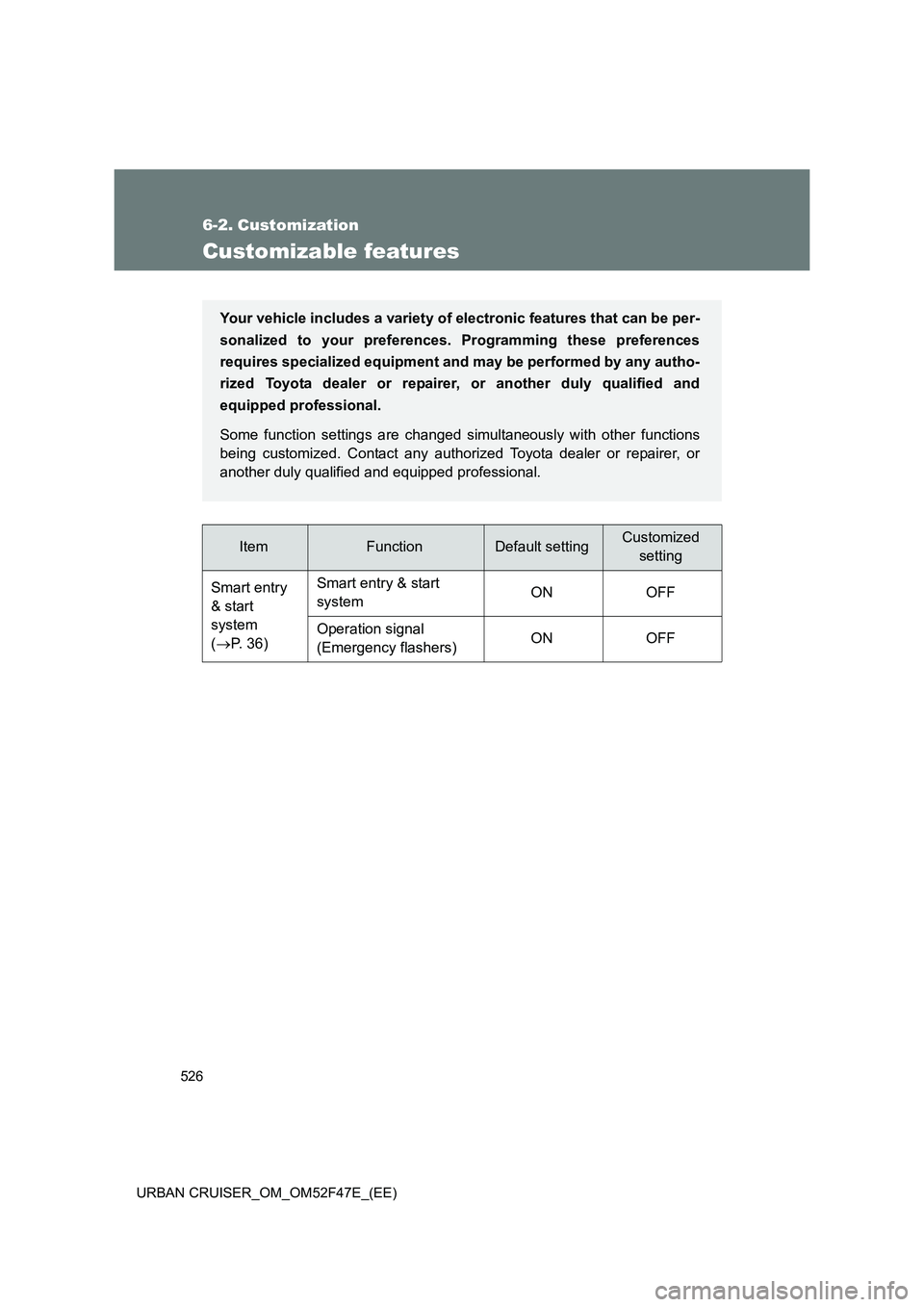

6-2. Customization
Customizable features
ItemFunctionDefault settingCustomized setting
Smart entry
& start
system
( → P. 36) Smart entry & start
system
ON OFF
Operation signal
(Emergency flashers) ON OFF
Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.

527
6-2. Customization
6
Vehicle specifications
URBAN CRUISER_OM_OM52F47E_(EE)

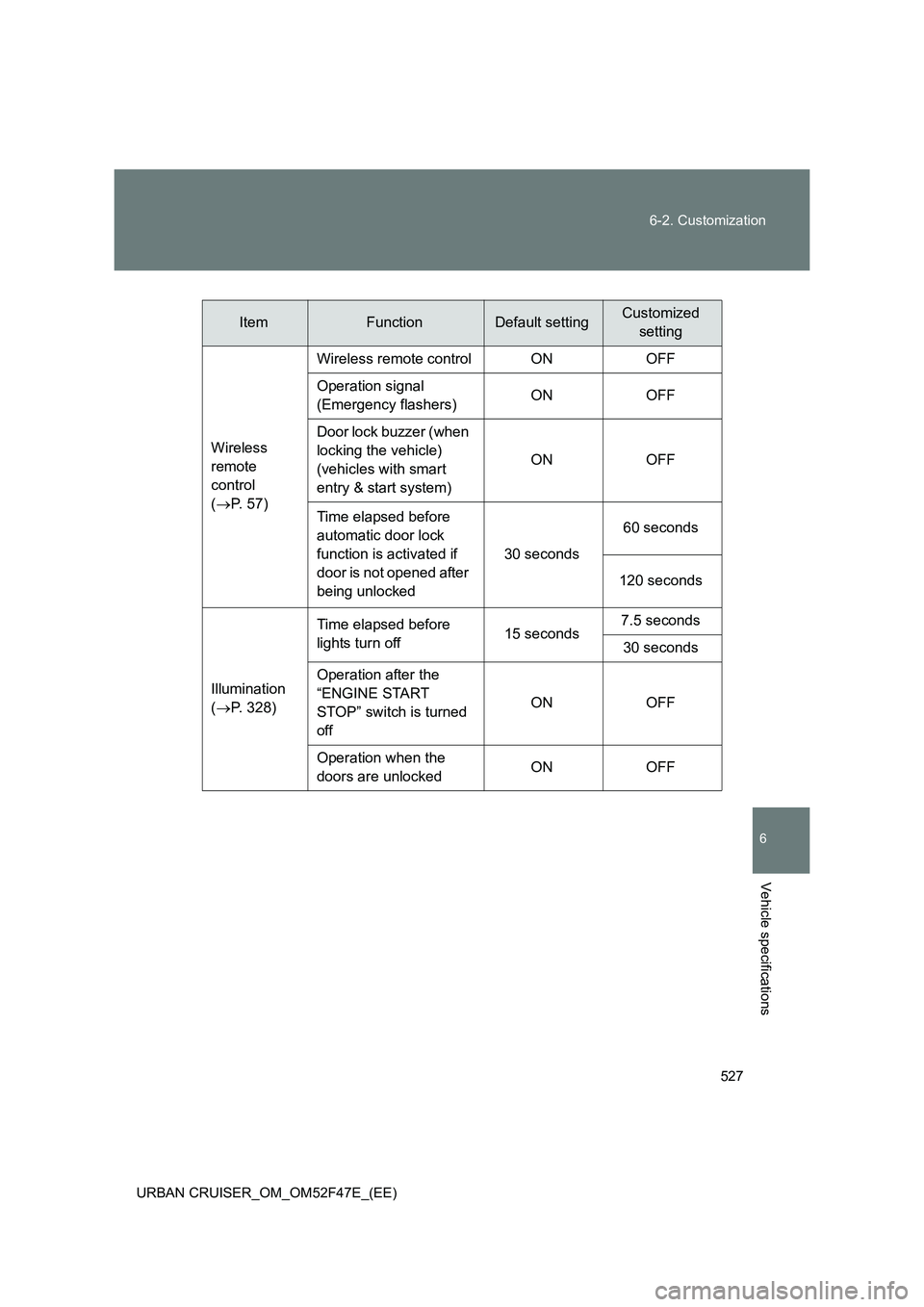

ItemFunctionDefault settingCustomized
setting
Wireless
remote
control
( → P. 57) Wireless remote control ON OFF
Operation signal
(Emergency flashers)
ON OFF
Door lock buzzer (when
locking the vehicle)
(vehicles with smart
entry & start system) ON OFF
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked 30 seconds
60 seconds
120 seconds
Illumination
( → P. 328) Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation after the
“ENGINE START
STOP” switch is turned
off ON OFF
Operation when the
doors are unlocked ON OFF

528
URBAN CRUISER_OM_OM52F47E_(EE)

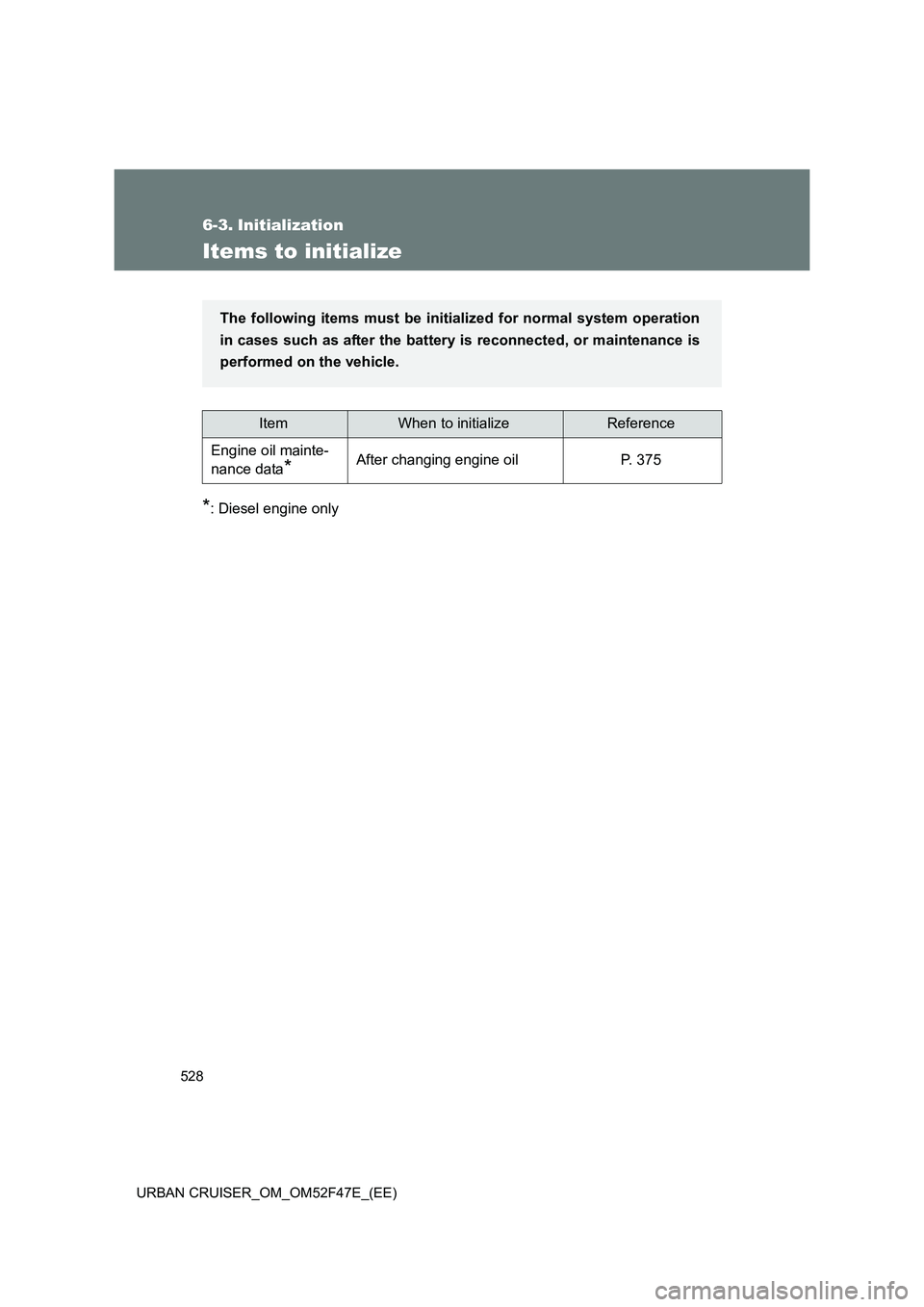

6-3. Initialization
Items to initialize
*: Diesel engine only
ItemWhen to initializeReference
Engine oil mainte-
nance data
*After changing engine oil P. 375
The following items must be initia lized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.
