2015 TOYOTA URBAN CRUISER Owners Manual

57
1
1-2. Opening, closing and locking the doors
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)

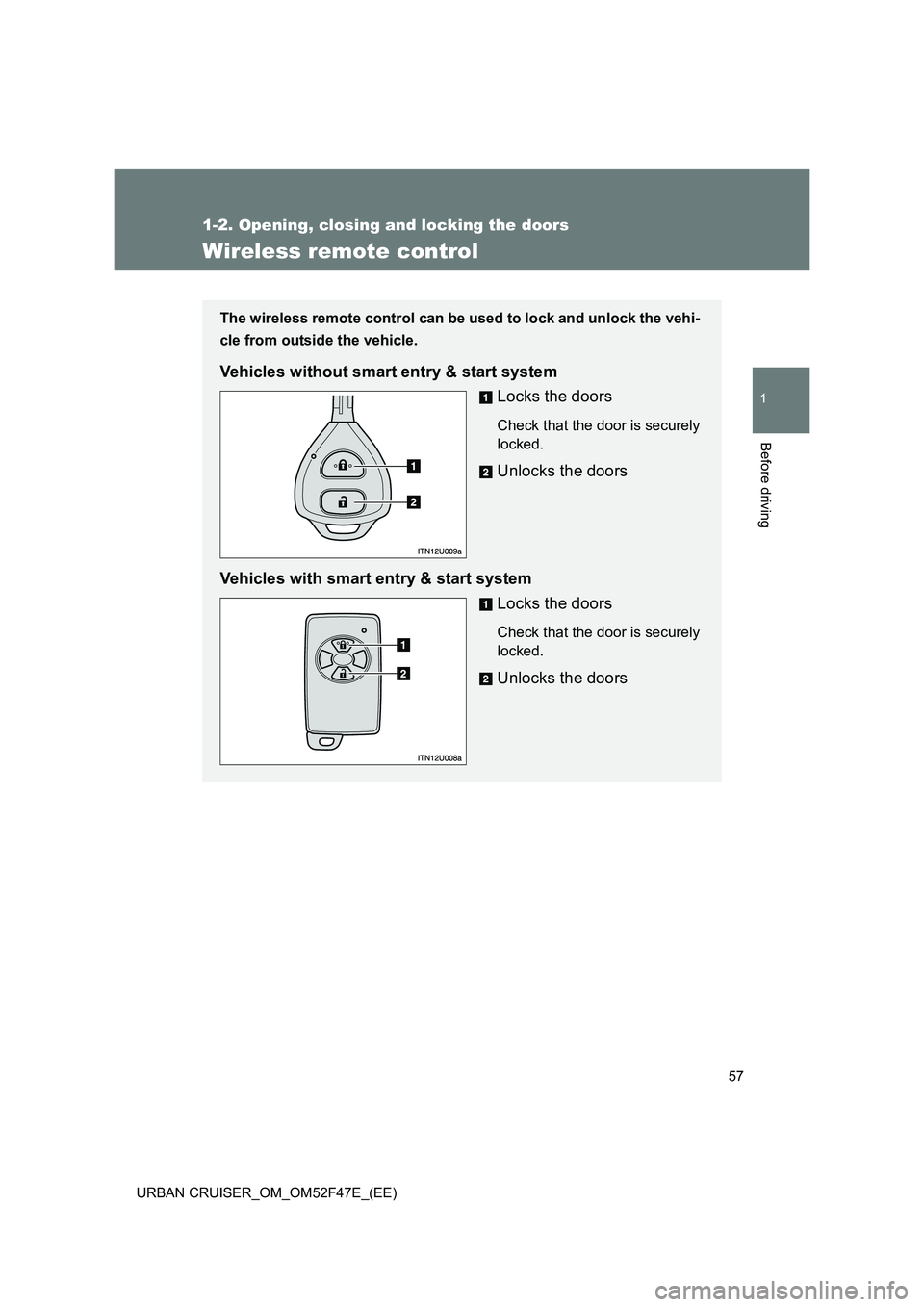

Wireless remote control
The wireless remote control can be used to lock and unlock the vehi-
cle from outside the vehicle.
Vehicles without smart entry & start system
Locks the doors
Check that the door is securely
locked.
Unlocks the doors
Vehicles with smart entry & start system Locks the doors
Check that the door is securely
locked.
Unlocks the doors

58
1-2. Opening, closing and locking the doors
URBAN CRUISER_OM_OM52F47E_(EE)

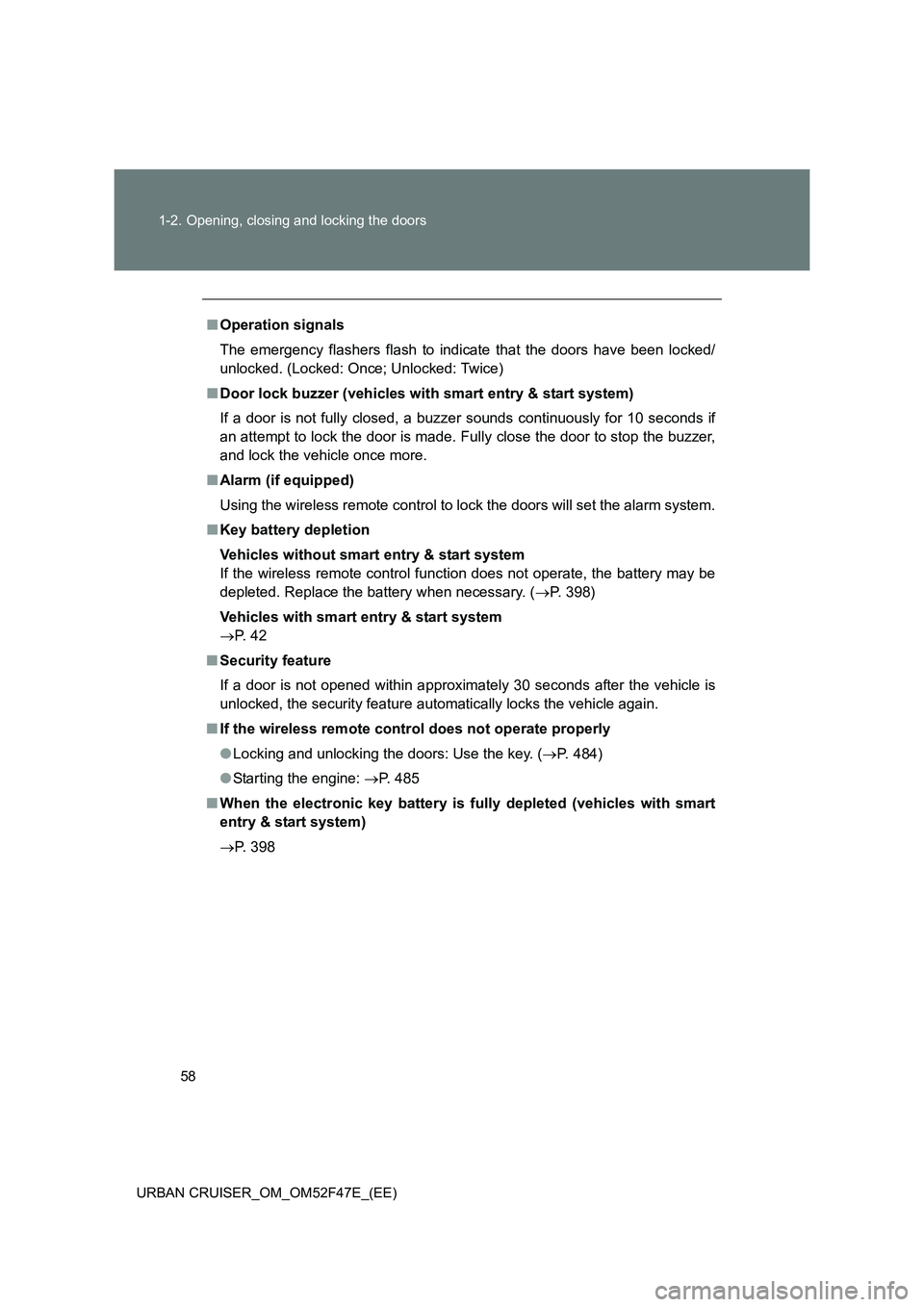

■ Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
■ Door lock buzzer (vehicles with smart entry & start system)
If a door is not fully closed, a buzzer sounds continuously for 10 seconds if
an attempt to lock the door is made. Fully close the door to stop the buzzer,
and lock the vehicle once more.
■ Alarm (if equipped)
Using the wireless remote control to lo ck the doors will set the alarm system.
■ Key battery depletion
Vehicles without smart entry & start system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. ( →P. 398)
Vehicles with smart entry & start system
→ P. 4 2
■ Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ If the wireless remote control does not operate properly
●Locking and unlocking the doors: Use the key. ( →P. 484)
● Starting the engine: →P. 485
■ When the electronic key battery is fully depleted (vehicles with smart
entry & start system)
→ P. 398

59
1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
■

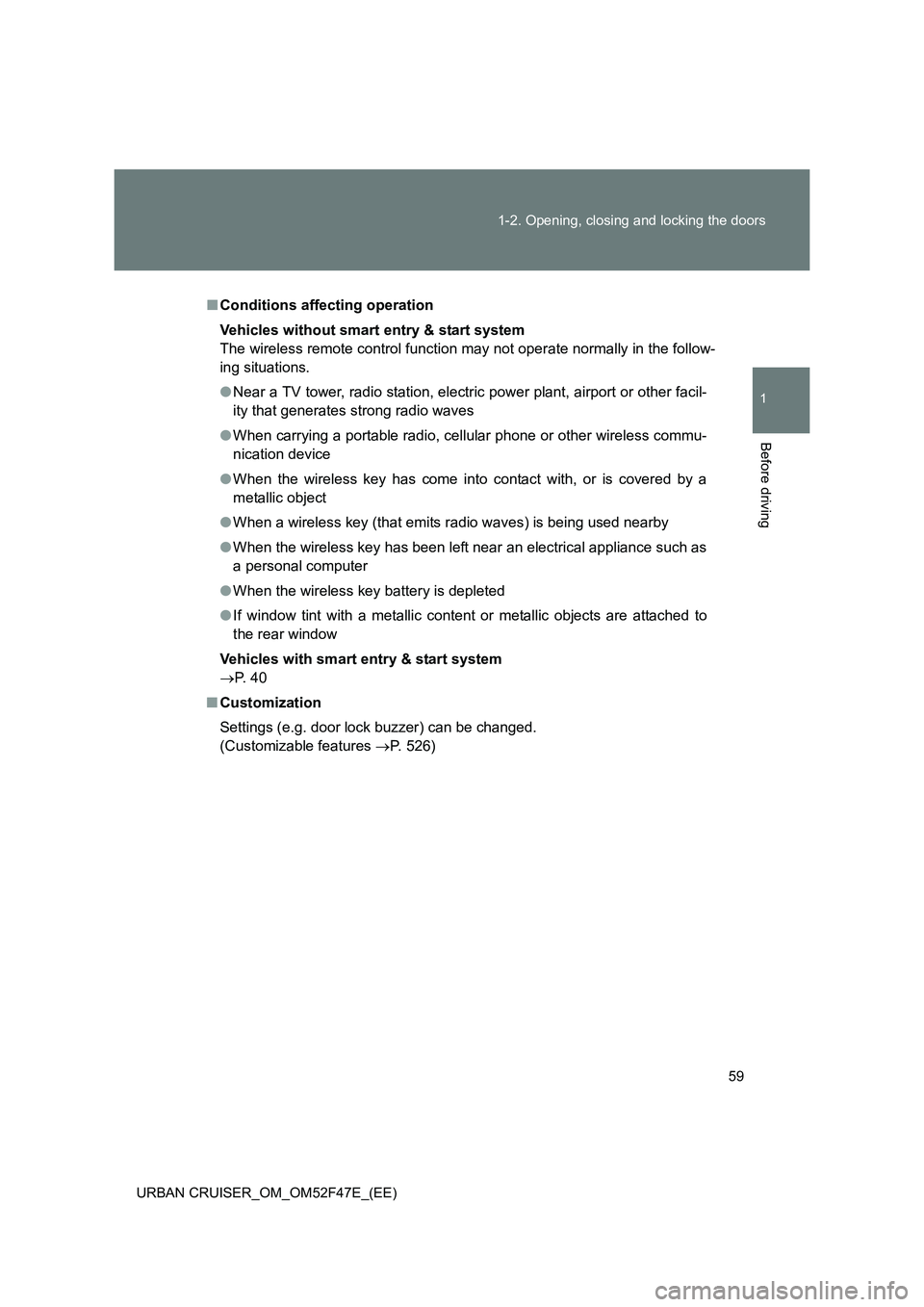

Conditions affecting operation
Vehicles without smart entry & start system
The wireless remote control function may not operate normally in the follow-
ing situations.
●Near a TV tower, radio station, electr ic power plant, airport or other facil-
ity that generates strong radio waves
● When carrying a portable radio, cellular phone or other wireless commu-
nication device
● When the wireless key has come into contact with, or is covered by a
metallic object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as
a personal computer
● When the wireless key battery is depleted
● If window tint with a metallic content or metallic objects are attached to
the rear window
Vehicles with smart entry & start system
→ P. 4 0
■ Customization
Settings (e.g. door lock buzzer) can be changed.
(Customizable features →P. 526)

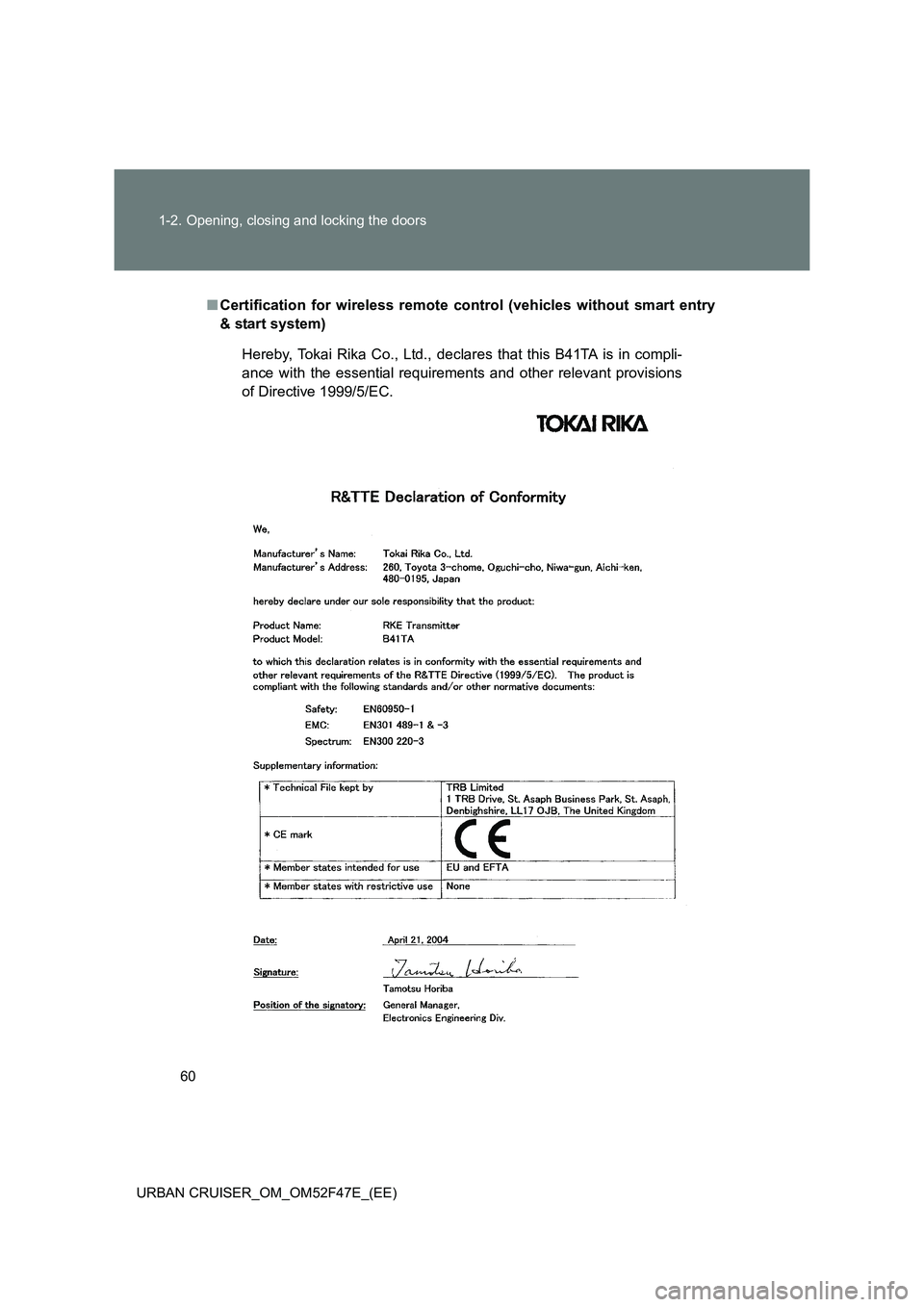

60
1-2. Opening, closing and locking the doors
URBAN CRUISER_OM_OM52F47E_(EE)
■ Certification for wireless remote c ontrol (vehicles without smart entry
& start system)
Hereby, Tokai Rika Co., Ltd., declares that this B41TA is in compli-
ance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.

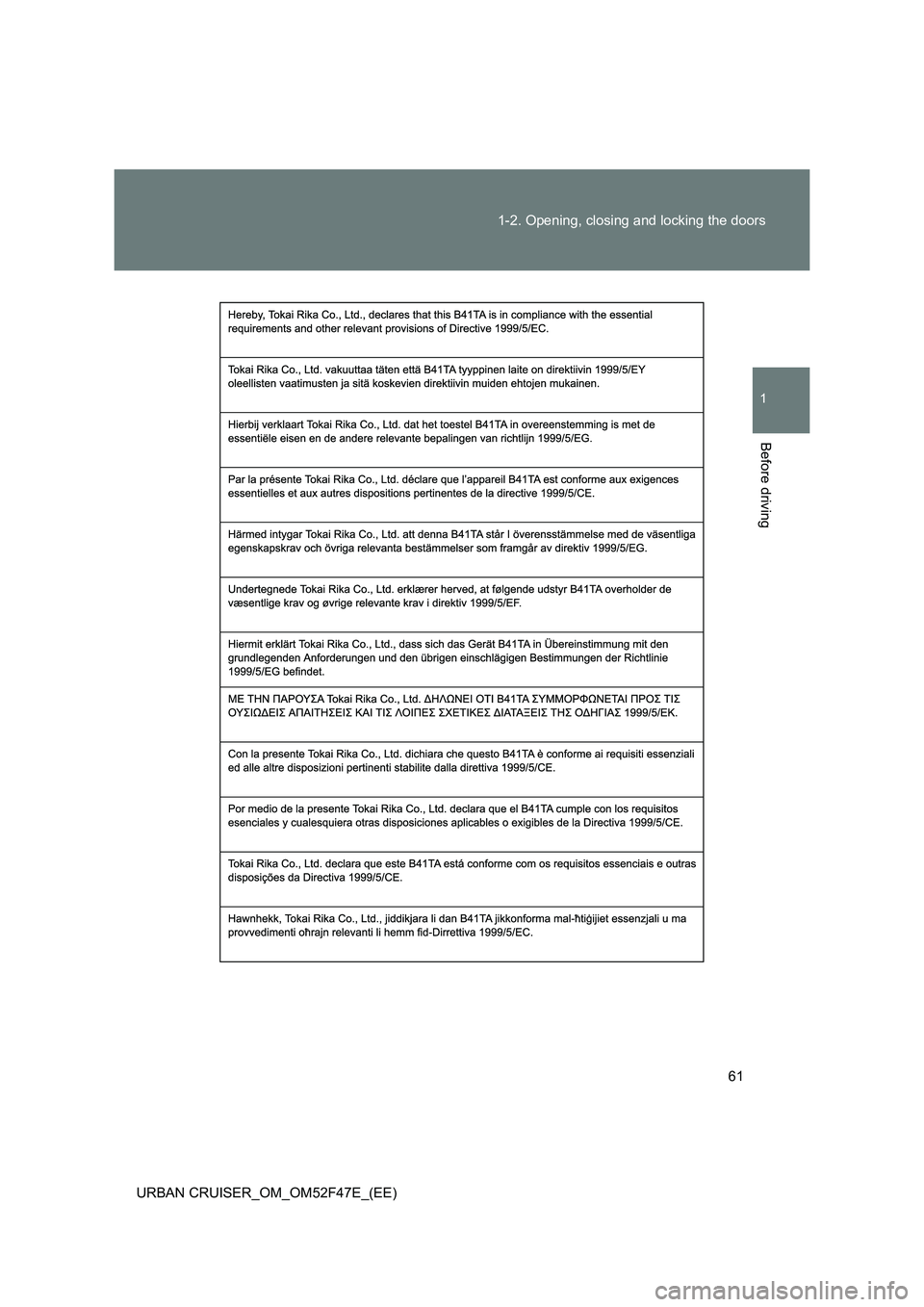

61
1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)

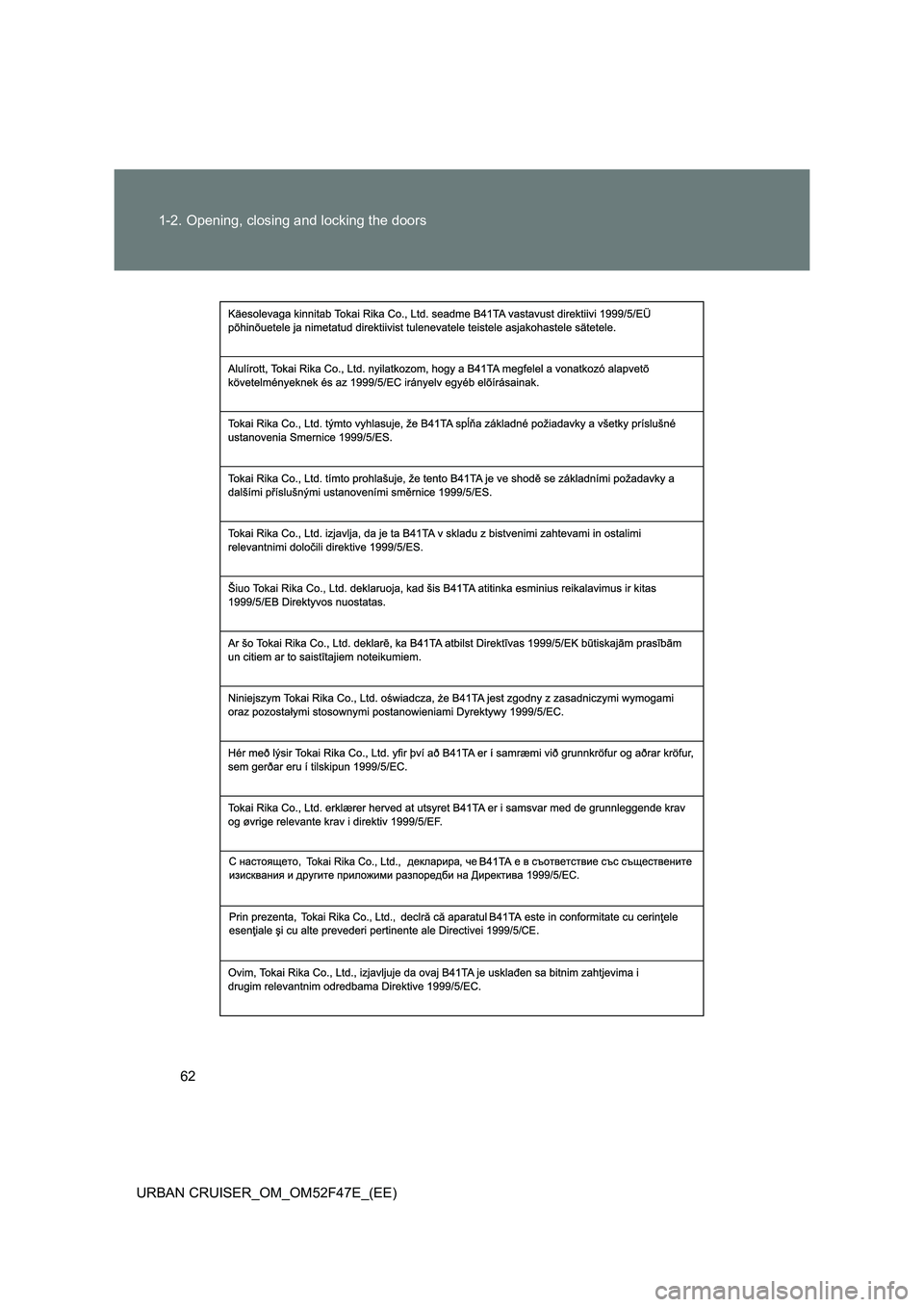

62
1-2. Opening, closing and locking the doors
URBAN CRUISER_OM_OM52F47E_(EE)

63
1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)

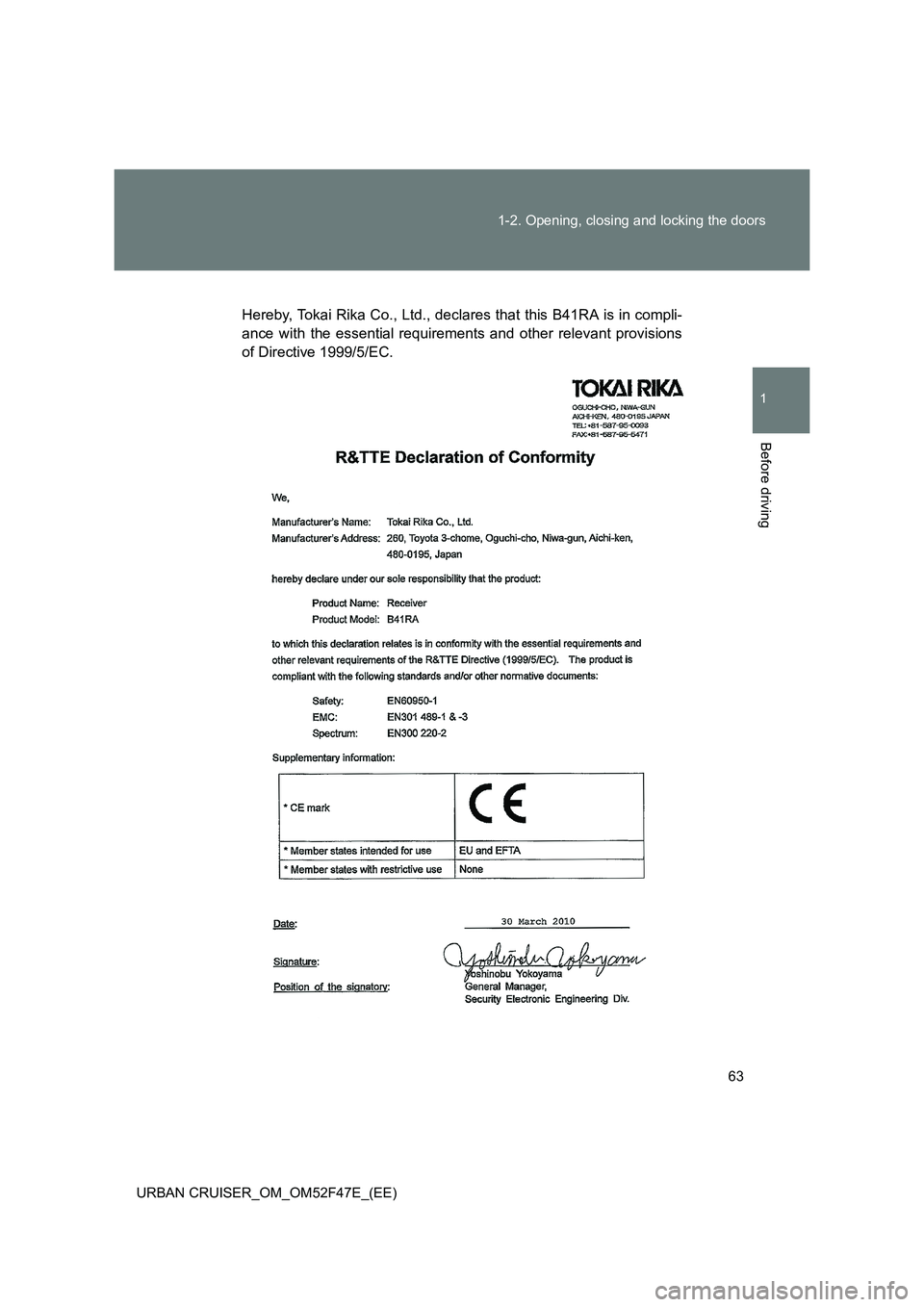

Hereby, Tokai Rika Co., Ltd., declares that this B41RA is in compli-
ance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.

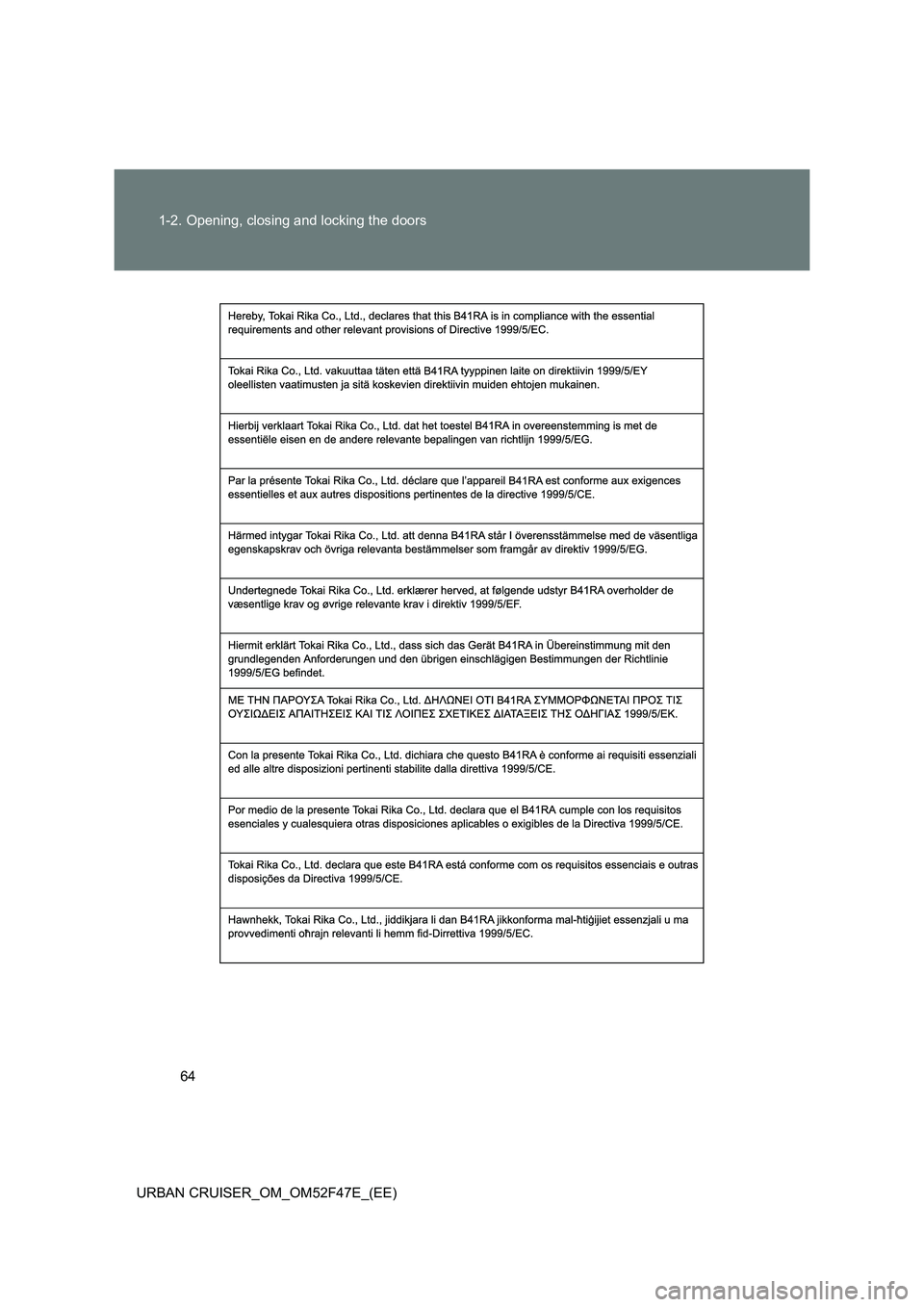

64
1-2. Opening, closing and locking the doors
URBAN CRUISER_OM_OM52F47E_(EE)
