2015 TOYOTA URBAN CRUISER Owners Manual

337
3-6. Other interior features
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

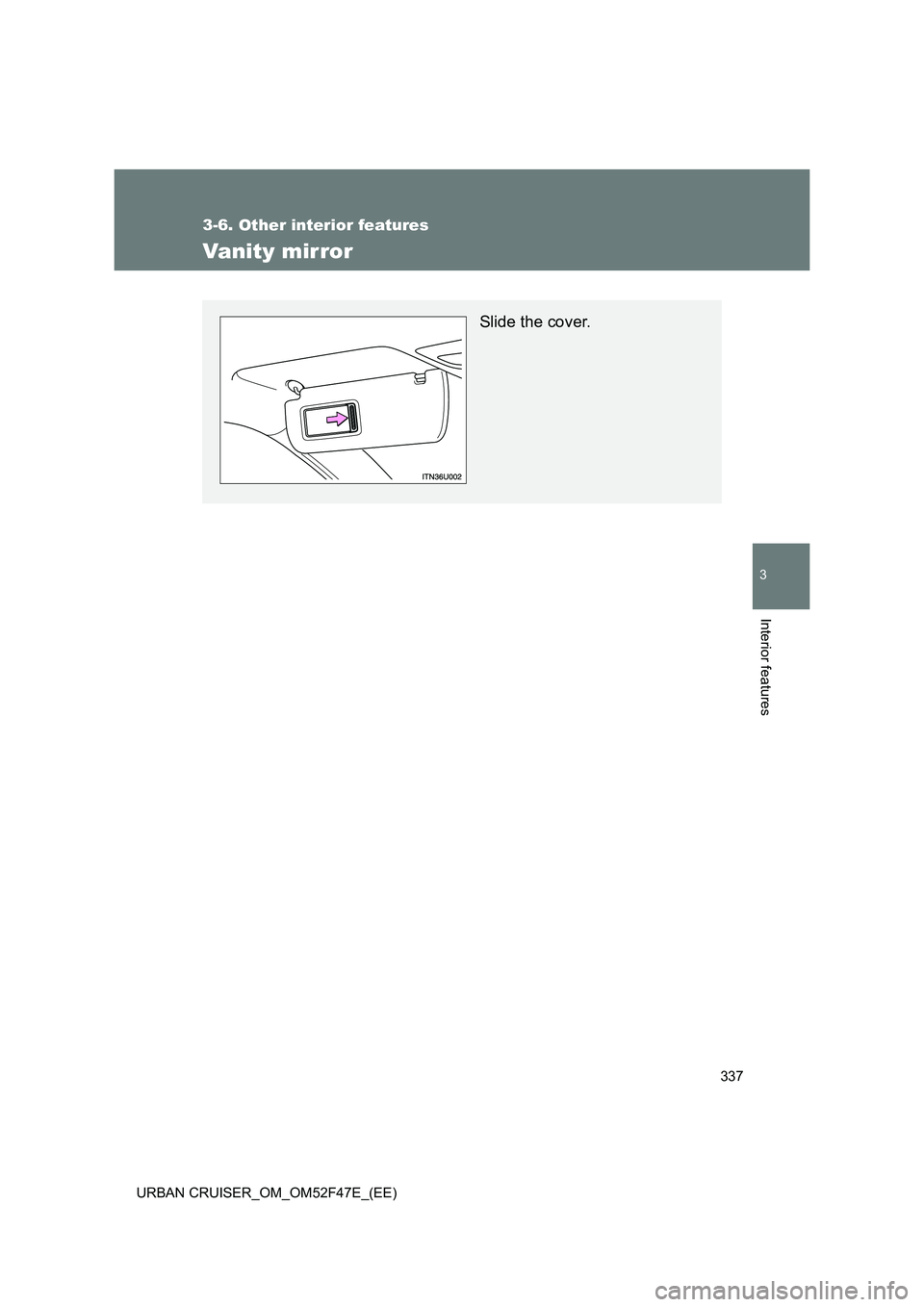

Vanity mirror
Slide the cover.

338
3-6. Other interior features
URBAN CRUISER_OM_OM52F47E_(EE)

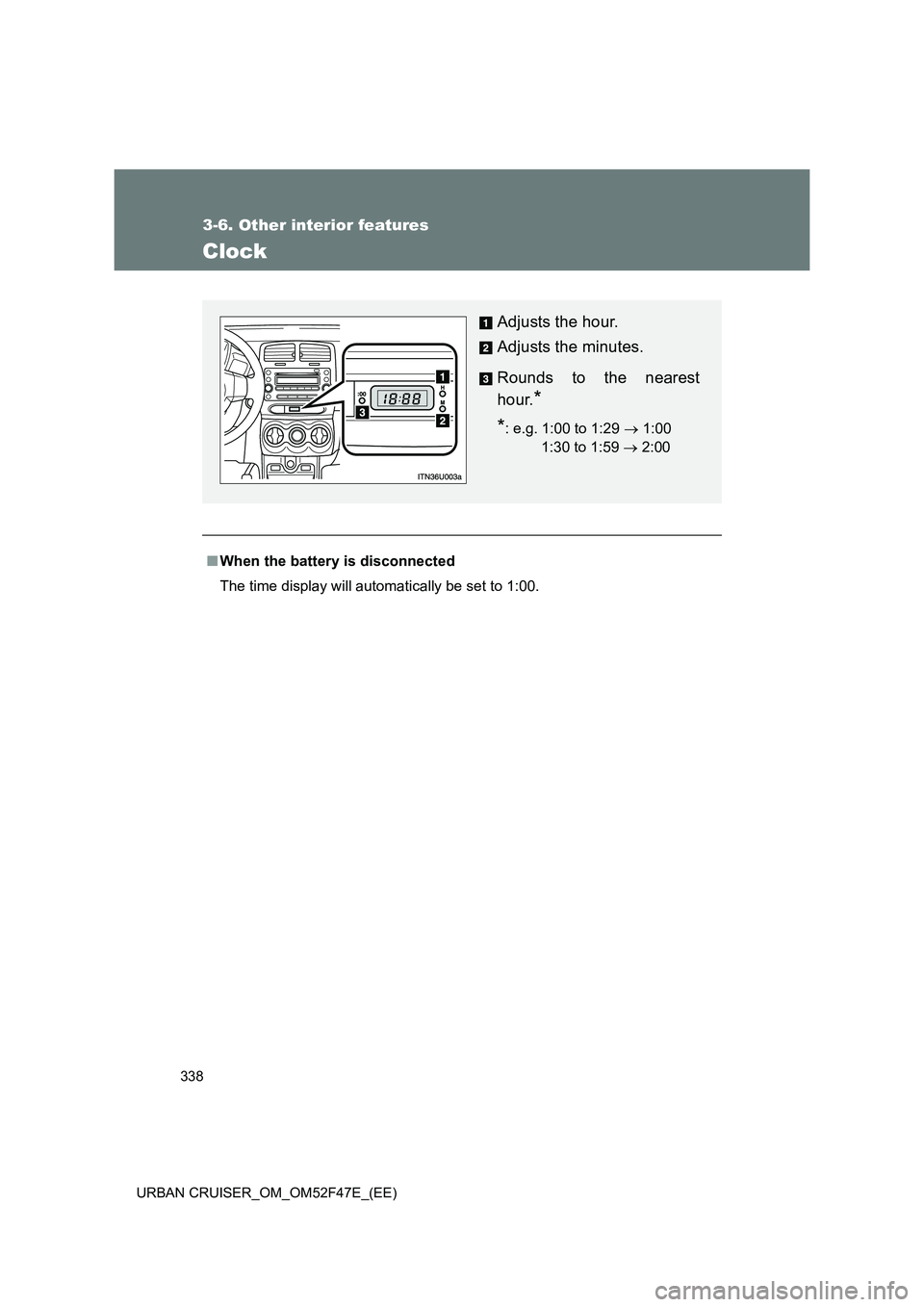

Clock
■When the battery is disconnected
The time display will automatically be set to 1:00.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest
hour.
*
*
: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00

339
3-6. Other interior features
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

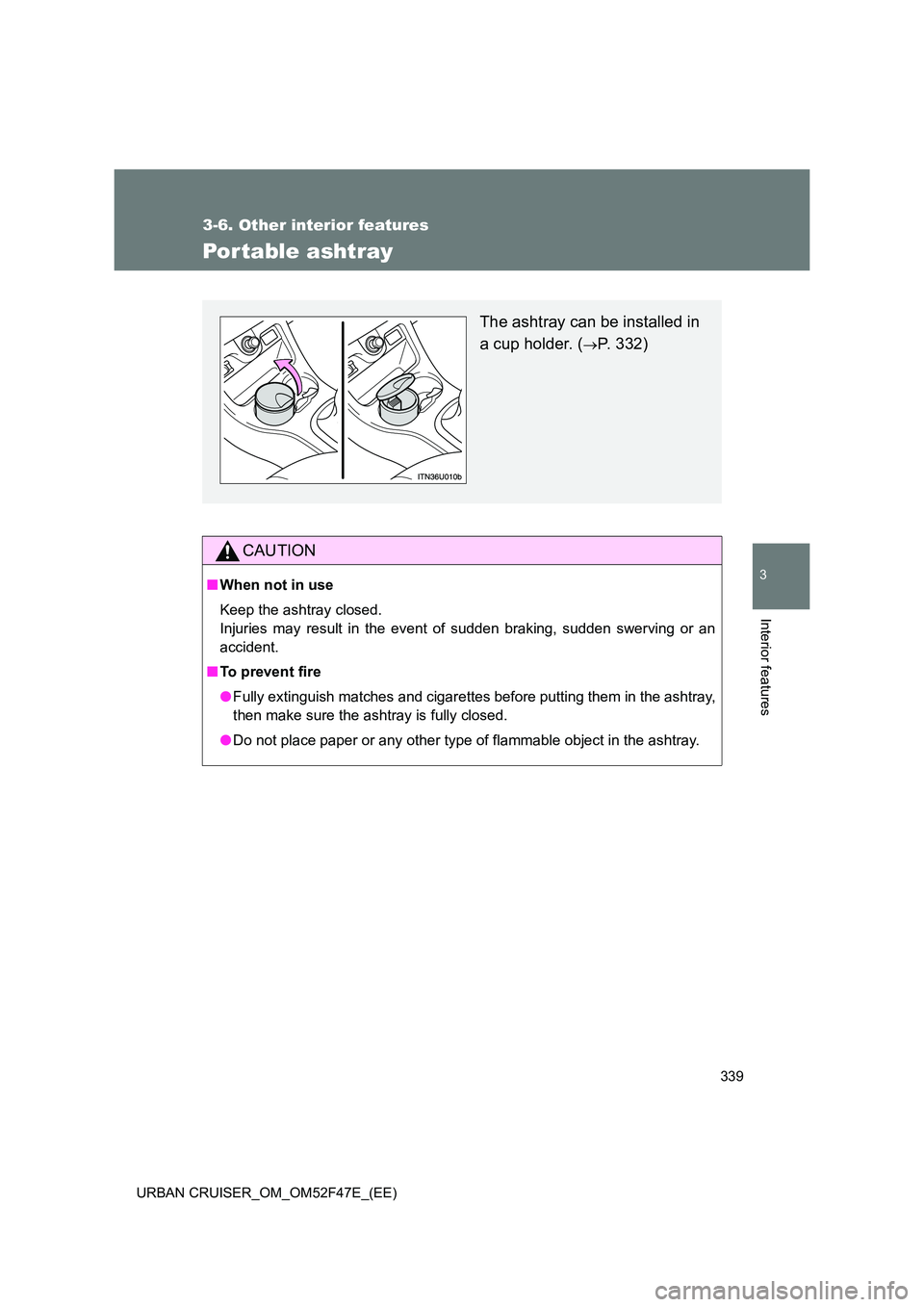

Por table ashtray
CAUTION
■When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
■ To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.
The ashtray can be installed in
a cup holder. (
→P. 332)

340
3-6. Other interior features
URBAN CRUISER_OM_OM52F47E_(EE)

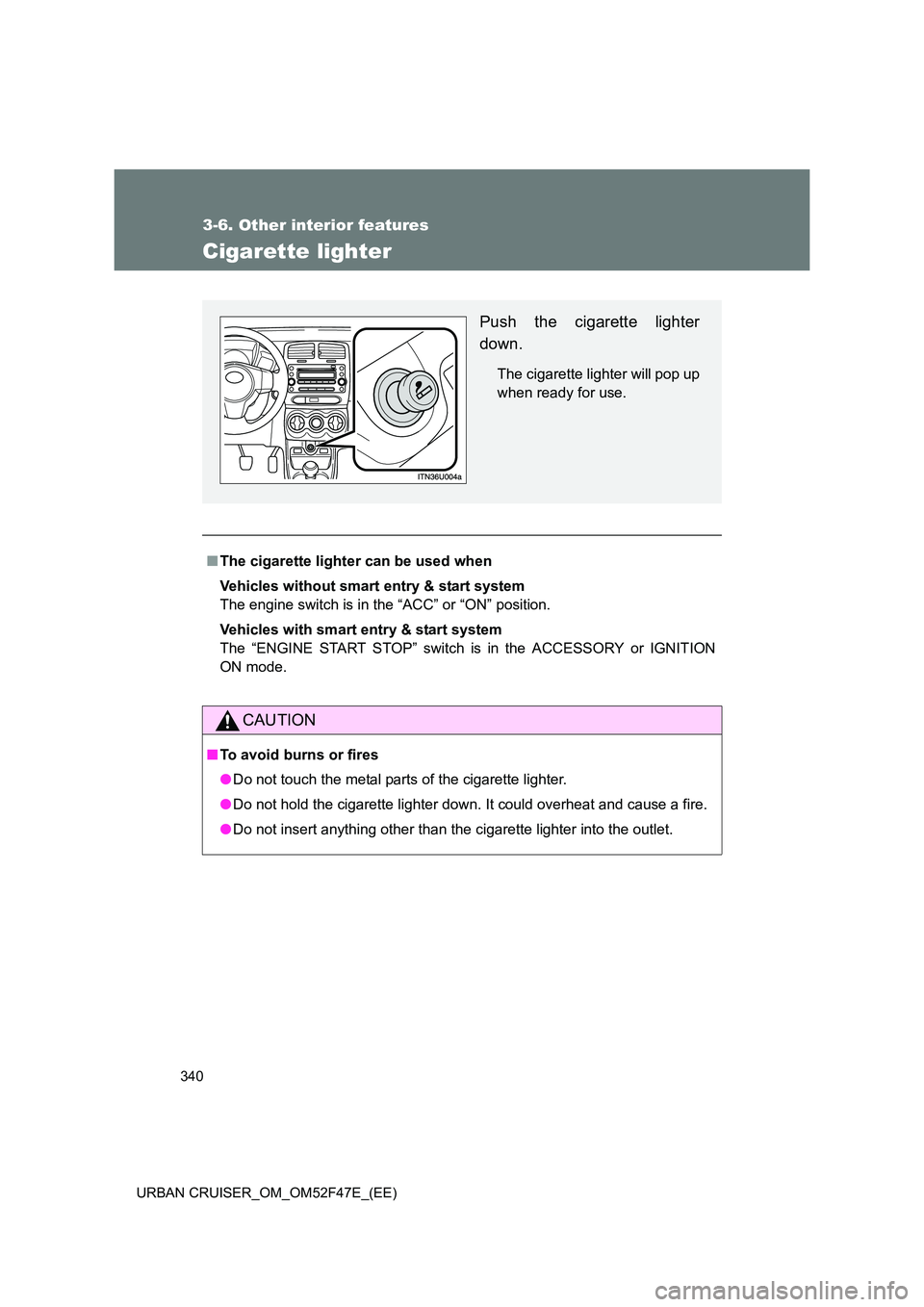

Cigarette lighter
■The cigarette lighter can be used when
Vehicles without smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the ACCESSORY or IGNITION
ON mode.
CAUTION
■To avoid burns or fires
●Do not touch the metal parts of the cigarette lighter.
● Do not hold the cigarette lighter down. It could overheat and cause a fire.
● Do not insert anything other than the cigarette lighter into the outlet.
Push the cigarette lighter
down.
The cigarette lighter will pop up
when ready for use.

341
3-6. Other interior features
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

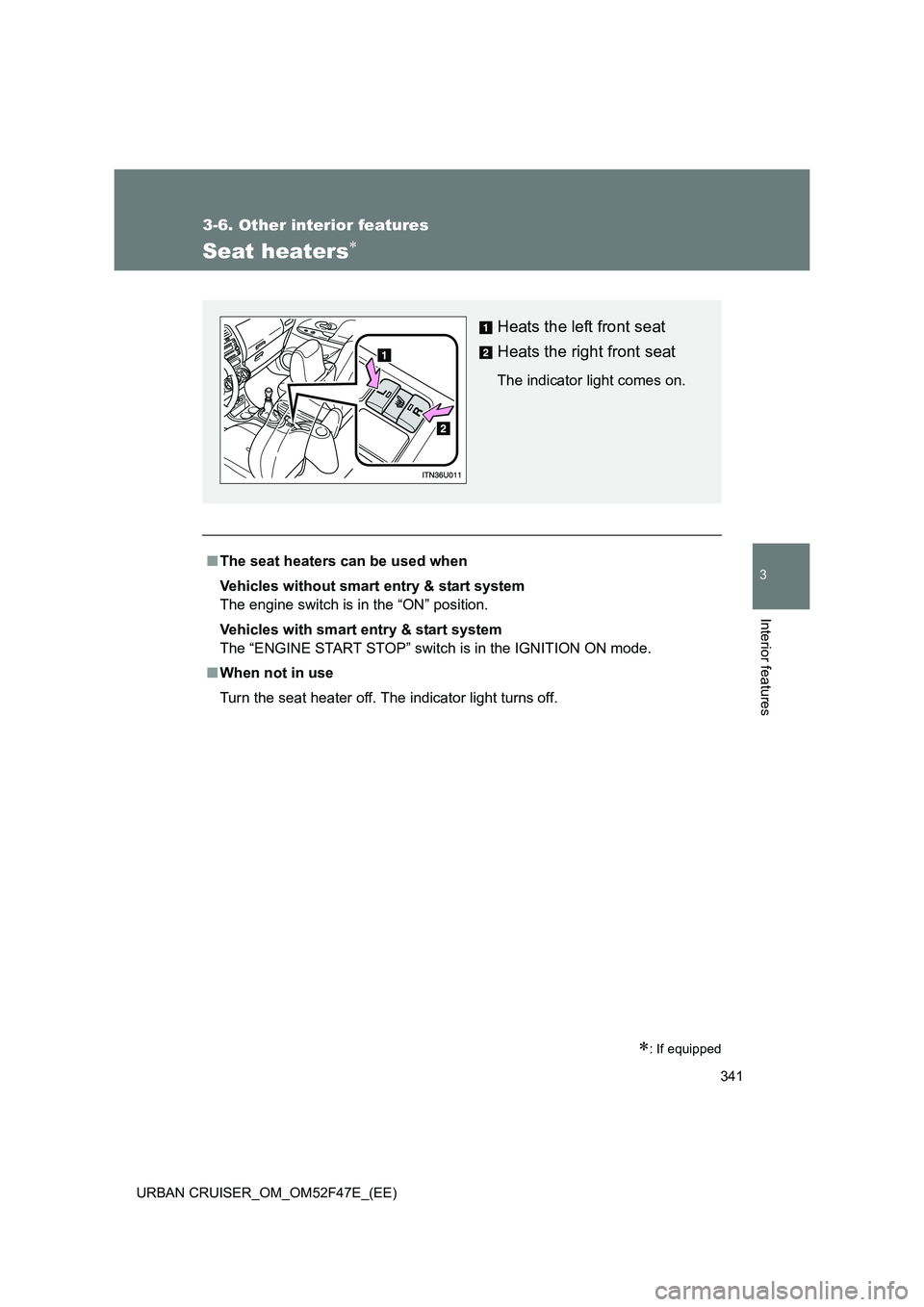

Seat heaters∗
∗: If equipped
■The seat heaters can be used when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the IGNITION ON mode.
■ When not in use
Turn the seat heater off. The indicator light turns off.
Heats the left front seat
Heats the right front seat
The indicator light comes on.

342
3-6. Other interior features
URBAN CRUISER_OM_OM52F47E_(EE)

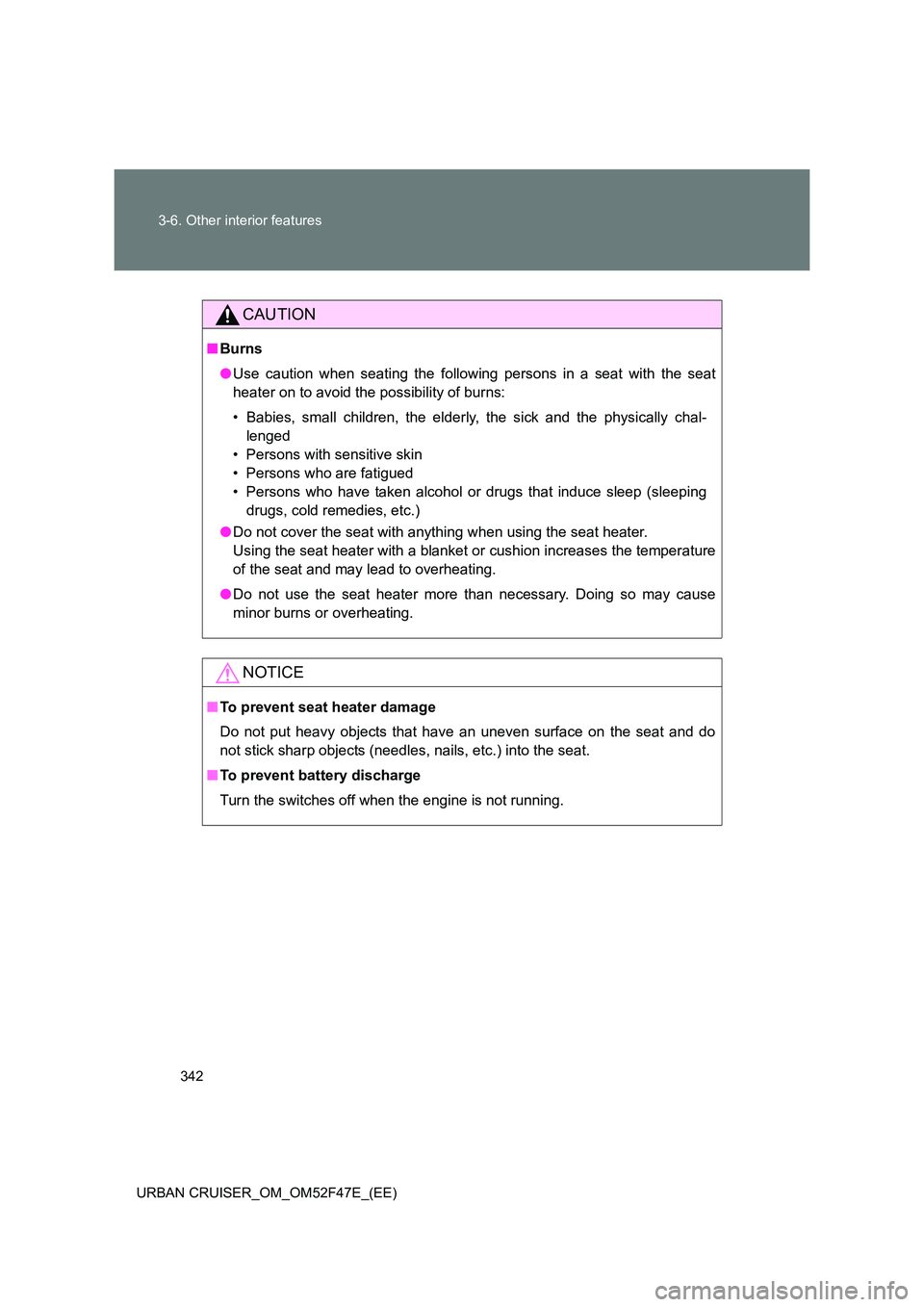

CAUTION
■ Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
● Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
■To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the switches off when the engine is not running.

343
3-6. Other interior features
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

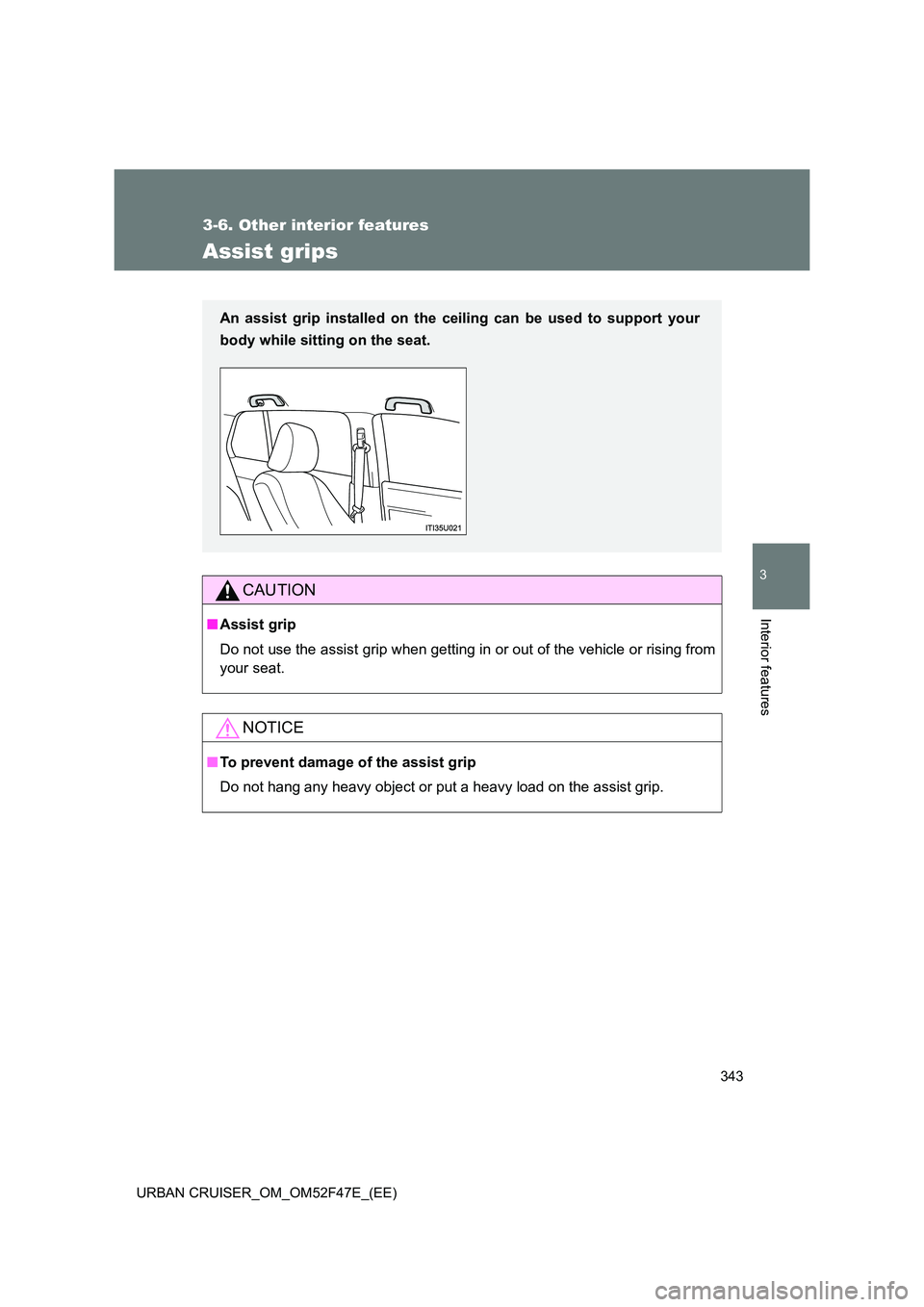

Assist grips
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
■To prevent damage of the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the ceiling can be used to support your
body while sitting on the seat.

344
3-6. Other interior features
URBAN CRUISER_OM_OM52F47E_(EE)

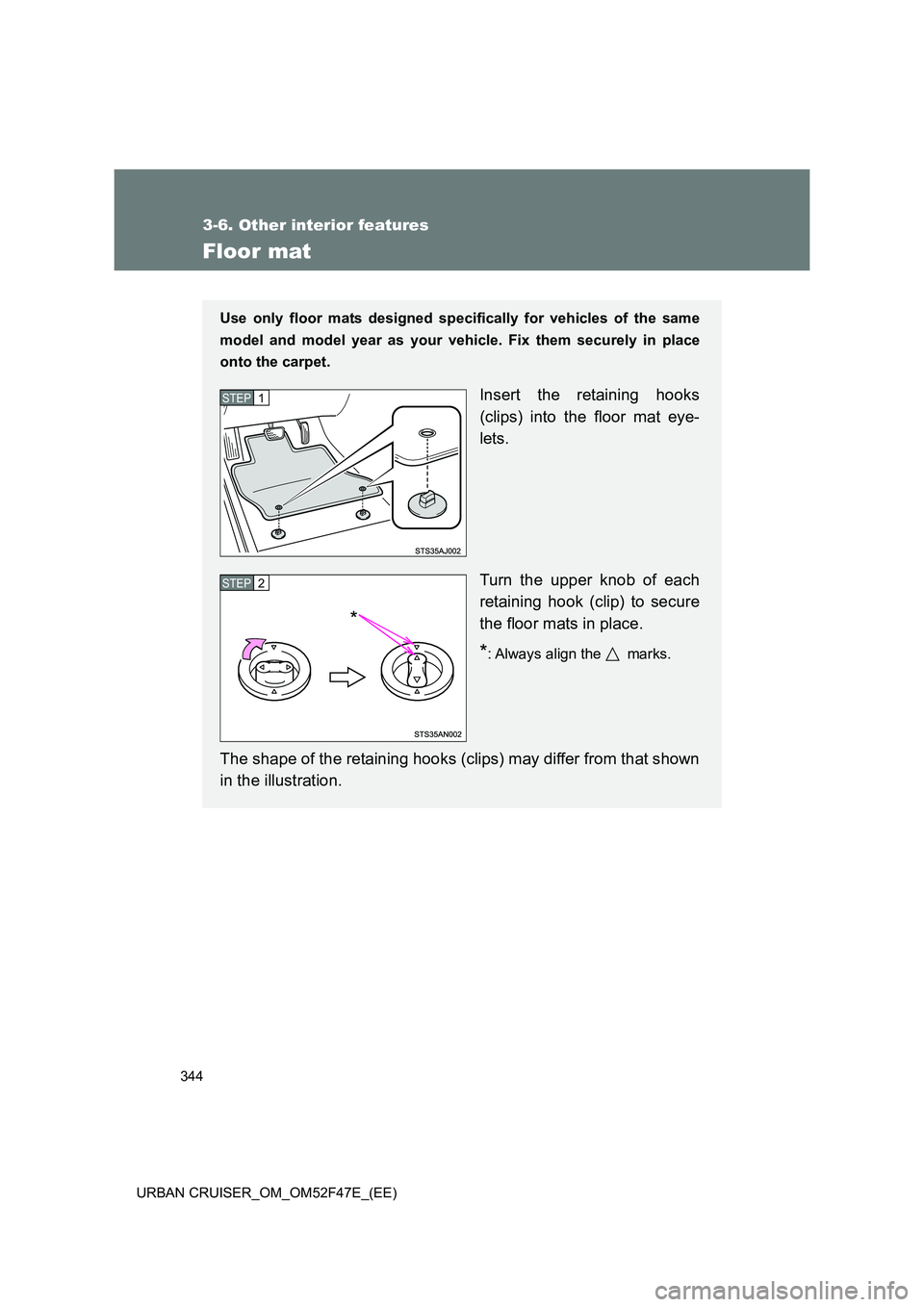

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown
in the illustration.
STEP1
STEP2
*
