2015 TOYOTA URBAN CRUISER Owners Manual

97
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)

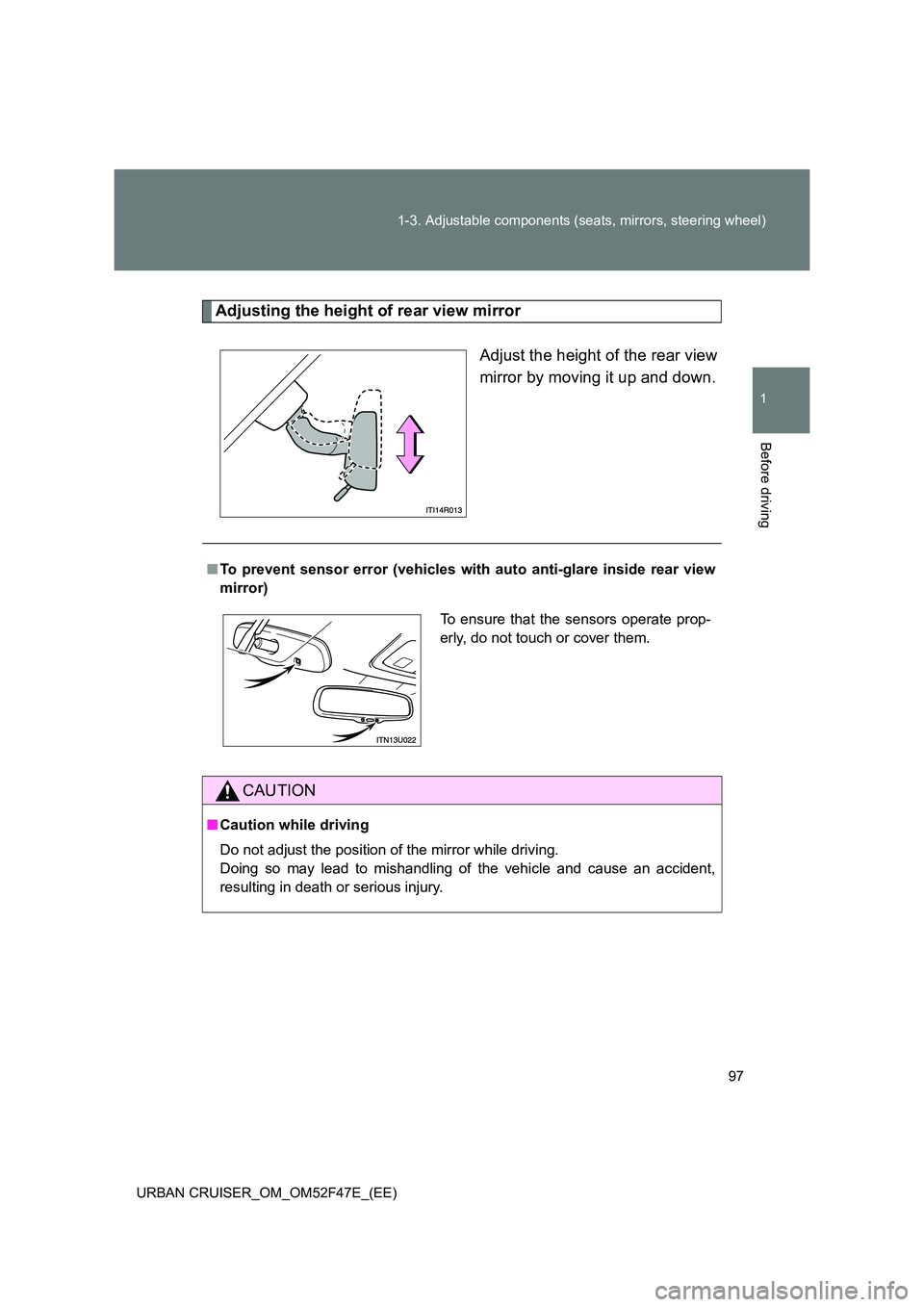

Adjusting the height of rear view mirror
Adjust the height of the rear view
mirror by moving it up and down.
■To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
To ensure that the sensors operate prop-
erly, do not touch or cover them.

98
1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_OM_OM52F47E_(EE)

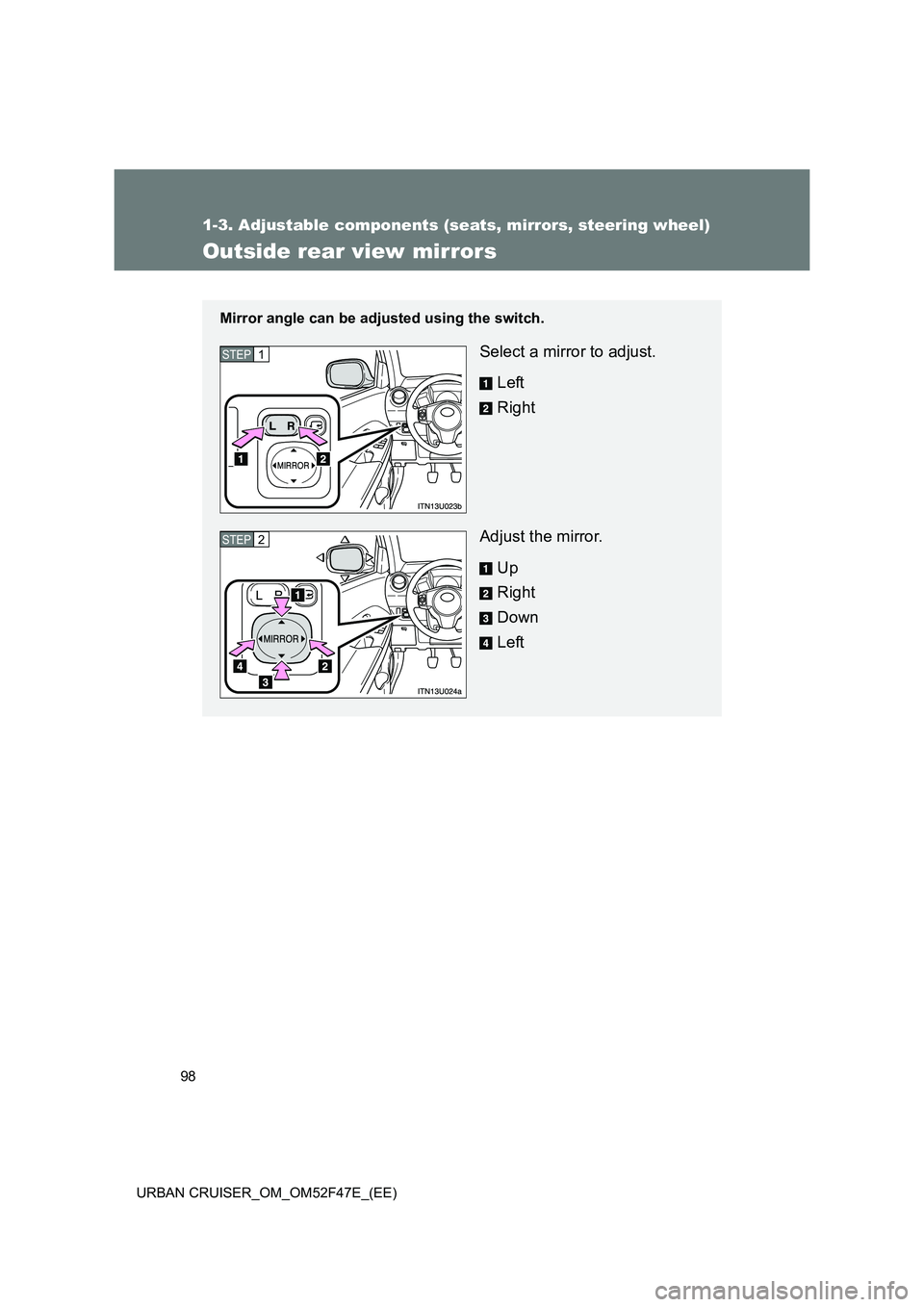

Outside rear view mirrors
Mirror angle can be adjusted using the switch.
Select a mirror to adjust.Left
Right
Adjust the mirror. Up
Right
Down
LeftSTEP1
STEP2

99
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
Folding back the mirrors
Manual type Push the mirror back in the direc-
tion of the vehicle’s rear.
Power type Press the switch.
Pressing again will extend the
mirror.
■The outside rear view mirrors can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the ACCESSORY or IGNITION
ON mode.
■ When the mirrors are fogged up
Turn on the outside rear view mirror defoggers to defog the mirrors.
(→ P. 270)

100
1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_OM_OM52F47E_(EE)

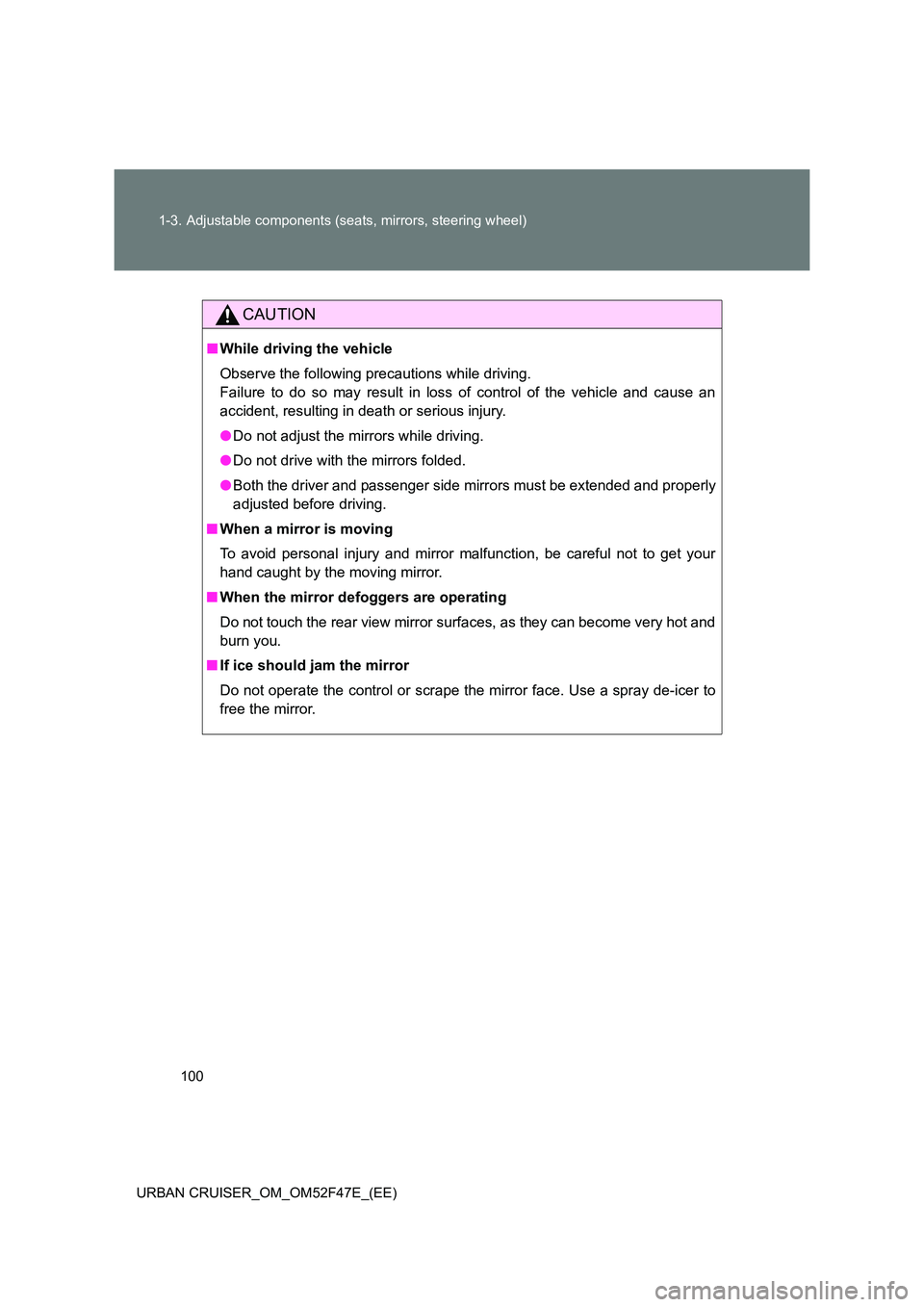

CAUTION
■ While driving the vehicle
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
●Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
■ If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.

101
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)

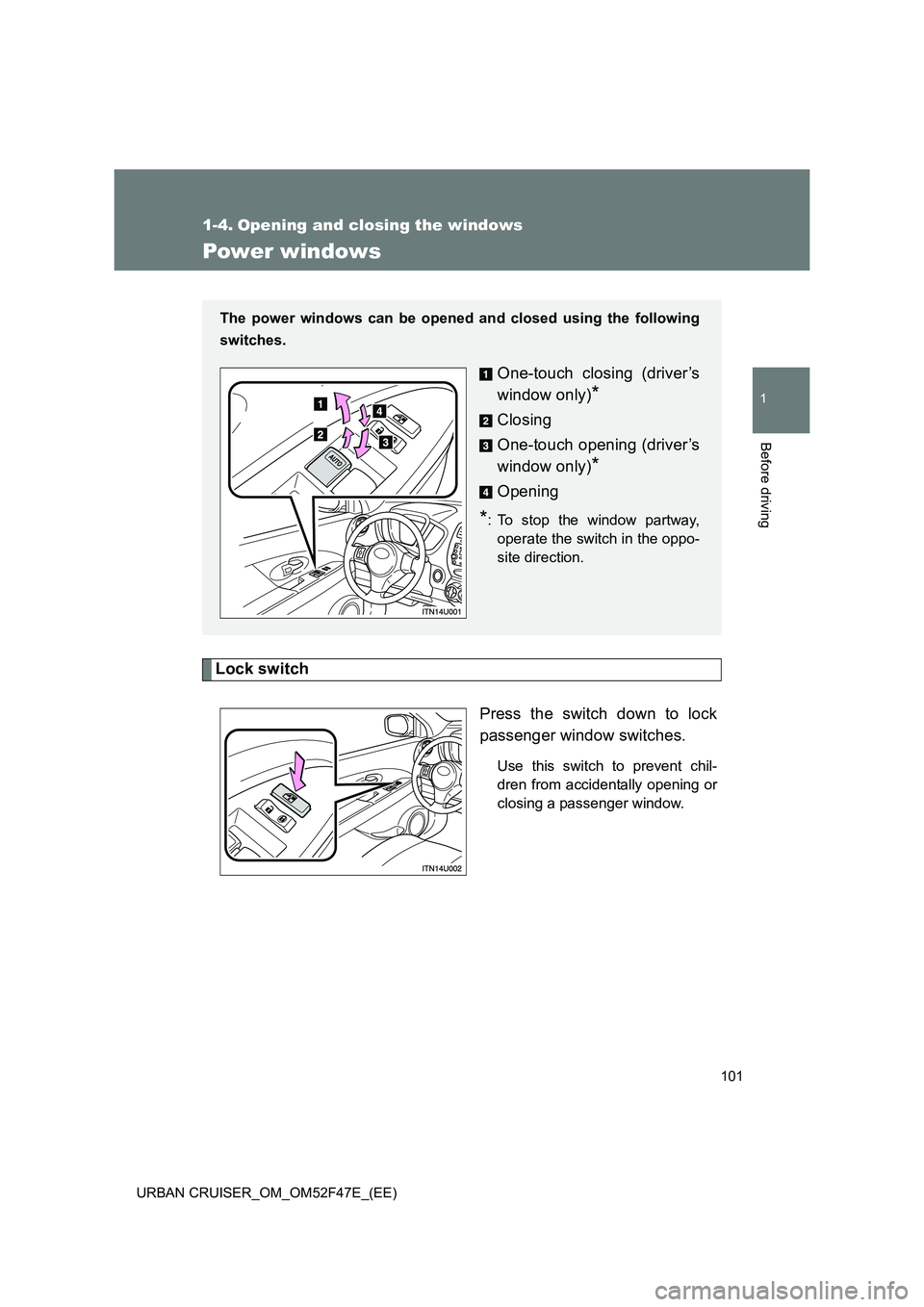

1-4. Opening and closing the windows
Power windows
Lock switchPress the switch down to lock
passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
The power windows can be opened and closed using the following
switches.
One-touch closing (driver’s
window only)
*
Closing
One-touch opening (driver’s
window only)
*
Opening
*: To stop the window partway,operate the switch in the oppo-
site direction.

102
1-4. Opening and closing the windows
URBAN CRUISER_OM_OM52F47E_(EE)

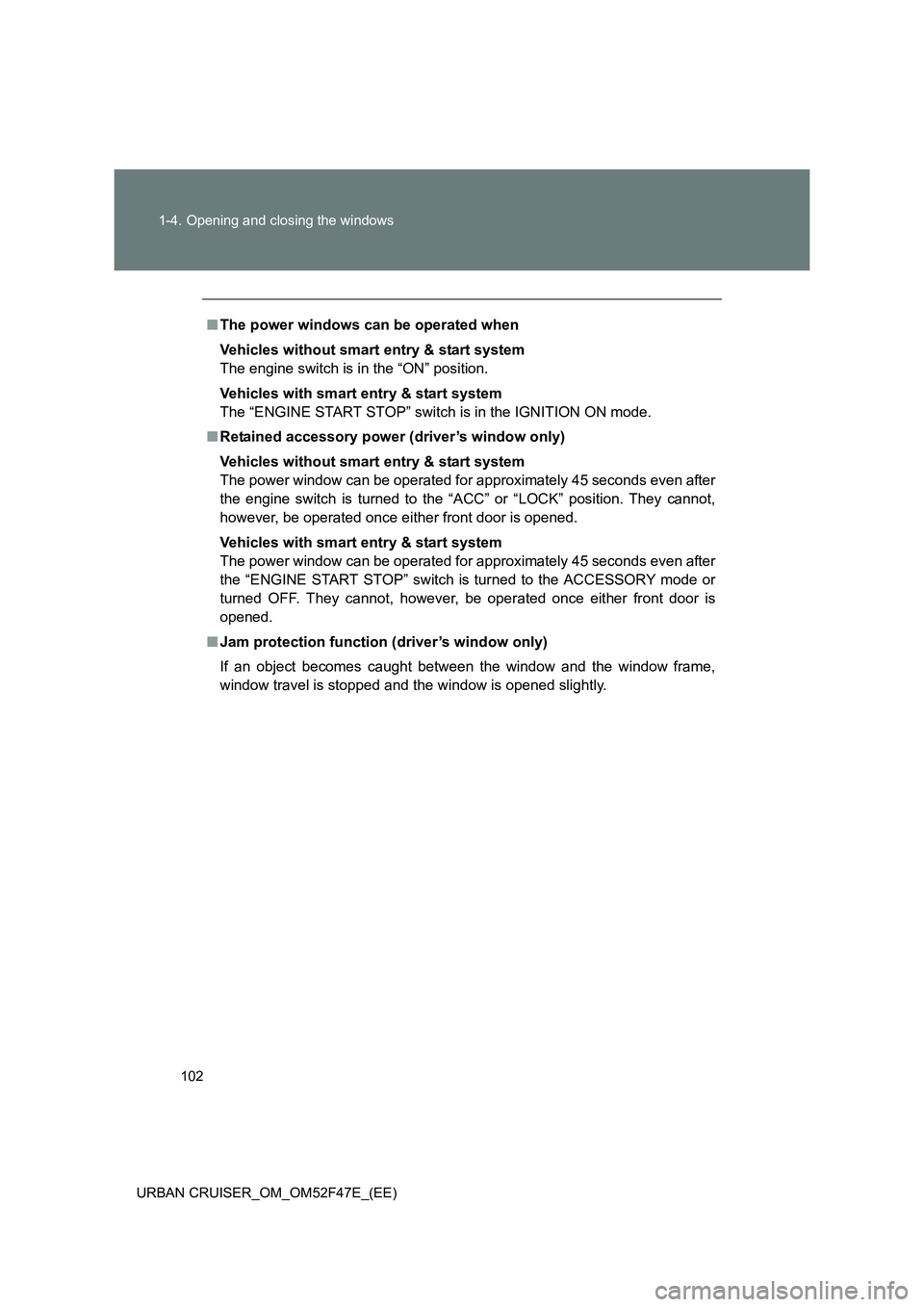

■ The power windows can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the IGNITION ON mode.
■ Retained accessory power (driver’s window only)
Vehicles without smart entry & start system
The power window can be operated for approximately 45 seconds even after
the engine switch is turned to the “ACC” or “LOCK” position. They cannot,
however, be operated once either front door is opened.
Vehicles with smart entry & start system
The power window can be operated for approximately 45 seconds even after
the “ENGINE START STOP” switch is turned to the ACCESSORY mode or
turned OFF. They cannot, however, be operated once either front door is
opened.
■ Jam protection function (driver’s window only)
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.

103
1-4. Opening and closing the windows
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
■

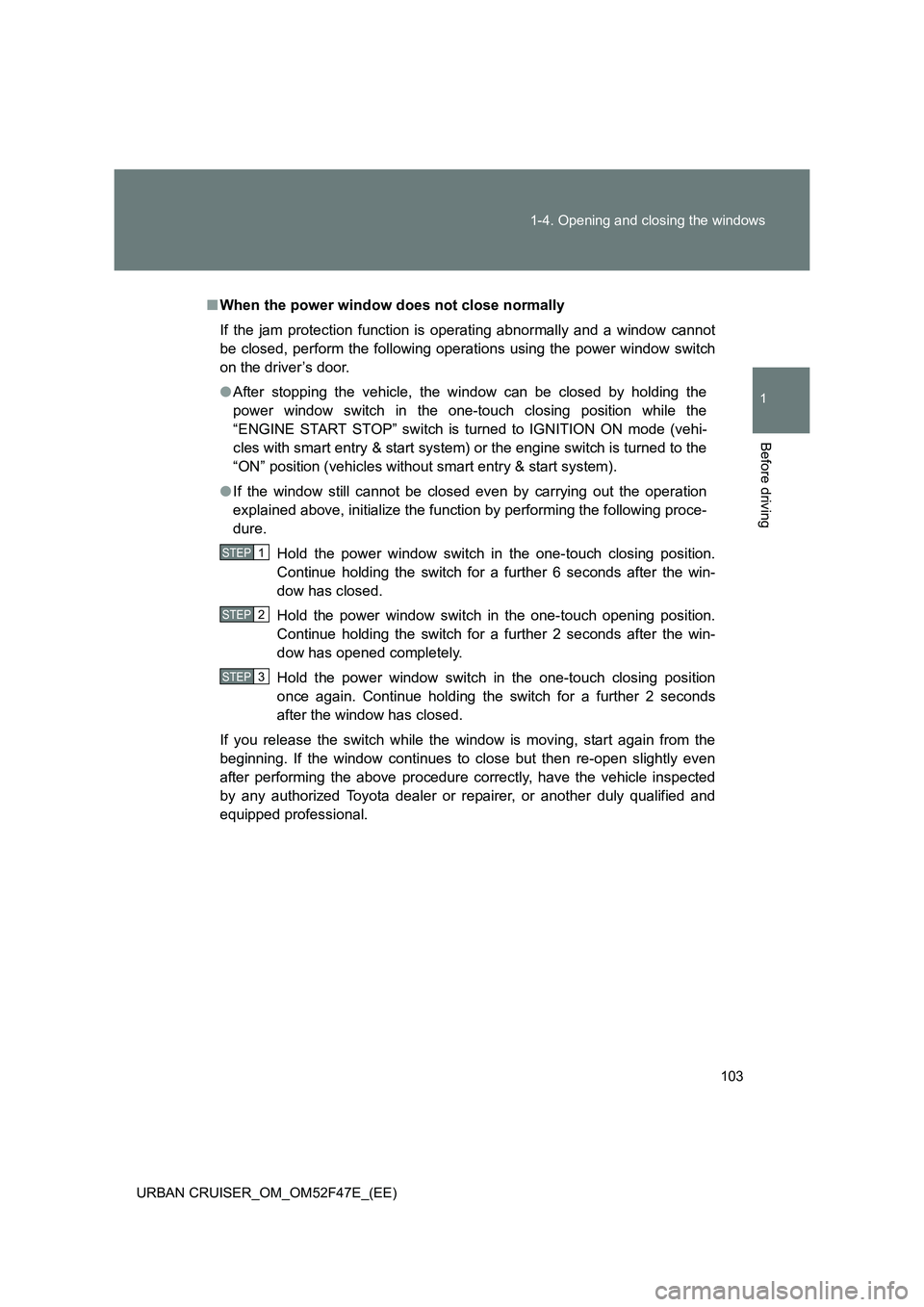

When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operat ions using the power window switch
on the driver’s door.
● After stopping the vehicle, the window can be closed by holding the
power window switch in the one-touch closing position while the
“ENGINE START STOP” switch is turned to IGNITION ON mode (vehi-
cles with smart entry & start system) or the engine switch is turned to the
“ON” position (vehicles without smart entry & start system).
● If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position.
Continue holding the switch for a further 6 seconds after the win-
dow has closed.
Hold the power window switch in the one-touch opening position.
Continue holding the switch for a further 2 seconds after the win-
dow has opened completely.
Hold the power window switch in the one-touch closing position
once again. Continue holding the switch for a further 2 seconds
after the window has closed.
If you release the switch while the window is moving, start again from the
beginning. If the window continues to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected
by any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
STEP1
STEP2
STEP3

104
1-4. Opening and closing the windows
URBAN CRUISER_OM_OM52F47E_(EE)
CAUTION
■ Closing the windows
Observe the following precautions.
Failure to do so may result in death or serious injury.
●The driver is responsible for all t he power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. ( →P. 101)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Vehicles without smart entry & start system: When exiting the vehicle, turn
the engine switch to the “LOCK” position, carry the key and exit the vehicle
along with the child. There may be accidental operation, due to mischief,
etc., that may possibly lead to an accident.
Vehicles with smart entry & start system: When exiting the vehicle, turn the
“ENGINE START STOP” switch OFF, carry the key and exit the vehicle
along with the child. There may be accidental operation, due to mischief,
etc., that may possibly lead to an accident.
■ Jam protection function (driver’s window only)
●Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the window fully closes.
