2015 TOYOTA URBAN CRUISER Owners Manual

249
2-5. Driving information
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

250
URBAN CRUISER_OM_OM52F47E_(EE)

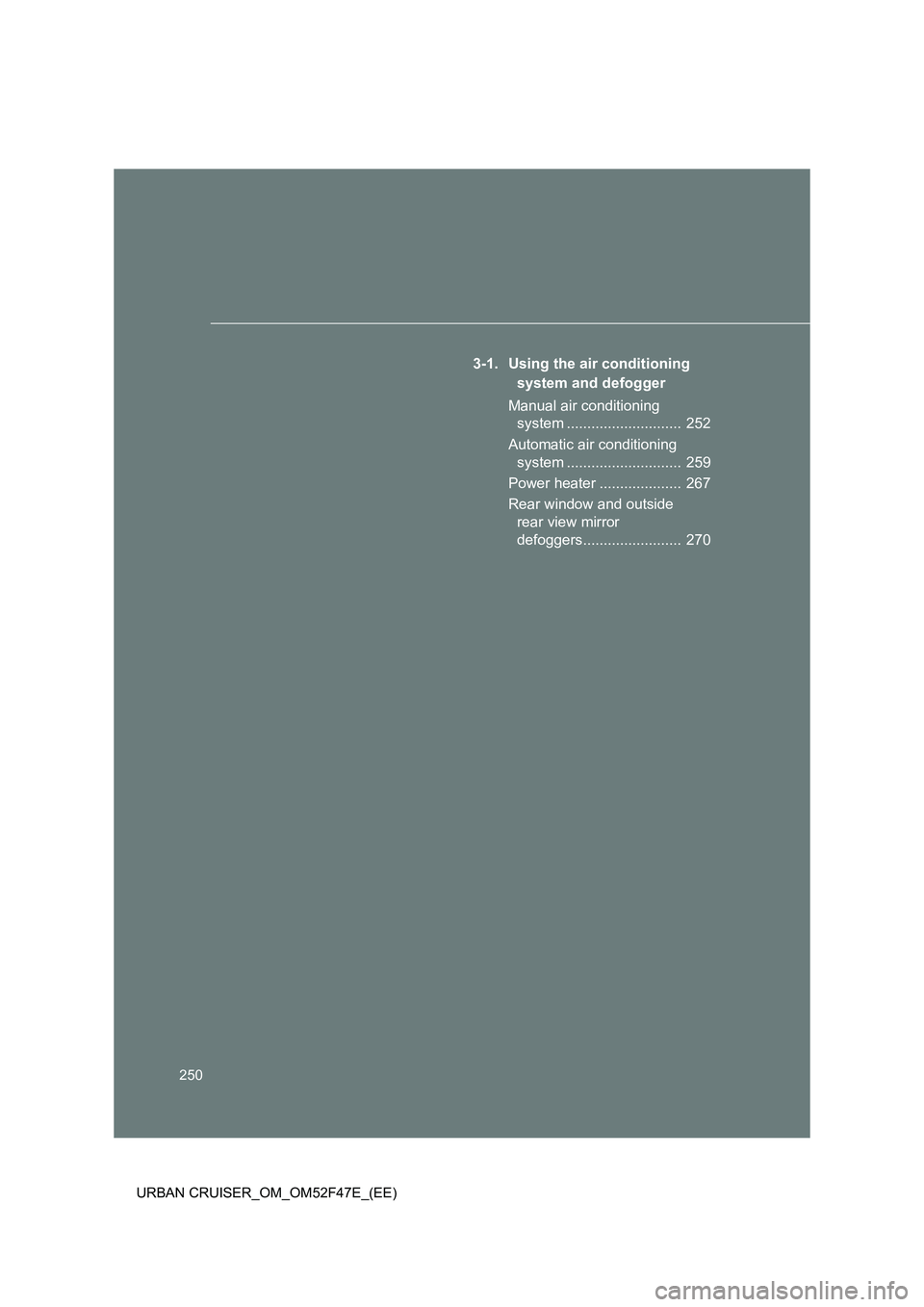

3-1. Using the air conditioning system and defogger
Manual air conditioning system ............................ 252
Automatic air conditioning system ............................ 259
Power heater .................... 267
Rear window and outside rear view mirror
defoggers........................ 270

3Interior features
251
URBAN CRUISER_OM_OM52F47E_(EE)

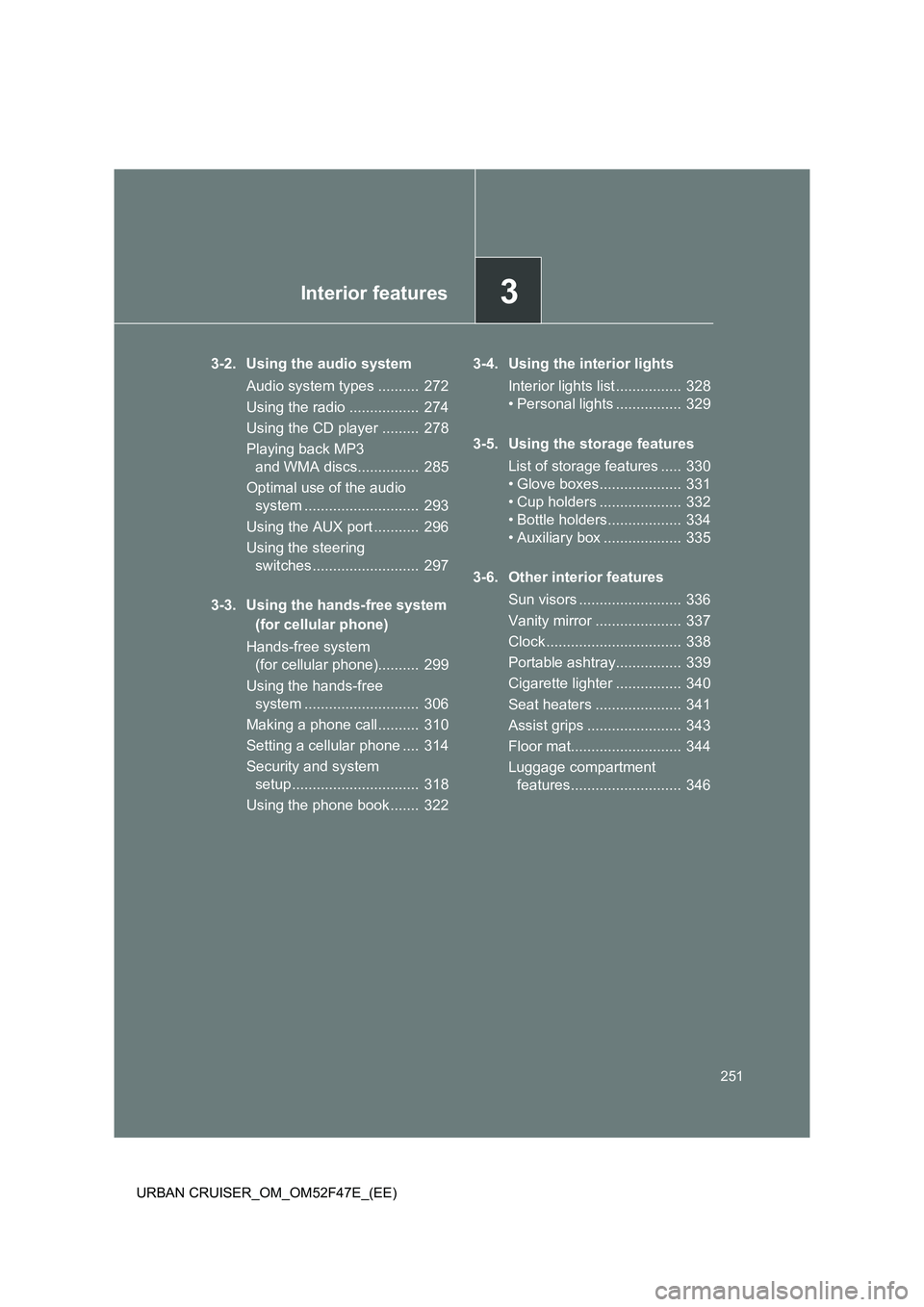

3-2. Using the audio system Audio system types .......... 272
Using the radio ................. 274
Using the CD player ......... 278
Playing back MP3 and WMA discs............... 285
Optimal use of the audio system ............................ 293
Using the AUX port ........... 296
Using the steering switches .......................... 297
3-3. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone).......... 299
Using the hands-free system ............................ 306
Making a phone call.......... 310
Setting a cellular phone .... 314
Security and system setup ............................... 318
Using the phone book....... 322 3-4. Using the interior lights
Interior lights list ................ 328
• Personal lights ................ 329
3-5. Using the storage features List of storage features ..... 330
• Glove boxes.................... 331
• Cup holders .................... 332
• Bottle holders.................. 334
• Auxiliary box ................... 335
3-6. Other interior features Sun visors ......................... 336
Vanity mirror ..................... 337
Clock ................................. 338
Portable ashtray................ 339
Cigarette lighter ................ 340
Seat heaters ..................... 341
Assist grips ....................... 343
Floor mat........................... 344
Luggage compartment features........................... 346

252
URBAN CRUISER_OM_OM52F47E_(EE)
3-1. Using the air conditioning system and defogger

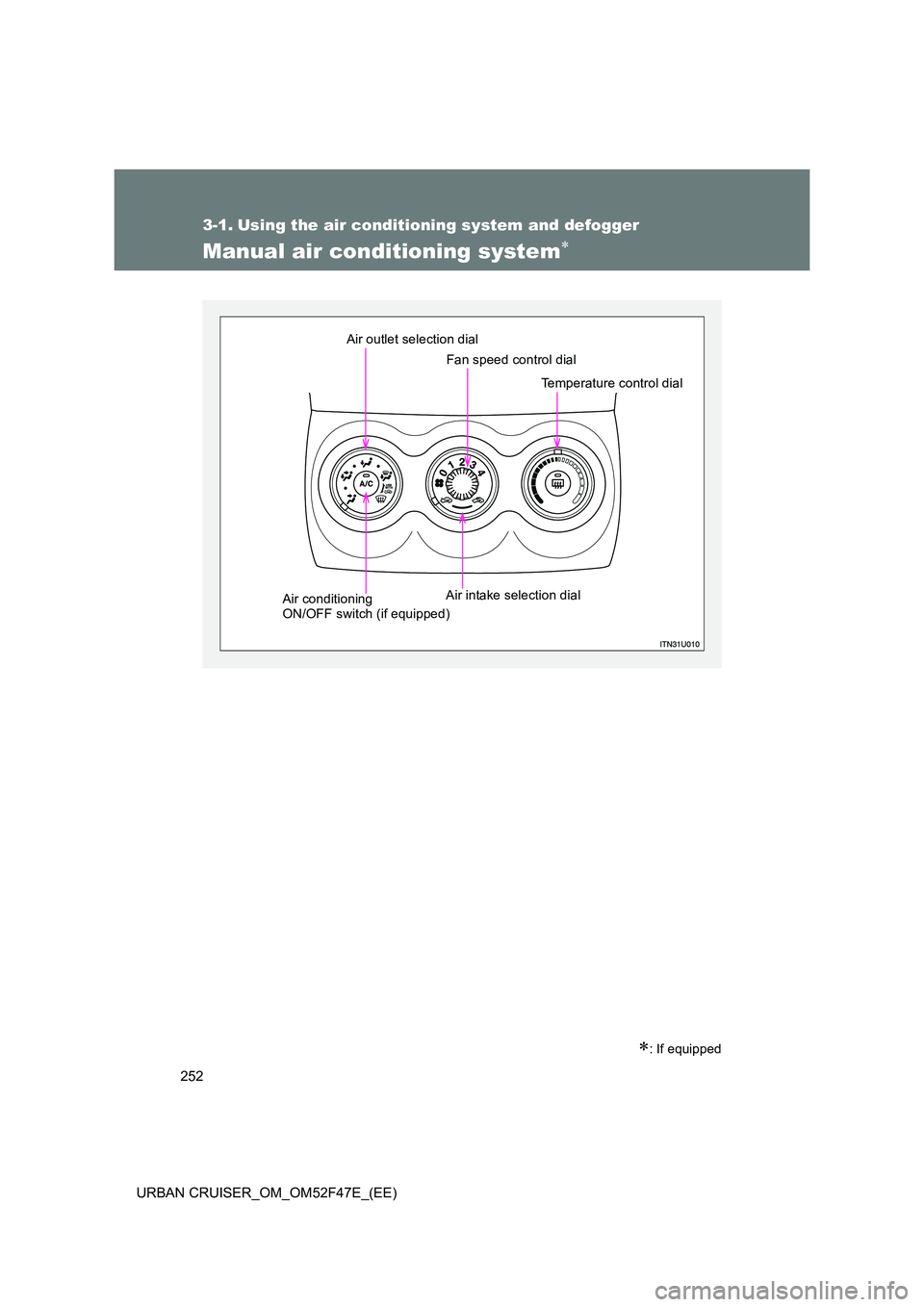

Manual air conditioning system∗
∗: If equipped
Air outlet selection dial Fan speed control dial
Temperature control dial
Air conditioning
ON/OFF switch (if equipped) Air intake selection dial

253
3-1. Using the air conditioning system and defogger
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

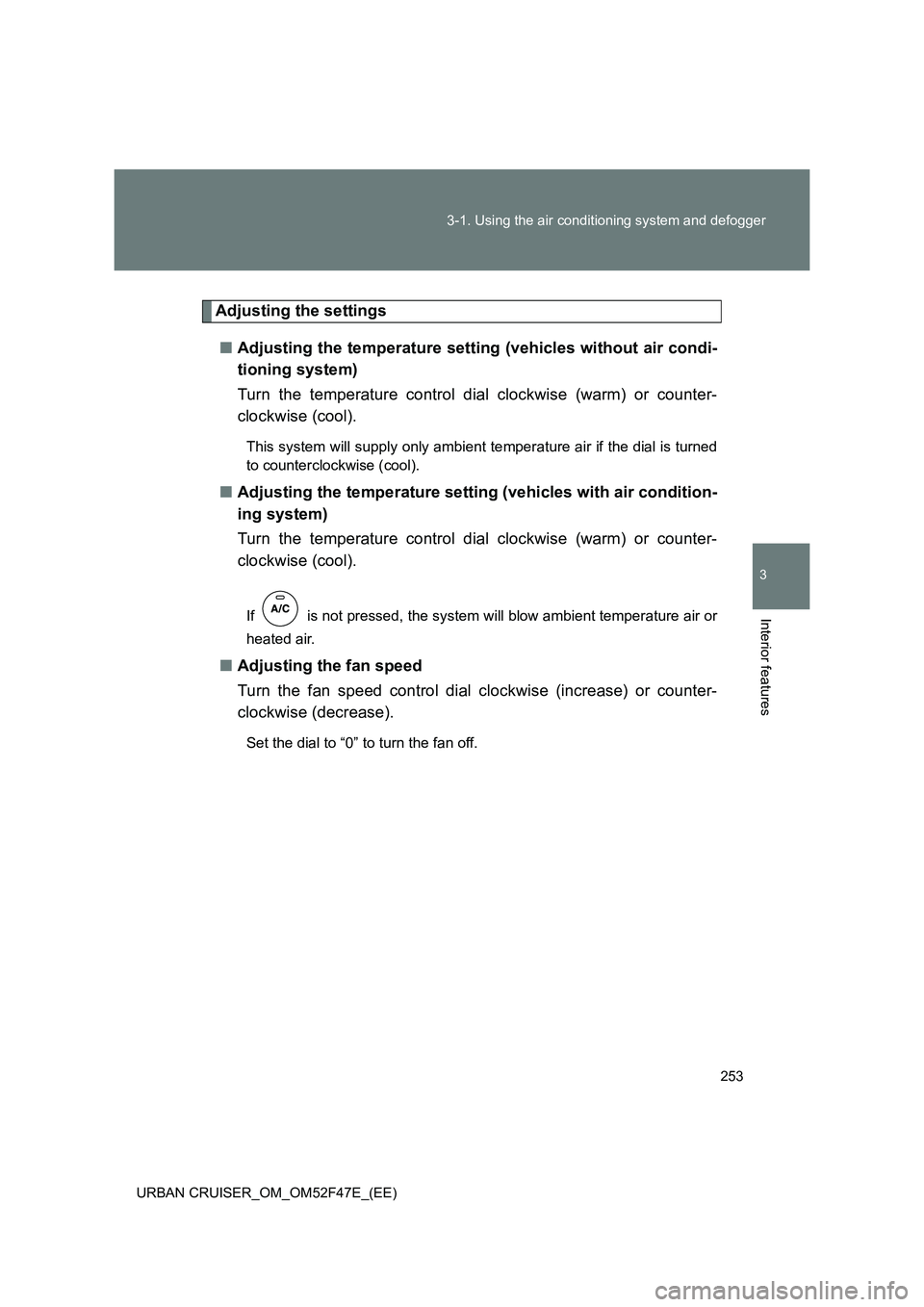

Adjusting the settings
■ Adjusting the temperature setting (vehicles without air condi-
tioning system)
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
This system will supply only ambient te mperature air if the dial is turned
to counterclockwise (cool).
■ Adjusting the temperature setting (vehicles with air condition-
ing system)
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
■Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter-
clockwise (decrease).
Set the dial to “0” to turn the fan off.

254
3-1. Using the air conditioning system and defogger
URBAN CRUISER_OM_OM52F47E_(EE)

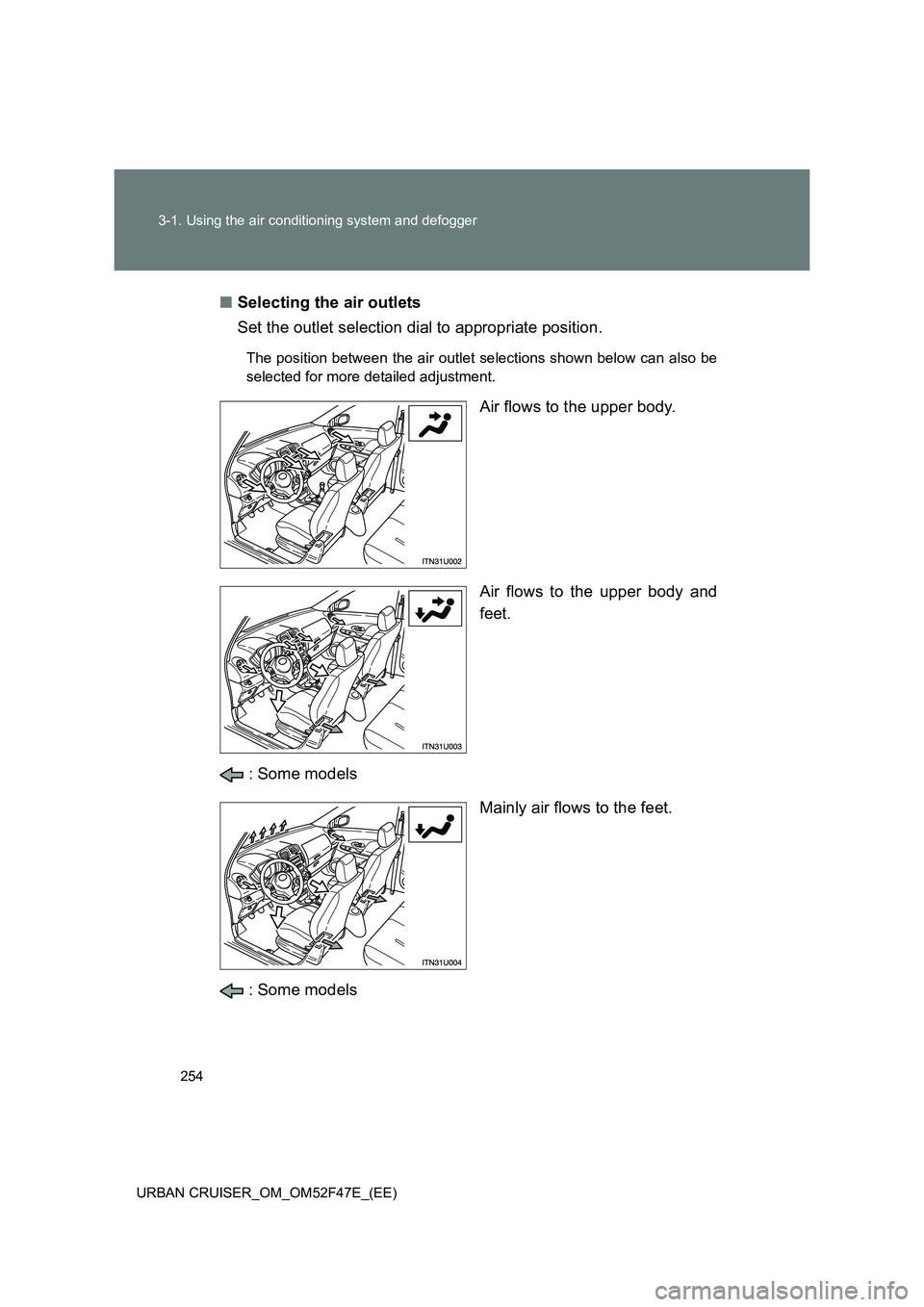

■ Selecting the air outlets
Set the outlet selection dial to appropriate position.
The position between the air outlet se lections shown below can also be
selected for more detailed adjustment.
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models Mainly air flows to the feet.
: Some models

255
3-1. Using the air conditioning system and defogger
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
Air flows to the feet and the
windshield defogger operates.
: Some models When the dial is set to ,
air flows to the windshield and
side windows.
Set the air intake selection dial to (outside air) mode.
Pressing to turn the air
conditioning on clears the wind-
shield and side windows faster. (if
equipped)
■ Selecting the air intake modes
Turn air intake selection dial to (outside air) mode or
(recirculated air) mode.

256
3-1. Using the air conditioning system and defogger
URBAN CRUISER_OM_OM52F47E_(EE)

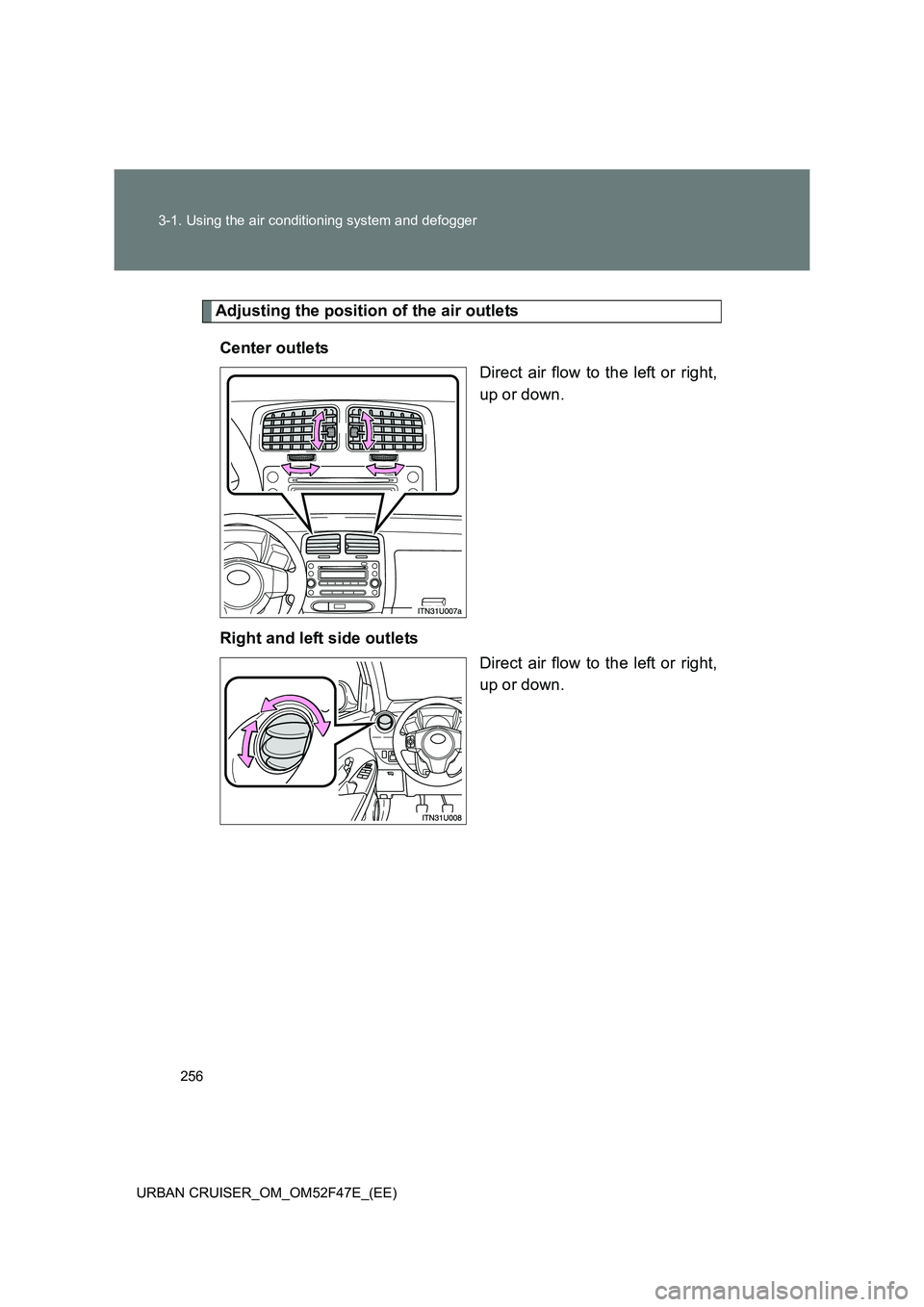

Adjusting the position of the air outlets Center outlets Direct air flow to the left or right,
up or down.
Right and left side outlets Direct air flow to the left or right,
up or down.
