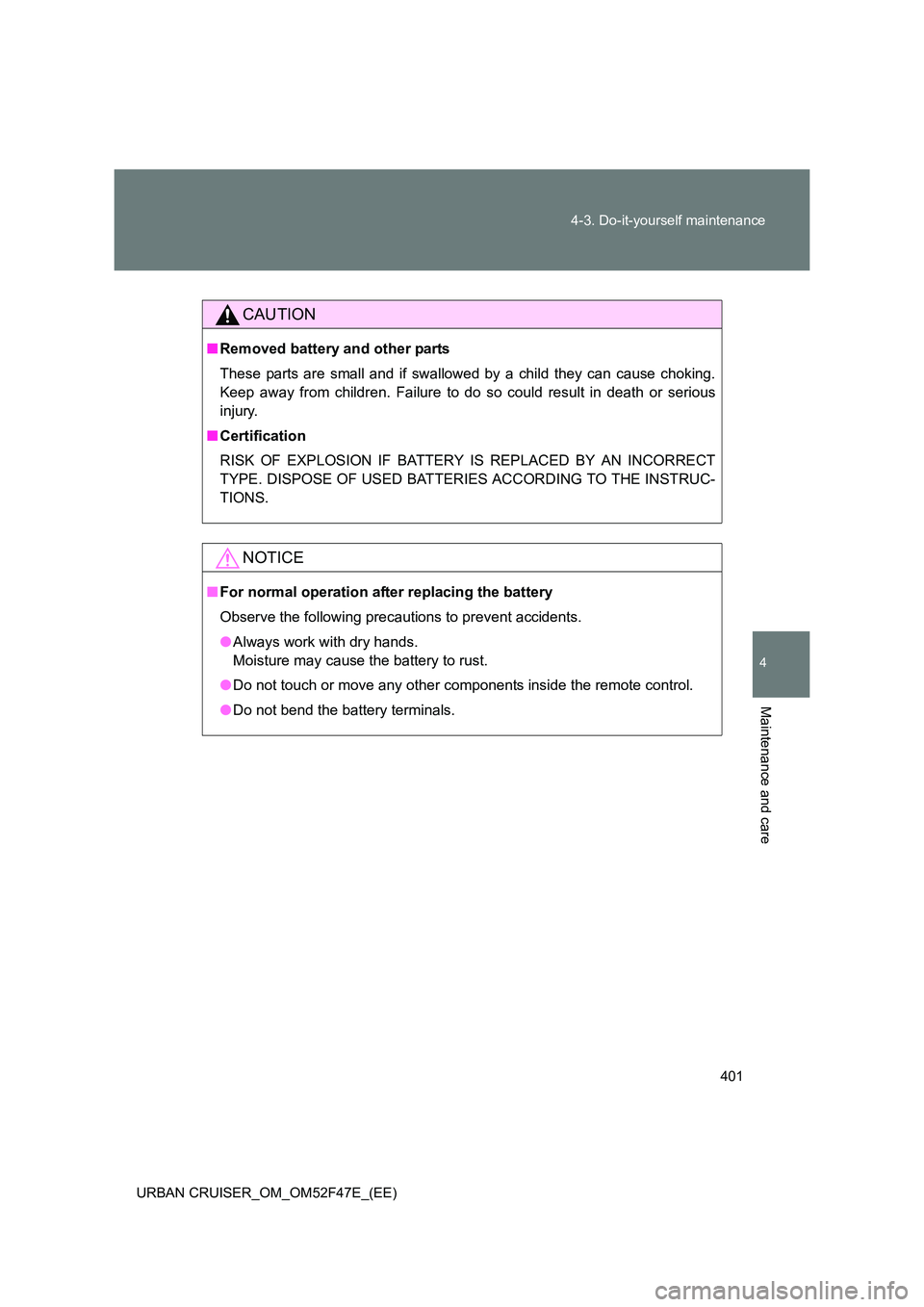

CAUTION
■
Removed battery and other parts
These parts are small and if swallowed by a child they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■ Certification
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-
TIONS.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend the battery terminals.

402
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

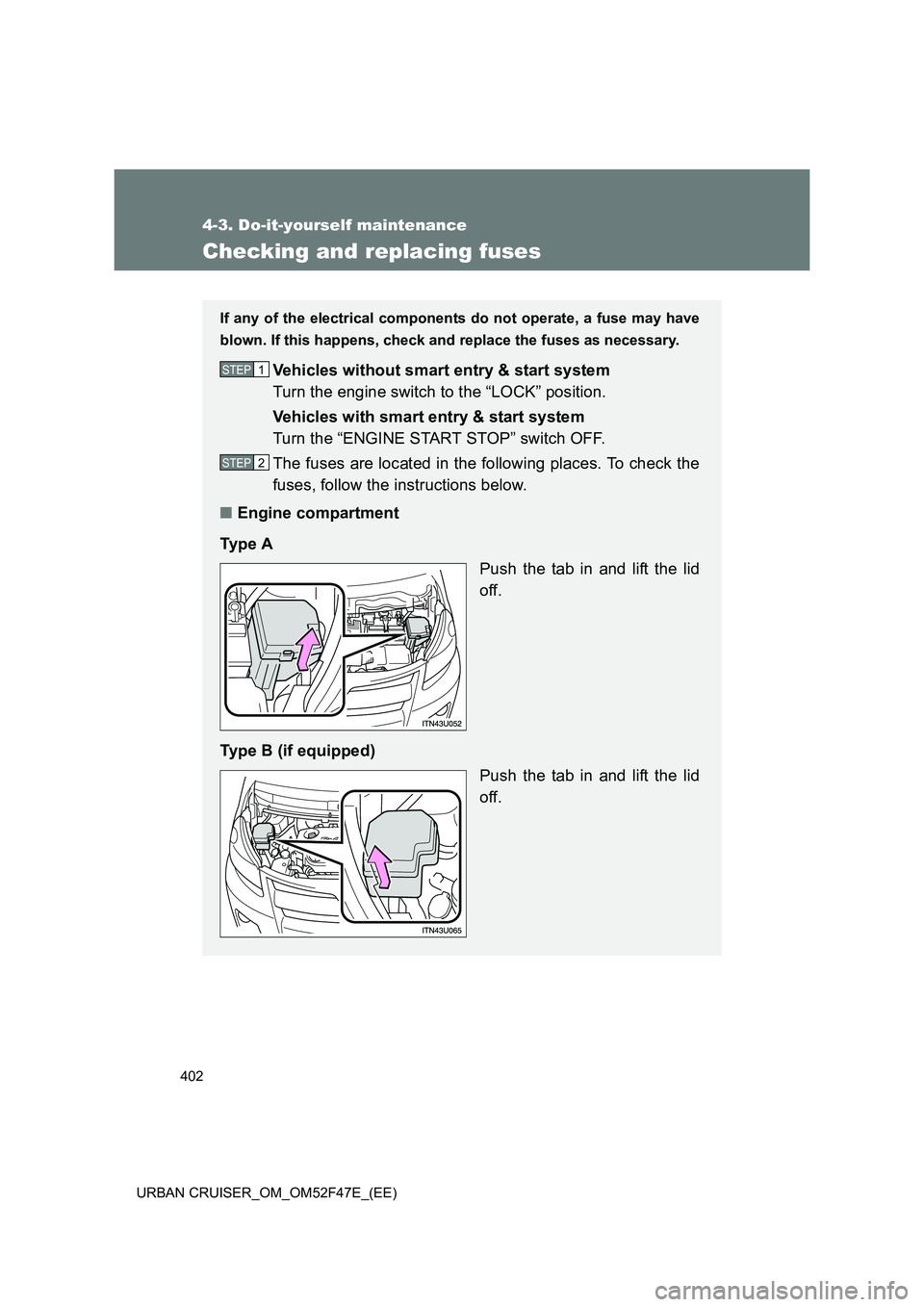

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without smart entry & start system
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system
Turn the “ENGINE START STOP” switch OFF.
The fuses are located in the following places. To check the
fuses, follow the instructions below.
■ Engine compartment
Ty p e A Push the tab in and lift the lid
off.
Type B (if equipped) Push the tab in and lift the lid
off.STEP1
STEP2

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
■

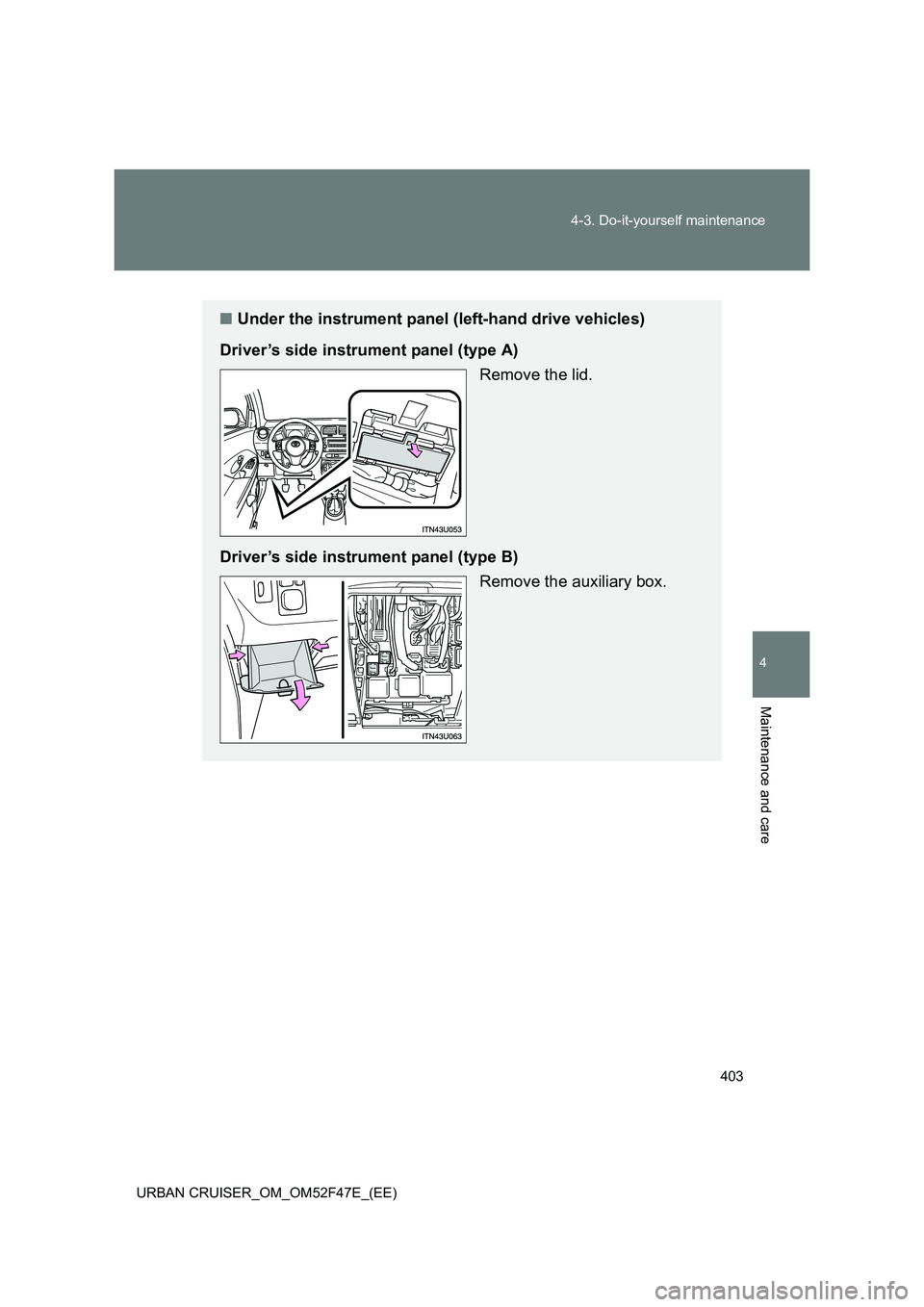

Under the instrument panel (left-hand drive vehicles)
Driver’s side instrument panel (type A) Remove the lid.
Driver’s side instrument panel (type B) Remove the auxiliary box.

404
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

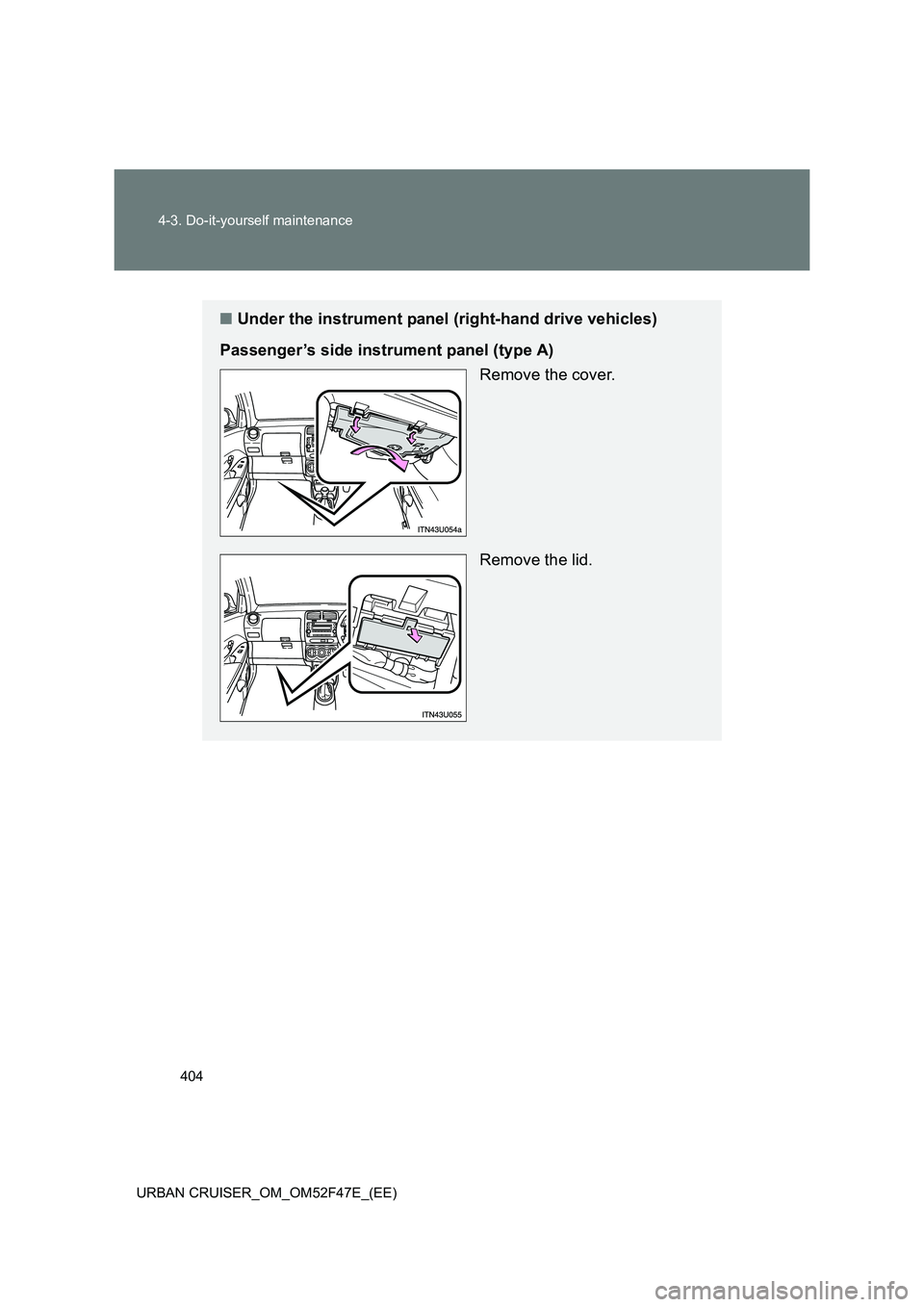

■ Under the instrument panel (right-hand drive vehicles)
Passenger’s side instrument panel (type A) Remove the cover.
Remove the lid.

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)

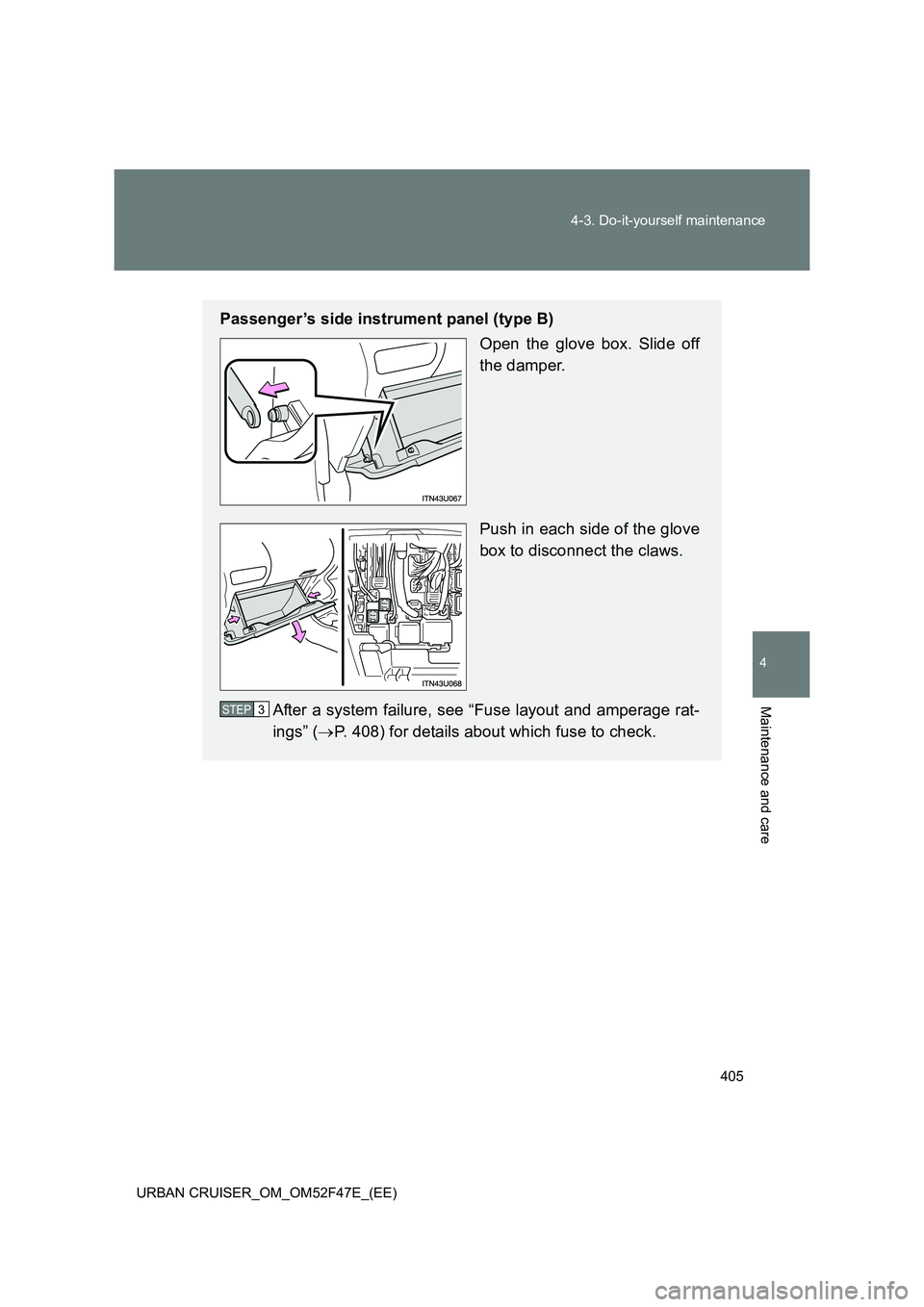

Passenger’s side instrument panel (type B)
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
After a system failure, see “Fuse layout and amperage rat-
ings” ( →P. 408) for details about which fuse to check.
STEP3

406
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

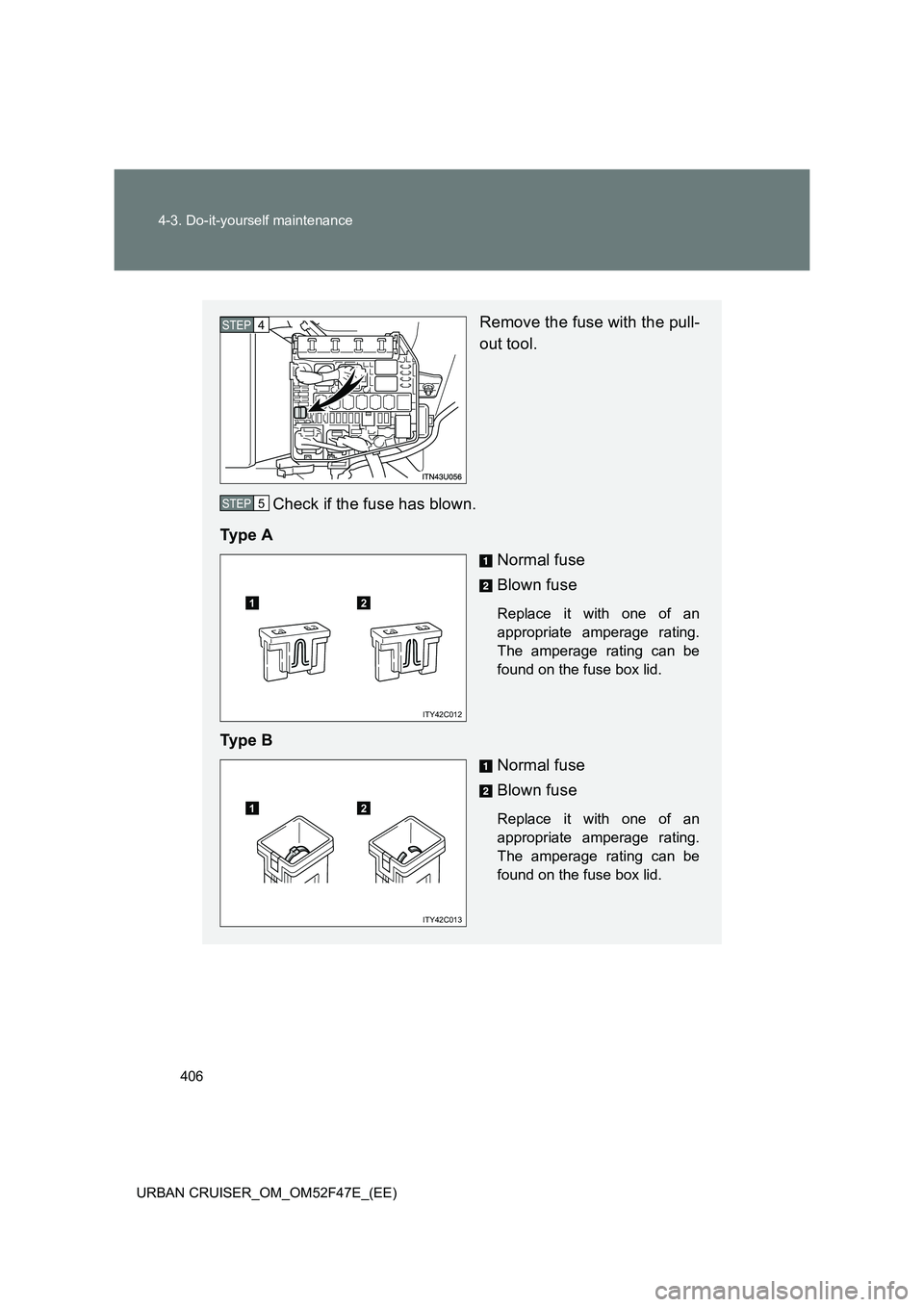

Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP4
STEP5
12
ITY42C012
12
ITY42C013

407
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)

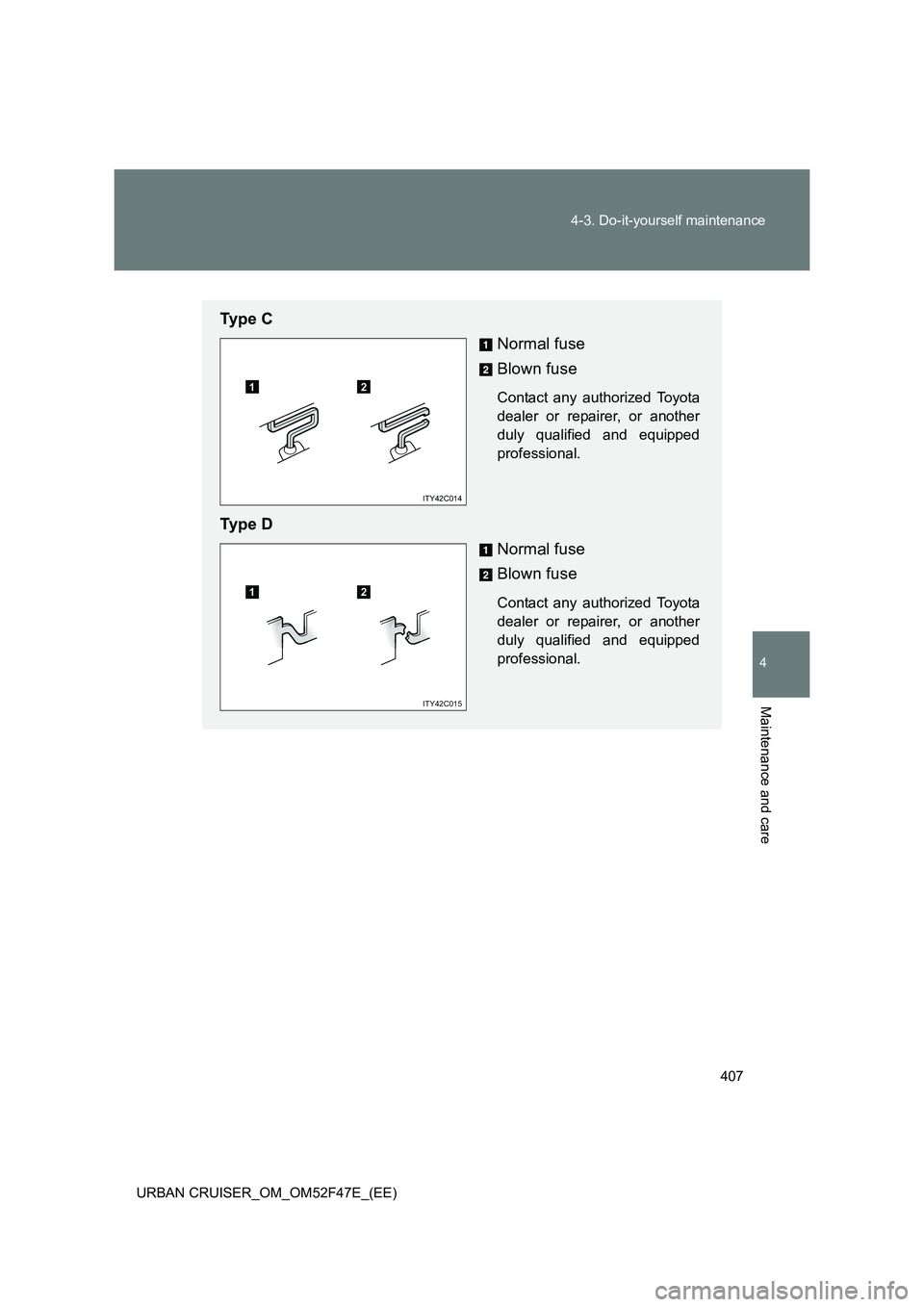

Ty p e C
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
Ty p e DNormal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
12
ITY42C014
12
ITY42C015

408
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

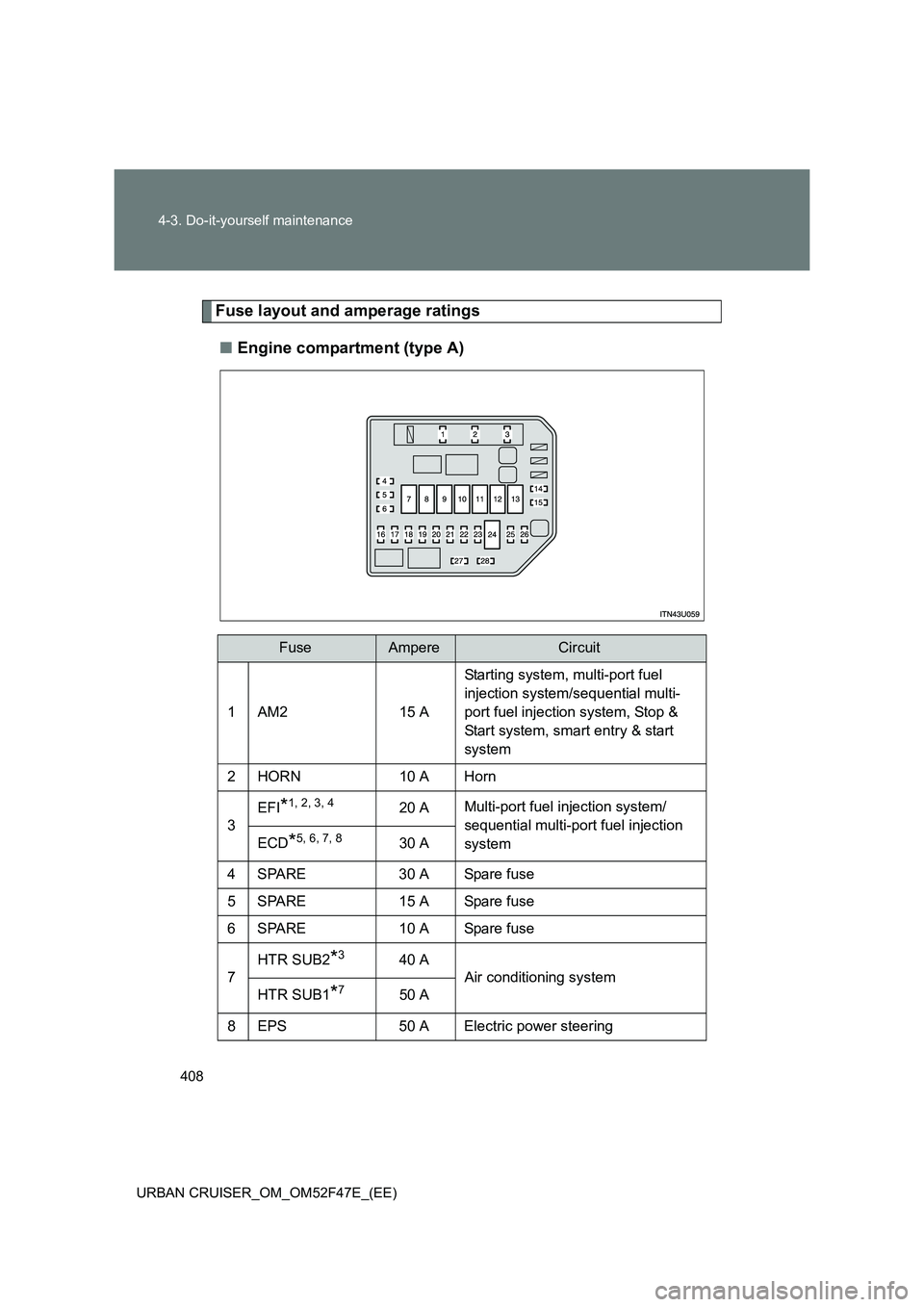

Fuse layout and amperage ratings ■ Engine compartment (type A)
FuseAmpereCircuit
1AM215 A Starting system, multi-port fuel
injection system/sequential multi-
port fuel injection system, Stop &
Start system, smart entry & start
system
2HORN10 A Horn
3
EFI*1, 2, 3, 420 A
Multi-port fuel injection system/
sequential multi-port fuel injection
system
ECD*5, 6, 7, 830 A
4 SPARE 30 A Spare fuse
5 SPARE 15 A Spare fuse
6 SPARE 10 A Spare fuse
7 HTR SUB2
*340 A
Air conditioning system
HTR SUB1
*750 A
8 EPS 50 A Electric power steering
