2015 TOYOTA URBAN CRUISER Owners Manual

425
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
■

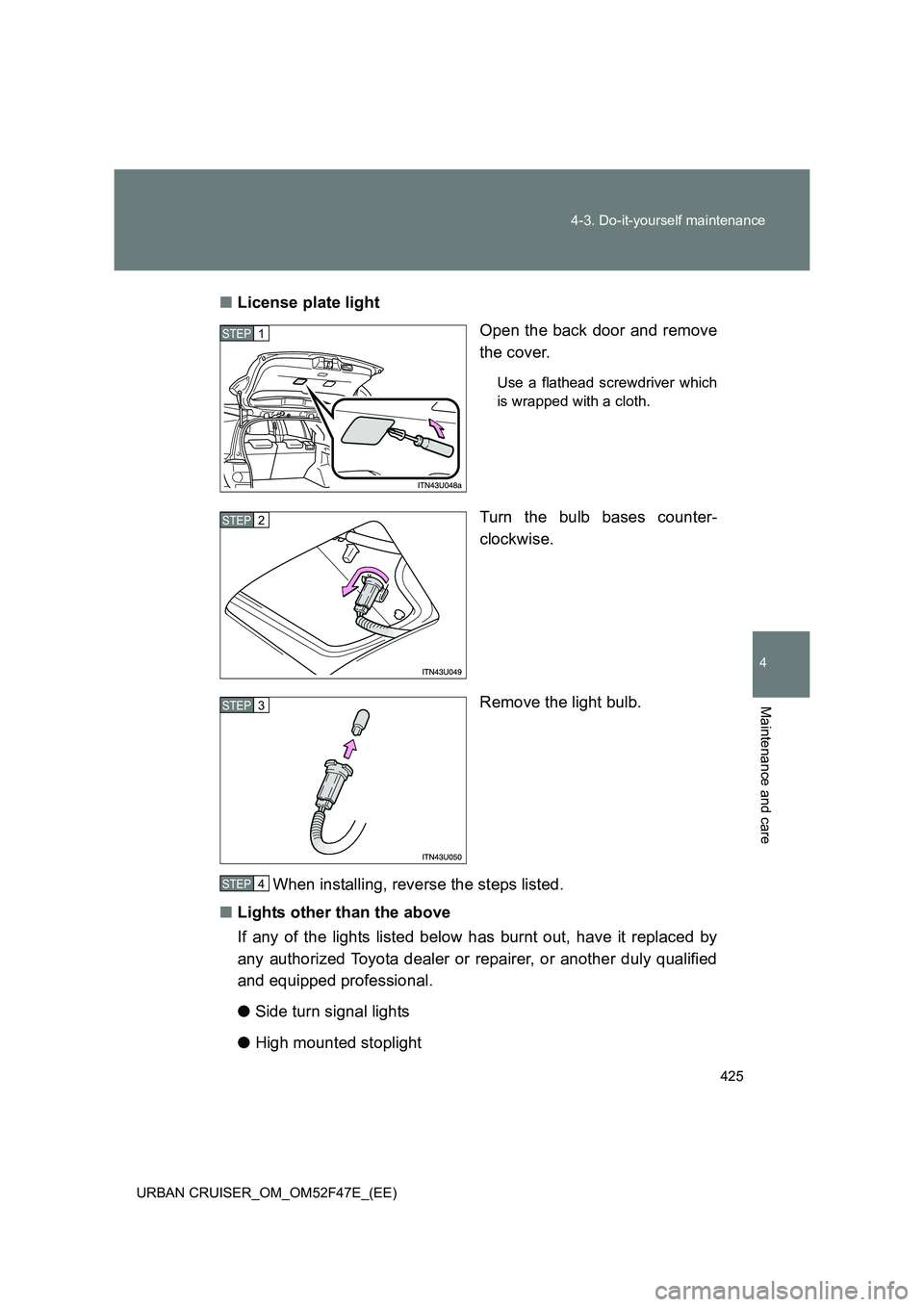

License plate light
Open the back door and remove
the cover.
Use a flathead screwdriver which
is wrapped with a cloth.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
■ Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● Side turn signal lights
● High mounted stoplight
STEP1
STEP2
STEP3
STEP4

426
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

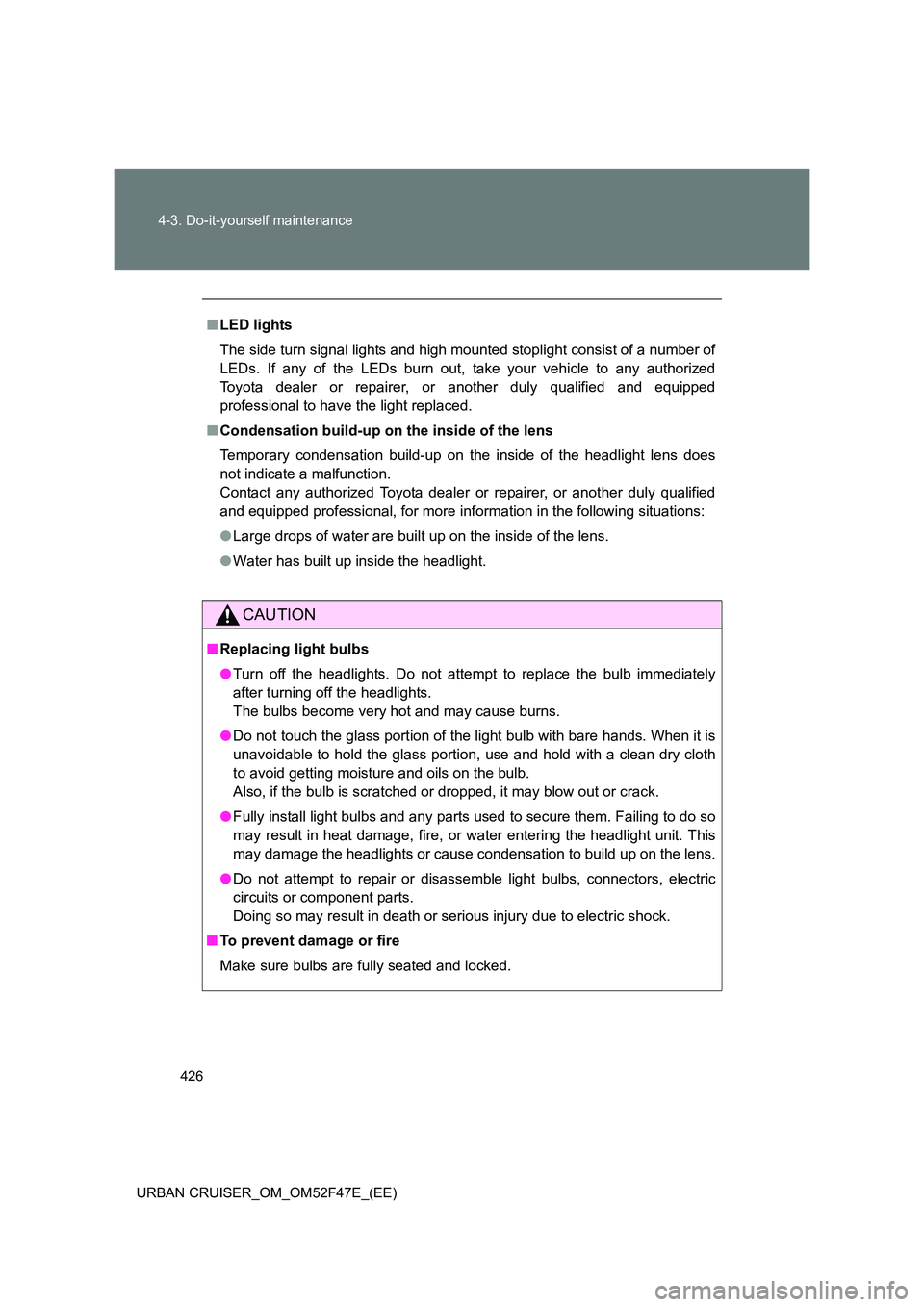

■ LED lights
The side turn signal lights and high mounted stoplight consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for more information in the following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of t he light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

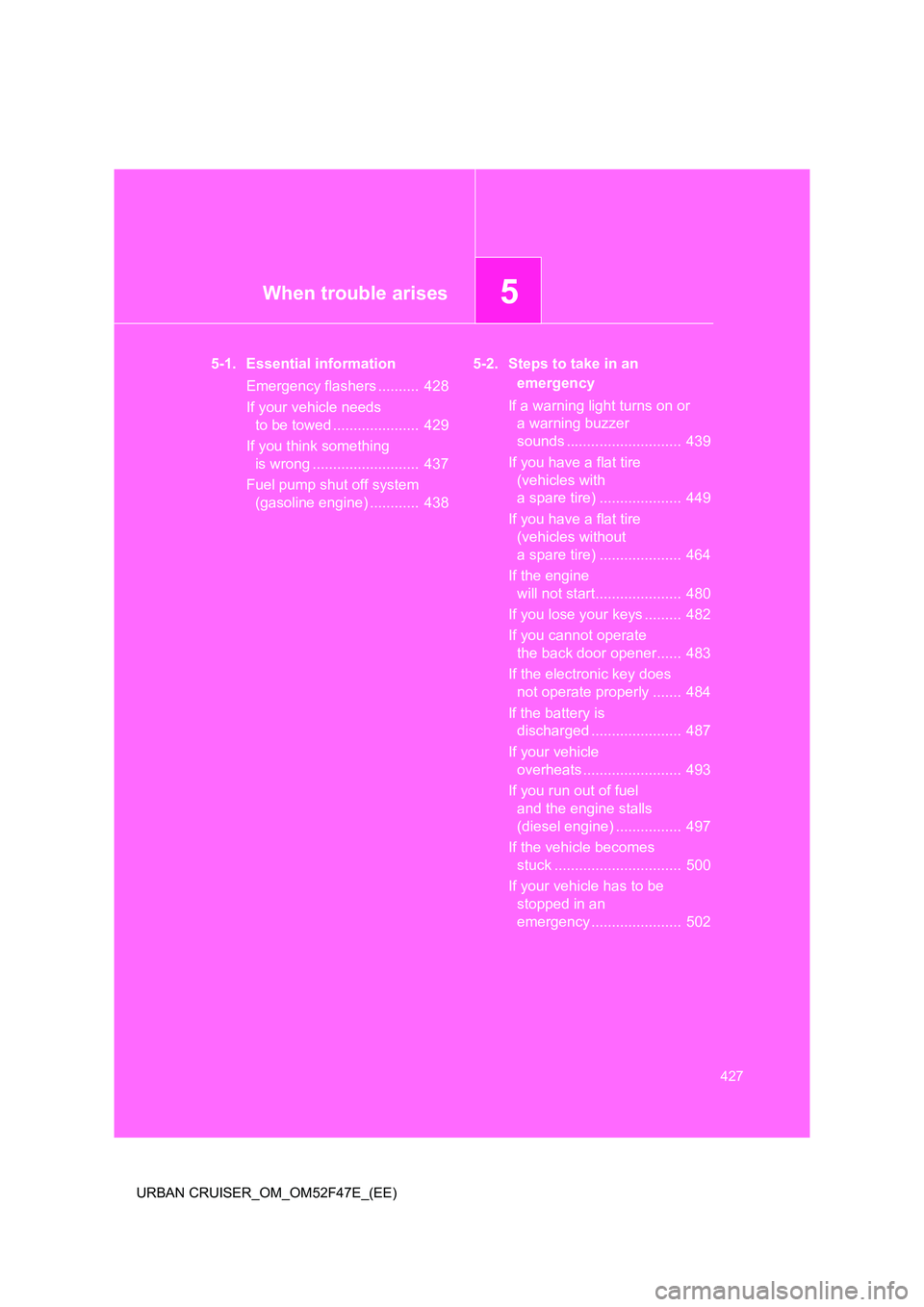

5When trouble arises
427
URBAN CRUISER_OM_OM52F47E_(EE)
5-1. Essential information Emergency flashers .......... 428
If your vehicle needs to be towed ..................... 429
If you think something is wrong .......................... 437
Fuel pump shut off system (gasoline engine) ............ 438 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds ............................ 439
If you have a flat tire (vehicles with
a spare tire) .................... 449
If you have a flat tire (vehicles without
a spare tire) .................... 464
If the engine will not start..................... 480
If you lose your keys ......... 482
If you cannot operate the back door opener...... 483
If the electronic key does not operate properly ....... 484
If the battery is discharged ...................... 487
If your vehicle overheats ........................ 493
If you run out of fuel and the engine stalls
(diesel engine) ................ 497
If the vehicle becomes stuck ............................... 500
If your vehicle has to be stopped in an
emergency ...................... 502

428
URBAN CRUISER_OM_OM52F47E_(EE)
5-1. Essential information

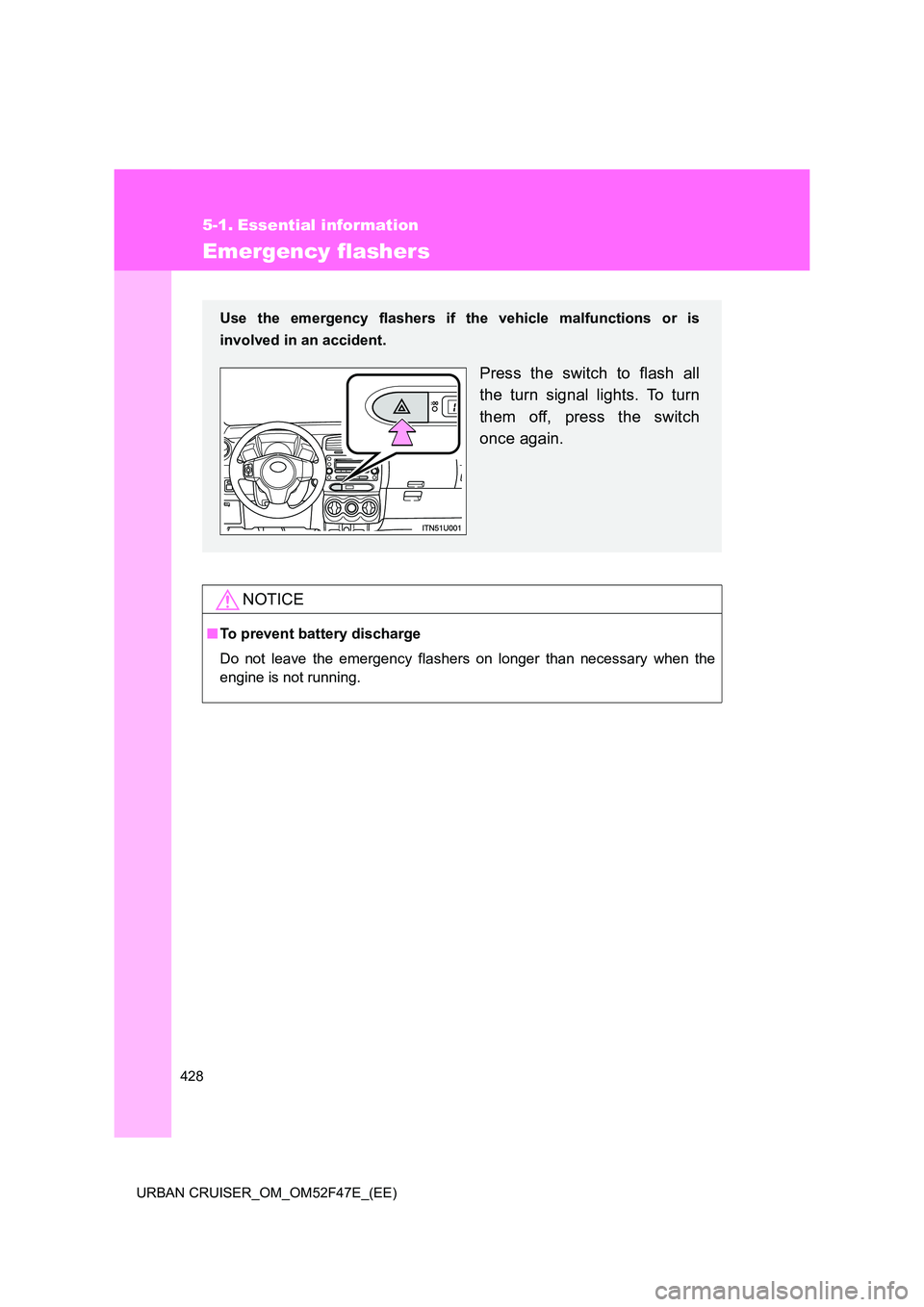

Emergency flashers
NOTICE
■ To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if the vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.

5
429
5-1. Essential information
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)

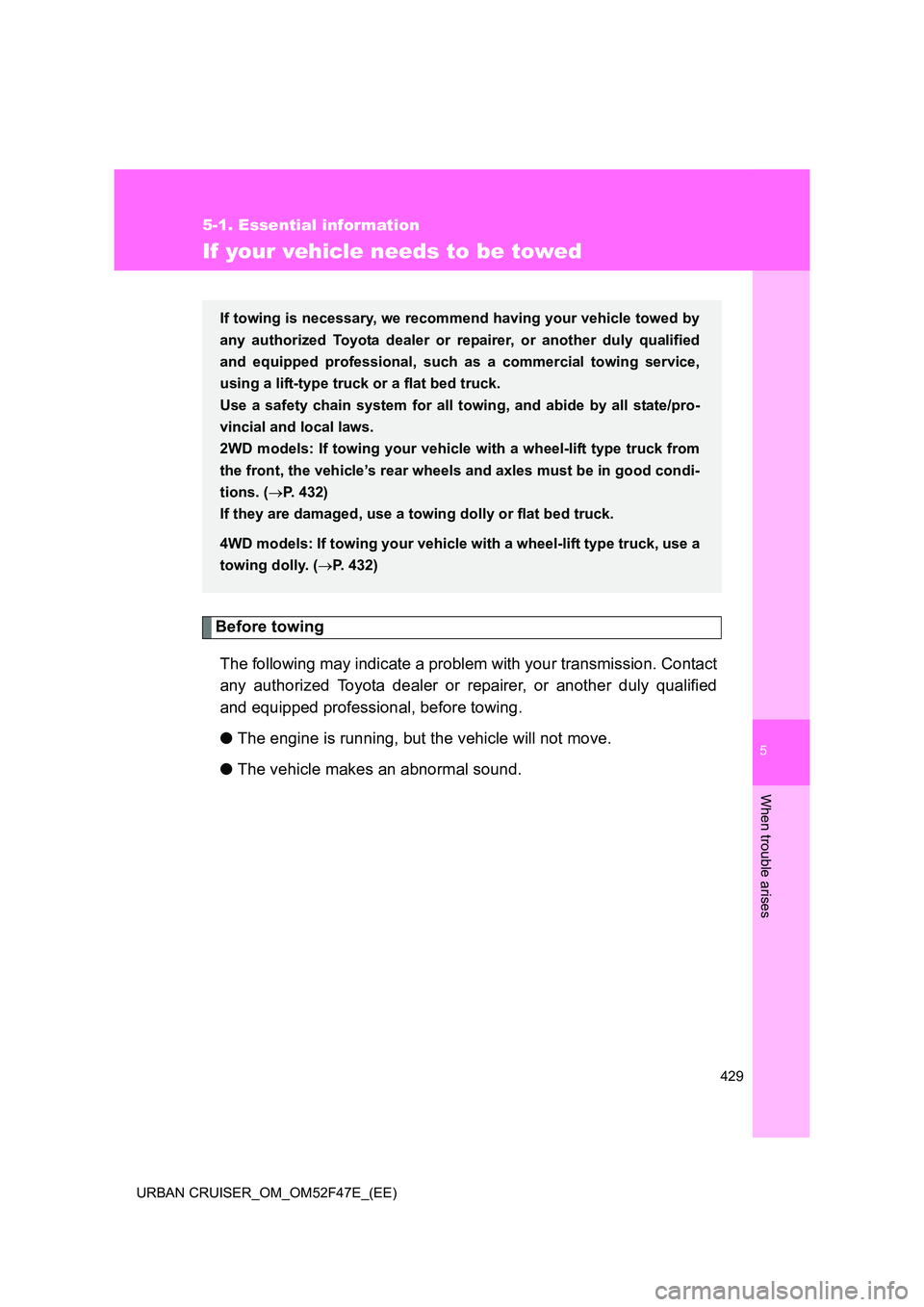

If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, such as a commercial towing service,
using a lift-type truck or a flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.
2WD models: If towing your vehicle with a wheel-lift type truck from
the front, the vehicle’s rear wheels and axles must be in good condi-
tions. ( →P. 432)
If they are damaged, use a towing dolly or flat bed truck.
4WD models: If towing your vehicle wi th a wheel-lift type truck, use a
towing dolly. ( →P. 432)

430
5-1. Essential information
URBAN CRUISER_OM_OM52F47E_(EE)

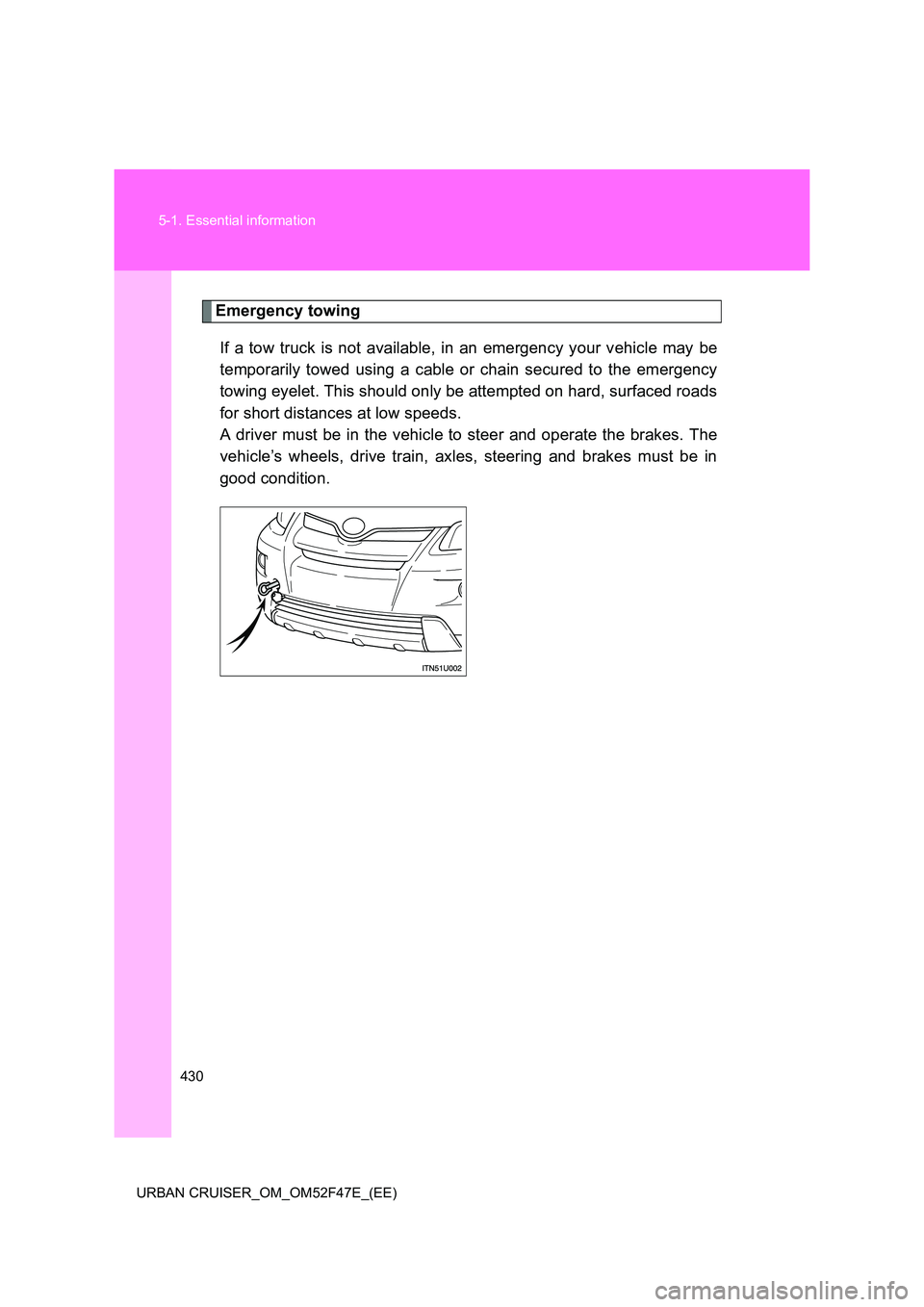

Emergency towing If a tow truck is not available, in an emergency your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet. This should only be attempted on hard, surfaced roads
for short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.

5
431
5-1. Essential information
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)

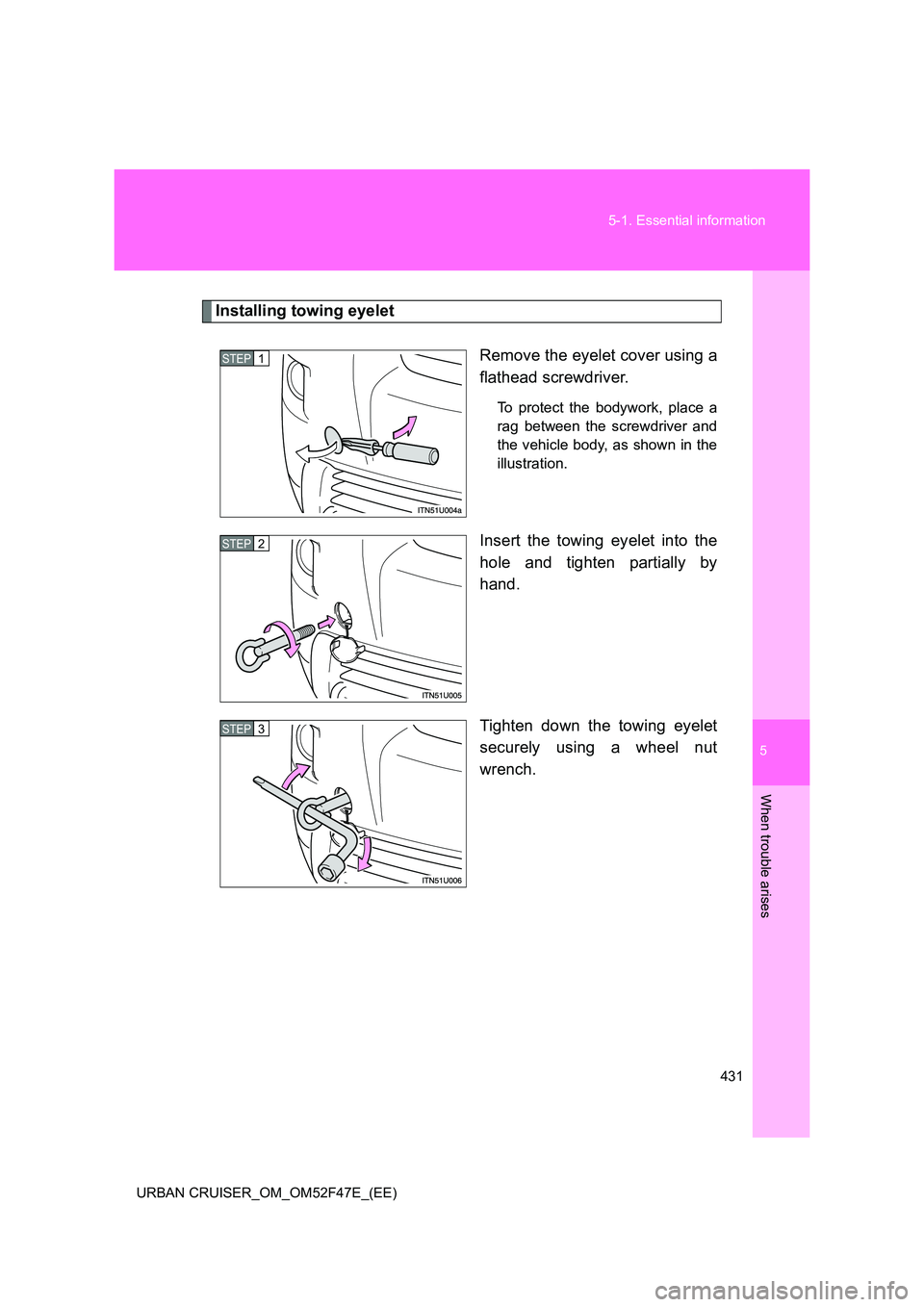

Installing towing eyelet
Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body, as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.
STEP1
STEP2
STEP3

432
5-1. Essential information
URBAN CRUISER_OM_OM52F47E_(EE)

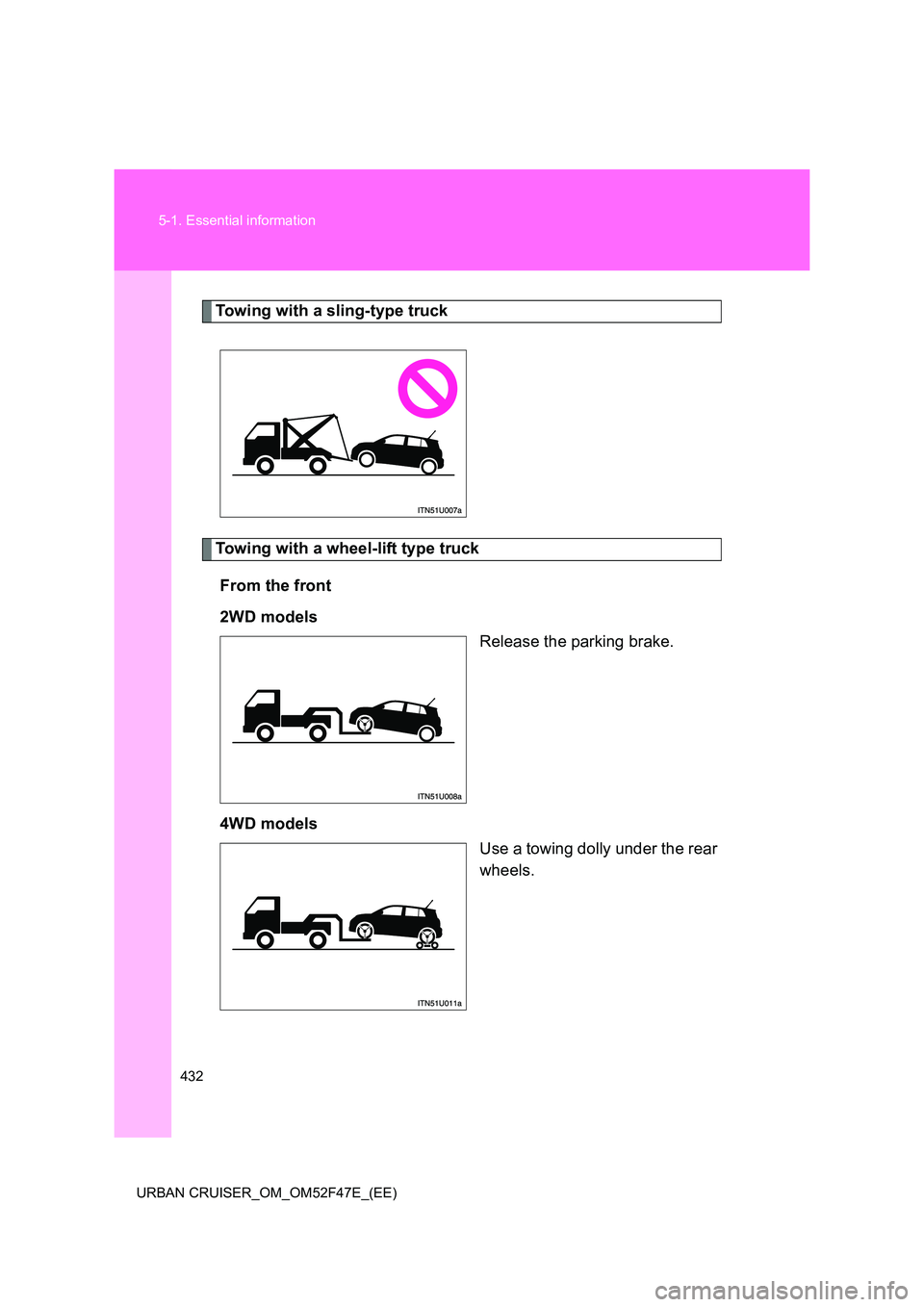

Towing with a sling-type truck
Towing with a wheel-lift type truck From the front
2WD models Release the parking brake.
4WD models Use a towing dolly under the rear
wheels.
