2015 TOYOTA URBAN CRUISER Owners Manual

305
3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

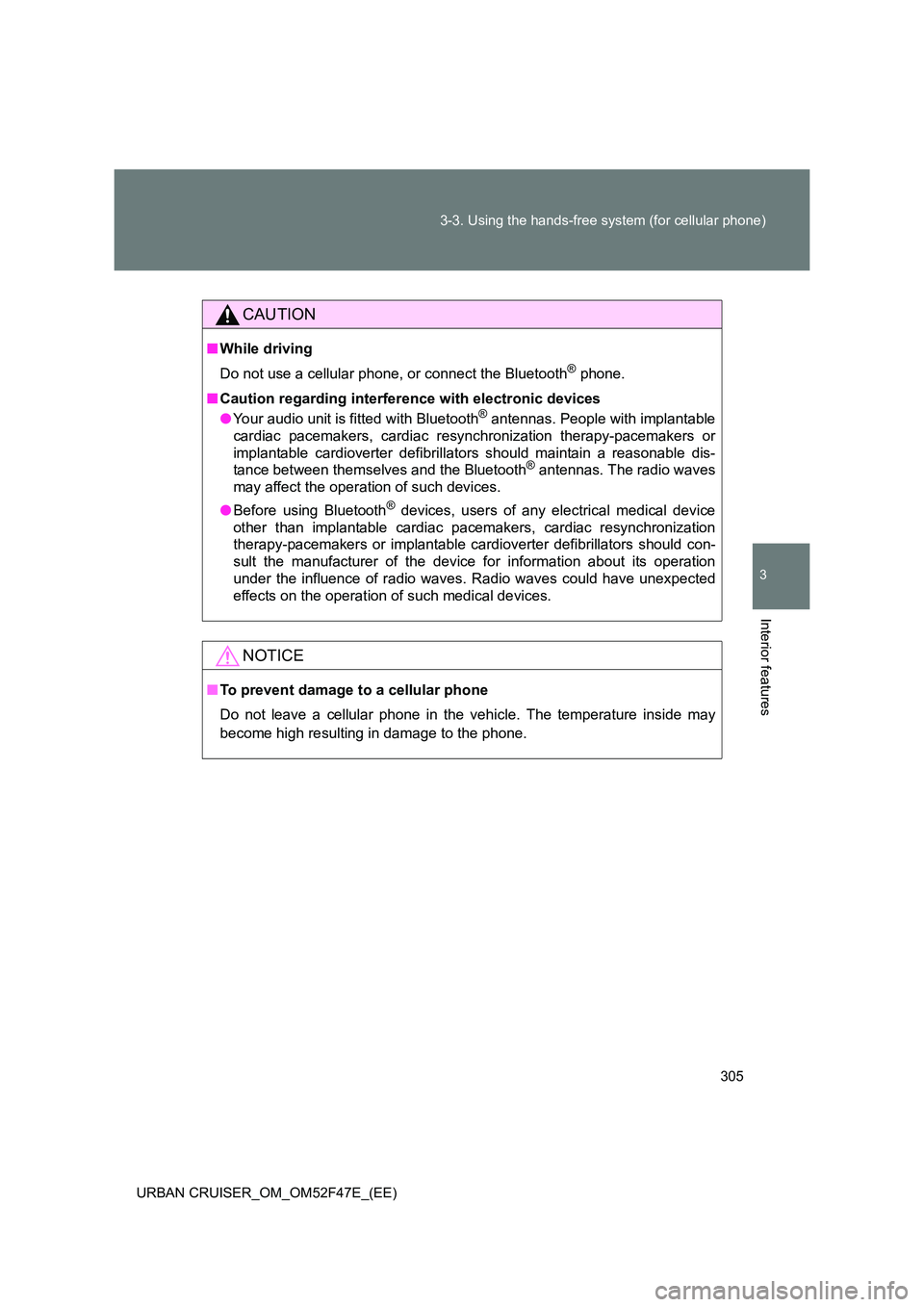

CAUTION
■
While driving
Do not use a cellular phone, or connect the Bluetooth
® phone.
■ Caution regarding interference with electronic devices
●Your audio unit is fitted with Bluetooth
® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth
® antennas. The radio waves
may affect the operation of such devices.
● Before using Bluetooth
® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■ To prevent damage to a cellular phone
Do not leave a cellular phone in the vehicle. The temperature inside may
become high resulting in damage to the phone.

306
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_OM_OM52F47E_(EE)

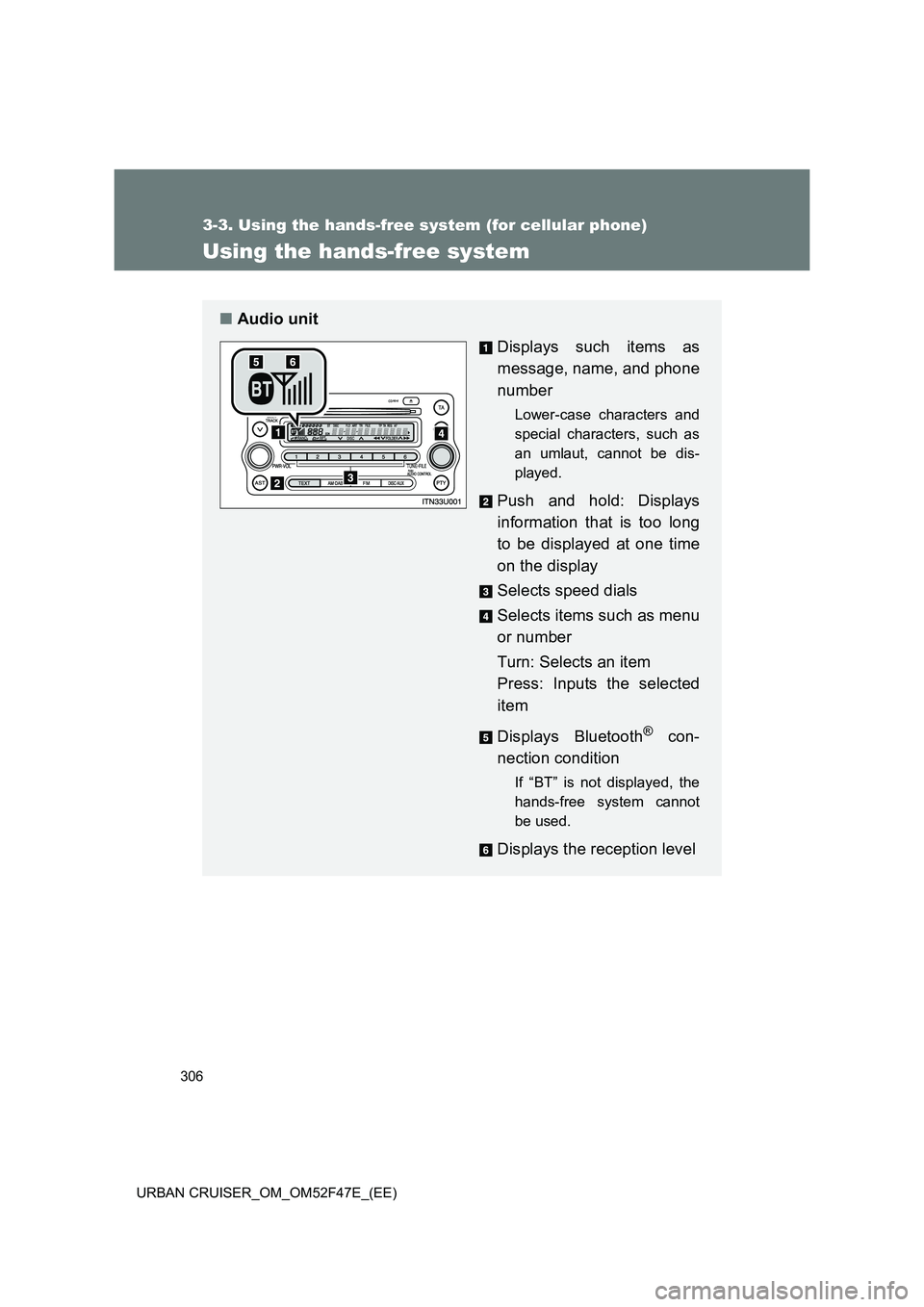

Using the hands-free system
■Audio unit
Displays such items as
message, name, and phone
number
Lower-case characters and
special characters, such as
an umlaut, cannot be dis-
played.
Push and hold: Displays
information that is too long
to be displayed at one time
on the display
Selects speed dials
Selects items such as menu
or number
Turn: Selects an item
Press: Inputs the selected
item
Displays Bluetooth
® con-
nection condition
If “BT” is not displayed, the
hands-free system cannot
be used.
Displays the reception level

307
3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
■

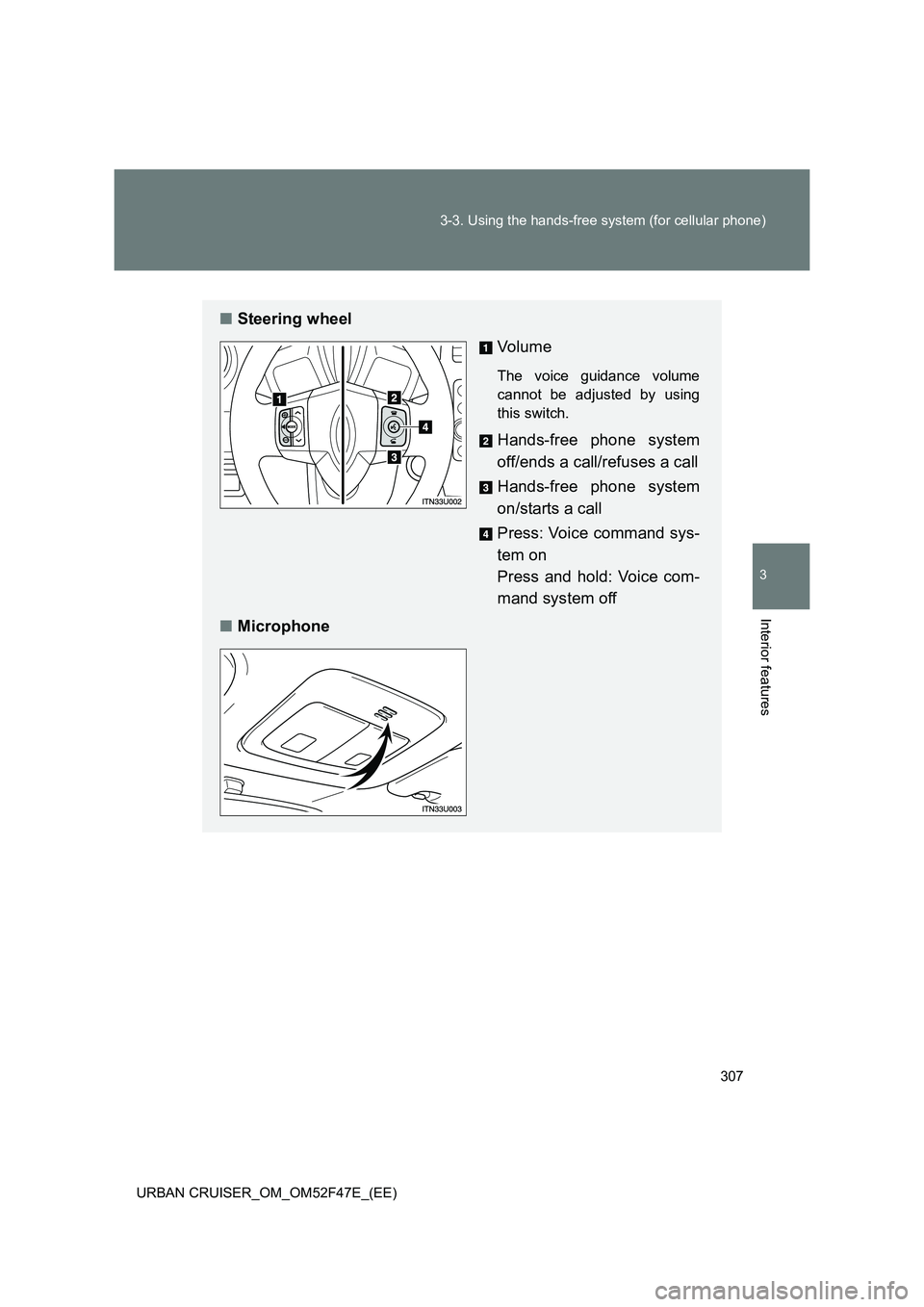

Steering wheel
Vo lu m e
The voice guidance volume
cannot be adjusted by using
this switch.
Hands-free phone system
off/ends a call/refuses a call
Hands-free phone system
on/starts a call
Press: Voice command sys-
tem on
Press and hold: Voice com-
mand system off
■ Microphone

308
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_OM_OM52F47E_(EE)

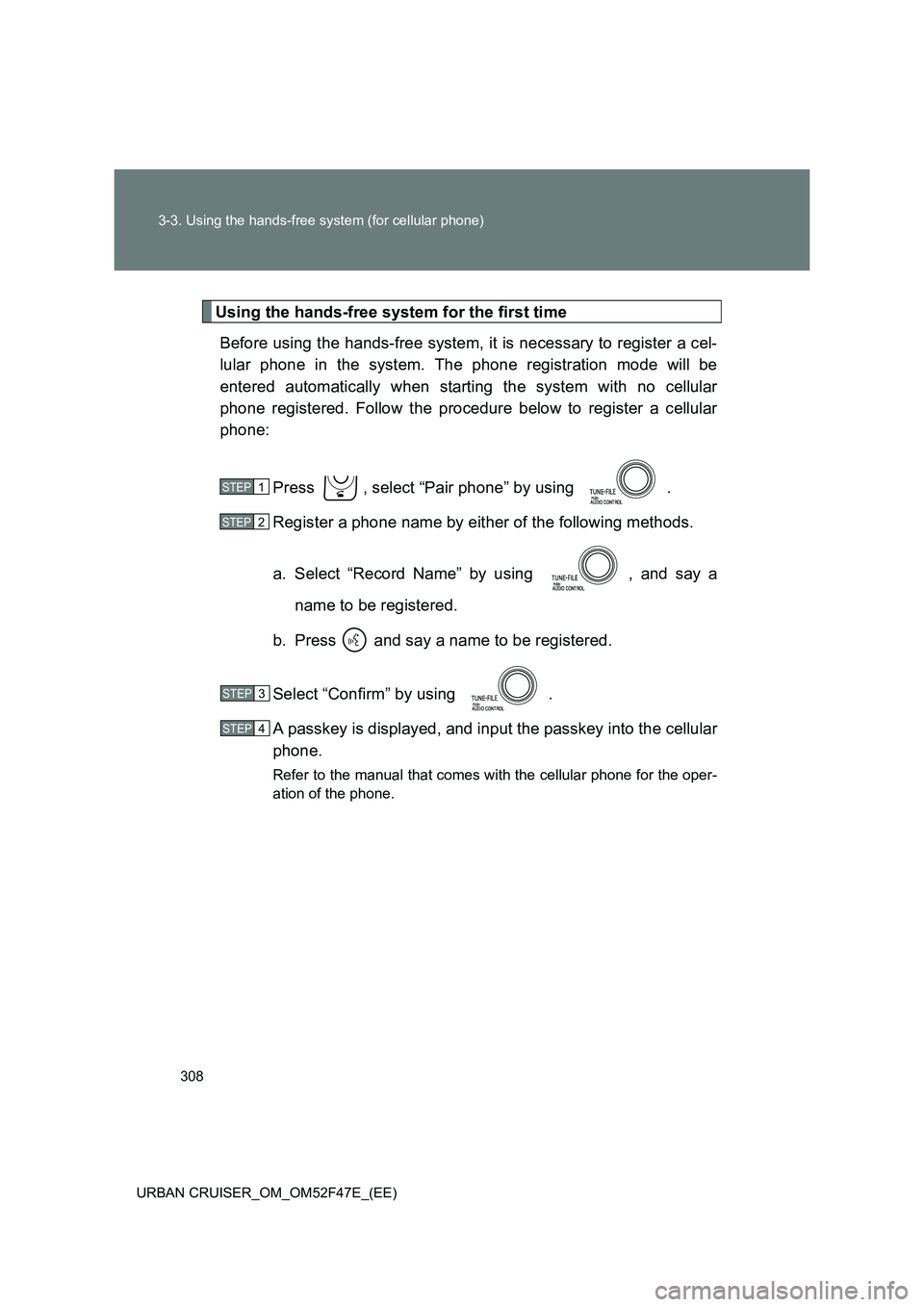

Using the hands-free system for the first time Before using the hands-free system, it is necessary to register a cel-
lular phone in the system. The phone registration mode will be
entered automatically when starting the system with no cellular
phone registered. Follow the procedure below to register a cellular
phone:
Press , select “Pair phone” by using .
Register a phone name by either of the following methods.
a. Select “Record Name” by using , and say aname to be registered.
b. Press and say a name to be registered.
Select “Confirm” by using .
A passkey is displayed, and input the passkey into the cellular
phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
STEP1
STEP2
STEP3
STEP4

309
3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
■

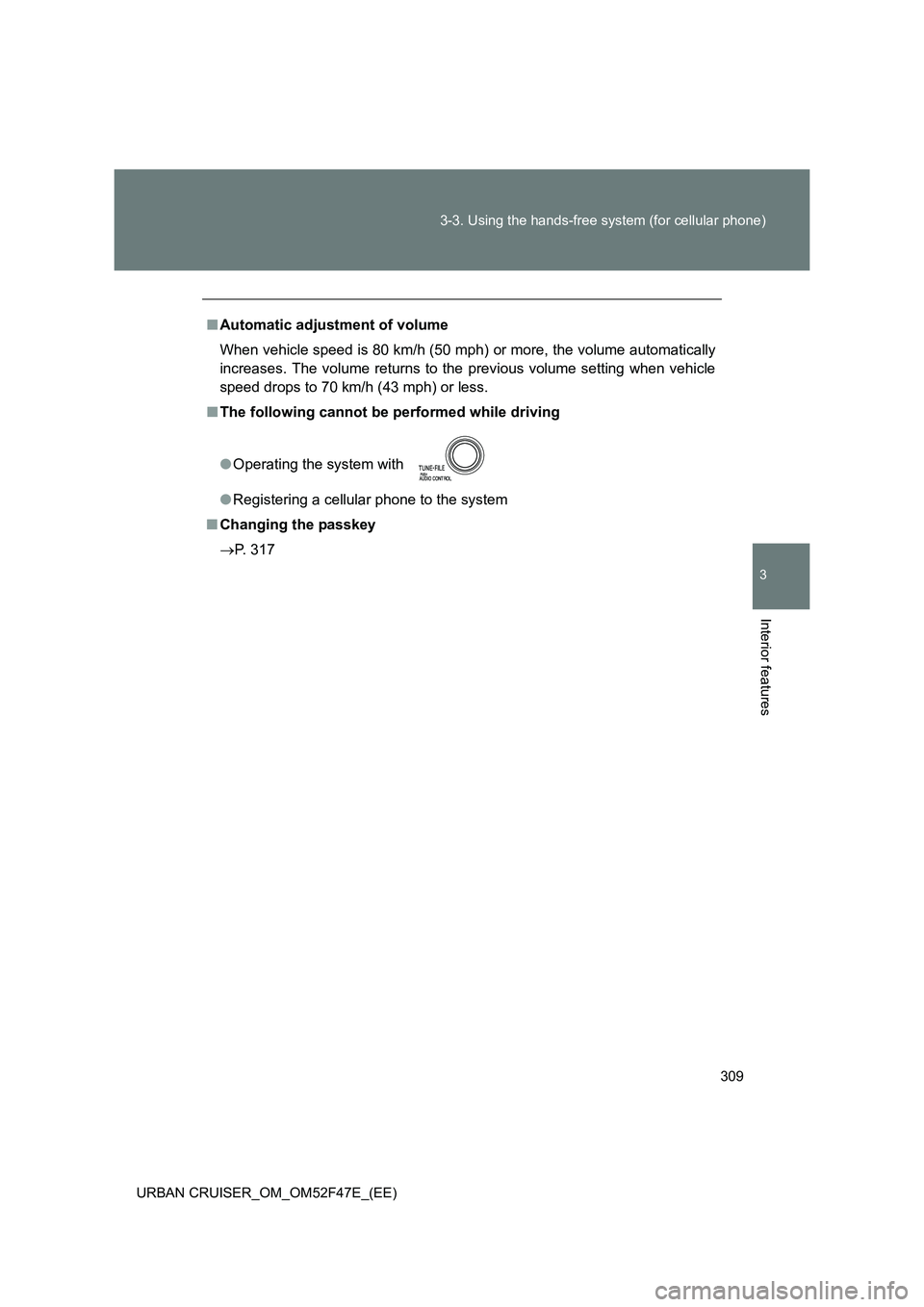

Automatic adjustment of volume
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
■ The following cannot be performed while driving
●Operating the system with
● Registering a cellular phone to the system
■ Changing the passkey
→ P. 317

310
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_OM_OM52F47E_(EE)

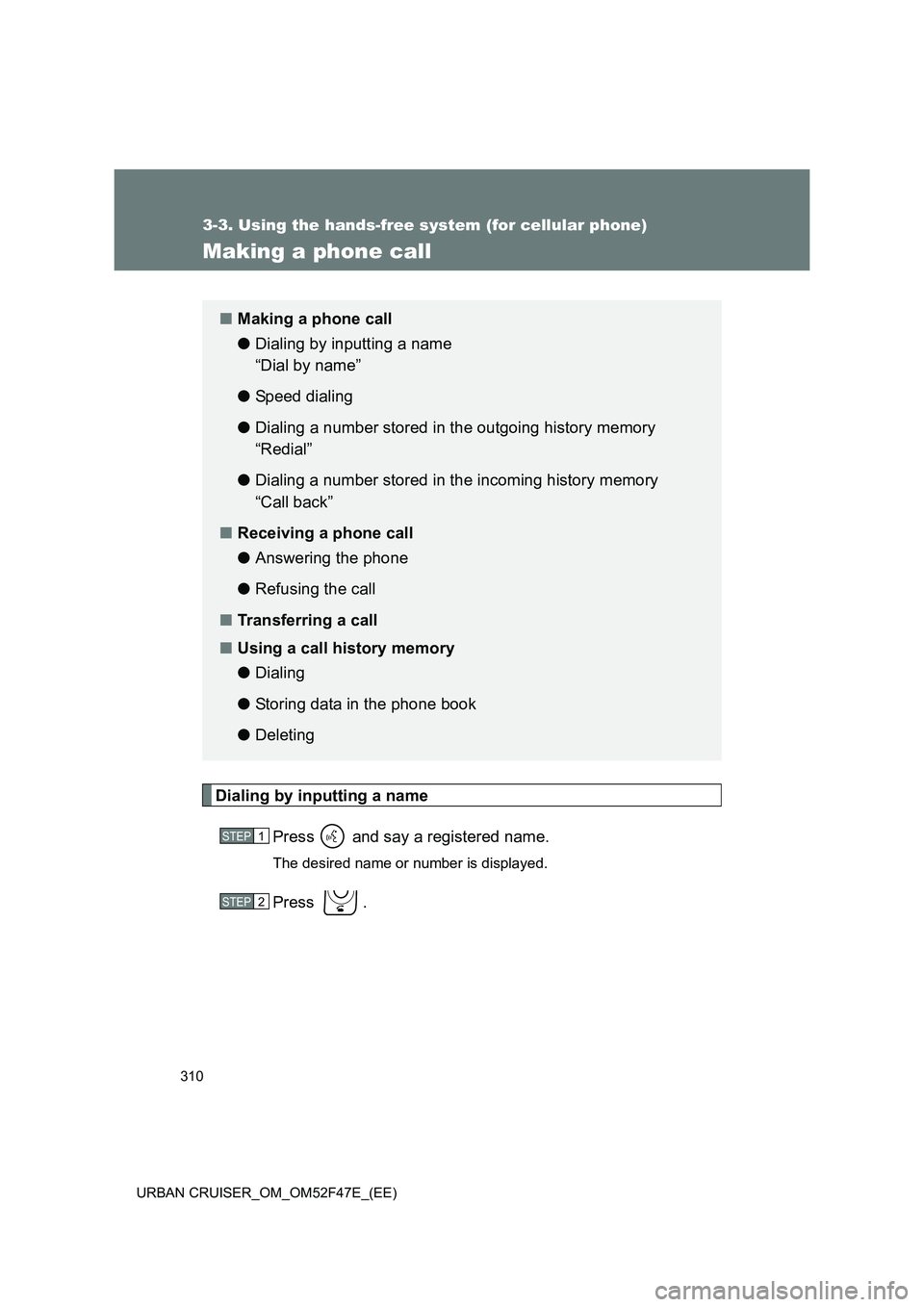

Making a phone call
Dialing by inputting a namePress and say a registered name.
The desired name or number is displayed.
Press .
■Making a phone call
● Dialing by inputting a name
“Dial by name”
● Speed dialing
● Dialing a number stored in the outgoing history memory
“Redial”
● Dialing a number stored in the incoming history memory
“Call back”
■ Receiving a phone call
● Answering the phone
● Refusing the call
■ Transferring a call
■ Using a call history memory
● Dialing
● Storing data in the phone book
● Deleting
STEP1
STEP2

311
3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

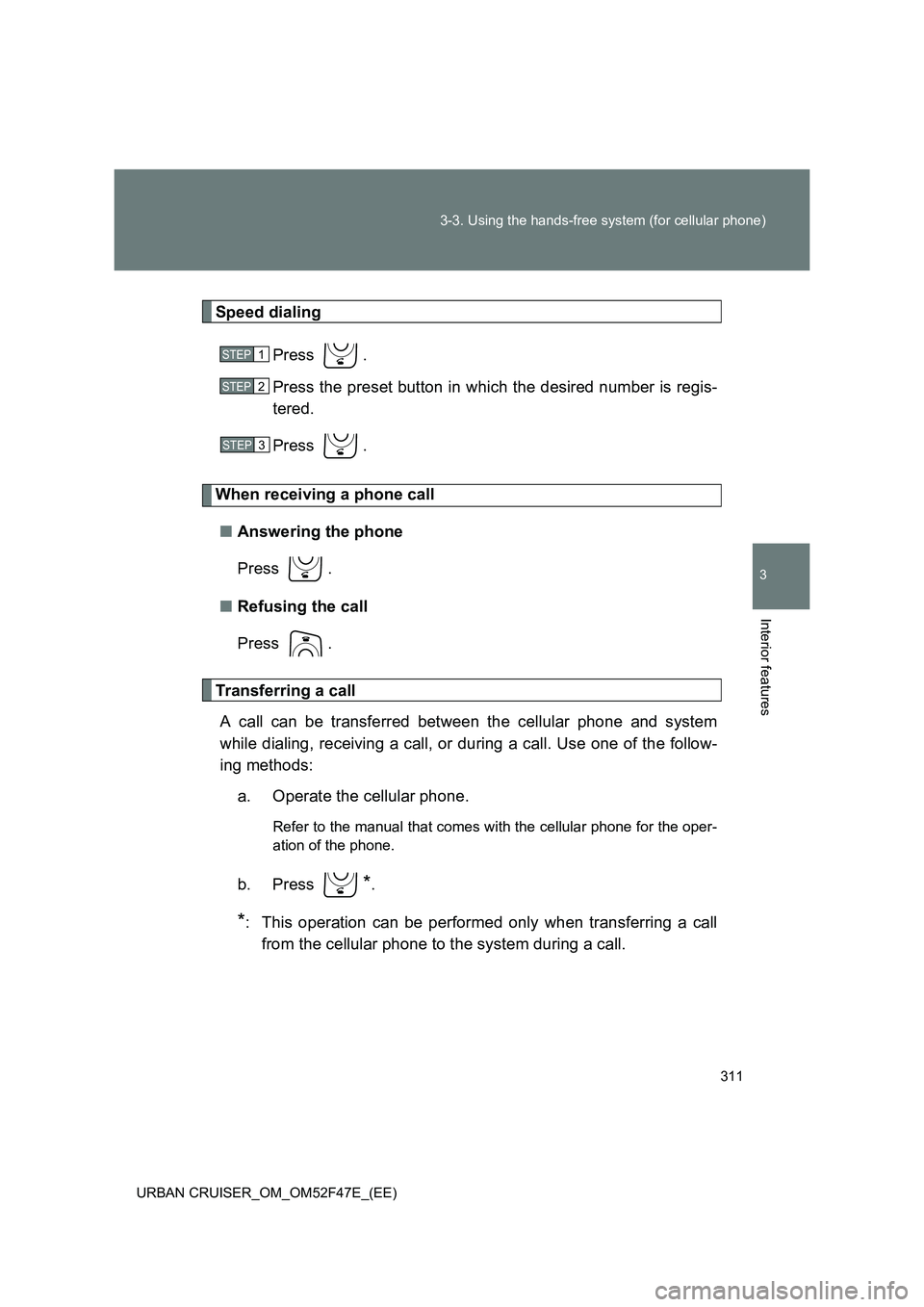

Speed dialing
Press .
Press the preset button in which the desired number is regis-
tered.
Press .
When receiving a phone call■ Answering the phone
Press .
■ Refusing the call
Press .
Transferring a call
A call can be transferred between the cellular phone and system
while dialing, receiving a call, or during a call. Use one of the follow-
ing methods: a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
b. Press *.
*: This operation can be performed only when transferring a callfrom the cellular phone to the system during a call.
STEP1
STEP2
STEP3

312
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_OM_OM52F47E_(EE)

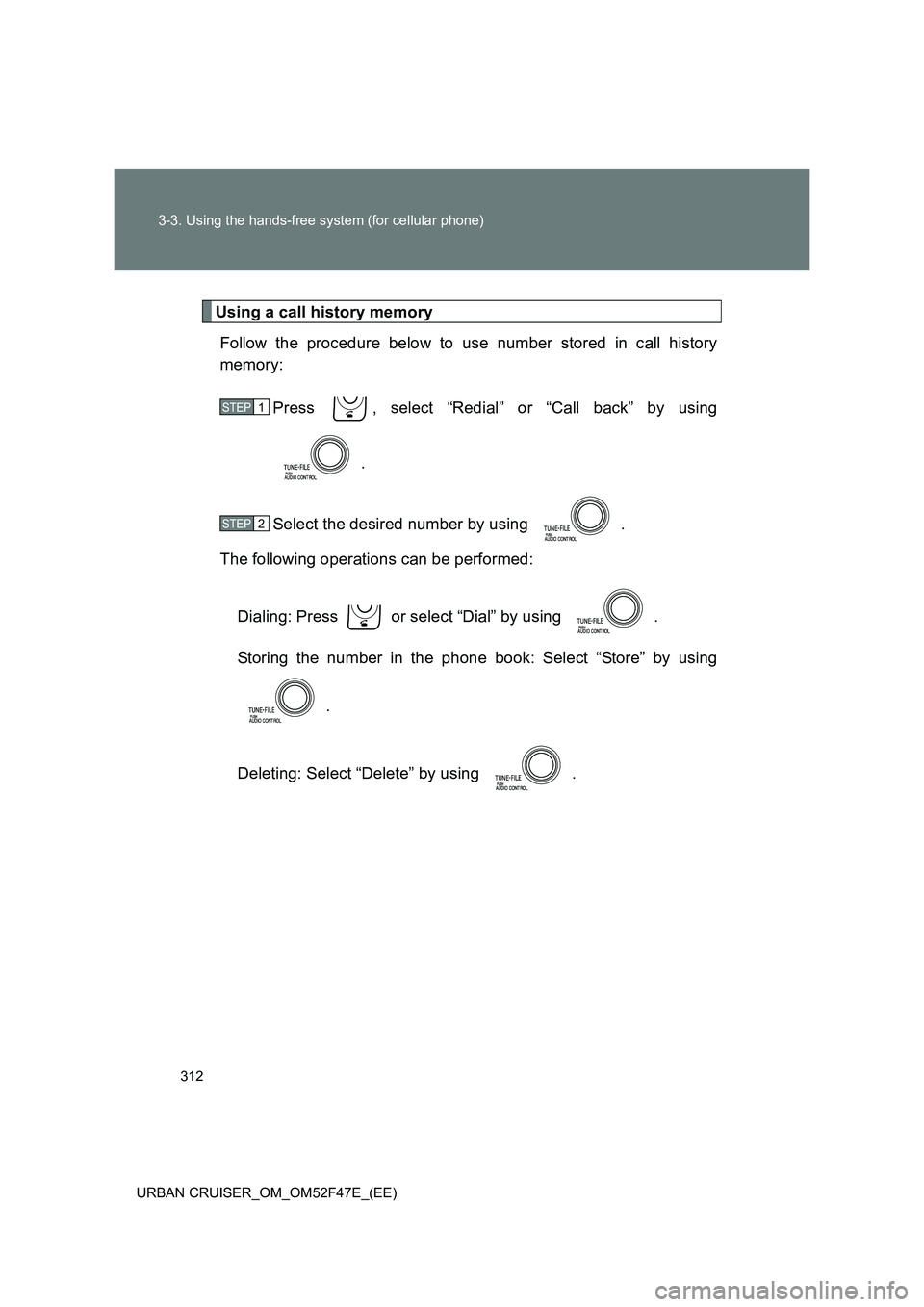

Using a call history memory Follow the procedure below to use number stored in call history
memory:
Press , select “Redial” or “Call back” by using
.
Select the desired number by using .
The following operations can be performed:
Dialing: Press or select “Dial” by using .
Storing the number in the phone book: Select “Store” by using .
Deleting: Select “Delete” by using .
STEP1
STEP2
