2015 TOYOTA LAND CRUISER Owners Manual

601
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)
CAUTION
■
Discharge headlights
●Contact your Toyota dealer before replacing high-intensity discharge
headlights (including light bulbs).
● Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in serious injury or death by electric shock.
● Do not attempt to take apart or repair the low beam discharge headlight
bulbs, connectors, power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

602 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)

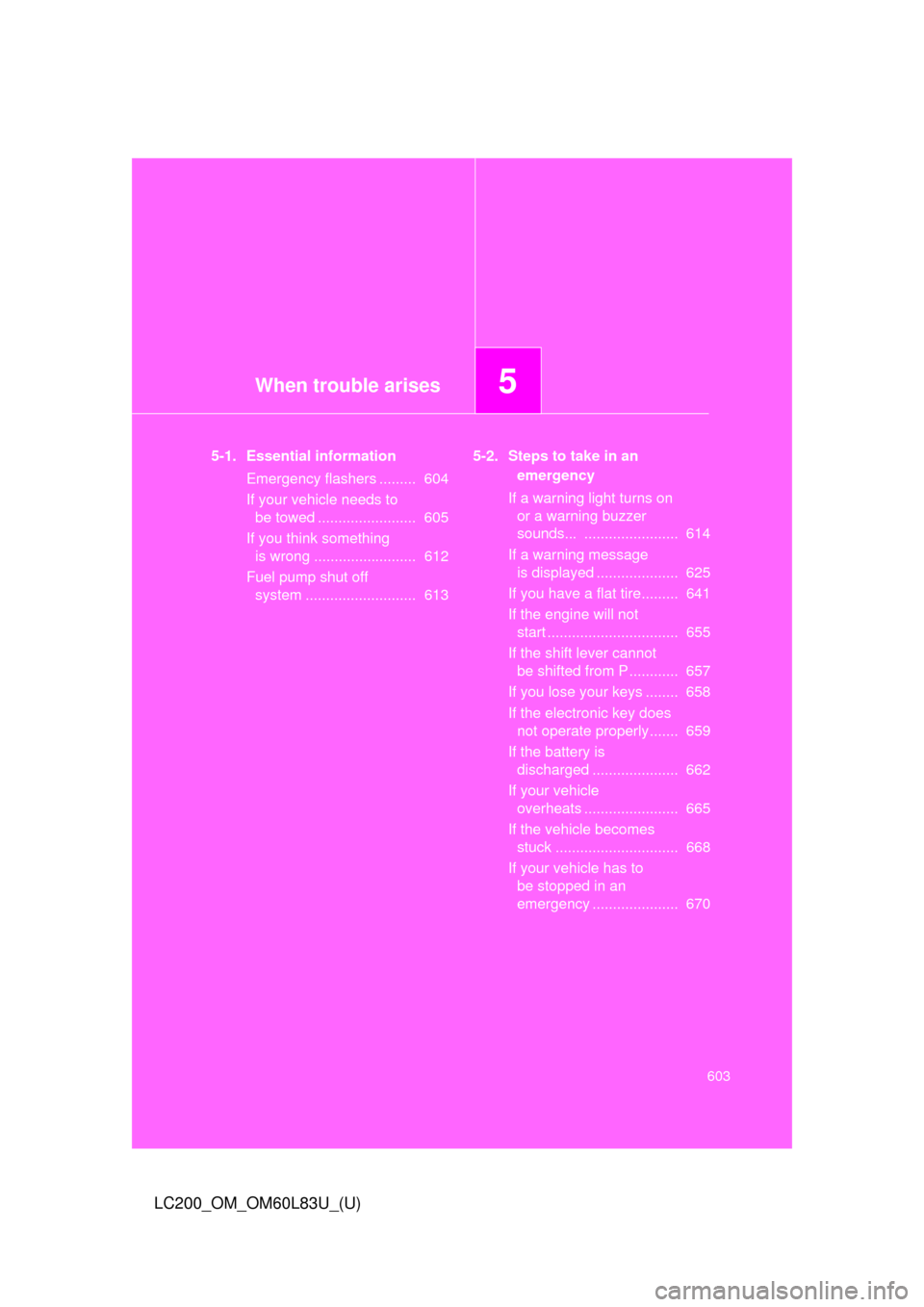

When trouble arises5
603
LC200_OM_OM60L83U_(U)
5-1. Essential informationEmergency flashers ......... 604
If your vehicle needs to be towed ........................ 605
If you think something is wrong ......................... 612
Fuel pump shut off system ........................... 613 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ....................... 614
If a warning message is displayed .................... 625
If you have a flat tire......... 641
If the engine will not start ................................ 655
If the shift lever cannot be shifted from P............ 657
If you lose your keys ........ 658
If the electronic key does not operate properly....... 659
If the battery is discharged ..................... 662
If your vehicle overheats ....................... 665
If the vehicle becomes stuck .............................. 668
If your vehicle has to be stopped in an
emergency ..................... 670

604
LC200_OM_OM60L83U_(U)
5-1. Essential information
Emergency flashers
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operation, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash.
To turn them off, press the
switch once again.

5
When trouble arises
605
5-1. Essential information
LC200_OM_OM60L83U_(U)
If your vehicle needs to be towed
Situations needs to contact dealers before towingThe following may indicate a problem with your transmission. Contact
your Toyota dealer or commercial towing service before towing.
● The engine is running but the vehicle will not move.
● The vehicle makes an abnormal sound.
Towing with a sling-type truck
Do not tow with a sling-type truck
to prevent body damage.
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or commercial towing service, using a lift-type
truck or a flatbed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.

606 5-1. Essential information
LC200_OM_OM60L83U_(U)
Towing with a wheel lift-type truckFrom front Use a towing dolly under the rear
wheels.
From rear Use a towing dolly under the
front wheels.

5
When trouble arises
607
5-1. Essential information
LC200_OM_OM60L83U_(U)
Using a flatbed truck
If your Toyota is transported by a
flatbed truck, it should be tied
down at the locations shown in
the illustration. When attaching
the hooks to the rear of the vehi-
cle, make sure to attach them to
the inside of the vehicle.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be
damaged.

608 5-1. Essential information
LC200_OM_OM60L83U_(U)
Emergency towingIf a tow truck is not available in an emergency, your vehicle may be
temporarily towed using a cable or chain secured to the towing
hook(s). This should only be attempted on hard, surfaced roads for
50 miles (80 km) at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Towing hook
