2015 TOYOTA LAND CRUISER Owners Manual

201
2-3. Operating the lights and wipers
2
When driving
LC200_OM_OM60L83U_(U)
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.

202 2-3. Operating the lights and wipers
LC200_OM_OM60L83U_(U)
Manual headlight leveling dialThe level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
■ Guide to dial settings
Occupancy and luggage load conditionsDial positionOccupantsLuggage load
Driver None 0
Driver and front passenger None
0
Driver, front passen- ger and all passen-
gers in the rear seats farthest to the rear None
1.5
All seats occupied None2
All seats occupied Maximum load 2.5
Driver Maximum load 3

203
2-3. Operating the lights and wipers
2
When driving
LC200_OM_OM60L83U_(U)
■
Daytime running light system
●To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and
the parking brake is released. Daytime running lights are not designed for
use at night.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
■ Headlight control sensor
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

204 2-3. Operating the lights and wipers
LC200_OM_OM60L83U_(U)
■Automatic light off system
●When the headlights are on: The headlights and tail lights turn off 30 sec-
onds after a door is opened and closed if the “ENGINE START STOP”
switch has been switched to ACCESSORY or OFF mode.
● When only the tail lights are on: The tail lights turn off automatically if the
“ENGINE START STOP” switch is switched to ACCESSORY or OFF
mode and driver’s door is opened.
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch off once and then back to the
or
position.
■ Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 700)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

205
2-3. Operating the lights and wipers
2
When driving
LC200_OM_OM60L83U_(U)

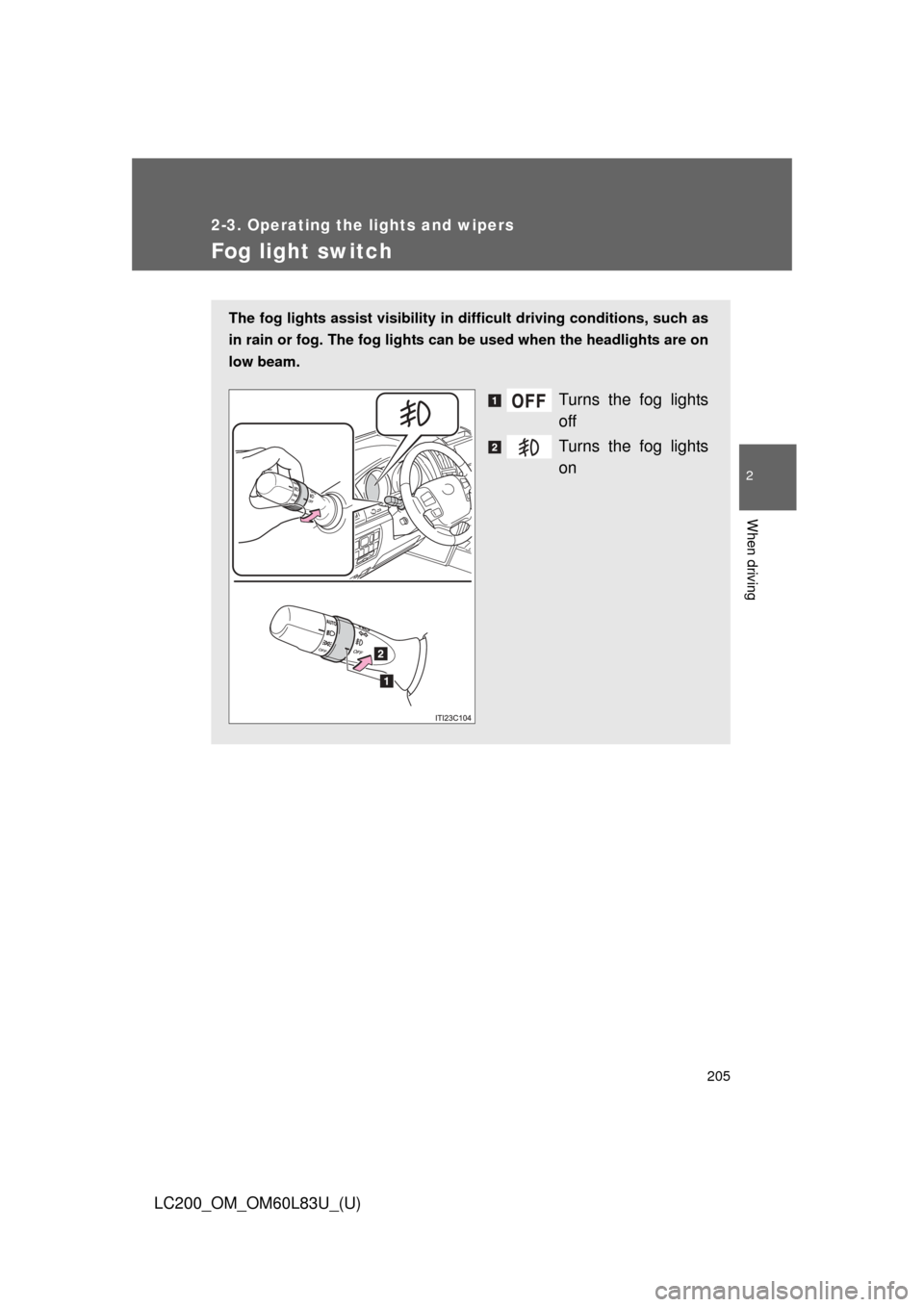

Fog light switch
The fog lights assist visibility in difficult driving conditions, such as
in rain or fog. The fog lights can be used when the headlights are on
low beam.
Turns the fog lights
off
Turns the fog lights
on

206
2-3. Operating the lights and wipers
LC200_OM_OM60L83U_(U)

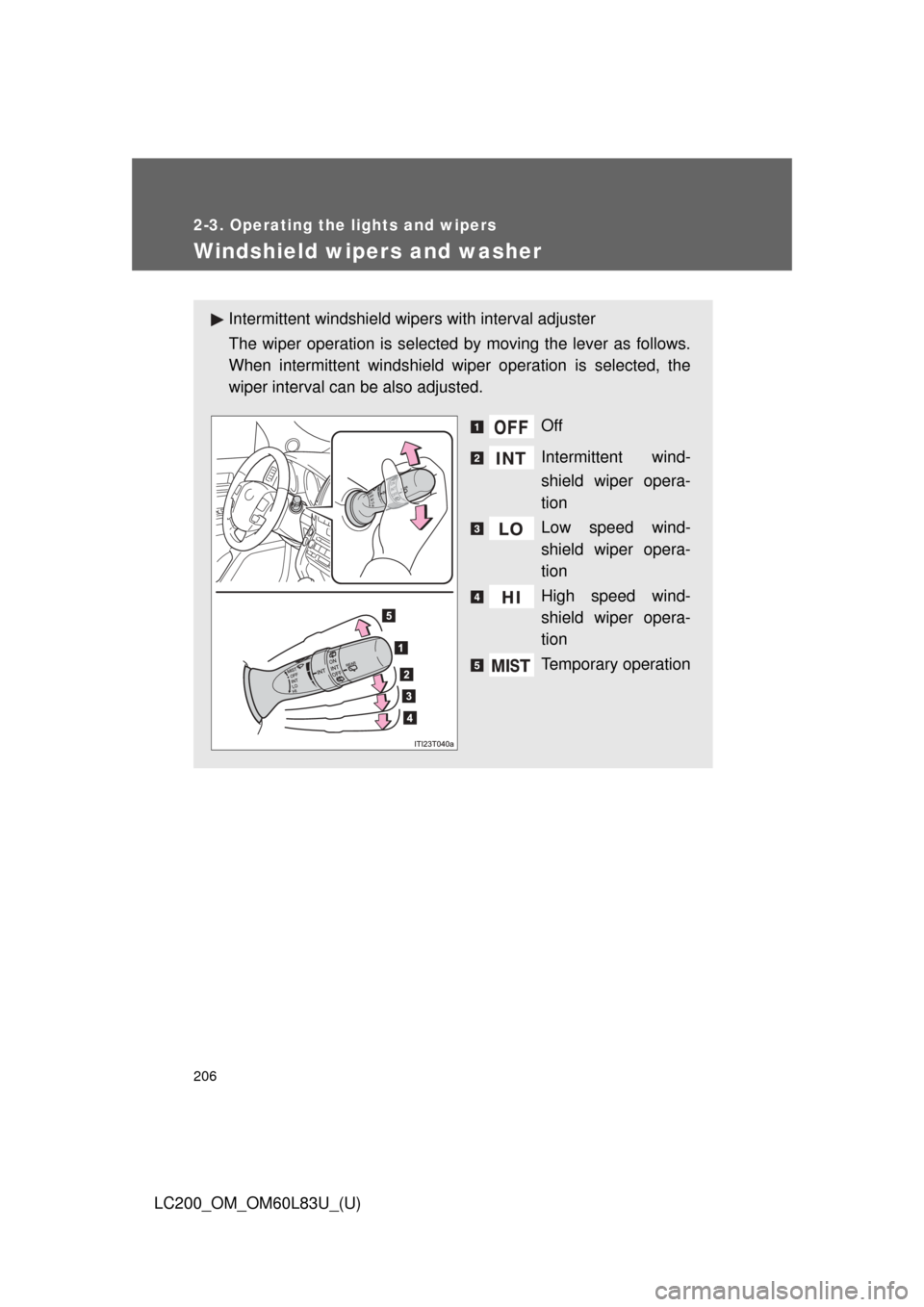

Windshield wipers and washer
Intermittent windshield wipers with interval adjuster
The wiper operation is selected by moving the lever as follows.
When intermittent windshield wiper operation is selected, the
wiper interval can be also adjusted.
Off
Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation

207
2-3. Operating the lights and wipers
2
When driving
LC200_OM_OM60L83U_(U)

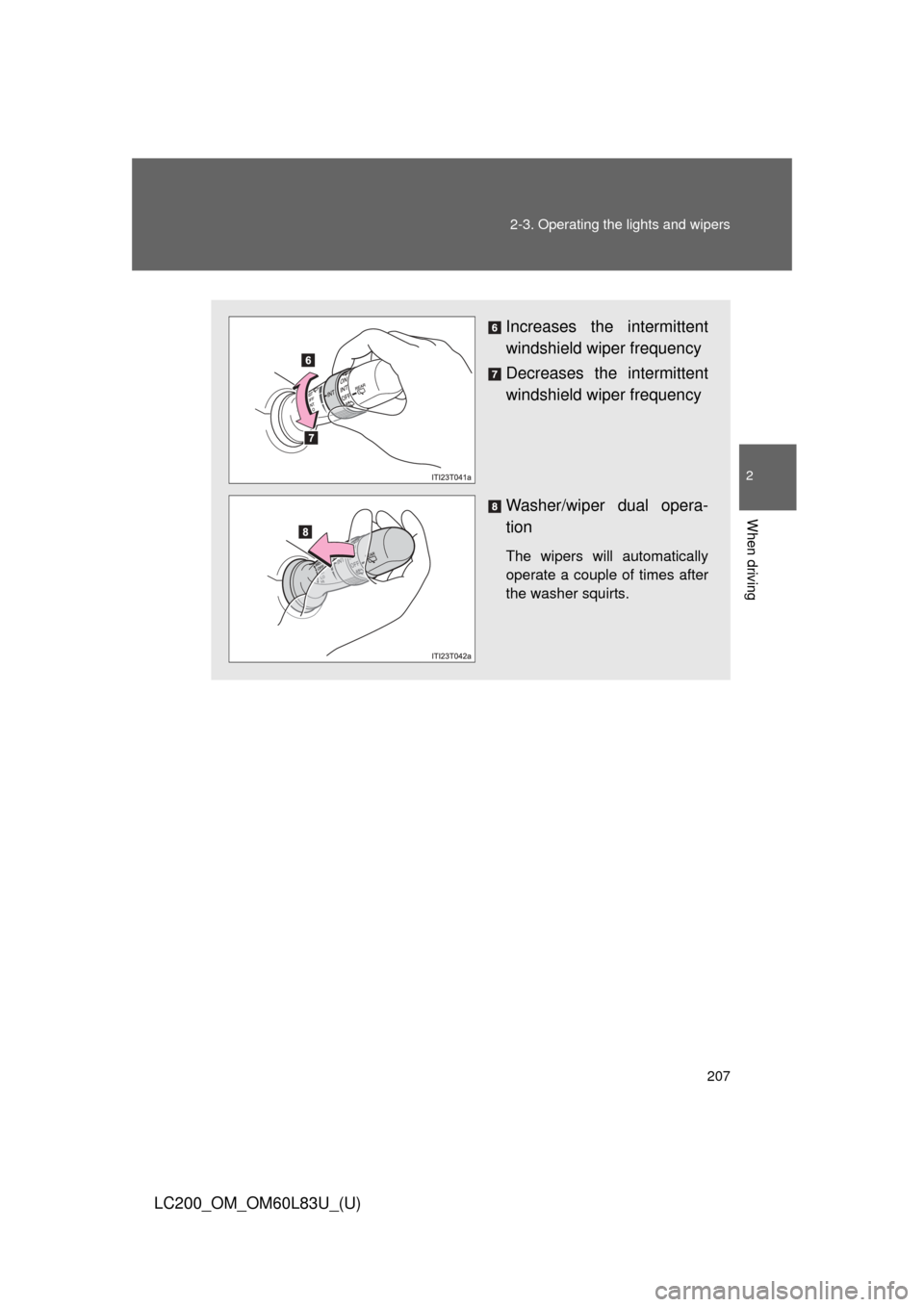

Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

208 2-3. Operating the lights and wipers
LC200_OM_OM60L83U_(U)
Rain-sensing windshield wipers
When “AUTO” is selected, the wipers will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume.
When “AUTO” is selected, the sensor sensitivity can be adjusted
as follows by turning the switch ring:
Off
Rain-sensing wiper
operation (“AUTO”)
Low speed wiper
operation
High speed wiper
operation
Temporary operation
