2015 TOYOTA LAND CRUISER Owners Manual

577
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)
48 ECU-B1
5 ASmart key system, overhead mod-
ule, tilt and telescopic steering,
meter, cool box, gateway ECU,
steering sensor
49 DOME1 10 A Illuminated entry system, clock
50 HEAD LH 15 A Headlight high beam (left)
51 HEAD LL 15 A Headlight low beam (left)
52 INJ 10 A Injector, ignition system
53 MET 5 A Meter
54 IGN 10 ACircuit open, SRS airbag system,
gateway ECU, smart key system,
ABS, VSC, steering lock system,
GBS
55 DRL 5 A Daytime running light
56 HEAD RH 15 A Headlight high beam (right)
57 HEAD RL 15 A Headlight low beam (right)
58 EFI NO.2 7.5 A Air injection system, air flow meter
59 RR A/C NO.2 7.5 A No circuit
60 DEF NO.2 5 A Outside rear view mirror defoggers
61 SPARE 5 A Spare fuse
62 SPARE 15 A Spare fuse
63 SPARE 30 A Spare fuse
FuseAmpereCircuit

578 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)■
Engine compartment (fuse box on the right side)
FuseAmpereCircuit
1HWD130 ANo circuit
2 TOW BRK 30 A Brake controller
3 RR P/SEAT 30 A No circuit
4 PWR HTR 7.5 A No circuit
5 DEICER 20 A Windshield wiper de-icer
6 A LT- C D S 1 0 A A LT- C D S
7 SECURITY 5 A SECURITY
8 SEAT A/C RH 25 A Seat heaters and ventilators
9 AI PMP HTR 10 A AI pump heater
10 TOW TAIL 30 A Towing tail light system
11 HWD2 30 A No circuit

579
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)
■
Driver’s side instrument panel
FuseAmpereCircuit
1CIG15 A Cigarette lighter
2BK/UP LP10 A Back-up lights, trailer
3ACC7.5 A Audio system, multi-display
assembly, main body ECU,
mirror ECU, rear seat enter-
tainment, smart key system,
clock
4PA N E L10 AFour-wheel drive system, ash-
tray, cigarette lighter, brake
controller, cool box, cruise con-
trol, center differential lock,
multi-display assembly, seat
heater, air conditioning system,
glove box light, emergency
flashers, audio system, head-
light cleaner switch, inverter,
driving position memory sys-
tem, outside rear view mirror
switches, overhead module,
roll sensing of curtain shield
airbags off switch, shift lever
switch, steering switches, VSC
OFF switch, console switch

580 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)
5ECU-IG NO.210 AAir conditioning system,
heater, overhead module,
ABS, VSC, steering sensor,
yaw rate & G sensor, main
body ECU, stoplights, moon
roof, clock, EC mirror
6WINCH5 A No circuit
7A/C IG10 A
Cool box, condenser fan,
cooler compressor, rear win-
dow and outside rear view mir-
ror defoggers, air conditioning
system
8TA I L15 A
Tail lights, license plate lights,
front fog lights, front side
marker lights, rear side marker
lights, parking lights
9WIPER30 A Windshield wiper
10WSH20 A Windshield washer
11RR WIPER15 A
Rear window wiper and
washer
124WD20 A 4WD
13LH-IG5 AAlternator, seat heater, wind-
shield wiper de-icer, front seat
belt, emergency flasher,
inverter, shift lever switch
14ECU-IG NO.15 AABS, VSC, tilt and telescopic
steering, gateway ECU, shift
lock system, cruise control sys-
tem, pre-collision seat belt,
headlight cleaner, multi-dis-
play assembly, driving position
memory system, power door
lock system
15S/ROOF25 A Moon roof
FuseAmpereCircuit

581
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)
16RR DOOR RH20 A Power windows
17MIR15 A
Mirror ECU, outside rear view
mirror defoggers
18RR DOOR LH20 A Power windows
19FR DOOR LH20 A Power windows
20FR DOOR RH20 A Power windows
21RR FOG7.5 A No circuit
22A/C7.5 A Air conditioning system
23AM15 A No circuit
24TI & TE15 A Tilt and telescopic steering
25FR P/SEAT RH30 A Power seat
26PWR OUTLET15 A Power outlet
27OBD7.5 A On-Board diagnosis
28PSB30 A Pre-collision seat belt
29DR/LCK25 A Main body ECU
30FR P/SEAT LH30 A Power seat
31INVERTER15 A Inverter
FuseAmpereCircuit

582 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)■
Passenger’s side instrument panel
FuseAmpereCircuit
1RSF LH30 A No circuit
2B/DR CLSR RH30 A No circuit
3B/DR CLSR LH30 A No circuit
4RSF RH30 A No circuit
5DOOR DL15 A No circuit
6AHC-B20 A No circuit
7TEL5 A Multimedia
8TOW BK/UP7.5 A Towing
9AHC-B NO.210 A No circuit
10ECU-IG NO.45 A Tire pressure warning system
11SEAT-A/C FAN10 A Ventilators
12SEAT-HTR20 A Seat heater
13AFS5 A No circuit
14ECU-IG NO.35 A Cruise control system
15STRG HTR10 A Heated steering system
16TV10 A Multi-display assembly

583
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)
■
After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 586)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer.

584
4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)

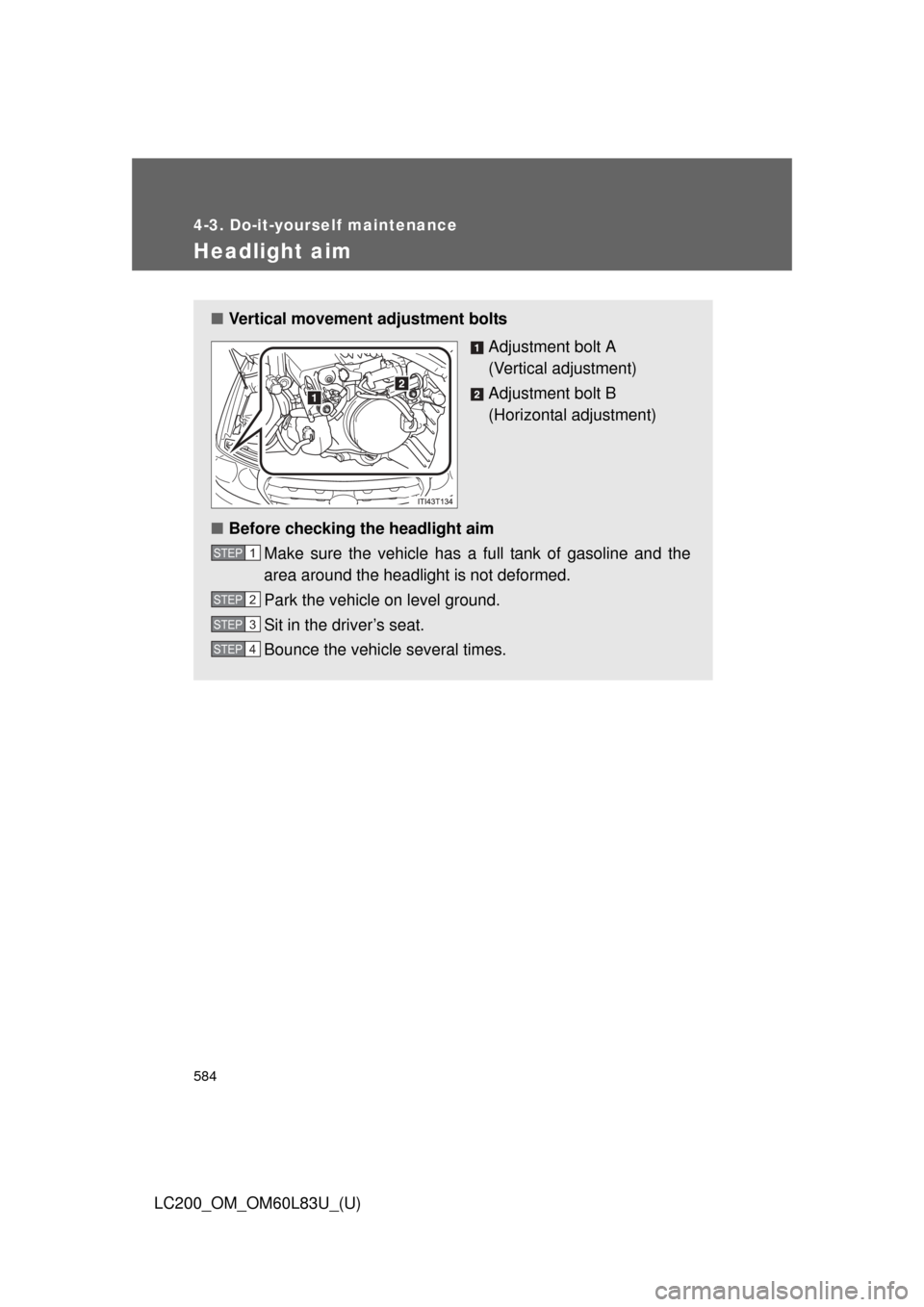

Headlight aim
■Vertical movement adjustment bolts
Adjustment bolt A
(Vertical adjustment)
Adjustment bolt B
(Horizontal adjustment)
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gasoline and the
area around the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
STEP1
STEP2
STEP3
STEP4
