2015 TOYOTA LAND CRUISER Owners Manual

705
6-2. Customization
6
Vehicle specifications
LC200_OM_OM60L83U_(U)
ItemFunctionDefault
settingCustomized setting
Illumination
(P. 466) Time period
before the interior
lights turn off
15 secondsOff
O—O
7.5 seconds
30 seconds
Operation after
the “ENGINE
START STOP”
switch is turned
off On
Off — — O
Operation when
the doors are
unlocked On
Off — — O
Operation when
you approach the
vehicle with the
electronic key on
your person
(When the inte-
rior light switch is
door position) On
Off — — O
Sensitivity of the
ambient light sen-
sor used for dim-
ming the meter
lights etc. Standard -2 to 2 — — O
Sensitivity of the
ambient light sen-
sor used for
brightening the
meter lights etc. Standard -2 to 2 — — O

706 6-2. Customization
LC200_OM_OM60L83U_(U)
Automatic
light control
system
(P. 200) Light sensor sen-
sitivity
Standard -2 to 2 O — O
Daytime running
light system On
Off O — O
Time elapsed
before head-
lights automati-
cally turn off after
doors are closed 30 seconds
Off
O—O
60 seconds
90 seconds
Intuitive
parking
assist
( P. 233) Detection dis-
tance of the rear
center sensor
Far
Near O — O
Alert Volume
(alert volume can
be adjusted) 3
1 to 5 O — O
Display setting
(when intuitive
parking assist is
operating) All sensors
displayed Display off O — O
Automatic
air
conditioning
system
( P. 340) A/C Auto switch
operation
Auto Manual O — O
Eco Driving
Indicator
Light
( P. 160) Eco Driving
Indicator Light
On
Off — O O
ItemFunctionDefault
settingCustomized setting

707
6-2. Customization
6
Vehicle specifications
LC200_OM_OM60L83U_(U)
*1: The settings can be changed when the mechanical key linked operation of
the power window is set to ON.
*2: The settings can be changed when the wireless remote control linked oper-ation of the power window is set to ON.
*3: The settings can be changed when the entry function linked operation of thepower window is set to ON.
■ Vehicle customization
●If the smart key system is turned “OFF”, unlock door cannot be selected.
● If the doors are not opened after unlocking and are then automatically re-
locked, a signal will be given if “Operation signal (Emergency flashers)”
or “Operation signal (Buzzer)” are set to ON.
■ When setting using the vehicle switches (vehicles with navigation sys-
tem)
When using the vehicle switches to set an item that can also be set using the
touch screen, the item displayed on the touch screen will not change imme-
diately.
If the “ENGINE START STOP” switch is first turned to OFF, the screen dis-
play will change once the “ENGINE START STOP” switch is turned to IGNI-
TION ON mode again.
■ When customizing using the touch screen (vehicles with navigation
system)
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to “P”. Also, to prevent battery discharge, leave the engine running
while customizing the features.

708 6-2. Customization
LC200_OM_OM60L83U_(U)
Multi-information display (P. 193)
CAUTION
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health haz-
ard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
Available languagesEnglish (U.S.A.), Spanish

709
6
Vehicle specifications
LC200_OM_OM60L83U_(U)
6-3. Initialization
Items to initialize
*: If equipped
ItemWhen to initializeReference
Message indicating
maintenance is
required After the maintenance is performed P. 523
Tire pressure warn-
ing system• When rotating the tires on vehi-
cles differing with front and rear
tire inflation pressures.
• When changing the tire inflation pressure by changing traveling
speed or load weight, etc.
• When changing the tire size. P. 5 4 9
Multi-terrain Monitor*After reconnecting or changing the
battery
P. 282
The following items must be init
ialized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

710 6-3. Initialization
LC200_OM_OM60L83U_(U)

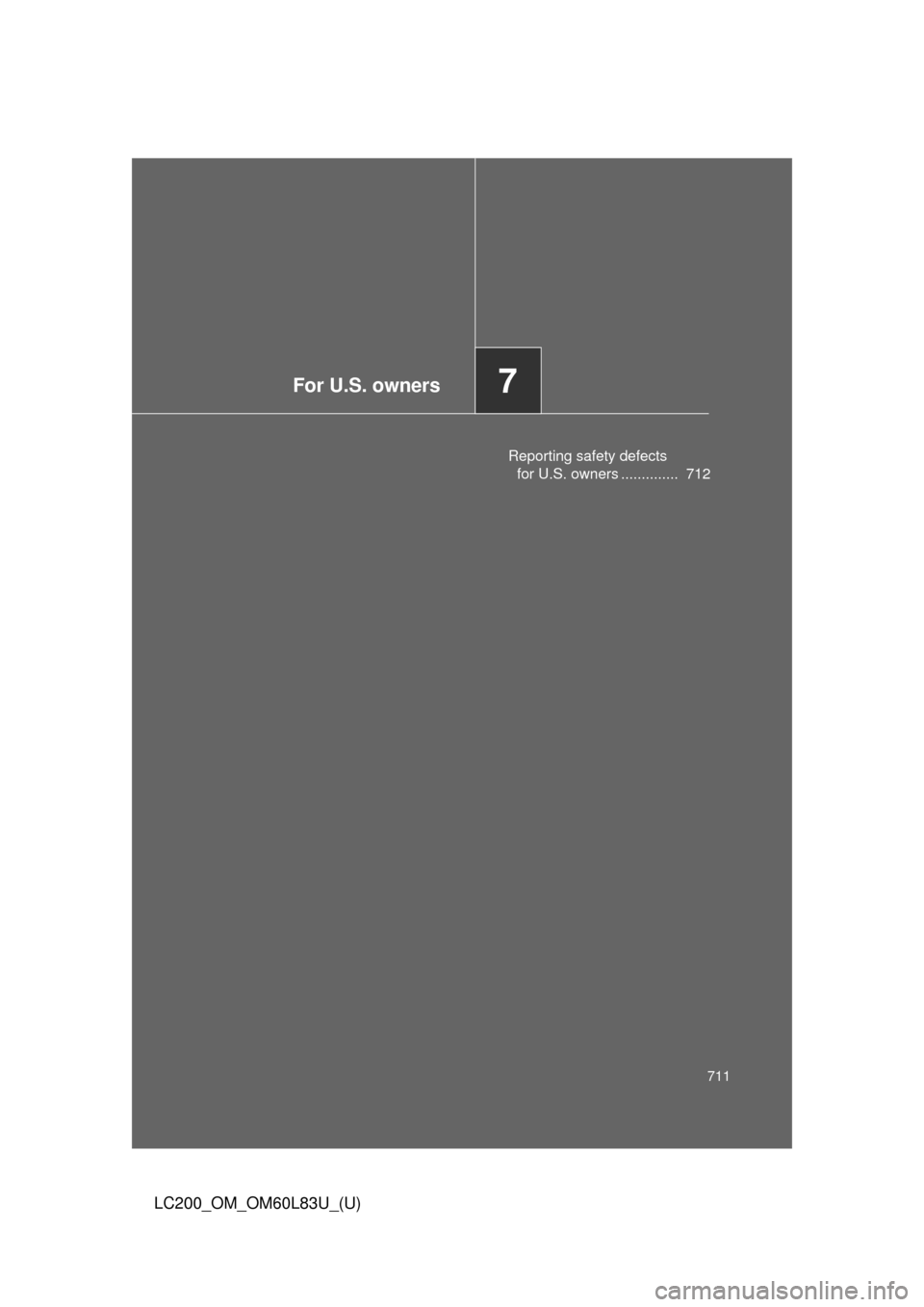

For U.S. owners7
711
LC200_OM_OM60L83U_(U)
Reporting safety defects for U.S. owners .............. 712

712
LC200_OM_OM60L83U_(U)

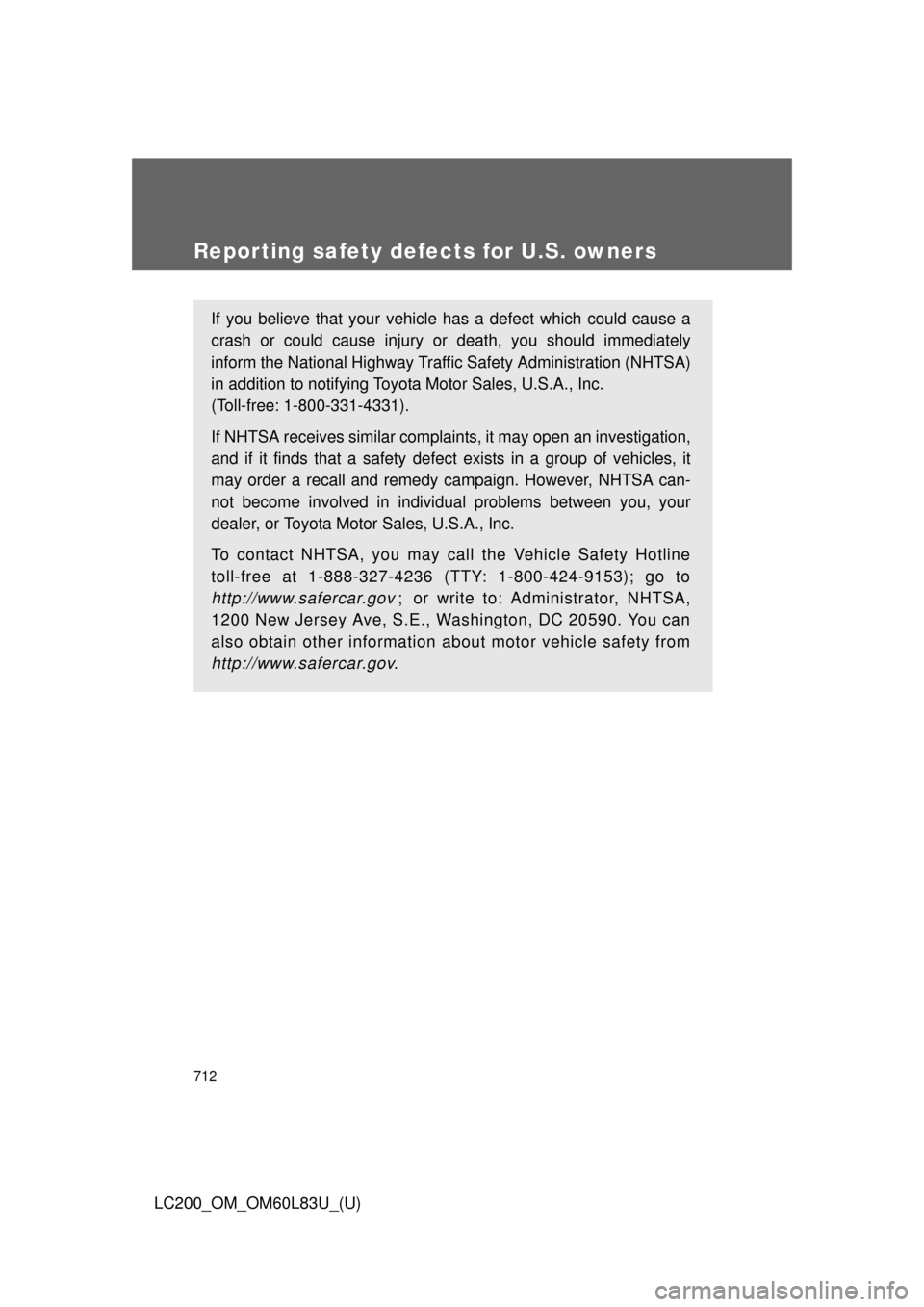

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov .
