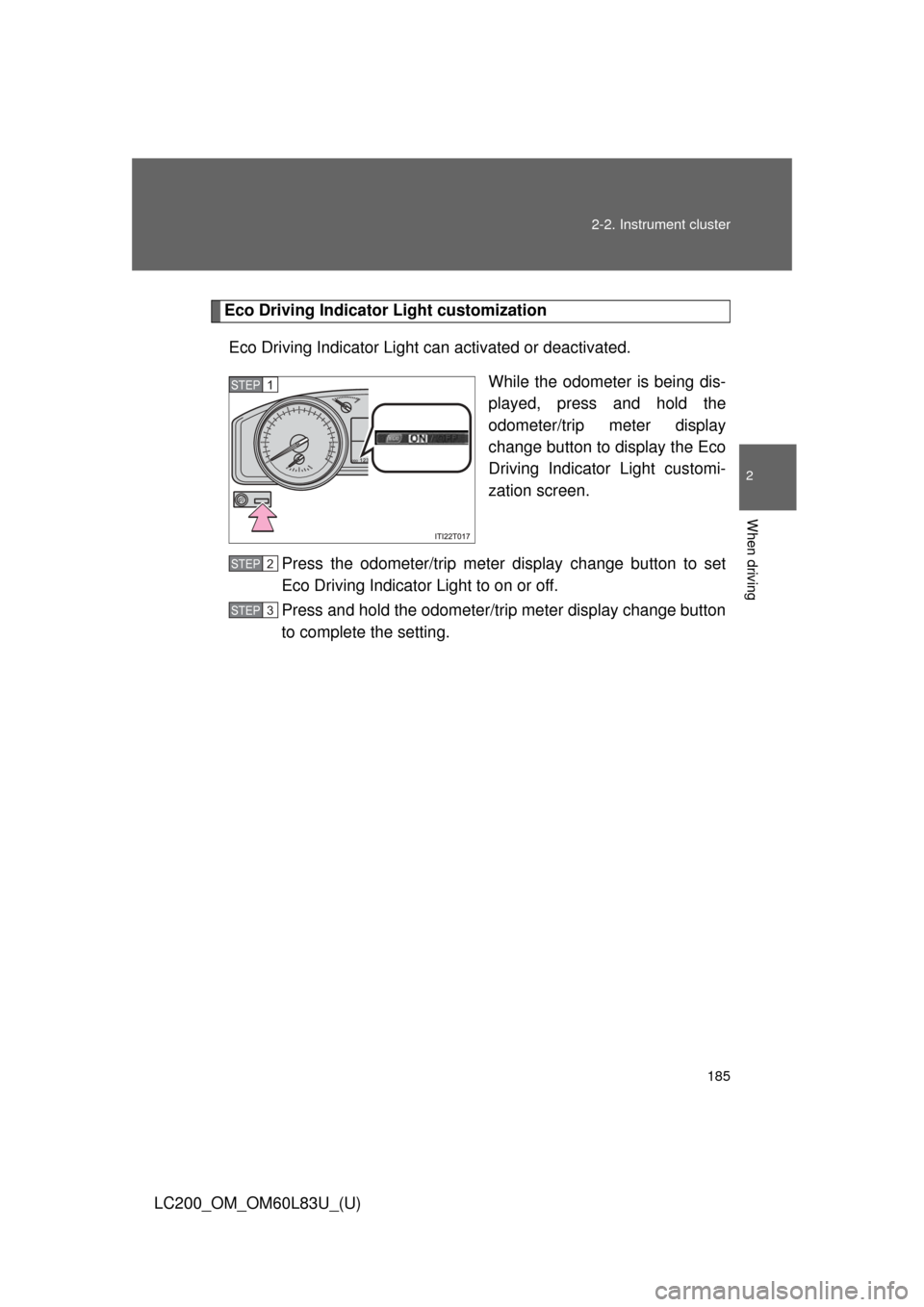

Eco Driving Indicator Light customization
Eco Driving Indicator Light ca n activated or deactivated.
While the odometer is being dis-
played, press and hold the
odometer/trip meter display
change button to display the Eco
Driving Indicator Light customi-
zation screen.
Press the odometer/trip meter display change button to set
Eco Driving Indicator Light to on or off.
Press and hold the odometer/trip meter display change button
to complete the setting.
STEP1
STEP2
STEP3

186 2-2. Instrument cluster
LC200_OM_OM60L83U_(U)
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ The brightness of the instrument panel lights
When the tail lights are turned on, the meter’s brightness will be reduced
slightly unless the meter brightness level adjustment is set to the brightest
setting.
If the tail lights are turned on when the surroundings are dark, the meter’s
brightness will reduce slightly. However, when the surroundings are bright,
such as during the daytime, the meter’s brightness will not be reduced even
if the tail lights are turned on.

187
2-2. Instrument cluster
2
When driving
LC200_OM_OM60L83U_(U)
NOTICE
■
To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (“H”). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 665)
■ Vo l t m e t e r
When the voltmeter indicates 19 V or higher or 9 V or lower while the engine
is running, there may be a battery or charging system malfunction. Have the
vehicle inspected at your Toyota dealer.
■ Engine oil pressure gauge
When the value of the engine oil pressure gauge drops while the engine is
running, stop the vehicle in a safe place immediately and check the amount
of engine oil. ( P. 535)
When the oil pressure drops even though the engine oil amount has not
decreased, or if the oil pressure does not increase when engine oil is added,
contact your Toyota dealer, as there may be a problem with the lubrication
system.

188
2-2. Instrument cluster
LC200_OM_OM60L83U_(U)
Indicators and warning lights
The indicators and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the fo llowing illustration displays all
indicators and warning lights illuminated.
Instrument cluster

189
2-2. Instrument cluster
2
When driving
LC200_OM_OM60L83U_(U)

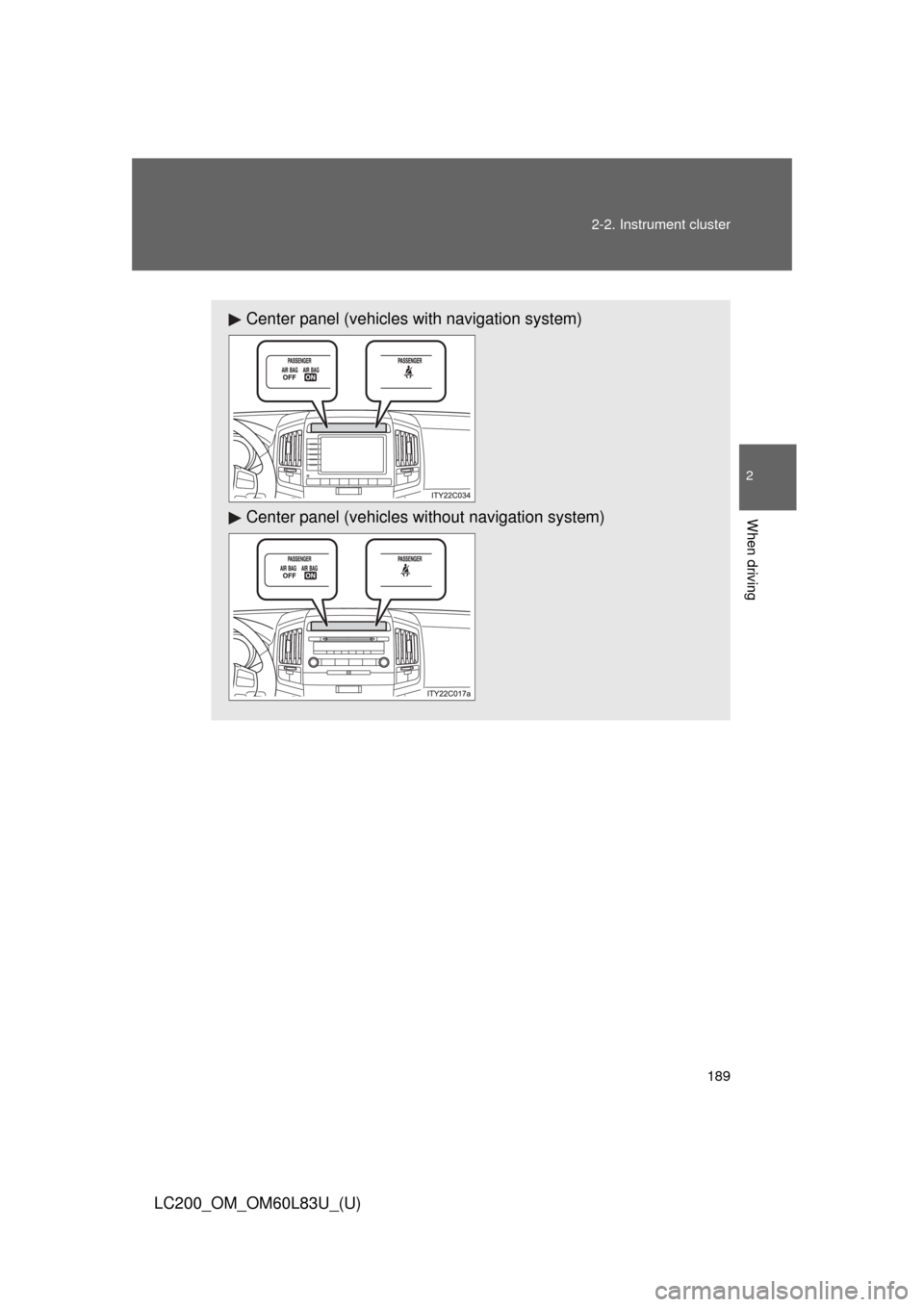

Center panel (vehicles with navigation system)
Center panel (vehicles without navigat
ion system)

190 2-2. Instrument cluster
LC200_OM_OM60L83U_(U)

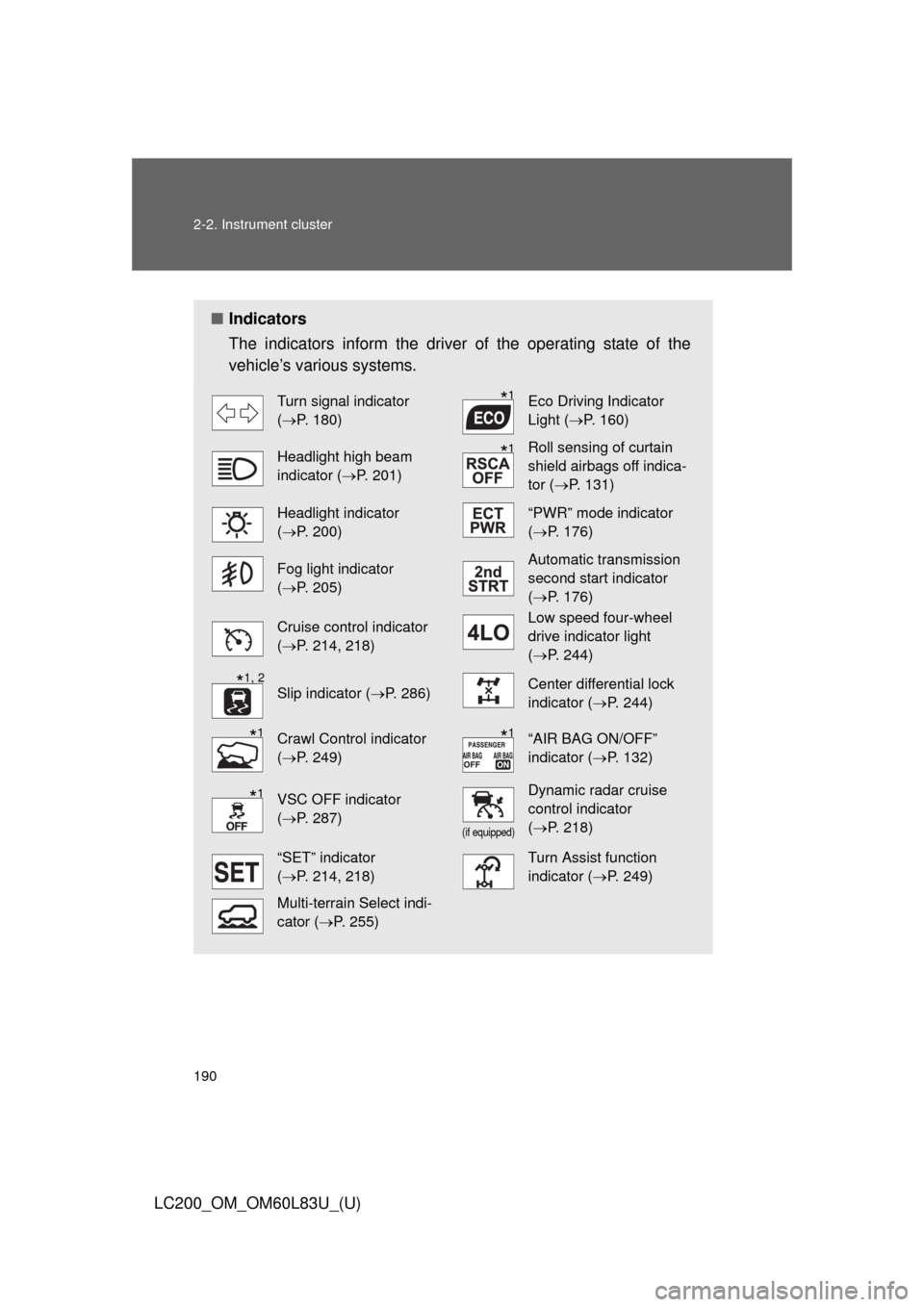

■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 180)Eco Driving Indicator
Light ( P. 160)
Headlight high beam
indicator ( P. 201)Roll sensing of curtain
shield airbags off indica-
tor (P. 131)
Headlight indicator
(P. 200)“PWR” mode indicator
(P. 176)
Fog light indicator
(P. 205) Automatic transmission
second start indicator
(P. 176)
Cruise control indicator
(P. 214, 218)Low speed four-wheel
drive indicator light
(P. 244)
Slip indicator ( P. 286)Center differential lock
indicator (P. 244)
Crawl Control indicator
(P. 249) “AIR BAG ON/OFF”
indicator (P. 132)
VSC OFF indicator
(P. 287)
(if equipped)
Dynamic radar cruise
control indicator
(P. 218)
“SET” indicator
(P. 214, 218)Turn Assist function
indicator (P. 249)
Multi-terrain Select indi-
cator ( P. 255)
*1
*1
*1, 2
*1*1
*1

191
2-2. Instrument cluster
2
When driving
LC200_OM_OM60L83U_(U)
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by
your Toyota dealer.
*2: The light flashes to indicate that the system is operating.

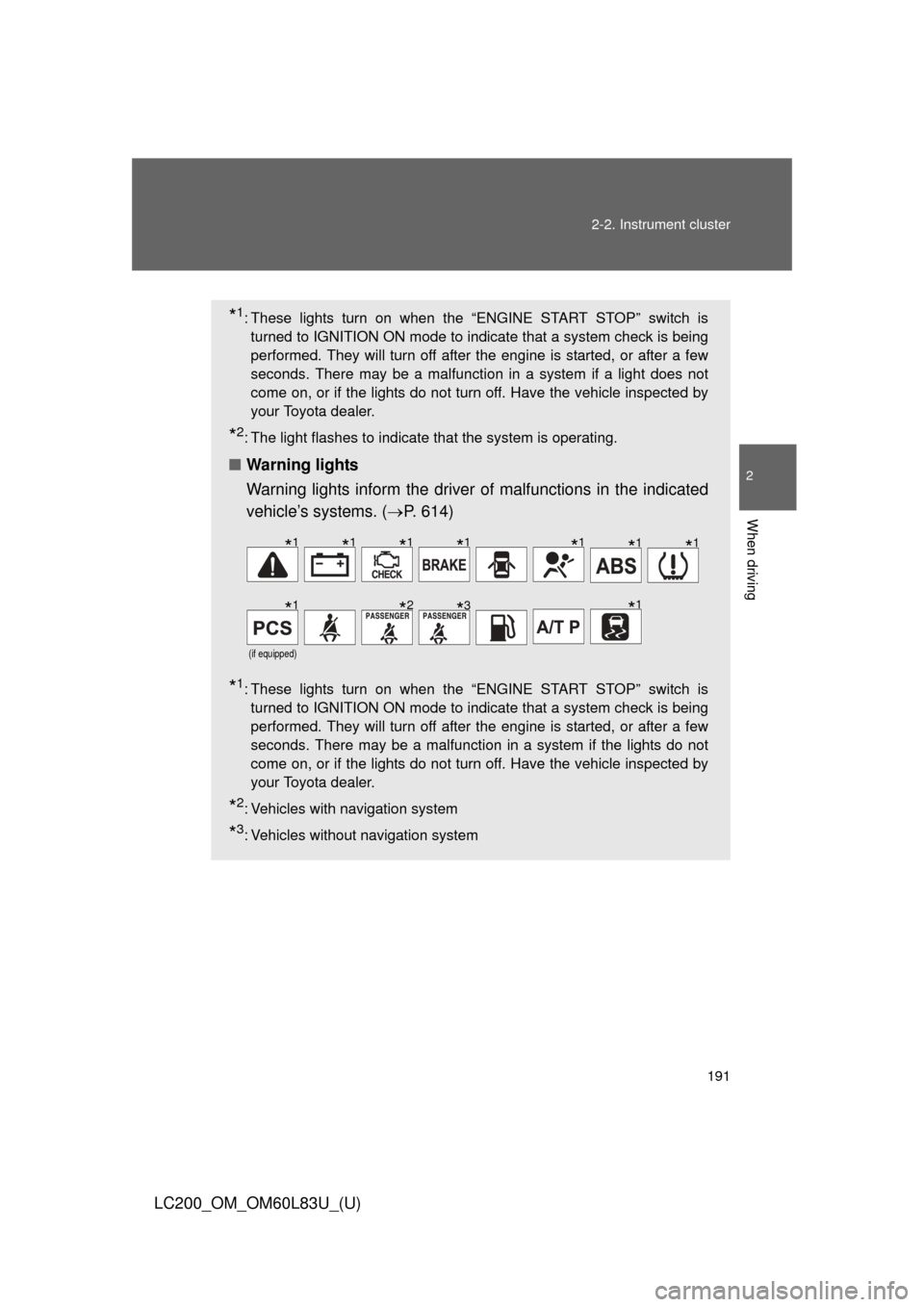

■ Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( P. 614)
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if the lights do not
come on, or if the lights do not turn off. Have the vehicle inspected by
your Toyota dealer.
*2: Vehicles with navigation system
*3: Vehicles without navigation system
(if equipped)
*1*1*1*1*1*1*1
*1*2*3*1

192 2-2. Instrument cluster
LC200_OM_OM60L83U_(U)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as Multi Terrain ABS and the SRS airbag
warning lights not come on when you start the engine, this could mean that
these systems are not available to help protect you in an accident, which
could result in death or serious injury. Have the vehicle inspected by your
Toyota dealer immediately if this occurs.
