Intuitive parking assist
The distance from your vehicle to nearby obstacles when parallel
parking or maneuvering into a garage is measured by the sensors
and communicated via the multi-in formation display, touch screen
and a buzzer. Always check the surrounding area when using this
system.

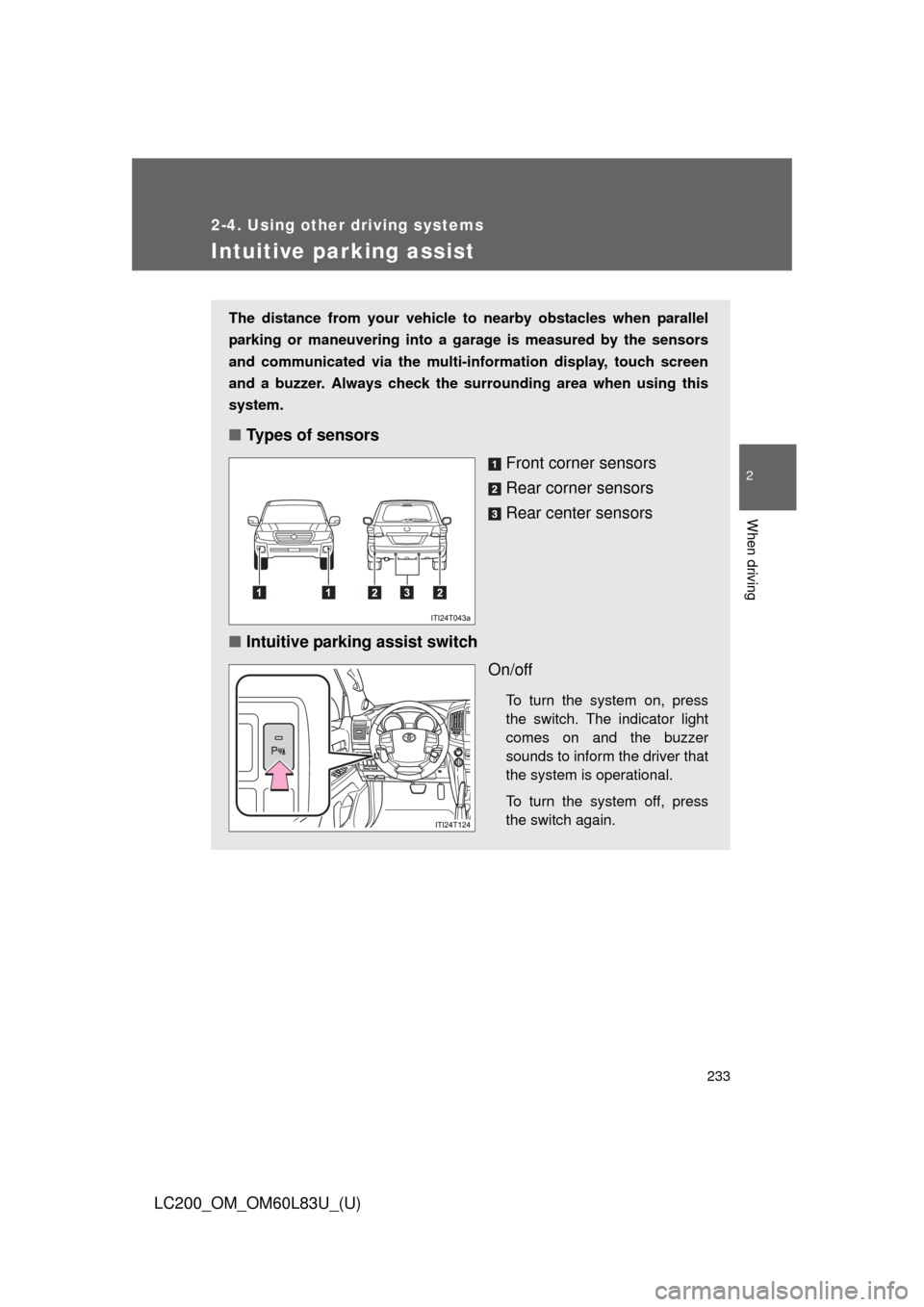

■ Types of sensors
Front corner sensors
Rear corner sensors
Rear center sensors
■ Intuitive parking assist switch
On/off
To turn the system on, press
the switch. The indicator light
comes on and the buzzer
sounds to inform the driver that
the system is operational.
To turn the system off, press
the switch again.

234 2-4. Using other driving systems
LC200_OM_OM60L83U_(U)
DisplayWhen the sensors detect an obstacle, a graphic is shown on the
multi-information display and touch screen depending on the position
and distance to the obstacle.
■ Multi-information display
Front corner sensor detection
Rear corner sensor detection
Rear center sensor detection
■ Touch screen (vehicles with a navigation system)
When the rear view monitor,
Toyota parking assist monitor
or Multi-terrain Monitor is not
displayed
The graphic is automatically dis-
played when an obstacle is
detected. The screen can be set
so that the graphic is not dis-
played. (P. 239)
When the rear view monitor,
Toyota parking assist monitor
or Multi-terrain Monitor is dis-
played (insert display)
A simplified image is displayed on
the right upper corner of the touch
screen when an obstacle is
detected.

235
2-4. Using other
driving systems
2
When driving
LC200_OM_OM60L83U_(U)
Sensor detection display, obstacle distance
■ Corner sensors
Approximate
distance to obstacleMulti-
information displayTouch screen
Insert display
Front:
1.6 ft. (50 cm) to
1.2 ft. (37.5 cm)
Rear:
2.0 ft. (60 cm) to
1.5 ft. (45 cm) (continuous)(continuous) (blinking)
Front:
1.2 ft. (37.5 cm) to
0.8 ft. (25 cm)
Rear:
1.5 ft. (45 cm) to
1.0 ft. (30 cm) (continuous)(continuous) (blinking
rapidly)
Front:
Less than 0.8 ft.
(25 cm)
Rear:
Less than 1.0 ft.
(30 cm) (blinking)(continuous) (continuous)

236 2-4. Using other driving systems
LC200_OM_OM60L83U_(U)■
Rear center sensors

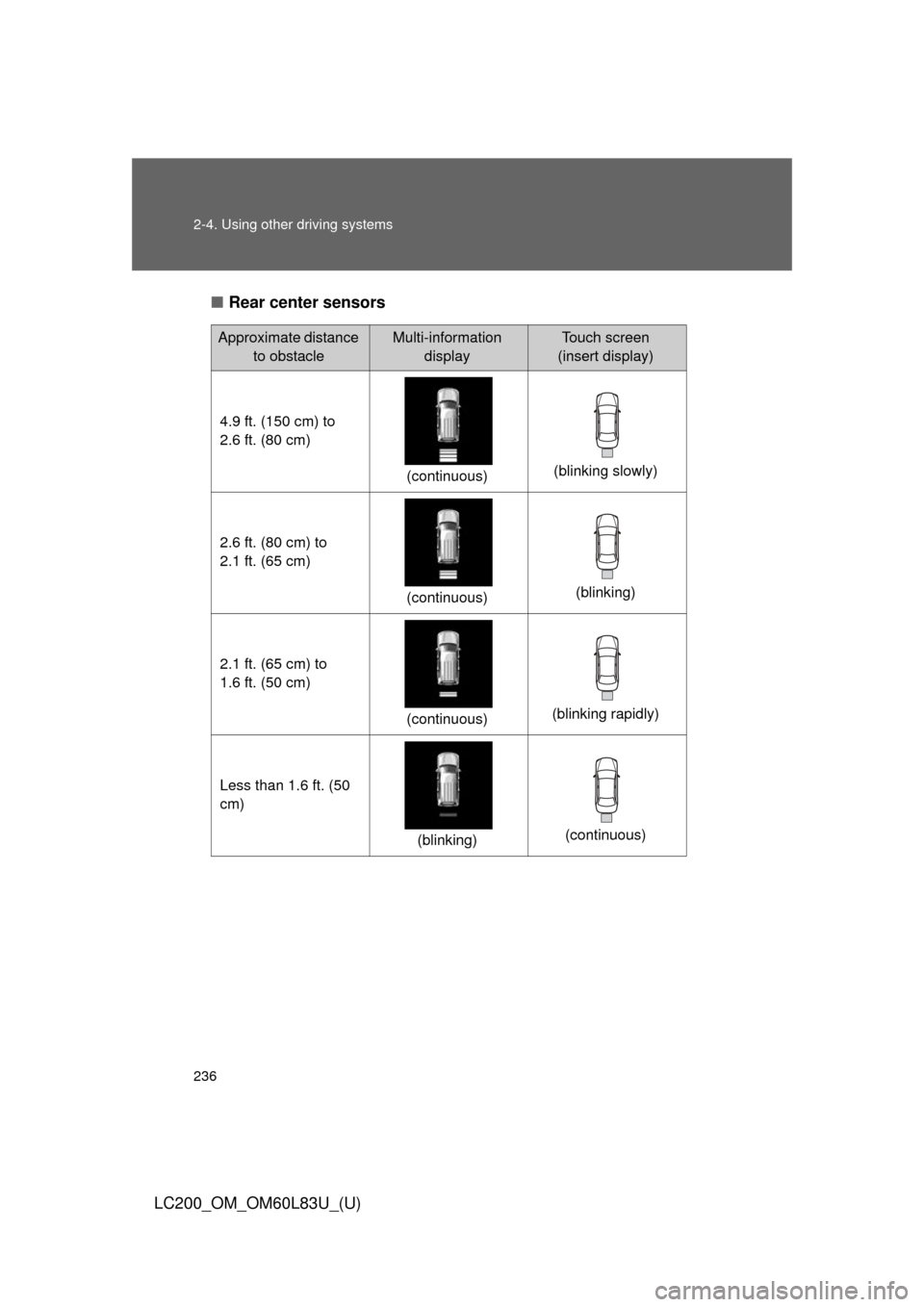

Approximate distance
to obstacleMulti-information displayTouch screen
(insert display)
4.9 ft. (150 cm) to
2.6 ft. (80 cm) (continuous)(blinking slowly)
2.6 ft. (80 cm) to
2.1 ft. (65 cm) (continuous)(blinking)
2.1 ft. (65 cm) to
1.6 ft. (50 cm) (continuous)(blinking rapidly)
Less than 1.6 ft. (50
cm) (blinking)(continuous)

237
2-4. Using other
driving systems
2
When driving
LC200_OM_OM60L83U_(U)■
Buzzer operation and distance to an obstacle
A buzzer sounds when the corner sensors and rear center sensors
are operating.
● The buzzer beeps faster as th e vehicle approaches an obstacle.
When the vehicle comes within the following distance of the obsta-
cle, the buzzer soun ds continuously:
• Front corner sensors: Approximately 0.8 ft. (25 cm)
• Rear corner sensors: Approximately 1.0 ft. (30 cm)
• Rear center sensors: Approximately 1.6 ft. (50 cm)
● When 2 or more obstacles are detected simultaneously, the beep
system responds to the nearest obstacle. If one or both come
within the above distances, the bee p will repeat a long tone, fol-
lowed by fast beeps.
● You can change the volume of the warning beeps. ( P. 239)

238 2-4. Using other driving systems
LC200_OM_OM60L83U_(U)

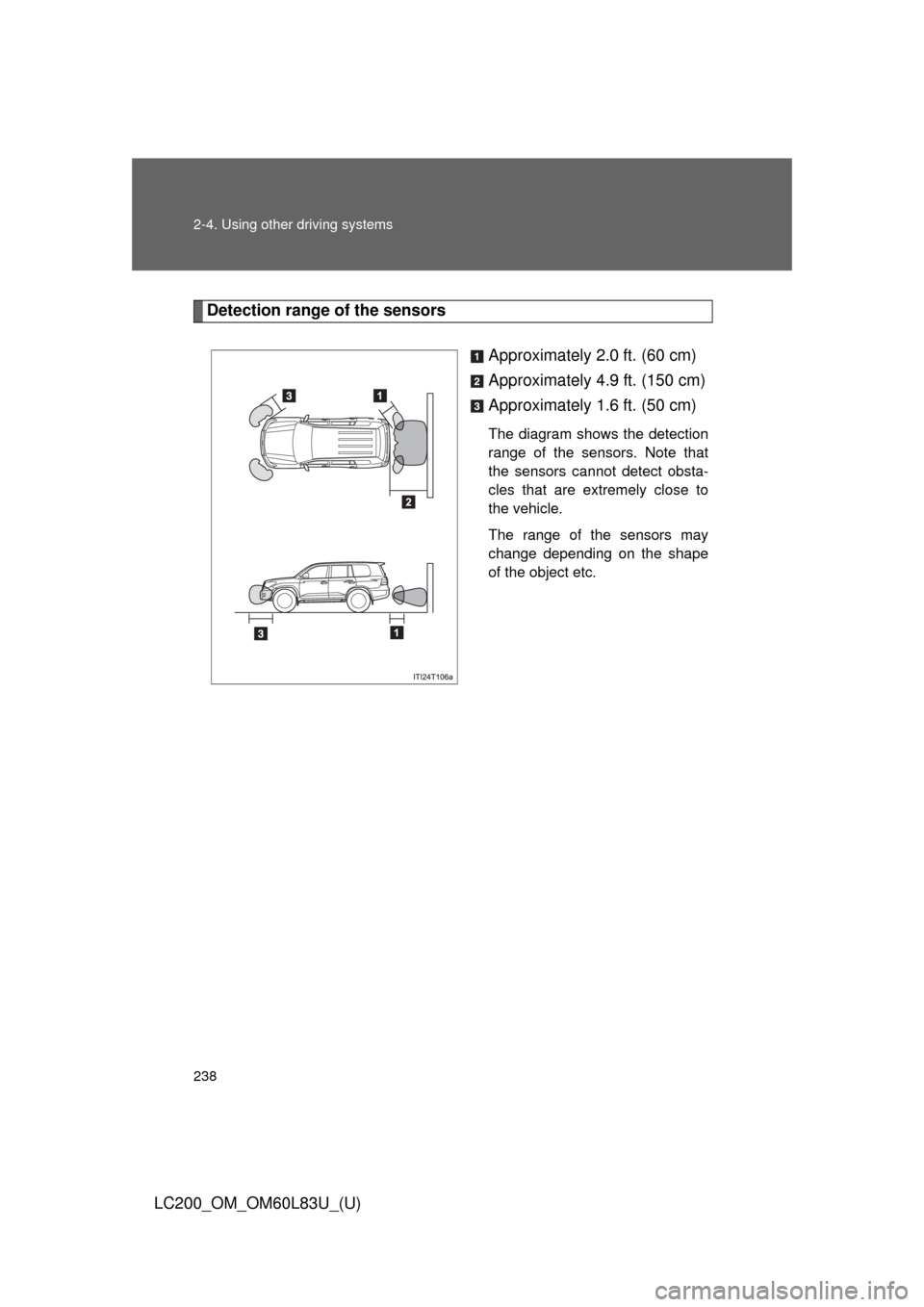

Detection range of the sensorsApproximately 2.0 ft. (60 cm)
Approximately 4.9 ft. (150 cm)
Approximately 1.6 ft. (50 cm)
The diagram shows the detection
range of the sensors. Note that
the sensors cannot detect obsta-
cles that are extremely close to
the vehicle.
The range of the sensors may
change depending on the shape
of the object etc.

239
2-4. Using other
driving systems
2
When driving
LC200_OM_OM60L83U_(U)
Setting up intuitive park ing assist (vehicles with a navigation
system)
You can change the warning beep volume and touch screen operat-
ing conditions. Press the “SETUP” button.
Touch “Vehicle” on the “Setup” screen.
Touch “Toyota Park Assist” on the “Vehicle Settings” screen.

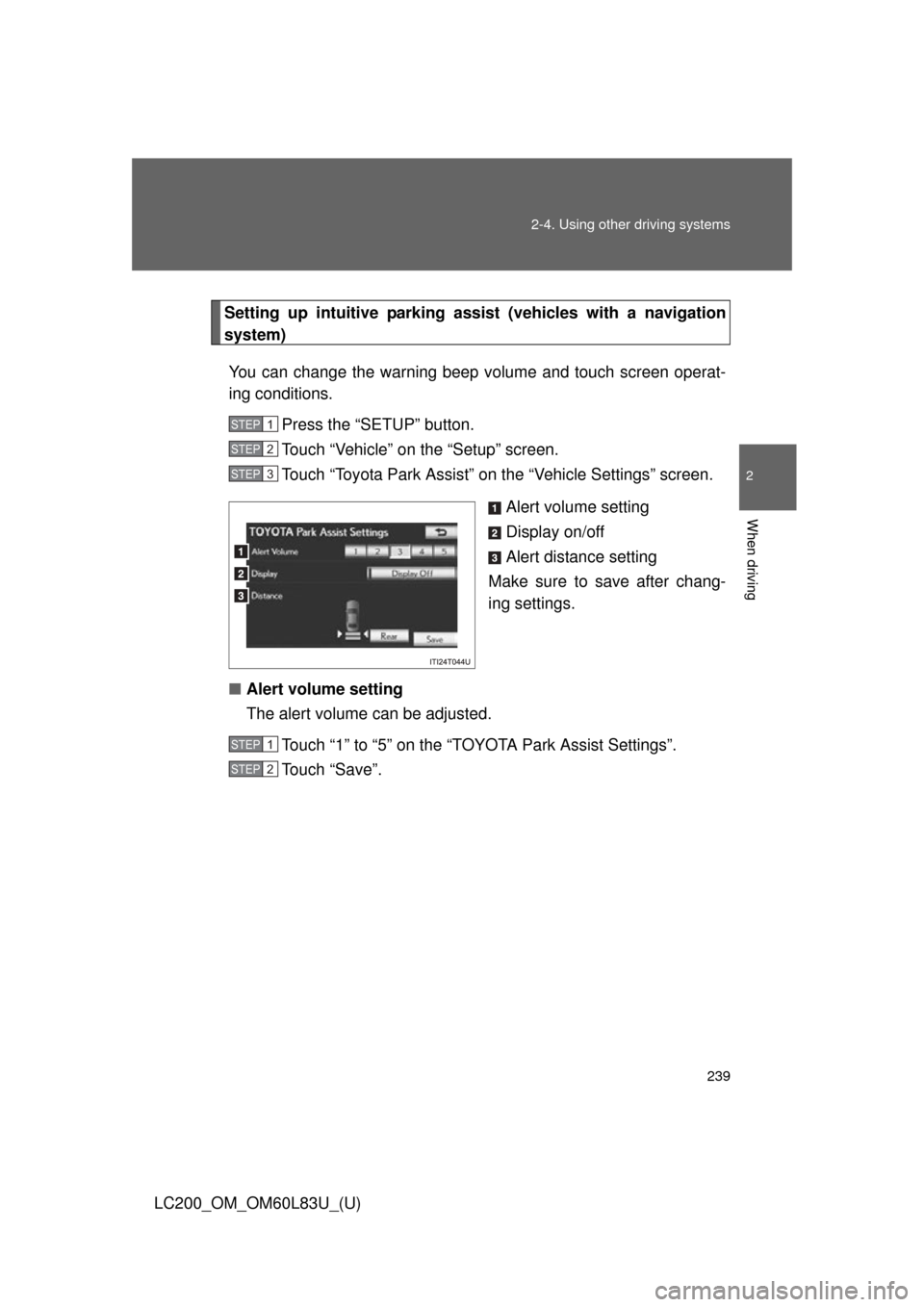

Alert volume setting
Display on/off
Alert distance setting
Make sure to save after chang-
ing settings.
■ Alert volume setting
The alert volume can be adjusted.
Touch “1” to “5” on the “TOYOTA Park Assist Settings”.
Touch “Save”.
STEP1
STEP2
STEP3
STEP1
STEP2

240 2-4. Using other driving systems
LC200_OM_OM60L83U_(U)■
Display on/off setting
On or off can be selected for intuitive parking assist display.
Touch “Display Off”.
When the “Display Off” indicator is turned on, the display of intuitive
parking assist will be off. Touch “Display Off” again to turn the display
of intuitive parking assist on.
Touch “Save”.
■ Alert distance setting
Front or rear center sensors display and tone indication can be set.
Touch “Rear”.
Long distance or short distance can be selected.
Touch “Save”.
■The intuitive parking assist can be operated when
●Front corner sensors:
• The “ENGINE START STOP” switch is in IGNITION ON mode.
• The shift lever is in a position other than “P”.
• The vehicle speed is less than approximately 6 mph (10 km/h).
● Rear corner and rear center sensors:
• The “ENGINE START STOP” switch is in IGNITION ON mode.
• The shift lever is in “R”.
■ Intuitive parking assist display
When an obstacle is detected while the rear view monitor system, Toyota
parking assist monitor or Multi-terrain Monitor is in use, the warning indicator
will appear in the top right of the screen even if the display setting has been
set to off.
STEP1
STEP2
STEP1
STEP2
