2015 TOYOTA LAND CRUISER Owners Manual

49
1-2. Opening, closing and locking the doors
1
Before driving
LC200_OM_OM60L83U_(U)
Automatic door locking and unl
ocking systems (if equipped)
The following functions can be set or canceled:
■ Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below:
Close all the doors and turn the “ENGINE START STOP”
switch to IGNITION ON mode. (Perform within 20 sec-
onds.)
Shift the shift lever to “P” or “N”,
press and hold the driver’s door
lock switch (
or ) for
5 seconds then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown as follows.
Use the same procedure to can-
cel the function.
FunctionOperation
Shift position linked
door locking function Shifting the shift lever out of “P” locks all
doors.
Shift position linked
door unlocking function Shifting the shift lever to “P” unlocks all
doors.
Speed linked door lock-
ing function All doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking function All doors are unlocked when the driver’s door
is opened within 45 seconds after turning the
“ENGINE START STOP” switch OFF.
STEP1
STEP2
STEP2

50 1-2. Opening, closing and locking the doors
LC200_OM_OM60L83U_(U)When the setting or canceling operation is complete, all doors are
locked and then unlocked.
FunctionShift lever
positionDriver’s door lock switch position
Shift position linked door lock-
ing function “P”
Shift position linked door
unlocking function
Speed linked door locking func-
tion “N”
Driver’s door linked door unlock-
ing function
■ Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked.
Depending on the force of the impact or the type of accident, however, the
system may not operate.
■ Using the mechanical key
The doors can also be locked and unlocked with the mechanical key.
(P. 659)
■ Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 700)

51
1-2. Opening, closing and locking the doors
1
Before driving
LC200_OM_OM60L83U_(U)
CAUTION
■
To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
● Always lock all doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful of the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seat.

52
1-2. Opening, closing and locking the doors
LC200_OM_OM60L83U_(U)

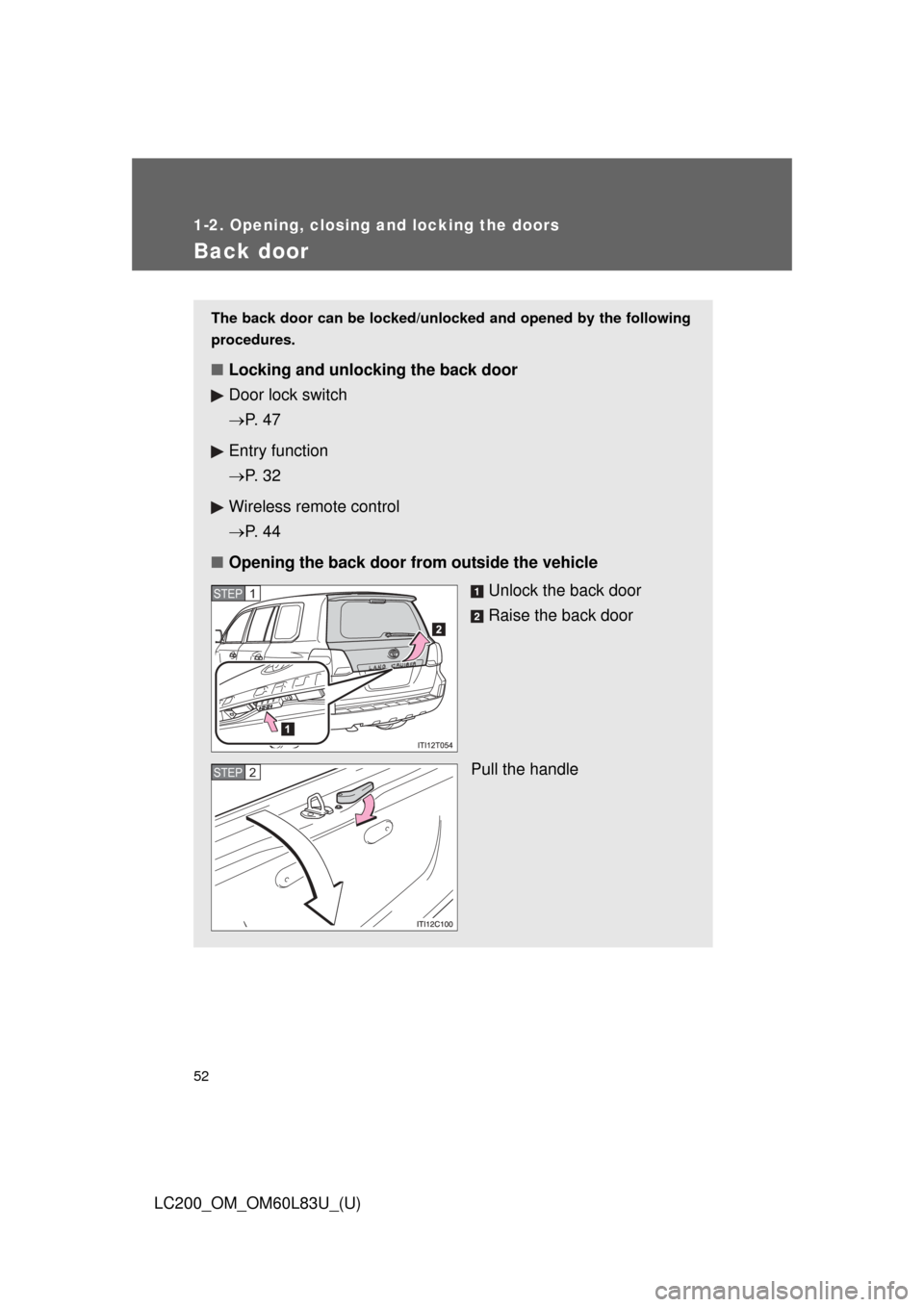

Back door
The back door can be locked/unlocked and opened by the following
procedures.
■ Locking and unlocking the back door
Door lock switch
P. 4 7
Entry function
 P. 3 2
Wireless remote control
 P. 4 4
■ Opening the back door from outside the vehicle
Unlock the back door
Raise the back door
Pull the handle
STEP1
STEP2

53
1-2. Opening, closing and locking the doors
1
Before driving
LC200_OM_OM60L83U_(U)
When closing the back door
●Make sure that the lower side
of the back door is closed
before closing the upper side
of the back door.
● Lower the back door using the
back door handle, and make
sure to push the back door
down from the outside to close
it.
Rear step bumper
The rear step bumper is for rear
end protection and easier step-
up loading.

54 1-2. Opening, closing and locking the doors
LC200_OM_OM60L83U_(U)
■If the back door opener is inoperative
The back door can be operated from the inside.
Remove the cover on the back door trim.
Use a cloth to prevent scratches.
Remove the screw and cover.
Push the lever for the back door motor,
open the back door.STEP1
STEP2
STEP3

55
1-2. Opening, closing and locking the doors
1
Before driving
LC200_OM_OM60L83U_(U)
CAUTION
■
While driving
●Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking or an accident, they are susceptible to death or serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

56 1-2. Opening, closing and locking the doors
LC200_OM_OM60L83U_(U)
CAUTION
■Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
●Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door suddenly shut
again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
●The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
● When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.
