2015 TOYOTA LAND CRUISER Owners Manual

337
2-5. Driving information
2
When driving
LC200_OM_OM60L83U_(U)

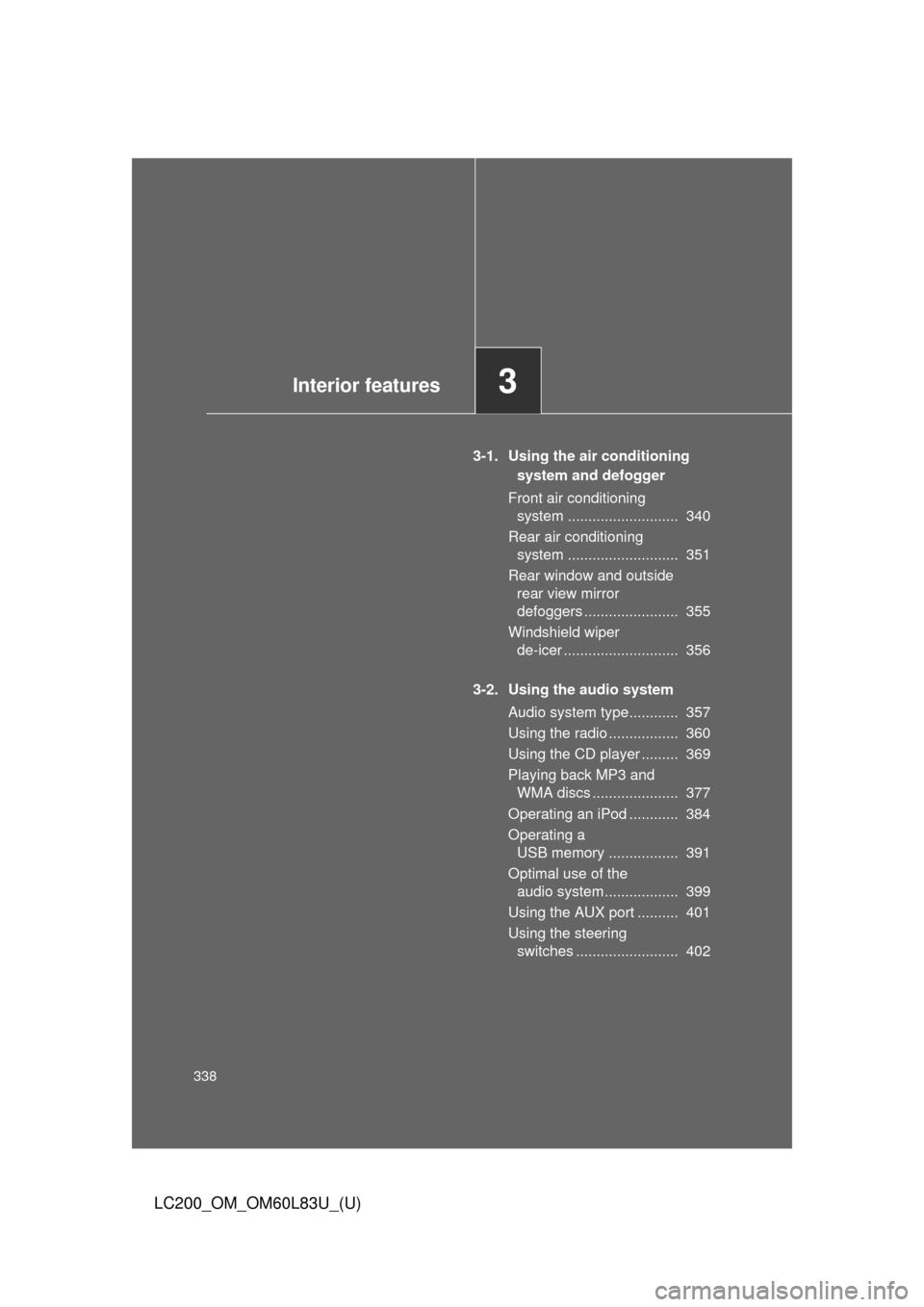

338
LC200_OM_OM60L83U_(U)
3-1. Using the air conditioning system and defogger
Front air conditioning system ........................... 340
Rear air conditioning system ........................... 351
Rear window and outside rear view mirror
defoggers ....................... 355
Windshield wiper de-icer ............................ 356
3-2. Using the audio system Audio system type............ 357
Using the radio ................. 360
Using the CD player ......... 369
Playing back MP3 and WMA discs ..................... 377
Operating an iPod ............ 384
Operating a USB memory ................. 391
Optimal use of the audio system.................. 399
Using the AUX port .......... 401
Using the steering switches ......................... 402
Interior features3

339
LC200_OM_OM60L83U_(U)
3-3. Using the Bluetooth®
audio system
Bluetooth
® audio
system ........................... 406
Using the Bluetooth
®
audio system.................. 410
Operating a Bluetooth
®
enabled portable
player ............................. 416
Setting up a Bluetooth
®
enabled portable
player ............................. 419
Bluetooth
® audio system
setup .............................. 426
3-4. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone) ......... 427
Using the hands-free system ........................... 432
Making a phone call ......... 440
Setting a cellular phone ............................. 445
Security and system setup .............................. 451
Using the phone book ...... 457
3-5. Using the interior lights Interior lights list ............... 466
• Interior lights .................. 467
• Personal lights ............... 468 3-6. Using the storage features
List of storage features .... 470
• Glove box....................... 471
• Console box ................... 472
• Overhead console .......... 473
• Cup holders ................... 474
• Bottle holders ................. 476
• Card holders .................. 478
• Auxiliary boxes............... 478
3-7. Other interior features Cool box ........................... 479
Sun visors ........................ 481
Vanity mirror..................... 482
Clock ................................ 483
Outside temperature display............................ 484
Ashtrays ........................... 486
Cigarette lighter................ 488
Power outlets ................... 489
Heated steering wheel ..... 491
Seat heaters and ventilators ...................... 493
Armrest ............................ 495
Assist grips....................... 496
Floor mats ........................ 497
Luggage compartment features .......................... 499
Garage door opener......... 501
Safety Connect ................ 508

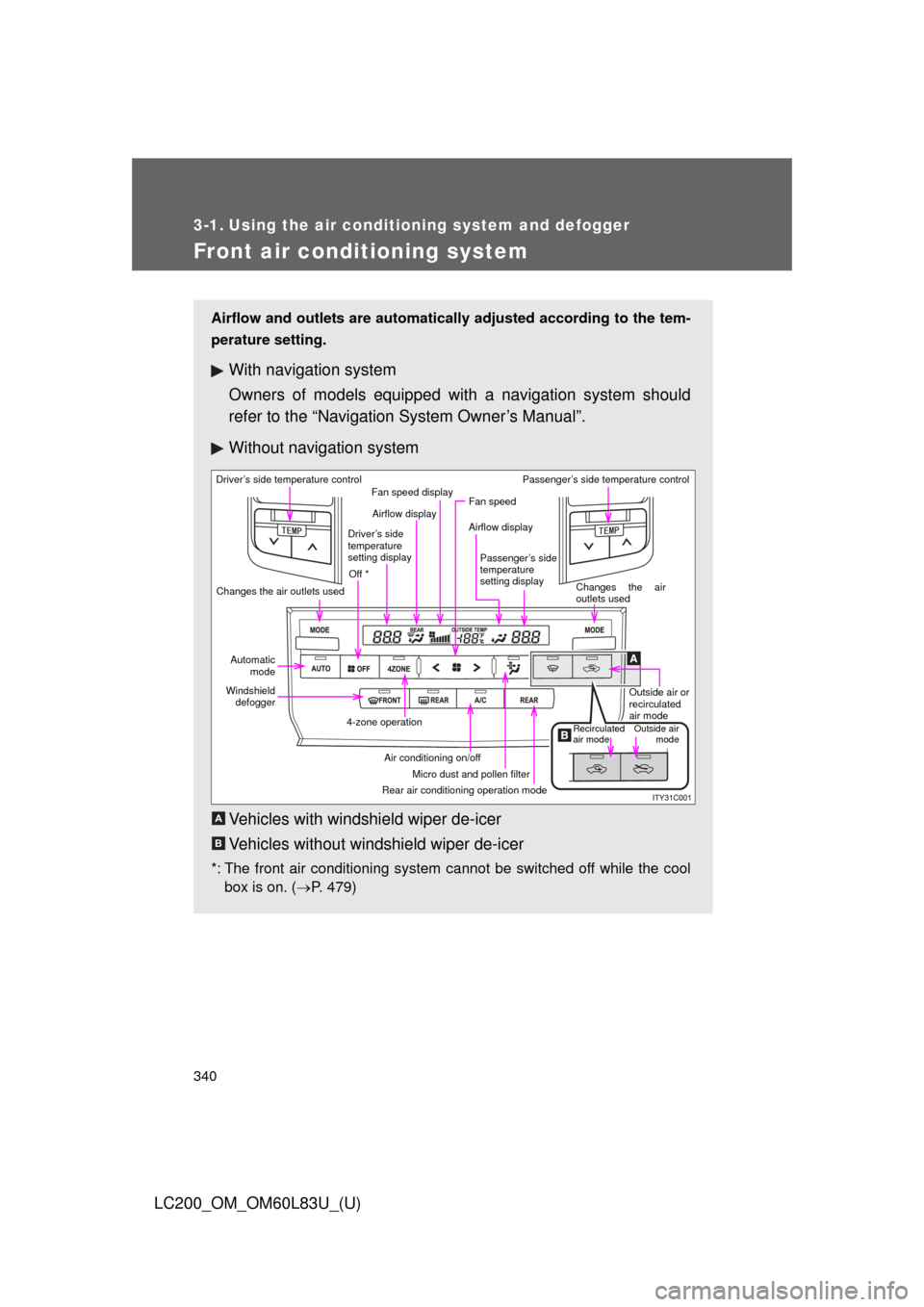

340
LC200_OM_OM60L83U_(U)
3-1. Using the air conditioning system and defogger
Front air conditioning system
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navig ation system
Vehicles with windshield wiper de-icer
Vehicles without windshield wiper de-icer
*: The front air conditioning system cannot be switched off while the cool box is on. ( P. 479)
Driver’s side temperature control
Changes the air outlets used Off *Airflow display
Fan speed display
Fan speed
Airflow display
Passenger’s side
temperature
setting display Passenger’s side temperature control
Changes the air
outlets usedOutside air or
recirculated
air mode
Outside airmode
Recirculated
air mode
Rear air conditioning operation mode Micro dust and pollen filter
Air conditioning on/off
4-zone operation
Windshield
defogger
Automatic
mode
Driver’s side
temperature
setting display
A
B

341
3-1. Using the air conditioning system
and defogger
3
Interior features
LC200_OM_OM60L83U_(U)
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “” to increase the temperature and “ ” to decrease the
temperature on .
The temperature for the driver’s and front passenger’s seats can be
set separately.
■Automatic mode indicator
If the fan speed or air flow modes are operated, the automatic
mode indicator goes off. Howeve r, automatic mode for functions
other than that operated are maintained.
STEP1
STEP2
6'/2

342 3-1. Using the air conditioning system and defogger
LC200_OM_OM60L83U_(U)
Adjusting the settings
■ Adjusting the temperature setting
Press “ ” to increase the temperature and “ ” to decrease the tem-
perature on .
The air conditioning system switches between individual and simul-
taneous modes each time is pressed.
Individual mode (the indicator on is on.): The temperature for
the driver’s, front passenger’s and rear seats ( P. 345) can be set
separately. Operating the passenger’s side or rear temperature con-
trol will enter individual mode.
Simultaneous mode (the indicator on is off.): Only
(driver’s side) can be used to adjust the temperature for all seats.
■ Adjusting the fan speed
Press “ ” (increase) or “” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
6'/2
6'/2

343
3-1. Using the air conditioning system
and defogger
3
Interior features
LC200_OM_OM60L83U_(U)■
Changing the air outlets
Press .
For driver’s seat
For front passenger’s seat
The air outlets switch each time
the button is pressed.
Different air outlets for the driver’s
and front passenger’s seats can
be chosen.
*: Driver side only
Air flows to the upper body.
*1: Depending on the rear air con-ditioning setting.
*2: Only in the automatic mode
Air flows to the upper body and
feet.
*: Depending on the rear air con-ditioning setting.
ITO31C050
*

344 3-1. Using the air conditioning system and defogger
LC200_OM_OM60L83U_(U) Air flows to the feet.
*: Depending on the rear air con-
ditioning setting.
Air flows to the feet and the
windshield defogger operates.
■ Switching between outside air and recirculated air modes
Vehicles with windshield wiper de-icer
Press .
The mode switches between outside air mode (indicator off) and
recirculated air mode (indicator on) each time the button is pressed.
Vehicles without windshield wiper de-icer
Press to switch to recirculated air mode and press
to switch to outside air mode.
ITY31C014
