2015 TOYOTA LAND CRUISER Owners Manual

5
When trouble arises
609
5-1. Essential information
LC200_OM_OM60L83U_(U)
Emergency towing procedure
Securely attach a cable or chain to the towing hook.
Take care not to damage the vehicle body.
Enter the vehicle being towed and start the engine.
If the engine does not start, turn the “ENGINE START STOP”
switch to IGNITION ON mode.
Put the four-wheel drive control switch in “H4”. (The center dif-
ferential is unlocked.)
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: P. 657
■While towing
If the engine is not running, the power assist for the brakes and steering will
not function, making steering and braking more difficult.
■ Wheel nut wrench
Wheel nut wrench is installed in the tool box. ( P. 641)
STEP1
STEP2
STEP3
STEP4

610 5-1. Essential information
LC200_OM_OM60L83U_(U)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
■ While towing
●When towing using cables or chains, avoid sudden starts, etc. which place
excessive stress on the towing hooks, cables or chains. The towing hooks,
cables or chains may become damaged, broken debris may hit people and
cause serious damage.
● Do not turn the “ENGINE START STOP” switch off.
There is a possibility that the steering wheel is locked and cannot be oper-
ated.
Be sure to transport the vehicle with all
four wheels raised off the ground. If the
vehicle is towed with the tires contacting
the ground, the drivetrain or related parts
may be damaged, the vehicle may fly off
the truck.

5
When trouble arises
611
5-1. Essential information
LC200_OM_OM60L83U_(U)
NOTICE
■
To avoid serious damage to your vehicle
■ To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
Do not use the rear emergency towing
hook.
ITY51C023

612
5-1. Essential information
LC200_OM_OM60L83U_(U)

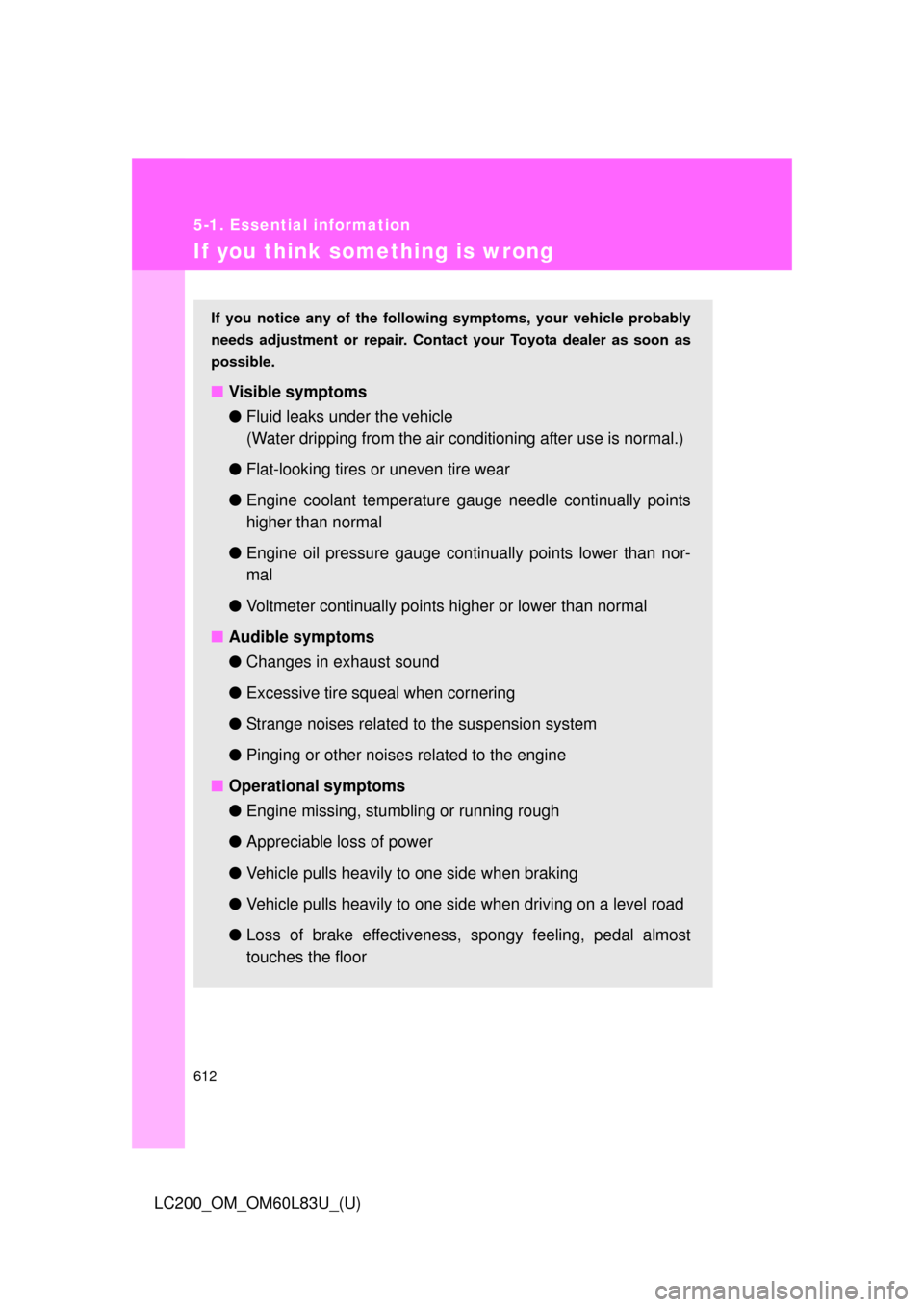

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Toyota dealer as soon as
possible.
■ Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air cond itioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature g auge needle continually points
higher than normal
● Engine oil pressure gauge continually points lower than nor-
mal
● Voltmeter continually points higher or lower than normal
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, s pongy feeling, pedal almost
touches the floor

5
When trouble arises
613
5-1. Essential information
LC200_OM_OM60L83U_(U)
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is
activated.Turn the “ENGINE START STOP” switch to ACCESSORY mode
or OFF.
Restart the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an air-
bag inflates upon collision, the fuel pump shut off system stops sup-
plying fuel to the engine.
STEP1
STEP2

614
LC200_OM_OM60L83U_(U)
5-2. Steps to take in an emergency
If a war ning light tur ns on or a war ning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
*: Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately 3 mph (5 km/h) or more.
Warning lightWarning light/Details
Brake system warning light (warning buzzer)
*
• Low brake fluid
• Malfunction in the brake system This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is
fully released, the system is operating normally.
Calmly perform the following actions if any of the warning lights turn
on or flash. If a light turns on or flashes, but then turns off, this does
not necessarily indicate a malfunction in the system.
However, if this continues to o ccur, have the vehicle inspected by
your Toyota dealer.

5
When trouble arises
615
5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Toyota dealer.
Have the vehicle inspected by your Toyota dealer immediately.Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning lightWarning light/Details
Charging system warning light Indicates a malfunction in the vehicle’s charging system.
Warning lightWarning light/Details
Malfunction indicator lamp Malfunction in:
• The emission control system;
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system.
SRS warning light Malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system.

616 5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Warning lightWarning light/Details
ABS warning light Malfunction in:
• The Multi Terrain ABS; or
• The brake assist system.
(Comes on or
flashes) Pre-collision system warn
ing light (if equipped)
Indicates:
• Malfunction in the pre-collision system if the light comes on.
• The system cannot temporarily be used if the light flashes. ( P. 632)
Slip indicator light Indicates a malfunction in:
• Vehicle stability control;
• Trailer Sway Control;
• Active Traction Control;
• The hill-start assist control system;
• Crawl Control system; or
• Multi-terrain Select.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
A door is not fully closed. Check that all doors are
closed.
