2015 Lancia Delta Owner handbook (in English)

KNOWING YOUR CAR47
1
fig. 16L0E0106m
Chang ing the remote control cover fig . 16
Proceed as s hown in the figure to replace the remote
control cover. S
AFE LOC K DEVIC E
( for vers ions/markets where provided )
This s afety device inhibits the operation of the interior
door handles and the door locking/unlocking button. We
recommend that y ou activate this device each time y ou
park your car.
Activating the device
The device engage s on all the doors by quickly double-
pressing the
Ábutton on the key .
The activation of the device i s indicated by three flashes
of the direction indicators and the flashing of the LED
on button A fig. 17. The device will not switch on if one
or more doors are not closed correctly.
fig. 17L0E0043m
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 47

48KNOWING YOUR CAR
Deactivating the device
The device deactivates automatically by:
❍ opening the driver’ s door us ing the metal ins ert;
❍ pressing the
Ëbutton on the remote control;
❍ turning the ignition key to the MAR position
Once the safe lock system is engaged, it is im-
possible to open the doors from inside the car.
Therefore, before getting out of the car check that
there is no one left on board. If the remote control
battery is flat, the device can only be disengaged by
using the metal insert in either of the door locks.
ALARM
(for vers ions/markets , where provided)
The alarm, in addition to all the remote control function s
des cribed previous ly , is controlled by the receiver located
under the das hboard near the fu se box.
ALARM AC TIVATION
The alarm intervene s in the following ca se s:
❍ when a door, the bonnet or the tailgate i s opened ille-
gally (perimeter protection);
❍ when the ignition system is operated (ignition key
turned to MAR);
❍ cutting of the battery cables;
❍ movement ins ide the passenger compartment (volu-
metric protection);
❍ when the vehicle is lifted or tilted.
Depending on the market, the activation of the alarm cau s-
e s the activation of the siren and the direction indicator s
(for about 26 s econds). Alarm tripping and the number
of cy cles depend on the s ales market.
There is a maximum number of acous tic/visual cy cles.
When this is r
eached the system returns to normal oper-
ation.
The volume s ensing and anti-lift protection can be ex-
cluded by adjusting the dedicated control on the front roof
light (s ee “Volumetric/anti-lift protection”).
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 48

KNOWING YOUR CAR49
1
IMPORTANT The engine immobiliser function is guar-
anteed by the Lancia CODE, which is automatically ac-
tivated when the ignition ke y i s extracted from the s tarter
device.
TURNING THE ALARM ON
With the doors and bonnet clos ed and the ignition key
either turned to S TOP or removed, point the ke y with the
remote control toward s the vehicle and press and releas e
button
Á.
Excluding some markets , the system produce s an acous tic
s ignal (beep) and enable s door locking.
The switching on of the alarm i s preceded by a self-diag-
nos is s tage: if a fault is detected, the system emits a new
acous tic signal together with the di splay of a message (s ee
“Panel warning light s” chapter).
In this case switch off the alarm by pressing
Ë, check that
all the doors , bonnet and tailgate are clo sed correctly ; then
s witch the alarm back on b y pressing
Á.
If a door or the bonnet i s not properly s hut, it will be ex-
cluded from the tes ting by the alarm system.
If the alarm emits an acoustic signal even when the door s,
bonnet and tailgate are correctl y clo sed, a failure has oc-
curred in system operation. Contact a Lancia Dealer ship. IMPORTANT Centrall
y locking the door s u sing the met-
al ins ert on the key does not activate the alarm.
IMPORTANT The alarm is adapted to meet requirement s
in various countries.
TURNING THE ALARM OFF
Press button
Ëon the key with the remote control.
The following operation s are performed (excluding some
markets ):
❍ the direction indicator s flas h briefly twice;
❍ two brief acou stic signals are emitted (“BEEP”);
❍ the doors are unlocked.
IMPORTANT Activating the central opening us ing the
key ’s metal ins ert does not turn the alarm off.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 49

50KNOWING YOUR CAR
VOLUMETRIC/ANTI-LIFT PROTEC TION
To guarantee the correct operation of the protection sys-
tem it is advisable to s hut all the s ide windows and the sun
roof (for ver sions /markets where provided).
If necessary , the function can be turned off (if, for exam-
ple, you are leaving an animal in the car) b y pressing but-
ton A-fig. 18, located in the front courtesy light, before
activating the alarm it self.
When the function is disabled, this is indicated by the LED
on the button flas hing for several seconds . Any disabling
of the volume s ensing/anti-lift protection mu st be repeat-
ed each time the ins trument panel is switched off.
BREAK IN ATTEMPT INDI CAT I O N
Any break in attempt i s indicated by the
Ywarning light
(or symbol in the dis play) lighting up, together with a mes -
s age shown in the dis play (see “Ins trument panel warn-
ing lights ” paragraph). DIS
ABLING THE ALARM
To turn the alarm off completel y (for example, if the ve-
hicle is not being us ed for a long time) the vehicle mu st be
clos ed by turning the metal ins ert in the key in the lock
without us ing the remote control.
IMPORTANT If the batter y of the key with the remote
control runs out or the system fails , the alarm can be
s witched off by placing the key in the ignition s witch and
turning it to MAR.
fig. 18L0E0153m
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 50

KNOWING YOUR CAR51
1
IGNITION SWITCH
The key can be turned to 3 different po sitions fig. 19:
❍ STOP: engine off, key can be removed, steering locked.
S ome electrical device s (e.g. s ound system, central door
locking system, etc.) can operate.
❍ MAR: driving pos ition. All electrical device s can op-
erate.
❍ AVV: engine s tarting.
The ignition s witch is fitted with a safety system that re-
quires the ignition key to be turned back to STOP if the
engine does not start, before the s tarting operation can be
repeated. S
TEERING LOC K
Activation
When the ke y i s at S TOP, remove the key and turn the
s teering wheel until it locks .
Diseng agement
Move the s teering wheel s lightly as y ou turn the ignition
key to MAR.
IMPORTANT In s ome parking conditions (e.g.: wheels
turned) the effort r

equired to move the s teering wheel and
dis engage the steering lock ma y be increas ed.
fig. 19L0E0107m
Never remove the key while the car is mov-
ing. The steering wheel will lock as soon as
it is turned. This holds true for cars being
towed as well. Under no circumstances should af-
termarket operations be carried out involving steer-
ing system or steering column modifications (e.g.
installation of anti-theft device). This could nega-
tively affect performance and safety, invalidate the
warranty, cause serious safety problems and also
result in vehicle non-compliance with type-ap-
proval requirements.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 51

52KNOWING YOUR CAR
SEATS
FRONT SEATS fig. 20
Long itudinal adjustment
Lift the lever A and pus h the seat forwards or backwards :
in the driving po sition your arms s hould res t on the rim
of the s teering wheel.
Backrest an gle adjustment
Turn knob B.
All adjustments on the front and rear seats
must be made with the car stationary.
After releasing the adjustment levers always
check that the seat is locked into place by try-
ing to move it back and forth. If the seat is not
locked into place, it may unexpectedly slide and
cause the driver to lose control of the car.
fig. 20L0E0008m
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 52

KNOWING YOUR CAR53
1
Height adjustment
Operate lever C to rai se or lower the rear part of the seat
cus hion to improve comfort.
Lumbar adjustment (driver’s seat)
The pos ition of the back again st the s eat backres t is ad-
jus ted by turning knob D.
FRONT SEATS WITH ELEC TRIC ADJUS TMENT
fig . 21 (for vers ions/markets where provided
The adjus tment is possible with the ignition key to MAR
or for up to 1 minute with the ignition ke y turned to OFF
or extracted.
When the front doors are opened the seat on the side of
the door that has been opened can be moved for about 3
minutes or until the door i s clos ed.
The controls for seat adjustment are:
Multifunction control A:
❍ seat height adjus tment;
❍ lengthwis e seat movement.
Multifunction control B:
❍ backres t angle adju stment;
❍ backres t lumbar adju stment. S
eat heating (for versions/markets , wher
e provided)
With the key turned to MAR, press buttons
Cto switch
the function on/off.
When the function is enabled, the LED on the button turns
on.
fig. 21L0E0009m
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 53

54KNOWING YOUR CAR

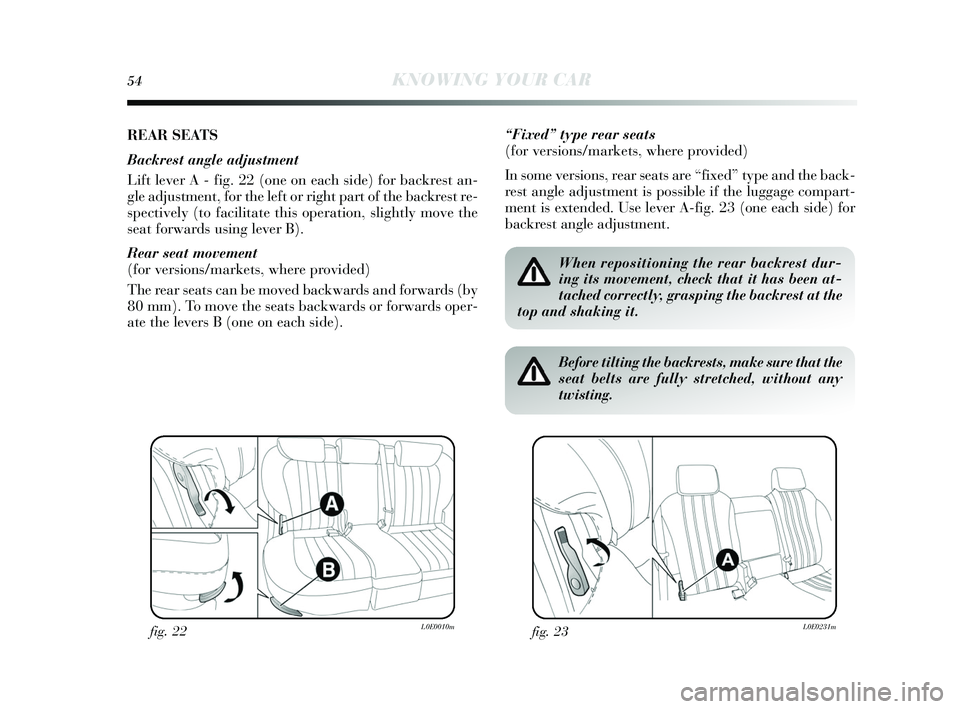

REAR SEATS
Backrest angle adjustment
Lift lever A - fig. 22 (one on each side) for backres t an-
gle adjus tment, for the left or right part of the backre st re-
s pectively (to facilitate thi s operation, s lightly move the
s eat forwards using lever B).
Rear seat movement
(for vers ions/markets , where provided)
The rear s eats can be moved backwards and forwards (by
80 mm). To move the seats backwards or forwards oper-
ate the levers B (one on each side).
fig. 22L0E0010m
“Fixed” type rear seats
(for vers ions/markets , where provided)
In some vers ions, rear s eats are “fixed” ty pe and the back-
re st angle adjus tment is possible if the luggage compart-
ment is extended. Us e lever A-fig. 23 (one each side) for
backres t angle adjus tment.
When repositioning the rear backrest dur-
ing its movement, check that it has been at-
tached correctly, grasping the backrest at the
top and shaking it.
fig. 23L0E0231m
Before tilting the backrests, make sure that the
seat belts are fully stretched, without any
twisting.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 54
