KNOWING YOUR CAR63
1
Selecting air distribution B - fi g. 31
Press one or more of button s
 / / ˙to manuall y s e-
lect one of the 7 po ssible air distribution settings for the
passenger compartment:
Air flow to the winds creen and front side window dif-
fus ers to demis t/defrost them.
Air flow to the front and rear footwell diffu sers . This
air dis tribution allow s the passenger compartment to
be warmed up quickl y.
Air flow dis tribution between the
˙front and rear diffus ers, centre/s ide dashboard
diffusers, rear diffus er and winds creen and front s ide
window demi sting/defros ting diffusers.
Air flow dis tribution between the footwell
diffusers and the winds creen and front s ide window

demis ting/defros ting diffusers. This distribution set-
ting allows the passenger compartment to be warmed
up efficiently and prevents the windows from mist-
ing up.
˙
Air flow dis tribution between footwell diffu sers (hot-
ter air) and centre/ side das hboard diffus ers and rear
diffus er (cooler air).
˙Air flow dis tribution between centre/s ide dashboard
diffus ers, rear diffus er and winds creen and front side
window demisting/defrosting diffusers. This distri-
bution setting ventilates the passenger compartment
well and prevents the windows from misting up.
IMPORTANT For the climate control system to function, at
leas t one of the following buttons must be on:
 / / ˙.
The system does not allow all the button s  / / ˙to be
s witched off.
IMPORTANT Pus h the OFF button to turn the climate
control system back on: in this way, all operating condi-
tions saved before s witching off are res tored.
To r e store automatic control of the air dis tribution after
a manual s election, press the AUTO button.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 63

64KNOWING YOUR CAR
Adjusting the fan speed fig . 31
Operate button s C
pto increas e/decrease the speed of the
fan.
The 12 po ssible speeds are indicated by bars lighting up
on the dis play:
❍ max fan s peed = all bar s lit
❍ min. fan s peed = one bar lit.
The fan can be di sabled (no bars lit) only if the climate
control compressor has been switched off by pressing but-
ton
❄.
To r e store automatic fan s peed control after a manual ad-
jus tment, press AUTO. Alig
ning the set temperatures
(MONO function) fi g. 31
Press button D (MONO) to align the temperature between
the driver s ide and passenger side.
Then turn the AUTO or MONO knob to increa se/decreas e
the temperature between the two areas by the s ame
amount.
Press MONO again to deactivate the function.
S witching off the climate control sy stem fig. 31
Press button E (OFF).
The following information i s s hown on the di splay :
❍ the word OFF;
❍ outs ide temperature reading;
❍ indication that air recirculation i s s witched on (LED
on button
Ti s lit).
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 64

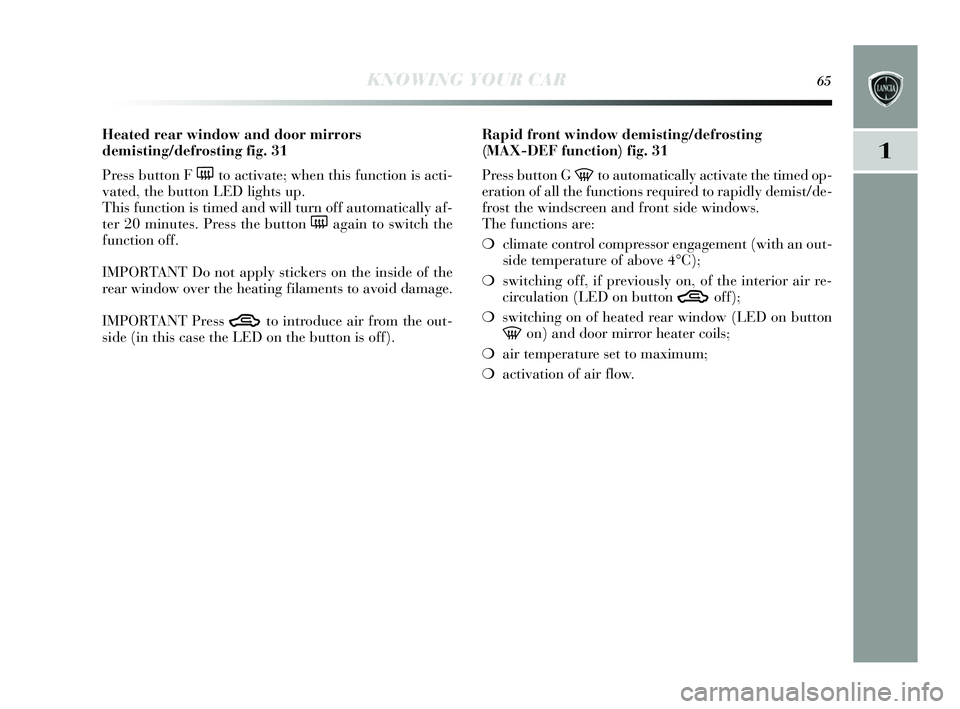

KNOWING YOUR CAR65
1
Heated rear window and door mirrors
demisting/defrosting fig. 31
Press button F
(to activate; when this function is acti-
vated, the button LED light s up.
This function is timed and will turn off automaticall y af-
ter 20 minute s. Press the button
(again to s witch the
function off.
IMPORTANT Do not appl y s tickers on the ins ide of the
rear window over the heating filaments to avoid damage.
IMPORTANT Press
Tto introduce air from the out-
s ide (in this case the LED on the button i s off). Rapid front window demistin
g/defrosting
(MAX-DEF function) fi g. 31
Press button G
-to automaticall y activate the timed op-
eration of all the functions required to rapidly demist/de-
fros t the winds creen and front s ide windows.
The functions are:
❍ climate control compre ssor engagement (with an out-
s ide temperature of above 4°C);
❍ switching off, if previous ly on, of the interior air re-
circulation (LED on button
Toff);
❍ switching on of heated rear window (LED on button
-on) and door mirror heater coil s;
❍ air temperature s et to maximum;
❍ activation of air flow.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 65

66KNOWING YOUR CAR
Activation of air recirculation and enablement of
AQS(Air Qualit y System)
(for vers ions/markets , where provided) fig. 31
Press button
T.
Internal air recirculation i s carried out according to three
possible operating mode s:
❍ automatic control, s ignalled by the AQS s ign on the
dis play and the LED on button
Tbeing off;
❍ permanently off (air recirculation alwa ys off with in-
troduction of external air), indicated by the LED on
button
Tbeing off;
❍ permanentl y on (air recirculation alwa ys on), signalled
b y the LED on button
Tbeing lit up.
When OFF is pressed, the climate control system auto-
matically activates internal air recirculation (LED on but-
ton
Ton). It is s till possible to activate outs ide air re-
circulation (LED on the button off) and vice ver sa, by
pressing button
T.
With the OFF button pre ssed (LED on the button is lit
up), it is not possible to enable the AQ S (Air Qualit y Sys-
tem) function. IMPORTANT The internal air recirculation system makes
it possible to reach the required heating or cooling con-
ditions
faster depending on the mode s elected. It is not ad-
vis able to s witch the air recirculation on when it i s
rainy /cold to prevent the window s from mis ting up, es -
pecially if the climate control is not turned on. It is ad-
vis able to s witch the internal air recirculation on whil st
queuing or in tunnel s to prevent the introduction of pol-
luted air. Do not u se the function for a long time, partic-
ularly if there are several passengers on board, to pre-
vent the window s from mis ting up.
Enabling the AQS (Air Qualit y System) function
(for vers ions/markets , where provided)
The AQS function (AQS appears on the dis play), auto-
matically activates internal air r

ecirculation when the out-
s ide air is polluted (e.g. in traffic queue s and tunnels ).
IMPORTANT With the AQS function active, after 15 con-
s ecutive minute s of the internal air recirculation system
functioning, the climate control system enables the intake
of outs ide air for approximatel y 1 minute to fres hen the
air in the passenger compartment. Thi s takes place re-
gardless of the pollution level of the out side air.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 66

KNOWING YOUR CAR67
1
Switching the climate control compressor on/off
I - fi g. 31
Press button
❄to switch on the climate control system
compressor.
C ompressor eng agement
❍ the LED on button
❄is lit up;
❍ symbol
❄is s hown on the di splay .
C ompressor off
❍ the LED on button
❄is off;
❍ symbol
❄off on the dis play;
❍ internal air recirculation i s excluded;
❍ the AQS function is disabled.
With the climate control compressor switched off, air can-
not be introduced into the pa ssenger compartment at a
lower temperature than the out side temperature; in thi s
cas e the
❄symbol on the di splay will flas h.
The deactivation of the climate control compressor is
memoris ed even after the engine ha s s topped. To turn the
climate control compre ssor back on, press button
❄again
or press AUTO: if y ou press AUTO, the other manual set-
tings will be cancelled.
EXTERNAL LIGHTS
The left stalk fig. 32 operate s mo st of the external light s.
The ignition key has to be in the MAR pos ition for the
exterior lights to come on. The in strument panel and the
various dashboard control s will come on with the exter-
nal light s.
DAYTIME RUNNING LIGHT S (DRL)
(for vers ions/markets where provided)
With the ignition key turned to MAR and the twi st switch
turned to pos ition Othe day time running lights are au-
tomatically activated; the other light s and interior light-
ing remain off. The automatic operation of the da ytime
running lights can be activated/deactivated via the di s-
play menu (s ee “Display” paragraph in this chapter). If
the day time running light s are deactivated, no light come s
on when the twis t switch is turned to O .
fig. 32L0E0019m
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 67

68KNOWING YOUR CAR
Activation
When the ring nut is turned to the AUTO pos ition the
external lights automatically s witch on depending on the
exterior brightne ss.
The headlight s can only be flashed with the s ensor on.
Deactivation
When the lights are switched off by the sensor, the dipped
beam headlight s and s ide lights are switched off and the
day lights are switched on (if activated).
The sens or is not capable of detecting the pre sence of fog
therefore, in thes e circumstances, the lights have to be
turned on manuall y.
FRONT FOG LIGHT S WITH
C ORNERING LIGHTS FUNCTION
When the dipped beam headlights are on and the speed is
below 40 km/h, if the s teering wheel rotation angle is large
or the direction indicators are on, a light (incorporated
in the fog light) will come on on the relevant side to im-
pr

ove vis ibility at night time. The function can be acti-
vated/deactivated via the di splay menu (s ee “Display”
paragraph in thi s chapter).
AUTOMATIC
HEADLIGHT S ENSOR (dusk sensor)
(for vers ions/markets , where provided)
It detects variation s in brightness outs ide the vehicle de-
pending on the light setting: the greater the sens itivity , the
less outs ide light needed to activate the exterior light s be-
ing turned on. The sens itivity of the dus k sens or may be
adjus ted, us ing the “S etup menu” on the ins trument pan-
el.
The daytime running lights are an alterna-
tive to the dipped beam headlights for driving
during the daytime in countries where it is
compulsory to have lights on during the day, and
they are also permitted in those countries where this
is not obligatory.
Daytime running lights cannot replace dipped beam
headlights when driving at night or through tunnels.
The use of daytime running lights is governed by
the highway code of the country in which you are
driving. Comply with the prescriptions.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 68

KNOWING YOUR CAR69
1
DIPPED BEAM HEADLIGHTS/S IDE LIGHT S
With the ignition ke y turned to MAR, turn the twi st switch
to 2. If the dipped beam headlight s are activated, the
day time running light s are s witched off and the side lights ,
dipped beam headlights and number plate lights are
s witched on. The
3warning light on the ins trument pan-
el comes on. When the ignition ke y i s turned to STOP or
removed and the twi st switch is turned from
Oto 2, all
the side lights and number plate light s come on. The
3warning light in the in strument panel come s on.
Parking function
With the s ide lights on and the ignition ke y in the OFF po-
s ition or extracted, it i s possible to select the lighting on
the des ired side by operating the lights lever downwards
(left side) or upwards (right side). In this case the
3warning light in the in strument panel will go out.
MAIN BEAM HEADLIGHT S
With twis t switch in pos ition 2, pus h the s talk forward
toward the da shboard (s table position). The 1 warning
light on the ins trument panel will come on. They are
s witched off by pulling the lever towards the steering
wheel.
Flashing
You can flas h the beams pulling the s talk toward the s teer-
ing wheel (uns table position). The
1warning light on the
ins trument panel will come on. DIREC
TION INDIC ATORS fig. 33
Bring the s talk to the (s table) position:
– up (pos ition
a): activates the right direction indicator;
– down (pos ition
b): activates the left direction indicator.
The
¥or Îwarning light s tarts flashing on the ins trument
panel. The direction indicator s switch off automaticall y
when the s teering wheel is straightened.
fig. 33L0E0020m
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 69

70KNOWING YOUR CAR
LANE CHANGE FUNC TION
If you wis h to signal a lane change, place the left stalk in
the uns table pos ition for less than half a s econd. The di-
rection indicator on the side selected will flas h five times
and then s witch off automaticall y.
“FOLLOW ME HOME” DEVIC E
This allows the space surrounding the car to be lit up for
a certain period of time.
Activation
With the ignition key in the STOP pos ition or extracted,
pull the s talk towards the steering wheel and move it with-
in 2 minute s of the engine s witching off. Each time the
s talk is moved, the light s s tay on for an extra 30 seconds
up to a maximum of 210 seconds ; then the light s are
s witched off automaticall y. Each time the lever i s oper-
ated, the warning light 3 on the in strument panel come s
on and the dis play s hows how long the function will r
e-
main active. The warning light come s on when the s talk
i s pulled for the firs t time and stays lit until the function
s witches itself off automatically . Each time the stalk is ac-
tivated it increas es the time that the lights remain on.
Deactivation
Keep the s talk pulled towards the steering wheel for more
than two s econds.
WINDOW CLEANING
The right-hand lever fig. 34 control s winds creen wiper/
was her and rear window wiper/wa sher operation.
WINDSCREEN WIPER/WAS HER
This operates only with the ignition key turned to
MAR.
The right hand lever can take up five different po sitions :
A: winds creen wiper off.
B: intermittent operation.
With the s talk in pos ition B, turn ring nut F to s elect one
of four different s peeds for the intermittent operation
mode:
, = very slow intermittent operation
■= slow intermittent operation.
■■= normal intermittent operation
■■■= fas t intermittent operation.
C: continuou s s low operation;
D: continuou s fas t operation;
E: temporary fast operation (un stable pos ition).
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 70
