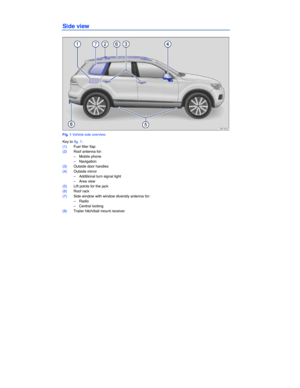

Side view

Fig. 1 Vehicle side overview.
Key to fig. 1:
(1) Fuel filler flap
(2) Roof antenna for:
– Mobile phone
– Navigation

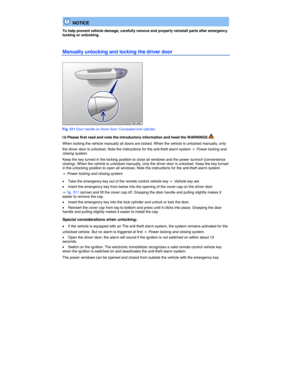

(3) Outside door handles
(4) Outside mirror
– Additional turn signal light
– Area view
(5) Lift points for the jack
(6) Roof rack
(7) Side window with window diversity antenna for:
– Radio
– Central locking

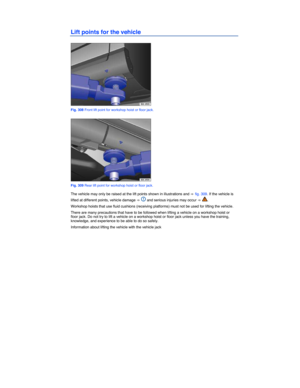

(8) Trailer hitch/ball mount receiver

Front view

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Sensor on mirror base for:
– Rain sensor
– Low-light sensor
– Dynamic high beam control

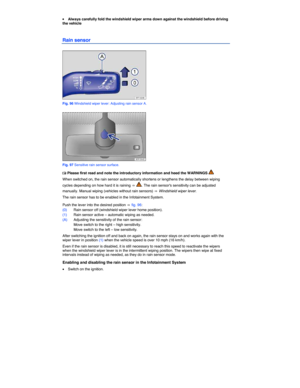

(2) Windshield wipers
(3) Engine hood release

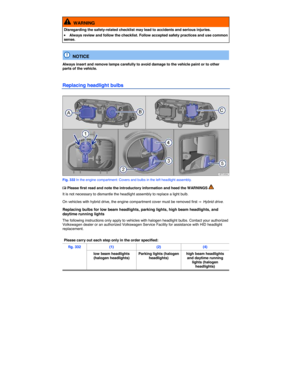

(4) Headlights (on left and right) ,
(5) Fog lights/static cornering lights (on left and right)
(6) Front towing eye mount behind a cover
(7) Headlight washers (on left and right)
(8) Sensors for front Park Distance Control (on left and right)

Rear view

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1) Rear window:
– Rear window defroster
(2) High-mounted brake light
(3) Taillights (on left and right) ,
(4) Area of:

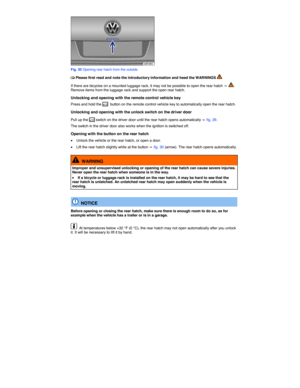

– Button to open the rear hatch

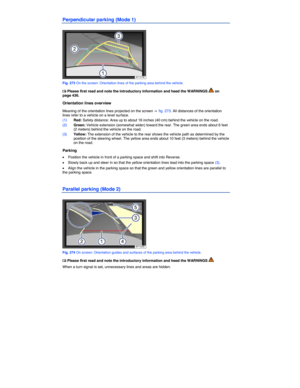

– Rear Assist camera
– License plate lighting
(5) Rear towing eye mount behind a cover (on left and right)
(6) Roof antenna for:
– Mobile phone
– Navigation
(7) Rear window wiper
(8) Sensors for rear Park Distance Control
(9) Receiver for the trailer hitch

Driver door overview

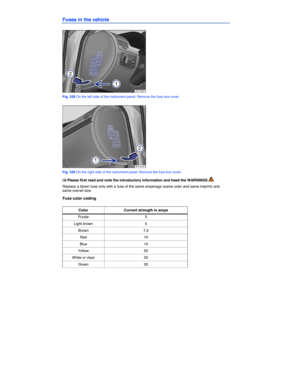

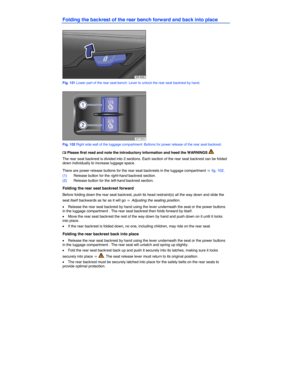

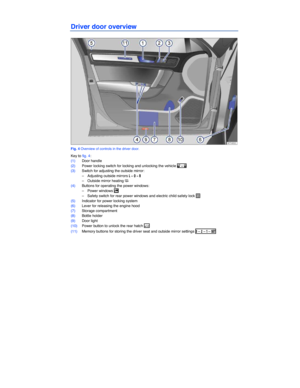

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Door handle
(2) Power locking switch for locking and unlocking the vehicle 0

Driver side overview

Fig. 5 Driver side overview.
Key to fig. 5:

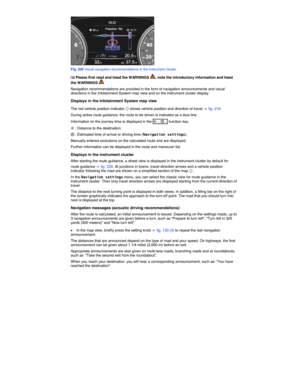

(1) Instrument cluster:
– Instruments
– Display
– Warning and indicator lights

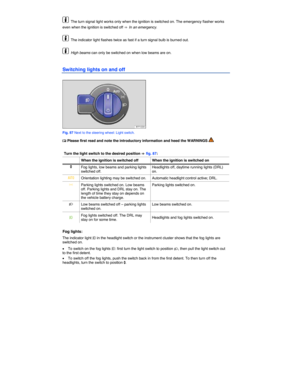

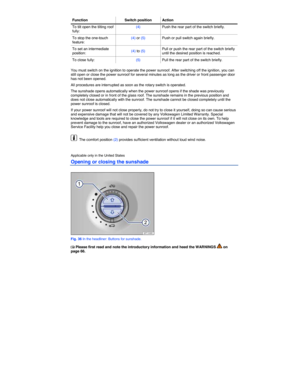

(2) Headlight switch

– Mute switching for radio or activation of voice control (if applicable) 

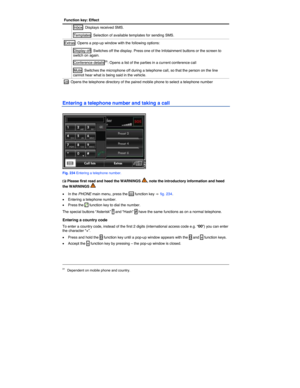

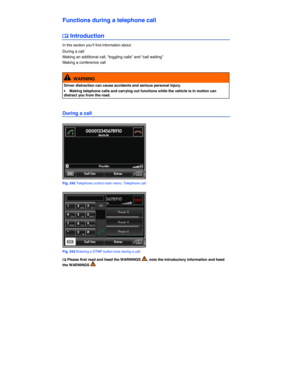

– Display Phone main menu or accept telephone calls -
– Audio, Navigation

Center console overview
Upper center console

Fig. 6 Overview of upper center console.
Key to fig. 6:
(1) Located here:

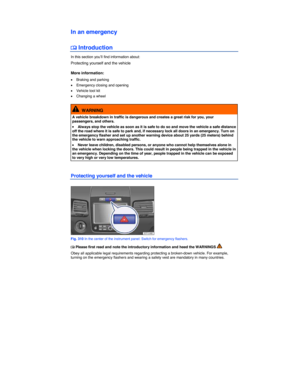

– Switch for emergency flashers
– PASSENGER AIR BAG /&&  light (front airbag for front seat passenger)
– Park Distance Control system button  or ∗

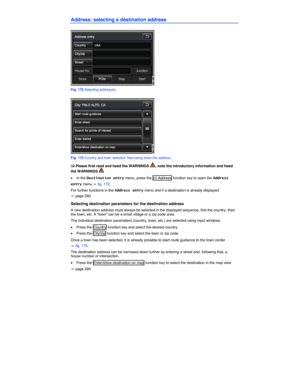

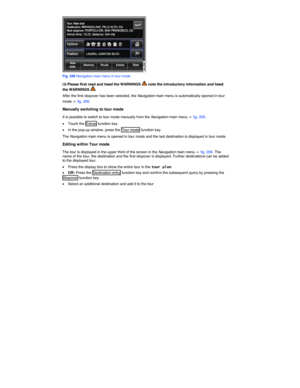

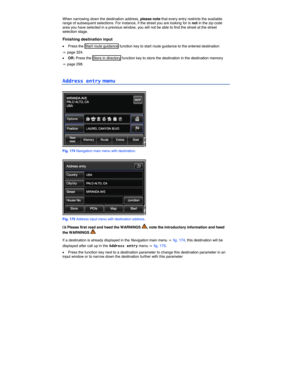

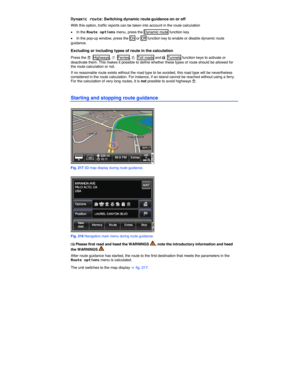

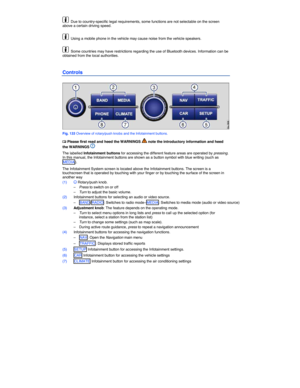

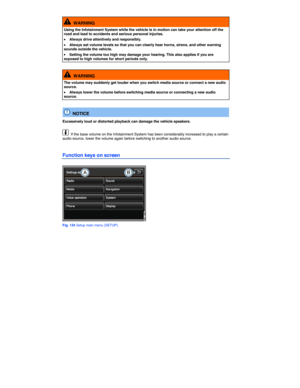

(2) Radio or Radio & Navigation system (factory installed)
(3) Controls for:
– Climatronic
– Seat heating switch button A

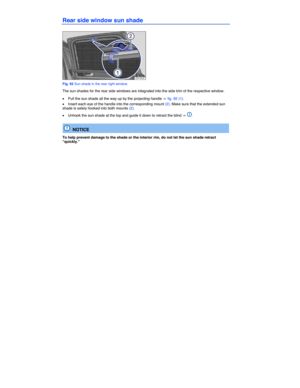

(4) Air vents z
(5) Air vent for indirect ventilation

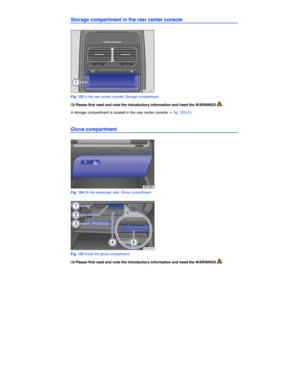

(6) Storage compartment

Lower center console

Fig. 7 Overview of lower center console (4MOTION).
Key to fig. 7:
(1) Automatic transmission selector lever
(2) Button for:
– Electronic parking brake G

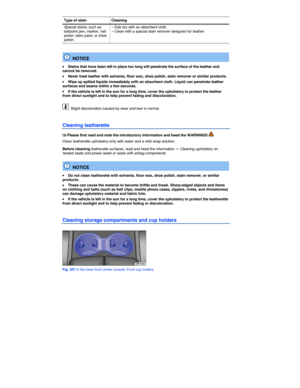

(3) Cup holders
(4) Storage compartment
– with 12 Volt socket

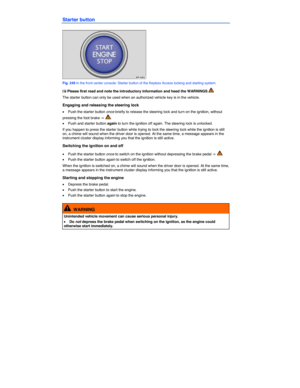

(5) Starter button for Keyless Access locking and starting system 34!24 – 34/0
(6) Storage compartment in the center armrest

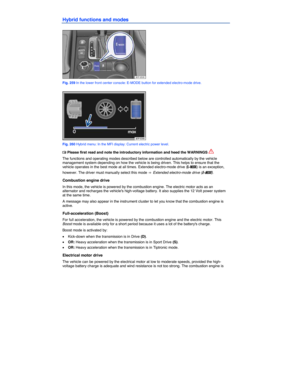

(7) Button for:
– Driving with electric motor %--/$%
– Anti-slip regulation (ASR) m

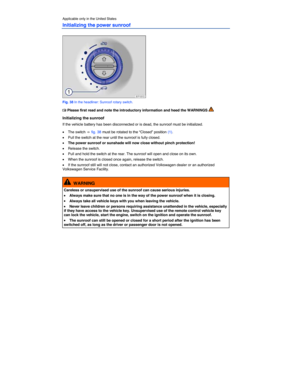

(8) Rotary knob for setting drive mode (On-road / Off-road)
