2014 Peugeot 508 RXH Owner's Manual

127
508RXH_en_Chap04_conduite_ed01-2014
You must press the brake pedal when
starting the engine.
Whatever the circumstances, you must
manually apply the parking brake when
parking, unless the parking brake is
programmed in automatic mode.
When immobilising the vehicle, with the
hybrid system active, you must place
the gear selector in neutral N
.
Before carrying out any work in the
engine compartment, check that the
gear selector is in neutral N and that the
parking brake is applied.
Stopping the vehicle
With the ignition on, the
flashing of this warning lamp,
accompanied by an audible
signal and a message in the instrument panel
screen, indicates a malfunction of the gearbox.
Have it checked by a P
e

uge
Ot
dealer or a
qualified workshop.
Before switching off the engine, you can
choose to:
-

m

ove to position N to engage neutral,
-

l

eave the gear engaged; in this case, it will
not be possible to move the vehicle.
In both cases, you should apply the parking
brake to immobilise the vehicle, unless it has
been programmed in automatic mode.
Operating fault
this function facilitates manoeuvring of the
vehicle at low speed (when parking, in traffic
jams, …).
With the hybrid system active and the parking
brake released, if position A , M or R is
selected, the vehicle moves as soon as you
take your foot off the brake pedal (even without
any action on the accelerator).
Creep function (moving
without the accelerator)
Never leave children unsupervised
in the vehicle with the hybrid system
active.
For your safety, this function will only be
activated if you press the brake pedal when
engaging forward drive or reverse.
th

is function is deactivated if the driver's door
is opened. t
o r
eactivate it, close the door and
then press the brake or accelerator pedal.
4
Driving

128
508RXH_en_Chap04_conduite_ed01-2014
Hill start assist
System which keeps your vehicle immobilised
temporarily (approximately 2 seconds) when
starting on a gradient, the time it takes to
move your foot from the brake pedal to the
accelerator pedal.
th
is function is only active when:
-

t
he vehicle is completely stationary, with
your foot on the brake pedal,
-

i
n particular conditions on a slope,
-

w
ith the driver’s door closed.
th

e hill start assist function cannot be
deactivated.
On an ascending slope, with the vehicle
stationar y, the vehicle is held for a brief
moment when you release the brake pedal,
if the gear selector is in position A or M .On a descending slope, with the vehicle
stationary and reverse gear engaged, the
vehicle is held for a brief moment when you
release the brake pedal.
Do not exit the vehicle while it is being
held in the hill start assist phase.
If you need to exit the vehicle with the
hybrid system active, apply the parking
brake manually then ensure that the
parking brake warning lamp and the
warning lamp P on the lever (of the
electric brake) are permanently on.
Operating fault
If a malfunction of the system occurs, these
warning lamps come on. Contact a Pe ugeOt
dealer or a qualified workshop to have the
system checked.
Driving

129
508RXH_en_Chap04_conduite_ed01-2014
Head-up display
System which projects various information onto
a smoked strip in the field of vision of the driver
so that they do not have to take their eyes off
the road.1.
H

ead-up display on.
2.
H

ead-up display off (long press).
3.
Br

ightness adjustment.
4.
D

isplay height adjustment.Buttons
Once the system has been activated, the
following information is grouped together in the
head-up display:
A.

t
h
e speed of your vehicle.
B.
C

ruise control/speed limiter information.
Displays during operation
C. Navigation information (depending on version) which appears in blue while in
electric mode.
For more information on the navigation
system, refer to the "Audio equipment
and telematics" section.
th

is system operates when the hybrid system
is active and retains its settings on switching off
the ignition.
4
Driving

130
508RXH_en_Chap04_conduite_ed01-2014
F With the engine running, press button 1 to activate the system and deploy the strip.
F

P
ress and hold button 2 to deactivate the
system and retract the strip.
th

e activated/deactivated state is saved and
restored on restarting the engine.
Activation / Deactivation
F With the engine running, adjust the brightness of the information displayed
using buttons 3 :
-

t
he "sun" to increase the brightness,
-

t
he "moon" to decrease the brightness.
Brightness adjustment
We recommend that adjustments are made
using these buttons only when the vehicle
is stationary.
When stationary or while driving, no objects
should be placed around the strip (or in its
recess) so as to not impede deployment of
the strip and its correct operation.
In certain extreme weather conditions
(rain and/or snow, bright sunshine, ...)
the head-up display may not be legible
or may suffer temporary interference.
Some sunglasses may hamper reading
of the information.
to c

lean the strip, use a clean, soft
cloth (such as a spectacles cloth or
microfibre cloth). Do not use a dry or
abrasive cloth or detergent or solvent
products as these could scratch the
strip or damage the non-reflective
coating.
Height adjustment
F With the engine running, adjust the display to the desired height using buttons 4 :
-

u
p to move the display up,
-

d
own to move the display down.
Driving

131
508RXH_en_Chap04_conduite_ed01-2014
Blind spot sensors
this driving assistance system warns the driver
of the presence of another vehicle in the blind
spot angle of their vehicle (areas masked from
the driver's field of vision), as soon as this
presents a potential danger.A warning lamp appears in the door mirror on
the side in question:
-
i

mmediately, when being overtaken,
-

a
fter a delay of about one second, when
overtaking a vehicle slowly.
th
is system is designed to improve
safety when driving and is in no
circumstances a substitute for the use
of the interior rear view mirror and door
mirrors. It is the driver's responsibility
to constantly check the traffic, to asses
the distances and relative speeds
of other vehicles and to predict their
movements before deciding whether to
change lane.
th
e blind spot sensor system can never
replace the vigilance and responsibility
of the driver.
4
Driving

132
508RXH_en_Chap04_conduite_ed01-2014
No alert will be given in the following situations:
- i n the presence of stationary objects
(parked vehicles, barriers, street lamps,
road signs...),
-

w
ith vehicles moving in the opposite
direction,
-

d
riving on a sinuous road or a sharp
c o r n e r,
Operation
F On switching on the ignition, or engine running, press this button
to activate the function; the
warning lamp comes on. Sensors fitted in the front and rear bumpers
monitor the blind spots.
th

e alert is given by a warning lamp which
comes on in the door mirror on the side in
question as soon as a vehicle - car, lorry,
cycle - is detected and the following conditions
are fulfilled:
-
a
ll the vehicles must be moving in the
same direction,
-
t
he speed of your vehicle is between 7 and
75 mph (12 and 140 km/h),
- t he difference in speed between your
vehicle and the other vehicles must be less
than 6 mph (10 km/h),
-

t
he traffic must be flowing normally,
-

i
n the case of an overtaking manoeuvre,
if this is prolonged and the vehicle being
overtaken remains in the blind spot,
-

y
ou are driving on a straight or slightly
curved road,
-

y
our vehicle is not pulling a trailer, a
caravan...
Driving

133
508RXH_en_Chap04_conduite_ed01-2014
- when overtaking (or being overtaken by) a very long vehicle (lorry, coach...) which is
at the same time detected at the rear in the
blind spot angle and present in the driver's
forward field of vision,
-

i
n very heavy traffic: vehicles detected in
front and behind are confused with a lorry
or a stationary object,
-

w
hen overtaking quickly. F
t
o d
eactivate the system, press
this button again; the warning
lamp goes off.
Operating fault
the system may suffer temporary
interference in certain weather
conditions(rain, hail...).
In particular, driving on a wet sur face
or moving from a dry area to a wet area
can cause false alerts (for example, the
presence of a fog of water droplets in
the blind spot angle is interpreted as a
vehicle).
In bad or wintry weather, ensure that
the sensors are not covered by mud, ice
or snow.
ta

ke care not to cover the warning zone
in the door mirrors or the detection
zones on the front and rear bumpers
with adhesive labels or other objects;
they may hamper the correct operation
of the system. In the event of a fault, the warning
lamp in the button flashes then goes
of f.
Have it checked by a P
e
uge
Ot
dealer or a
qualified workshop.
th

e state of the system remains in memory on
switching off the ignition.
th

e system is automatically deactivated
when towing with a towbar approved by
P
e

u g e
Ot

.
4
Driving

134
508RXH_en_Chap04_conduite_ed01-2014

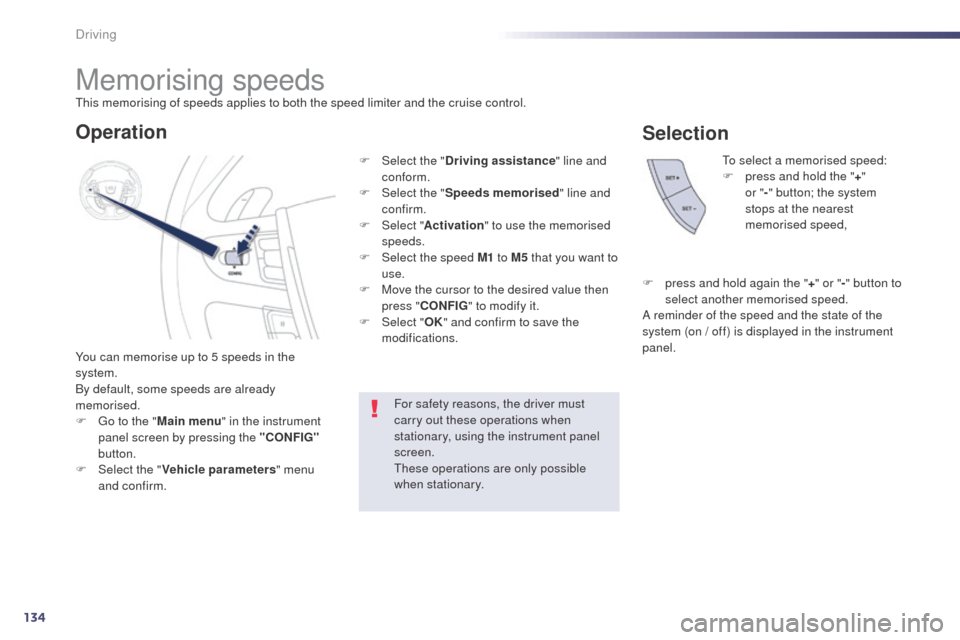

Memorising speeds
You can memorise up to 5 speeds in the
system.
By default, some speeds are already
memorised.
F g
o t
o the "Main menu " in the instrument
panel screen by pressing the "CONFIG"
button.
F

Sel
ect the " Vehicle parameters " menu
and confirm.
to
select a memorised speed:
F
p
ress and hold the "
+"
or " -" button; the system
stops at the nearest
memorised speed,
For safety reasons, the driver must
carry out these operations when
stationary, using the instrument panel
screen.
th
ese operations are only possible
when stationary.
Operation
F Select the " Driving assistance " line and
conform.
F

Sel
ect the " Speeds memorised " line and
confirm.
F

Sel
ect "Activation " to use the memorised
speeds.
F

Sel
ect the speed M1 to M5 that you want to
use.
F

M
ove the cursor to the desired value then
press " CONFIG " to modify it.
F

Sel
ect "OK" and confirm to save the
modifications.
Selection
F press and hold again the "+ " or " -" button to
select another memorised speed.
A reminder of the speed and the state of the
system (on / off) is displayed in the instrument
panel.
th

is memorising of speeds applies to both the speed limiter and the cruise control.
Driving
