2014 Peugeot 508 RXH Owner's Manual

239
508RXH_en_Chap10_caracteristiques-techniques_ed01-2014
Dimensions (in mm)
Be aware of the ground clearance of your vehicle: around 184 mm (with the vehicle in working order: driver only and the fuel tank full) in ideal
conditions.
th
is value will vary with vehicle load, the nature of the ground sur face and the surroundings.
If the driver considers that the vehicle can traverse an obstacle, they assume entire responsibility for this.
10
technical data

240
508RXH_en_Chap10_caracteristiques-techniques_ed01-2014
Identification markingsVarious visible markings for the identification and tracing of your vehicle.
A.
V
ehicle Identification Number (VIN)
under the bonnet.


t
h
is number is engraved on the bodywork
near the damper support.
th

e tyre pressures must be checked
when the tyres are cold, at least once
a month.
Low tyre pressures increase fuel
consumption.
B.
V

ehicle identification Number (VIN) on
the windscreen lower crossmember.


t
h
is number is indicated on a self-
adhesive label which is visible through the
windscreen. C.
M

anufacturer's label.


t
h
e VIN is indicated on a self-destroying
label affixed to the door aperture, on the
driver's side.
D.
T

yre/paint label.


t
h
is label is fitted to the middle pillar, on
the driver's side. It bears the following information:
-

t
he tyre inflation pressures with and without
load,
-

t
he tyre sizes,
-

t
he inflation pressure of the spare wheel,
-

t
he paint colour code.
th

e use of snow chains is only
authorised on the front wheels.
th

e selector must be in 4WD mode.
technical data

241
508RXH_en_Chap11a_BtA_ed01-2014
EMERGENCY OR ASSIST ANCE CALL

242
508RXH_en_Chap11a_BtA_ed01-2014
EMERGENCY OR ASSIST ANCE CALL
In an emergency, press this button for more than
2
seconds. Flashing of the green L e D and a voice
message confirm that the call has been made to the
"Peuge
O t Connect SOS" centre*.
The green LED remains on (without flashing) when communication is
established. It goes off at the end of communication.
When the ignition is switched on, the
green L
e D comes on for 3 seconds
indicating that the system is operating
correctly.
Pressing this button again immediately cancels the request.
The cancellation is confirmed by a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confirms that the call has been made**.
Operation of the systemPressing this button again immediately cancels the request. t
he green
LED goes off. Cancellation is confirmed by a voice message
to cancel a call, tell the "Peuge

O t Connect SOS" call centre that the call
was a mistake.
"Peuge
O t Connect SOS" immediately locates your vehicle, starts
communication with you in your language**, and where necessary sends
the appropriate public emergency services**. In countries where the
service is not available, or when the locating service has been expressl\
y
declined, the call sent directly to the emergency services (112) without the
vehicle location.
If an impact is detected by the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.
*

Subject to the general conditions for the service available from dealers\

and to technological and technical limitations.
**


Depending on the geographical cover of "Peuge
O t Connect SOS",
"Peuge
O t Connect Assistance" and the official national language
selected by the owner of the vehicle.
t

he list of countries covered and P euge O t
CONN
e C t
services
services is available from dealers or at www

.peugeot.co.uk. If the orange LED flashes: there is a
system fault.
If the orange L
e D is on continuously: the
backup battery must be replaced.
In either case, contact a P
euge O t

dealer

.
If you purchased your vehicle outside the P
euge O t
dealer network,
we invite you to have a dealer check the configuration of these services
and, if desired, modified to suit your wishes. In a multi-lingual country ,
configuration is possible in the official national language of your choice.
For technical reasons and in particular to improve the quality of
"P

euge O t
CONN
e C t
services" services to customers, the manufacturer
reserves the right to carry out updates to the vehicle's on-board
telematic

system.
PEUGEOT Connect SOSP EUGEOT Connect Assistance

243
508RXH_en_Chap11b_JBL_ed01-2014

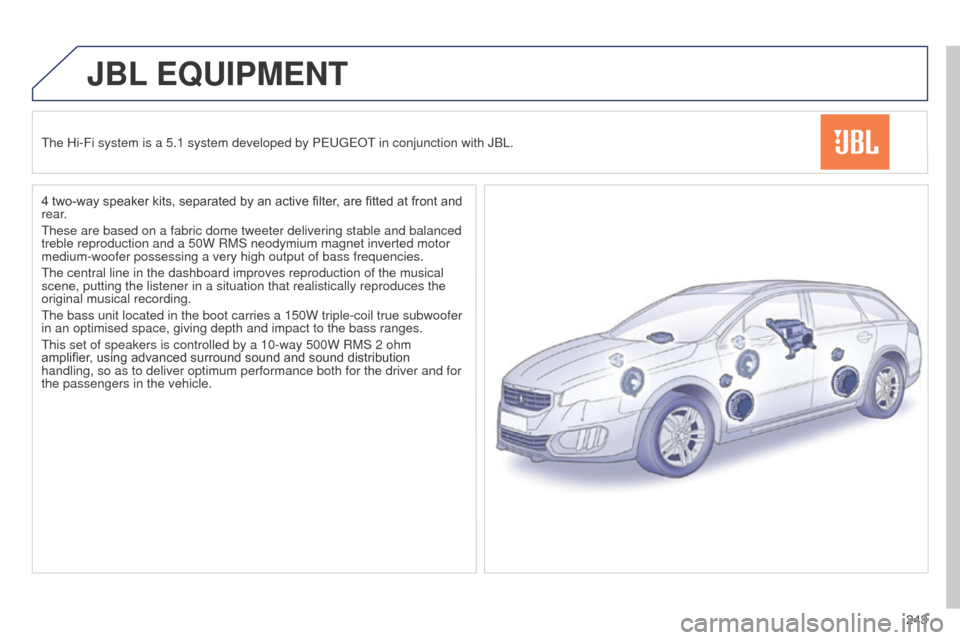

JBL EQUIPMENT
the Hi-Fi system is a 5.1 system developed by PeugeOt in conjunction with JBL.
4 two-way speaker kits, separated by an active filter , are fitted at front and
rear.
t

hese are based on a fabric dome tweeter delivering stable and balanced
treble reproduction and a 50W RMS neodymium magnet inverted motor
medium-woofer possessing a very high output of bass frequencies.
t

he central line in the dashboard improves reproduction of the musical
scene, putting the listener in a situation that realistically reproduces\
the
original musical recording.
t

he bass unit located in the boot carries a 150W triple-coil true subwoof\
er
in an optimised space, giving depth and impact to the bass ranges.
t

his set of speakers is controlled by a 10-way 500W RMS 2 ohm
amplifier, using advanced surround sound and sound distribution
handling, so as to deliver optimum performance both for the driver and f\
or
the passengers in the vehicle.

244
508RXH_en_Chap11b_JBL_ed01-2014

245
508RXH_en_Chap11c_SMegplus-i_ed01-2014
the system is protected in such a way that it will only
operate in your vehicle.
7-inch touch screen
01 General operation
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
02

First steps - Control
panel
04
Media
05
Navigation
06
Configuration
07

Connected service
s
08
Telephone p.
p.
p.
p.
p.
p.
p.
Frequently asked questions p.
GPS satellite navigation system
Multimedia audio system
Bluetooth
® telephone
246
248
266 250
286
296 298
308
03

Steering mounted
controls p. 249

01
246
508RXH_en_Chap11c_SMegplus-i_ed01-2014
"Media"
allows selection of a radio
station, the various music
sources and the display of
photographs.
"Navigation"*
allows settings for navigation
and the choice of a destination. AM and DAB are not
available on Hybrid vehicles.
"Configuration"
allows audio settings to be
adjusted, the color scheme to
be selected and the brightness
of the instruments and controls
to be adjusted.
"Connected services "*
allows connection to an
applications portal to facilitate,
make safe and personalise
journeys by means of a
connection key available on
subscription from a P
euge O t

dealer

.
"Telephone"
allows the connection of a
mobile telephone via Bluetooth.
GENERAL
OPERATION
* Depending on equipment.
"Driving assistance"
allows access to the trip
computer and certain vehicle
functions to be activated,
deactivated and adjusted. "Hybrid flow"
displays information on the
hybrid flows.
For more information, refer to
the "Hybrid system" section."Hybrid consumption"
displays the consumption of the
hybrid system.
For more information, refer to
the "Hybrid System" section.
