2014 Peugeot 508 RXH Owner's Manual

Practical information
6
508-add_en_Chap08_info-pratiques_ed01-2016

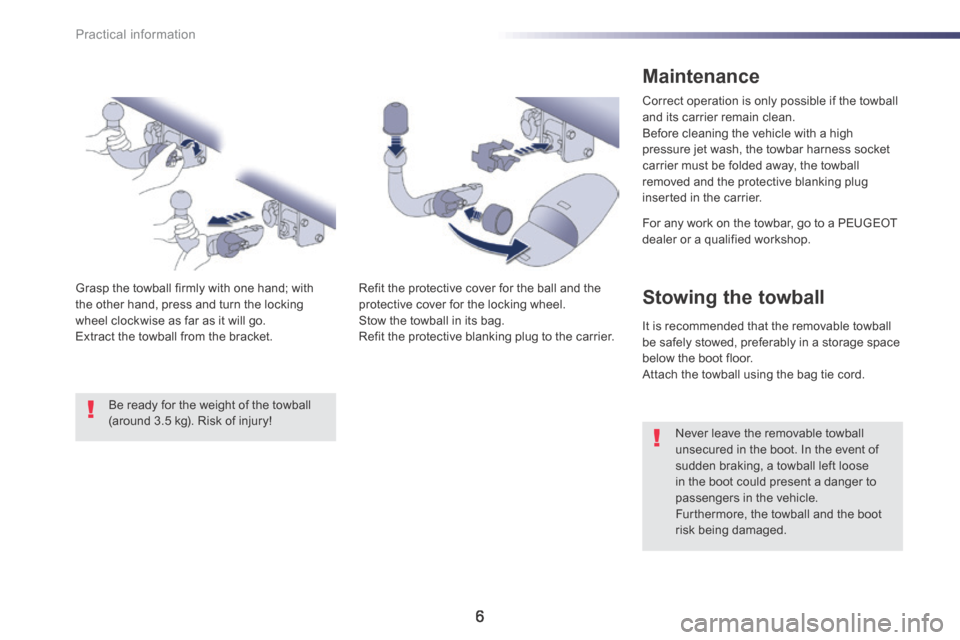

Maintenance
Correct operation is only possible if the towball and its carrier remain clean. Before cleaning the vehicle with a high pressure jet wash, the towbar harness socket carrier must be folded away, the towball removed and the protective blanking plug inserted in the carrier.
For any work on the towbar, go to a PEUGEOT
dealer or a qualified workshop.
Refit the protective cover for the ball and the protective cover for the locking wheel. Stow the towball in its bag. Refit the protective blanking plug to the carrier.
Grasp the towball firmly with one hand; with the other hand, press and turn the locking wheel clockwise as far as it will go. Extract the towball from the bracket.
Be ready for the weight of the towball (around 3.5 kg). Risk of injury!
Stowing the towball
It is recommended that the removable towball be safely stowed, preferably in a storage space below the boot floor. Attach the towball using the bag tie cord.
Never leave the removable towball unsecured in the boot. In the event of sudden braking, a towball left loose in the boot could present a danger to passengers in the vehicle. Furthermore, the towball and the boot risk being damaged.

8
Practical information
1
508-add_en_Chap08_info-pratiques_ed01-2016

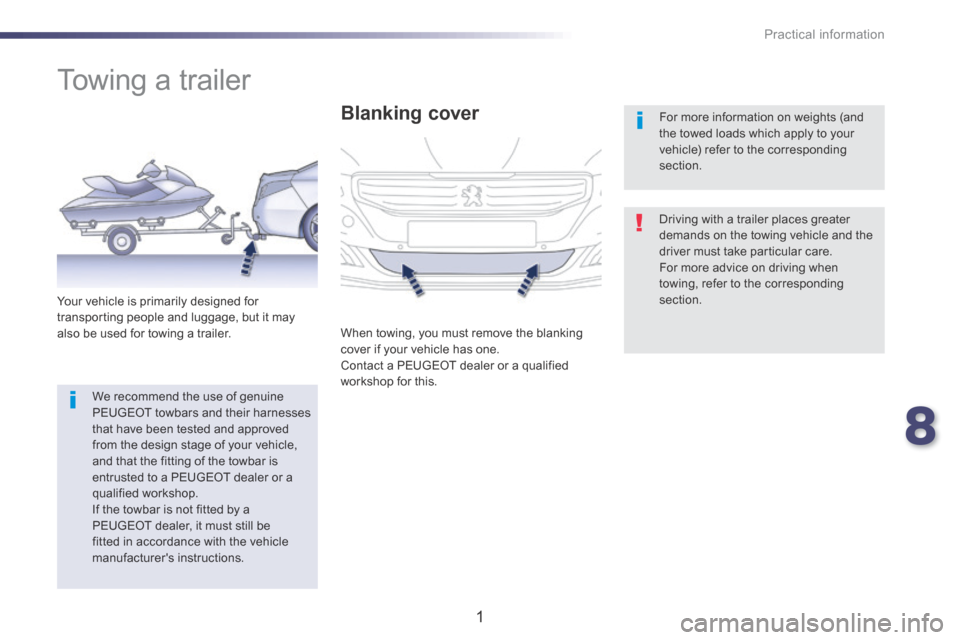

Towing a trailer
Driving with a trailer places greater demands on the towing vehicle and the driver must take particular care. For more advice on driving when towing, refer to the corresponding section. Your vehicle is primarily designed for transporting people and luggage, but it may also be used for towing a trailer.
Blanking cover
When towing, you must remove the blanking cover if your vehicle has one. Contact a PEUGEOT dealer or a qualified workshop for this.
For more information on weights (and the towed loads which apply to your vehicle) refer to the corresponding section.
We recommend the use of genuine PEUGEOT towbars and their harnesses that have been tested and approved from the design stage of your vehicle, and that the fitting of the towbar is entrusted to a PEUGEOT dealer or a qualified workshop. If the towbar is not fitted by a PEUGEOT dealer, it must still be fitted in accordance with the vehicle manufacturer's instructions.
