Serviceon temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown on
the screen, such as, for example:
-

t
he hybrid system,
-

t
he closing of the doors, boot or bonnet,
-

t
he engine oil level,
-

t
he screenwash level,
-

t
he remote control battery,
-

s
aturation of the particle filter (Diesel).
For any other faults, contact a P
e

uge
Ot
dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown
on the screen and contact a P
e

uge
Ot
dealer or a
qualified workshop.
FA P : particle
filter, Diesel fixed, associated
temporarily with a
message on the risk of
FAP filter blockage.
th

is indicates the start of saturation
of the particle filter. As soon as traffic conditions permit, regenerate
the filter by by driving at a speed of of least 36 mph
(60
km/h) until the service warning lamp goes off.
fixed.
th

is indicates the low level of the
Diesel additive reservoir. Have it topped up as soon as possible by a P
e

uge
Ot

dealer or a qualified workshop.
Warning


/ indicator lamp
State Cause Action

/ Observations
1
Monitoring

48
Warning / indicator lamp State Cause Action / Observations
Electric parking
brake flashing.
th

e electric parking brake is not
applied automatically.
th

e application/release is faulty.You must stop as soon as it is safe to do so.
Park on flat level ground, engage a gear (or place the
lever in position P for an automatic gearbox), switch
off the ignition and contact a P
e

uge
Ot
dealer or a
qualified workshop.
Electric parking
brake fault fixed.
th

e electric parking brake has a fault. Contact a P
e
uge
Ot
dealer or a qualified workshop
without delay.
For more information on the electric parking brake,
refer to the corresponding section.
Braking fixed.
th

e brake fluid level has dropped
significantly. You must stop as soon as it is safe to do so.
to

p up with brake fluid listed by P
e
uge
Ot.
I

f the problem persists, have the system checked by a
P
e

uge
Ot
dealer or a qualified workshop.
+ fixed, associated
with the ABS warning
lamp.
th

e electronic brake force distribution
(
eB

FD) system has a fault.You must stop as soon as it is safe to do so.
Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
Deactivation of
the automatic
functions of the
electric parking
brake
fixed.
th

e "automatic application" (on
switching off the engine) and
"automatic release" functions are
deactivated or faulty. Activate the function (according to country) via the
vehicle configuration menu or contact a P
e

uge
Ot
d

ealer or a qualified workshop if automatic application /
release is not possible.
For more information on the electric parking brake,
refer to the corresponding section.
Monitoring

49
508RXH_en_Chap01_controle-de-marche_ed01-2014
Warning / indicator lamp State Cause Action / Observations
Dynamic
stability control
(DSC/ASR) flashing.
th

e DSC/ASR regulation is
operating.
th

e system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.
fixed.
th

e DSC/ASR system has a fault. Have it checked by a P
e
uge
Ot
dealer or a qualified
workshop.
Engine
autodiagnosis
system flashing.
the

engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
fixed.
th

e emission control system has a
fault.
the warning lamp should go off when the engine is started.
If it does not go off, contact a Pe ugeOt dealer or qualified
workshop without delay.
Low fuel level fixed with the needle
in the red zone. When it first comes on there remains
approximately 7 litres of fuel in the
tank.
At this point, you begin to use the fuel
reserve. Refuel as soon as possible to avoid running out of
fuel.
th

is warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Never continue to drive until you run out of fuel, as
this could damage the emission control and injection
systems.
Anti-lock
Braking System
(ABS)
fixed.
th
e anti-lock braking system has a
fault.
th
e vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
P
e
uge
Ot
dealer or a qualified workshop without
d e l ay.
1
Monitoring

50
Warning or indicator lamp
in the instrument panelState
Cause Action
/ Observations
Engine oil
pressure fixed.
th

ere is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a P
e

uge
Ot

dealer or a qualified workshop.
Battery charge *fixed.
th

e battery charging circuit has a
fault.
the warning lamp should go off when the engine is started.
If it does not go off, contact a Pe ugeOt dealer or a
qualified workshop.
Door(s) open fixed, associated with
a message identifying
the door, if the speed is
below 6 mph (10 km/h). A door or the boot is still open. Close the door or boot.
fixed, associated with a
message identifying the
door, and accompanied
by an audible signal
if the speed is above
6
mph (10 km/h).
* Depending on destination country.
Monitoring

51
508RXH_en_Chap01_controle-de-marche_ed01-2014
Warning / indicator lamp State Cause Action / Observations
Airbags on temporarily.
th

is lamp comes on for a few
seconds when you turn on the
ignition, then goes off.
th

is lamp should go off when the engine is started.
If it does not go off, contact a P
e

uge
Ot
dealer or a
qualified workshop.
fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
Directional
headlamps flashing.
th

e directional headlamps system
has a fault. Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
Seat belt(s)
not fastened
/
unfastened fixed then flashing
accompanied by an
increasing audible
signal. A seat belt has not been fastened or
has been unfastened.
Pull the strap then insert the tongue in the buckle.
Under-inflation fixed.
th

e pressure in one or more wheels
is too low. Check the pressure of the tyres as soon as possible.
th

is check should preferably be carried out when the
tyres are cold.
+ flashing then fixed,
accompanied by the
Service warning lamp.
th

e tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels.
un

der-inflation detection is not assured.
Have the system checked by a P
e

uge
Ot
dealer or a
qualified workshop.
1
Monitoring

52

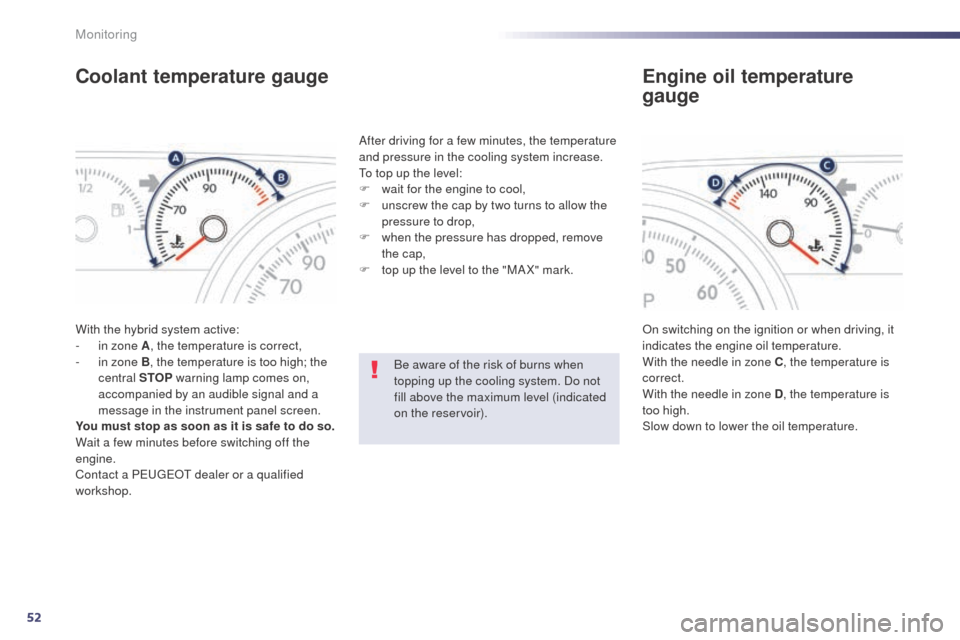

Coolant temperature gauge
With the hybrid system active:
- i n zone A , the temperature is correct,
-

i
n zone B, the temperature is too high; the
central STOP warning lamp comes on,
accompanied by an audible signal and a
message in the instrument panel screen.
You must stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
Contact a P
e

uge
Ot
dealer or a qualified
workshop. After driving for a few minutes, the temperature
and pressure in the cooling system increase.
to t

op up the level:
F
w
ait for the engine to cool,
F
u
nscrew the cap by two turns to allow the
pressure to drop,
F
w
hen the pressure has dropped, remove
the cap,
F
t
op up the level to the "MA X" mark.
On switching on the ignition or when driving, it
indicates the engine oil temperature.
With the needle in zone C, the temperature is
correct.
With the needle in zone D , the temperature is
too high.
Slow down to lower the oil temperature.
Engine oil temperature
gauge
Be aware of the risk of burns when
topping up the cooling system. Do not
fill above the maximum level (indicated
on the reservoir).
Monitoring

53
508RXH_en_Chap01_controle-de-marche_ed01-2014
* According to country.
CHECK (vehicle autotest)
Automatic CHECK
With the key in the ignition on position, all of the
warning lamps for the functions tested are displayed.
th
ey are switched off after a few seconds.
At the same time, an automatic CHeC K
(vehicle autotest) is carried out.
In the presence of a fault
A "minor" fault has been detected: the warning
lamp(s) are displayed then go off.
You can start your vehicle; however, contact a
P
e

uge
Ot
dealer or a qualified workshop as
soon as possible.
A "major" fault has been detected: the
associated warning lamps(s) remain on
accompanied by the S
tO

P or S
eR
VIC
e

warning lamp.
Do not start your vehicle.
Call a P
e

uge
Ot
dealer or a qualified
workshop without delay.
Manual CHECK
Pressing the "CHECK" button on the instrument
panel starts the manual CHeC K (vehicle autotest).
th

is function enables you to recall at any time (with
the key in the ignition on position or with the engine
running), the alerts present.
the passenger's airbag deactivated warning
lamp* remains on while the airbag is deactivated.
With the engine running and the vehicle
moving, the instrument panel displays the
warning lamps (in the event of a fault).
If no "major" fault is found, you can start your
vehicle.
Lighting dimmer control
With the headlamps on, press button B to
increase the brightness of the instruments
and controls and the interior mood lighting or
button
A to reduce it.
As soon as the lighting reaches the required
level of brightness, release the button.
1
Monitoring

54
Service indicator
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.th
e point at which the service is due is
calculated from the last indicator zero reset. It
is determined by two parameters:
-

t

he distance travelled,
-

t

he time elapsed since the last service.
Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the service operations comes
on. t
h
e distance recorder display line indicates the
distance remaining before the next service is due.
Example: 1 700 miles (2 800 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on, the
screen indicates:
5 seconds after the ignition is switched on,
the spanner goes off ; the distance recorder
resumes its normal operation.
t
h
e screen then
indicates the total and trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
Illumination of the key is accompanied
by a message in the instrument panel
screen.
Monitoring
