2014 Peugeot 508 RXH Owner's Manual

01
247
508RXH_en_Chap11c_SMegplus-i_ed01-2014
use the buttons below the touch screen for access to the menus, then pres\
s the virtual
buttons in the touch screen.
e

ach menu is displayed in one or two pages (primary page and secondary p\
age).

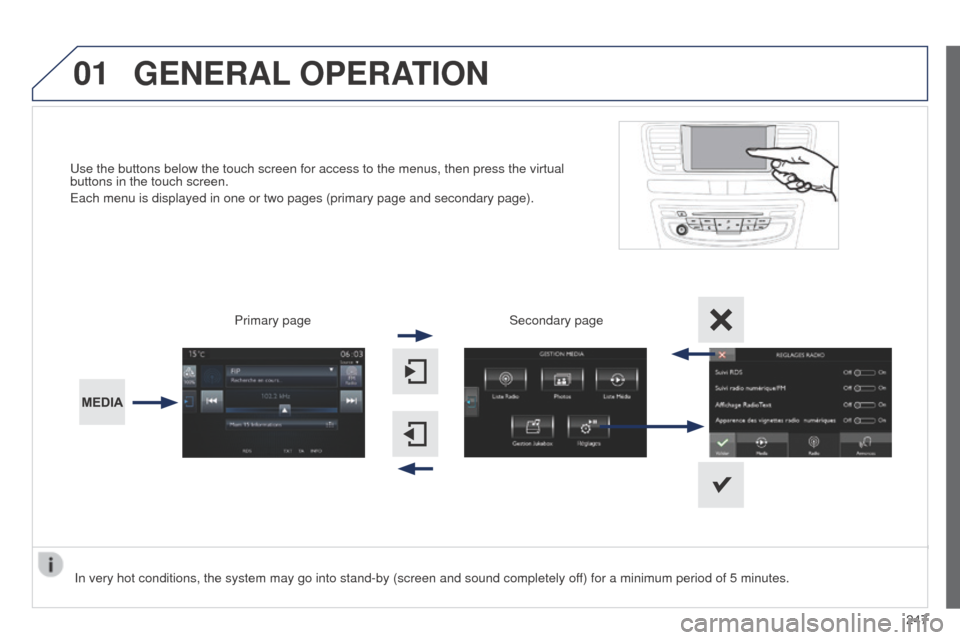

GENERAL OPERATION
In very hot conditions, the system may go into stand-by (screen and sou\
nd completely off) for a minimum period of 5 minutes. Secondary page
Primary page

248
02
508RXH_en_Chap11c_SMegplus-i_ed01-2014
With the engine running, press to
mute the sound.
With the ignition off, press to switch
the system off.
Volume (each source is
independent, including "Traffic
announcements (t
A)" and
navigation instructions).
Selecting the audio source (depending on version):
-


"FM" radio stations.
-


"
u SB" memory stick.
-

CD player in the control panel.
-


Jukebox*, after having first copied audio files to the internal memory of the system.
-

t
elephone connected by Bluetooth* and using Bluetooth* streaming.
-


Media player connected by the auxiliary socket (jack, cable not supplie\
d).
The screen is of the "resistive" type, it is necessary to press firmly , particularly for "flick" gestures (scrolling through a list, moving the map...).
A

simple wipe will not be enough. Pressing with more than one finger is not recognised.
t

he screen can be used when wearing gloves.
t
his technology allows use at all temperatures.
FIRST STEPS
* Depending on equipment.
to clean the screen, use a soft non-abrasive cloth (spectacles cloth) w\
ithout any additional product.
Do not use pointed objects on the screen.
Do not touch the screen with wet hands. After prolonged exposure
to the sun, the volume
may be limited to protect
the system. Normal
operation is restored when
the temperature in the
passenger compartment
drops.
Short cuts: using the virtual buttons
in the upper bar of the touch
screen, it is possible to go to the list
of stations (or titles depending on
the source).

249
03
508RXH_en_Chap11c_SMegplus-i_ed01-2014

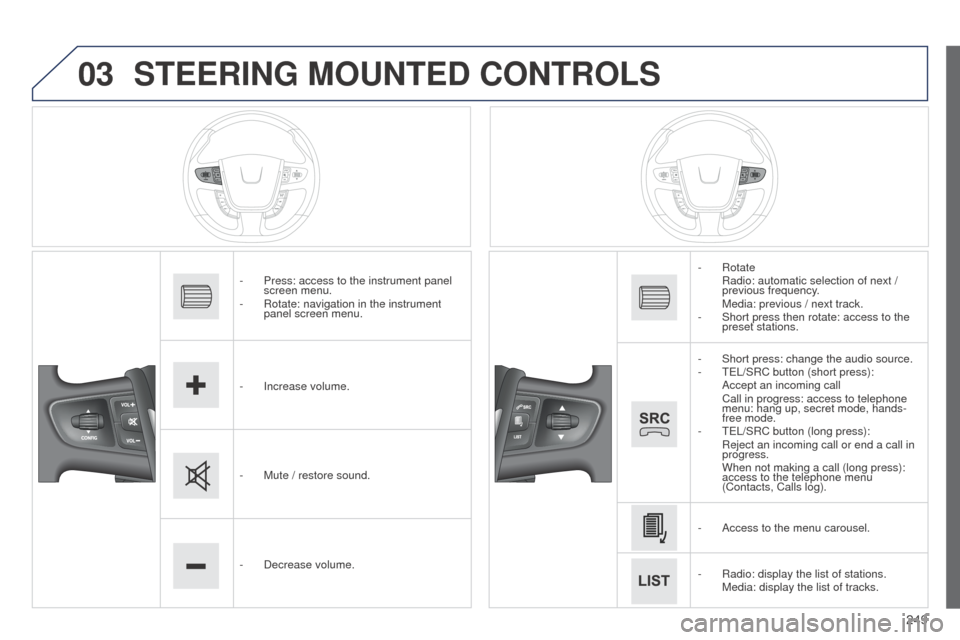

STEERING MOUNTED CONTROLS
- Press: access to the instrument panel
screen menu.
-

Rotate: navigation in the instrument
panel screen menu.
-


Increase volume.
-


Mute / restore sound.
-


Decrease volume. -

Rotate Radio: automatic selection of next
/
previous frequency.
Media: previous / next track.
-


Short press then rotate: access to the
preset stations.
-


Short press: change the audio source.
-

te L/SRC button (short press):
Accept an incoming call Call in progress: access to telephone
menu: hang up, secret mode, hands-
free mode.
-

te L/SRC button (long press):
Reject an incoming call or end a call in
progress.
When not making a call (long press):
access to the telephone menu
(Contacts, Calls log).
-


Access to the menu carousel.
-


Radio: display the list of stations. Media: display the list of tracks.

250
04
508RXH_en_Chap11c_SMegplus-i_ed01-2014
MEDIA
Level 1Level 2 Level 3
List of FM stations
"Media"
Primary page
Preset

251
508RXH_en_Chap11c_SMegplus-i_ed01-2014
Level 1Level 2 Level 3 Comments
Media List List of FM stations
Press on a radio station to select it.
Media
Source FM RadioSelect change of source.
CD
Jukebox
USB
iPod
Bluetooth
AUX
Media
Preset
Press an empty location to Preset it.

04
252
508RXH_en_Chap11c_SMegplus-i_ed01-2014
MEDIA
Level 1Level 2 Level 3
Media Photos
Manage Jukebox
"Media"
Secondary pageList of FM stations
Copy to Jukebox

253
508RXH_en_Chap11c_SMegplus-i_ed01-2014
Level 1Level 2 Level 3 Comments
Media
Secondary page Radio list Preset
Press a radio station to select it.
Update listupdate the list of stations received.
Frequencyenter the desired radio frequency.
ConfirmSave the settings.
Media
Secondary page Photos Page selection
Display the selected photo full screen.
RotateRotate the photo 90°.
Select allSelect all the photos in the list.
Press again to deselect.
Slideshow
Previous photo.Display the photos in sequence, full screen.Pause / Play.
Next photo.
Confirm
Save the settings.
Media
Secondary page
Manage Jukebox Sort by folder
Choose the selection mode.Sort by album
Select all
Magnifying glass
Create folder
Choose the handling mode.Rename
Delete
Select all
Confirm
Save the options.
CopySave the settings

04
254
508RXH_en_Chap11c_SMegplus-i_ed01-2014
MEDIA
Level 1Level 2 Level 3
"Media"
Secondary page
Media Settings Settings
Settings
