2014 Peugeot 508 RXH Owner's Manual

255
508RXH_en_Chap11c_SMegplus-i_ed01-2014
Level 1Level 2 Level 3 Comments
Media
Secondary page Media list
Presentation of the last media used.
Media
Secondary page Settings Media
Settings Random (all tracks):
Choose the play settings.Random (current album):
Loop:
Aux. amplification
Radio
Settings RDS options
Activate or deactivate the options.
Display Radio text
Announcements Settings T
raffic announcements (TA)
Activate or deactivate the options.Weather
Varied - Sport
Alert settings
Confirm
Save the settings.

04
256
508RXH_en_Chap11c_SMegplus-i_ed01-2014
Selecting a station
the exterior environment (hills, buildings, tunnel, car park, below grou\
nd...) may prevent reception, even in RDS station tracking mode. this phenomenon is normal in the propagation of radio waves and is in no \
way indicative of a fault with the audio system.
Select "List" in the primary page.
or
Select "Radio list" in the secondary page. Press on Media to display the primary page.
or
Press on Media to display the primary page
then go to the secondary page.
Select a radio station from the list offered.
Press Media to display the primary
page then select "
Preset".
OR
Select "Update list" to refresh the list.
RADIO
Select a preset radio station in the list.

257
04
508RXH_en_Chap11c_SMegplus-i_ed01-2014
Changing a radio frequency
By alphabetical list
Press the current radio band then
choose the radio station from the list
offered. Press on Media to display the primary
page then press on the secondary
page.
enter the frequency in full (e.g.: 92.10 MHz)
using the keypad then " Confirm".
By automatic frequency search
Press 3 or 4 to move the cursor
for an automatic search down or up
for a radio frequency. Press on Media to display the primary
page.
Press on "Frequency" to display
the primary page then press on the
secondary page.
OR
RADIO
Select change source.
Select "FM Radio". THEN
OR

04
258
508RXH_en_Chap11c_SMegplus-i_ed01-2014
Preset a station
Press on "Preset".
Select a radio station or frequency
(refer to the corresponding section).
Select a number in the list to preset the
previously chosen radio station.
A long press on a number presets (memorises)
the station.
Or
A press on this button presets all of the stations
one after the other.
Recall pre-set stations
Press on Media to display the primary page
then select "Save".
RADIO

259
04
508RXH_en_Chap11c_SMegplus-i_ed01-2014
RADIO
Activate/ Deactivate RDS
Select "Settings". Press on Media to display the primary page
then go to the secondary page.
Select "Radio".
Activate/deactivate "RDS options".
RDS, if activated, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However, in
certain conditions, coverage of an RDS station may not be assured
throughout the entire country as radio stations do not cover 100 % of
the territory.
t
his explains the loss of reception of the station during
a journey.

260
04
508RXH_en_Chap11c_SMegplus-i_ed01-2014
CD, MP3 CD, USB player, auxiliary input
Insert the CD in the player, insert the uSB
memory stick in the u SB player or connect the
u

SB peripheral to the u SB port using a suitable
cable (not supplied)
t

he system builds playlists (in temporary
memory), an operation which can take from
a few seconds to several minutes at the first
connection.
Reduce the number of non-music files and the
number of folders to reduce the waiting time.
t

he playlists are updated every time the ignition
is switched off or connection of a
u SB memory
stick. However, the system memorises these
lists and if they are not modified, the loading
time will be shorter. Selection of source
t

he steering mounted SRC (source) button can be used to go to the
next media source, available if the source is active.
Press OK to confirm the selection.
"CD / CD MP3"
"USB, iPod"
"Bluetooth (streaming)"
"Auxiliary"
"Radio" Select change of source then choose
the
source.
Press on Media to display the primary page.
MUSIC

261
04
508RXH_en_Chap11c_SMegplus-i_ed01-2014
CD, MP3 CD / USB player
The audio equipment will only play audio files with ".wma,
.aac, .flac, .ogg and. mp3" file extensions and with a bit rate of
between 32 Kbps and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of file (.mp4, ...) can be played.
WMA files must be of the standard wma 9 type.
t

he sampling rates supported are 11, 22, 44 and 48 KHz.
It is advisable to restrict file names to 20 characters, without using of
special characters (e.g.: " " ? ; ù) to avoid any playing and displ\
aying
problems.
In order to be able to play a recorded CDR or CDRW, when
recording it is preferable to select the ISO 9660 level 1, 2 or Joliet
standard.
If the disc is recorded in another format it may not be played
correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended. Information and advicet he system supports u SB mass storage devices, BlackBerry®
devices or Apple® players via uSB ports. t he adaptor cable not
supplied.
Control of the peripheral device is with the audio system controls.
Other peripherals, not recognised on connection, must be connected
to the auxiliary socket using a Jack cable (not supplied).
Use only USB memory sticks formatted FAT 32 (28-bit file allocation
table).
MUSIC
the system does not support two identical devices connected at the
same time (two memory sticks, two Apple® players) but it is possible
to connect one memory stick and one
Apple® player at the same
time.
It is recommended that official Apple
® uSB cables are used to
ensure correct operation.

04
/
/
262
508RXH_en_Chap11c_SMegplus-i_ed01-2014

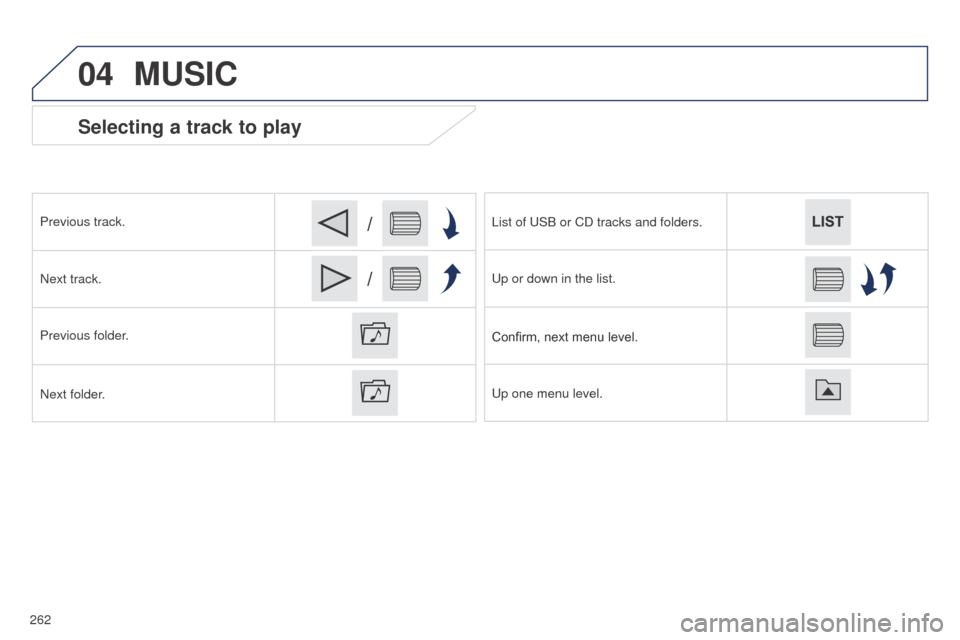

Selecting a track to play
Previous track.
Next track.
Previous folder.
Next folder.List of
u SB or CD tracks and folders.
u

p or down in the list.
Confirm, next menu level.
u

p one menu level.
MUSIC
