2014 Peugeot 508 RXH Owner's Manual

87
508RXH_en_Chap03_confort_ed01-2014
Electric adjustments
Switch on the ignition or start the engine if the vehicle has gone
into economy mode.1.
Adjustment of the seat cushion angle and
height, and forwards-backwards adjustment
F Raise or lower the front of the control to
adjust the seat cushion angle.
F

R
aise or lower the rear of the control to
raise or lower the seat.
F

S
imultaneously raise or lower the front
and rear of the control in order to raise or
lower the entire seat.
2.
A

djustment of the backrest angle
M

ove the control for wards or backwards to
adjust the backrest angle.
3.
A

djustment of lumbar support


t
h
is function allows you to independently
adjust the height and level of lumbar
support.
th

e electric functions of the driver's seat are active for about a
minute after opening the front door.
t
h

ey are deactivated about a
minute after switching off the ignition and in economy mode.
to r

eactivate them, switch on the ignition. Move the control:
F

F
or wards or backwards to increase or
reduce the lumbar support.
F
u
p
wards or downwards to raise or lower
the lumbar support zone.
Front seats
Before moving the seat backwards, ensure that there is nothing
that might prevent the full travel of the seat, so as to avoid the risk
of of jamming the seat caused by the presence of objects on the
floor behind the seat or rear passengers. If the seat jams, stop the
movement immediately.
3
Comfort

88
508RXH_en_Chap03_confort_ed01-2014
Storing driving positions
System which stores the electrical settings of
the driver's seat and door mirrors as well as
the head-up display settings. It enables you to
store up to two positions using the buttons on
the side of the driver's seat.
Storing a position
using buttons M / 1 / 2
F Switch on the ignition.
F
A djust your seat, the door mirrors and the
head-up display.
F

P
ress button M , then press button 1 or 2
within four seconds.
A

n audible signal indicates that the position
has been stored.
Storing a new position cancels the previous
position.
Recalling a stored position
Ignition on or engine running
F Briefly press button 1 or 2 to recall the corresponding position.
An audible signal indicates the end of the
adjustment.
You can interrupt the current movement by
pressing button M , 1 or 2 or by using one of the
seat controls.
A stored position cannot be recalled while
driving.
Recalling stored positions is deactivated
45
seconds after switching off the ignition.
Welcome function
the welcome function assists entry and leaving
the vehicle.
After switching off the ignition and opening
the driver’s door, the seat moves back
automatically and then stays in this position,
ready for the next entry to the vehicle.
When switching on the ignition, the seat moves
for ward to the stored driving position.
When moving the seat, take care that no
person or object hinders the automatic
movement of the seat.
th

is function can be activated
or deactivated via the vehicle
configuration menu.
Comfort

89
508RXH_en_Chap03_confort_ed01-2014
Head restraint height and angle
adjustment
F to lower the head restraint, press the lug A and, going beyond the stiff point, guide the
head restraint downwards, then release the
button at the desired position.
F
t
o r
aise the head restraint, guide it
upwards to the desired position.
F
t
o r
emove the head restraint, press the two
lugs B and pull the head restraint upwards.
F
t
o p
ut the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat
back. Check that it has engaged by pulling
it upwards.
th
e head restraint is fitted with a
locking mechanism which prevents it
from lowering; this is a safety device in
case of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly. F
us e the adjustment wheel to switch on and
select the level of heating required:
With the hybrid system active, the front seats
can be heated individually.
0
: Of f.
1 : Low.
2 : Medium.
3 : High.
Heated seats control
3
Comfort

90
508RXH_en_Chap03_confort_ed01-2014

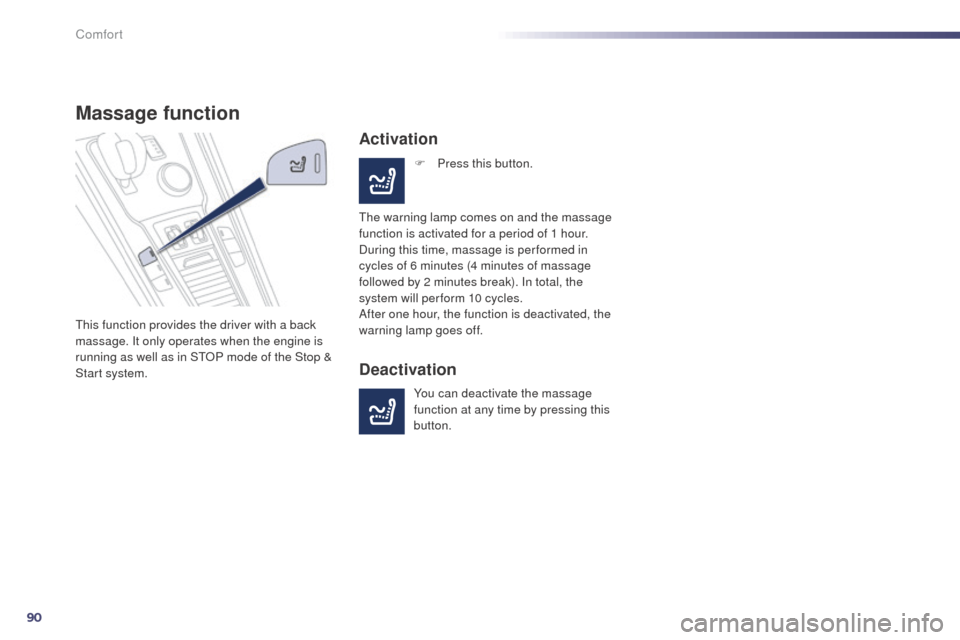

Massage function
this function provides the driver with a back
massage. It only operates when the engine is
running as well as in S
tO
P mode of the Stop &
Start system.
Activation
F Press this button.
th

e warning lamp comes on and the massage
function is activated for a period of 1 hour.
During this time, massage is per formed in
cycles of 6 minutes (4 minutes of massage
followed by 2 minutes break). In total, the
system will per form 10 cycles.
After one hour, the function is deactivated, the
warning lamp goes off.
Deactivation
You can deactivate the massage
function at any time by pressing this
button.
Comfort

91
508RXH_en_Chap03_confort_ed01-2014

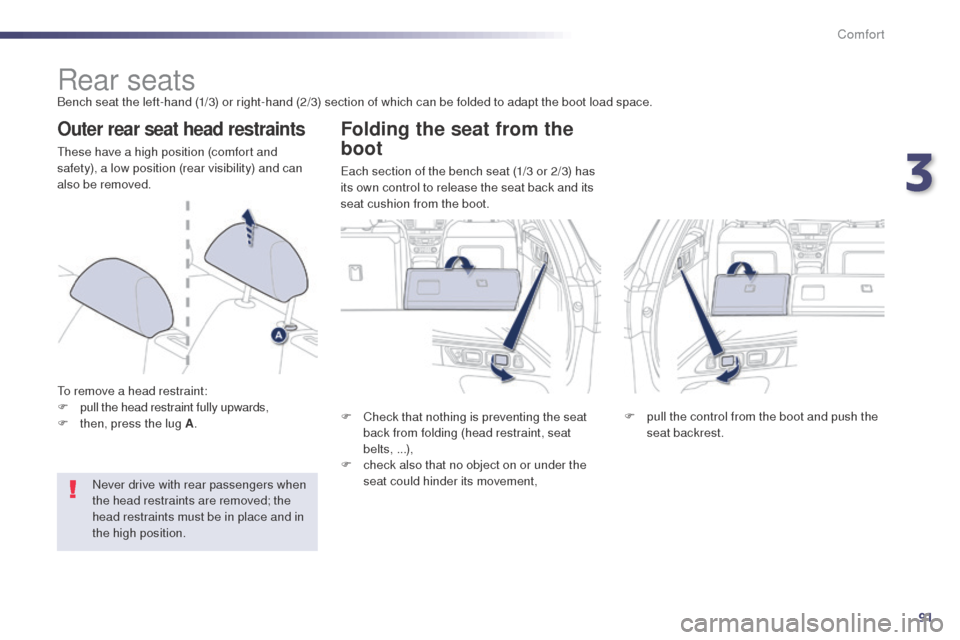

Rear seatsBench seat the left-hand (1/3) or right-hand (2/3) section of which can be folded to adapt the boot load space.
Outer rear seat head restraints
these have a high position (comfort and
safety), a low position (rear visibility) and can
also be removed.
to r
emove a head restraint:
F

p
ull the head restraint fully upwards,
F

t
hen, press the lug A .
Never drive with rear passengers when
the head restraints are removed; the
head restraints must be in place and in
the high position.
Folding the seat from the
boot
each section of the bench seat (1/3 or 2/3) has
its own control to release the seat back and its
seat cushion from the boot.
F

C
heck that nothing is preventing the seat
back from folding (head restraint, seat
belts, ...),
F

c
heck also that no object on or under the
seat could hinder its movement, F

p
ull the control from the boot and push the
seat backrest.
3
Comfort

92
508RXH_en_Chap03_confort_ed01-2014
Folding the seat from the
rear
Check that no object, either on or underneath
the seat, could hinder its movement.
Returning the seat back to its original position
F Put the seat back in the upright position and secure it, the seat cushion also returns
to its original position,
F

c
heck that the red indicator, located at the
control 1 , is no longer visible,
F

r
efit the head restraints or put them back in
place.
F
M
ove the corresponding front seat
forwards if necessary,
F

c

heck that the seat belt is positioned
correctly on the side of the seat back,
F

p

lace the head restraints in the low position
or remove them if necessary, F
p
ull the control 1 for wards to release the
seat backrest 2 then fold it forwards. When returning the rear seat back to its original
position, take care not to trap the seat belts
and ensure that their buckles are positioned
c o r r e c t l y.
Comfort

93
508RXH_en_Chap03_confort_ed01-2014
Mirrors
each fitted with an adjustable mirror glass
permitting the lateral rearward vision necessary
for overtaking or parking. t
h
ey can also be
folded for parking in confined spaces.
Door mirrors
If the mirrors are folded using control A ,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
th

e folding and unfolding of the door
mirrors using the remote control can be
deactivated by a P
e

uge
Ot
dealer or a
qualified workshop.
Fold the mirrors when putting your
vehicle through an automatic car wash.
th

e objects observed are, in reality,
closer than they appear.
ta

ke this into account in order to
correctly judge the distance of vehicles
approaching from behind.
Demisting - Defrosting
If your vehicle is fitted with heated mirrors, the
demisting-defrosting operates by switching
on the heated rear screen (refer to the "Rear
screen demist-defrost" page).
Adjustment
F Move control A to the right or to the left to select the corresponding mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A to the central position.
Folding
- Automatic: lock the vehicle using the remote control or the key.
-

M
anual: with the ignition on, pull control A
rearwards.
Unfolding
- Automatic: unlock the vehicle using the remote control or the key.
-

M
anual: with the ignition on, pull control A
rearwards.
th

e rear screen demisting - defrosting can only
operate when the hybrid system is active. As a safety measure, the mirrors should
be adjusted to reduce the blind spots.
If necessary, it is possible to fold the
mirrors manually.
3
Comfort

94
508RXH_en_Chap03_confort_ed01-2014
Automatic tilting in reverse gear
System which provides a view of the ground
during parking manoeuvres in reverse gear.
Programming
F With the engine running, engage reverse g e a r.
F

S
elect and adjust the left-hand and right-
hand mirrors in succession.
th

e adjustment is stored immediately.
Switching on
F With the engine running, engage reverse g e a r.
F

M
ove control A to the right or to the left to
select the corresponding mirror.
th

e glass of the mirror selected tilts
downwards, in accordance with its
programming.
Switching off
F exit reverse gear and wait ten seconds.
or
F

R
eturn control A to the central position.
th

e mirror glass returns to its initial position.
th

e mirror glass also returns to its initial
position:
-

i
f the speed exceeds 6 mph (10 km/h),
-

i
f the engine is switched off.
Comfort
