2014 PEUGEOT 5008 Owners Manual

11
Practical information231

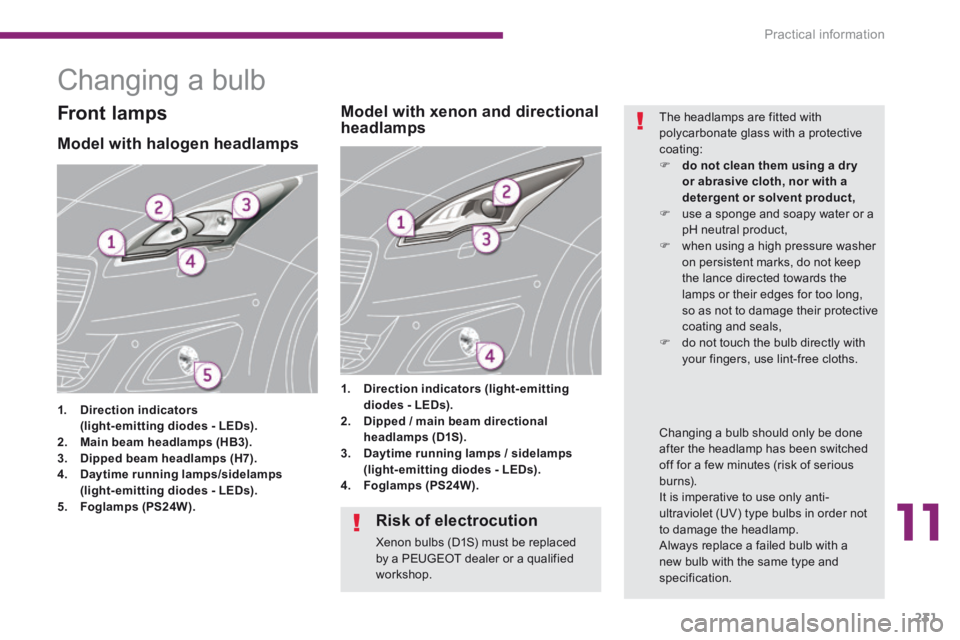

Changing a bulb
Model with halogen headlamps
1. Direction indicators (light-emitting diodes - LEDs).2. Main beam headlamps (HB3).3. Dipped beam headlamps (H7).4. Daytime running lamps/sidelamps (light-emitting diodes - LEDs).5. Foglamps (PS24W).
1. Direction indicators (light-emitting diodes - LEDs).2. Dipped / main beam directional headlamps (D1S).3. Daytime running lamps / sidelamps (light-emitting diodes - LEDs).4. Foglamps (PS24W).
Model with xenon and directional headlamps Front lamps The headlamps are fitted with polycarbonate glass with a protective coating:  do not clean them using a dr y or abrasive cloth, nor with a detergent or solvent product, use a sponge and soapy water or a pH neutral product,  when using a high pressure washer on persistent marks, do not keep the lance directed towards the lamps or their edges for too long, so as not to damage their protective coating and seals,  do not touch the bulb directly with your fingers, use lint-free cloths.
Changing a bulb should only be done after the headlamp has been switched off for a few minutes (risk of serious burns). It is imperative to use only anti-ultraviolet (UV) type bulbs in order not to damage the headlamp.
Always replace a failed bulb with a new bulb with the same type and specification.
Risk of electrocution
Xenon bulbs (D1S) must be replaced by a PEUGEOT dealer or a qualified workshop.

Practical information
232

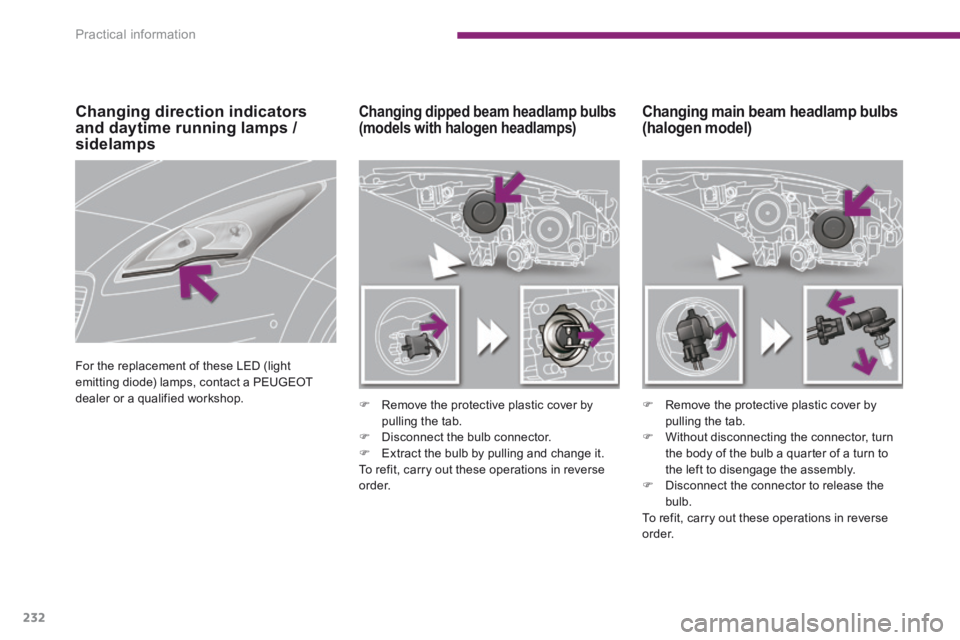

Changing main beam headlamp bulbs (halogen model) Changing dipped beam headlamp bulbs (models with halogen headlamps)
 Remove the protective plastic cover by pulling the tab.  Disconnect the bulb connector.  Extract the bulb by pulling and change it. To refit, carry out these operations in reverse o r d e r.
 Remove the protective plastic cover by pulling the tab.  Without disconnecting the connector, turn the body of the bulb a quarter of a turn to the left to disengage the assembly.  Disconnect the connector to release the bulb. To refit, carry out these operations in reverse
o r d e r.
Changing direction indicators and daytime running lamps / sidelamps
For the replacement of these LED (light emitting diode) lamps, contact a PEUGEOT dealer or a qualified workshop.

11
Practical information233

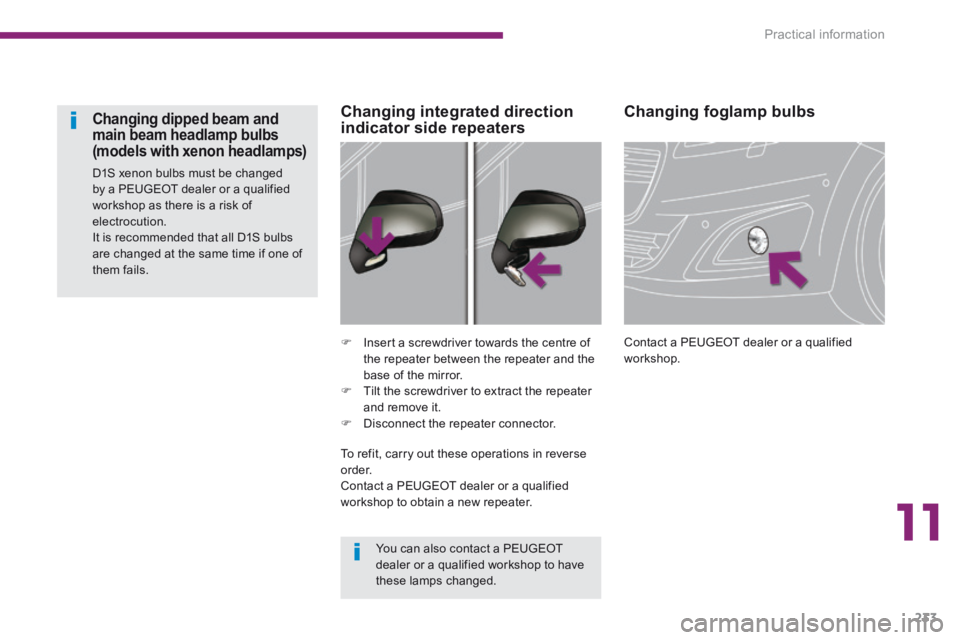

Changing foglamp bulbs
Contact a PEUGEOT dealer or a qualified workshop.  Insert a screwdriver towards the centre of the repeater between the repeater and the base of the mirror.  Tilt the screwdriver to extract the repeater and remove it.  Disconnect the repeater connector.
Changing integrated direction indicator side repeaters Changing dipped beam and main beam headlamp bulbs (models with xenon headlamps)
D1S xenon bulbs must be changed by a PEUGEOT dealer or a qualified workshop as there is a risk of electrocution. It is recommended that all D1S bulbs are changed at the same time if one of them fails.
You can also contact a PEUGEOT dealer or a qualified workshop to have these lamps changed.
To refit, carry out these operations in reverse o r d e r. Contact a PEUGEOT dealer or a qualified workshop to obtain a new repeater.

Practical information
234

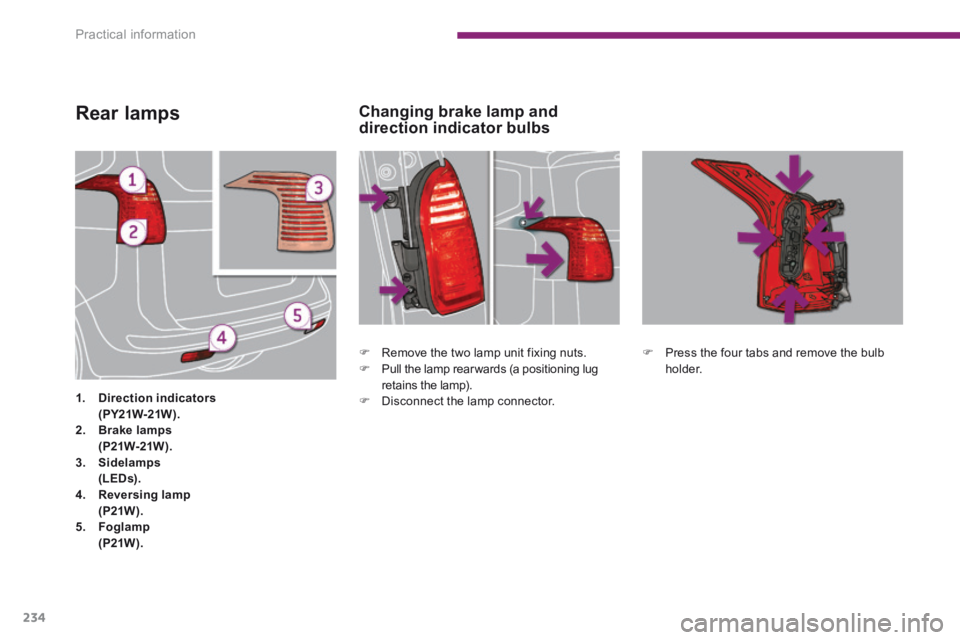

Rear lamps
1. Direction indicators (PY21W-21W ).
2. Brake lamps (P21W-21W ).3. Sidelamps (LEDs).4. Reversing lamp (P21W ).5. Foglamp (P21W ).
 Remove the two lamp unit fixing nuts.  Pull the lamp rear wards (a positioning lug retains the lamp).  Disconnect the lamp connector.
 Press the four tabs and remove the bulb h o l d e r.
Changing brake lamp and direction indicator bulbs

11
Practical information235

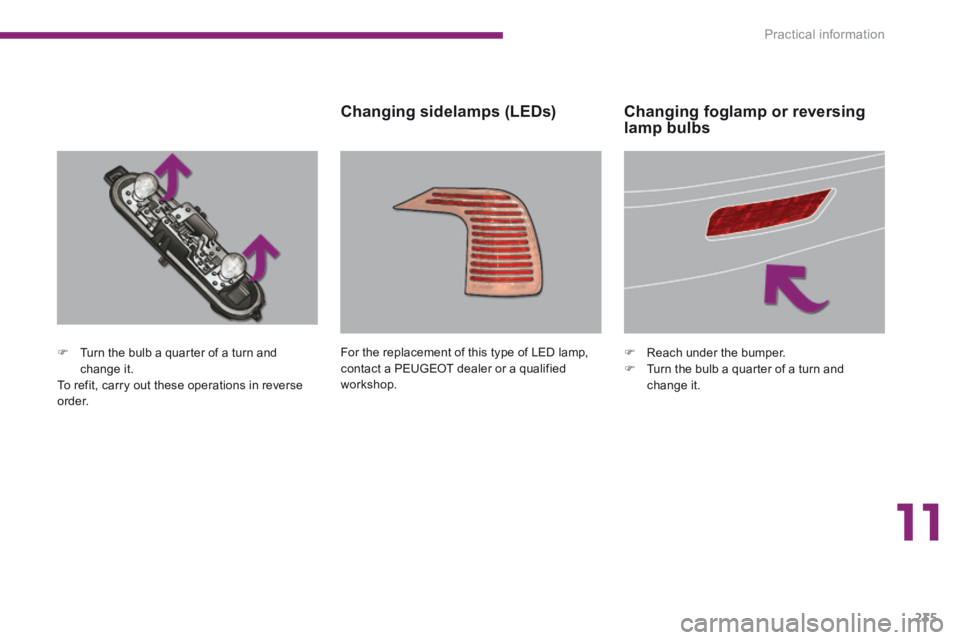

 Turn the bulb a quarter of a turn and change it. To refit, carry out these operations in reverse o r d e r.
For the replacement of this type of LED lamp, contact a PEUGEOT dealer or a qualified workshop.
 Reach under the bumper.  Turn the bulb a quarter of a turn and change it.
Changing sidelamps (LEDs) Changing foglamp or reversing lamp bulbs

Practical information
236

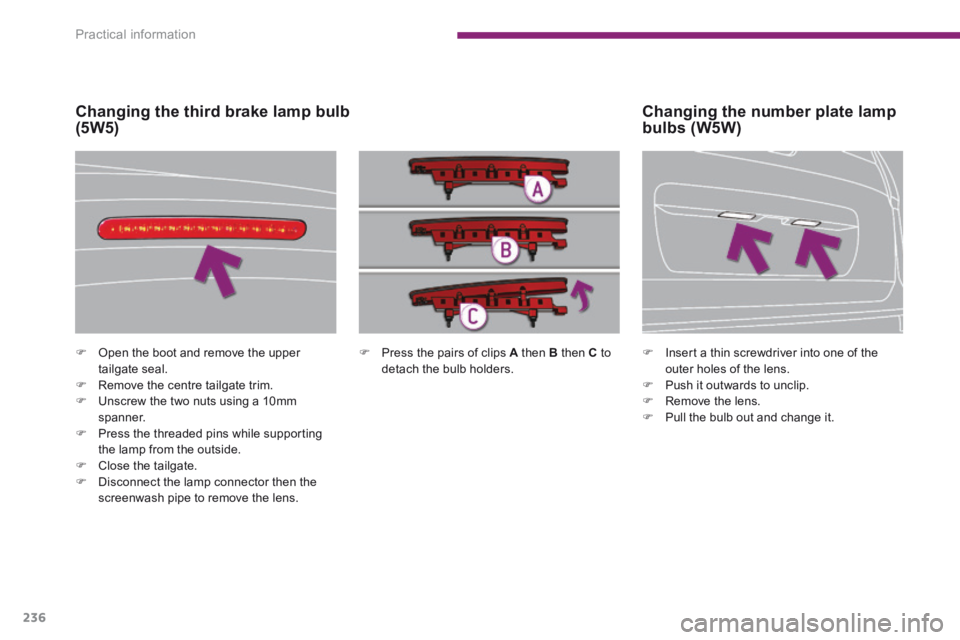

 Press the pairs of clips A then B then C to detach the bulb holders.  Open the boot and remove the upper tailgate seal.  Remove the centre tailgate trim.  Unscrew the two nuts using a 10mm spanner.  Press the threaded pins while supporting the lamp from the outside.  Close the tailgate.  Disconnect the lamp connector then the screenwash pipe to remove the lens.
Changing the third brake lamp bulb (5W5)
 Insert a thin screwdriver into one of the outer holes of the lens.  Push it outwards to unclip.  Remove the lens.  Pull the bulb out and change it.
Changing the number plate lamp bulbs (W5W)

11
Practical information237
Changing a fuse
Access to the tools Changing a fuse
 Use the special tweezer to extract the fuse from its housing.  Always replace the faulty fuse with a fuse of the same rating.  Check that the number marked on the fusebox, the rating marked on the fuse and the following tables all agree.
GoodFailed
Before changing a fuse, the cause of the failure must be identified and rectified.  Identify the failed fuse by checking the condition of its filament.
Procedure for replacing a faulty fuse with a new fuse to rectify a failure of the corresponding function.
PEUGEOT will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in accordance with its instructions, in particular when the
combined consumption of all of the additional equipment connected exceeds 10 milliamperes.
Installing electrical accessories
Your vehicle's electrical system is designed to operate with standard or optional equipment. Before installing other electrical equipment or accessories on your vehicle, contact a PEUGEOT dealer or a qualified workshop. The extraction tweezer is fitted to the back of the dashboard fusebox cover. To gain access to it:  Remove the cover completely.  Remove the tweezer.
The replacement of a fuse not mentioned in the tables below may cause a serious malfunction on your vehicle. Contact a PEUGEOT dealer or a qualified workshop.

Practical information
238
Dashboard fuses
The fusebox is placed in the lower dashboard. Fuse tables
Fuse N° Rating (A) Functions
F115 Rear wiper.
F2- Not used.
F35 Airbag control unit.
F410 Electrochrome rear view mirror, air conditioning, switching and protection unit, rear multimedia.
F530 Front one-touch electric windows.
F630 Rear one-touch electric windows.
F75 Front and rear courtesy lamps, map reading lamps, rear reading lamps, sun visor lighting, glove box lighting, centre armrest lighting, boot 12 V relay control.
