2014 PEUGEOT 5008 Owners Manual

3
Comfort63
The air conditioning only operates when the engine is running.
The driver and front passenger can each adjust the temperature to their requirements.
 Turn control 2 or 3 to the left or to the right respectively to decrease or increase this value. A setting around the value 21 provides optimum comfort. However, depending on your requirements, a setting between 18 and 24 is normal. You are advised to avoid a left / right setting difference of more than 3.
4. Automatic visibility programme
The automatic comfort programme may not be sufficient to quickly demist or defrost the windscreen and side windows (humidity, several passengers, ice, etc.).
 In this case, select the automatic visibility programme. The system automatically controls the air conditioning, the air flow and the air intake and provides optimum distribution of the ventilation to the windscreen and side windows.
Automatic operation
 Press the "AUTO" button. The indicator lamp on the button comes on.

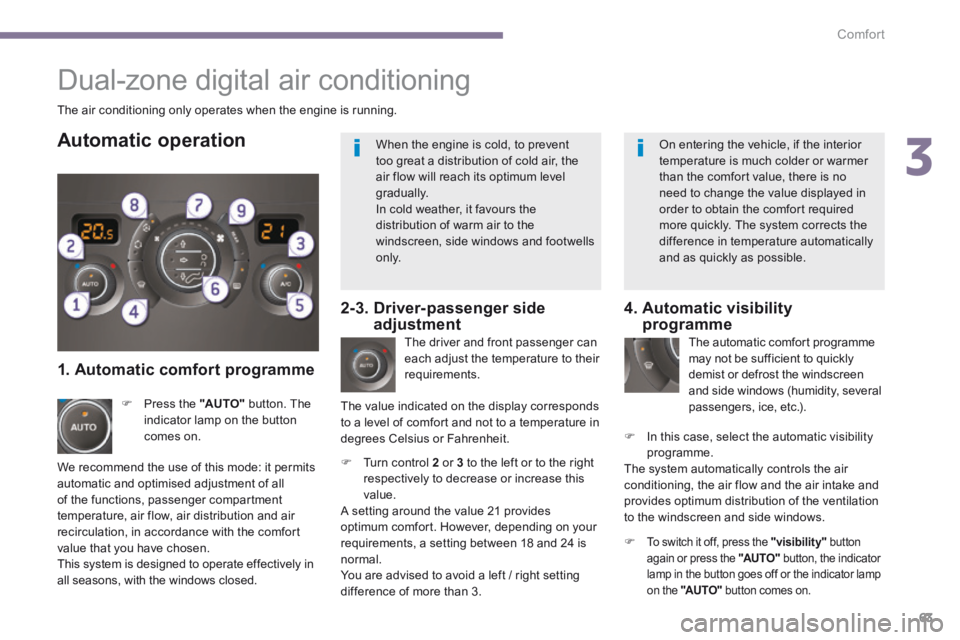

Dual-zone digital air conditioning
We recommend the use of this mode: it permits automatic and optimised adjustment of all of the functions, passenger compartment temperature, air flow, air distribution and air recirculation, in accordance with the comfort
value that you have chosen. This system is designed to operate effectively in all seasons, with the windows closed.
The value indicated on the display corresponds to a level of comfort and not to a temperature in degrees Celsius or Fahrenheit.
To switch it off, press the "visibility" button again or press the "AUTO" button, the indicator lamp in the button goes off or the indicator lamp
on the "AUTO" button comes on.
1. Automatic comfort programme
2-3. Driver-passenger side adjustment
When the engine is cold, to prevent too great a distribution of cold air, the air flow will reach its optimum level gradually. In cold weather, it favours the
distribution of warm air to the windscreen, side windows and footwells o n l y.
On entering the vehicle, if the interior temperature is much colder or warmer than the comfort value, there is no need to change the value displayed in order to obtain the comfort required
more quickly. The system corrects the difference in temperature automatically and as quickly as possible.

Comfort
64
Manual operation
 Press this button to switch off the air conditioning.
6. Air distribution adjustment
 Press one or more buttons to direct the air flow towards:
5. Air conditioning On / Off
- the windscreen and side windows
(demisting or defrosting), - the windscreen, the side windows and the vents, - the windscreen, the side windows, the vents and the footwells, - the vents and the footwells, - the vents, - the footwells, - the windscreen, the side windows and the footwells.
Switching the system off could result in
discomfort (humidity, condensation).  Press this button again to return to automatic operation of the air conditioning. The indicator lamp in the "A /C " button comes on. To obtain cool air sooner, you can use air recirculation for a few moments. Then return to exterior air intake. In winter, we recommend that you close the rear vents.
If you wish, you can make a different choice
from that offered by the system by changing a setting. The other functions will still be controlled automatically.  Pressing the "AUTO" button returns the system to completely automatic operation.
For maximum cooling or heating of the passenger compartment, it is possible to exceed the minimum value 14 or the maximum value 28.  Turn control 2 or 3 to the left until "LO" (low) is displayed or to the right until "HI" (high) is displayed.

3
Comfort65
Switching the system off/on
 Turn the air flow control to the left until all of the indicator lamps go off. This action switches off all of the functions of the system. Temperature related comfort is no longer guaranteed but a slight flow of air, due to the movement of the vehicle, can still be felt.  Turn the air flow dial to the right or press the "AUTO" button to reactivate the system with the values set before it was switched off.
9. Rear ventilation (Rear)
Press this button to allow the air to circulate towards the rear. The temperature will be equal to the left-hand comfort value for the rear left passengers and equal to the right-hand comfort value for the rear right passengers. The indicator lamp in the button comes on.
8. Air recirculation
 Press this button to recirculate the interior air. The indicator lamp comes on.
- Air closed/intake (automatic mode). Press this button, the warning lamp comes on.
7. Air fl ow adjustment
 Turn this control to the left to decrease the air flow or to the right to increase the air flow.
The air flow indicator lamps, between the two fans, come on progressively according to the value requested.
With Stop & Start, when demisting has been activated, the STOP mode is not available.
Avoid driving for prolonged periods with the system off.
- Forced closing of the air intake (manual mode). Press this button to recirculate the interior air, the warning lamp come on.
Air recirculation enables the passenger compartment to be isolated from exterior odours and smoke.
 As soon as possible, press the "auto" button to allow the intake of exterior air and avoid the misting of windows.

Comfort
66

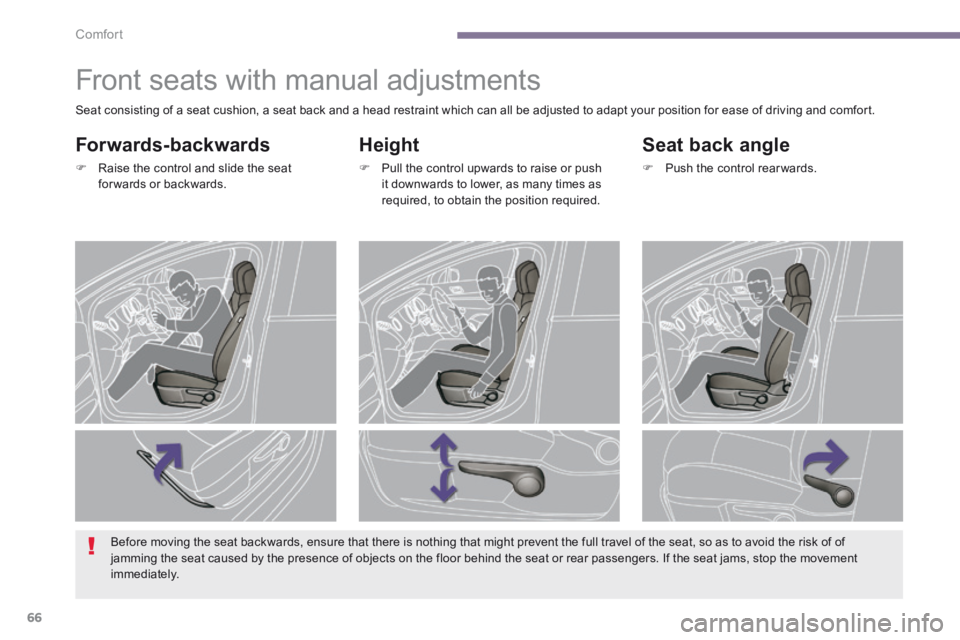

Front seats with manual adjustments
Height
 Pull the control upwards to raise or push it downwards to lower, as many times as required, to obtain the position required.
Seat back angle
 Push the control rear wards.
Forwards-backwards
 Raise the control and slide the seat for wards or backwards.
Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.

3
Comfort67

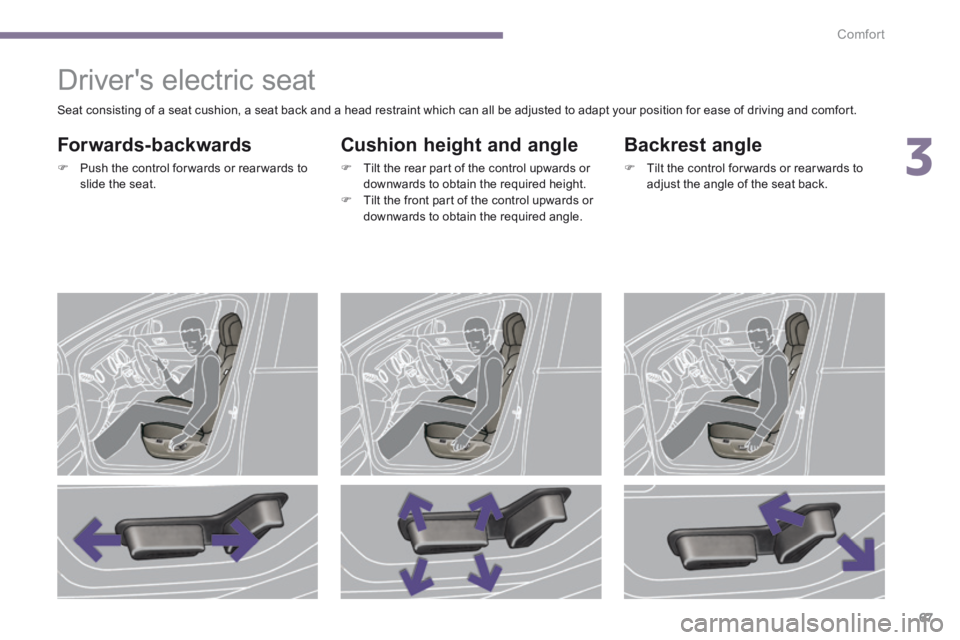

Driver's electric seat
Forwards-backwards
 Push the control for wards or rear wards to slide the seat.
Cushion height and angle
 Tilt the rear part of the control upwards or downwards to obtain the required height.  Tilt the front part of the control upwards or downwards to obtain the required angle.
Backrest angle
 Tilt the control for wards or rear wards to adjust the angle of the seat back.
Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort.

Comfort
68
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so
as to avoid the risk of of jamming the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.
The electrical functions of the driver's seat are active approximately one minute after opening the front door. They are deactivated approximately one minute after the ignition is switched off and in economy mode. To reactivate them, switch on the ignition.
 To raise the head restraint, pull it for wards and upwards at the same time.  To remove the head restraint, press thelug A and pull the head restraint upwards.  To put the head restraint back in place,
engage the head restraint stems in the openings keeping them in line with the seat back.  To lower the head restraint, press the lug Aand the head restraint at the same time.  To adjust the angle of the head restraint, tilt its lower part forwards or rearwards.

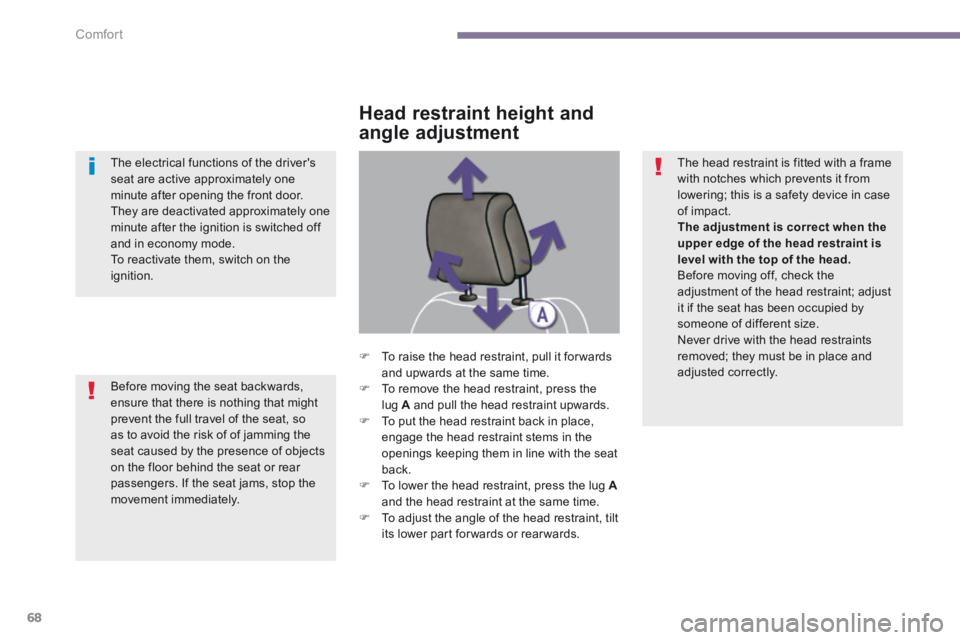

Head restraint height and
angle adjustment
The head restraint is fitted with a frame with notches which prevents it from lowering; this is a safety device in case of impact. The adjustment is correct when the upper edge of the head restraint is level with the top of the head. Before moving off, check the adjustment of the head restraint; adjust it if the seat has been occupied by someone of different size. Never drive with the head restraints removed; they must be in place and adjusted correctly.

3
Comfort69

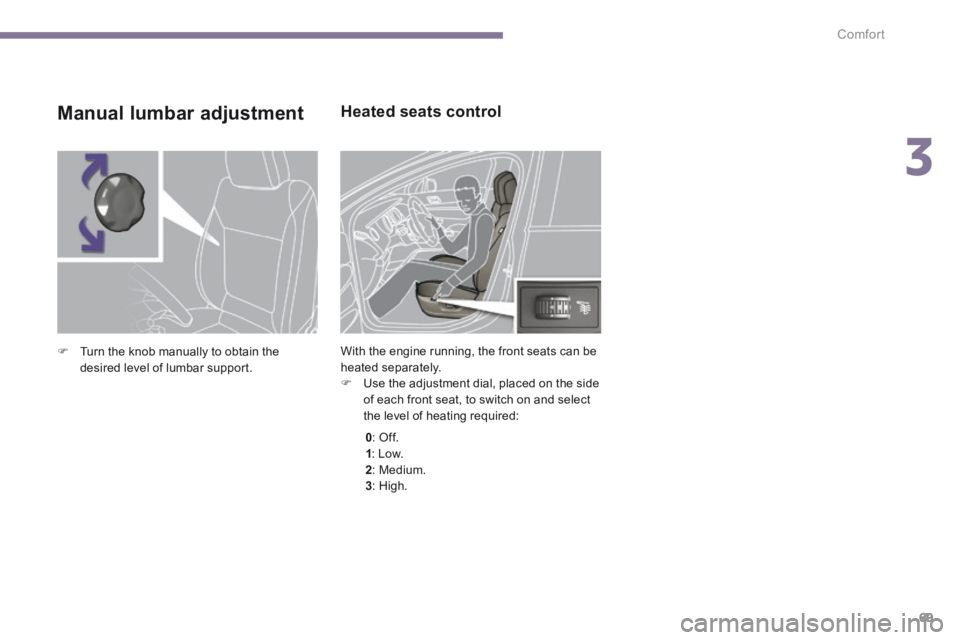

Heated seats control
With the engine running, the front seats can be heated separately.  Use the adjustment dial, placed on the side of each front seat, to switch on and select the level of heating required:
0: Off. 1 : Low. 2 : Medium. 3 : High.
Manual lumbar adjustment
 Turn the knob manually to obtain the desired level of lumbar support.

Comfort
70

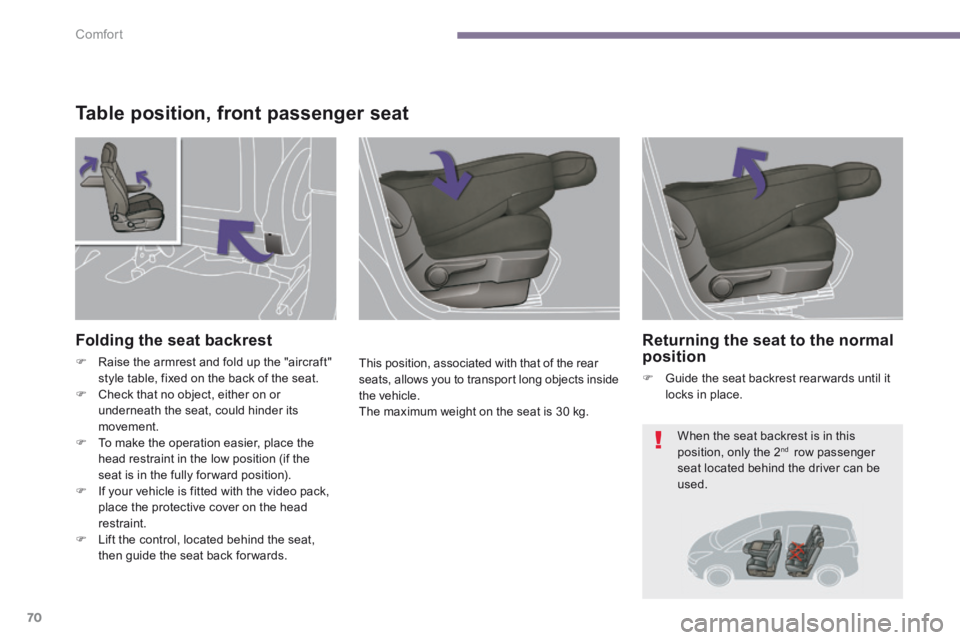

Table position, front passenger seat
This position, associated with that of the rear seats, allows you to transport long objects inside the vehicle. The maximum weight on the seat is 30 kg.
Folding the seat backrest
 Raise the armrest and fold up the "aircraft" style table, fixed on the back of the seat.  Check that no object, either on or underneath the seat, could hinder its movement.  To make the operation easier, place the head restraint in the low position (if the seat is in the fully for ward position).  If your vehicle is fitted with the video pack, place the protective cover on the head restraint.  Lift the control, located behind the seat, then guide the seat back for wards.
Returning the seat to the normal position
 Guide the seat backrest rear wards until it locks in place.
When the seat backrest is in this position, only the 2 nd row passenger seat located behind the driver can be used.
