2014 PEUGEOT 5008 Owners Manual

3
Comfort71

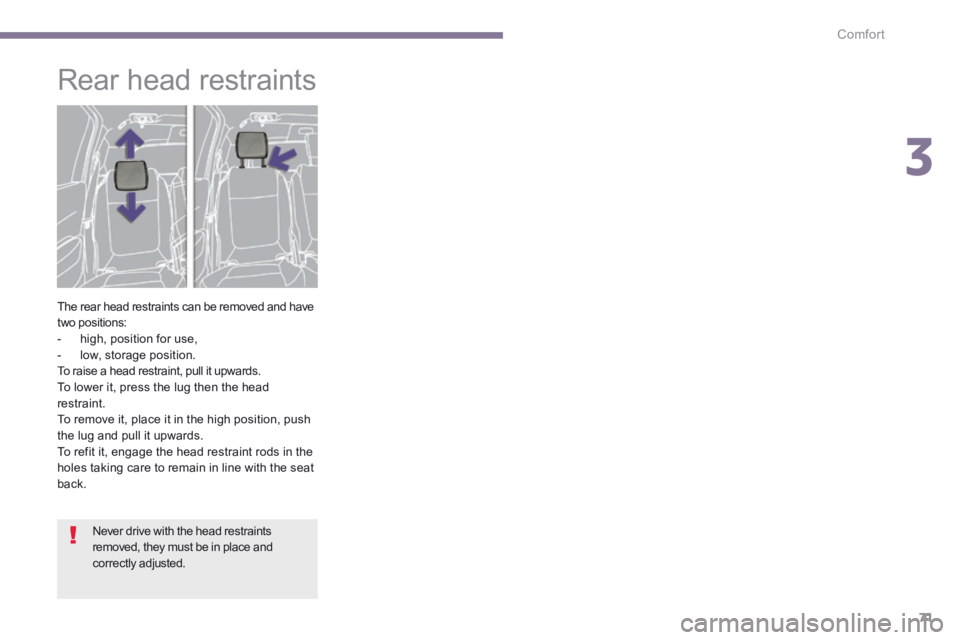

Rear head restraints
The rear head restraints can be removed and have two positions: - high, position for use, - low, storage position. To raise a head restraint, pull it upwards. To lower it, press the lug then the head restraint. To remove it, place it in the high position, push the lug and pull it upwards. To refit it, engage the head restraint rods in the holes taking care to remain in line with the seat back.
Never drive with the head restraints removed, they must be in place and correctly adjusted.

Comfort
72
2 nd row seats
Forwards-backwards adjustment
Lift the control A Lift the control A Lift the control , located at the front of the seat, then adjust the seat to the position desired.
"Comfort" position
The three 2 nd row seats are independent of each other and all the same width. They all have a "comfort" position. Placing a seat in the "comfort" position
 Pull on the control B and guide the seat rearwards. The backrest reclines and the seat base moves for ward slightly.
Returning the seat to the initial position
 Pull on the control B and allow the seat to come for wards.
Always supervise any movements of seats by children.

3
Comfort73

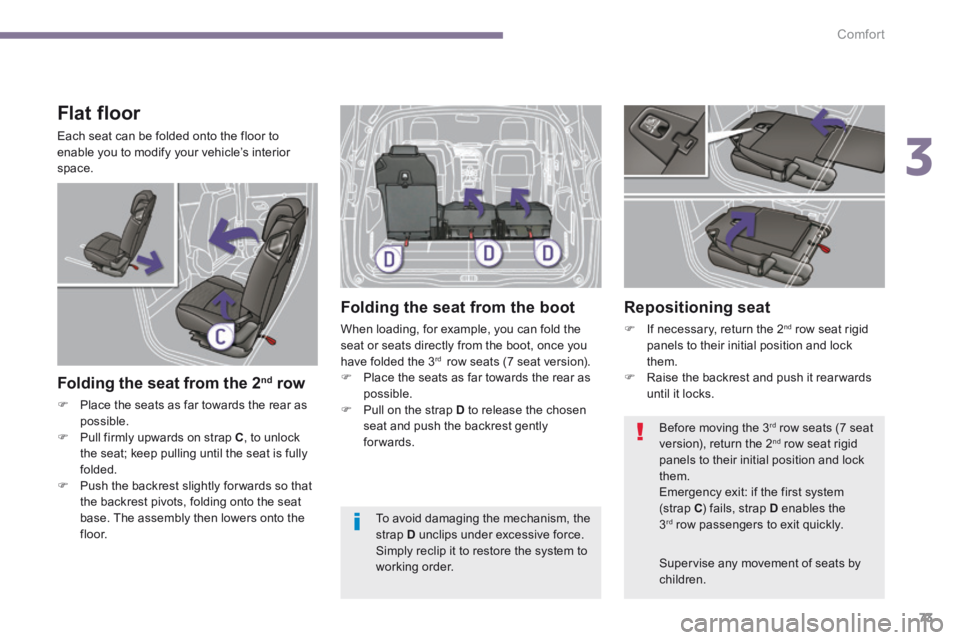

Flat floor
Each seat can be folded onto the floor to enable you to modify your vehicle’s interior space.
Folding the seat from the 2 nd row
 Place the seats as far towards the rear as possible.  Pull firmly upwards on strap C , to unlock the seat; keep pulling until the seat is fully folded.  Push the backrest slightly for wards so that the backrest pivots, folding onto the seat base. The assembly then lowers onto the f l o o r.
Folding the seat from the boot
When loading, for example, you can fold the seat or seats directly from the boot, once you have folded the 3 rd row seats (7 seat version).  Place the seats as far towards the rear as possible.  Pull on the strap D to release the chosen seat and push the backrest gently forwards.
Repositioning seat
 If necessary, return the 2 nd row seat rigid panels to their initial position and lock them.  Raise the backrest and push it rear wards until it locks.
Supervise any movement of seats by children.
Before moving the 3 rd row seats (7 seat version), return the 2 nd row seat rigid panels to their initial position and lock them. Emergency exit: if the first system (strap C ) fails, strap D enables the 3 rd row passengers to exit quickly. To avoid damaging the mechanism, the strap D unclips under excessive force. Simply reclip it to restore the system to working order.

Comfort
74

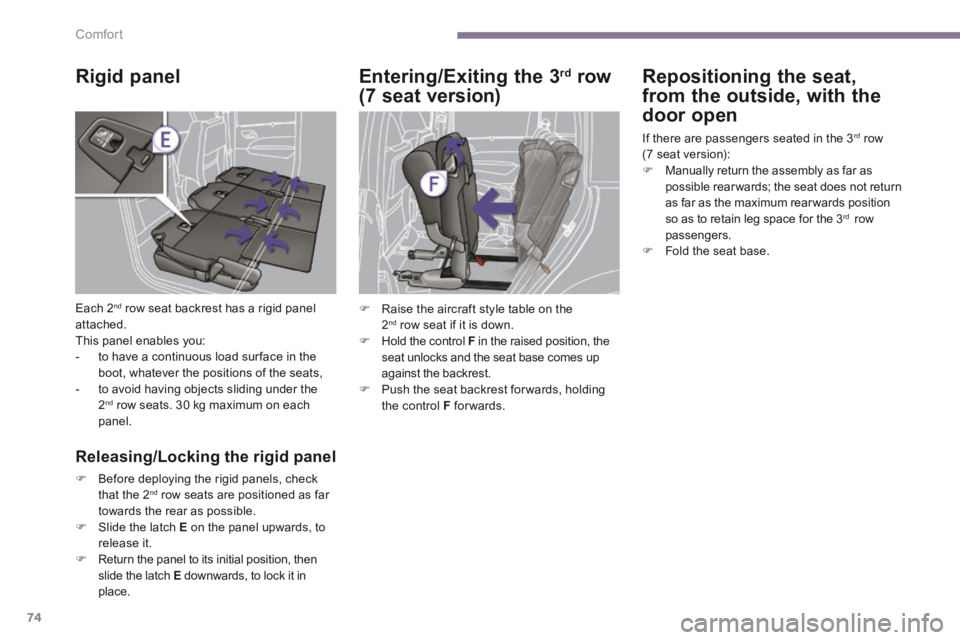

Rigid panel
Each 2 nd row seat backrest has a rigid panel attached. This panel enables you: - to have a continuous load sur face in the boot, whatever the positions of the seats, - to avoid having objects sliding under the 2 nd row seats. 30 kg maximum on each panel.
Releasing/Locking the rigid panel
 Before deploying the rigid panels, check that the 2 nd row seats are positioned as far towards the rear as possible.  Slide the latch E on the panel upwards, to
release it.  Return the panel to its initial position, then slide the latch E downwards, to lock it in place.
Entering/Exiting the 3 rd row
(7 seat version)
Repositioning the seat,
from the outside, with the
door open
If there are passengers seated in the 3 rd row (7 seat version):  Manually return the assembly as far as possible rear wards; the seat does not return as far as the maximum rear wards position so as to retain leg space for the 3 rd row passengers.  Fold the seat base.
 Raise the aircraft style table on the 2 nd row seat if it is down.  Hold the control F in the raised position, the seat unlocks and the seat base comes up against the backrest.  Push the seat backrest for wards, holding the control F forwards.

3
Comfort75

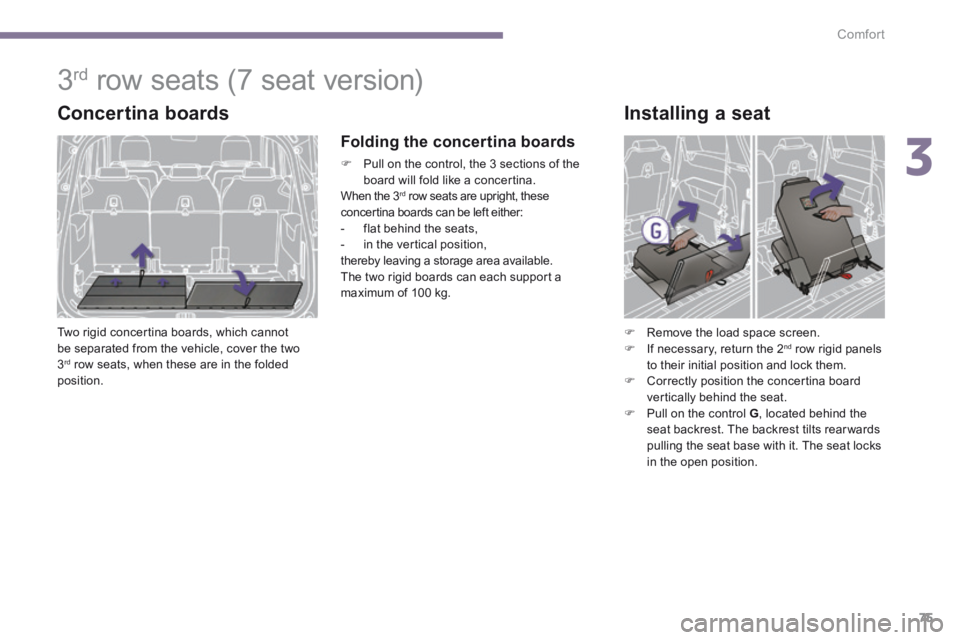

3 rd row seats (7 seat version)
Concertina boards
Two rigid concertina boards, which cannot be separated from the vehicle, cover the two 3 rd row seats, when these are in the folded position.
Folding the concertina boards
 Pull on the control, the 3 sections of the board will fold like a concertina. When the 3 rd row seats are upright, these concertina boards can be left either:
- flat behind the seats, - in the vertical position, thereby leaving a storage area available. The two rigid boards can each support a maximum of 100 kg.
Installing a seat
 Remove the load space screen.  If necessary, return the 2 nd row rigid panels to their initial position and lock them.  Correctly position the concertina board vertically behind the seat.  Pull on the control G , located behind the seat backrest. The backrest tilts rear wards
pulling the seat base with it. The seat locks in the open position.

Comfort
76

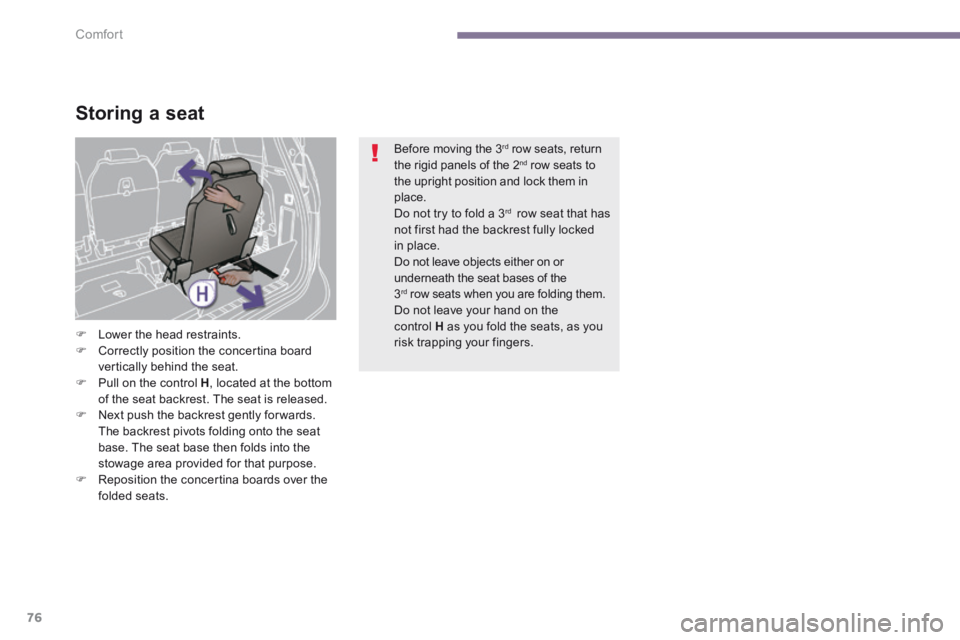

Storing a seat
 Lower the head restraints.  Correctly position the concertina board vertically behind the seat.  Pull on the control H , located at the bottom of the seat backrest. The seat is released.  Next push the backrest gently for wards. The backrest pivots folding onto the seat base. The seat base then folds into the stowage area provided for that purpose.  Reposition the concertina boards over the folded seats.
Before moving the 3 rd row seats, return the rigid panels of the 2 nd row seats to the upright position and lock them in place. Do not try to fold a 3 rd row seat that has
not first had the backrest fully locked in place. Do not leave objects either on or underneath the seat bases of the 3 rd row seats when you are folding them. Do not leave your hand on the control H as you fold the seats, as you risk trapping your fingers.

3
Comfort77

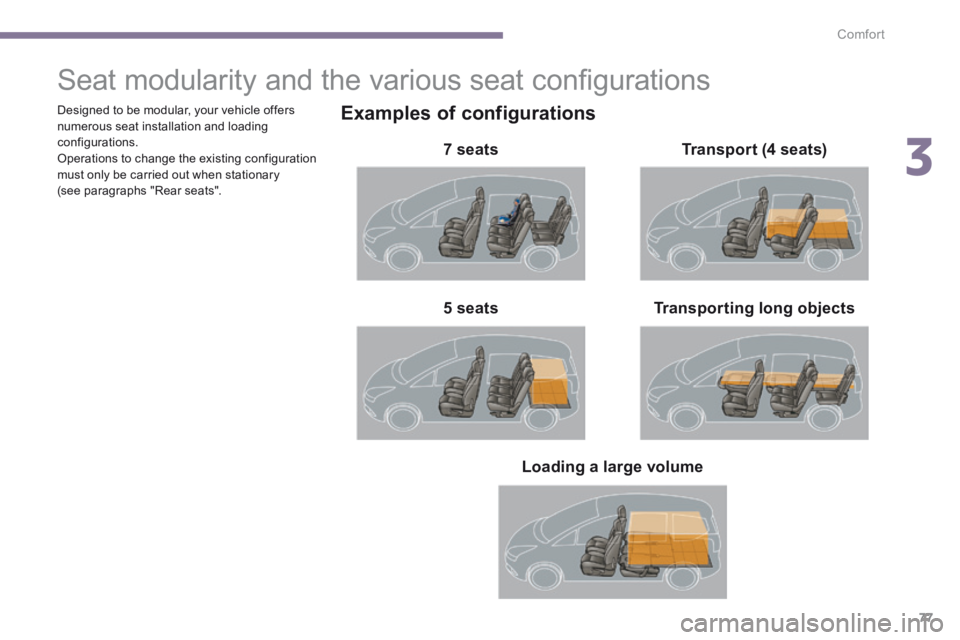

Seat modularity and the various seat confi gurations
Examples of configurations
7 seats
Transporting long objects 5 seats
Transport (4 seats)
Loading a large volume
Designed to be modular, your vehicle offers numerous seat installation and loading configurations. Operations to change the existing configuration must only be carried out when stationary (see paragraphs "Rear seats".

Comfort
78

Mirrors
Each fitted with an adjustable mirror glass permitting the lateral rearward vision necessary for overtaking or parking. They can also be folded for parking in confined spaces.
Folding
- Automatic: lock the vehicle using the remote control or the key. - Manual: with the ignition on, pull control A - Manual: with the ignition on, pull control A - Manual: with the ignition on, pull control rearwards.
Unfolding
- Automatic: unlock the vehicle using the remote control or the key. - Manual: with the ignition on, pull control A - Manual: with the ignition on, pull control A - Manual: with the ignition on, pull control rearwards.
Adjustment
 Move control A to the right or to the left to A to the right or to the left to Aselect the corresponding mirror.  Move control B in all four directions to adjust.  Return control A to the central position. Demisting - Defrosting
If your vehicle is fitted with heated mirrors, the demisting-defrosting operates by switching on the heated rear screen (refer to the "Rear screen demist-defrost" page).
The rear screen demist - defrost can only operate when the engine is running.
The objects observed are, in reality, closer than they appear. Take this into account in order to correctly judge the distance of vehicles approaching from behind.
If the mirrors are folded using control A , they will not unfold when the vehicle is unlocked. Pull again on control A .
The folding and unfolding of the door mirrors using the remote control can be deactivated by a PEUGEOT dealer or a qualified workshop. Fold the mirrors when putting your vehicle through an automatic car wash.
Door mirrors
If necessary, it is possible to fold the mirrors manually.
