2014 PEUGEOT 5008 Owners Manual

.
94124
Familiarisation7

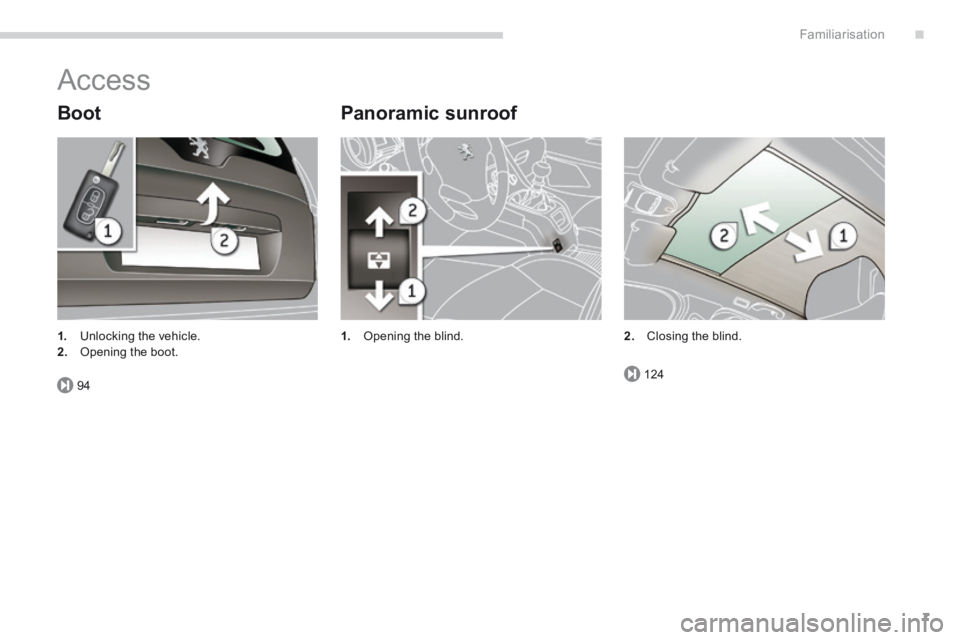

Access
Boot Panoramic sunroof
1. Opening the blind. 1. Unlocking the vehicle. 2. Opening the boot. 2. Closing the blind.

166
173
63
269
313
367
292,
348,
374
297,
335,
377
265
Familiarisation
8

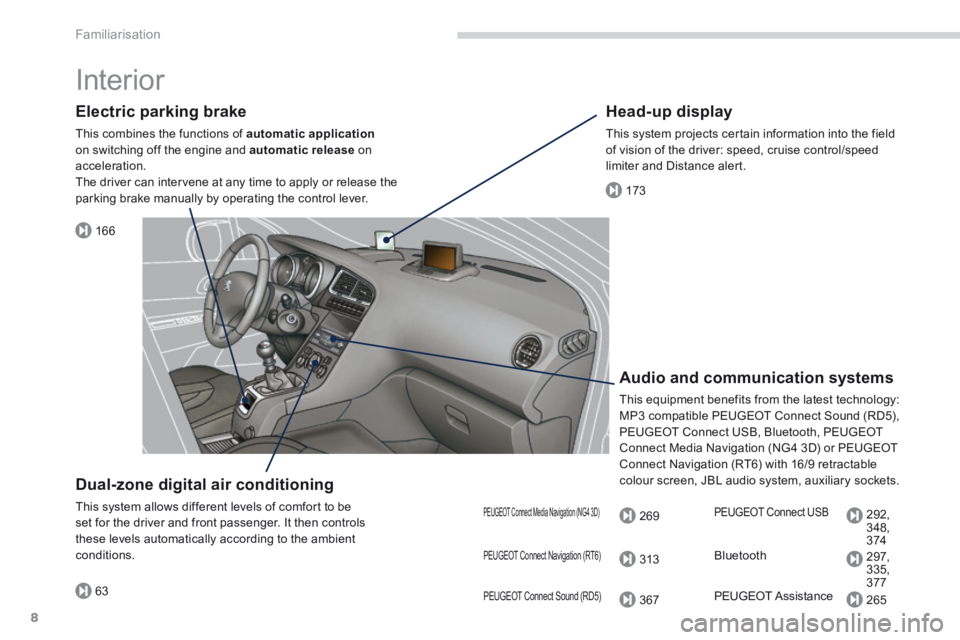

Interior
Electric parking brake
This combines the functions of automatic applicationon switching off the engine and automatic release on acceleration. The driver can intervene at any time to apply or release the parking brake manually by operating the control lever.
Audio and communication systems
This equipment benefits from the latest technology: MP3 compatible PEUGEOT Connect Sound (RD5), PEUGEOT Connect USB, Bluetooth, PEUGEOT Connect Media Navigation (NG4 3D) or PEUGEOT Connect Navigation (RT6) with 16/9 retractable colour screen, JBL audio system, auxiliary sockets.
Head-up display
This system projects certain information into the field of vision of the driver: speed, cruise control/speed limiter and Distance alert.
Dual-zone digital air conditioning
This system allows different levels of comfort to be set for the driver and front passenger. It then controls these levels automatically according to the ambient conditions.
PEUGEOT Connect Sound (RD5)
PEUGEOT Connect Navigation (RT6)
PEUGEOT Connect USB
Bluetooth
PEUGEOT Assistance
PEUGEOT Connect Media Navigation (NG4 3D)

.Familiarisation9

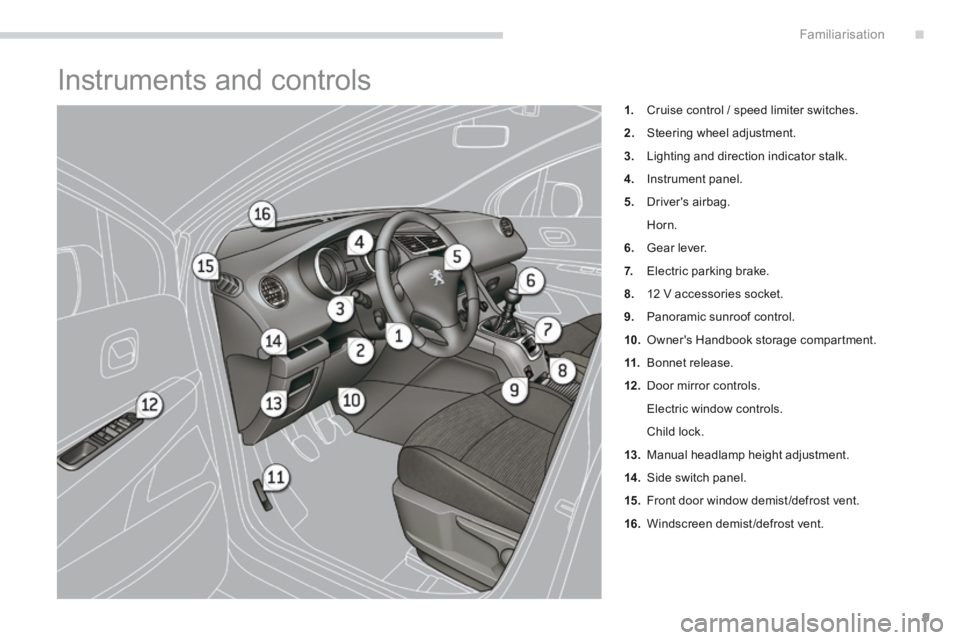

Instruments and controls
1. Cruise control / speed limiter switches.
2. Steering wheel adjustment.
3. Lighting and direction indicator stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Electric parking brake.
8. 12 V accessories socket.
9. Panoramic sunroof control.
10. Owner's Handbook storage compartment.
11. Bonnet release.
12 . Door mirror controls.
Electric window controls.
Child lock.
13. Manual headlamp height adjustment.
14 . Side switch panel.
15. Front door window demist/defrost vent.
16. Windscreen demist/defrost vent.

Familiarisation
10

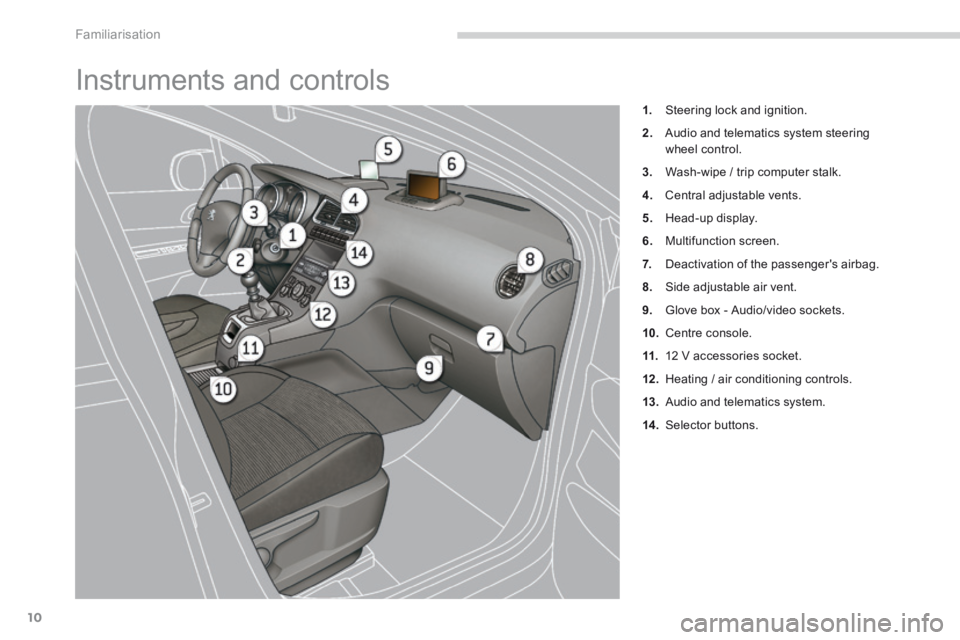

Instruments and controls
1. Steering lock and ignition.
2. Audio and telematics system steering wheel control.
3. Wash-wipe / trip computer stalk.
4. Central adjustable vents.
5. Head-up display.
6. Multifunction screen.
7. Deactivation of the passenger's airbag.
8. Side adjustable air vent.
9. Glove box - Audio/video sockets.
10. Centre console.
11. 12 V accessories socket.
12 . Heating / air conditioning controls.
13. Audio and telematics system.
14 . Selector buttons.

.
66
67
Familiarisation11

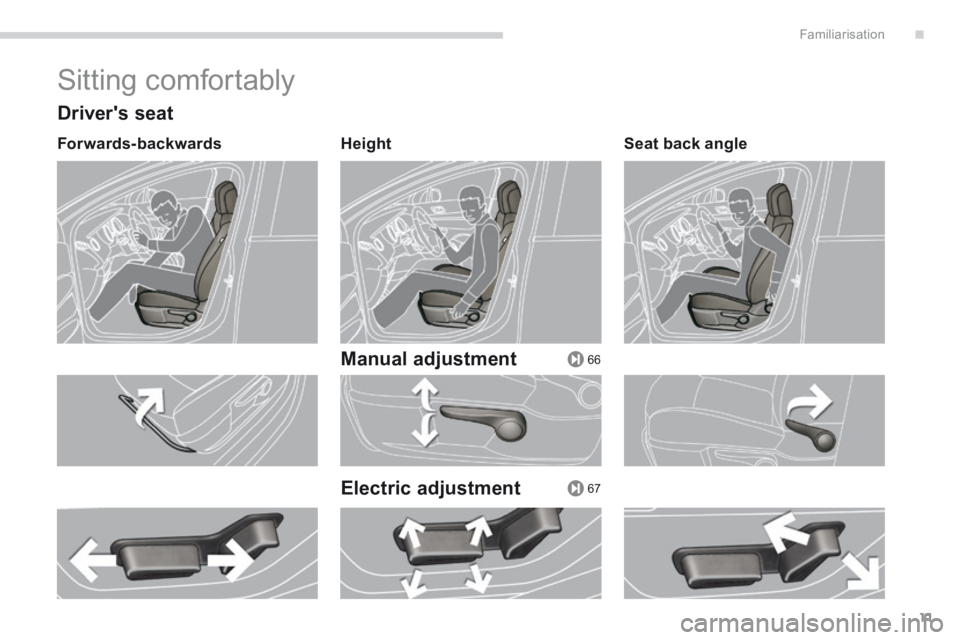

Sitting comfortably
Driver's seat
Forwards-backwards Height
Manual adjustment
Electric adjustment
Seat back angle

68, 69
80
119, 122

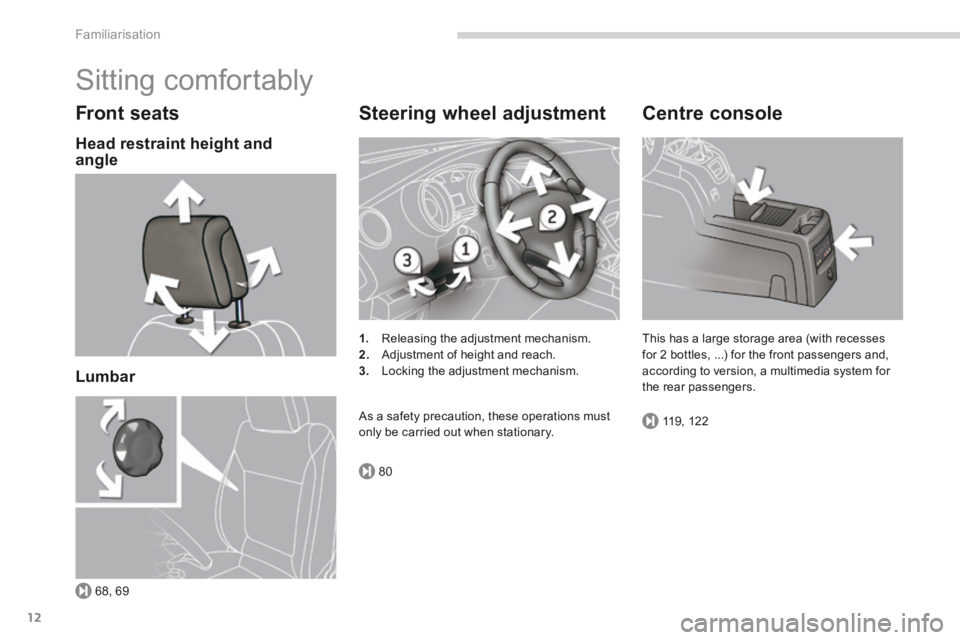

Familiarisation
12
Sitting comfortably
Front seats
Head restraint height and angle
Lumbar
Steering wheel adjustment
1. Releasing the adjustment mechanism. 2. Adjustment of height and reach. 3. Locking the adjustment mechanism.
As a safety precaution, these operations must only be carried out when stationary.
Centre console
This has a large storage area (with recesses for 2 bottles, ...) for the front passengers and, according to version, a multimedia system for the rear passengers.

.
78
79
79158

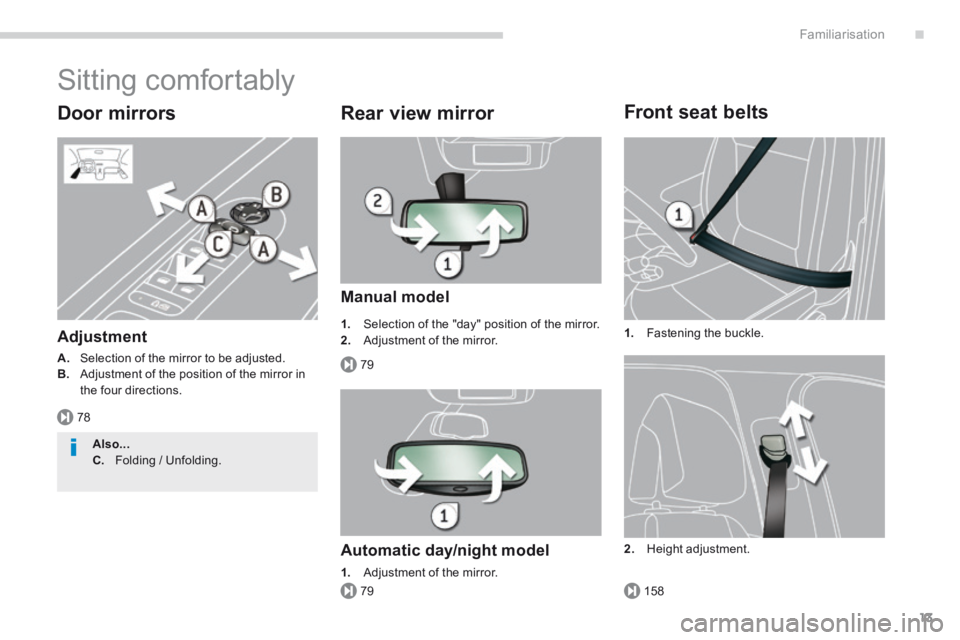

Familiarisation13
Sitting comfortably
Door mirrors
Adjustment
A. Selection of the mirror to be adjusted. B. Adjustment of the position of the mirror in the four directions.
Rear view mirror
Manual model
1. Selection of the "day" position of the mirror. 2. Adjustment of the mirror.
Automatic day/night model
1. Adjustment of the mirror.
Front seat belts
1. Fastening the buckle.
2. Height adjustment.
Also...C. Folding / Unfolding.

101
102152
109
11 0
Familiarisation
14

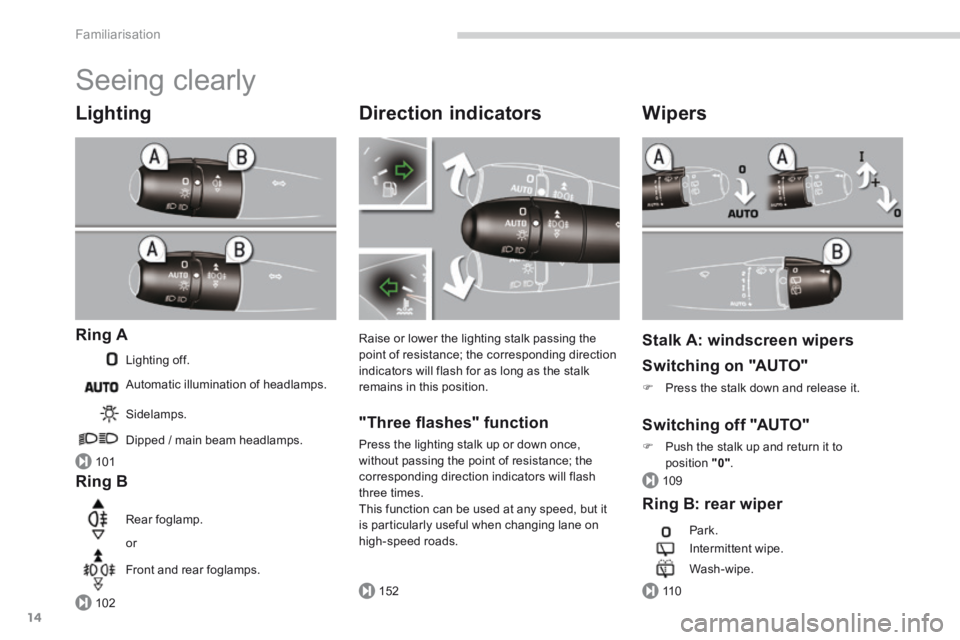

Seeing clearly
Lighting
Ring A
Lighting off.
Ring B
Sidelamps.
Dipped / main beam headlamps.
Rear foglamp.
or
Front and rear foglamps.
Automatic illumination of headlamps.
Direction indicators
Raise or lower the lighting stalk passing the point of resistance; the corresponding direction indicators will flash for as long as the stalk remains in this position.
"Three fl ashes" function
Press the lighting stalk up or down once, without passing the point of resistance; the corresponding direction indicators will flash three times. This function can be used at any speed, but it is particularly useful when changing lane on
high-speed roads.
Wipers
Stalk A: windscreen wipers
Switching on "AUTO"
 Press the stalk down and release it.
Switching off "AUTO"
 Push the stalk up and return it to position "0" .
Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
