2014 PEUGEOT 5008 Owners Manual

383
07 SCREEN MENU MAP(S)
Audio functions
Alternative frequencies (RDS)
activate / deactivate
FM preferences
Regional mode (REG)
activate / deactivate
Radio-text information (RDTXT)
activate / deactivate
1
2
3
4
3
4
3
4
Play modes
Album repeat (RPT)
activate / deactivate
Track random play (RDM)
activate / deactivate
2
3
4
3
4
Trip computer
Distance: x miles
Enter distance to destination
Diagnostics
Alert log
Systems activated or deactivated
State of systems *
1
2
3
3
2
3
2
* The settings vary according to vehicle.
Screen C Pressing the MENU button displays:

384
07 SCREEN MENU MAP(S)
Bluetooth telephone
Connect/Disconnect an equipment
Consult the paired equipment
Bluetooth confi guration
Telephone function
Audio Streaming function
Delete a paired equipment
Perform a Bluetooth search
Calls list
Call
Directory
Terminate the current call
Manage the telephone call
Activate secret mode
1
2
3
3
3
4
4
4
2
3
4
2
3
3
Video-brightness adjustment
Display confi guration
Defi ne vehicle settings *
Personalisation-Configuration
normal video
inverse video
brightness (- +) adjustment
Setting the date and time
setting day/month/year
hour/minute adjustment
choice of 12 h / 24 h mode
Choice of units
l/100 km - mpg - km/l
°Celsius / °Fahrenheit
Choice of language
1
2
4
3
2
4
4
3
4
4
2
3
4
4
4
* The settings vary according to vehicle.

385

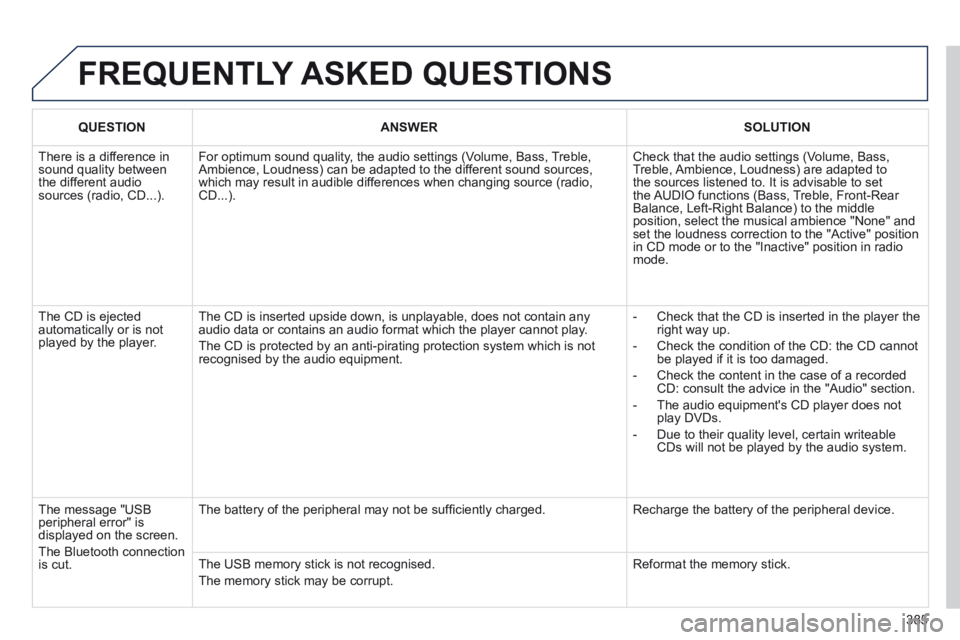

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the player the right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recorded CD: consult the advice in the "Audio" section.
- The audio equipment's CD player does not play DVDs.
- Due to their quality level, certain writeable CDs will not be played by the audio system.
The message "USB peripheral error" is displayed on the screen.
The Bluetooth connection is cut.
The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick.

386

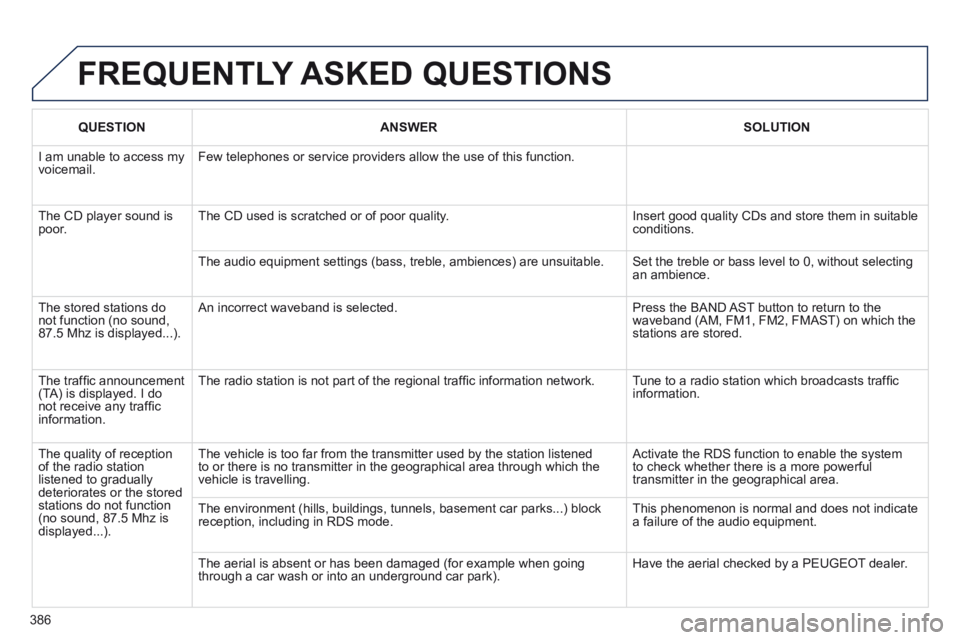

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
I am unable to access my voicemail. Few telephones or service providers allow the use of this function.
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable.\
Set the treble or bass level to 0, without selecting an ambience.
The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c information.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened\
to or there is no transmitter in the geographical area through which the\
vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) blo\
ck reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.

387

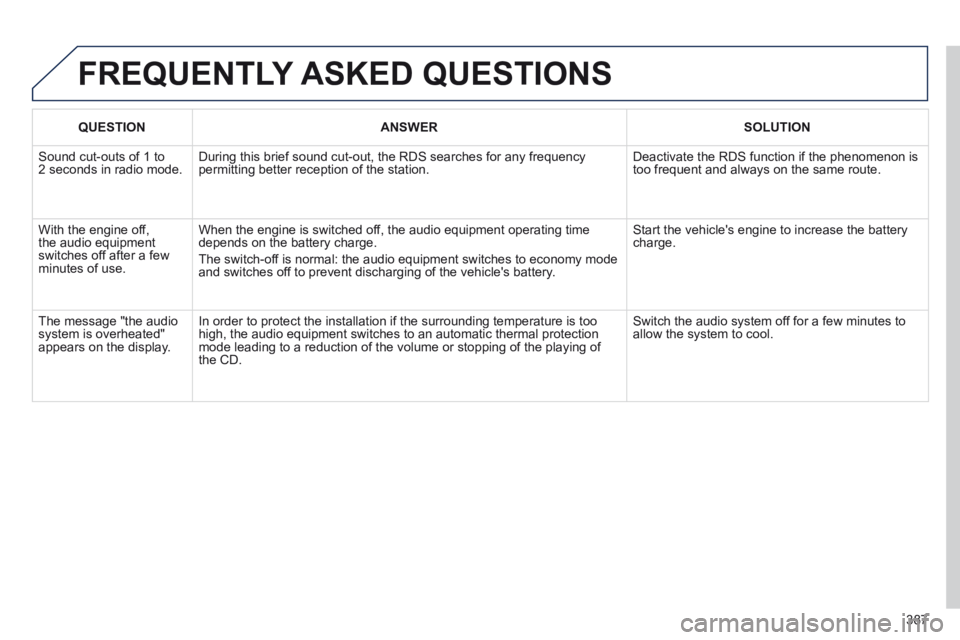

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating time depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is t\
oo high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of \
the CD.
Switch the audio system off for a few minutes to allow the system to cool.

Alphabetical index
388
Accessories ..................................................254Accessory socket, 12V ..................117, 120, 130Accessory socket, 12 volt .....................125, 126Access to the 3rd row .....................................74Adjusting headlamps ....................................107Adjusting head restraints ..........................68, 71Adjusting seat belt height .............................15 8Adjusting the steering wheel ..........................80Airbags ............................................................38Airbags, curtain .....................................16 4, 165Airbags, front.........................................162, 165Airbags, lateral ......................................16 4, 165Air conditioning ...............................................25Air conditioning, automatic .............................59Air conditioning, digital ...................................63Air conditioning, manual ...........................59, 60Air filter ..........................................................Air filter ..........................................................Air filter2 11Air flow ............................................................25Air vents ..........................................................58Alarm ...............................................................87Anti-pinch ................................................89, 124Anti-theft .........................................................84Armrest, rear .................................................Armrest, rear .................................................Armrest, rear126Assistance call .....................................265, 266Audible warning ............................................152Audio streaming (Bluetooth) .................352, 379Audio systems .................................................53Audio/video sockets ......................................296Automatic illumination of headlamps ......................................101, 10 6Automatic operation of hazard warning lamps ............................152Automatic rain sensitive windscreen wipers .................................................109, 112Auxiliary socket .....................296, 353, 374, 376
Backup starting .............................................245Battery ............................................211, 244-246Battery, charging ...........................................246Battery, remote control .............................85, 86Blind for panoramic sunroof ..........................Blind for panoramic sunroof ..........................Blind for panoramic sunroof124Blinds.............................................................131Bluetooth (hands-free) ..........297-299, 336, 377Bluetooth (telephone) ....................297-299, 336Bonnet ...........................................................204Bonnet stay ...................................................204Boot .................................................................94Boot lamp ..............................................116, 131Brake discs ....................................................212Brake lamps ..................................................234Brake pads ....................................................212Brakes ...........................................................212
A
D
Checks ..................................206, 207, 211, 212Child lock .......................................................151Children .........................................140, 145, 146Child seats ...........................132, 133, 137, 150Child seats, conventional ......................139, 140Closing the boot ........................................82, 94Closing the doors ......................................82, 91Cold climate screen ......................................253Colour screen, retractable ........................51, 53Concertina boards ..........................75, 125, 126Connectors, audio ..................118, 119, 374, 376Control for panoramic sunroof blind .............124Coolant level ...........................................39, 210Coolant temperature indicator ........................Coolant temperature indicator ........................Coolant temperature indicator39Courtesy lamps .............................................114Courtesy mirror .............................................Courtesy mirror .............................................Courtesy mirror118Cruise control ................................................181Cup holder ......................................Cup holder ......................................Cup holder117, 125, 126
Date (setting) ......................................44, 46, 48Deactivating ESP ..........................................157Deactivating the passenger airbag ...............162Deadlocking ....................................................82Defrosting ............................................60, 62, 78Demisting ........................................................60Dials and gauges ............................................27Diesel additive level ......................................210Dimensions ...................................................263Dipped beam .................................100, 231-233Dipstick ....................................................42, 208Directional lighting ........................................108
Capacity, fuel tank ..........................................96CD MP3 .........................................................373Central locking ..........................................82, 92Centre console ..............................................11 9Changing a bulb ............................231, 234-236Changing a fuse ............................................237Changing a wheel ................................223, 225Changing a wiper blade ........................113, 248Changing the date ..............................44, 46, 48Changing the remote control battery ..............85Changing the time ..............................44, 46, 48Checking levels .....................................208 -210Checking the engine oil level ..........................42Checking tyre pressures (using the kit) ........213
B
C

.
Alphabetical index389
Eco-driving .....................................................25Eco-driving (advice) ........................................25Economical driving ........................................25Economy mode .............................................247Electric window controls .................................89Electronic engine immobiliser...................84, 86Electronic gearbox system ......................25, 27,32, 166, 169, 170, 186, 195, 212, 246Electronic stability control (ESC) ..................155Emergency boot release .................................95Emergency call .....................................265 -267Emergency warning lamps ...........................152Energy economy mode .................................247Engine compartment ............................206, 207Engine compartment fusebox .......................237Engine, Diesel ........98, 205, 207, 258, 259, 262Engine oil level indicator .........................Engine oil level indicator .........................Engine oil level indicator42, 208Engine, petrol .........................98, 206, 256, 257Engines ................................................256, 258Environment ..............................................25, 86Equipment settings ................28, 44, 46, 48, 51ESC/ASR .......................................................155
Gearbox, automatic .................................27, 32,166, 169, 170, 191, 212, 246Gearbox, manual .................................166, 169,170, 184, 185, 195, 212Gear lever .......................................................Gear lever .......................................................Gear lever25Gear lever, automatic gearbox .....................191Gear lever, manual gearbox .........................18 4Gear shift indicator .......................................Gear shift indicator .......................................Gear shift indicator185Glove box ...............................................117, 118G . P. S . ....................................................280, 322Grab handles ................................................117Guidance ......................................280, 320, 327Guide-me-home ............................................10 6
E
G
FH
Direction indicators ...............152, 231, 232, 234Distance alert ................................................175Doors ...............................................................91Doors emergency control ...............................93Door trays ......................................................117Dynamic emergency braking ........................169Dynamic stability control (DSC) ......36, 156, 169
Filling with fuel ...................................96, 98, 99Fitting a wheel ...............................................227Fitting roof bars .............................................252Fittings, boot .........................................125, 126Flashing indicators ........................................152Foglamps, rear ..............................................Foglamps, rear ..............................................Foglamps, rear102Folding the rear seats .........................72, 74, 75Folding/unfolding the door mirrors .................78Front foglamps ..............................102, 231, 233Front seats ..........................................66, 67, 70Fuel.....................................................25, 96, 98Fuel consumption ............................................25Fuel filler cap ...................................................96Fuel filler flap .............................................96, 99Fuel gauge ......................................................96Fuel tank....................................................96, 99Fusebox, dashboard .....................................237Fuses .............................................................237
Halogen headlamps ..............................231, 232Hands-free kit .......................................336, 377Hazard warning lamps ..................................152Headlamp adjustment ...................................107Headlamps, directional .........................108, 231Headlamp wash ............................................111Headlamp wash reservoir .............................Headlamp wash reservoir .............................Headlamp wash reservoir210Head restraints, front ......................................68Head restraints, rear .......................................Head restraints, rear .......................................Head restraints, rear71Head-up display ............................173, 178, 181Heated seats ...................................................69Heating ................................................25, 59, 60Height and reach adjustment, steering wheel ..............................................80High load retaining net ..................................128Hill start assist ...............................................170Hooks ....................................................126, 130Horn...............................................................152
I
Identification plates .......................................264Indicator lamps, status ....................................31Indicators, direction ......................................152Inflating accessories (using the kit) ..............213Inflating tyres ..................................................25Inputs for audio system .........296, 353, 374, 376Instrument panel lighting ................................43Instrument panels .....................................27, 28Instrument panel screen .........................27, 185Intelligent Traction Control ............................155Interior fittings ...............................................117Interior mood lighting ....................................115ISOFIX ..........................................................145

Alphabetical index
390
Jack ......................................................223, 225JACK socket ..........................119, 353, 374, 376Jukebox (c opy) ..............................................294Jukebox (playing) ..........................................295
Labels, identification .....................................264Lamps, warning and indicator ...........Lamps, warning and indicator ...........Lamps, warning and indicator30, 33, 34LED daytime running lamps .........104, 231, 232LEDs - light-emitting diodes .................231, 232Level, brake fluid ...........................................209Level, headlamp wash ...........................111, 2 1 0Level, power steering fluid ............................209Levels and checks ................................20 6 -210Light-emitting diodes - LEDs ................231, 232
Keeping children safe ..........................132, 13 3,137, 145, 146, 150, 162Key with remote control ................81, 82, 84, 86Main beam ....................................100, 231-233Maintenance ...................................................25Map reading lamps .......................................114Markings, identification .................................264Mat ................................................................120Menu, main ...................................................370Mini fuel level ..................................................96Mirror, rear view ..............................................79Mirrors, door....................................................78Misfuel prevention ...........................................99Modularity, seats .............................................77Motorway function (direction indicators) ......152Mountings for ISOFIX seats .........................14 4MP3 CD .........................................................373Multimedia, rear ....................................Multimedia, rear ....................................Multimedia, rear119, 122Music media players ............................292, 348
K
J
L
M
Navigation .....................................280, 319, 320Net .................................................................127Number plate lamps .............................235, 236
N
Oil filter ..........................................................Oil filter ..........................................................Oil filter2 11Oil level....................................................42, 208Opening the bonnet ......................................204Opening the boot ......................................81, 94Opening the doors ....................................81, 91Opening the panoramic sunroof blind ..........124Opening the retractable screen ......................53Operation indicator lamps ........................30-33
Paint colour code ..........................................264Panoramic glass sunroof ..............................Panoramic glass sunroof ..............................Panoramic glass sunroof124Parking brake ................................................212Parking brake, electric ....................35, 166, 169Parking sensors, audible and visual .............198Parking sensors, front ...................................198Parking sensors, rear....................................198Parking space sensor ..................................201Particle emission filter ..................Particle emission filter ..................Particle emission filter204, 210, 211Passenger compartment filter ......................Passenger compartment filter ......................Passenger compartment filter2 11PEUGEOT call button ...................................267PEUGEOT Connect Assistance ..........266, 267
O
P
ISOFIX child seats .................................14 4 -146ISOFIX mountings.........................................14 4Lighting ..........................................................11 6Lighting bulbs (replacement) ........231, 234-236Lighting control stalk .....................................10 0Lighting dimmer ..............................................Lighting dimmer ..............................................Lighting dimmer43Lighting, guide-me home ......................104, 10 6Lighting, interior ....................................Lighting, interior ....................................Lighting, interior114 , 115Loading .............................................25, 77, 252Load reduction mode ....................................247Load space cover ...................................Load space cover ...................................Load space cover125 -127Locating your vehicle ......................................83Locking from the inside ...................................92Long objects, transporting ........................70, 77Luggage retaining net ...................................129
