2014 PEUGEOT 5008 Owners Manual

11

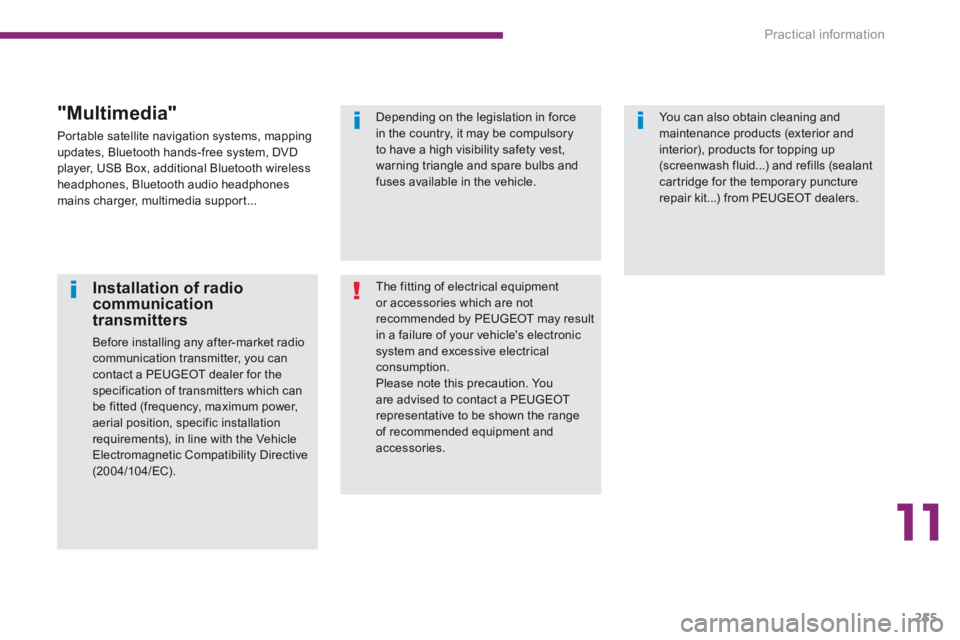

Practical information255
Installation of radio communication transmitters
Before installing any after-market radio communication transmitter, you can contact a PEUGEOT dealer for the specification of transmitters which can be fitted (frequency, maximum power, aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive ( 2 0 0 4 / 1 0 4 / E C ) .
The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's electronic system and excessive electrical consumption. Please note this precaution. You are advised to contact a PEUGEOT representative to be shown the range of recommended equipment and accessories.
Depending on the legislation in force in the country, it may be compulsory to have a high visibility safety vest, warning triangle and spare bulbs and fuses available in the vehicle.
You can also obtain cleaning and maintenance products (exterior and interior), products for topping up (screenwash fluid...) and refills (sealant cartridge for the temporary puncture repair kit...) from PEUGEOT dealers.
"Multimedia"
Portable satellite navigation systems, mapping updates, Bluetooth hands-free system, DVD player, USB Box, additional Bluetooth wireless headphones, Bluetooth audio headphones mains charger, multimedia support...

Technical data
256
Engine s 1.6 litre VTi 120 hp1.6 litre THP 150 / 156 / 163 hp
Gearbox Manual (5-speed) Manual (6-speed) Automatic (6-speed)
Cubic capacity (cc) 1 5 9 8 1 5 9 8
Bore x stroke (mm) 77 x 85.8 77 x 85.8
Max power: EU standard (kW) * 88 110 / 115 / 120
Max power engine speed (rpm) 5 6 6 0 6 000 - 6 050 / 6 000 / 6 000
Max torque: EU standard (Nm) 1 6 0 2 4 0
Max torque engine speed (rpm) 4 2 5 0 1 4 0 0
Fuel Unleaded Unleaded
Catalytic converter yes yes
Engine oil capacity, with filter replacement (in litres) 4 . 2 5 4 . 2 5
Petrol engines and gearboxes
* The maximum power corresponds to the type approved value on a test bed, under the conditions defined in European legislation (directive 1999/99/CE).

12
Technical data257
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
Engines1.6 litre VTi 120 hp1.6 litre THP 15 6 hp1.6 litre THP 150 / 156 / 163 hp
Gearbox Manual (5-speed) Manual (6 speed) Automatic (6-speed)
Seats 5 7 5 7 5 7
- Unladen weight 1 4 0 5 1 4 3 0 1 4 6 0 1 4 9 0 1 5 1 0 1 5 4 0
- Kerb weight * 1 4 8 0 1 5 0 5 1 5 3 5 1 5 6 5 1 5 8 5 1 6 1 5
- Payload 5 9 5 7 6 0 5 9 0 7 3 5 5 6 5 7 1 0
- Gross vehicle weight (GV W) 2 0 0 0 2 1 9 0 2 0 5 0 2 2 2 5 2 0 7 5 2 2 5 0
- Gross train weight (GTW) on a 12% gradient 3 3 0 0 3 2 9 0 3 4 0 0 3 4 2 5 2 875 / 3 525 / 2 875 3 050 / 3 550 / 3 050
- Braked trailer (within GTW limit) on a 10% or 12% gradient 1 3 0 0 1 1 0 0 1 3 5 0 1 2 0 0 800 / 1 450 / 800 800 / 1 300 / 800
- Braked trailer ** (with load transfer within the GTW limit) 1 5 0 0 1 4 0 0 1 5 5 0 1 5 0 0 800 / 1 650 / 800 800 / 1 600 / 800
- Unbraked trailer 7 4 0 7 5 0 7 5 0
- Recommended nose weight 7 0 7 0
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Petrol weights and towed loads (in kg)

Technical data
258
Engines1.6 litre Turbo e- HDi 115 h p2 litre Turbo HDi 136 / 150 hp2 litre Turbo HDi 163 hp
Gearbox Manual (6-speed) Electronic (6-speed) Manual (6-speed) Automatic (6-speed)
Cubic capacity (cc) 1 5 6 0 1 9 9 7
Bore x stroke (mm) 75 x 88.3 85 x 88
Max power: EU standard (kW) * 82 - 84 100 / 110 1 2 0
Max power engine speed (rpm) 3 6 0 0 4 000 / 3 750 3 7 5 0
Max torque: EU standard (Nm) 2 7 0 3 2 0 / 3 4 0 3 4 0
Max torque engine speed (rpm) 1 7 5 0 2 0 0 0
Fuel Diesel Diesel
Catalytic converter yes yes
Particle emission filter yes yes
Oil capacities (in litres)
Engine (with filter replacement) 3 . 7 5 -

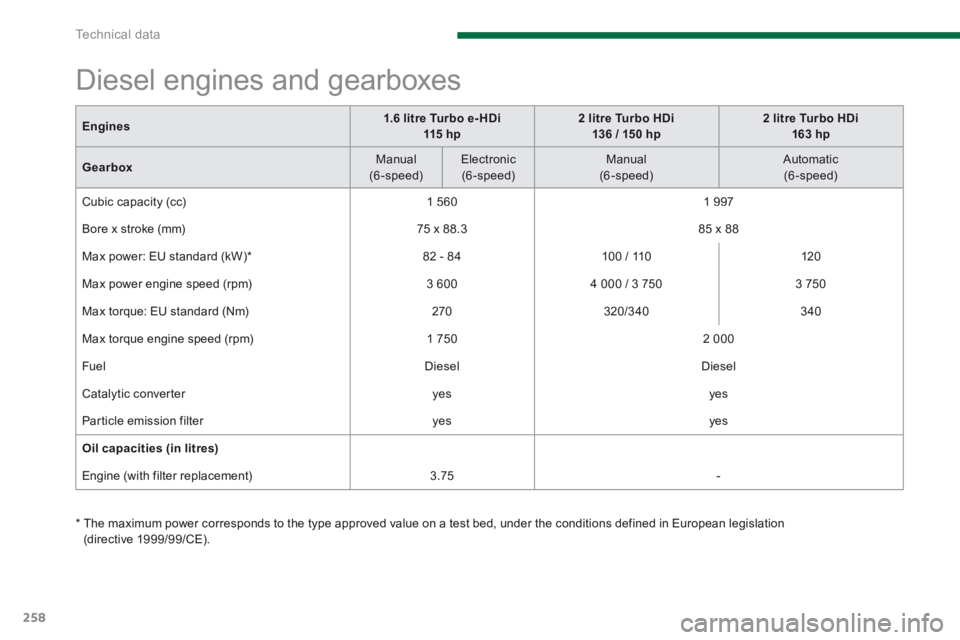

Diesel engines and gearboxes
* The maximum power corresponds to the type approved value on a test bed, under the conditions defined in European legislation (directive 1999/99/CE).

12
Technical data259
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

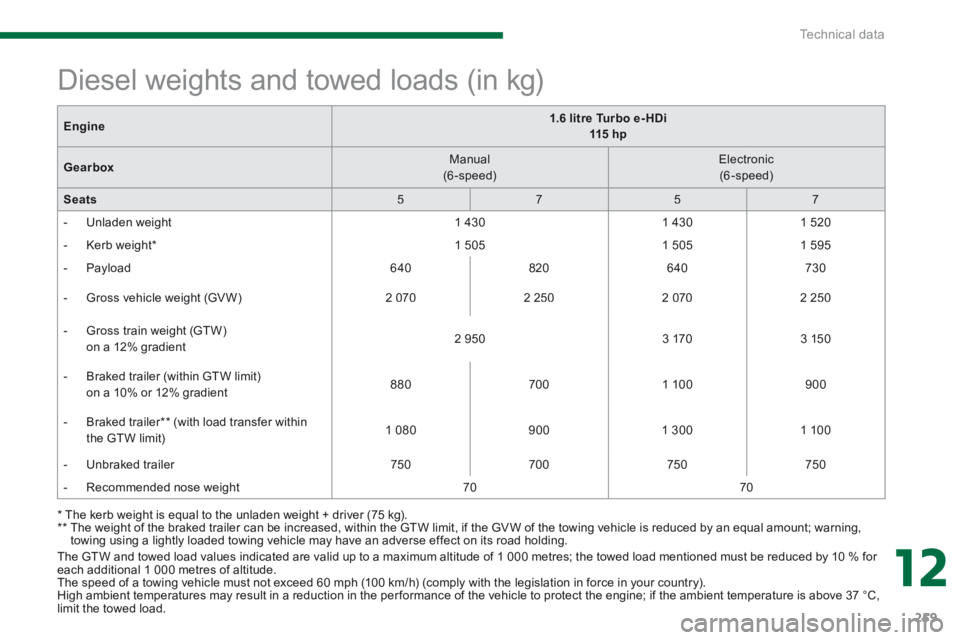

Diesel weights and towed loads (in kg)
Engine1.6 litre Turbo e- HDi 115 h p
Gearbox Manual (6-speed) Electronic (6-speed)
Seats 5 7 5 7
- Unladen weight 1 4 3 0 1 4 3 0 1 5 2 0
- Kerb weight * 1 5 0 5 1 5 0 5 1 5 9 5
- Payload 6 4 0 8 2 0 6 4 0 7 3 0
- Gross vehicle weight (GV W) 2 0 7 0 2 2 5 0 2 0 7 0 2 2 5 0
- Gross train weight (GTW) on a 12% gradient 2 9 5 0 3 1 7 0 3 1 5 0
- Braked trailer (within GTW limit) on a 10% or 12% gradient 880 7 0 0 1 1 0 0 9 0 0
- Braked trailer ** (with load transfer within the GTW limit) 1 0 8 0 9 0 0 1 3 0 0 1 1 0 0
- Unbraked trailer 7 5 0 7 0 0 7 5 0 7 5 0
- Recommended nose weight 7 0 7 0

Technical data
260
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

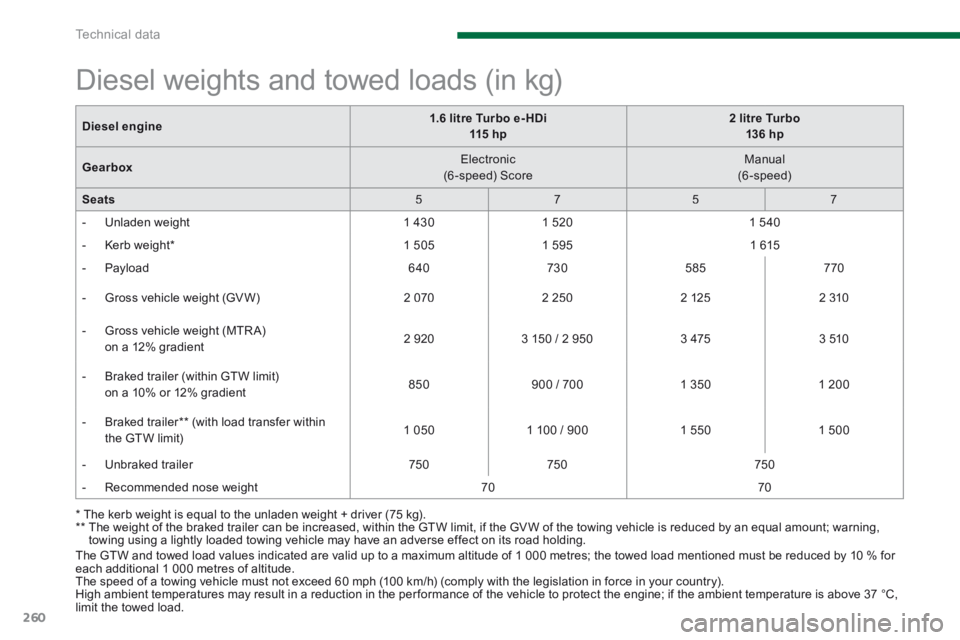

Diesel weights and towed loads (in kg)
Diesel engine1.6 litre Turbo e- HDi 115 hp2 litre Turbo 136 hp
Gearbox Electronic (6 -speed) Score Manual (6-speed)
Seats 5 7 5 7
- Unladen weight 1 4 3 0 1 5 2 0 1 5 4 0
- Kerb weight * 1 5 0 5 1 5 9 5 1 6 1 5
- Payload 6 4 0 7 3 0 585 7 7 0
- Gross vehicle weight (GV W) 2 0 7 0 2 2 5 0 2 1 2 5 2 3 1 0
- Gross vehicle weight (MTR A) on a 12% gradient 2 9 2 0 3 150 / 2 950 3 4 7 5 3 5 1 0
- Braked trailer (within GTW limit) on a 10% or 12% gradient 850 900 / 700 1 3 5 0 1 2 0 0
- Braked trailer ** (with load transfer within the GTW limit) 1 0 5 0 1 100 / 900 1 5 5 0 1 5 0 0
- Unbraked trailer 7 5 0 7 5 0 7 5 0
- Recommended nose weight 7 0 7 0

12
Technical data261
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

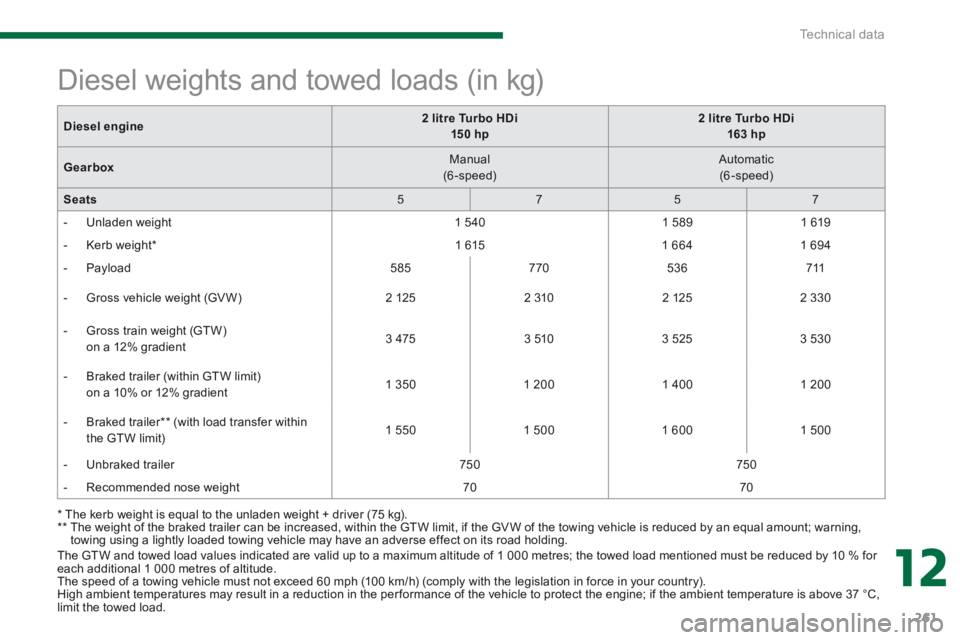

Diesel weights and towed loads (in kg)
Diesel engine2 litre Turbo HDi 15 0 hp2 litre Turbo HDi 163 hp
Gearbox Manual (6-speed) Automatic (6-speed)
Seats 5 7 5 7
- Unladen weight 1 5 4 0 1 5 8 9 1 6 1 9
- Kerb weight * 1 6 1 5 1 6 6 4 1 6 9 4
- Payload 585 7 7 0 5 3 6 7 1 1
- Gross vehicle weight (GV W) 2 1 2 5 2 3 1 0 2 1 2 5 2 3 3 0
- Gross train weight (GTW) on a 12% gradient 3 4 7 5 3 5 1 0 3 5 2 5 3 5 3 0
- Braked trailer (within GTW limit) on a 10% or 12% gradient 1 3 5 0 1 2 0 0 1 4 0 0 1 2 0 0
- Braked trailer ** (with load transfer within the GTW limit) 1 5 5 0 1 5 0 0 1 6 0 0 1 5 0 0
- Unbraked trailer 7 5 0 7 5 0
- Recommended nose weight 7 0 7 0

Technical data
262
Engines1.6 litre Turbo e- HDi 115 h p2 litre Turbo HDi 15 0 hp
Gearbox Manual (6-speed) Electronic (6-speed) Manual ( 6 - s p e e d ) Manual (6-speed)
Model codes 9 H Z 9 H Z 9 H R RHE
- Unladen weight 1 4 8 1 1 4 8 2 1 4 8 1 1 5 7 2
- Kerb weight * 1 5 5 6 1 5 5 7 1 5 5 6 1 6 4 7
- Gross vehicle weight (GV W) ** 2 2 2 5 2 2 3 0 2 2 0 0 2 3 1 0
- Gross train weight (GTW) on a 12% gradient *** 3 1 2 0 3 1 7 0 3 4 7 5
- Braked trailer (within GTW limit) on a 10% or 12% gradient **** 8 9 5 8 9 0 9 7 0 1 1 6 5
- Braked trailer (with load transfer within the GTW limit) X X X X
- Unbraked trailer 7 5 0 7 5 0
- Recommended nose weight 7 0 7 0
* The kerb weight is equal to the unladen weight + driver (75 kg). ** Exceeding the maximum rear axle weight involves limiting the speed to 50 mph (80 km/h) as defined in point 2.7 of the Directive. *** Exceeding the gross vehicle weight when the vehicle is towing involves limiting the speed to 50 mph (80 km/h) as defined in point 2.7 of the Directive. **** Maximum braked trailer weight within the GTW limit; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1000 metres of altitude. High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
Diesel weights and towed loads (in kg) - commercial vehicles
