2014 PEUGEOT 5008 Owners Manual

4
Access87

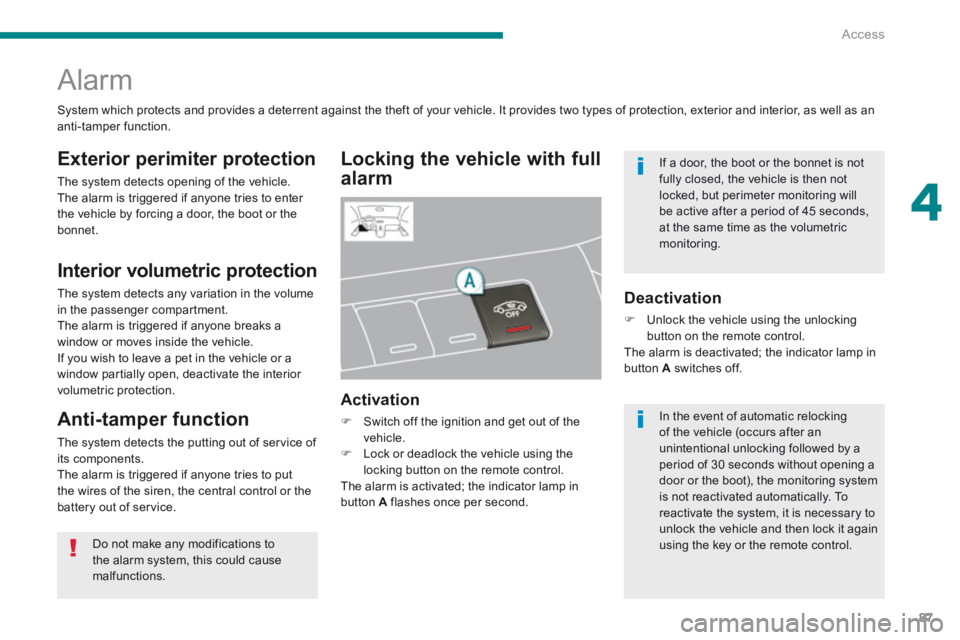

Alarm
Locking the vehicle with full
alarm
Exterior perimiter protection
The system detects opening of the vehicle. The alarm is triggered if anyone tries to enter the vehicle by forcing a door, the boot or the
bonnet.
Interior volumetric protection
The system detects any variation in the volume in the passenger compartment. The alarm is triggered if anyone breaks a window or moves inside the vehicle. If you wish to leave a pet in the vehicle or a window partially open, deactivate the interior volumetric protection.
Anti-tamper function
The system detects the putting out of service of its components. The alarm is triggered if anyone tries to put the wires of the siren, the central control or the battery out of service.
Activation
 Switch off the ignition and get out of the
vehicle.  Lock or deadlock the vehicle using the locking button on the remote control. The alarm is activated; the indicator lamp in button A flashes once per second.
System which protects and provides a deterrent against the theft of your vehicle. It provides two types of protection, exterior and interior, as well as an anti-tamper function.
Do not make any modifications to the alarm system, this could cause malfunctions.
If a door, the boot or the bonnet is not fully closed, the vehicle is then not locked, but perimeter monitoring will be active after a period of 45 seconds, at the same time as the volumetric monitoring.
In the event of automatic relocking
of the vehicle (occurs after an unintentional unlocking followed by a period of 30 seconds without opening a door or the boot), the monitoring system is not reactivated automatically. To reactivate the system, it is necessary to unlock the vehicle and then lock it again using the key or the remote control.
Deactivation
 Unlock the vehicle using the unlocking button on the remote control. The alarm is deactivated; the indicator lamp in button A switches off.

Access
88
Reactivation of the interior volumetric protection
 Unlock the vehicle using the unlocking button on the remote control.  Relock the vehicle using the remote control. The alarm is activated again with both types of protection; the indicator lamp in button Aswitches off.

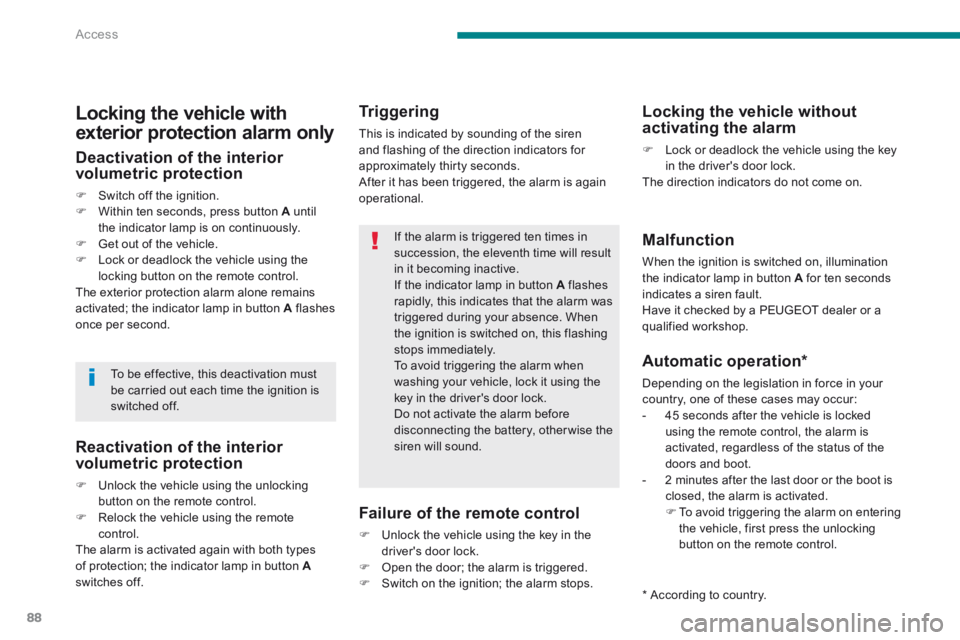

Locking the vehicle with
exterior protection alarm only
Deactivation of the interior volumetric protection
 Switch off the ignition.  Within ten seconds, press button A until the indicator lamp is on continuously.  Get out of the vehicle.  Lock or deadlock the vehicle using the locking button on the remote control. The exterior protection alarm alone remains activated; the indicator lamp in button A flashes once per second.
Triggering
This is indicated by sounding of the siren and flashing of the direction indicators for approximately thirty seconds. After it has been triggered, the alarm is again operational.
Failure of the remote control
 Unlock the vehicle using the key in the driver's door lock.  Open the door; the alarm is triggered.  Switch on the ignition; the alarm stops.
Malfunction
When the ignition is switched on, illumination the indicator lamp in button A for ten seconds indicates a siren fault. Have it checked by a PEUGEOT dealer or a qualified workshop.
Locking the vehicle without activating the alarm
 Lock or deadlock the vehicle using the key in the driver's door lock. The direction indicators do not come on.
Automatic operation *
Depending on the legislation in force in your country, one of these cases may occur: - 45 seconds after the vehicle is locked using the remote control, the alarm is activated, regardless of the status of the doors and boot. - 2 minutes after the last door or the boot is closed, the alarm is activated.  To avoid triggering the alarm on entering the vehicle, first press the unlocking button on the remote control.
To be effective, this deactivation must be carried out each time the ignition is switched off.
If the alarm is triggered ten times in succession, the eleventh time will result in it becoming inactive. If the indicator lamp in button A flashes rapidly, this indicates that the alarm was triggered during your absence. When
the ignition is switched on, this flashing stops immediately. To avoid triggering the alarm when washing your vehicle, lock it using the key in the driver's door lock. Do not activate the alarm before disconnecting the battery, otherwise the siren will sound.
* According to country.

4
Access89

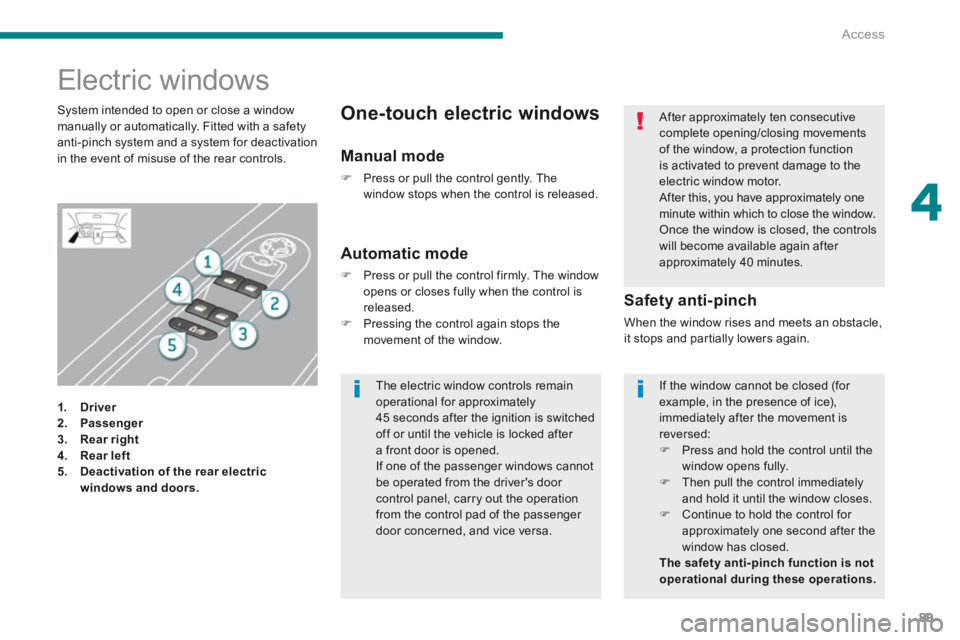

Electric windows
1. Driver2. Passenger3. Rear right4. Rear left5. Deactivation of the rear electric windows and doors.
Safety anti-pinch
When the window rises and meets an obstacle, it stops and partially lowers again.
Automatic mode
 Press or pull the control firmly. The window opens or closes fully when the control is released.  Pressing the control again stops the movement of the window.
One-touch electric windows System intended to open or close a window manually or automatically. Fitted with a safety anti-pinch system and a system for deactivation in the event of misuse of the rear controls. Manual mode
 Press or pull the control gently. The window stops when the control is released.
After approximately ten consecutive complete opening/closing movements of the window, a protection function is activated to prevent damage to the electric window motor. After this, you have approximately one minute within which to close the window. Once the window is closed, the controls will become available again after approximately 40 minutes.
If the window cannot be closed (for example, in the presence of ice), immediately after the movement is reversed:  Press and hold the control until the window opens fully.  Then pull the control immediately and hold it until the window closes.  Continue to hold the control for approximately one second after the window has closed. The safety anti-pinch function is not operational during these operations.
The electric window controls remain operational for approximately 45 seconds after the ignition is switched off or until the vehicle is locked after a front door is opened. If one of the passenger windows cannot be operated from the driver's door control panel, carry out the operation from the control pad of the passenger door concerned, and vice versa.

Access
90

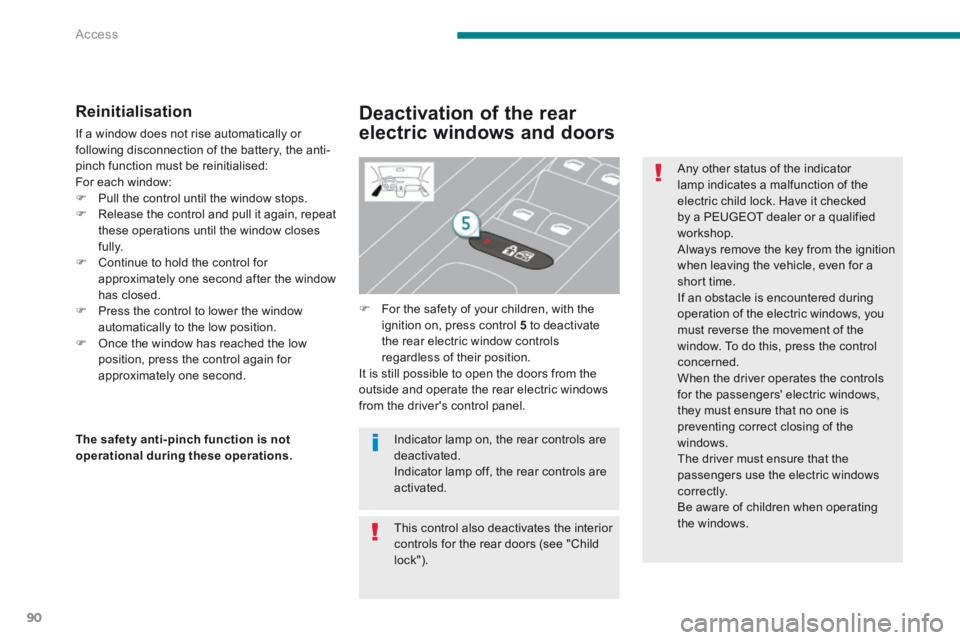

Reinitialisation
If a window does not rise automatically or following disconnection of the battery, the anti-pinch function must be reinitialised: For each window:  Pull the control until the window stops.  Release the control and pull it again, repeat these operations until the window closes fully.  Continue to hold the control for approximately one second after the window has closed.  Press the control to lower the window automatically to the low position.  Once the window has reached the low position, press the control again for approximately one second.
Deactivation of the rear
electric windows and doors
 For the safety of your children, with the ignition on, press control 5 to deactivate the rear electric window controls regardless of their position. It is still possible to open the doors from the outside and operate the rear electric windows from the driver's control panel.
The safety anti-pinch function is not operational during these operations.
This control also deactivates the interior controls for the rear doors (see "Child lock").
Indicator lamp on, the rear controls are deactivated. Indicator lamp off, the rear controls are activated.
Any other status of the indicator lamp indicates a malfunction of the electric child lock. Have it checked by a PEUGEOT dealer or a qualified workshop. Always remove the key from the ignition when leaving the vehicle, even for a short time. If an obstacle is encountered during operation of the electric windows, you must reverse the movement of the window. To do this, press the control concerned. When the driver operates the controls for the passengers' electric windows, they must ensure that no one is preventing correct closing of the
windows. The driver must ensure that the passengers use the electric windows c o r r e c t l y. Be aware of children when operating the windows.

4
Access91

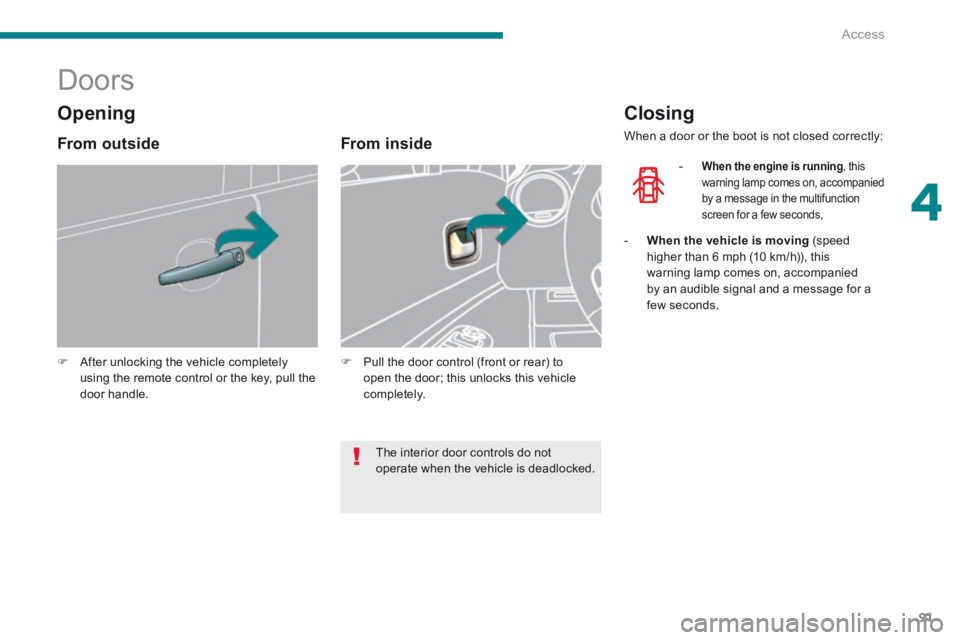

Doors
 After unlocking the vehicle completely using the remote control or the key, pull the door handle.
From inside
 Pull the door control (front or rear) to open the door; this unlocks this vehicle completely.
Closing
When a door or the boot is not closed correctly:
- When the engine is running , this warning lamp comes on, accompanied by a message in the multifunction screen for a few seconds,
Opening
From outside
- When the vehicle is moving (speed higher than 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and a message for a few seconds.
The interior door controls do not operate when the vehicle is deadlocked.

Access
92
A confirmation message is displayed, accompanied by an audible signal.
Centralised locking control
System which provides full manuallocking or unlocking of the doors from the inside.
Locking
 Press this button to lock the vehicle. The red indicator lamp in the button comes on.
Automatic central locking
Unlocking
 Press this button again to unlock the vehicle. The red indicator lamp in the button goes off.
When locking/deadlocking from the outside
When the vehicle is locked or deadlocked from the outside, the red indicator lamp flashes and the button is inactive.  After normal locking, pull the interior door lever to unlock the vehicle.  After deadlocking, it is necessary to use the remote control or the key to unlock the vehicle.
If one of the doors is open, the central locking from the inside does not take
place.
 Press this button for more than two seconds.
Activation
System which provides full automatic locking or unlocking of the doors and boot while driving. You can activate or deactivate this function.

4
Access93

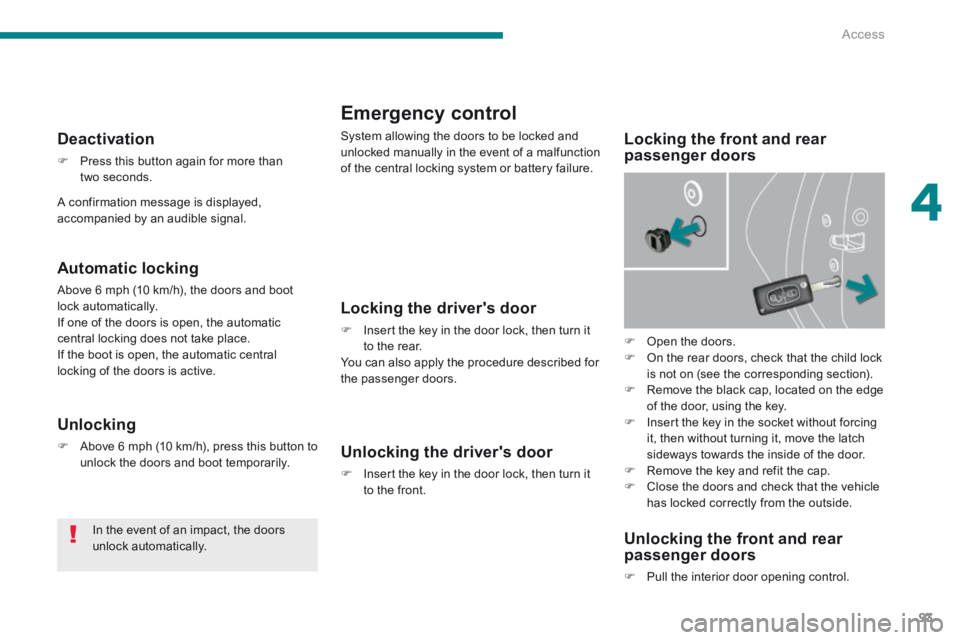

Emergency control
System allowing the doors to be locked and unlocked manually in the event of a malfunction of the central locking system or battery failure.
Locking the front and rear passenger doors
Locking the driver's door
 Insert the key in the door lock, then turn it to the rear. You can also apply the procedure described for the passenger doors.
Unlocking the driver's door
 Insert the key in the door lock, then turn it to the front.
Unlocking the front and rear passenger doors
 Pull the interior door opening control.
Automatic locking
Above 6 mph (10 km/h), the doors and boot lock automatically. If one of the doors is open, the automatic central locking does not take place. If the boot is open, the automatic central locking of the doors is active.
Deactivation
 Press this button again for more than two seconds.
Unlocking
 Above 6 mph (10 km/h), press this button to unlock the doors and boot temporarily.
In the event of an impact, the doors unlock automatically.
 Open the doors.  On the rear doors, check that the child lock is not on (see the corresponding section).  Remove the black cap, located on the edge of the door, using the key.  Insert the key in the socket without forcing it, then without turning it, move the latch sideways towards the inside of the door.  Remove the key and refit the cap.  Close the doors and check that the vehicle has locked correctly from the outside.
A confirmation message is displayed, accompanied by an audible signal.

Access
94

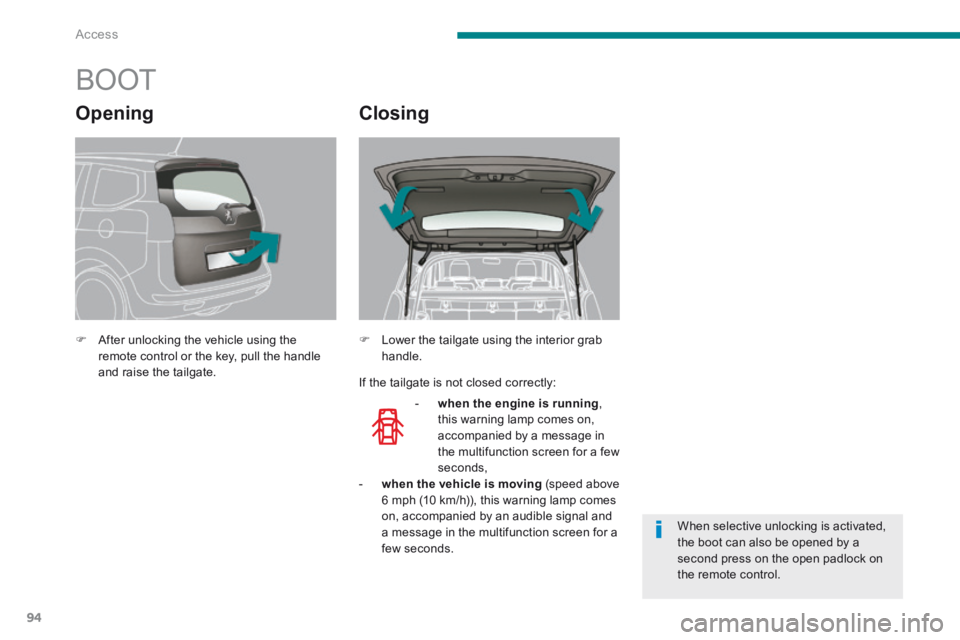

BOOT
 After unlocking the vehicle using the remote control or the key, pull the handle and raise the tailgate.
- when the engine is running , this warning lamp comes on, accompanied by a message in the multifunction screen for a few seconds, - when the vehicle is moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and a message in the multifunction screen for a few seconds.
 Lower the tailgate using the interior grab handle.
When selective unlocking is activated, the boot can also be opened by a second press on the open padlock on the remote control.
Opening Closing
If the tailgate is not closed correctly:
